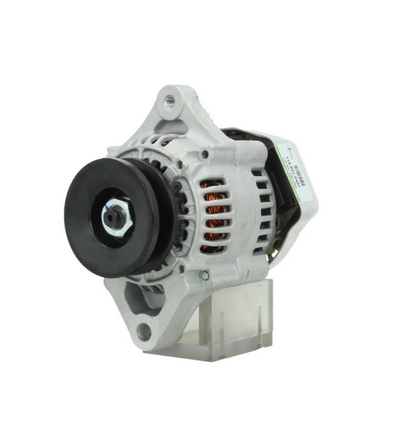

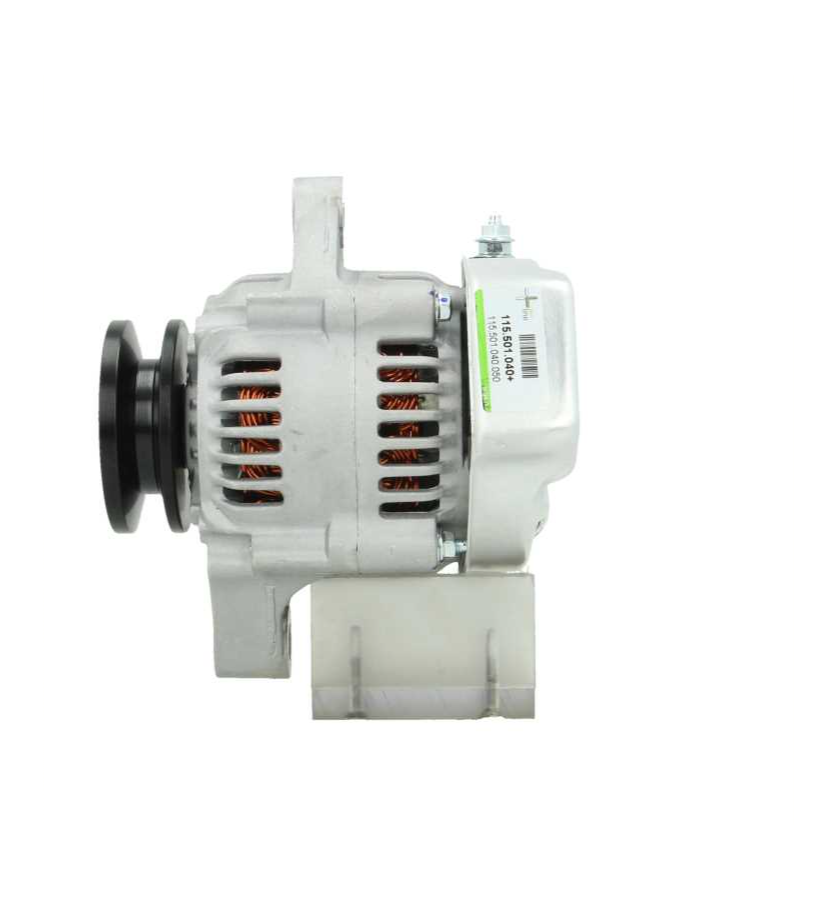

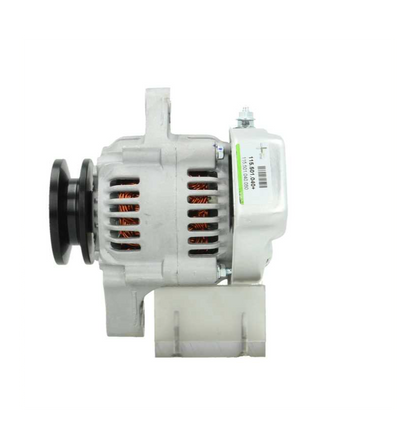

Alternator Gehl SL4625SX Kubota R410 Loader 12V 45A Denso 100211-6880 16771-64012
Alternator Gehl SL4625SX Kubota R410 Loader 12V 45A Denso 100211-6880 16771-64012
SKU:400-52090
Free shipping over £150. Terms apply
Couldn't load pickup availability

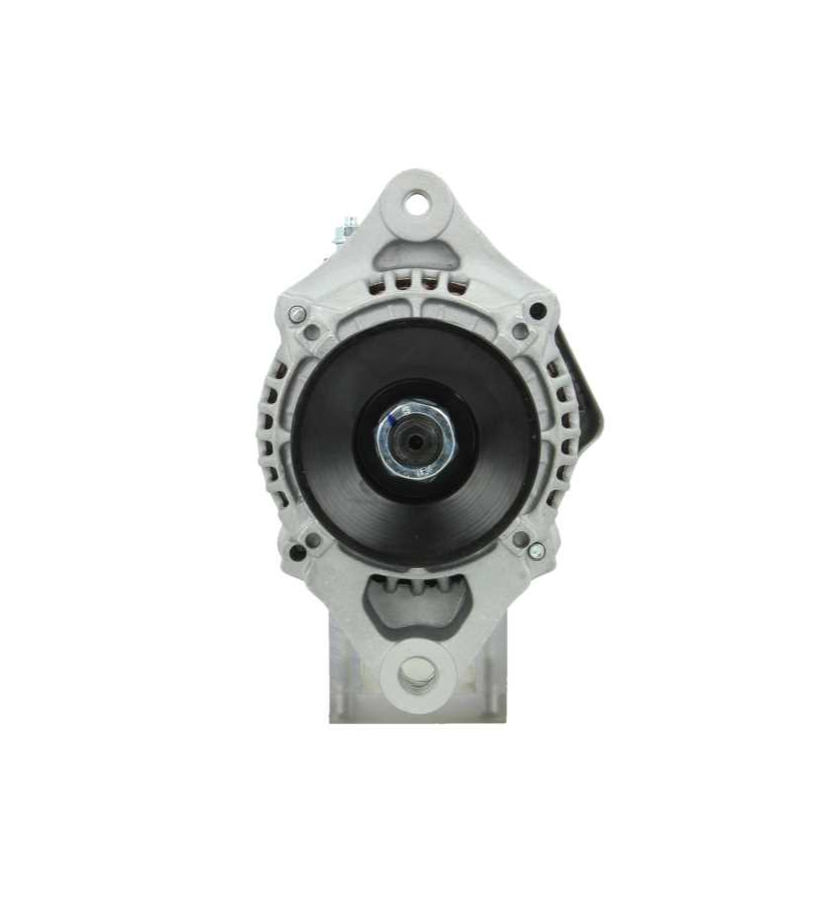

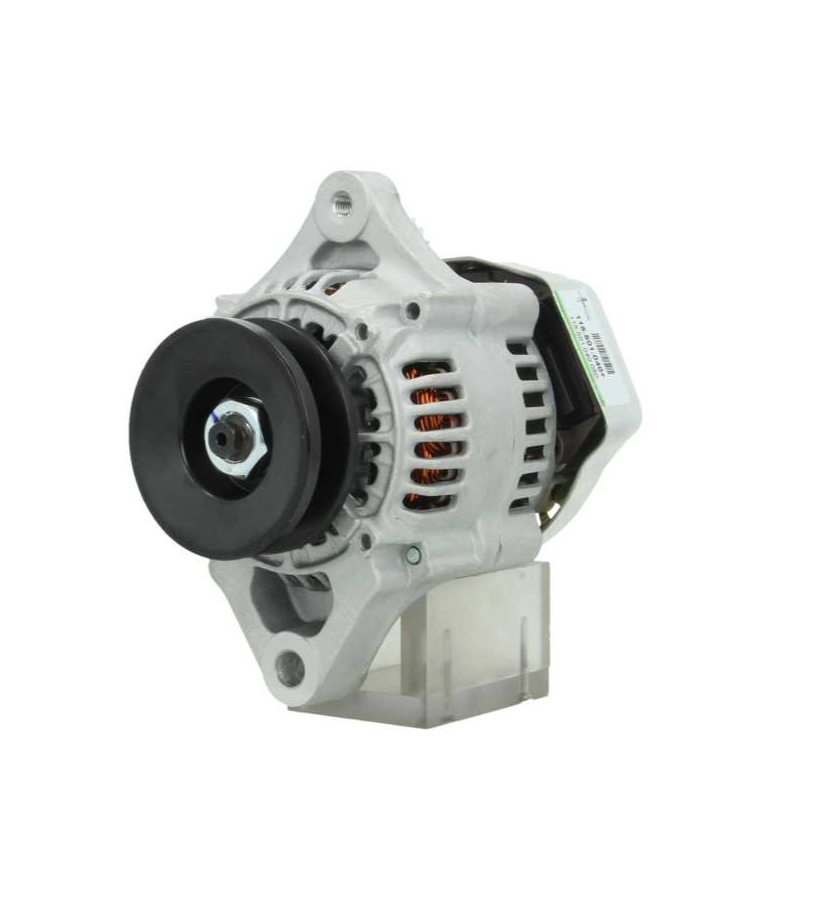

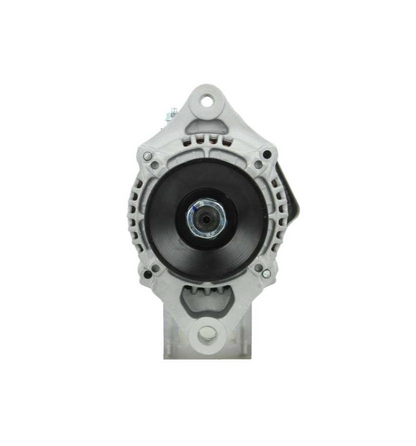

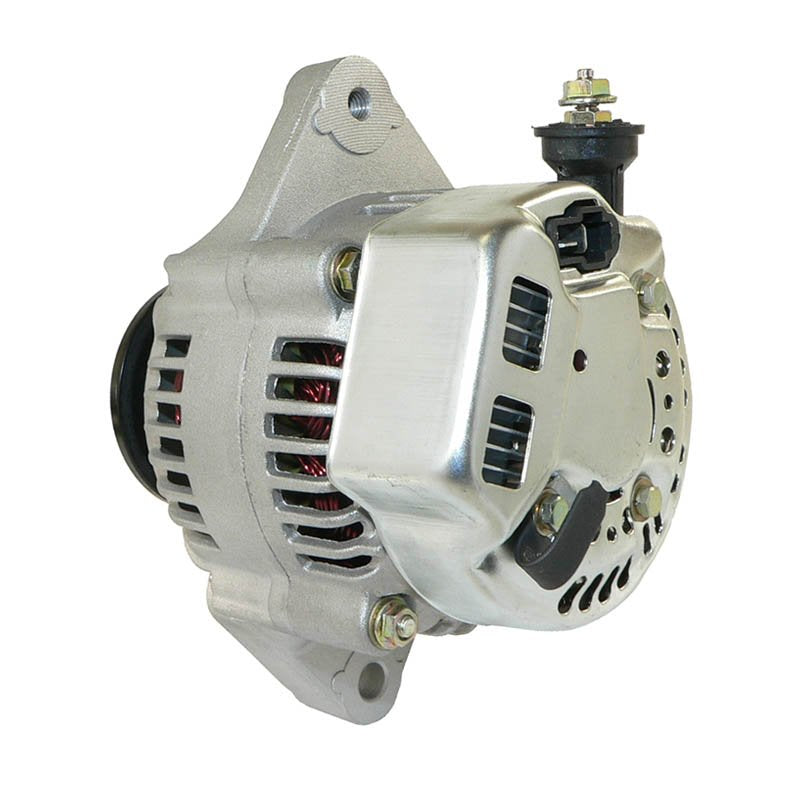

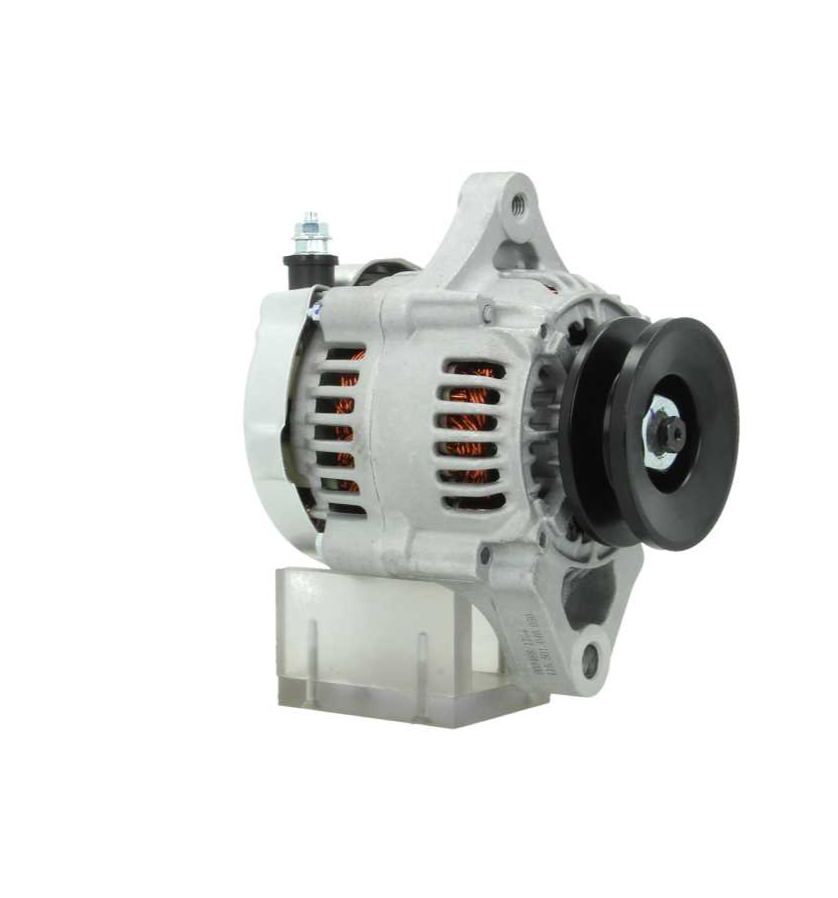

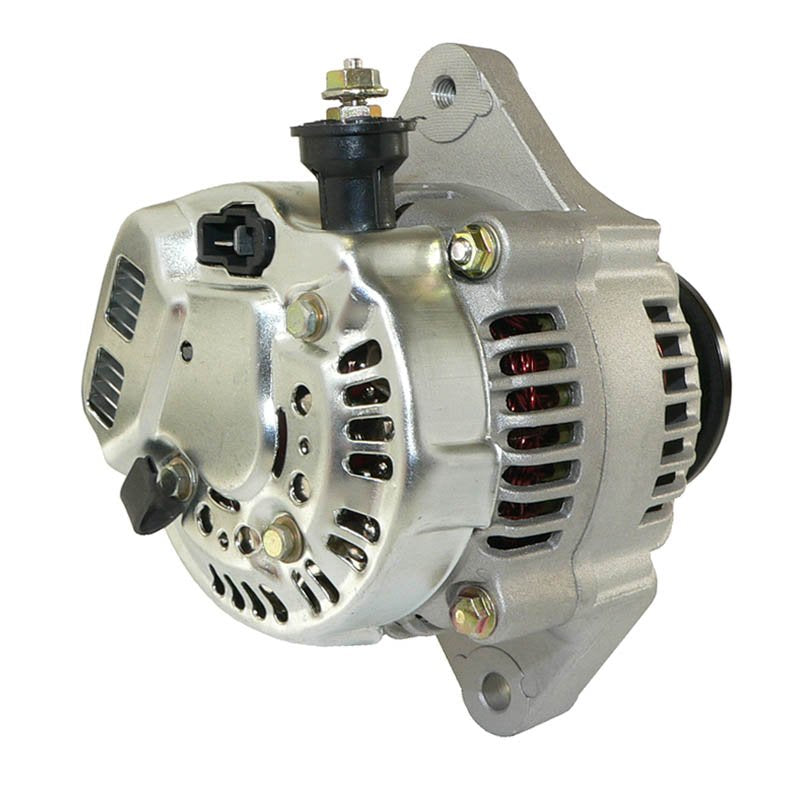

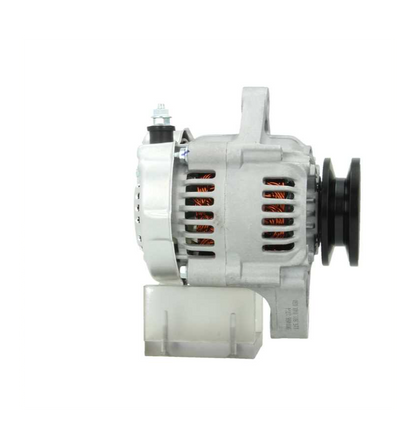

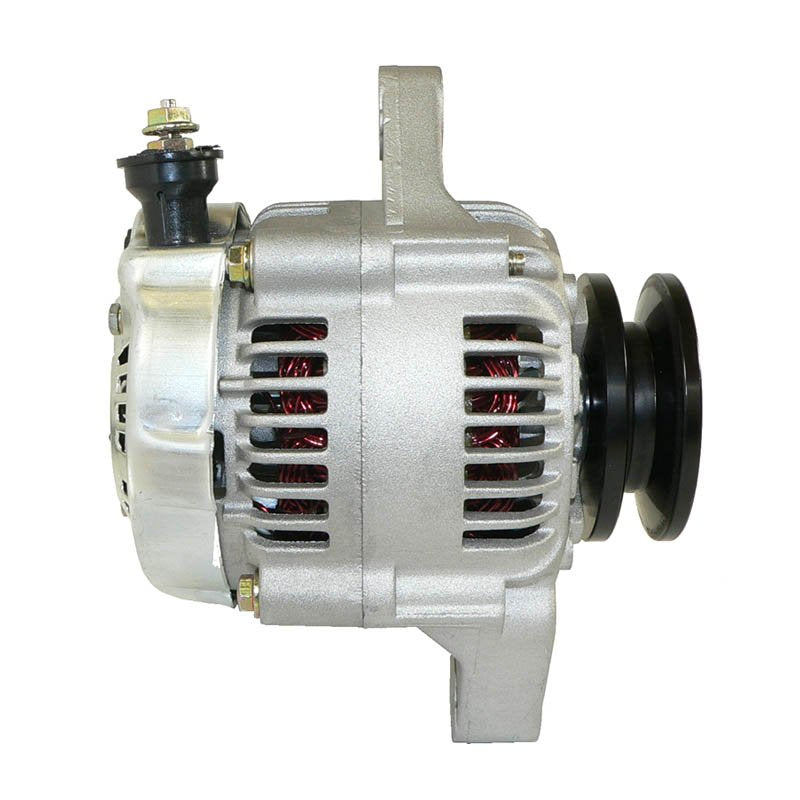

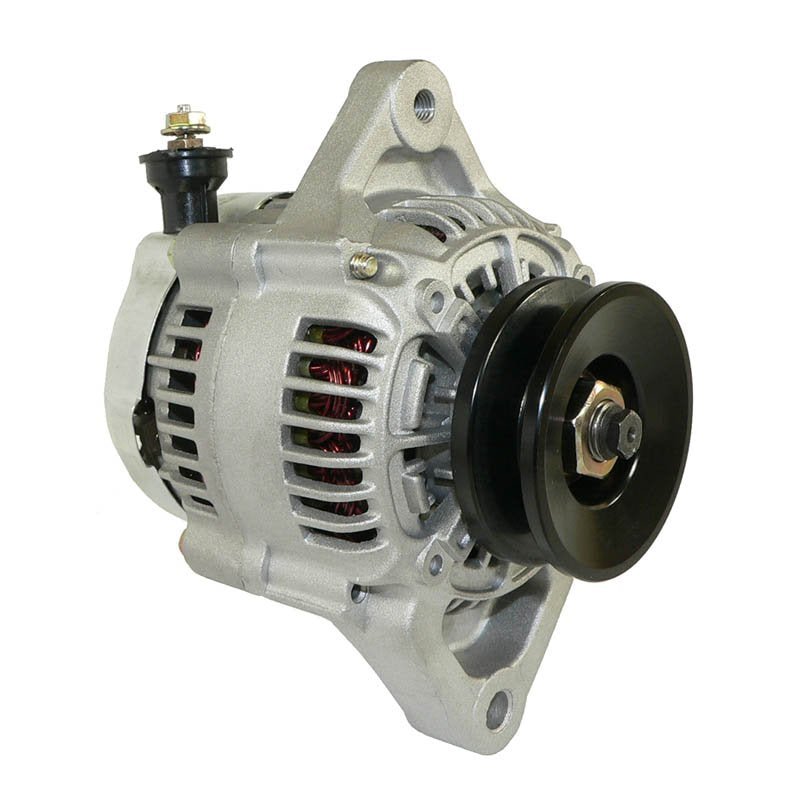

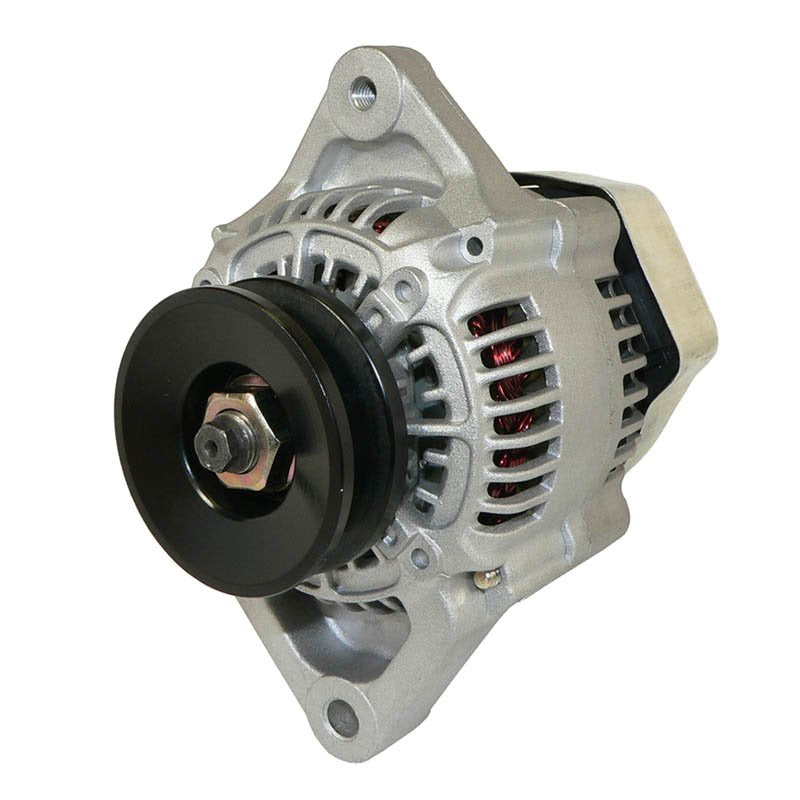

Gehl / Kubota Alternator
Fits Gehl SL4625SX & Kubota Loaders (45 Amp)
Keep your compact construction equipment running efficiently with this high-quality replacement **Alternator**. Designed specifically for **Gehl Skid Steers** and **Kubota Wheel Loaders**, this unit ensures reliable charging for machines powered by Kubota V2203, V1902, and F2402 engines.
This **Denso Style** alternator is a direct fit replacement. It features an **Internal Regulator (IR)** and **Internal Fan (IF)** for compact durability. It comes ready to install with a **Single Groove (V1) Pulley**.
Key Features
- ✔ Denso Style: Reliable IR/IF design.
- ✔ Direct Replacement: Fits Kubota & Gehl mounts.
- ✔ Includes Pulley: V1 Single Groove (69mm).
- ✔ T-Plug: Standard IG-L connector.
Technical Specs
| Voltage: | 12 Volts |
| Amperage: | 45 Amps |
| Rotation: | CW (Clockwise) |
| Pulley: | V1 (69mm OD) |
| Fan Type: | Internal (IF) |
| SKU Reference: | 400-52090 |
Vehicle Fitment Guide
| Make | Equipment | Engine |
|---|---|---|
| Gehl | SL4625SX Skid Steer | Kubota V2203 |
| Kubota | R410 / R410B Loaders | Kubota V1902 |
| Kubota | L4350 / L4850 / L5450 | V2203 / F2503 |
| Scat Trak | 1300C Loader | Kubota V2203 |
OEM Part Number Cross Reference
| Kubota | 16771-64010, 16771-64012, 1677164012 |
| Denso | 100211-6880, 100211-6881, 9760218-688 |
| Lucas | LRA01988 |
| Arrowhead | ND100211-6881 |
Frequently Asked Questions
Does this have the 8mm or 10mm mounting hole?
This specific alternator (400-52090) features an **8mm unthreaded** bottom mounting hole. If your unit has a 10mm hole, you may need part number 494910.
What is the pulley size?
It comes with a **69mm OD** single groove pulley. Note that some applications use a 63mm pulley; please check yours.
What plug does it use?

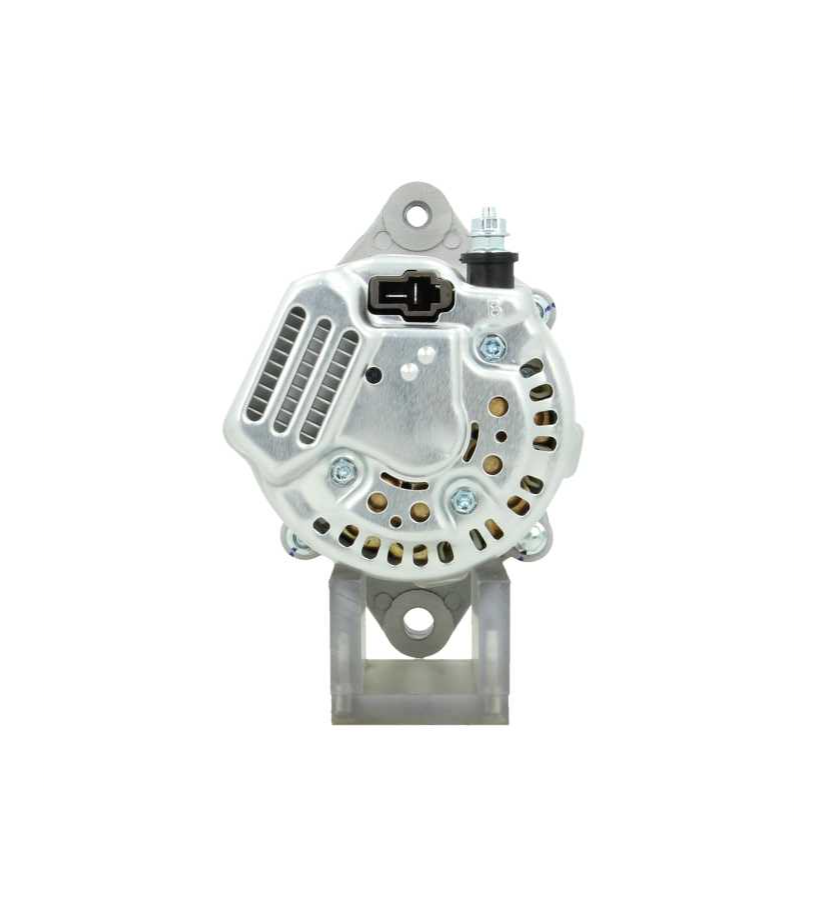

It uses a **T-Shaped Plug** with IG (Ignition) and L (Lamp) terminals.
Note: Please measure your mounting hole diameter before purchasing.
