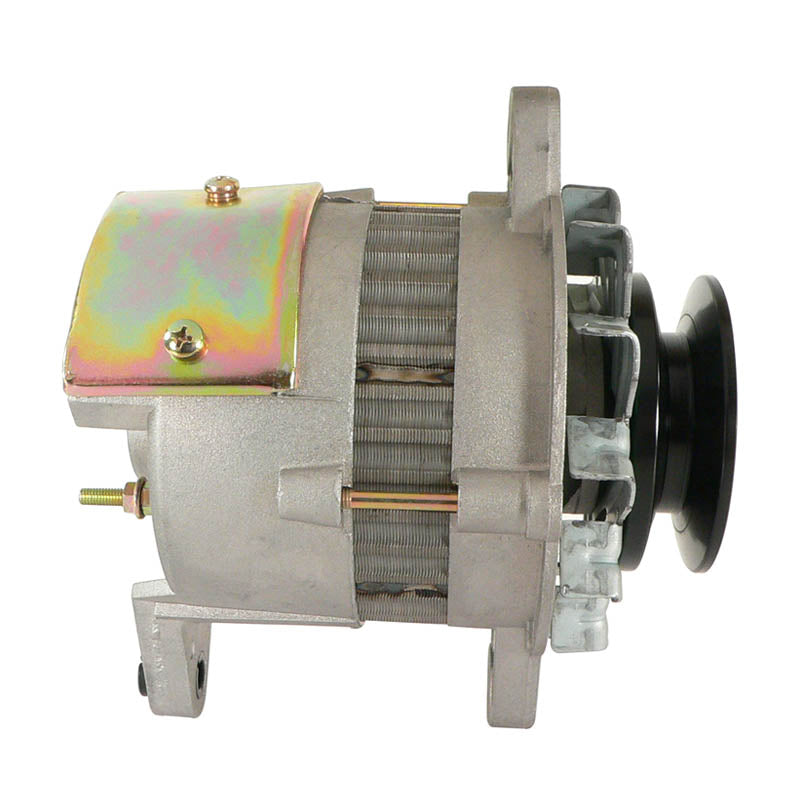

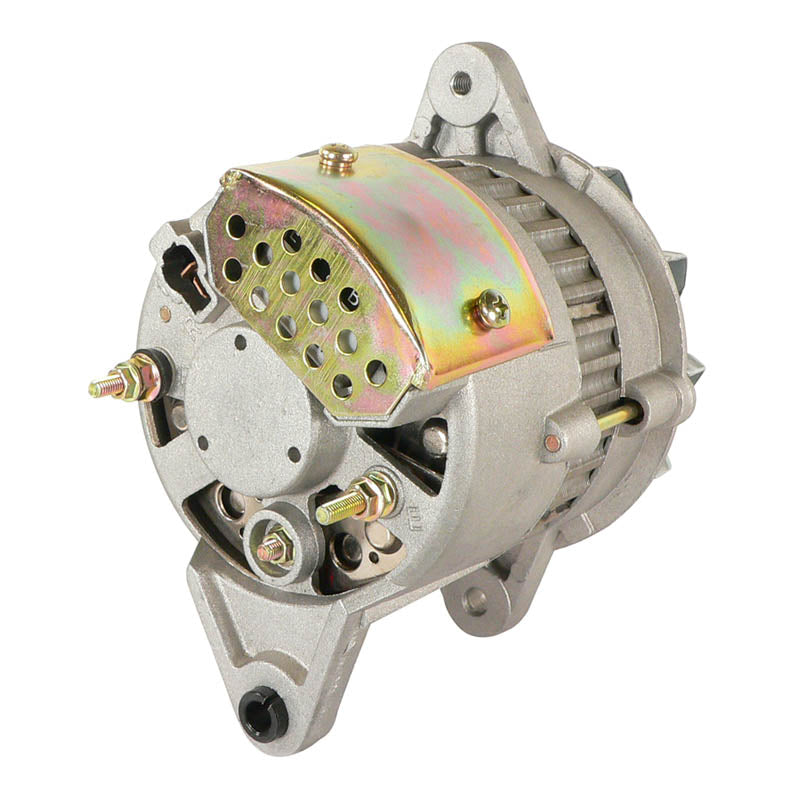

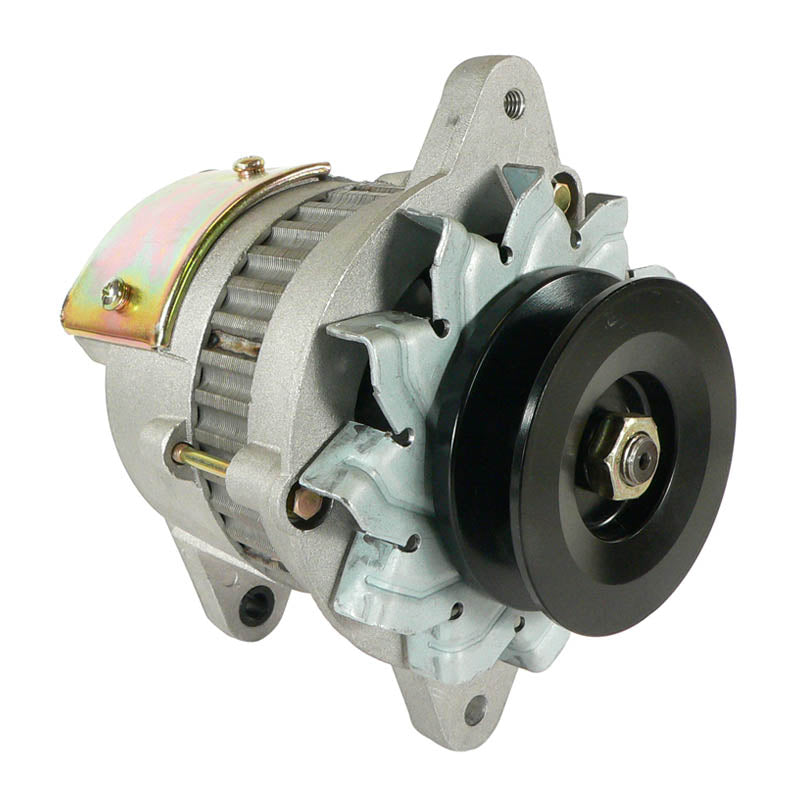

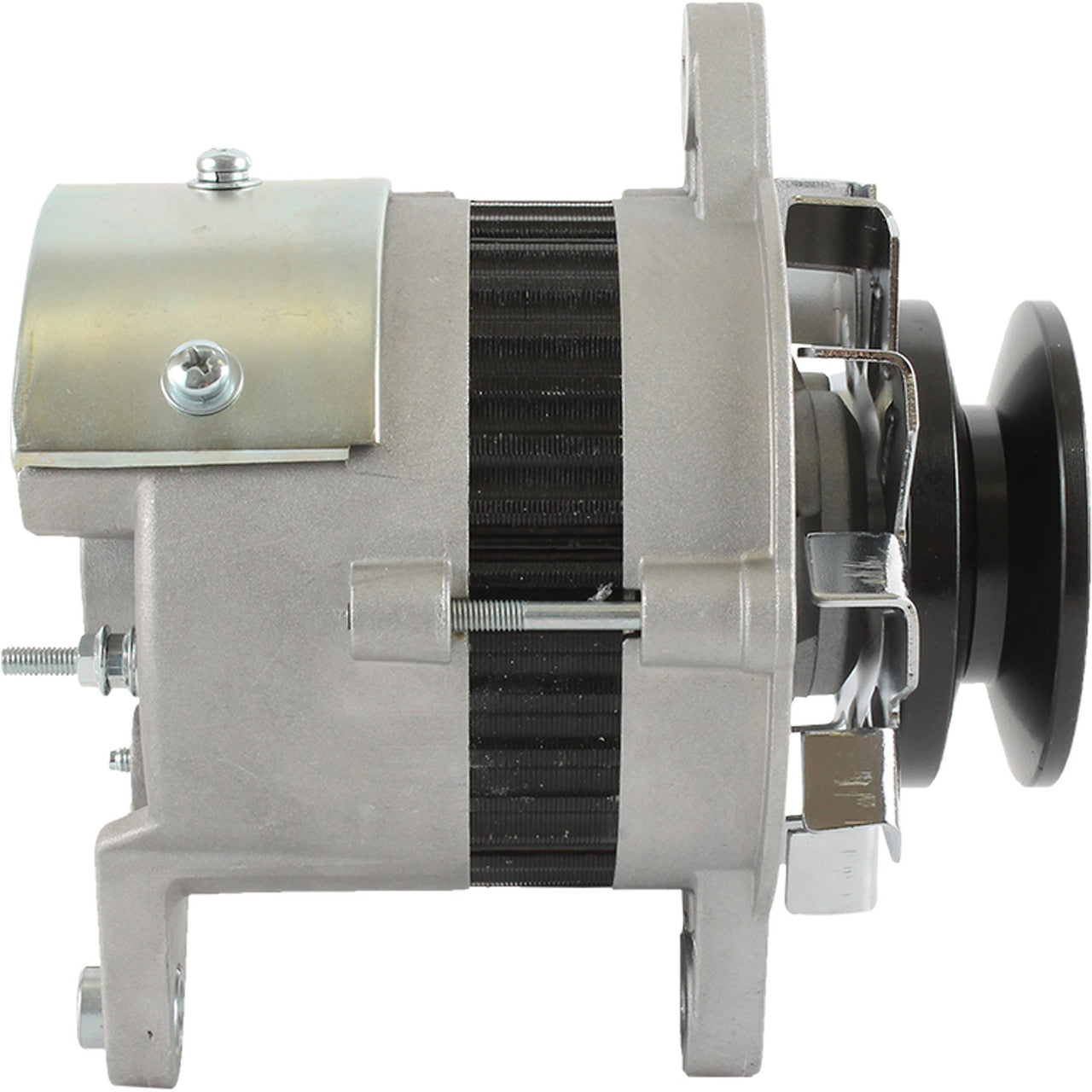

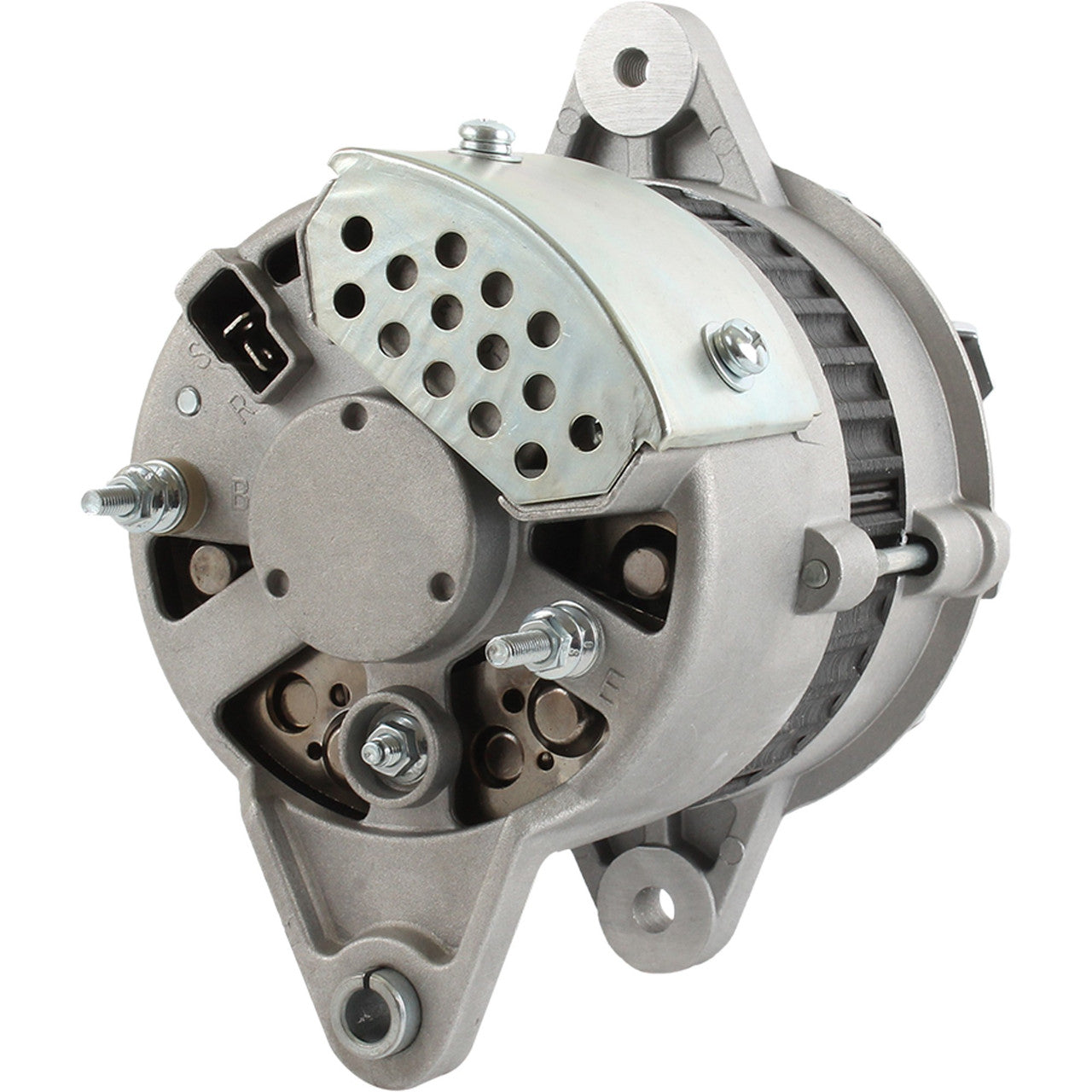

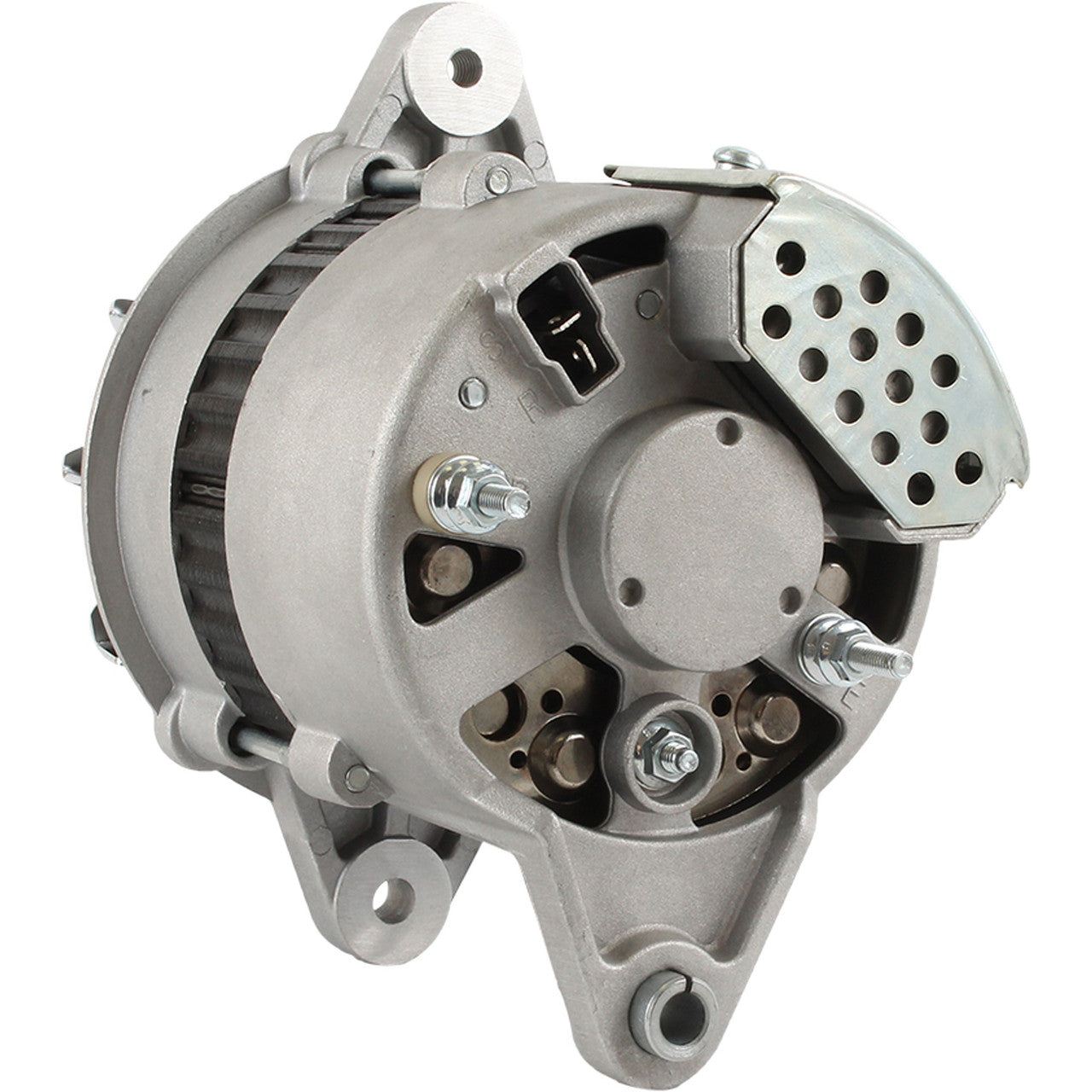

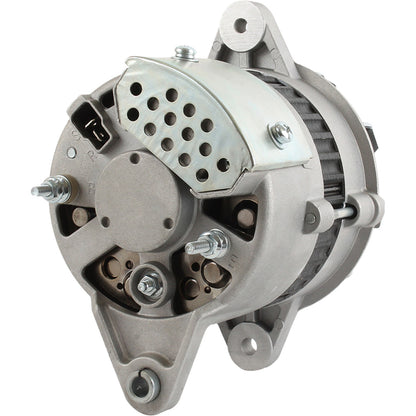

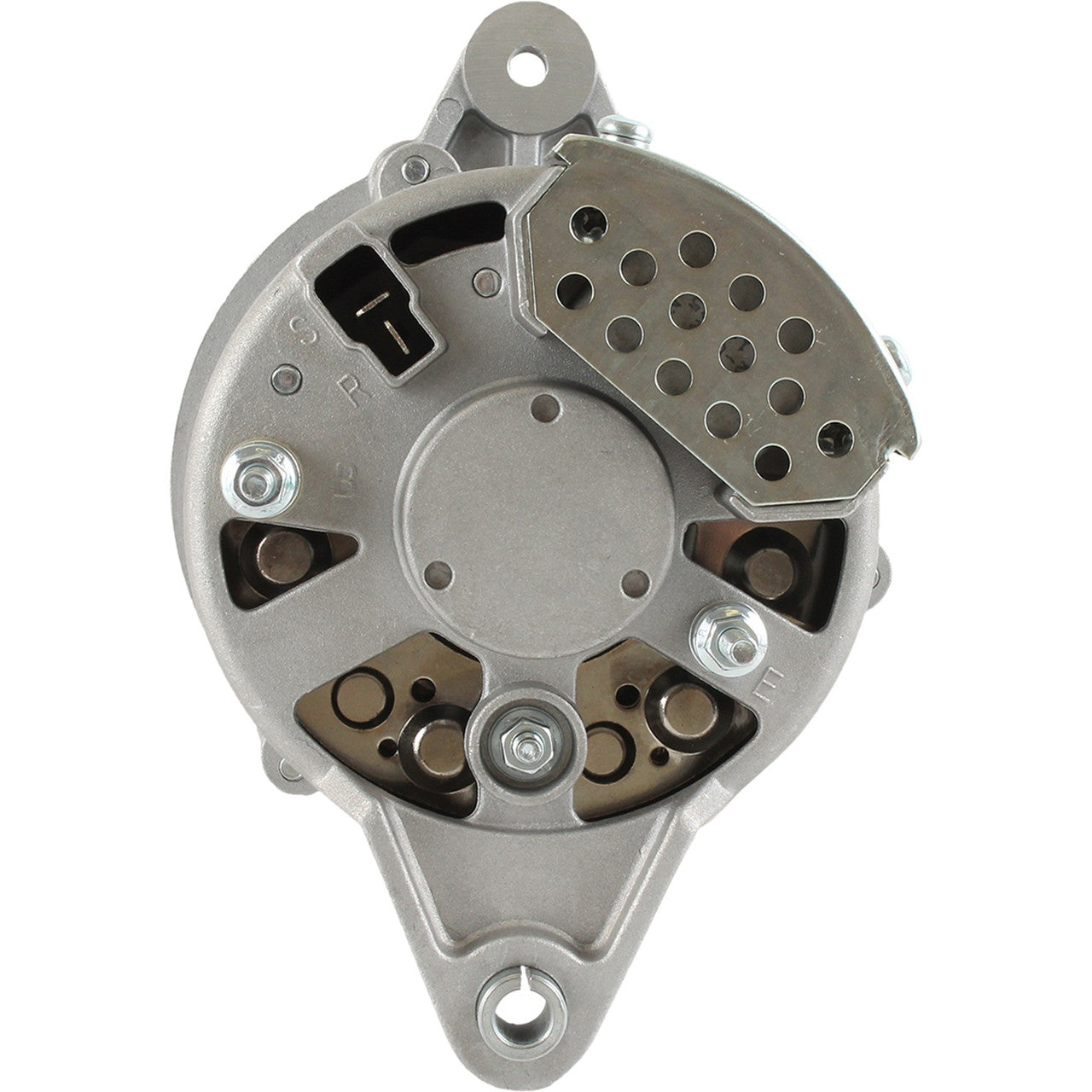

Keep your Link-Belt running with this 20 Amp 24V replacement alternator. Designed as a direct-fit replacement for the excavator listed below, it delivers reliable charging for standard and accessory electrical loads.

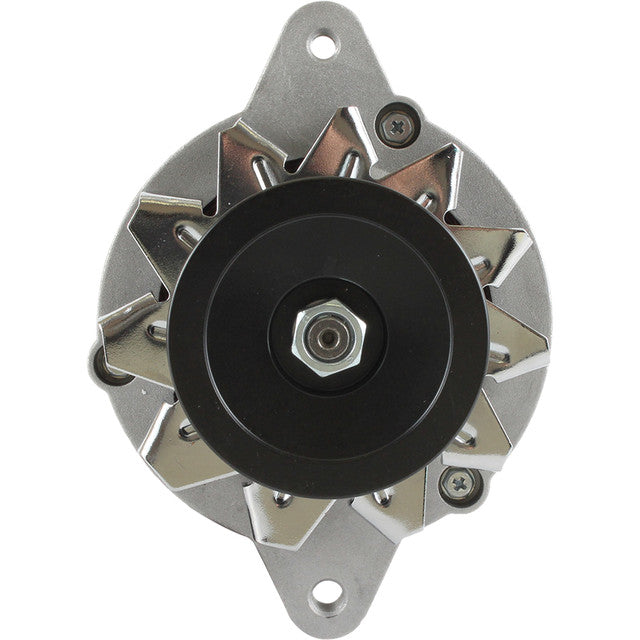

This unit features an external fan (EF) and an internal regulator (IR), and is supplied with a V1 pulley already fitted.
DIRECT FIT: Replaces Arrowhead ANK0008 — no modification required on the machines listed below.
Key Features
✔High Capacity: 20 Amps of charging output.
✔Direct Replacement: Replaces Arrowhead ANK0008.

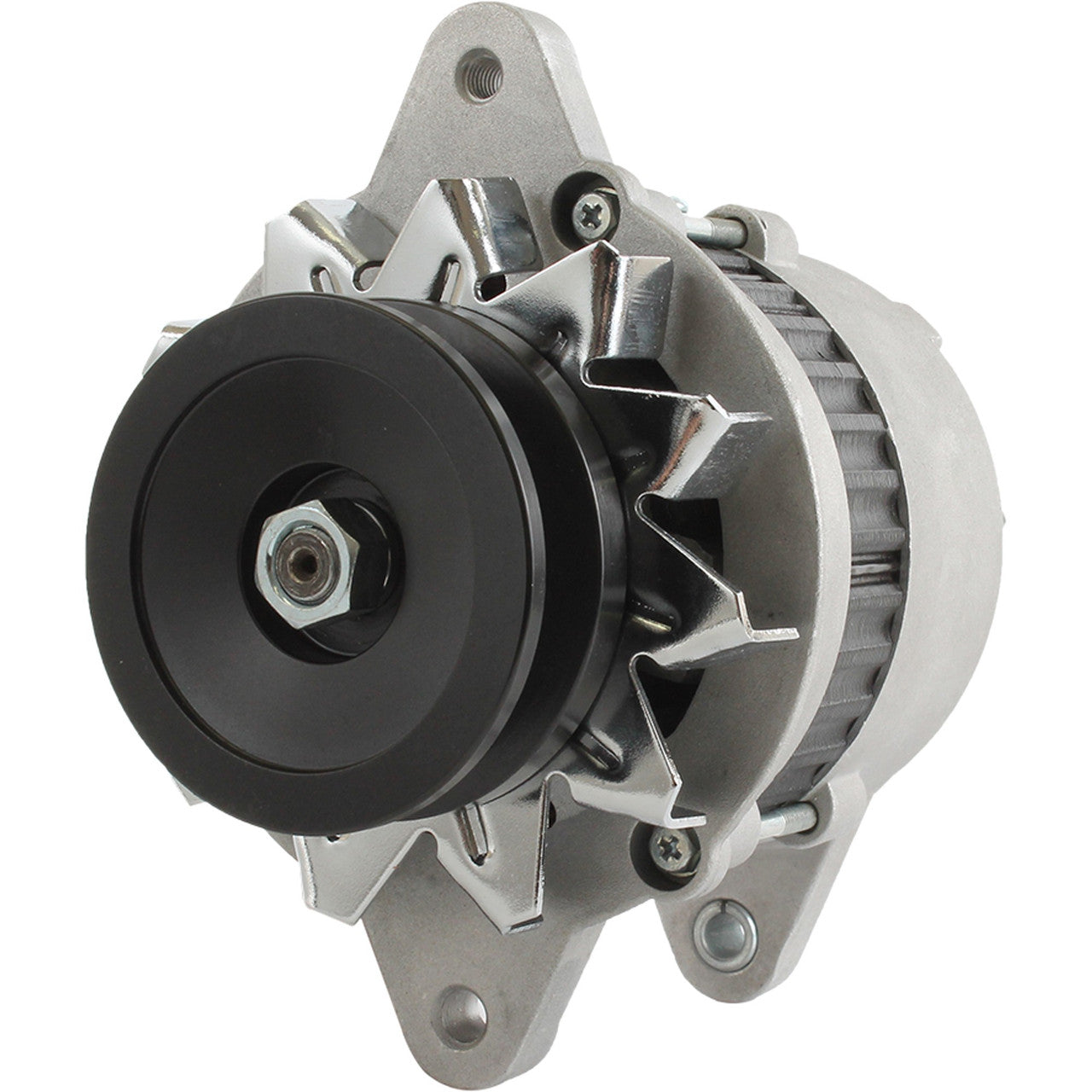

✔Pulley Fitted: V1 pulley installed and ready to fit.
✔Robust Design: EF fan. IR regulator.
✔Quality Assured: New aftermarket unit, 12 month warranty.
Technical Specs
Voltage:
24 Volts
Amperage:
20 Amps
Rotation:
CW (Clockwise)
Pulley:
V1 (Single Groove)
Regulator:
Internal (IR)
Fan Type:
External (EF)
SKU Reference:
400-50002
Vehicle Fitment Guide
Make
Equipment Type
Models
Years
Link-Belt
Excavator
LS1600
1996
OEM Part Number Cross Reference
Arrowhead
ANK0008, 400-50002, NK0-33000-5670
Cargo
113212
Isuzu
8944047900, 8944047902, 8944620570
J&N Electrical Products
400-50002
Lester
12243
Nikko
0-33000-5670, 0-33000-6250
Frequently Asked Questions
Will this fit my Link-Belt LS1600?
Yes — the LS1600 appears in the fitment guide above. Check your existing part number against the cross reference table to confirm.
Is this a 20 Amp alternator?
Yes, this is a 20 Amp 24V unit with an IR regulator.
Is the pulley included?
Yes, a V1 pulley is pre-installed.
Is this new or remanufactured?
This is a brand new aftermarket unit — not a remanufactured core.
Note: Please verify your machine's serial number or existing part number to ensure compatibility. Fast shipping available across the UK and Europe.
