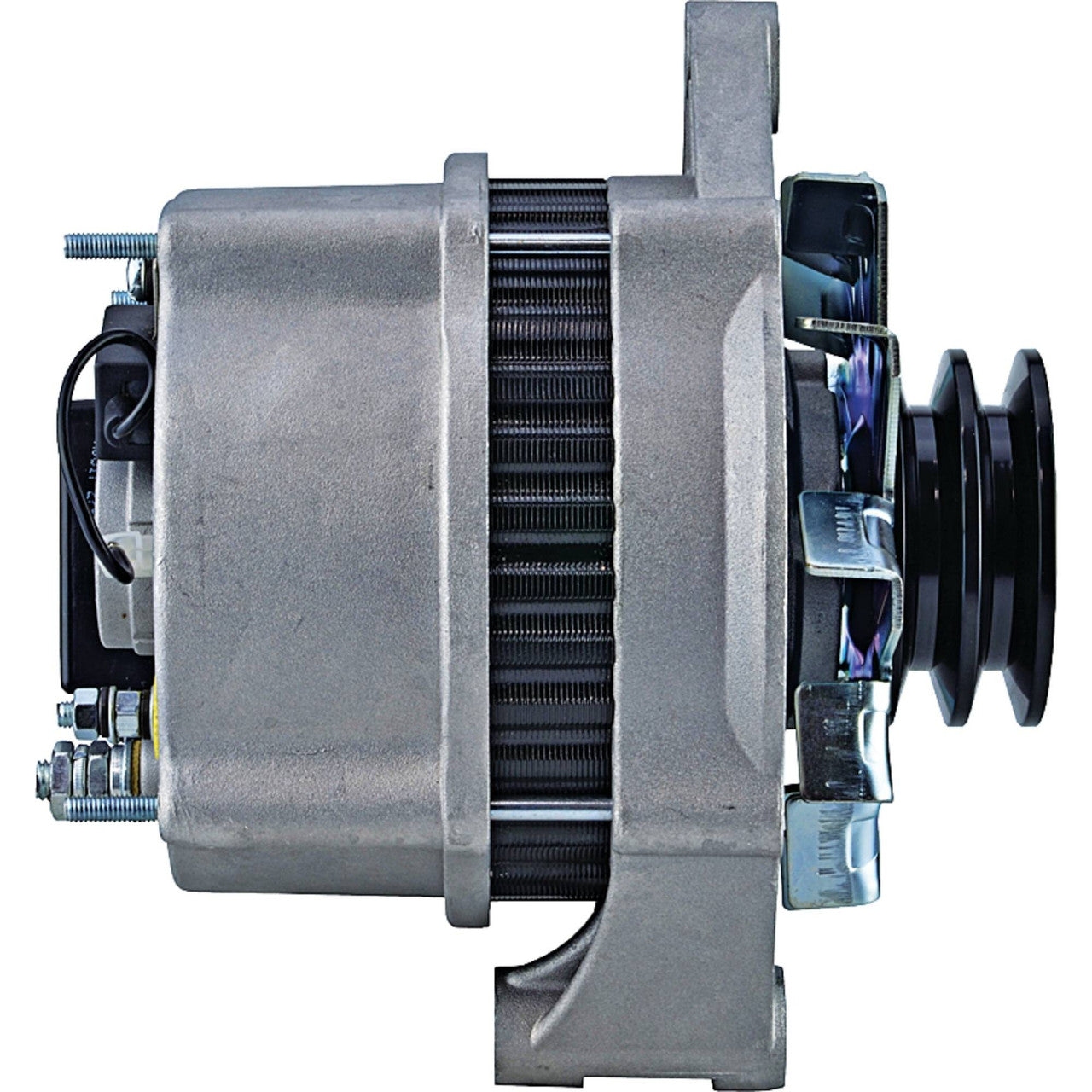

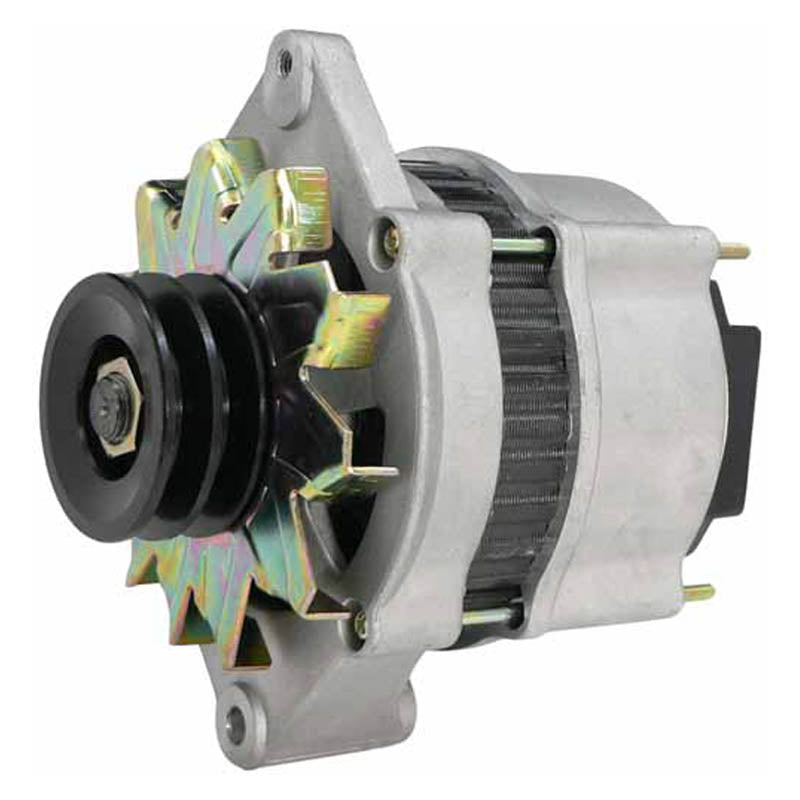

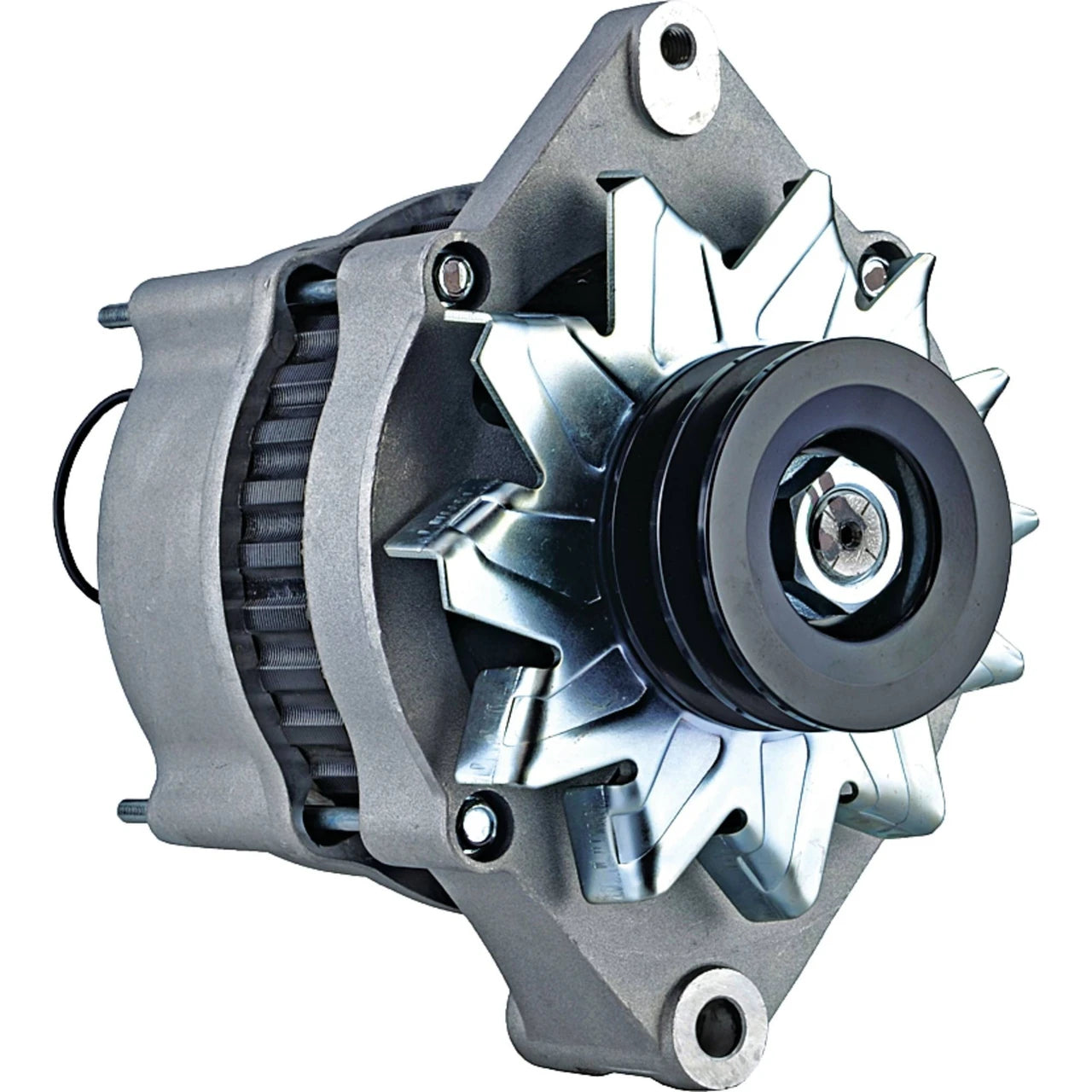

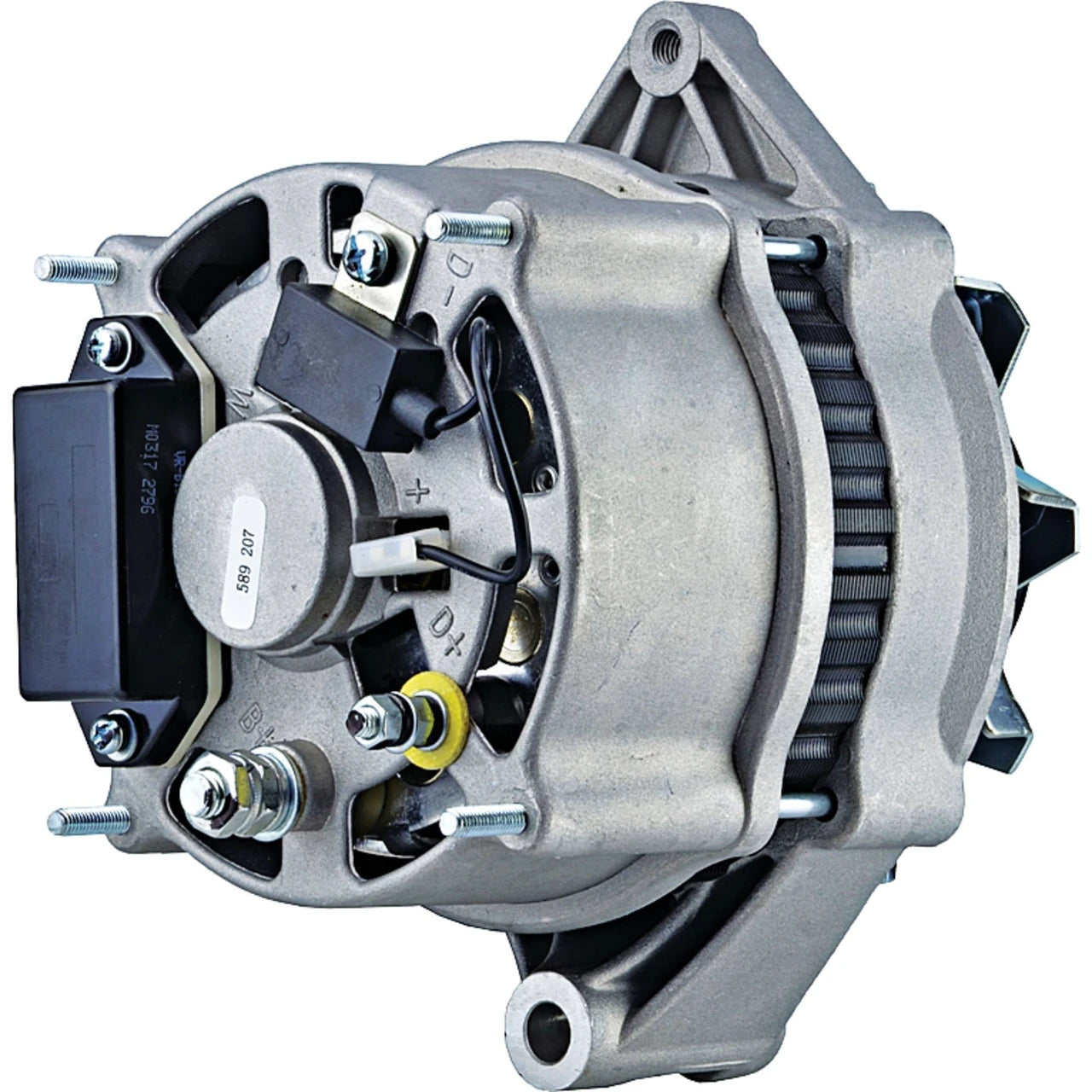

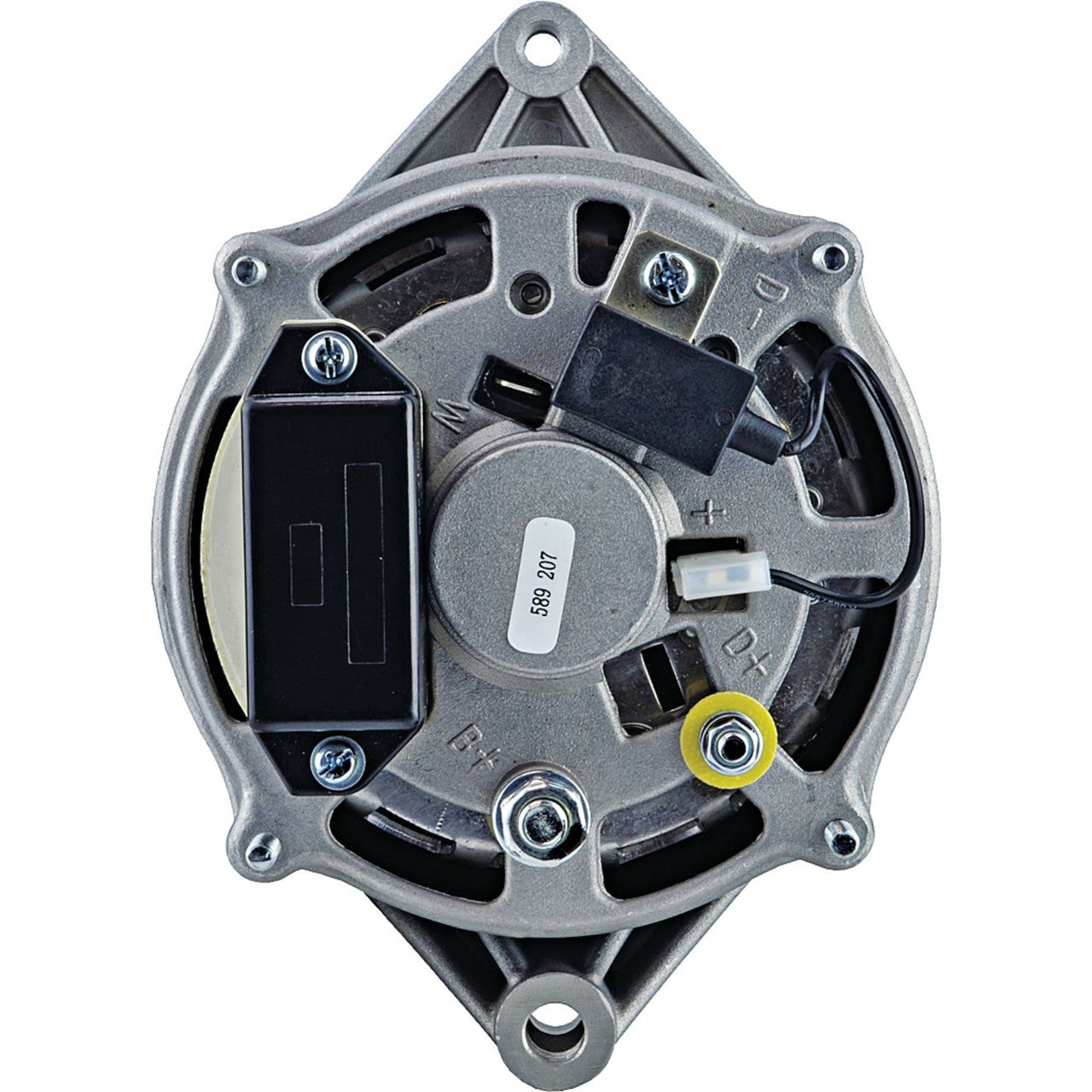

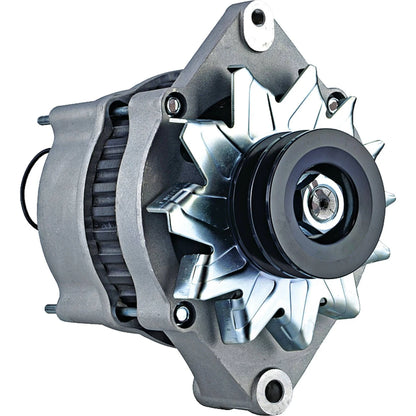

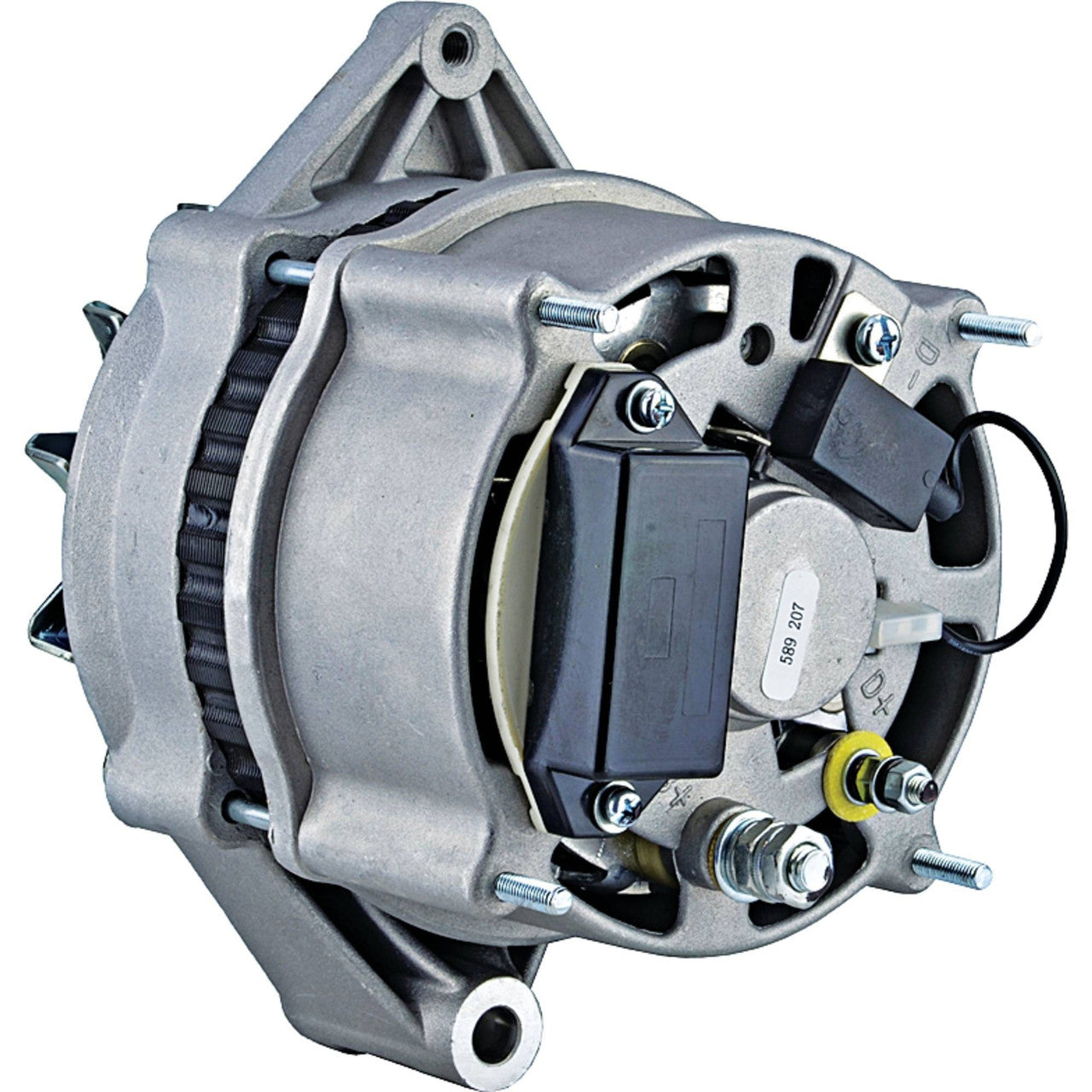

Alternator for John Deere - 12-Volt 95 Amp, 2-V Pulley
Alternator for John Deere - 12-Volt 95 Amp, 2-V Pulley
SKU:400-24186
Free shipping over £150. Terms apply
Couldn't load pickup availability
Alternator for John Deere
12-Volt 95 Amp Alternator, 2-V Pulley
This 12-volt, 95-amp alternator is built to OEM specifications for John Deere equipment fitted with a 2-groove V pulley, including John Deere marine diesel engines and backhoe loaders. It uses an internally regulated, externally fanned (IR/EF) design, matching the factory-fitted unit.
The unit has a 51mm bottom mount and threaded top ear, matching the original alternator, so it bolts straight in as a fit-and-function replacement. A wide range of OEM and cross-brand part numbers are listed below - check yours against the number on your original unit before ordering.
Key Features
- 12-Volt, 95-Amp output rating
- Internally regulated, externally fanned (IR/EF)
- 2-groove V pulley, 67.2mm OD
- 51mm bottom mount, threaded top ear
- Wide OEM cross-reference coverage
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 95A |
| Rotation | Clockwise (CW) |
| Regulator | Internally Regulated (IR) |
| Fan Type | Externally Fanned (EF) |
| Pulley Type | 2-V (2-groove), 67.2mm OD |
| Bottom Mount | 51mm, threaded top ear (M8-1.25) |
| Terminals | B+ M8-1.25, D+ M5-0.8, W stud with spade connector |
| Weight | 13.00 lbs |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| John Deere 4045DFM70 Marine Engine (4.5L 4-cyl) | 2004-2007 |
| John Deere 6068TFM75/76 Marine Engine (6.8L 6-cyl) | 2004-2007 |
| John Deere 4435 Combine (Diesel) | 1994 |
| Chevrolet C50 Medium-Heavy Truck (5.7L V8) | 1990 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0-120-484-011 / 0-120-484-018 / 0-120-484-026 / 0-986-043-417 | Bosch |
| 9120060041 / AL9909X / AL9942X / AL9971N / AL9971X / BXU1296 | Bosch |
| 162000090295 / 2852185 / 504060771 / 87745604 | Case IH |
| 86546257 | Ford/New Holland |
| 7026922 | JLG |
| AH137883 / AT175194 / AT220394 / RE36267 / RE505895 / SE501342 / TY24485 / TY6750 | John Deere |
| 12145 / 12159 | Lester |
| IA 1348 / AAK4307 | Letrika/Iskra |
| IA1348 / MG233 | Mahle |
| 8M6007484 | Mercury Marine |
Frequently Asked Questions
Will this fit without modification?
Yes, it uses the same 2-V pulley, 51mm bottom mount and threaded top ear as the original John Deere alternator.
What's included?
One complete 12-volt, 95-amp alternator with pulley fitted, ready to install.
How do I know my old alternator has failed?
Look for a charge warning light that stays on, dimming lights, a battery that won't hold charge, or a whining noise from the unit.
How do I confirm this matches my machine?
Cross-check the OEM number on your original alternator against the part numbers listed in the cross-reference table above.
