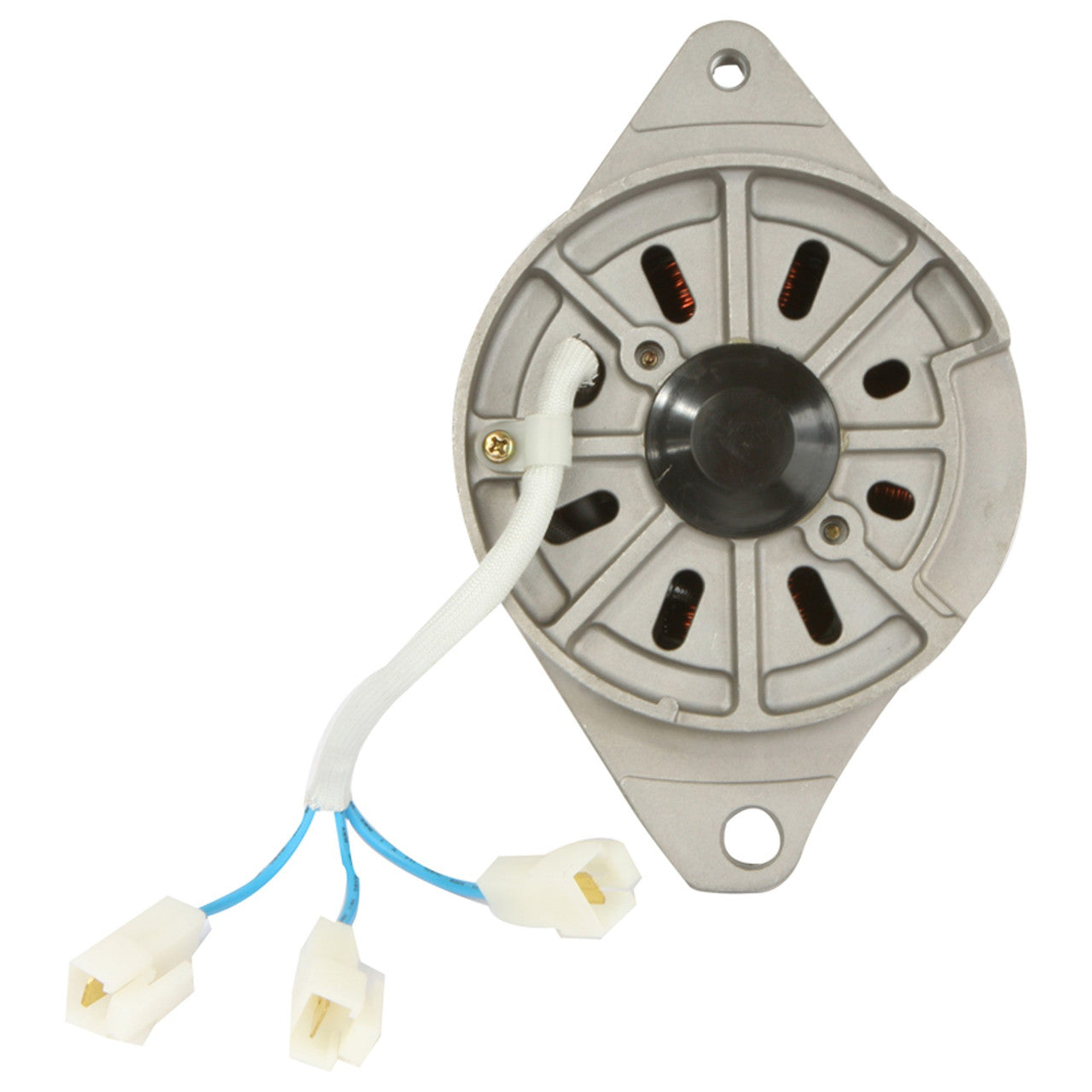

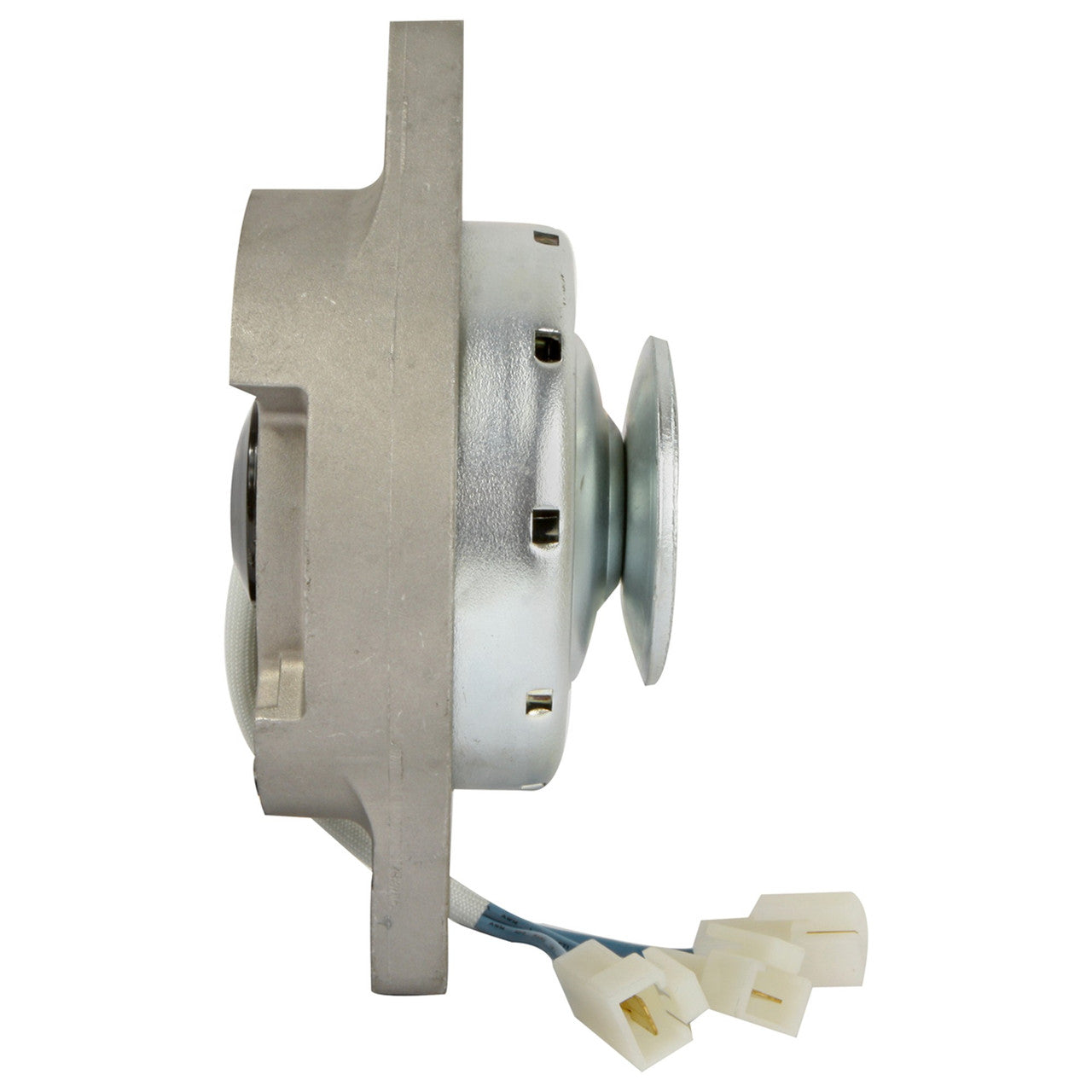

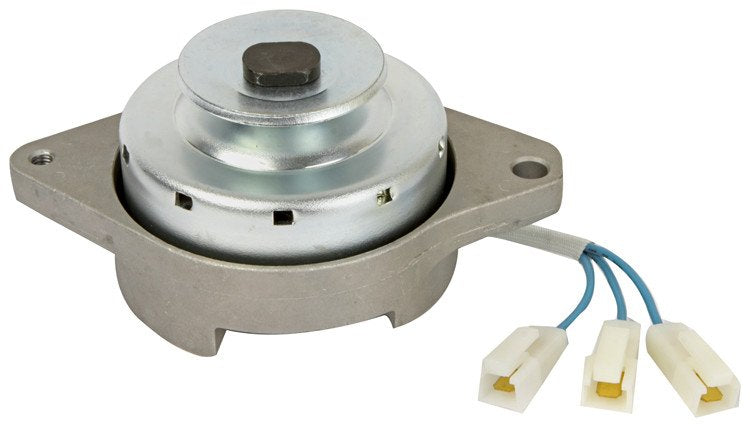

Alternator for John Deere 670, 770, 1070, 4100, 4110 & 4115 Tractors - 12V
John Deere Compact Utility Tractors - Permanent Magnet, 12V
This permanent magnet alternator is a direct replacement for the John Deere compact utility tractor range, covering the 670, 770 and 1070 built from 1989 to 1996 as well as the later 2305, 2320, 2520, 4010, 4100, 4110 and 4115 models. It is built to OEM specifications and bolts straight into the existing mounting points without modification.
It is rated at 12 volts and replaces the Kokusan-built unit carried under John Deere numbers AM877957 and AM880339. The permanent magnet design keeps the unit compact and removes the field windings and slip rings that are the usual wear points on a conventional alternator.
Key Features
- 12-Volt permanent magnet alternator
- Direct OEM fit for John Deere compact utility tractors
- Replaces John Deere AM877957 and AM880339
- Covers the 670, 770 and 1070 from 1989-1996 plus the 4000 series
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Type | PM Alternator |
| Lester Reference | 10944 |
| Reference ID | 553420 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| John Deere 670 Compact Utility Tractor | 1989-1996 |
| John Deere 770 Compact Utility Tractor | 1989-1996 |
| John Deere 1070 Compact Utility Tractor | 1989-1996 |
| John Deere 2305 / 2320 / 2520 Compact Utility Tractors | All years |
| John Deere 4010 / 4100 / 4110 / 4115 Compact Utility Tractors | All years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| AM877957 | John Deere |
| AM880339 | John Deere |
| GP9178 | Kokusan |
| 10944 | Lester |
| APM0008 | Arrowhead |
| 1400-0584 | Aftermarket interchange |
Frequently Asked Questions
Will this alternator fit my John Deere compact tractor without modification?
Yes, this is a direct OEM-fit replacement built to the original specification, so no modification is required for installation - it uses the same mounting points as the unit it replaces.
What's included?
You will receive one complete alternator unit, ready to fit. Your existing pulley, belt and wiring connector should be reused as normal.
How can I tell my old alternator has failed?
Common signs include a battery warning light on the dash, dimming or flickering lights, or a battery that will not hold charge even after a full charge cycle.
What voltage is this alternator?
This is a 12-volt permanent magnet alternator, matching the original specification used across this John Deere compact tractor range.
My model isn't listed - will it still fit?
Compare the number stamped on your existing alternator against AM877957, AM880339 or GP9178 in the table above. If it matches one of those, this unit is the correct replacement.
