Alternator for John Deere 4475 5575 Skid Steer & Samsung SE50-3 - 12V 40A
Alternator for John Deere 4475 5575 Skid Steer & Samsung SE50-3 - 12V 40A
SKU:400-44026
Free shipping over £150. Terms apply
Couldn't load pickup availability

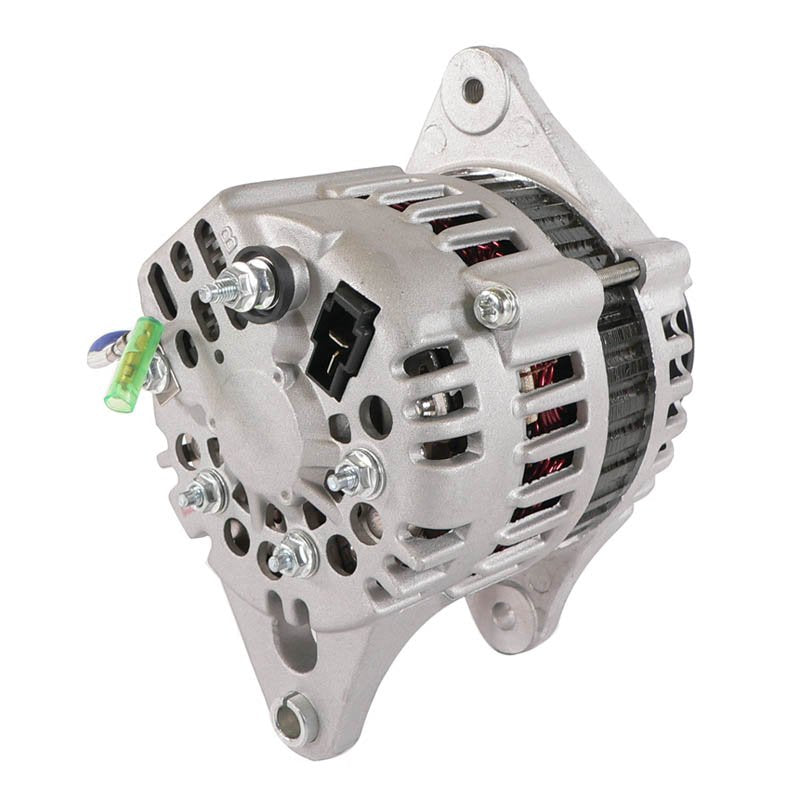

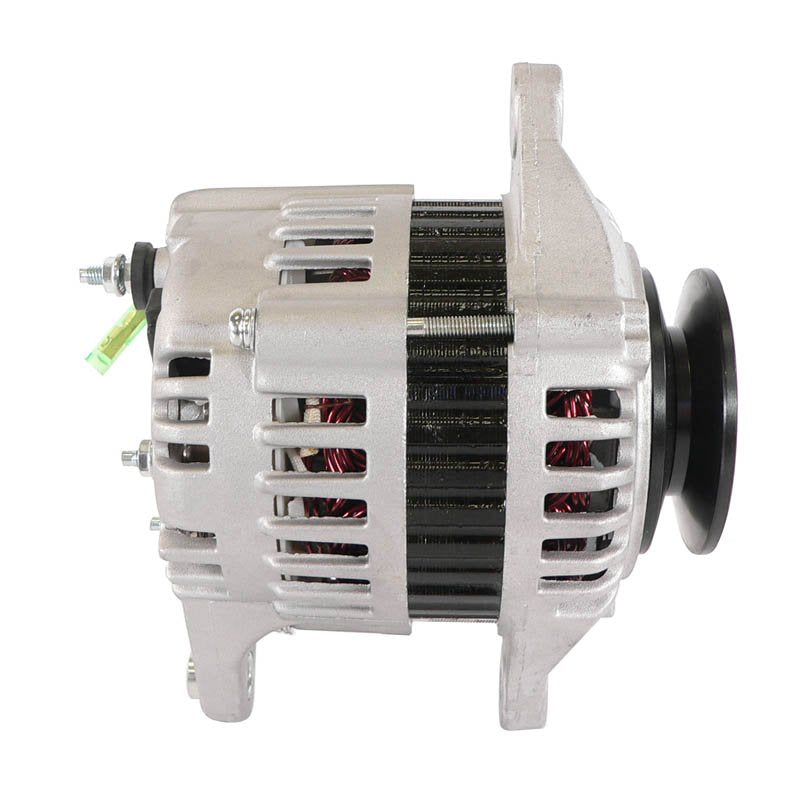

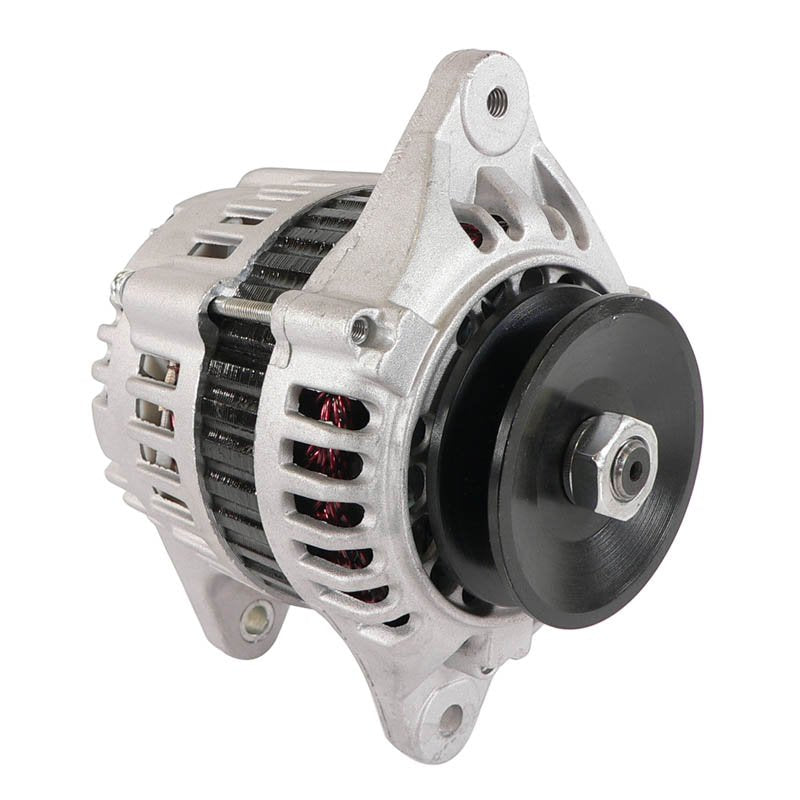

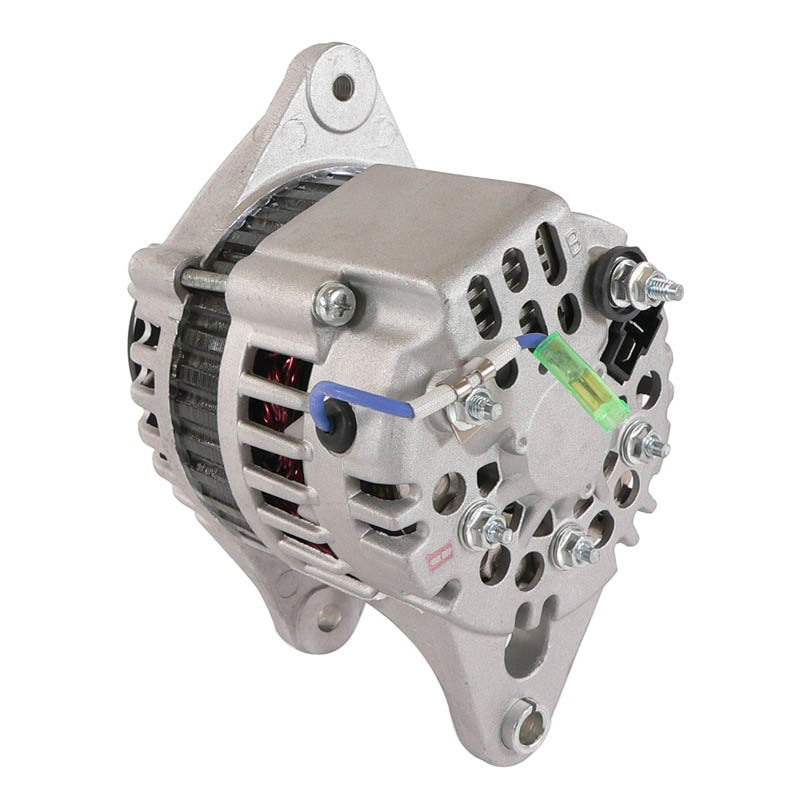

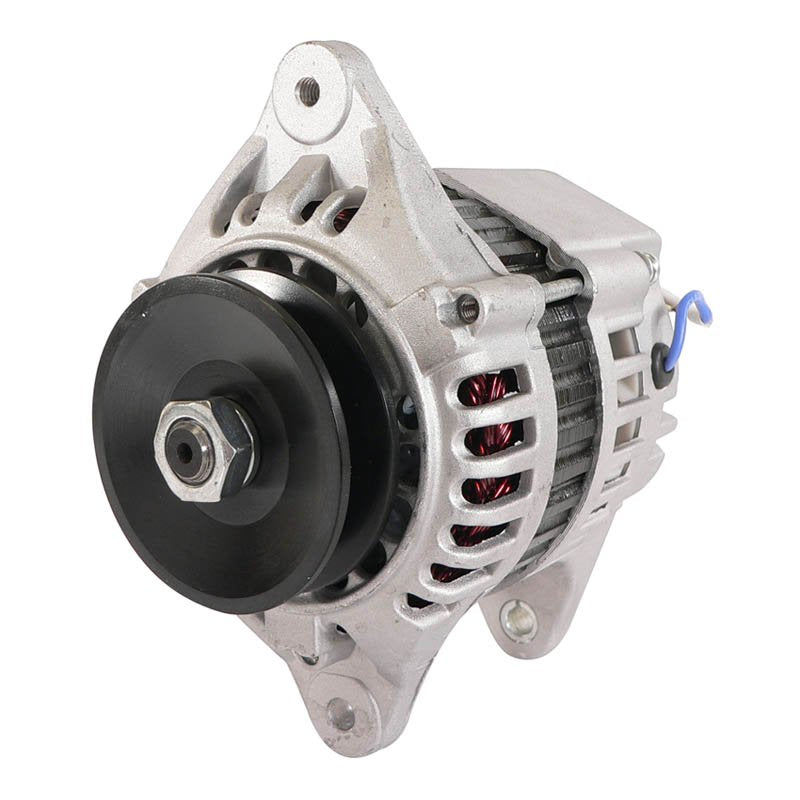

Alternator for John Deere Skid Steer Loaders & Samsung Excavators
Hitachi-type 12V 40A - John Deere 3012, 3015, 4475, 5575 and Samsung SE50-3
This alternator is built to OEM specifications as a direct fit-and-function replacement for the Hitachi LR140-714 series unit fitted to John Deere 4475 and 5575 skid steer loaders, John Deere 3012 and 3015 machines and Samsung SE50-3 excavators, all powered by Yanmar diesel engines. It bolts onto the original mounting points using the factory single-groove pulley.
It is a 12-volt, 40-amp unit with an internal regulator (IR) and internal fan (IF), turning clockwise on a 1-V pulley, matching the original fitment. It replaces John Deere AM878581 and AM880733 directly.
Key Features
- 12-volt, 40-amp output
- Internal regulator (IR), internal fan (IF)
- Clockwise (CW) rotation, 1-V pulley
- Hitachi LR140-714 / LR140-721 type replacement
- Direct replacement for John Deere AM878581 and AM880733
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 40A |
| Rotation | Clockwise (CW) |
| Regulator | Internal (IR) |
| Fan Type | Internal (IF) |
| Pulley | 1-V (single groove) |
| Unit Type | Hitachi-type alternator |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| John Deere 4475 Skid Steer Loader | 1994-1998 |
| John Deere 5575 Skid Steer Loader | 1995-1998 |
| John Deere 3012, 3015 | All years |
| Samsung SE50-3 (SE503) Excavator | 1992-1998 |
| Yanmar 3TNE84, 4TNE84, 4TNE94 Diesel Engines | All years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| AM878581, AM880733 | John Deere |
| LR140-714, LR140-714A, LR140-714B, LR140-714BR, LR140-721, LR140-721B, LR140-721C | Hitachi |
| 119836-77200, 119836-77200-2, 119836-77200-3 | Yanmar / ASV |
| 1-2315-01, 1-2315-01HI | WAI |
| 90-25-1095, 90-25-1167 | Wilson |
| 12112 | Lester |
Frequently Asked Questions
Will this alternator fit without modification?
Yes, it is a direct OEM-spec replacement matching the original mounting, pulley and output.
Does it replace John Deere AM878581?
Yes. It also replaces AM880733 and the Hitachi LR140-714 and LR140-721 series units.
What's included?
One new alternator unit, ready to fit.
How do I know my old alternator has failed?
Signs include a battery that won't hold charge, a charge warning light, or dimming lights at idle.
