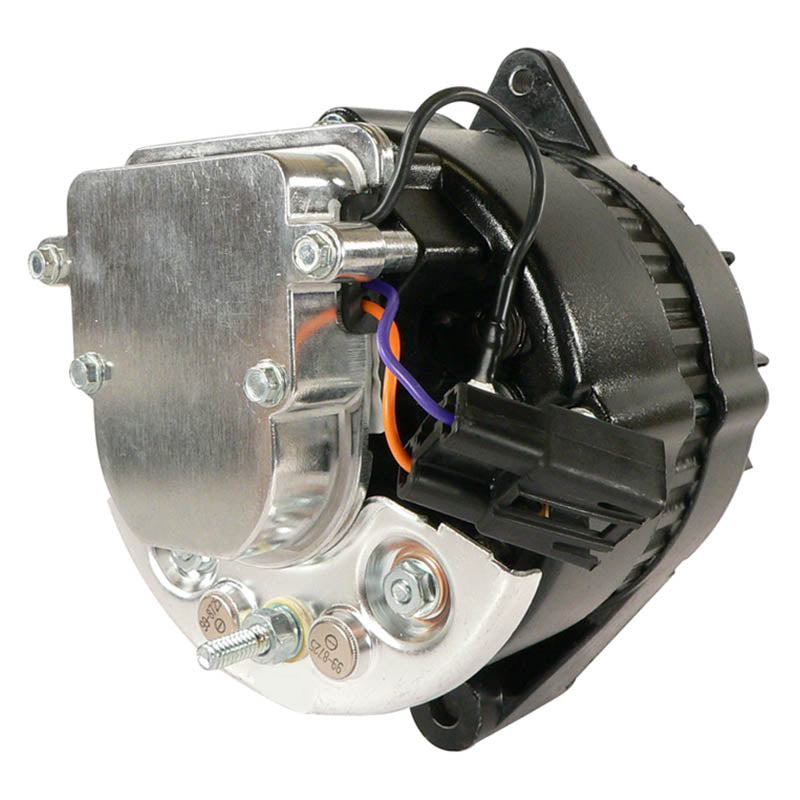

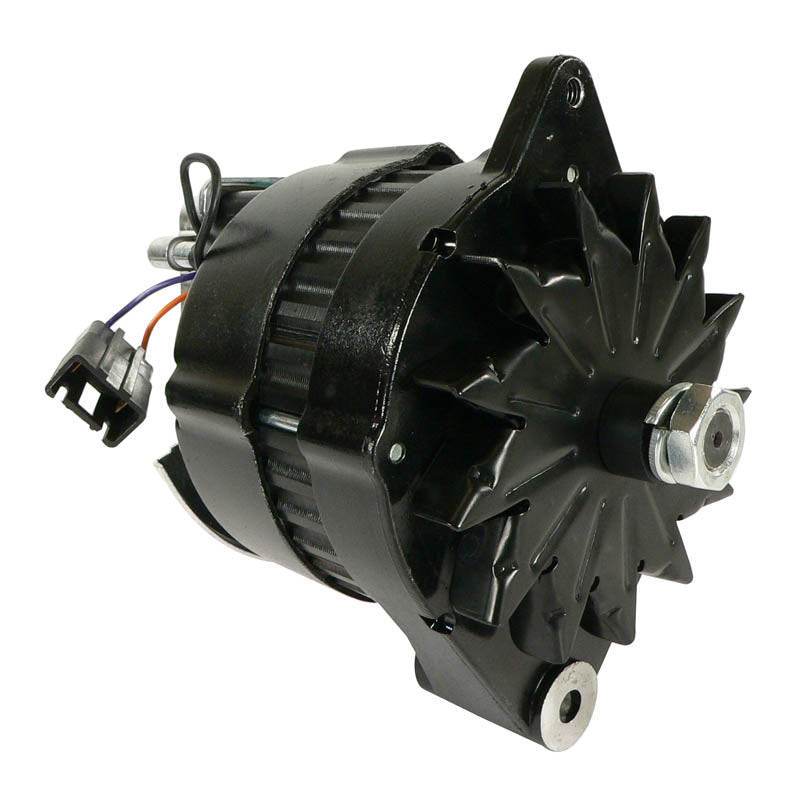

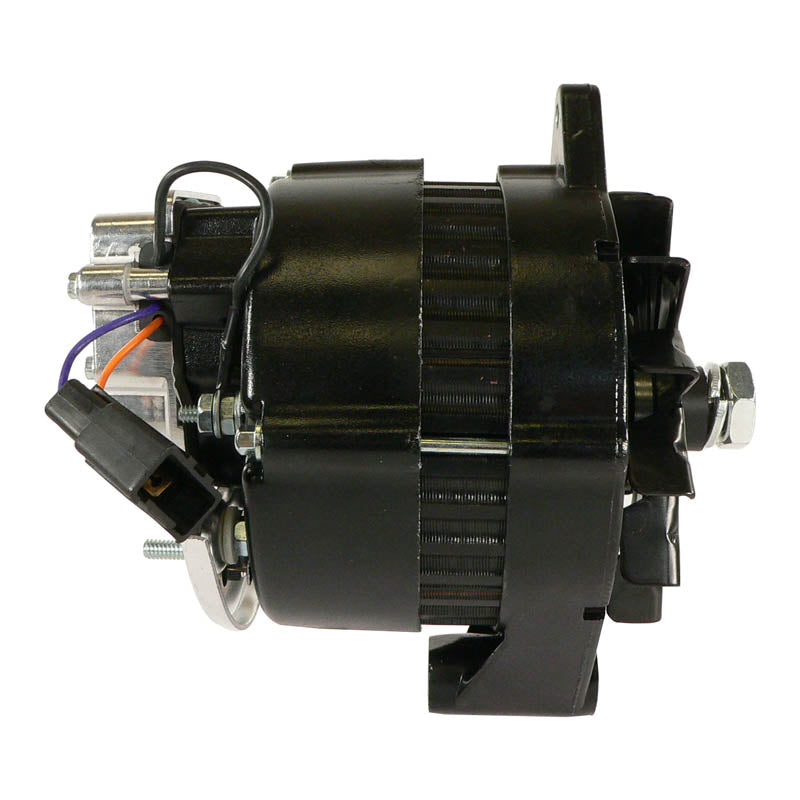

Alternator for John Deere 4000 4020 4320 4520 4620 Tractors - 12V 72A
Internally regulated 12V 72A alternator for John Deere tractors and cotton pickers
This alternator is built for John Deere tractor and cotton picker applications, engineered to OEM specifications for a direct fit and function replacement, delivering a strong 72 amp output at 12 volts to keep the battery and electrical systems fully charged under demanding working conditions. It uses the same mounting and drive dimensions as the original unit, so no bracket modification is required.
It uses an isolated diode type circuit, meaning the diode trio is electrically isolated from the alternator case, and is internally regulated (IR), with a regulator reference of 105-181, giving reliable, self-contained charging performance for John Deere machinery without the need for a separate external regulator. It replaces John Deere AH105520 and AH80094, and interchanges with Lester number 7376.
Key Features
- Fits John Deere 4000, 4020, 4320, 4520 and 4620 tractors
- Also fits John Deere cotton pickers 484, 499, 699, 7440 and 9910
- 12 volt, 72 amp output
- Internally regulated (IR)
- Isolated diode type circuitry
- Regulator reference 105-181
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 72A |
| Regulator Type | Internal (IR) |
| Diode Type | Isolated |
| Regulator Reference | 105-181 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| John Deere Tractor 4000, 4020, 4320, 4520, 4620 | Not specified by supplier |
| John Deere Cotton Picker 484, 499, 699, 7440, 9910 | Not specified by supplier |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| AH105520, AH80094 | John Deere |
| 7376 | Lester |
| 400-16012 | Arrowhead / J&N |
Frequently Asked Questions
Will this fit without modification?
Yes, this alternator is built to OEM specifications for a direct, bolt-in fit on covered John Deere equipment.
Which John Deere machines does it cover?
It is listed for the 4000, 4020, 4320, 4520 and 4620 tractors and for the 484, 499, 699, 7440 and 9910 cotton pickers. Check the number on your original unit against the cross reference table above before ordering.
What's included?
You receive one fully assembled 12V 72A alternator, ready to install.
How do I know my old alternator has failed?
Common signs include a charge warning light staying on with the engine running, dimming or flickering lights, a battery that will not hold charge overnight, or an unusual whining or grinding noise from the unit as it turns.
What is an isolated diode type alternator?
It's a charging circuit design, used here with an internal regulator (IR), that isolates the diode trio from the case for this application's wiring requirements.
