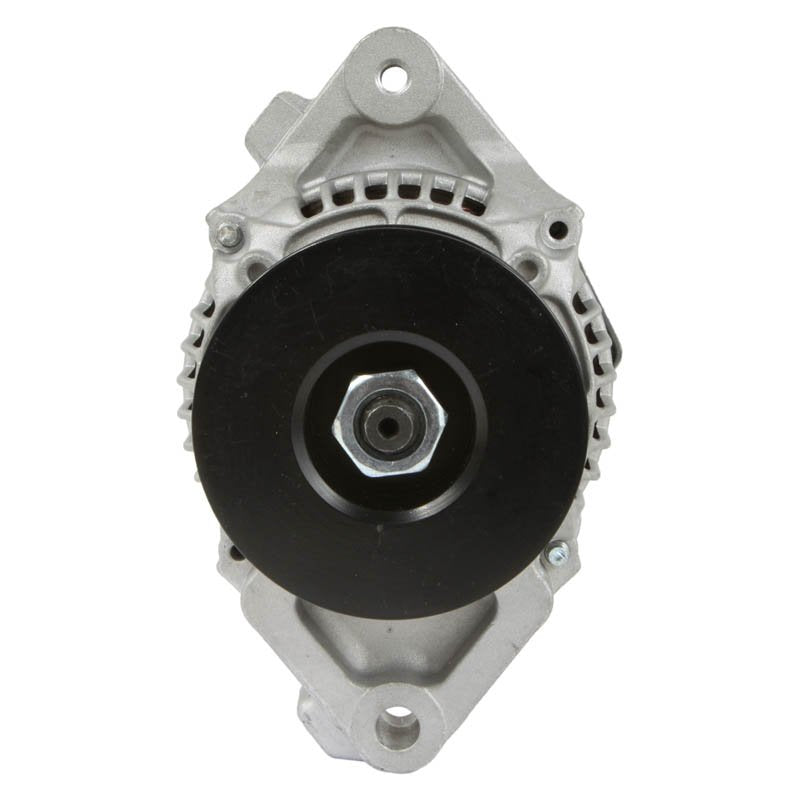

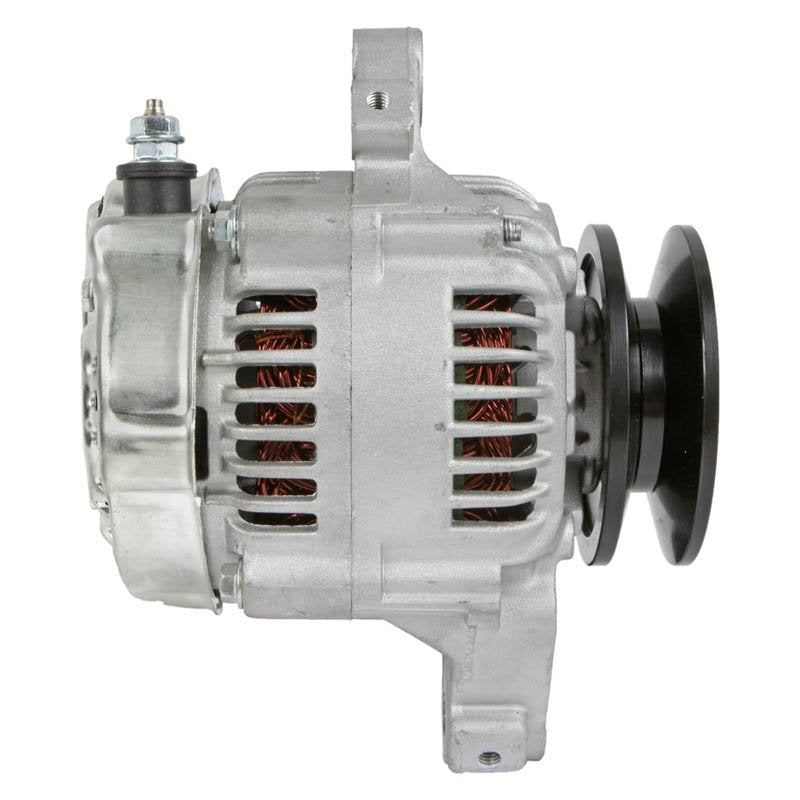

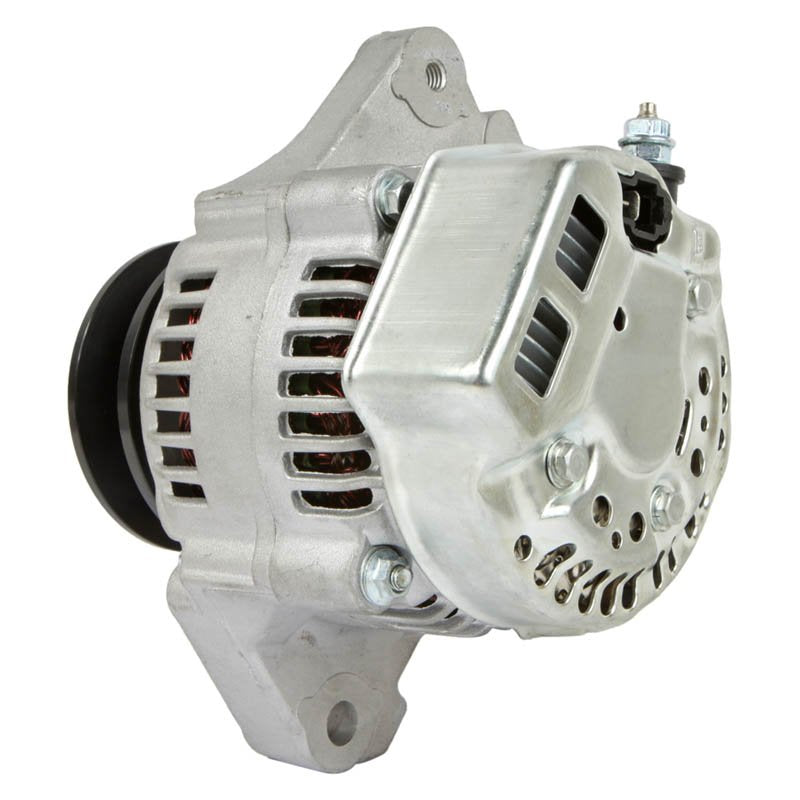

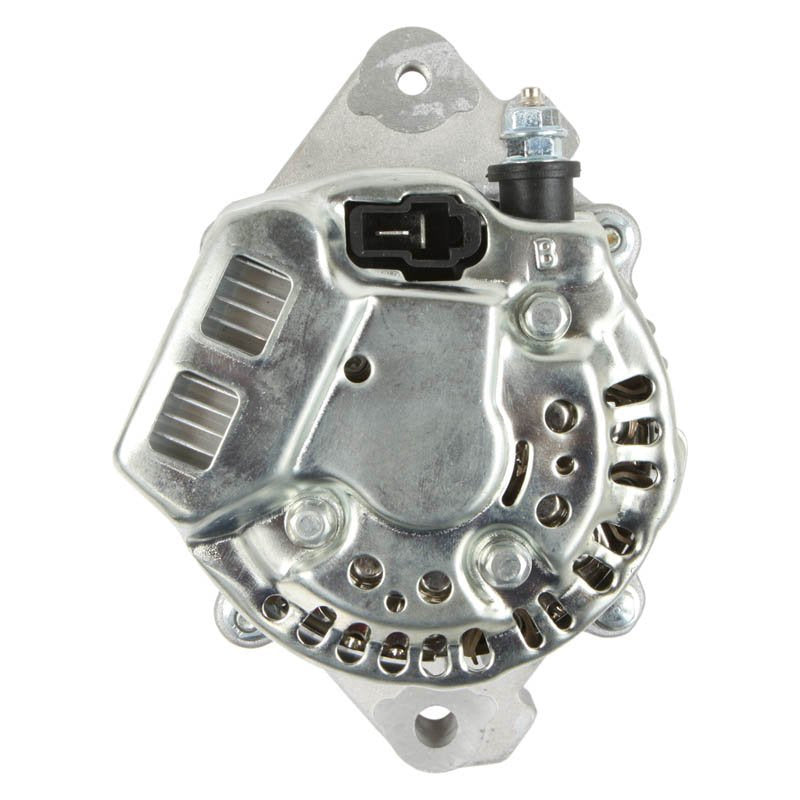

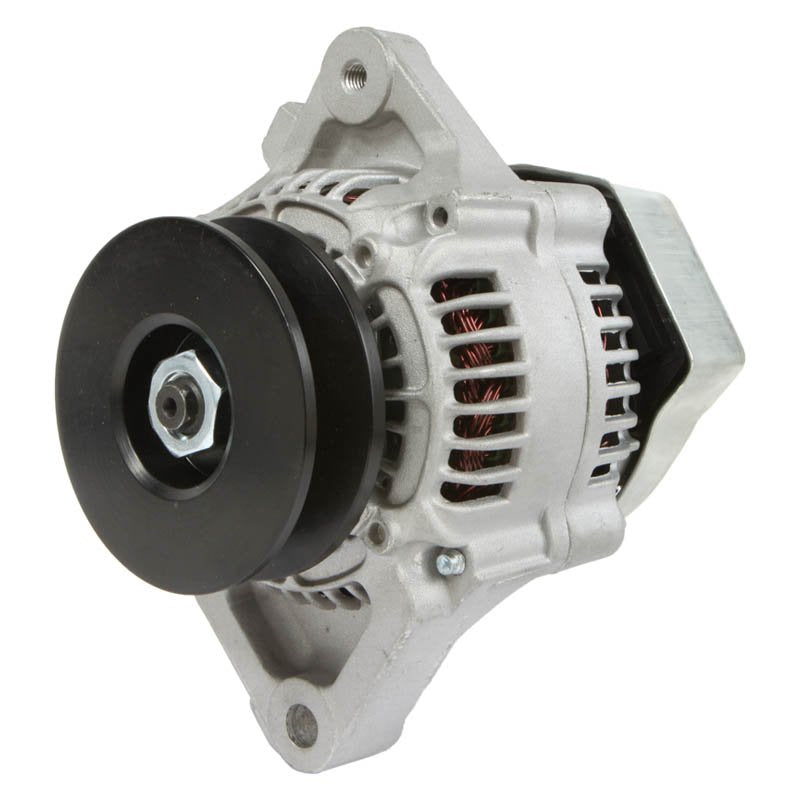

Alternator for John Deere 5210-5500 Tractors & Gator HPX XUV UTVs - 12V 60A
Alternator for John Deere 5210-5500 Tractors & Gator HPX XUV UTVs - 12V 60A
SKU:400-52091
Free shipping over £150. Terms apply
Couldn't load pickup availability
Alternator for John Deere 5000 Series Tractors & Gator UTVs
12-Volt, 60 Amp, IR/IF, Clockwise, Single V Pulley
This 12-volt, 60 amp alternator covers a wide spread of John Deere machinery - the 5210 through 5500 series compact and utility tractors, and the Gator HPX, TS, TX, TH 6x4, XUV 620i and XUV 625i utility vehicles with Kawasaki or Yanmar power. It replaces John Deere RE46043, RE72917 and TY25241, and the Denso 101211-2470 and 101211-2471 units.
The unit uses an internal regulator and internal fan with a single-groove V pulley and clockwise rotation, matching the original equipment layout for a straight swap. Every unit is quality checked before dispatch, and our technical team is on hand if you need help confirming fitment.
Key Features
- 12-volt, 60 amp output to OEM specification
- Internal regulator and internal fan (IR/IF) design
- Single-groove V pulley, clockwise rotation
- Covers both 5000 series tractors and Gator utility vehicles
- Direct replacement for John Deere RE46043, RE72917 and TY25241
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | 400-52091 |
| Unit Type | Alternator |
| Voltage | 12 V |
| Output | 60 A |
| Regulator / Fan | IR / IF |
| Rotation | Clockwise (CW) |
| Pulley | Single-groove V (V1) |
| Lester Number | 12081 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| John Deere 5215, 5215F&V Tractor (3-179 56HP Diesel) | All years |
| John Deere 5315, 5315F&V Tractor (3-179 66.5HP Diesel) | All years |
| John Deere 5210, 5220 Tractor (PowerTech 2.9L 53HP Diesel) | All years |
| John Deere 5300, 5300N Tractor (PowerTech 2.9L 56HP Diesel) | All years |
| John Deere 5310, 5310N, 5320, 5320N Tractor (PowerTech 2.9L 64HP Diesel) | All years |
| John Deere 5400, 5400N Tractor (PowerTech 2.9L 68.4HP Diesel) | All years |
| John Deere 5500, 5500N Tractor (PowerTech 3.9L 83.2HP Diesel) | All years |
| John Deere Gator HPX (Kawasaki 18HP / 21HP, Yanmar 3TNE68 18.5HP Diesel) | All years |
| John Deere Gator TH 6x4, TX (Kawasaki 15.5HP) | All years |
| John Deere Gator TS (Kawasaki 13.5HP) | All years |
| John Deere Gator XUV 620i 4x4, XUV 625i 4x4 (Kawasaki 23HP) | All years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| RE46043, RE72917, TY25241 | John Deere |
| 101211-2470, 101211-2471 | Denso |
| AND0204, ND101211-2471 | Arrowhead |
| 463713 | Tucker Rocky |
| 12081 | Lester |
Frequently Asked Questions
Will this alternator fit without modification?
Yes, on the tractors and Gators listed above it is a direct, bolt-in replacement built to OEM specification - no modification is required.
How do I check this is the right part?
Compare the number on your original unit against the cross reference table - John Deere RE46043, RE72917 or TY25241, or Denso 101211-2470 / 101211-2471.
What output does this unit give?
12 volts at 60 amps, with an internal regulator and internal fan, clockwise rotation and a single-groove V pulley.
How do I know my current alternator has failed?
Common signs include a dashboard warning light, dimming or flickering lights, a weak or dead battery despite recent charging, and slow engine cranking.
Can I confirm fitment before ordering?
Yes, our technical team can help confirm compatibility against your original part - just get in touch before you order.
