Alternator for John Deere, Kubota V3300 & Thomas Skid Steers - 12V 60A
Fits John Deere tractors, Kubota M-series and V3300-engined tractors, Kioti CK compacts and Thomas 225/245 skid steers
This 12-volt, 60-amp alternator is a complete replacement unit built to the output and mounting specification of the original equipment fitted to John Deere tractors, Kubota M-series and V3300-engined tractors, Kioti CK compact tractors, and Thomas 225/245 skid steer loaders using the same engine. It replaces the Kubota 1C011-64010 and 3C581-74011 series units.

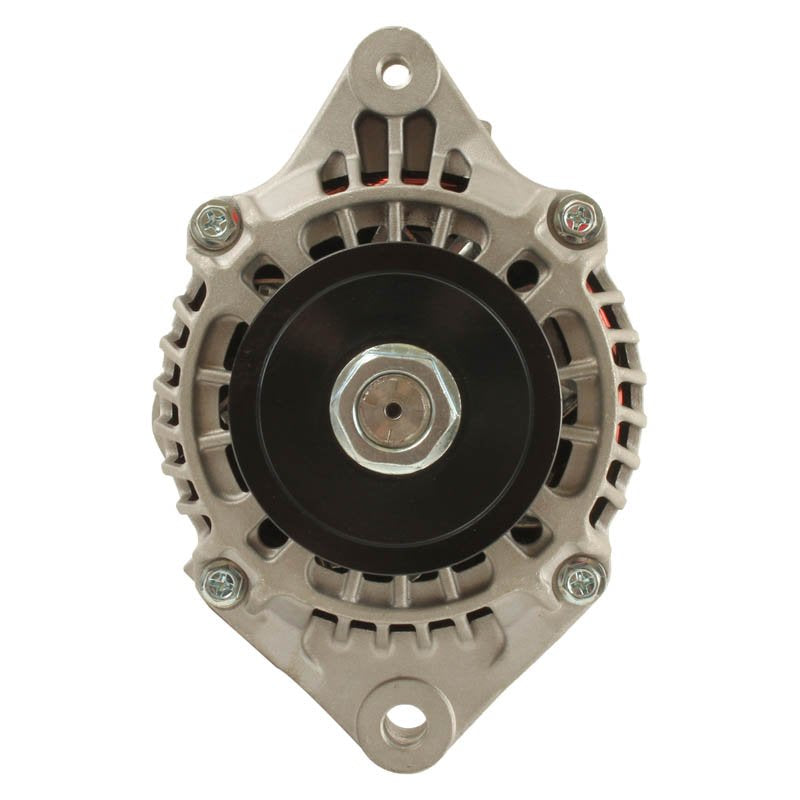

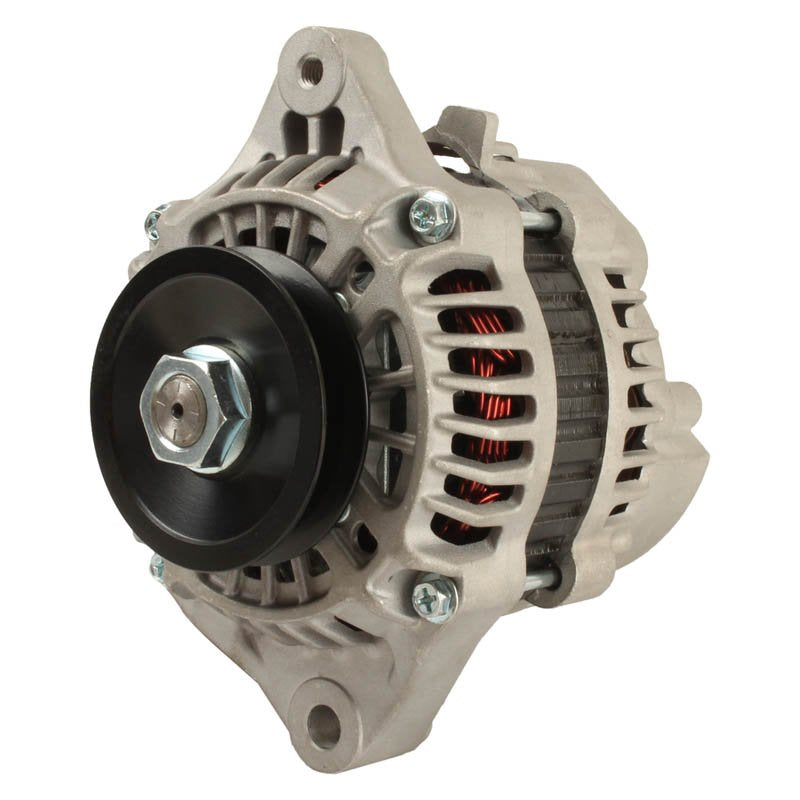

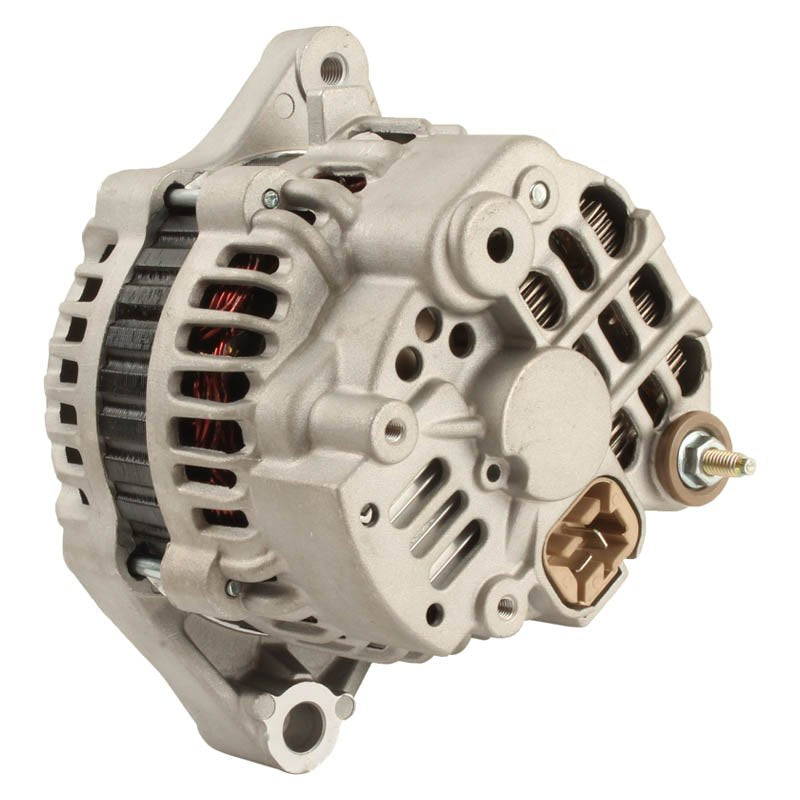

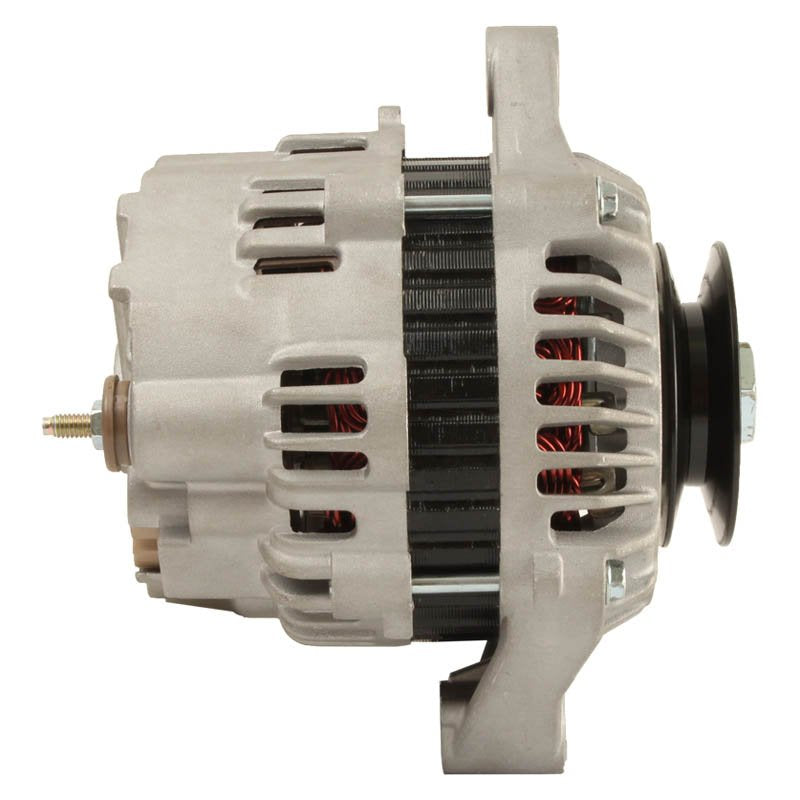

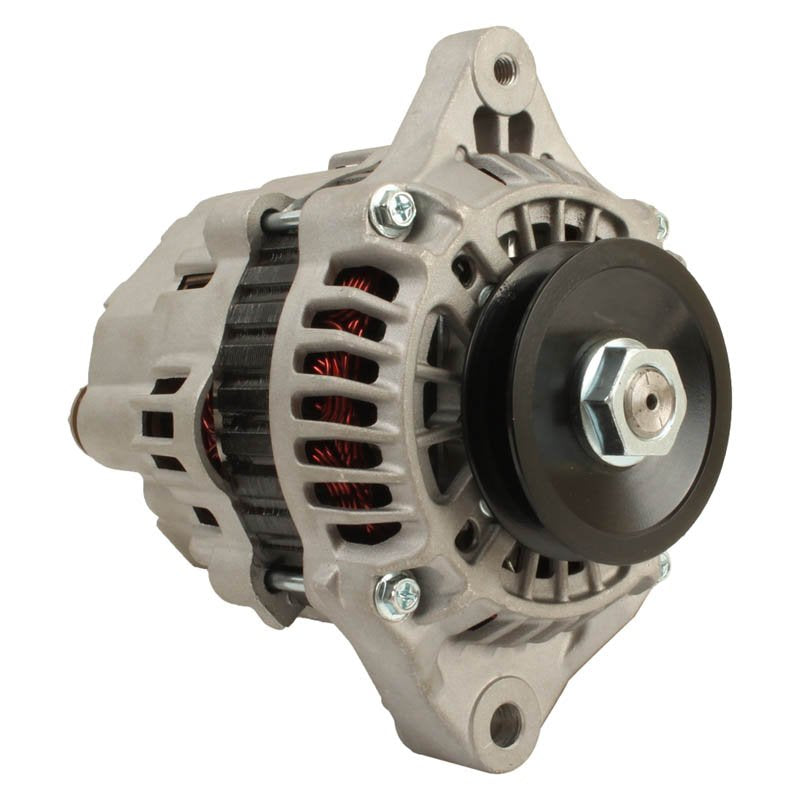

It is supplied complete with a single-groove solid pulley (74mm outside diameter), matching the factory setup exactly, and turns clockwise with an internal regulator and internal fan. The main mounting hole is M8 x 1.25 threaded and the B+ output stud is M6 x 1.00. Each unit is tested for correct output and rotation before it is dispatched.
Key Features
- 12-volt, 60-amp output to factory specification
- Internal regulator, internal fan (IR/IF) configuration
- Single-groove (1-V) solid pulley, 74mm OD
- M8 x 1.25 threaded mounting hole and M6 x 1.00 B+ output stud, as original
- Direct replacement for John Deere, Kubota, Kioti and Thomas skid steer applications
- Cross references to Kubota 1C011-64010 and Mitsubishi A1TA1777
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 60A |
| Rotation | Clockwise (CW) |
| Polarity | Negative earth |
| Regulator | Internal (IR) |
| Fan Type | Internal (IF) |
| Pulley Type | Single-groove solid pulley (1-V), 74mm OD |
| Mounting | M8 x 1.25 threaded, second ear unthreaded |
| Output Terminal | B+ M6 x 1.00 |
| Lester Number | 12318, 12364 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| John Deere Tractor | Not specified |
| Kubota M105 Tractor (M105SDSC, M105SDSCC, M105SHC) | 2004-2009 |
| Kubota M9000 Tractor (M9000DTCCS, M9000DTM) | 2000-2009 |
| Kubota M6800 Tractor (M6800, M6800S, M6800SC, M6800DT, M6800HDC) | Not specified |
| Kubota M8200 and M9540 Tractor | Not specified |
| Kubota Tractor (3.3L V3300 Engine) | Not specified |
| Kioti CK20 / CK25 / CK30 Compact Tractor | Not specified |
| Thomas 225/245 Skid Steer Loader | Not specified |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1C011-64010, 1C011-64011, 1C011-64012, 1C011-64013, 1C011-64014, 3A651-74010, 3A651-74011, 3C581-74010, 3C581-74011, 3C581-74012, 77700-02599 | Kubota |
| A1TA1777, A1TA3677, A1TA3677B | Mitsubishi |
| DRA1137 | Delco |
| LRA03900 | Lucas Electrical |
| 12318, 12364 | Lester |
Frequently Asked Questions
Will this alternator fit without modification?
Yes, it is a direct bolt-in replacement, matching the mounting and pulley configuration of the original unit.
How do I confirm it is right for my machine?
Check the number on your existing alternator against the cross reference table above - Kubota 1C011-64010 and 3C581-74011 are the most common originals for this fitment.
What's included?
You receive one complete alternator unit, ready to fit - no additional brackets or pulleys are required.
How do I know my old alternator has failed?
Common signs include a charge warning light staying on, a flat or slowly draining battery, or no output reading at the battery terminals with the engine running.
Does this alternator come with a warranty?
Yes, every unit is covered by our standard 12-month warranty.
