Alternator for Komatsu D20, D21 & EC170Z - 24V 40A
Fits Komatsu crawlers, compressors, lift trucks and loaders - 24V, 40 Amp, IR/EF

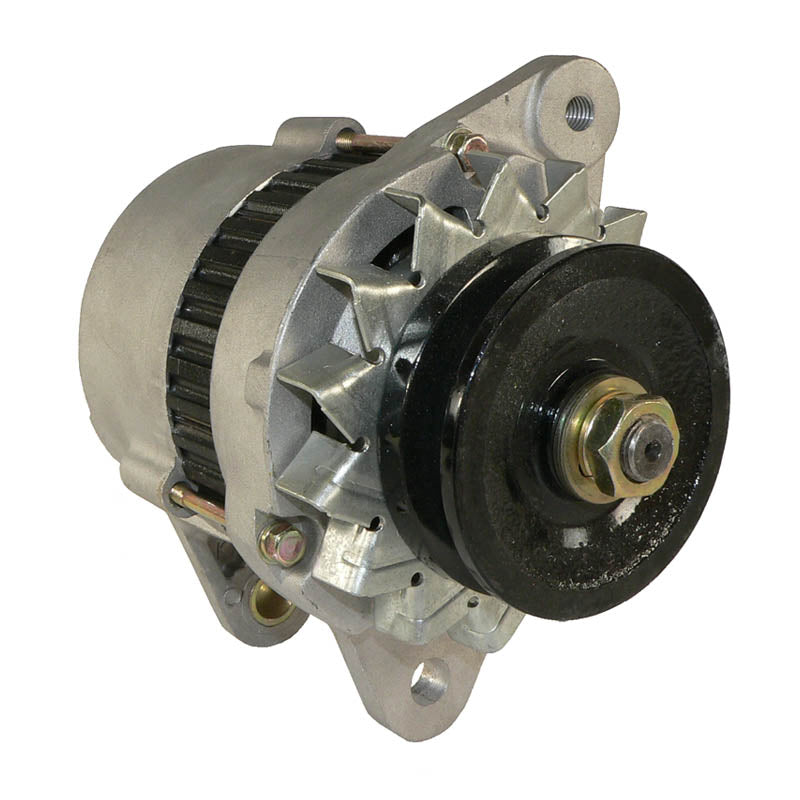

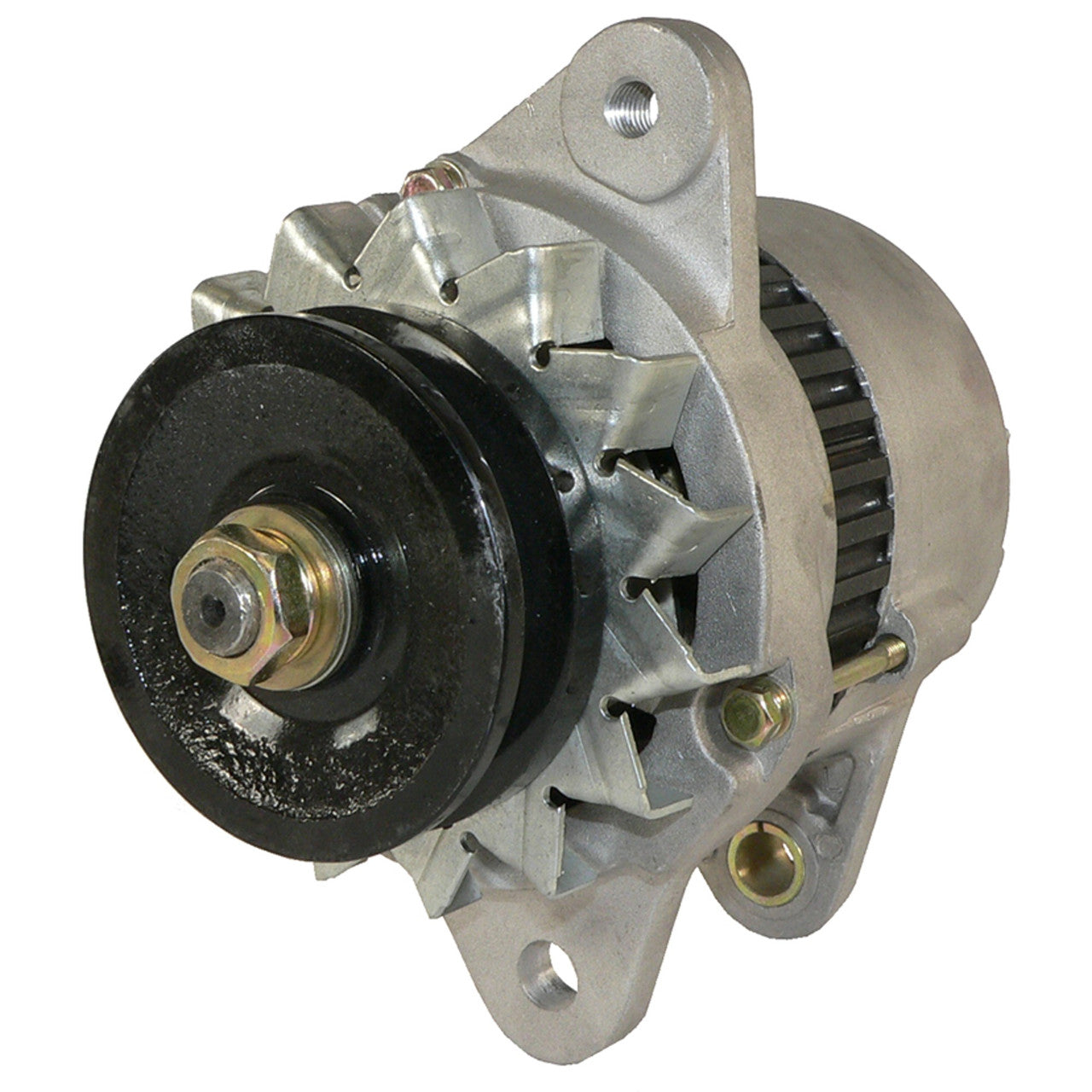

This 24-volt, 40-amp alternator is a direct replacement for a wide range of Komatsu plant fitted with the Nikko IR/EF unit of this specification, including D20 and D21 crawler dozers, EC170Z compressors, FD-series lift trucks and 515/530/540 loaders. It is built to the original specification, giving the same fit, output and mounting as the alternator it replaces, with no modification required for installation.

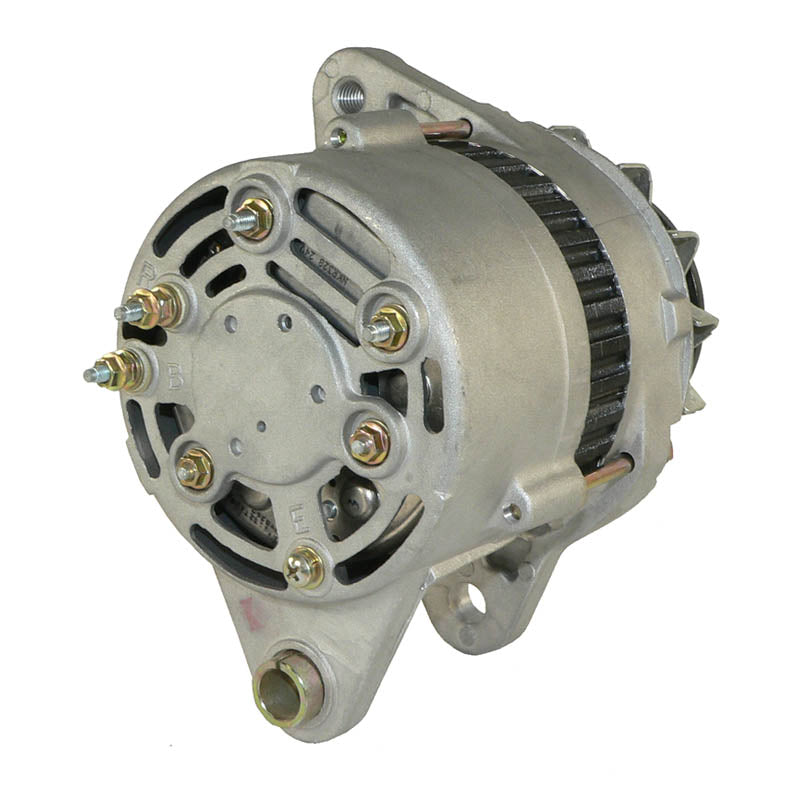

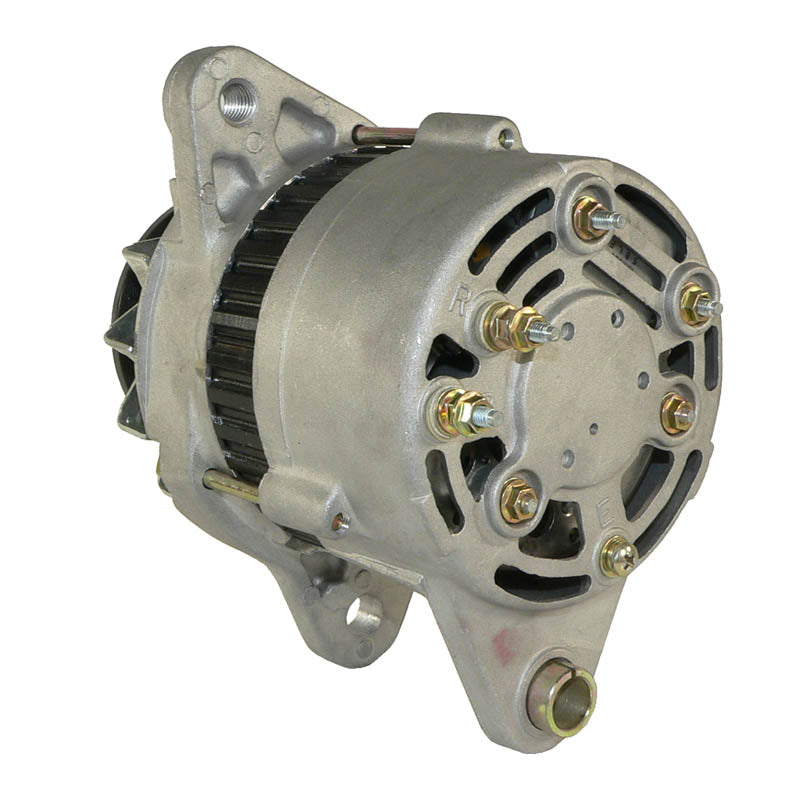

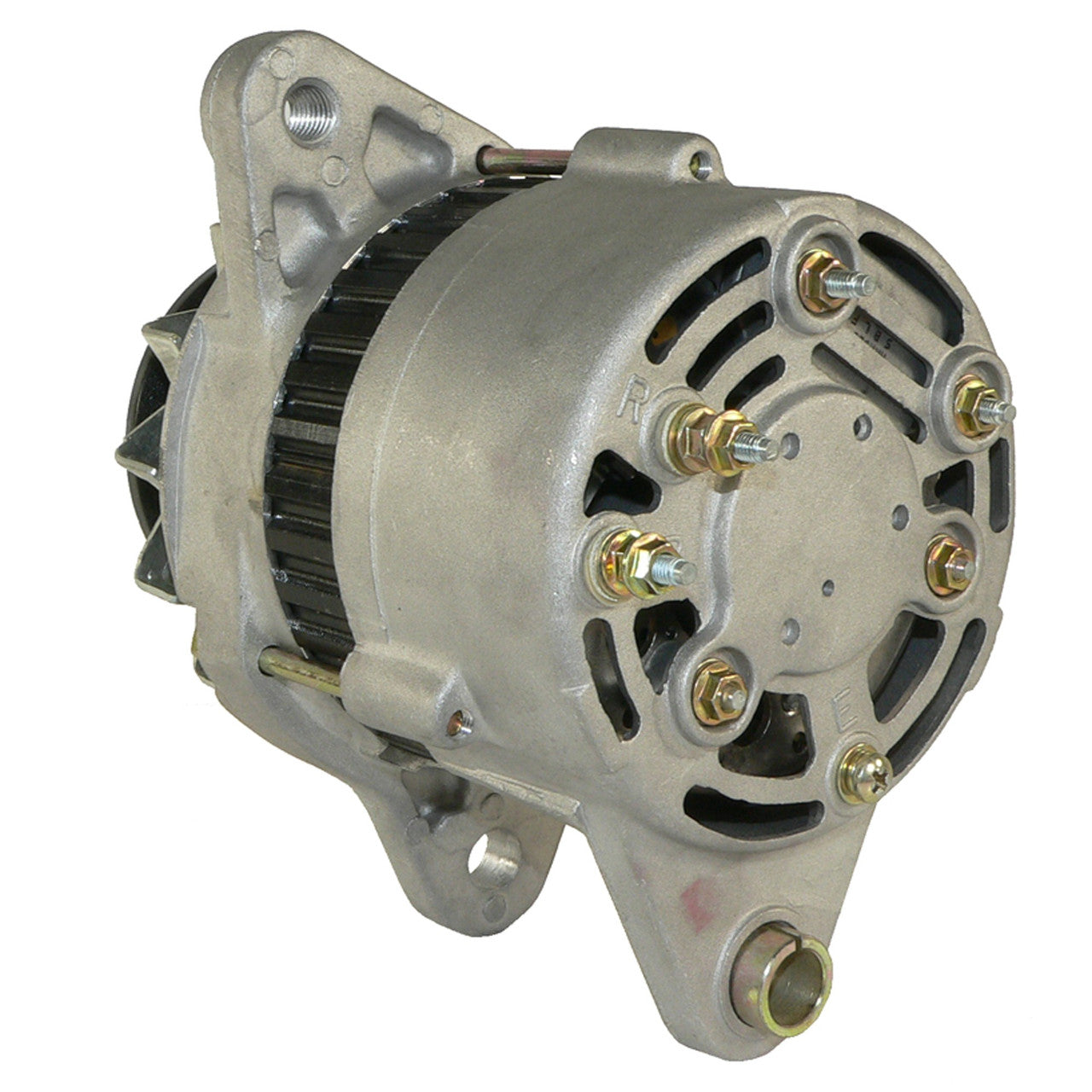

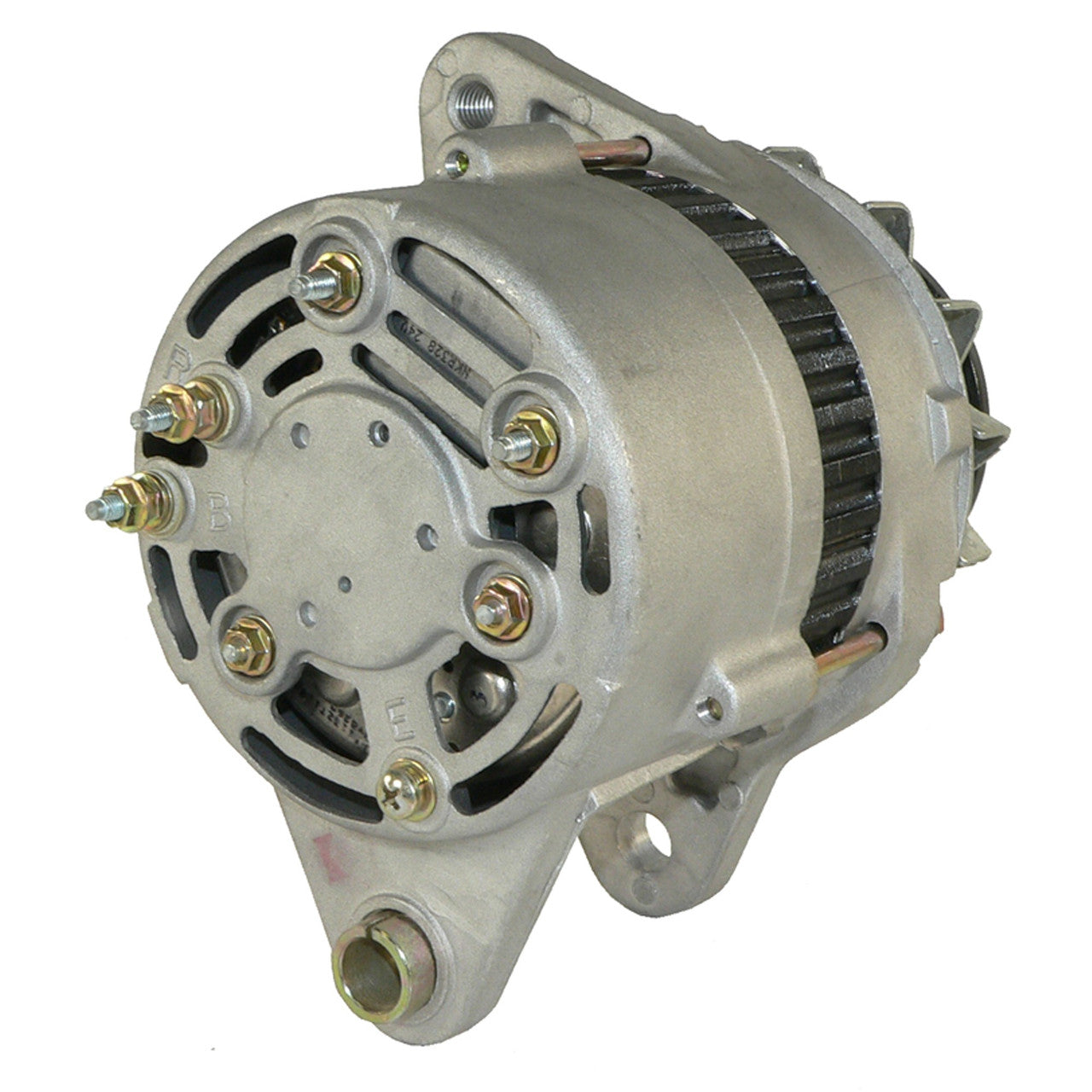

It replaces the Komatsu 600-821-6110 and 600-821-6120 units and the Nikko 0-33000 series. The alternator is an internal-regulator, external-fan design with a single-groove solid pulley measuring 95mm across, an M12 x 1.75 threaded main mounting hole and M5 x 0.8 output and lamp terminals. Note that the terminal marked "R" is the lamp/trio connection.
Key Features
- 24-volt, 40-amp output to factory specification
- Internal regulator, external fan (IR/EF) design
- Single-groove solid pulley, 95mm OD
- M12 x 1.75 threaded mounting hole, as original
- Replaces Komatsu 600-821-6110 / 600-821-6120 and Nikko 0-33000 series
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 24V |
| Amperage | 40A |
| Polarity | Negative earth |
| Regulator | Internal (IR) |
| Fan Type | External (EF) |
| Pulley Type | Single-groove solid pulley, 95mm OD |
| Mounting | M12 x 1.75 threaded, second ear unthreaded, third hole 14mm |
| Terminals | B+ M5 x 0.8, R (lamp) M5 x 0.8 |
| Manufacturer | Nikko |
| Lester Number | 12245, 12250, 12251, 12260 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Komatsu EC170Z / EC170ZS Compressor (4D105 engine) | 1986-1995 |
| Komatsu D20A / D20P / D20S Crawler Dozer | Not specified |
| Komatsu D21 / D21A / D21P / D21S Crawler Dozer | Not specified |
| Komatsu D31 Crawler Dozer | Not specified |
| Komatsu FD250 / FD250E / FD280 / FD400 / FD400E Lift Truck | Not specified |
| Komatsu 515 / 530 / 540 Loader | Not specified |
| Komatsu Excavators, Motor Graders and Generator Sets (same 24V IR/EF unit) | Not specified |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 600-821-5410, 600-821-5540, 600-821-6110, 600-821-6120, 600-861-2110 | Komatsu |
| 0-33000-2870, 0-33000-2871, 0-33000-3071, 0-33000-5280, 0-33000-5850, 0-33000-5860, 0-33000-5870, 0-33000-5880, 0-33000-6511, 0-33000-6580 | Nikko |
| ANK0001, ANK0003, RKD25A04 | Arrowhead |
| 12245, 12250, 12251, 12260 | Lester |
Frequently Asked Questions
Will this alternator fit without any modification?
Yes. This is a direct OEM fit and function replacement using the same mounting, pulley and electrical connections as your original unit, so no modification is needed.
How do I confirm it is right for my machine?
Check the number on your existing alternator against the cross reference table above - Komatsu 600-821-6110 / 600-821-6120 and the Nikko 0-33000 series are the usual originals for this fitment.
What is included?
You receive one new alternator, ready to install using your existing bracket, belt and wiring loom.
How can I tell my old alternator has failed?
Common signs include a battery warning light, dim or flickering lights, a battery that won't hold charge, or a whining or growling noise from the alternator itself.
What voltage and output does this alternator provide?
This unit is rated at 24 volts with a 40 amp output, in an internal-regulator, external-fan (IR/EF) configuration.
