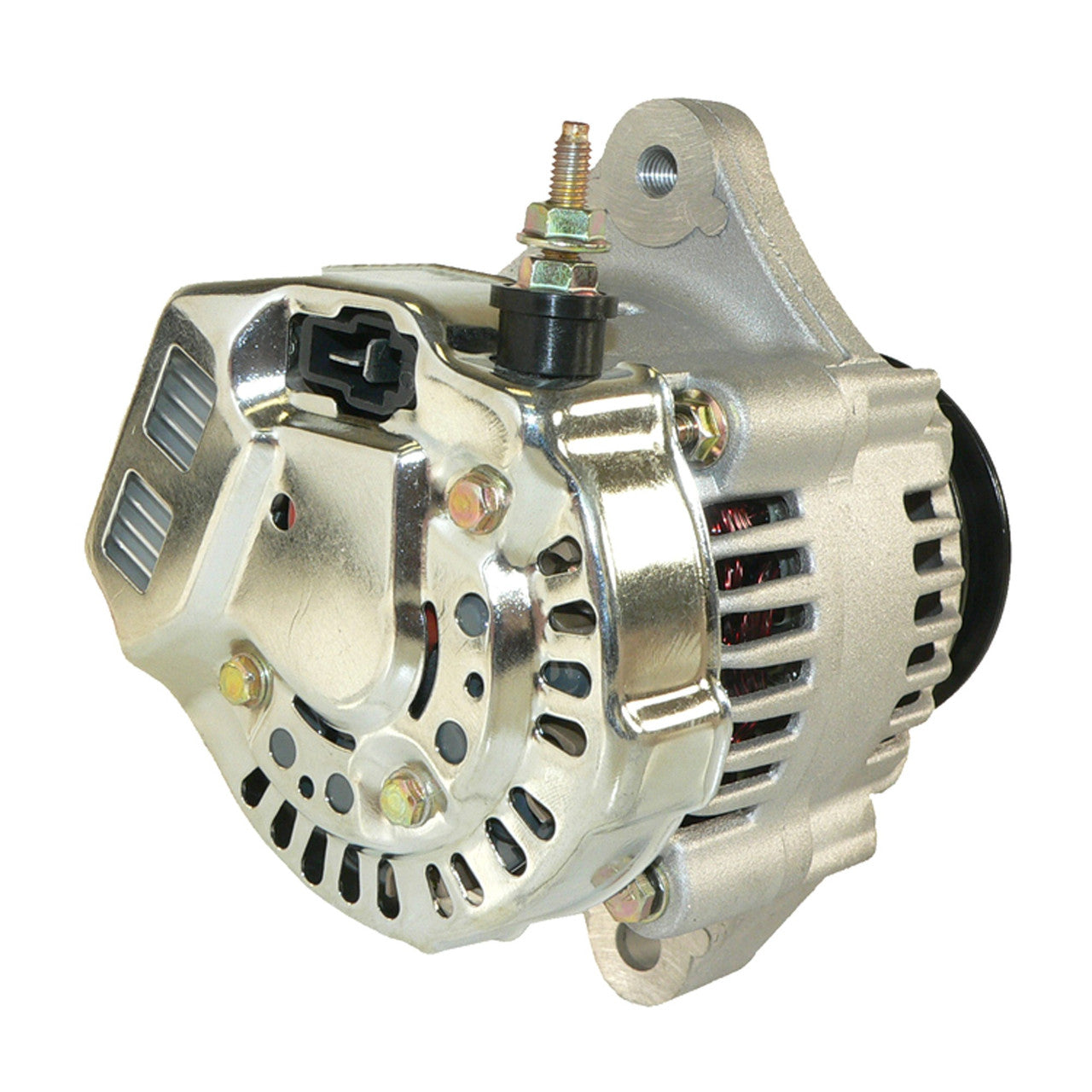

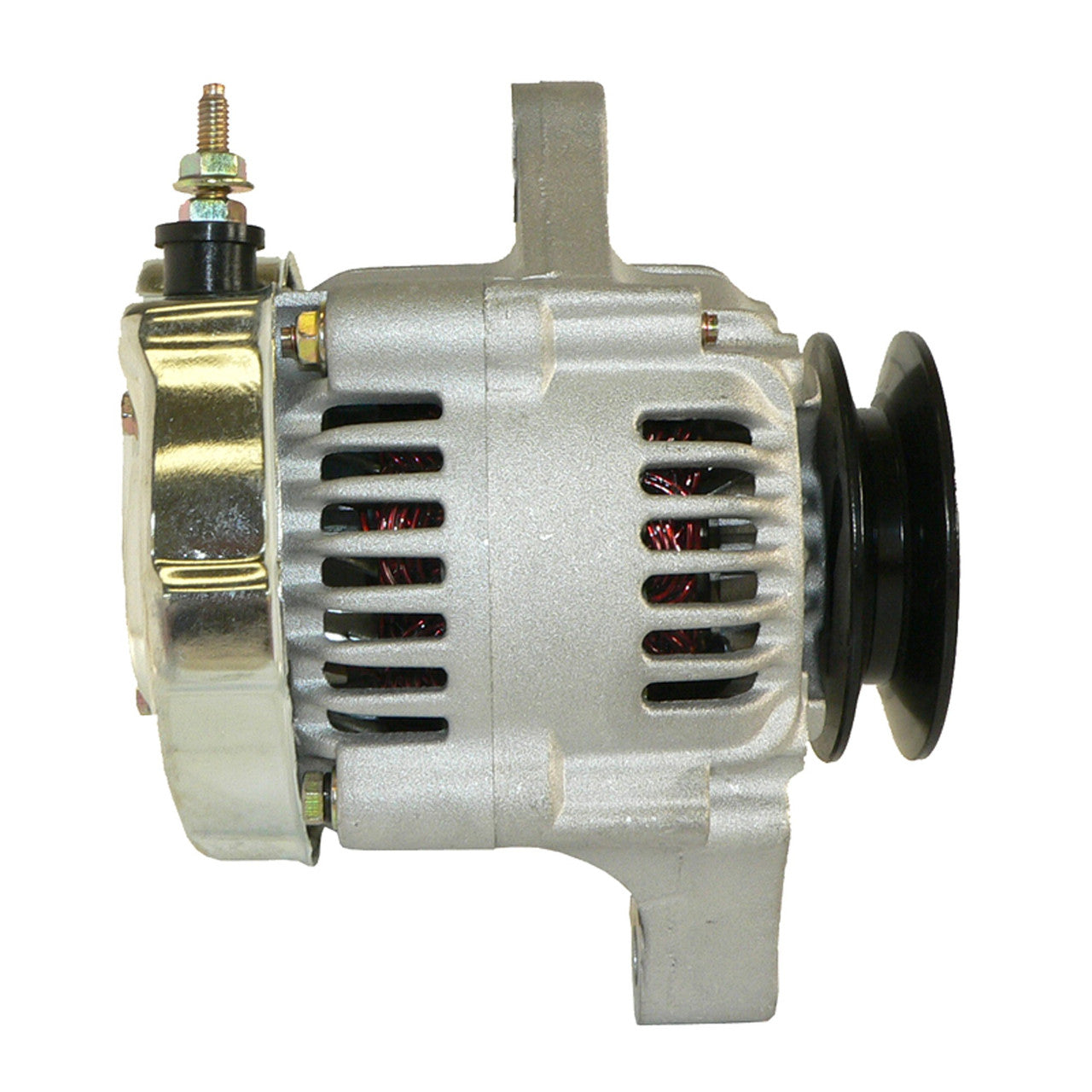

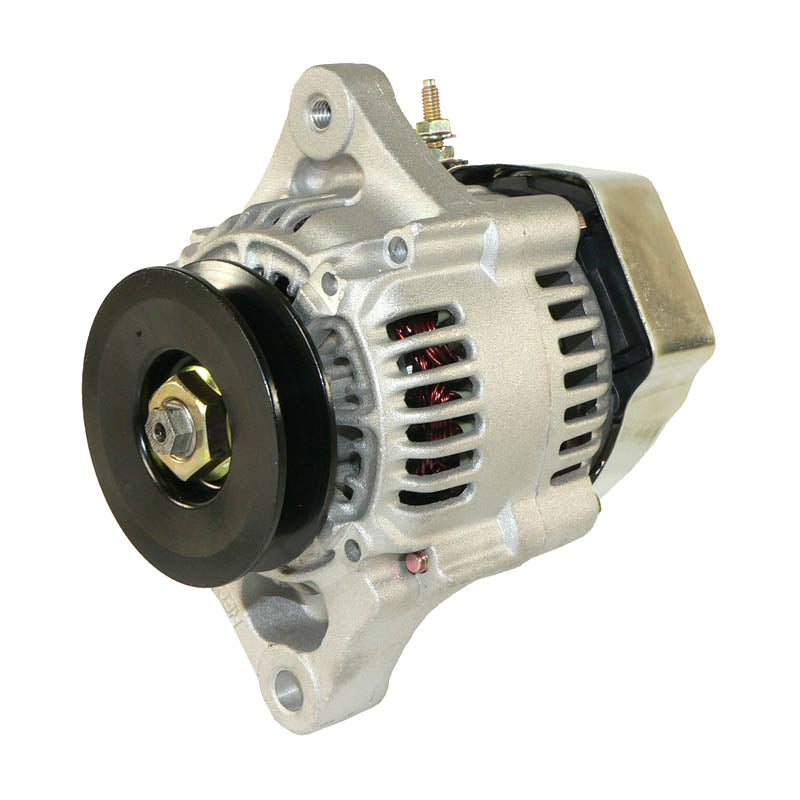

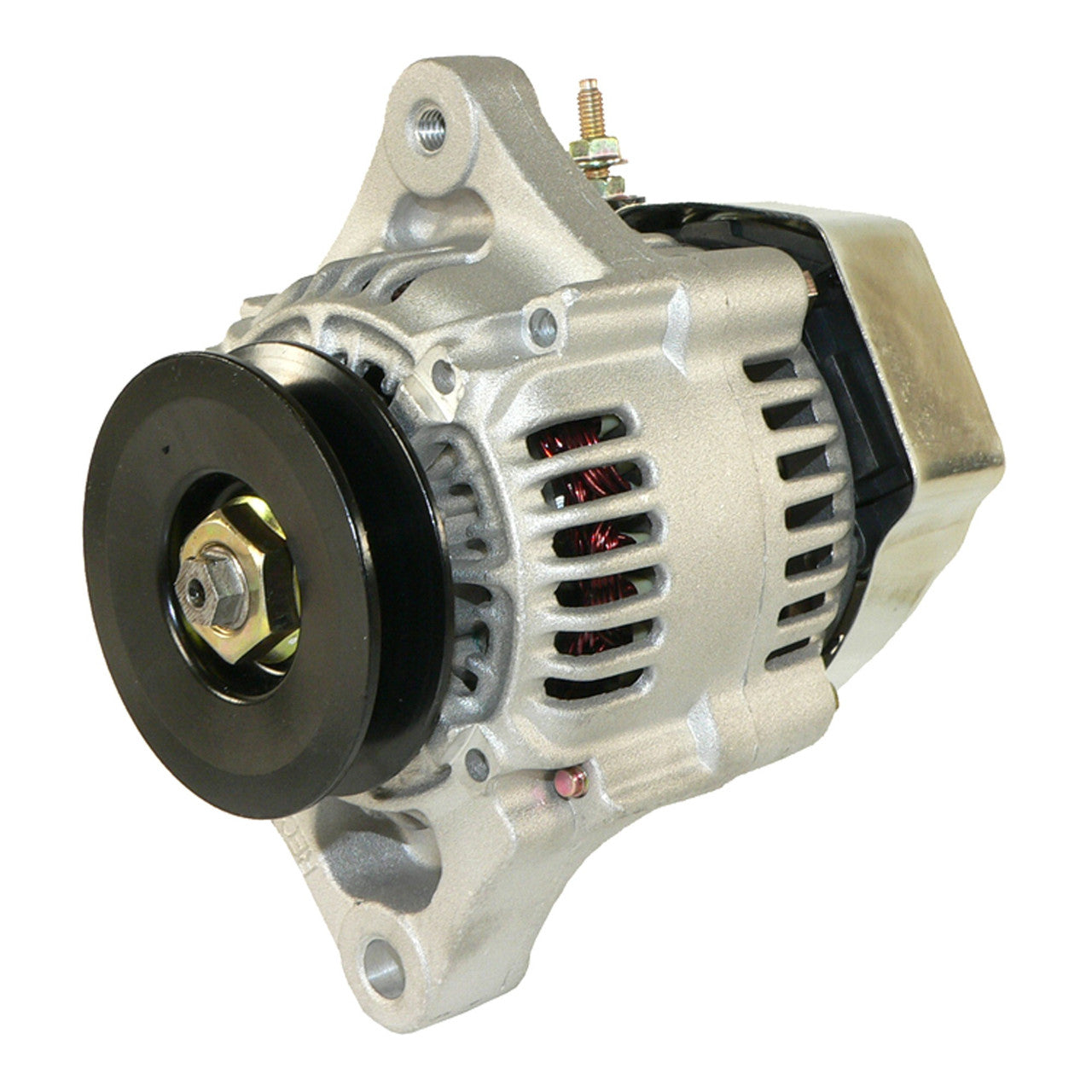

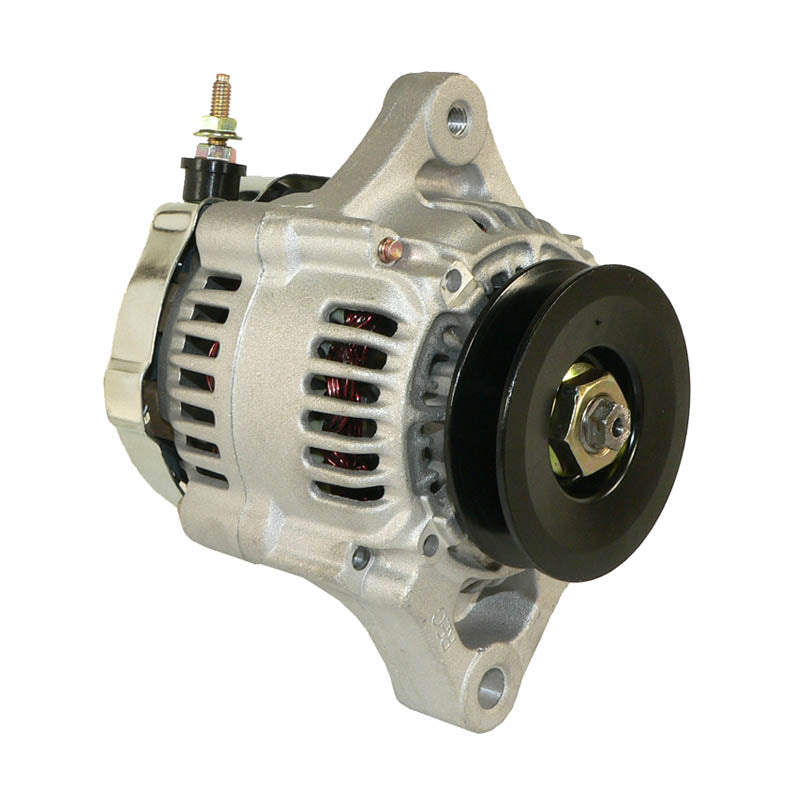

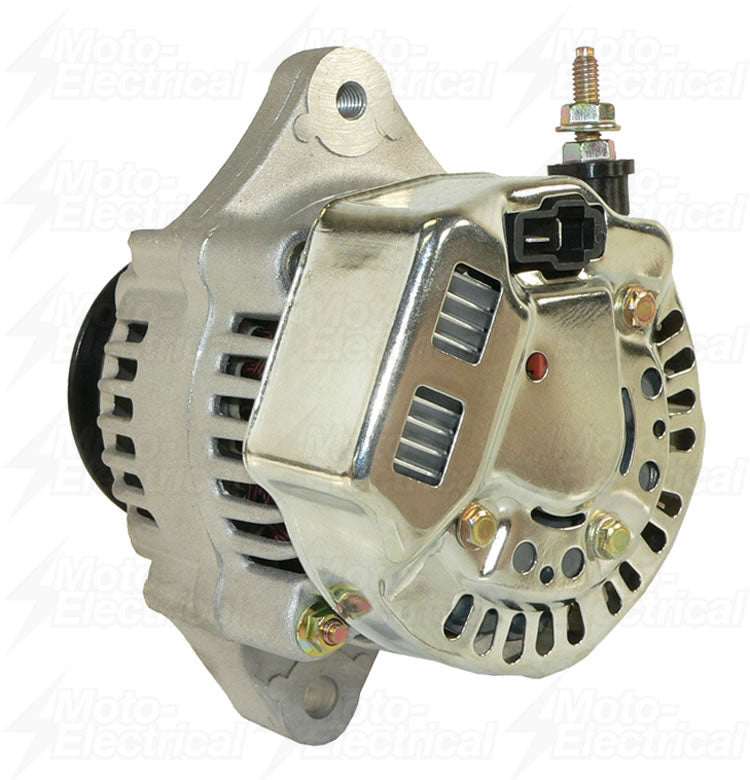

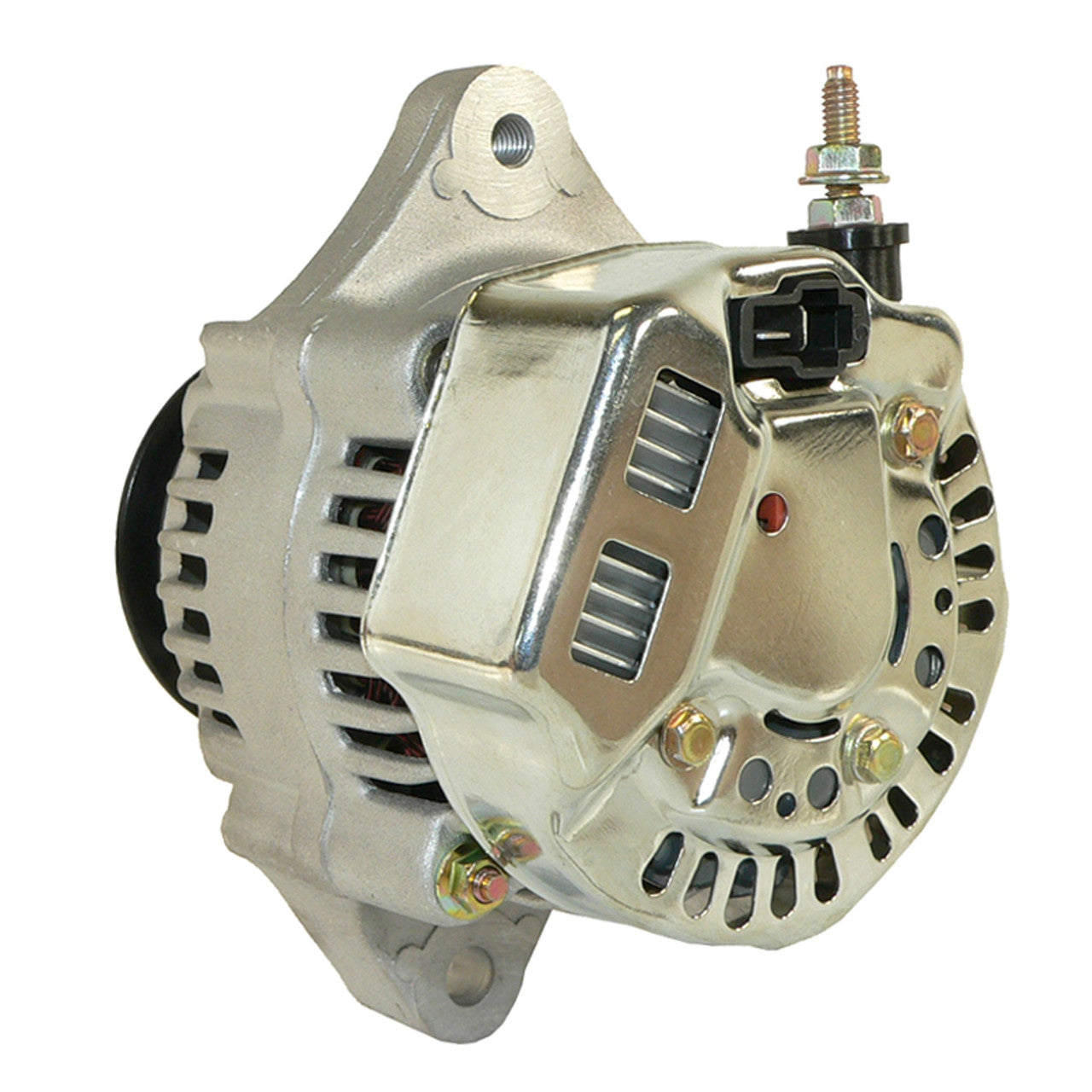

Alternator for Komatsu, Kubota & Toyota Forklift Trucks
Komatsu, Kubota & Toyota Lift Trucks 1986-1990, 12V 35A
This alternator is a direct replacement for a wide range of Komatsu, Kubota-engined and Toyota forklift trucks built between 1986 and 1990. It is built to OEM specifications, giving the same fit, output and mounting as the original alternator it replaces, with no modification required for installation.
Rated at 12 volts with a 35 amp output, this internal-regulator, internal-fan (IR/IF) unit rotates clockwise (CW) and uses a single-groove V1 pulley measuring 69mm OD with a 15mm bore, matching the original equipment regulator (#126000-0970) and mounting.
Key Features
- 12V, 35 Amp output
- Internal regulator, internal fan (IR/IF) design
- V1 pulley, 69mm OD, 15mm ID
- Clockwise (CW) rotation
- Direct OEM fit for Komatsu, Kubota & Toyota lift trucks
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 35A |
| Rotation | Clockwise (CW) |
| Pulley Type | V1 - 69mm OD, 15mm ID |
| Fan Type | Internal (IF) |
| Regulator | Internal (IR), OE ref #126000-0970 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Komatsu FD20-11, FD20DC-11, FD20SDC-11, FD20ST-11, FD20T-11, FD20WC-11 Forklifts (4D95 engine) | 1988-1990 |
| Komatsu FD30-11, FD30H-11, FD30S-11, FD30S-5, FD30SV-11, FD30V-11 Forklifts (4D95 engine) | 1988-1990 |
| Kubota-Engined Forklifts (D1402 / V1502) | 1986-1989 |
| Toyota 5FD-10 to 5FD-25 & 5FDL-10 to 5FDL-25 Forklifts (V1502 engine) | 1986-1989 |
| Toyota 5FG-10 to 5FG-30 & 5FGL-10 to 5FGL-25 Forklifts (4P / 4Y engine) | 1986-1989 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0-986-036-641 | Bosch |
| DRA6641 | Delco |
| 100211-1660, 100211-1661, 100211-1662, 100211-4390, 100211-449, 100211-4490, 210-7002, 9760218-166 | Denso |
| 0441-2972, 441-2972 | Deutz |
| 3049491 | Hyster |
| 400-52001R | JANNCO |
| 0441-2972 | KHD |
| 600-821-2350, 600-821-4490 | Komatsu |
| 17369-64011 | Kubota |
| 12180, 12197 | Lester |
| LRA02615 | Lucas Electric |
| 213534 | Towmotor |
| 27060-78001, 27060-78001-71, 27060-96001 | Toyota |
Frequently Asked Questions
Will this alternator fit without any modification?
Yes. This is a direct OEM fit and function replacement using the same mounting, pulley and electrical connections as your original unit, so no modification is needed.
What is included?
You receive one new alternator, ready to install using your existing bracket, belt and wiring loom.
How can I tell my old alternator has failed?
Common signs include a battery warning light, dim or flickering lights, a battery that won't hold charge, or a whining or growling noise from the alternator itself.
My forklift model isn't listed - will this still fit?
Check the OEM part number cross reference table above against the number on your existing alternator, as the same unit is shared across many Komatsu, Kubota and Toyota lift truck models.
