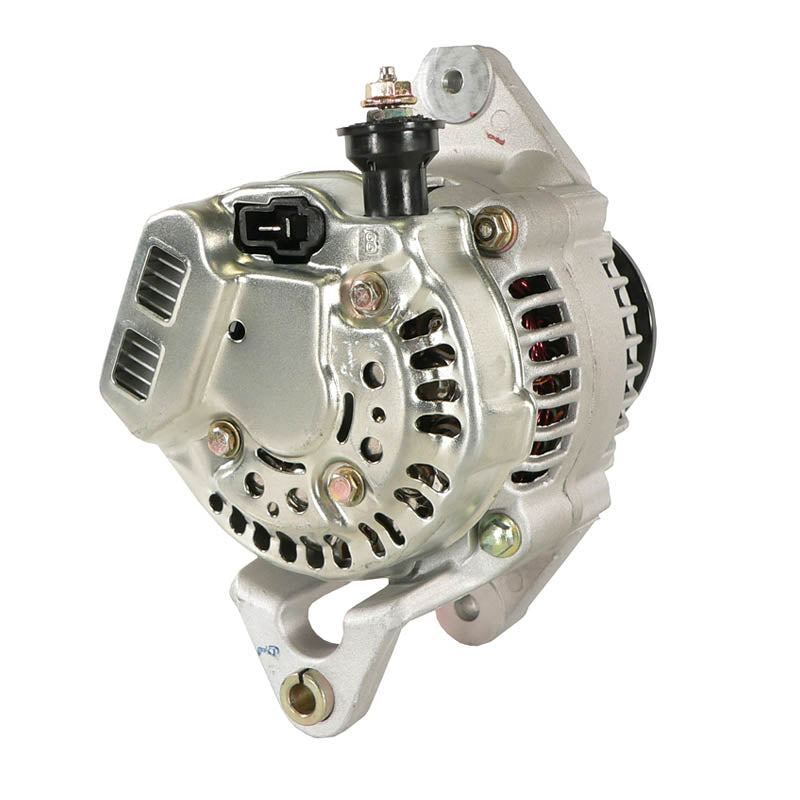

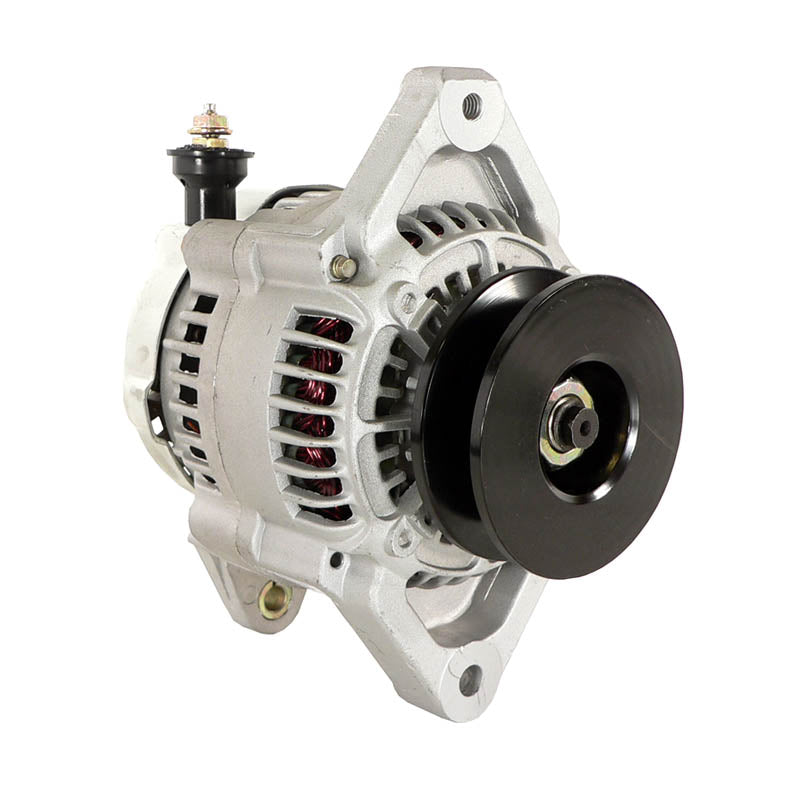

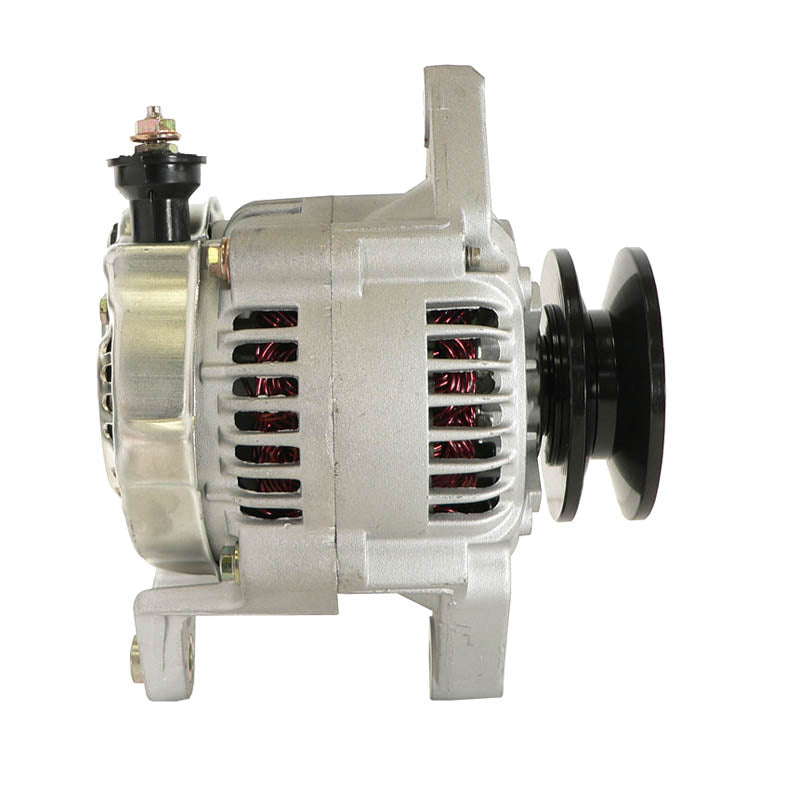

Alternator for Komatsu & Toyota Lift Trucks - 12V 40A
Alternator for Komatsu & Toyota Lift Trucks - 12V 40A
SKU:400-52052
Free shipping over £150. Terms apply
Couldn't load pickup availability
Alternator for Komatsu & Toyota Lift Trucks
Komatsu & Toyota Lift Trucks, Northern Lights Generators - 12V 40A
This alternator is a direct replacement for Komatsu and Toyota lift trucks, and Northern Lights generators, fitted with an alternator of this specification. It is built to OEM specifications by Denso, giving the same fit, output and mounting as the original alternator it replaces, with no modification required for installation.
Rated at 12 volts with a 40 amp output, this internal-regulator, internal-fan (IR/IF) unit rotates clockwise (CW) and uses a single-groove V1 pulley measuring 76mm OD with a 15mm bore and a 5/8 inch belt width. The top drive-end mounting ear is a threaded 6mm x 1.0, the bottom mounting ears are unthreaded 8.2mm, and the plug code is IG-L.
Key Features
- 12V, 40 Amp output
- Internal regulator, internal fan (IR/IF) design
- V1 pulley, 76mm OD, 15mm ID, 5/8" belt width
- Manufactured by Denso
- Direct OEM fit for Komatsu & Toyota lift trucks
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 40A |
| Rotation | Clockwise (CW) |
| Pulley Class | V1 - 76mm OD, 15mm ID, 5/8" belt |
| Fan Type | Internal (IF) |
| Regulator | Internal (IR) |
| Manufacturer | Denso |
| Mounting | Top ear 6mm x 1.0 threaded; bottom ears 8.2mm unthreaded |
| Plug Code | IG-L |
| Interchange Reference | Lester 12182 / PIC 290-205 |
Vehicle Fitment Guide
The supplier has not published model-level year data for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Komatsu Lift Trucks | Not specified |
| Toyota Lift Trucks (OE 27060-78301) | Not specified |
| Hyster Lift Trucks (OE 3049393) | Not specified |
| Northern Lights Generators | Not specified |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 27060-78301, 27060-78301-71 | Toyota |
| 100211-4000, 100211-4001, 100211-4002, 100211-4003, 100211-4004, 210-7003 | Denso |
| 3049393 | Hyster |
| 90-29-5173 | Wilson |
| 12182 | Lester |
| 290-205 | PIC |
Frequently Asked Questions
Will this alternator fit without any modification?
Yes. This is a direct OEM fit and function replacement using the same mounting, pulley and electrical connections as your original unit, so no modification is needed.
What is included?
You receive one new alternator, ready to install using your existing bracket, belt and wiring loom.
How can I tell my old alternator has failed?
Common signs include a battery warning light, dim or flickering lights, a battery that won't hold charge, or a whining or growling noise from the alternator itself.
How do I check the mounting ears match my original unit?
The top drive-end mounting ear on this unit is a threaded 6mm x 1.0, and the two bottom mounting ears are unthreaded at 8.2mm. Compare these against your original alternator before ordering.
