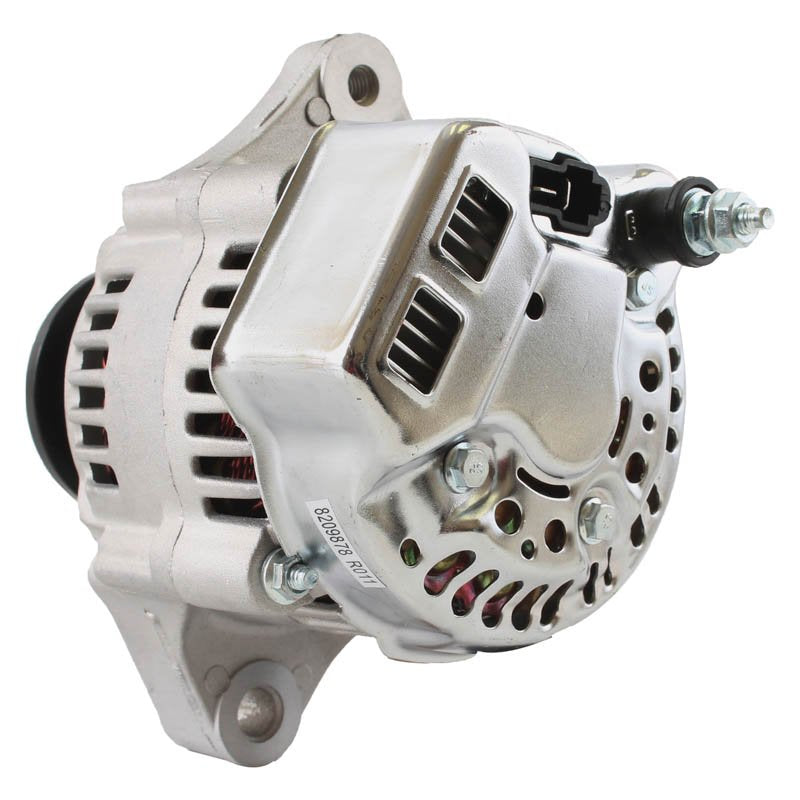

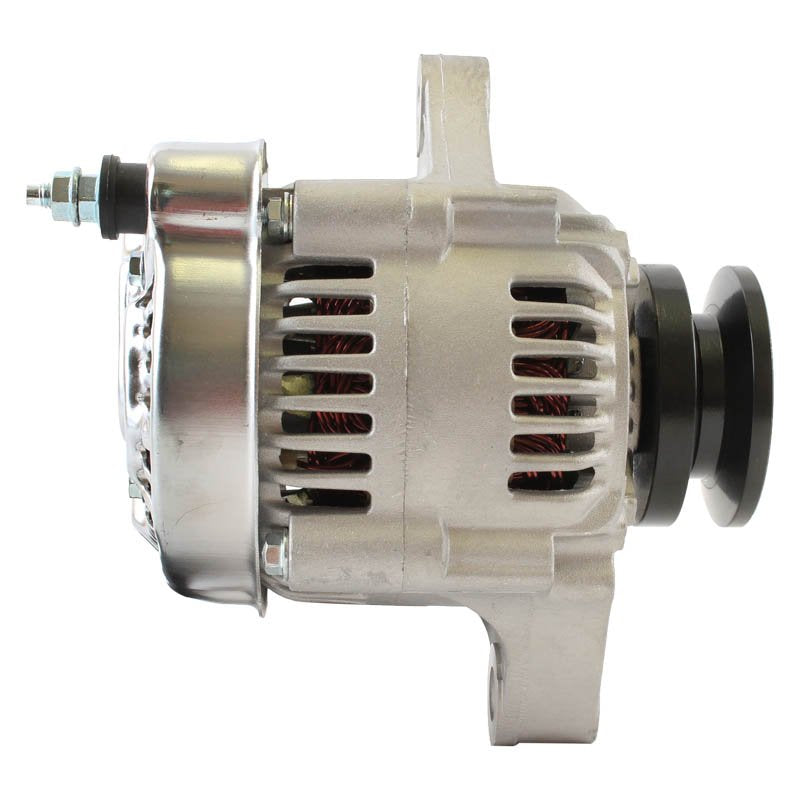

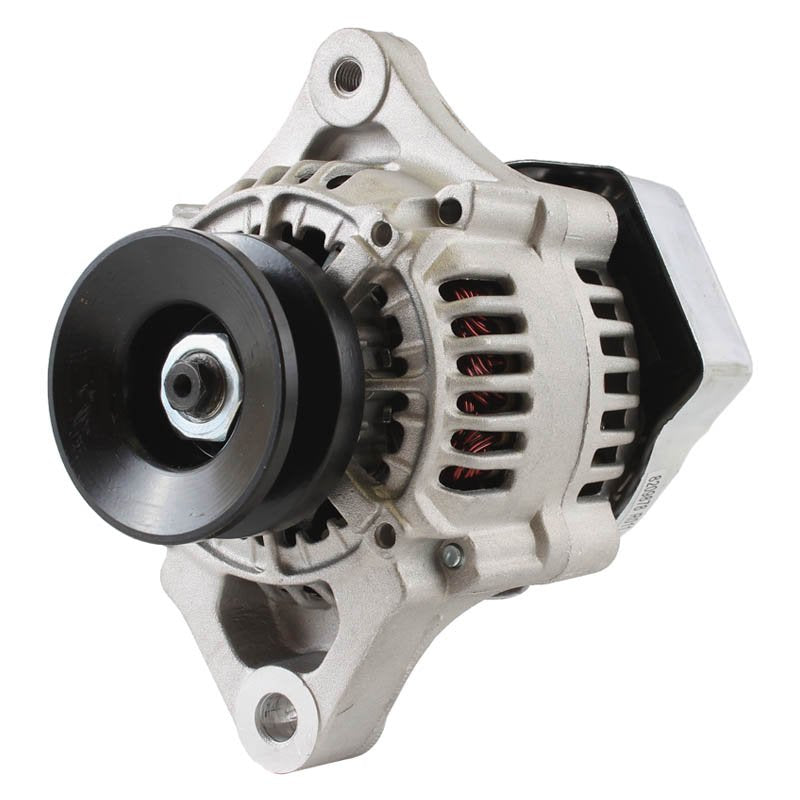

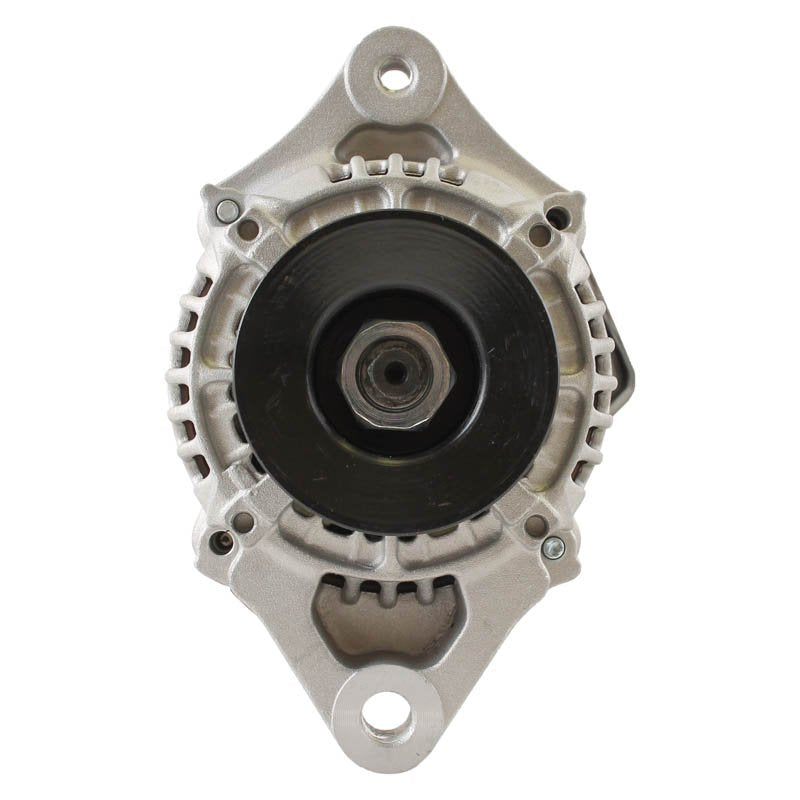

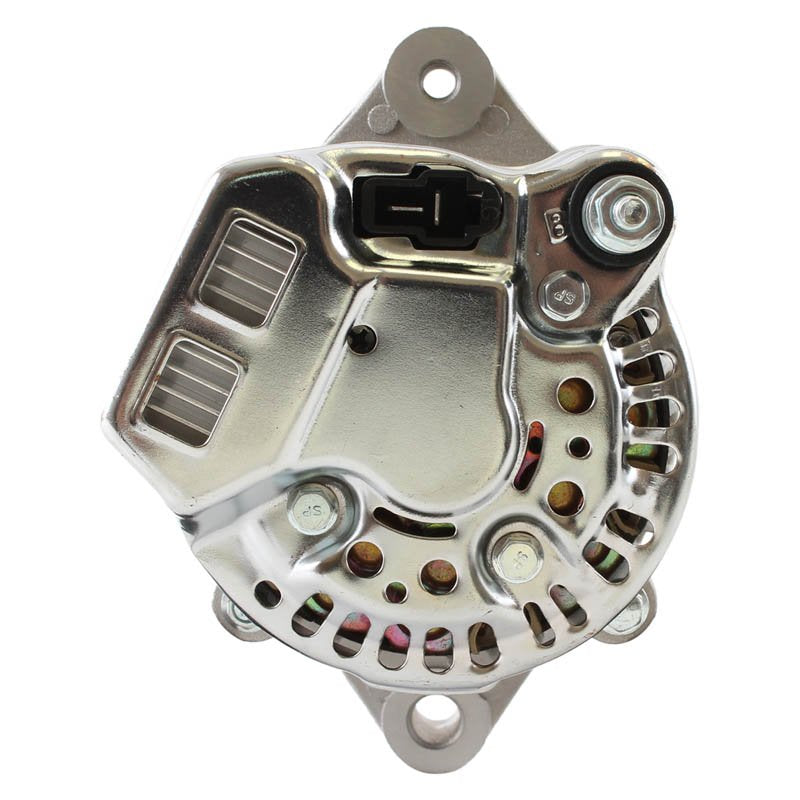

Alternator for Kubota Compact Tractors
Kubota Compact Tractors & Kubota-Engined Equipment, 1988-2009
This alternator is a direct replacement for Kubota compact tractors and the wide range of construction, grounds care and lift truck equipment built around Kubota diesel engines, including Case IH skid steers and trenchers, Gehl and Thomas loaders, and Toro Groundsmaster and Reelmaster mowers. It is built to OEM specifications, giving the same fit, output and mounting as the original alternator it replaces, with no modification required for installation.
Rated at 12 volts with a 40 amp output, this internal-regulator, internal-fan (IR/IF) unit rotates clockwise (CW) and uses a single-groove V1 pulley measuring 63mm OD with a 15mm bore and an 11mm belt, fitted with an IG-L T-shaped plug at the 12 o'clock position and a horizontal 6mm x 1.0 B+ terminal at the rear, matching the original equipment layout.
Key Features
- 12V, 40 Amp output
- Internal regulator, internal fan (IR/IF) design
- V1 pulley, 63mm OD, 15mm ID, 11mm belt
- IG-L T-shaped plug at 12 o'clock
- Horizontal B+ terminal, 6mm x 1.0, rear-facing
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 40A |
| Rotation | Clockwise (CW) |
| Pulley Type | V1 - 63mm OD, 15mm ID, 11mm belt |
| Fan Type | Internal (IF) |
| Regulator | Internal (IR) |
| Plug Type | IG-L, T-shaped, 12 o'clock position |
| B+ Terminal | Horizontal, rear-facing, 6mm x 1.0 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kubota B1550, B1750 & B2150 Series Tractors (D850-5B, D950-5B, V1200-5B diesel) | 1988-1998 |
| Kubota B2400HST-D & B2410HSD (D1105-D10 diesel) | 1995-1998 |
| Kubota B7510 & B7610 Series (D1005-E / D1105-E diesel) | 2004-2007 |
| Kubota B21TL, B21TLB & B26 (D1005 / D1105-E2-U diesel) | 2001-2009 |
| Kubota L2650, L2950, L3450 & L3650 Series Tractors | 1990-1996 |
| Kubota L2900, L3300, L3600 & L4200 Series Tractors | 1994-1998 |
| Kubota L3010, L3410, L3710, L4310 & L4610 Series Tractors | 1998-2002 |
| Kubota L35TL & L35TLB Tractor Loader Backhoe (D1703TLB diesel) | 1996-2004 |
| Kubota L48TL & L48TLB Tractor Loader Backhoe (V2403 48HP diesel) | 1996-2009 |
| Kubota M4700 Tractor | 1995-1997 |
| Kubota KX41, KX61, KX71, KX91, KX121-2 & KX161-2 Excavators | 1995-2000 |
| Kubota F2880, F2880E & F3680 Front Mowers | 2006 |
| Kubota F2260, F2400, F2560, F3060, FZ2100, FZ2400, G2160 & G2460G Mowers | Not specified |
| Case IH Maxi-Sneaker Trencher (Kubota V1505-B diesel) | 1993-2001 |
| Case IH 460 (Kubota V1505-B diesel) | 1994-2001 |
| Case IH 1825B & 1838 Skid Steers (Kubota engine) | 1995-1999 |
| Case IH 6010 (Kubota V2203 diesel) | 1997-2000 |
| Gehl 3825, 3825SX & SL3825 (Kubota V1305 engine) | Not specified |
| Thomas Equipment 175, T84, T153 & T153S (Kubota diesel) | Not specified |
| Grasshopper 928D & Gravely 989057 | Not specified |
| Toro Groundsmaster 7210 (Kubota 35HP diesel) | 2007-2009 |
| Toro Groundsmaster 228D, 328D, 3280D, 3500D & 7200 | Not specified |
| Toro Reelmaster 3100D, 5200D, 5210, 5400D, 5410, 5500D, 5510, 5610, 6500-D & 6700D | Not specified |
| Toyota Forklifts (V1502 engine) | Not specified |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 16427-64012, 16705-64011, 16705-64012, 34070-75600, 34070-75601, 34070-75602, 3A011-74010, 3A011-74013, 3A011-74014, 5H730-42500, KEARA34070, T1060-15682 | Kubota |
| 100211-4610, 100211-4640, 100211-4650, 100211-4771, 101211-1180, 101211-1360, 101211-1361, 9760218-464, 9760218-465 | Denso |
| 6683144 | Bobcat |
| 603001738 | Husqvarna |
| 98-9474 | Toro |
| 400-52030 | Arrowhead |
| 400-52030R | JANNCO |
| 11952, 12198, 12199 | Lester |
| LRA02615 | Lucas Electric |
Frequently Asked Questions
Will this alternator fit without any modification?
Yes. This is a direct OEM fit and function replacement using the same mounting, pulley and electrical connections as your original unit, so no modification is needed.
What is included?
You receive one new alternator, ready to install using your existing bracket, belt and wiring loom.
How can I tell my old alternator has failed?
Common signs include a battery warning light, dim or flickering lights, a battery that won't hold charge, or a whining or growling noise from the alternator itself.
My equipment isn't a Kubota tractor - will this still fit?
This alternator is used across a wide range of equipment built around the Kubota diesel engine, including excavators, skid steers, mowers and forklifts. Check the OEM cross reference table above against your existing alternator's part number to confirm a match.
