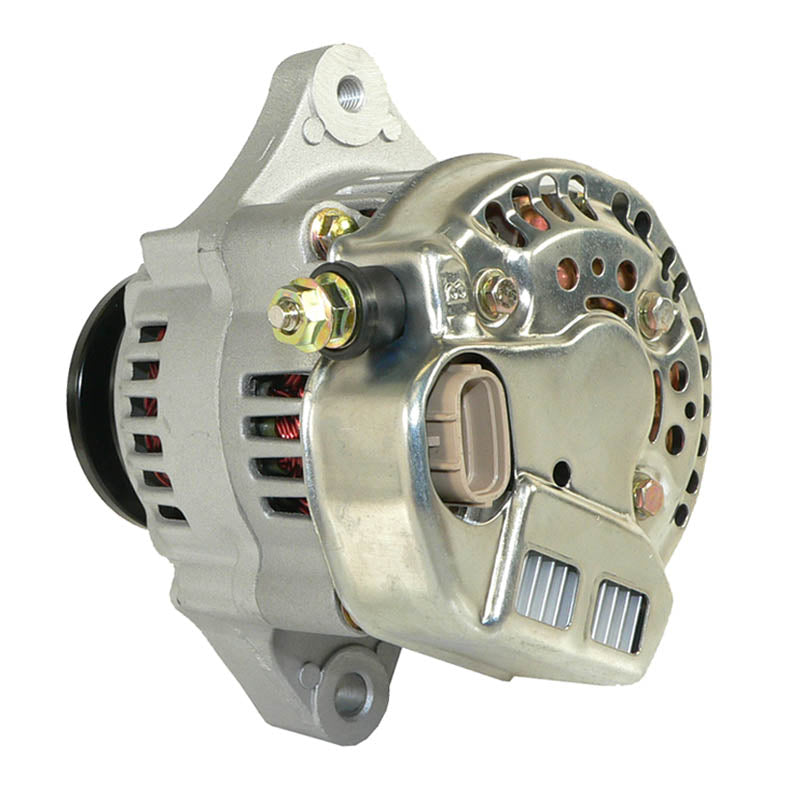

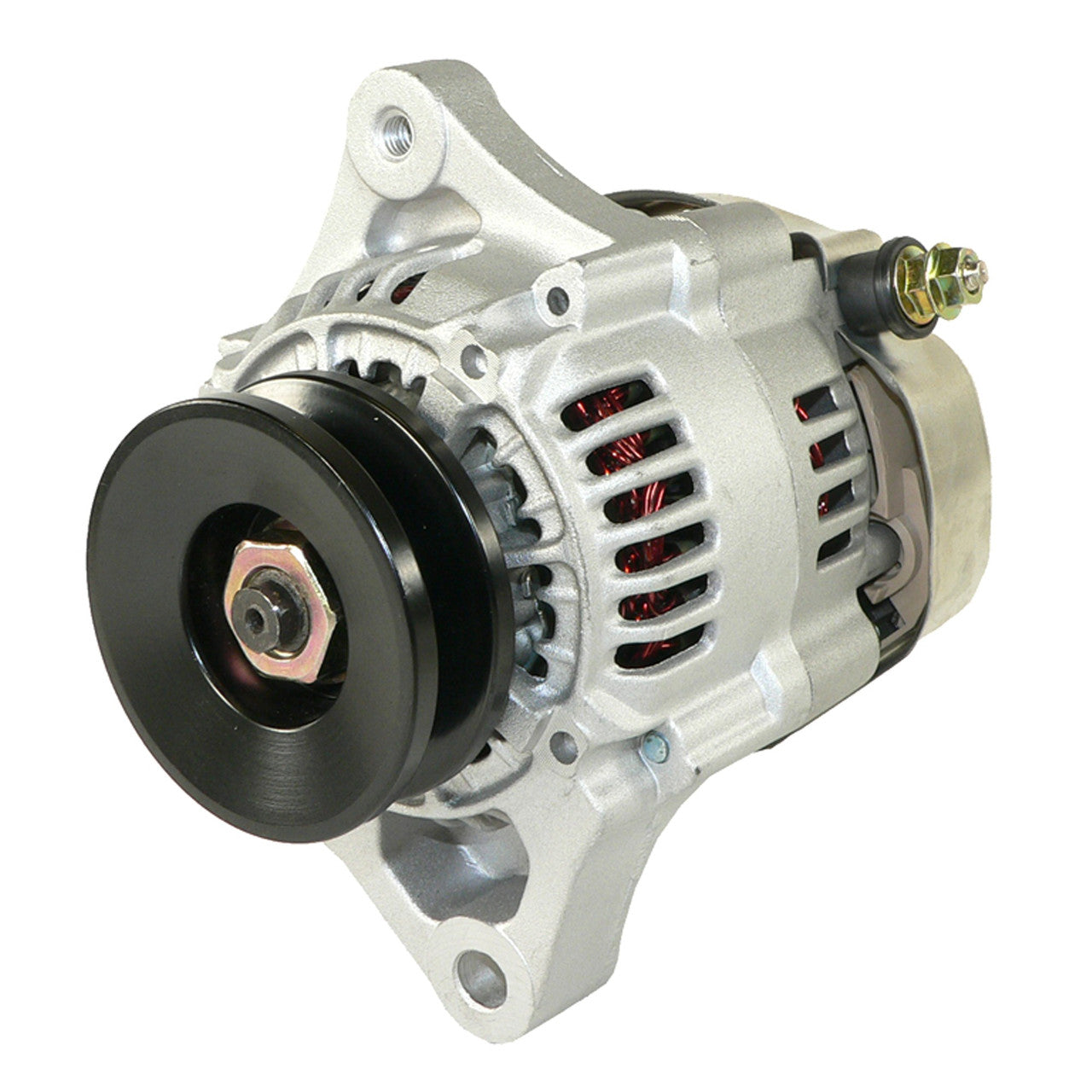

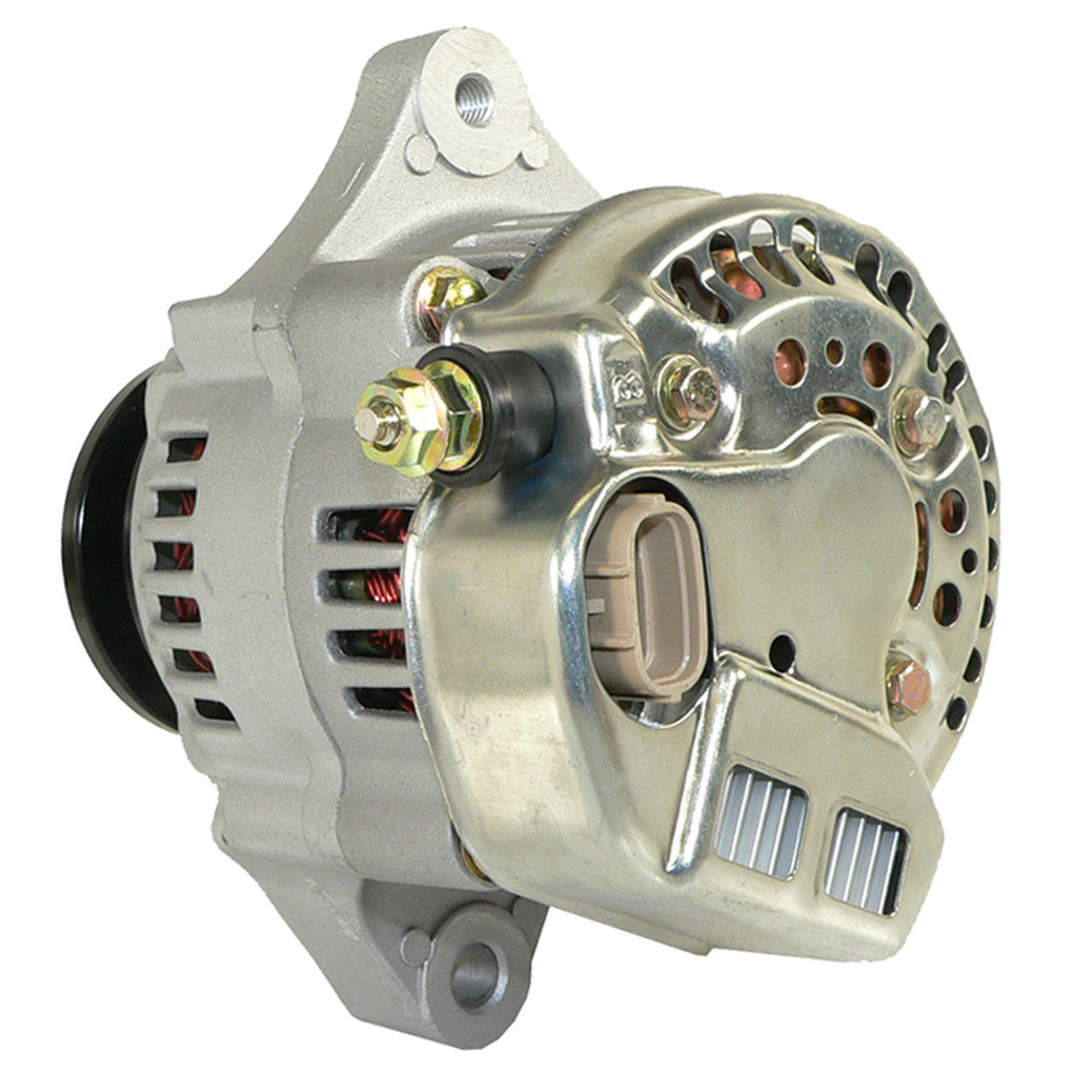

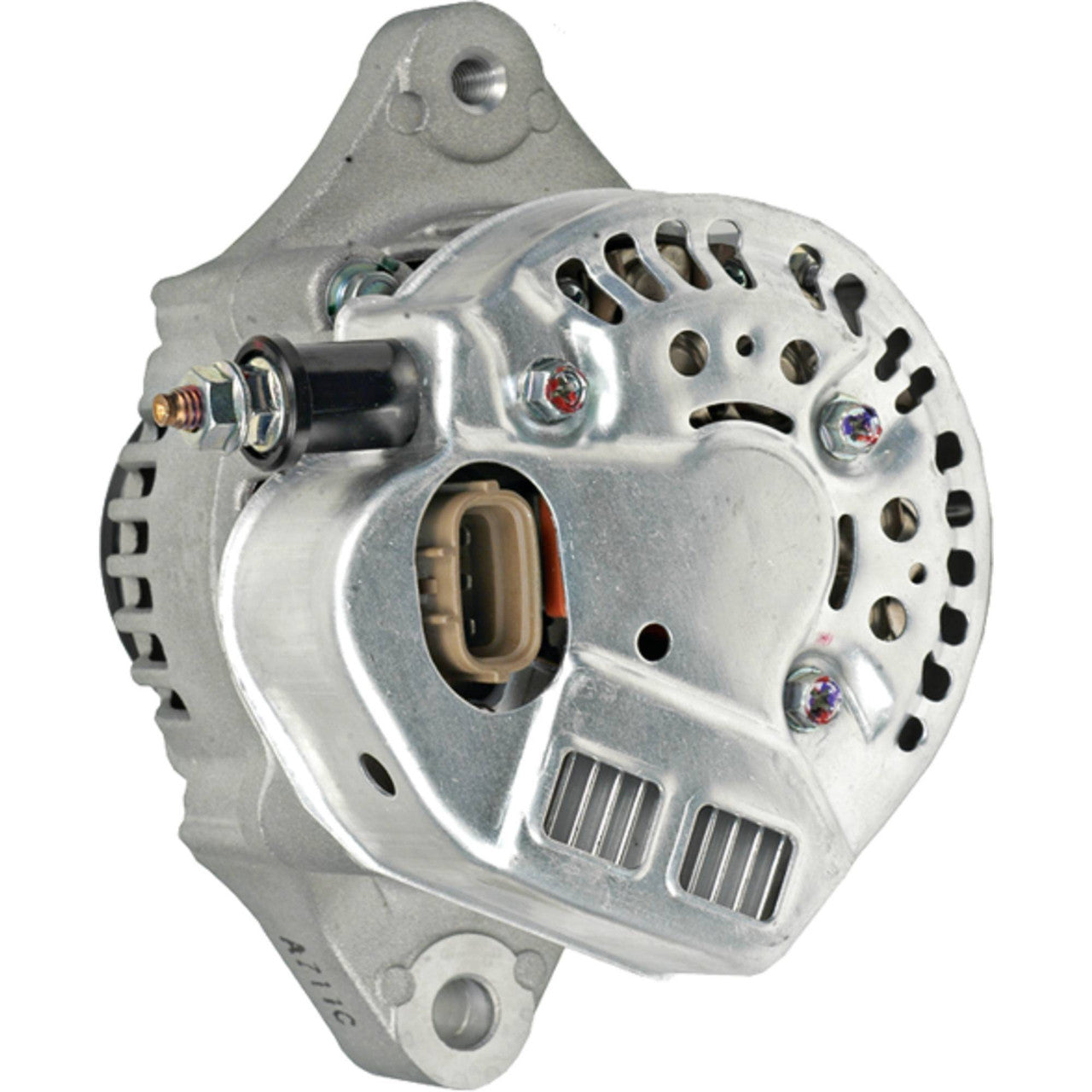

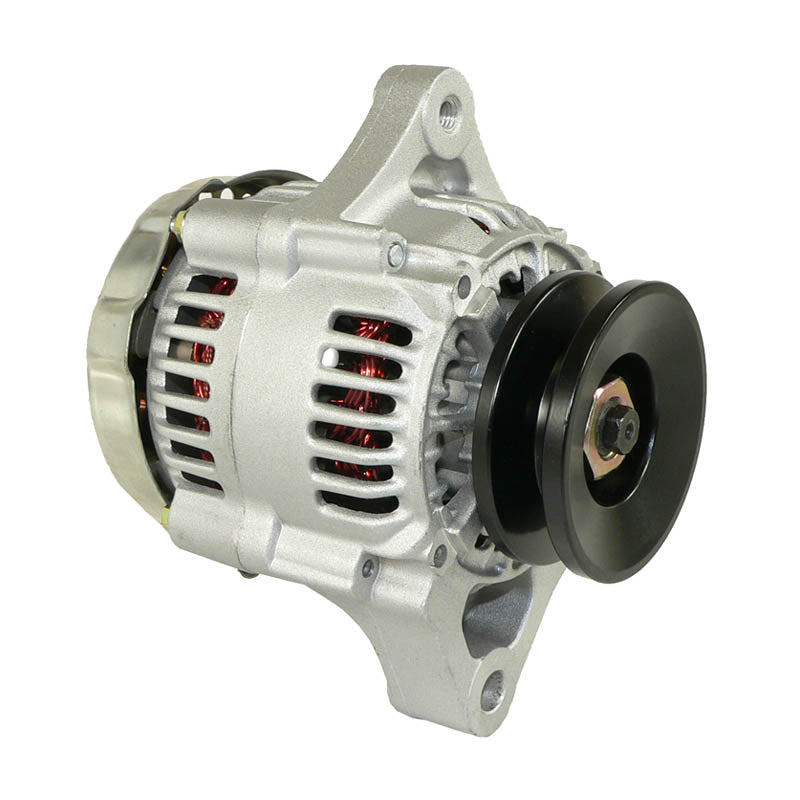

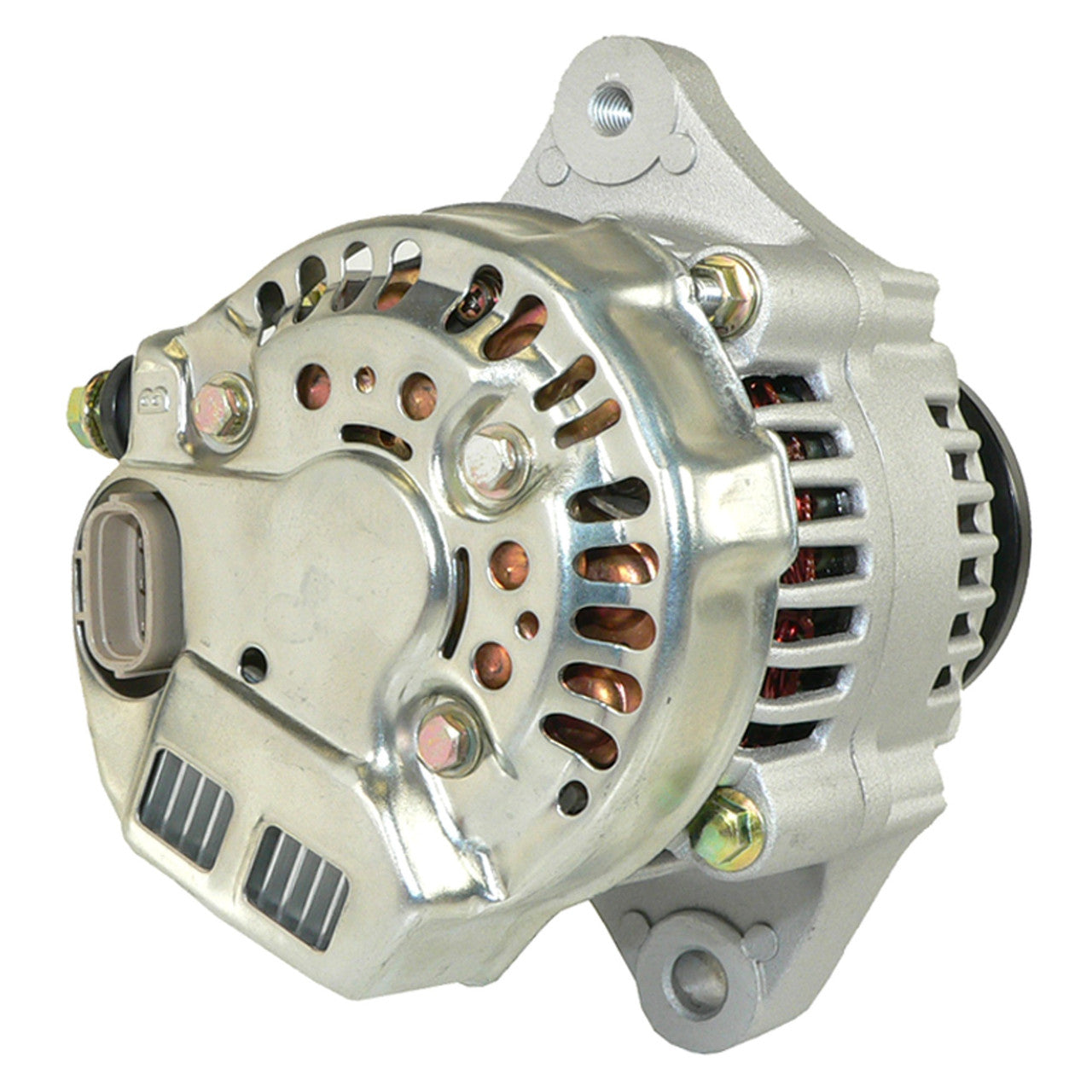

Alternator for Bobcat B200 B250 & Ingersoll Rand BL-275 Backhoe 2002-2006 - 12V 40A
Alternator for Bobcat B200 B250 & Ingersoll Rand BL-275 Backhoe 2002-2006 - 12V 40A
SKU:400-52076
Free shipping over £150. Terms apply
Couldn't load pickup availability
Alternator for Bobcat, Ingersoll Rand, Kubota & Steiner
12-Volt, 40 Amp, IR/IF, Clockwise, Single V Pulley, 9 O'Clock
This 12-volt, 40 amp alternator is built for Bobcat B200 and B250 loader backhoes and the Ingersoll Rand BL-275, all running the Kubota D1105 turbo diesel, plus the Kubota V1505 engine and the Steiner 230 tractor. It replaces Bobcat 6962168, Kubota 16678-64011 and 16678-64012, and the Denso 100211-4730 unit.
The unit uses an internal regulator and internal fan with a single-groove V pulley, clockwise rotation and a 9 o'clock clock position, matching the original equipment layout for a straight swap. Every unit is quality checked before dispatch, and our technical team is on hand if you need help confirming fitment.
Key Features
- 12-volt, 40 amp output to OEM specification
- Internal regulator and internal fan (IR/IF) design
- Single-groove V pulley, clockwise rotation, 9 o'clock clock position
- Direct replacement for Bobcat 6962168 and Kubota 16678-64011 / 16678-64012
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | 400-52076 |
| Unit Type | Alternator |
| Voltage | 12 V |
| Output | 40 A |
| Regulator / Fan | IR / IF |
| Rotation | Clockwise (CW) |
| Pulley | Single-groove V (V1) |
| Clock Position | 9 |
| Lester Number | 12202 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Bobcat B200 Loader Backhoe (Kubota D1105 Turbo) | 2002-2003 |
| Bobcat B250 Loader Backhoe (Kubota D1105 Turbo) | 2002-2006 |
| Ingersoll Rand BL-275 Loader Backhoe (Kubota D1105T Diesel) | 2002-2006 |
| Kubota V1505 Engine | All years |
| Steiner 230 Tractor (Kubota 28HP Diesel) | All years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 6962168 | Bobcat |
| 16678-64011, 16678-64012 | Kubota |
| 100211-4730, 9760218-473 (reman) | Denso |
| LRA02208 | Lucas Electrical Europe |
| ALT30007 | Wood Auto |
| AND0237, ND9760218-473 | Arrowhead |
| 90-29-5295, 70-29-12202 | Wilson |
| 12202N | EMS |
| 12202 | Lester |
Frequently Asked Questions
Will this alternator fit without modification?
Yes, on the machines listed above it is a direct, bolt-in replacement built to OEM specification - no modification is required.
How do I check this is the right part?
Compare the number on your original unit against the cross reference table - Bobcat 6962168, Kubota 16678-64011 / 16678-64012 or Denso 100211-4730.
What output does this unit give?
12 volts at 40 amps, with an internal regulator and internal fan, clockwise rotation and a single-groove V pulley.
How do I know my current alternator has failed?
Common signs include a dashboard warning light, dimming or flickering lights, a weak or dead battery despite recent charging, and slow engine cranking.
Can I confirm fitment before ordering?
Yes, our technical team can help confirm compatibility against your original part - just get in touch before you order.
