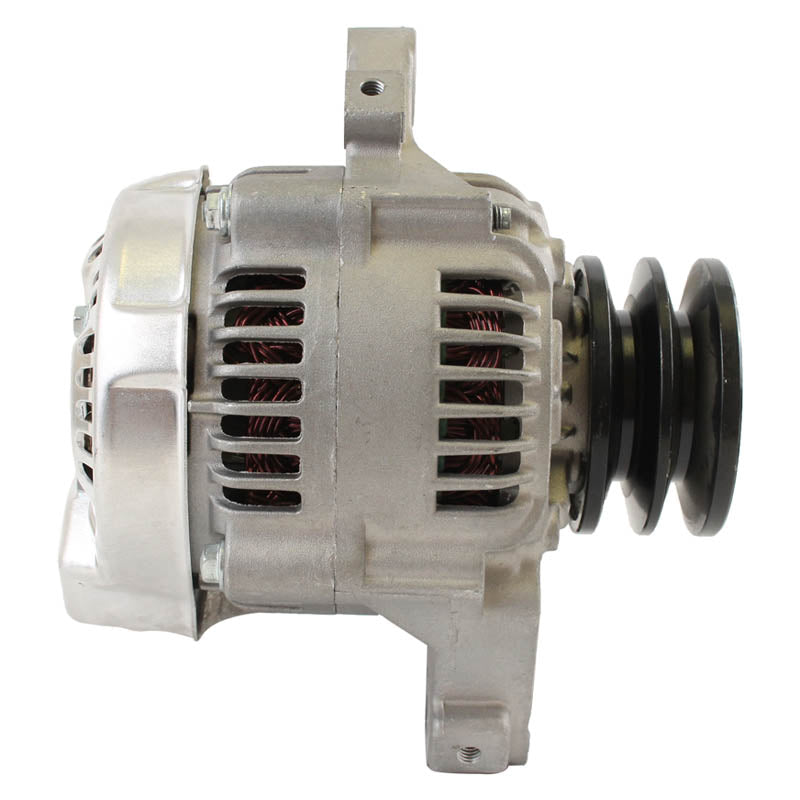

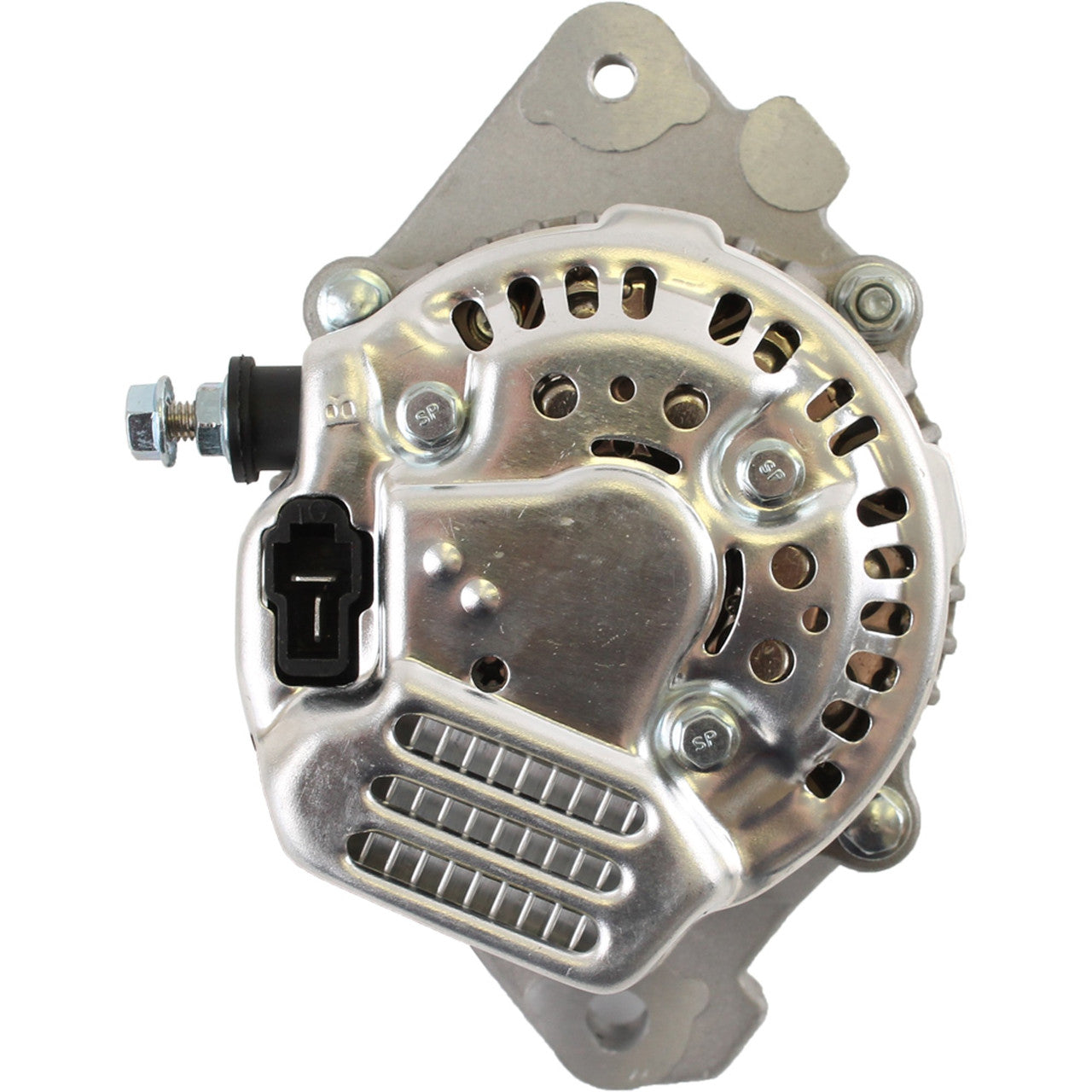

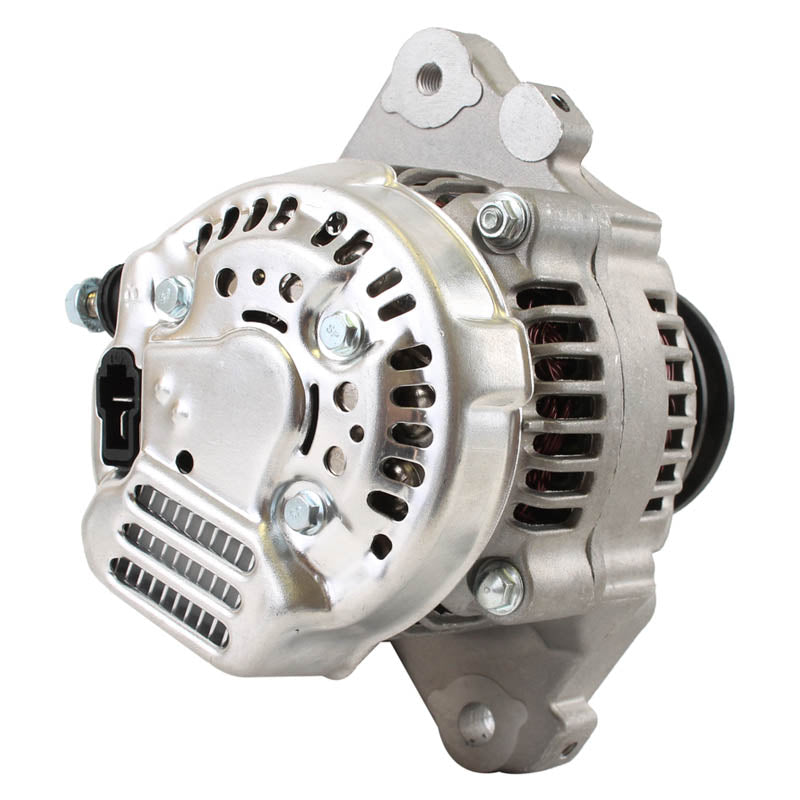

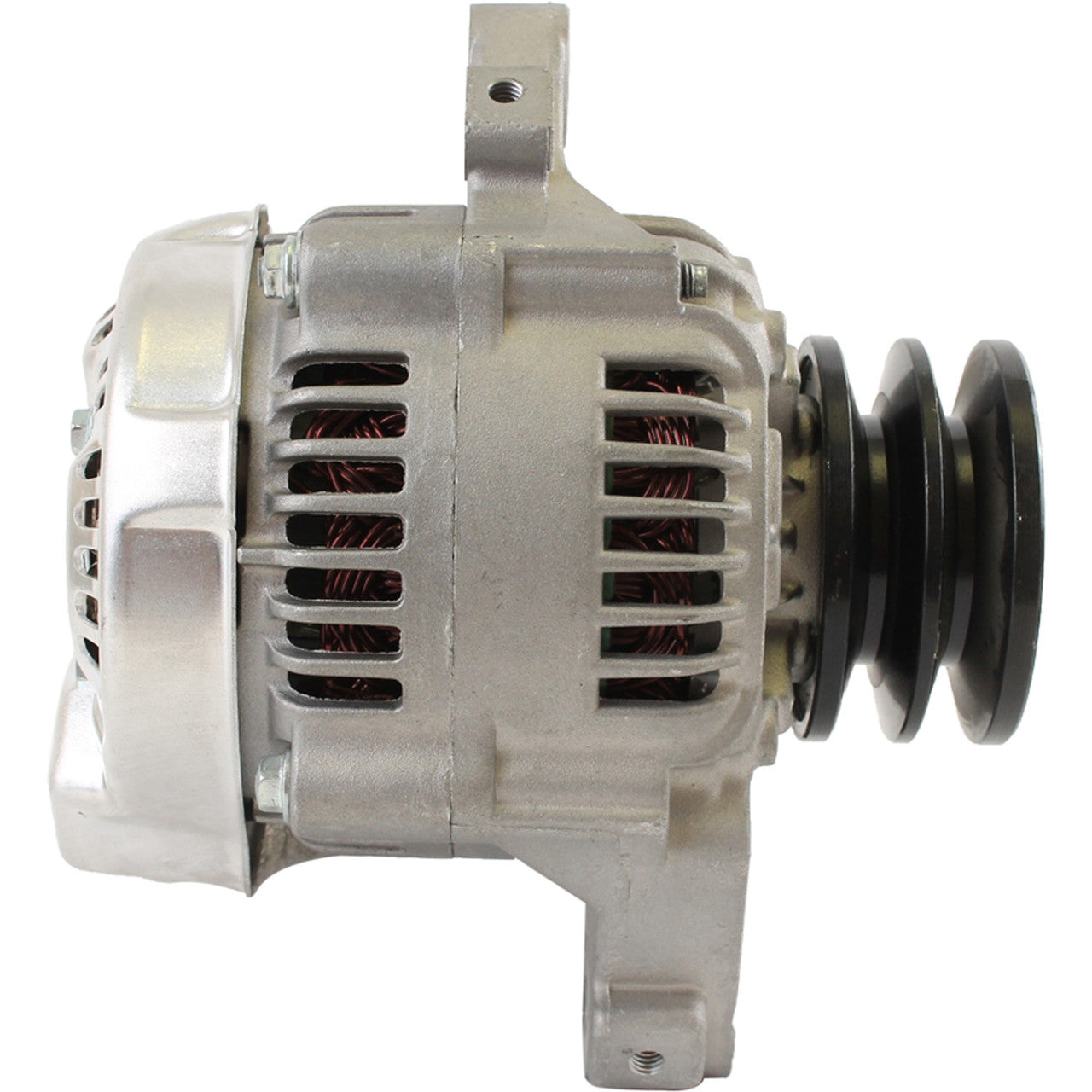

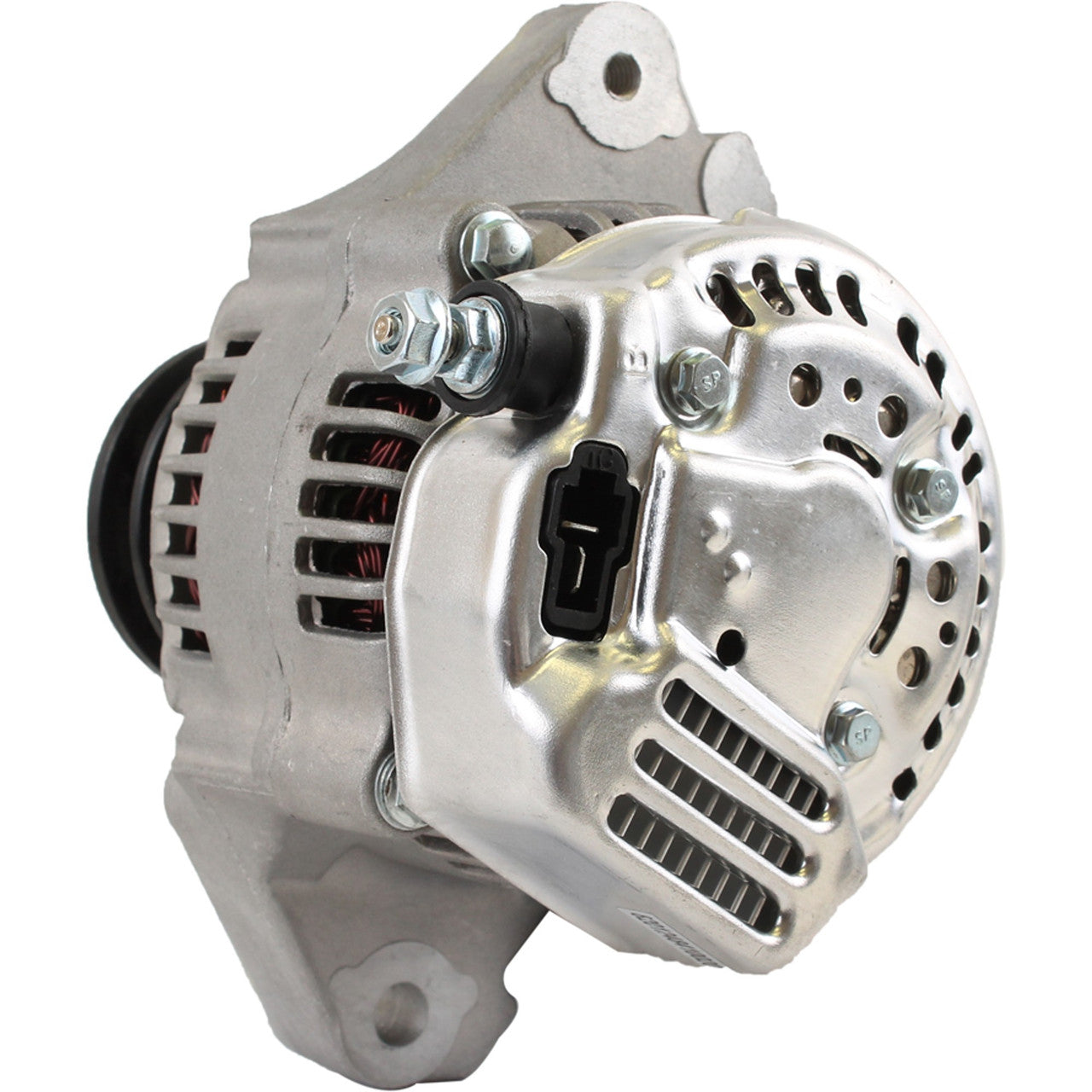

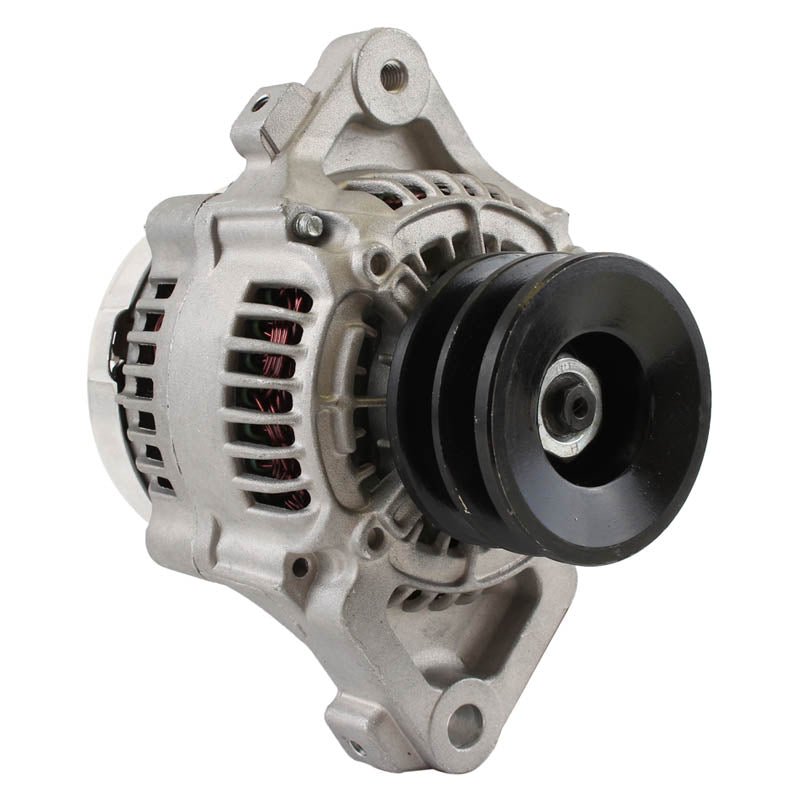

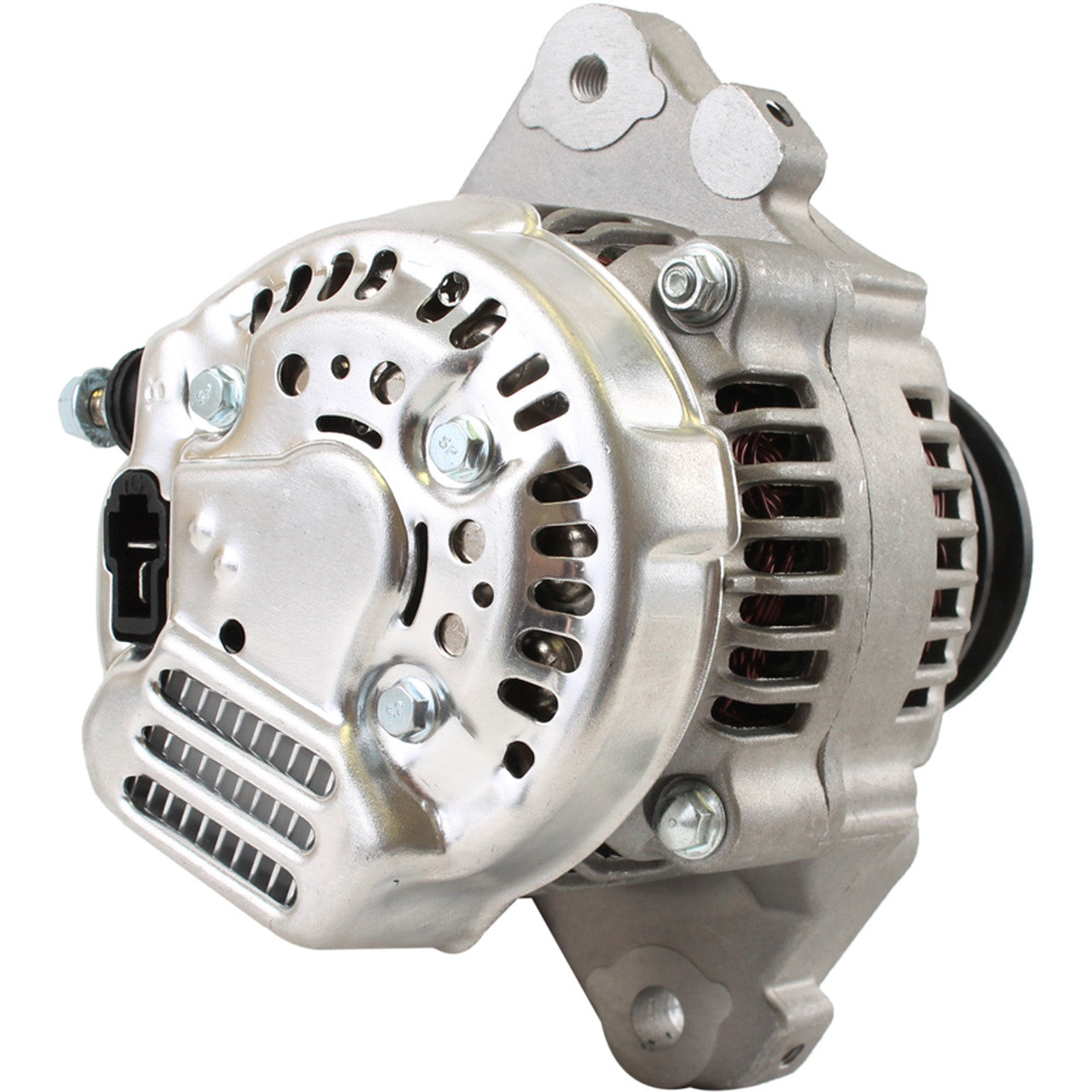

Alternator for Kubota M6030 Tractors with D3200A Diesel Engine
12-Volt, 50 Amp · Internal Regulator, Internal Fan
This alternator is a direct replacement for the unit fitted to Kubota M6030 series tractors running the D3200A diesel engine. It is manufactured to OEM specifications for fit, form and function, so it installs in place of the original part using the factory mounting points and drive belt.
The unit is rated 12 volt, 50 amp with clockwise rotation, and uses an internal regulator (IR) with an internal fan (IF) and a V2 class pulley, matching the original equipment Kubota specification. Restoring the correct charging output keeps the battery, glow plugs and lighting circuits working reliably on long working days.
Key Features
- 12V, 50 Amp output
- Clockwise (CW) rotation
- V2 class pulley
- Internal regulator (IR), internal fan (IF)
- Direct OEM fit and finish
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 50A |
| Rotation | Clockwise (CW) |
| Pulley | V2 class |
| Regulator | Internally regulated (IR) |
| Fan Type | Internal (IF) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kubota M6030DT Tractor (D3200A Diesel) | 1989 |
| Kubota M6030DTL Tractor (D3200A Diesel) | 1989 |
| Kubota M6030DTN Tractor (D3200A Diesel) | 1989 |
| Kubota M6030DTNB Tractor (D3200A Diesel) | 1998 |
| Kubota M6030F Tractor (D3200A Diesel) | 1989 |
| Kubota M6030L Tractor (D3200A Diesel) | 1989 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 16541-64010, 16541-64011, 16541-64012, 35583-74010, 35583-74011, 35583-74012, 35583-74013 | Kubota |
| 100211-6780, 101211-3620, 101211-3621 | Denso |
| 9760218-678 | Denso Reman |
| AND0238, ND100211-6780, ND9760218-678 | Arrowhead |
| 12204 | Lester |
Frequently Asked Questions
Will this fit without modification?
Yes, this unit is built to OEM specifications for direct fitment to Kubota M6030 series tractors using this regulator, fan and pulley configuration.
What is included?
The alternator unit only. No bracket, belt or wiring loom is included unless stated.
How do I know mine has failed?
Signs include a charge warning light, a battery that will not hold charge, dimming lights, or unusual noise from the unit.
My tractor is not listed — will it still fit?
Compare the OEM number stamped on your original alternator against the cross reference table above. If it matches, this unit is the correct replacement.
