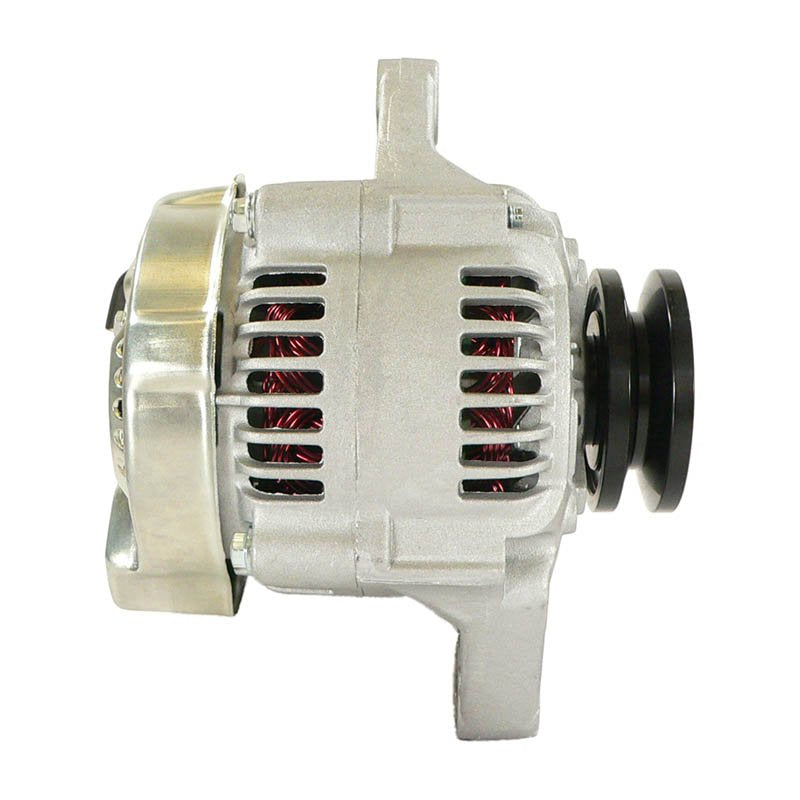

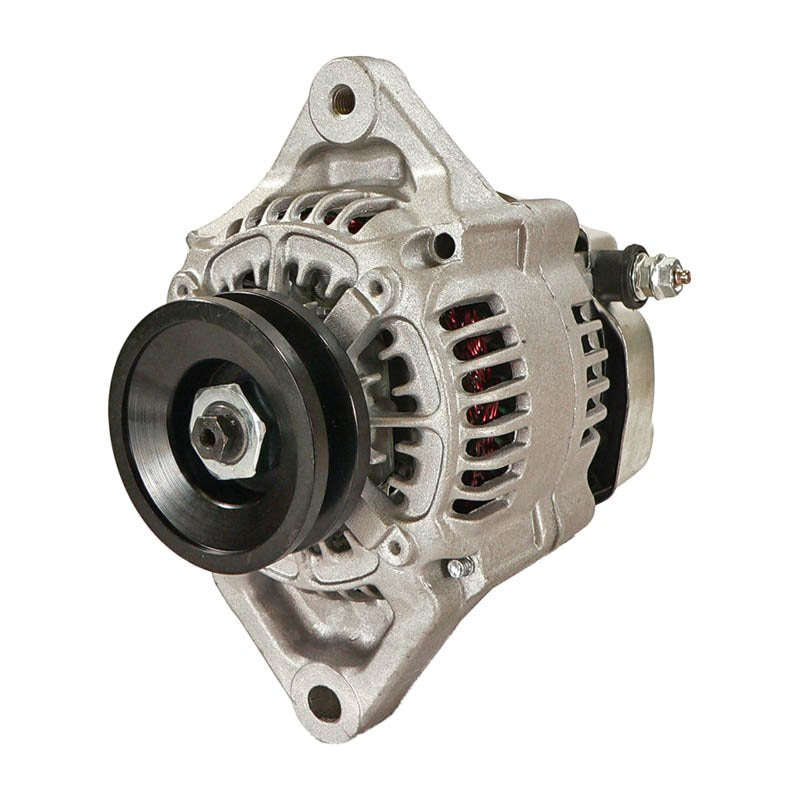

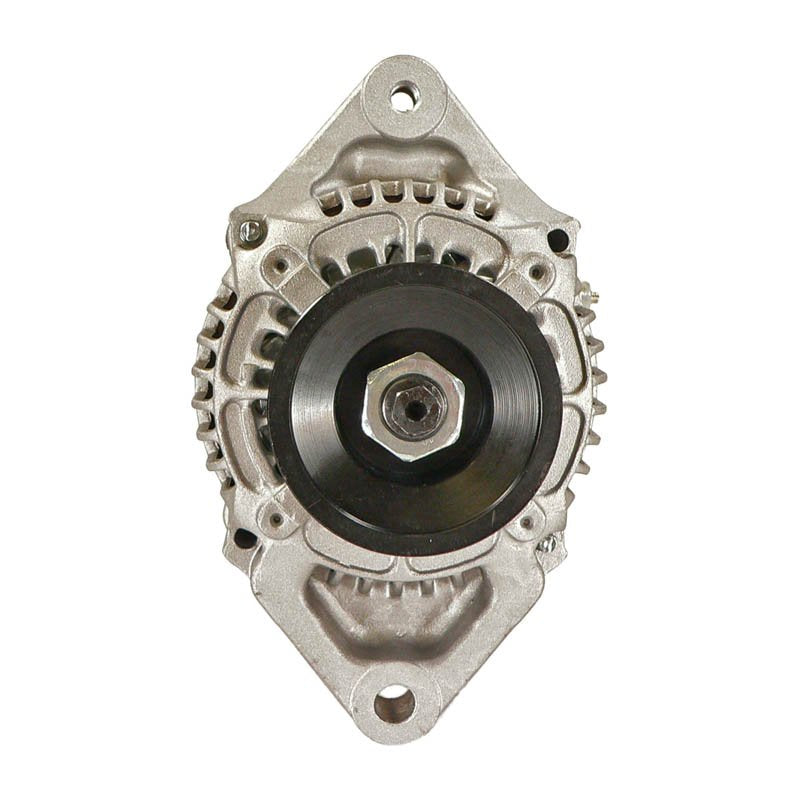

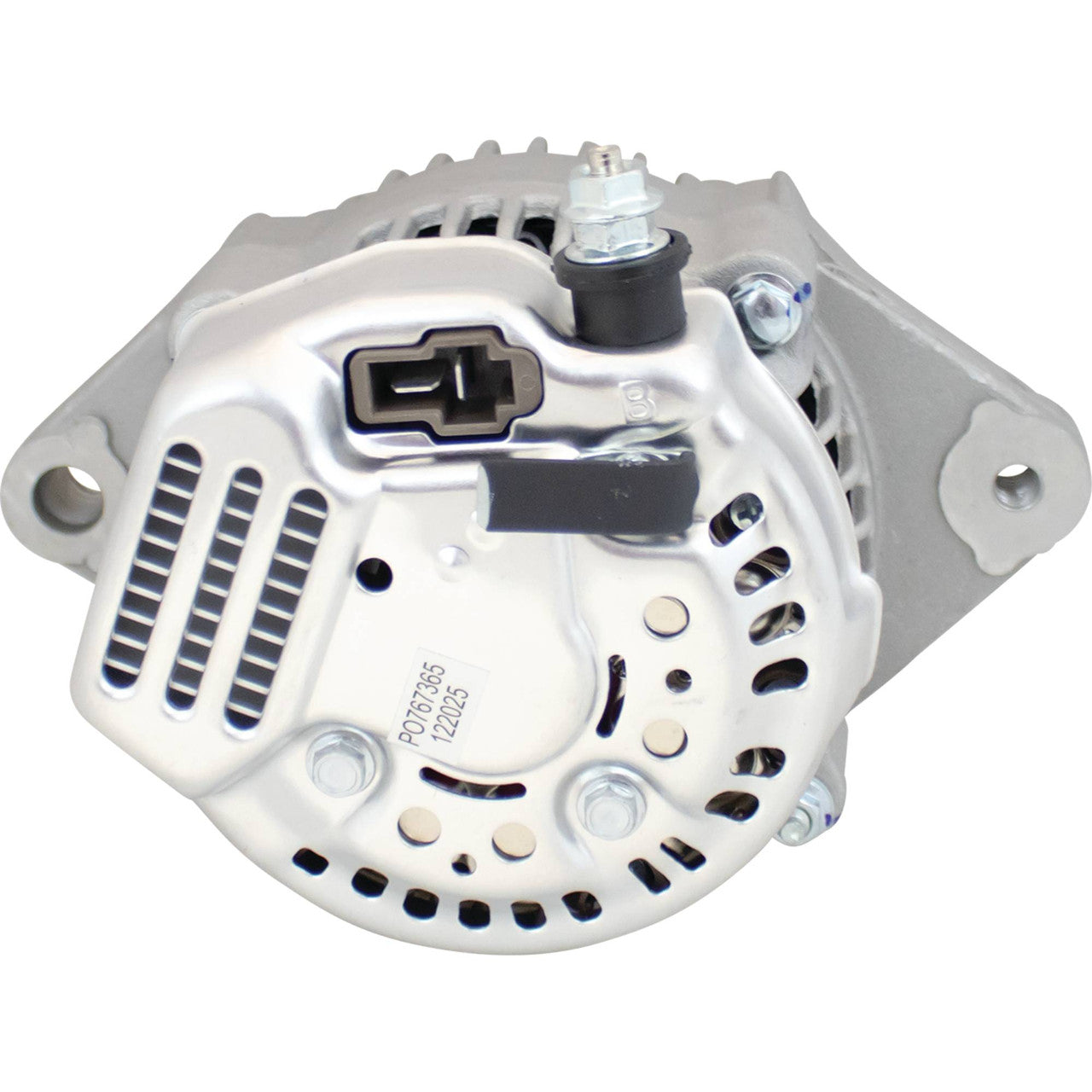

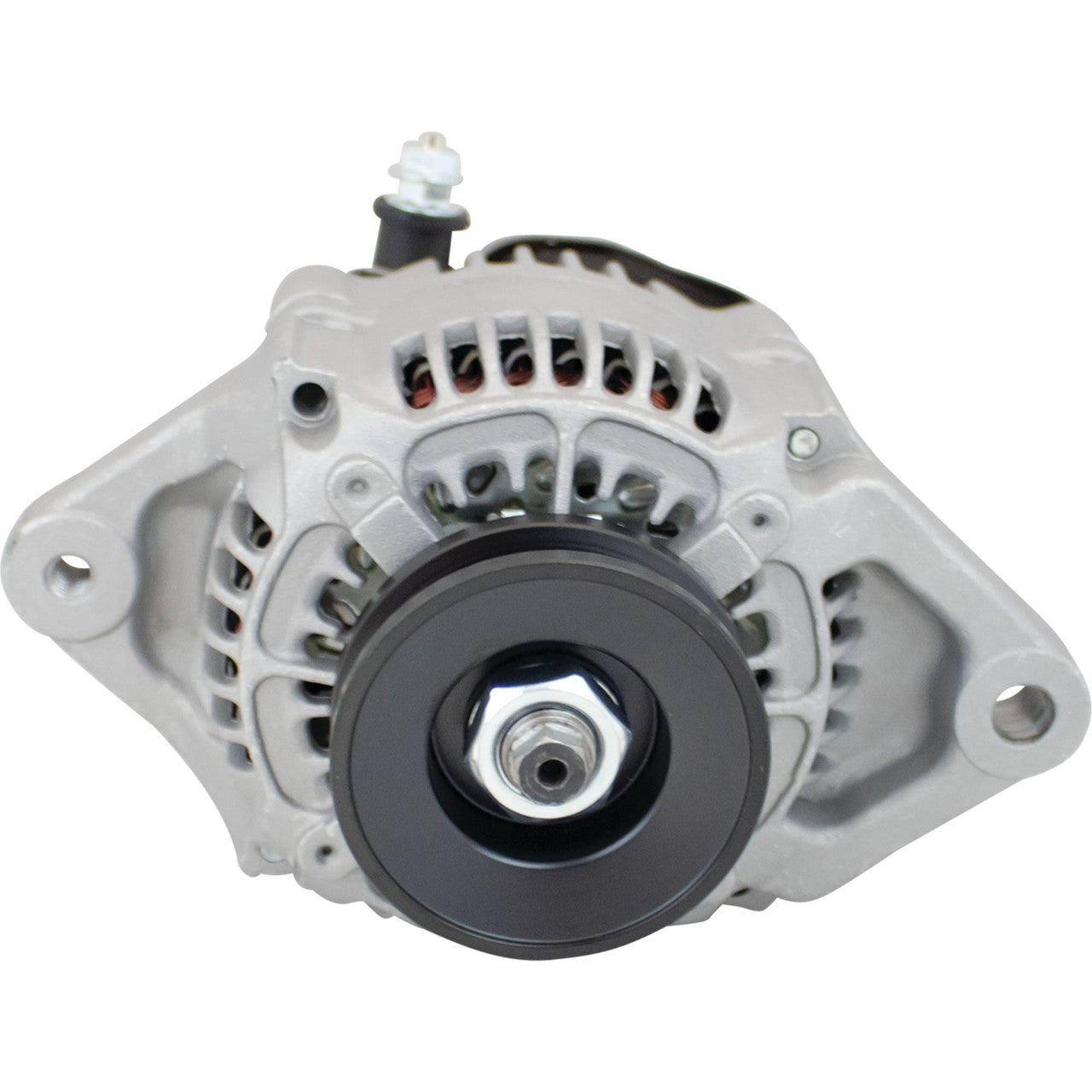

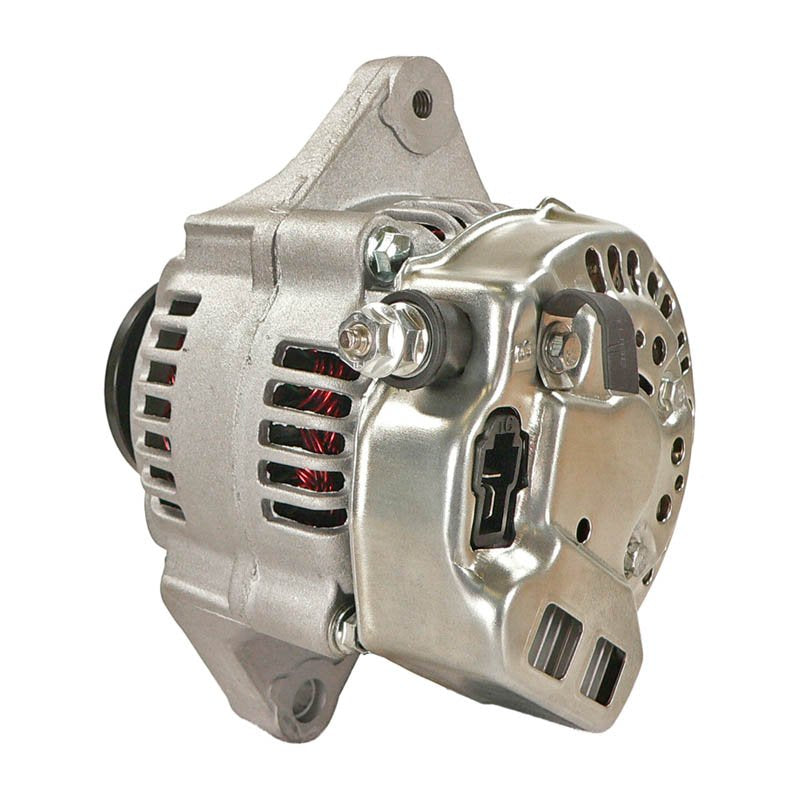

This alternator is a direct replacement for the original unit fitted to Kubota RTV900, RTV1140 and RTV-X900 utility vehicles powered by the 3-cylinder diesel engine. It is built to OEM specifications for fit, form and function, so it bolts straight into the original mounting points without modification.
The unit is a 12-volt, 55-amp alternator with clockwise rotation, an internal regulator (IR) and internal fan (IF), matching the specification of the original Kubota part. It uses a single-groove (V1) pulley and an IG-L plug configuration, and the internal regulator is fitted with L-output as per the original design. The same alternator is also used on several Kubota B Series compact tractors and the ZD1511 zero-turn mower.
Key Features
- 12-volt, 55-amp output
- Clockwise (CW) rotation
- Internal regulator (IR) with L-output, clock position 9:00
- Internal fan (IF), single-groove V1 pulley
- B+ terminal, M6x1.00, negative polarity
- Direct OEM fit for Kubota RTV900, RTV1140 & RTV-X900
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Amperage |
55A |
| Rotation |
CW (clockwise) |
| Pulley Type |
V1 (single groove) |
| Regulator Type |
IR (internal, L-output), clock 9:00 |
| Fan Type |
IF (internal) |
| Plug Type |
IG-L |
| Terminal |
B+, M6x1.00 |
| Polarity |
Negative |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kubota RTV 900 G-H, G-K, G-T, R, R-ASD, S-ASD, T, XT (3-cyl diesel) |
Not specified |
| Kubota RTV 1140 |
Not specified |
| Kubota RTV-X900, RTV-X1120, RTV-X1140 |
Not specified |
| Kubota B2650HSD, B3000HSD, B3030HSD, B3350HSD Tractors |
Not specified |
| Kubota ZD1511 Zero-Turn Mower |
Not specified |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| K7561-61910, K7561-61911, K7561-61912, K7561-61913, K7561-61914 |
Kubota |
| 101211-8770, 101211-8771 |
Denso |
| AND0350 |
Arrowhead |
| 12534 |
Lester |
| 12534N |
WAI |
| 435-977 |
Stens |
| 102934701, 603004477 |
Husqvarna |
| 400-52121 |
J&N Electrical Products |
Frequently Asked Questions
Will this alternator fit my Kubota RTV900 without modification?
Yes. This unit is built to OEM specifications and bolts directly into the original mounting points on RTV900, RTV1140 and RTV-X900 models with no modification required.
What's included with this alternator?
You receive the complete alternator unit only, ready to fit in place of your original part. Mounting bolts, brackets or wiring connectors are not included unless otherwise stated.
How can I tell my current alternator has failed?
Common signs include a battery warning light on the dash, a battery that will not hold charge, dimming lights, or a whining or grinding noise from the alternator itself.
How do I check this is the correct unit for my machine?
Compare the number on your original alternator with the cross-reference table above - most commonly Kubota K7561-61910 or K7561-61911, or Denso 101211-8770.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
