Permanent Magnet Alternator for Kubota Tractors & RTV500 - 12V 14A
Permanent Magnet Alternator for Kubota Tractors & RTV500 - 12V 14A
SKU:400-58002
Free shipping over £150. Terms apply
Couldn't load pickup availability

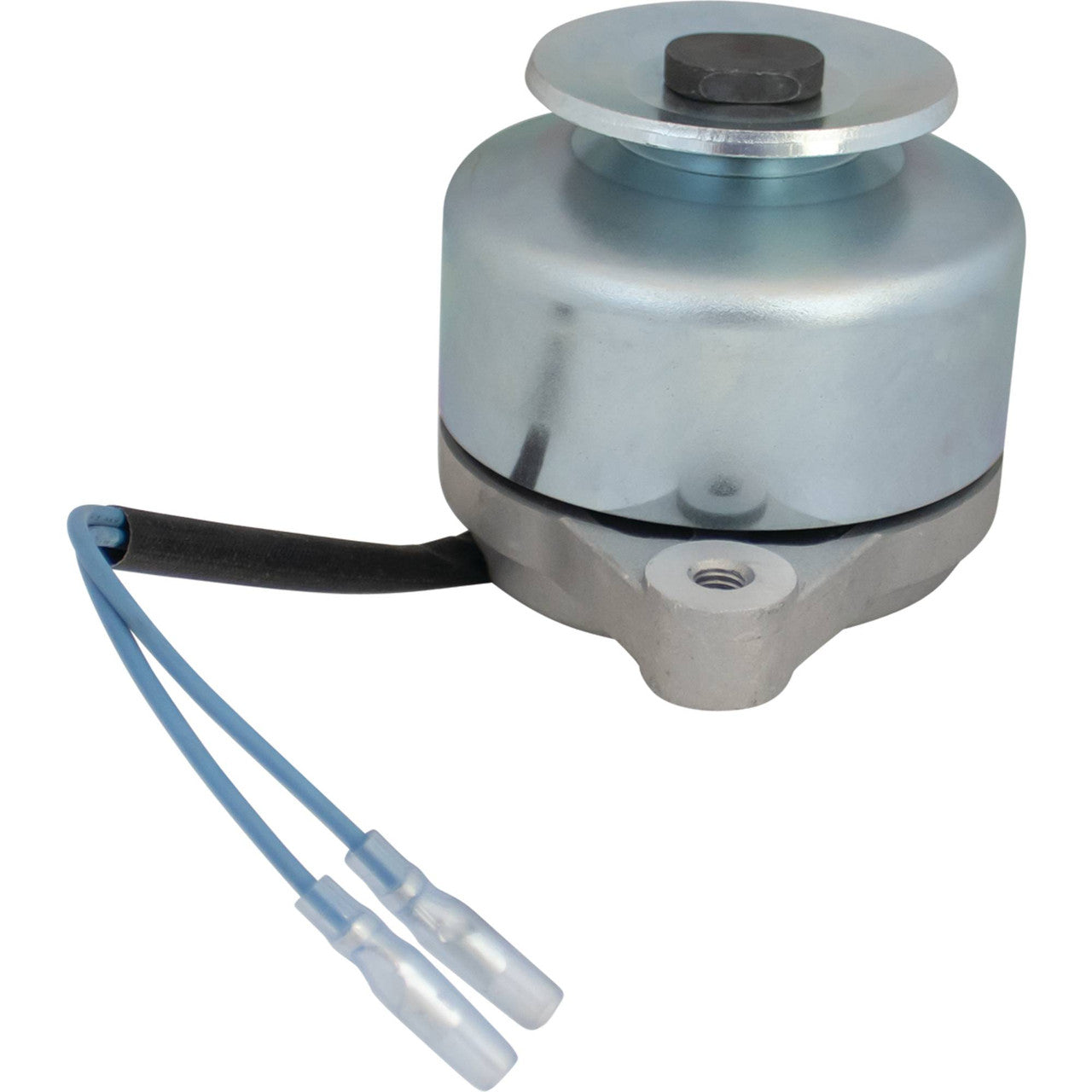

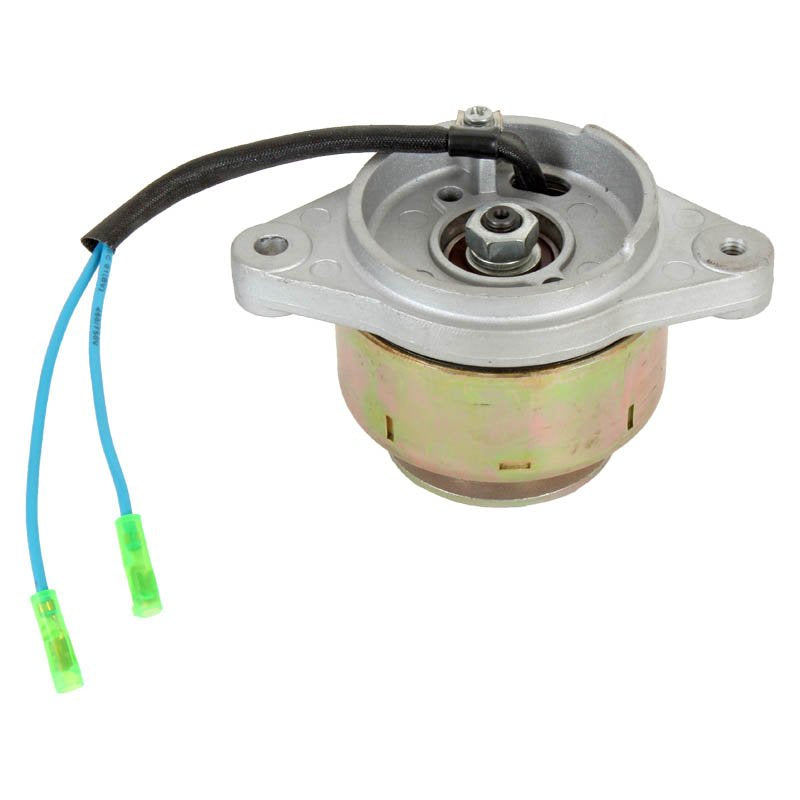

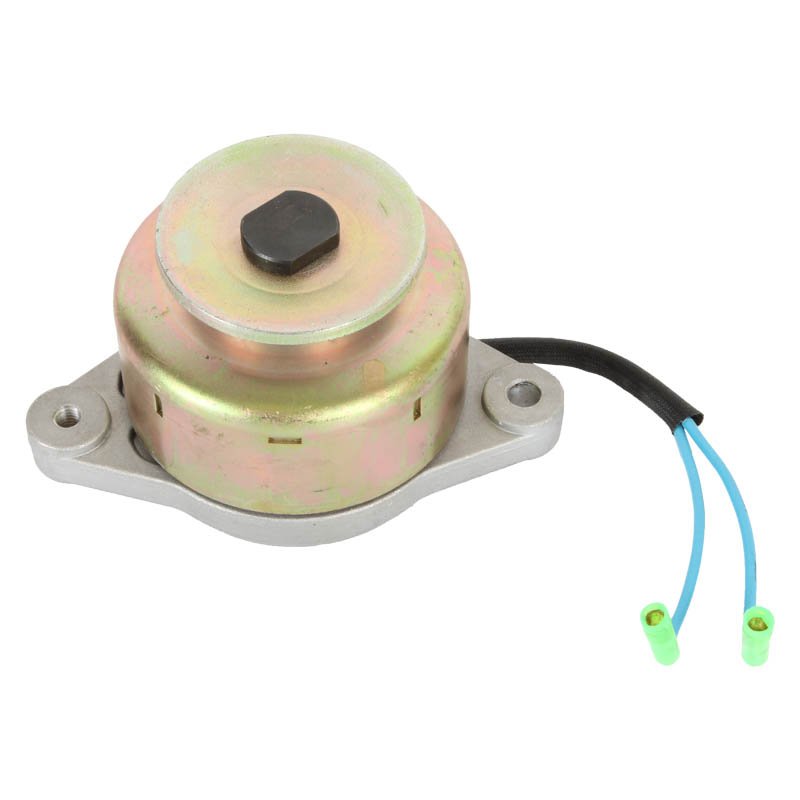

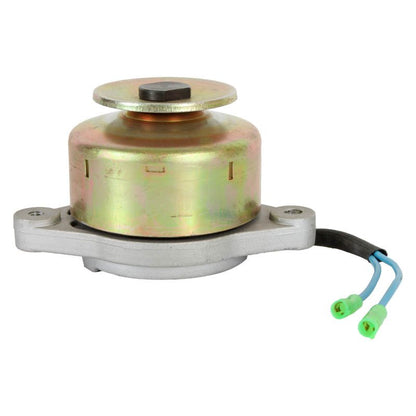

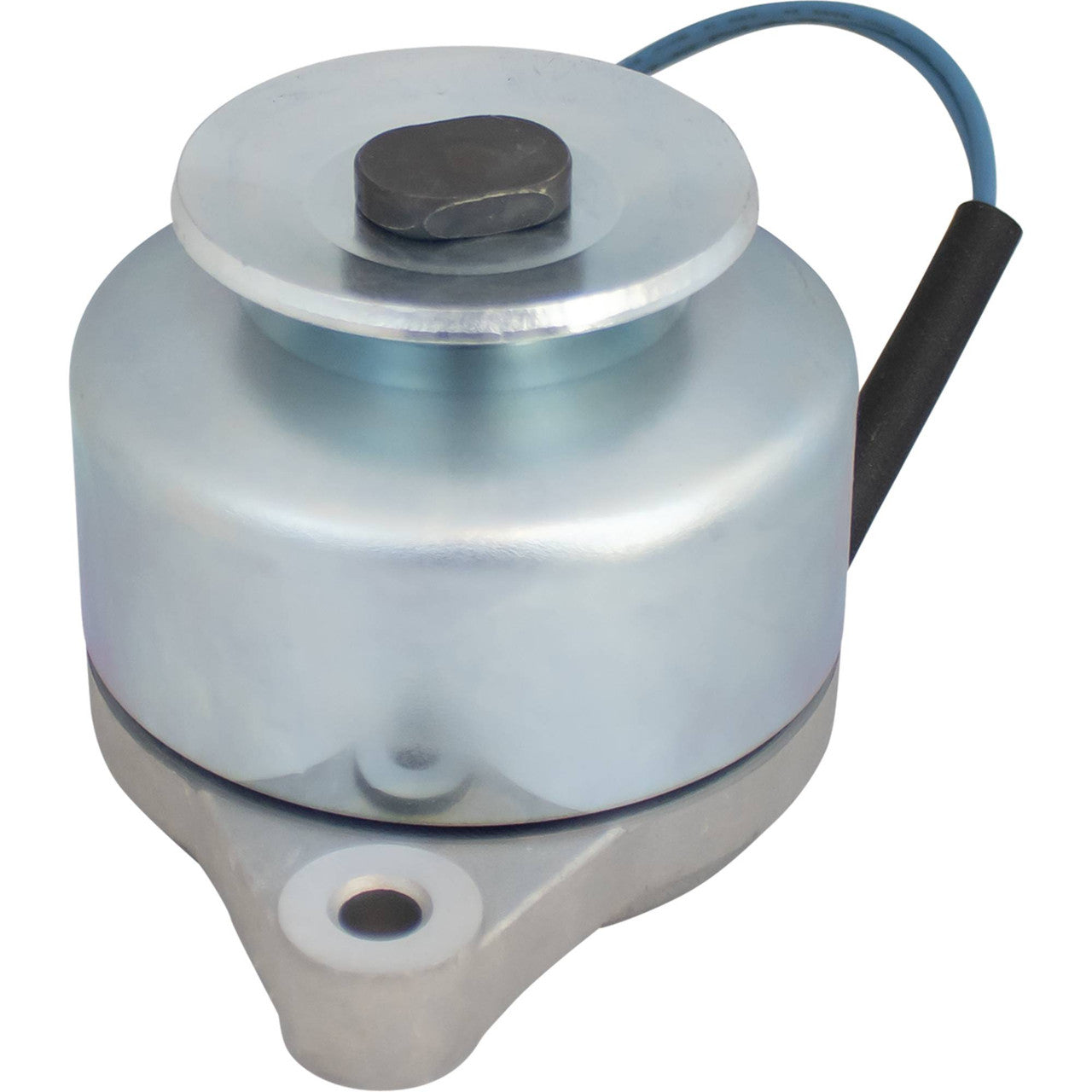

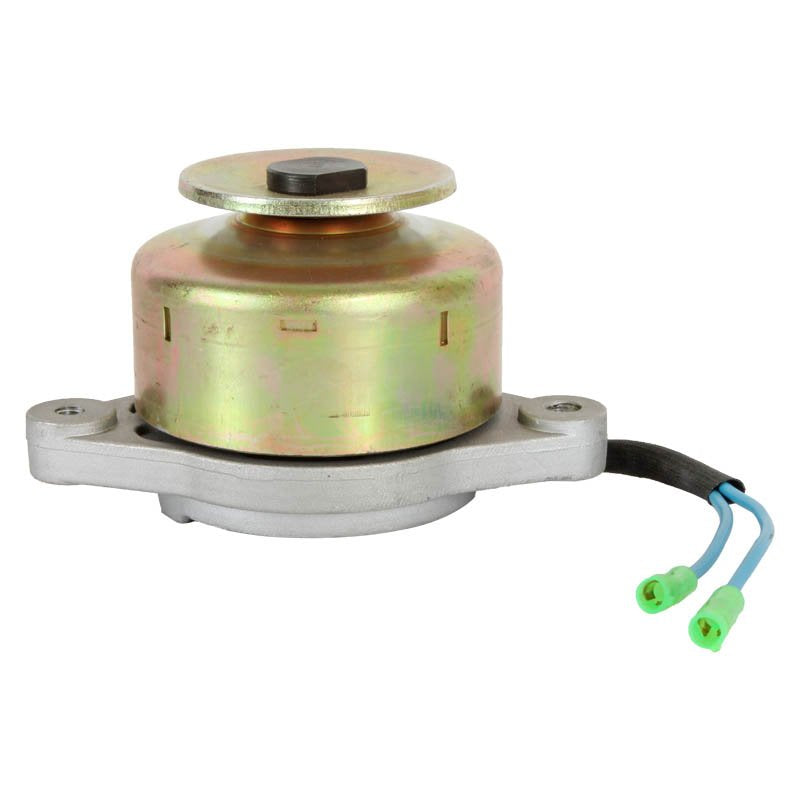

Permanent Magnet Alternator for Kubota
Fits Kubota Compact Tractors, Excavators, Mowers & the RTV500 UTV · 12V 14A
This is a permanent magnet alternator built as a direct replacement for a wide range of Kubota compact tractors, mini excavators, mowers and the RTV500 utility vehicle, covering machines built from 1981 to 2009 with 8HP to 30HP diesel engines. It is manufactured to OEM specifications for fit and function, rated at 12 volts with a 14 amp output, and bolts straight into place using the original mounting points.
Unlike a conventional wound-field alternator, a permanent magnet design uses fixed magnets on the rotor rather than field windings, which keeps the unit compact and reduces internal wear points. It replaces Kubota 15531-64013, 15531-64016, 15531-64017, 6C040-59250 and EG673-64010 among others. This unit may use regulator part number 516258 or 516249 - please check your existing regulator before ordering to confirm which one your machine uses.
Key Features
- 12-Volt, 14 Amp permanent magnet alternator
- External regulator (ER) configuration
- Solid pulley, 66mm diameter
- Direct OEM fit across the Kubota B, BX, F, G, K and ZD ranges
- Compatible with regulator 516258 or 516249

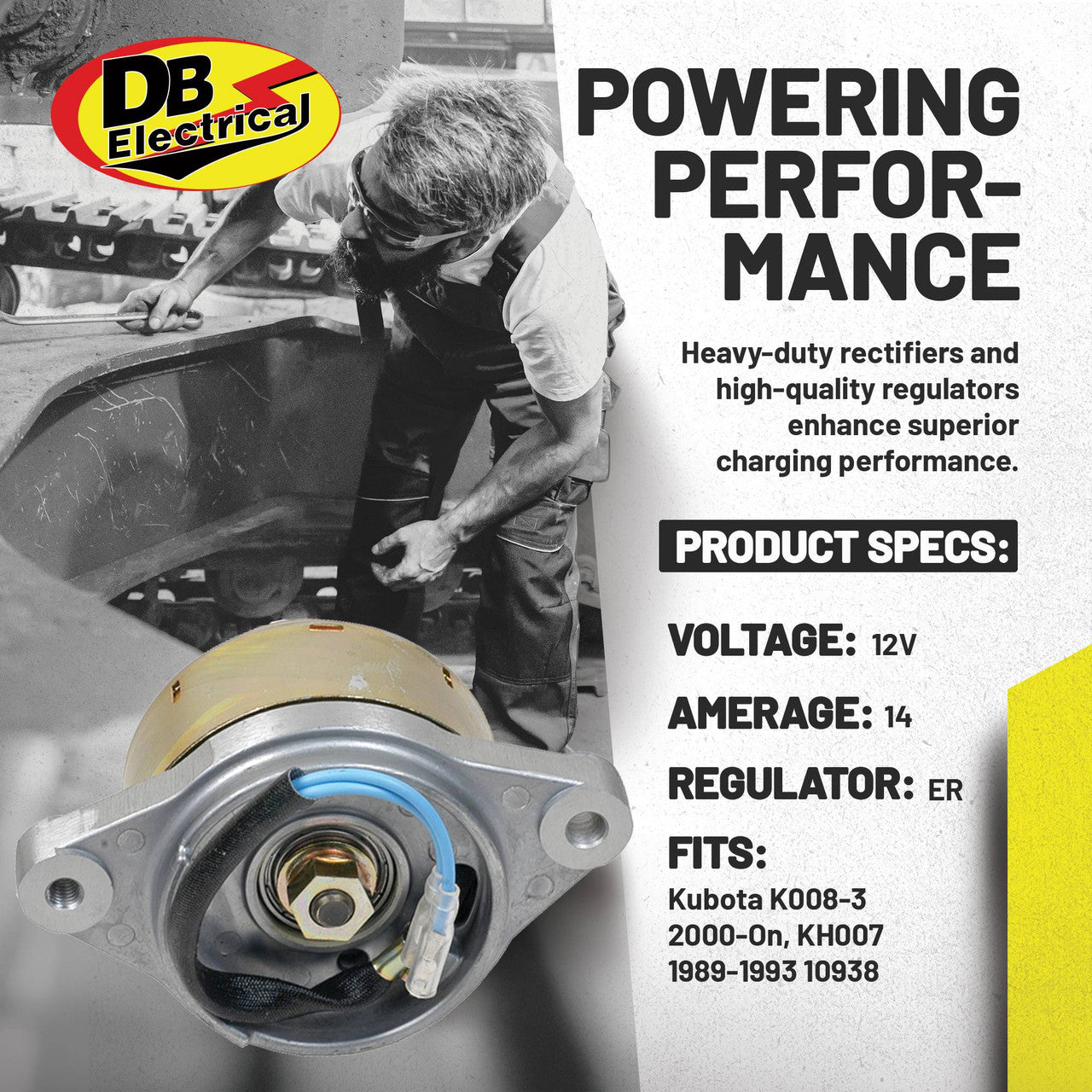

Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 14A |
| Type | Permanent Magnet Alternator |
| Regulator Type | ER (External Regulator) |
| Pulley | Solid, 66mm diameter |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kubota K008-3 Mini Excavator | 2000-On |
| Kubota KH007 Mini Excavator | 1989-1993 |
| Kubota B Series Compact Tractors | Within 1981-2009 |
| Kubota BX Series Compact Tractors | Within 1981-2009 |
| Kubota F Series Front Mowers | Within 1981-2009 |
| Kubota G Series Lawn Tractors | Within 1981-2009 |
| Kubota K Series Machines | Within 1981-2009 |
| Kubota ZD Series Zero-Turn Mowers | Within 1981-2009 |
| Kubota RTV500 Utility Vehicle | Within 1981-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 15531-64013 | Kubota |
| 15531-64016 | Kubota |
| 15531-64017 | Kubota |
| 6A830-59250 | Kubota |
| 6C040-59250 | Kubota |
| 6C040-59252 | Kubota |
| EG673-64010 | Kubota |
| KEARA15531 | Kubota |
| E5700-64013 / E5700-64014 | Kioti |
| AMT0119 / APM0003 | Arrowhead |
| 0185-5431 | Onan / Cummins |
| 10932 / 10935 / 10938 | Lester |
Frequently Asked Questions
Will this alternator fit my Kubota without modification?
Yes, this is a direct OEM-fit replacement built to the original specification, so no modification is required for installation - it uses the same mounting points as the unit it replaces.
What's included?
You will receive one complete alternator unit, ready to fit. The external regulator is not included and should be reused from your existing installation if serviceable.
How can I tell my old alternator has failed?
Common signs include a battery warning light, dimming or flickering lights, or a battery that will not hold charge even after a full charge cycle.
What is a permanent magnet alternator and does it need a regulator?
A permanent magnet alternator produces AC output from fixed magnets rather than field windings, and requires a separate external voltage regulator to convert this into a safe, regulated charging voltage - this unit is compatible with regulator part numbers 516258 and 516249.
My Kubota model isn't listed - will this fit?
This unit covers more than sixty Kubota machines built between 1981 and 2009, more than can be listed in full. Check the number on your original alternator against the cross reference table above to confirm.
