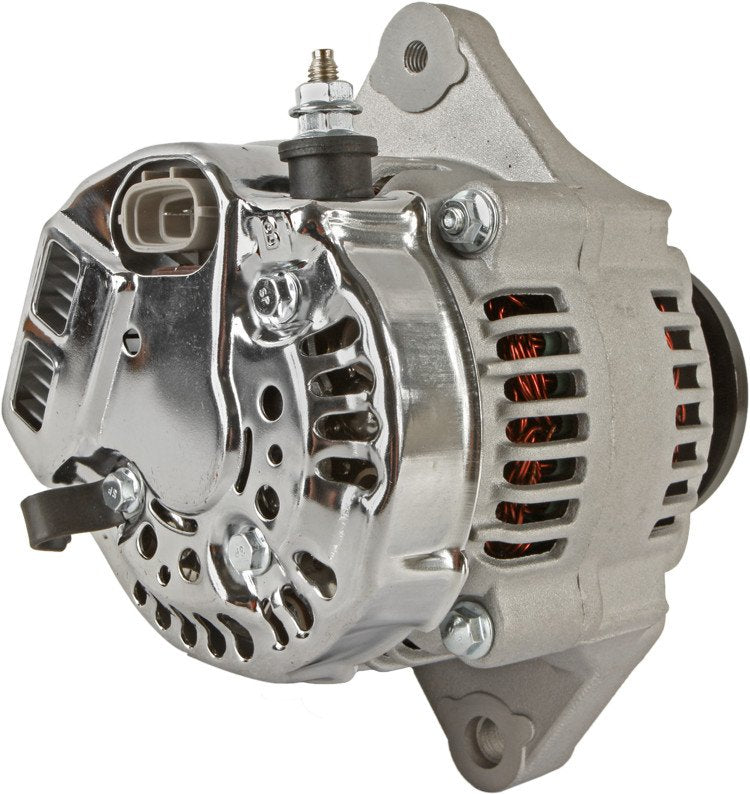

• Kubota V2203 engine alternator with polished metal housing and visible copper coils
1 8

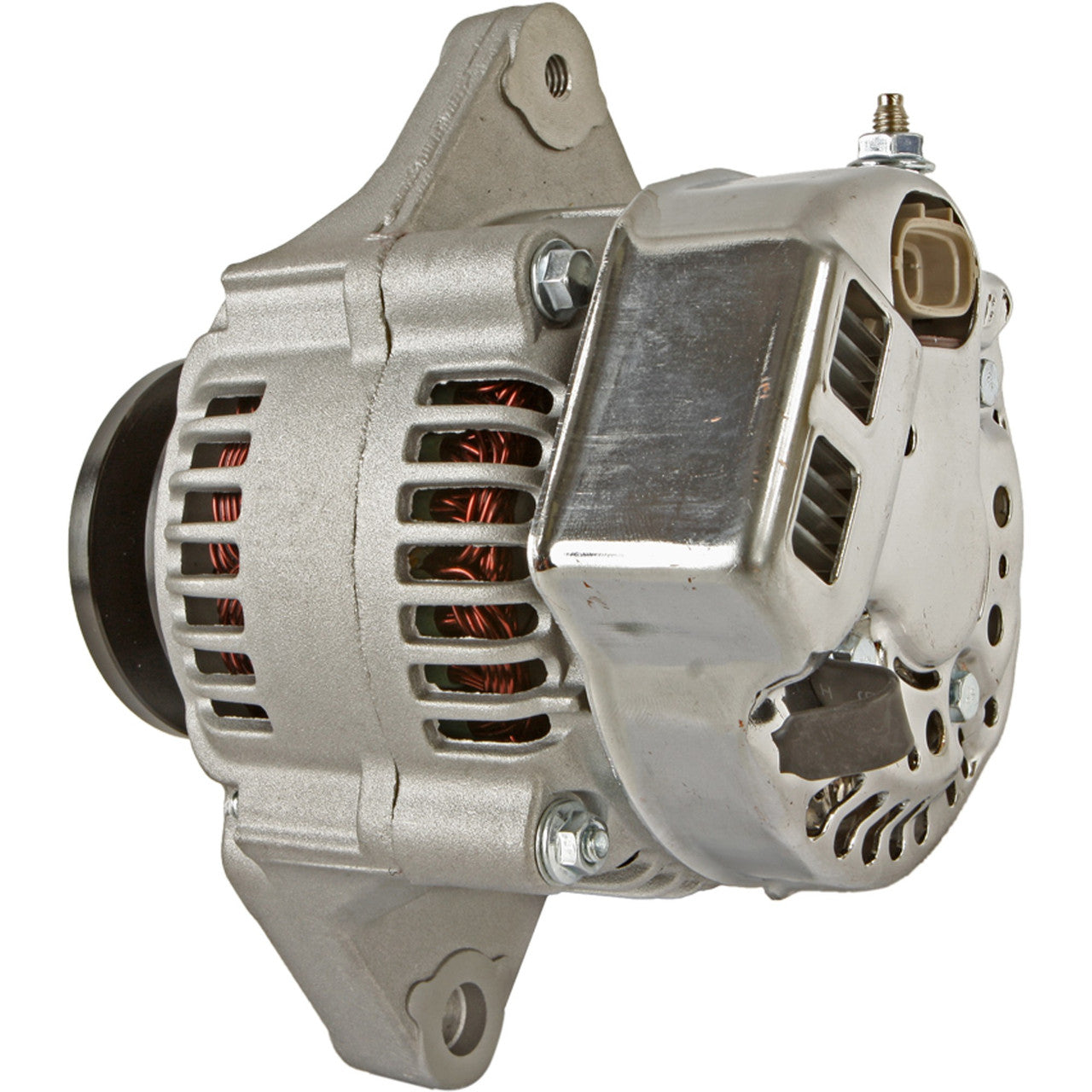

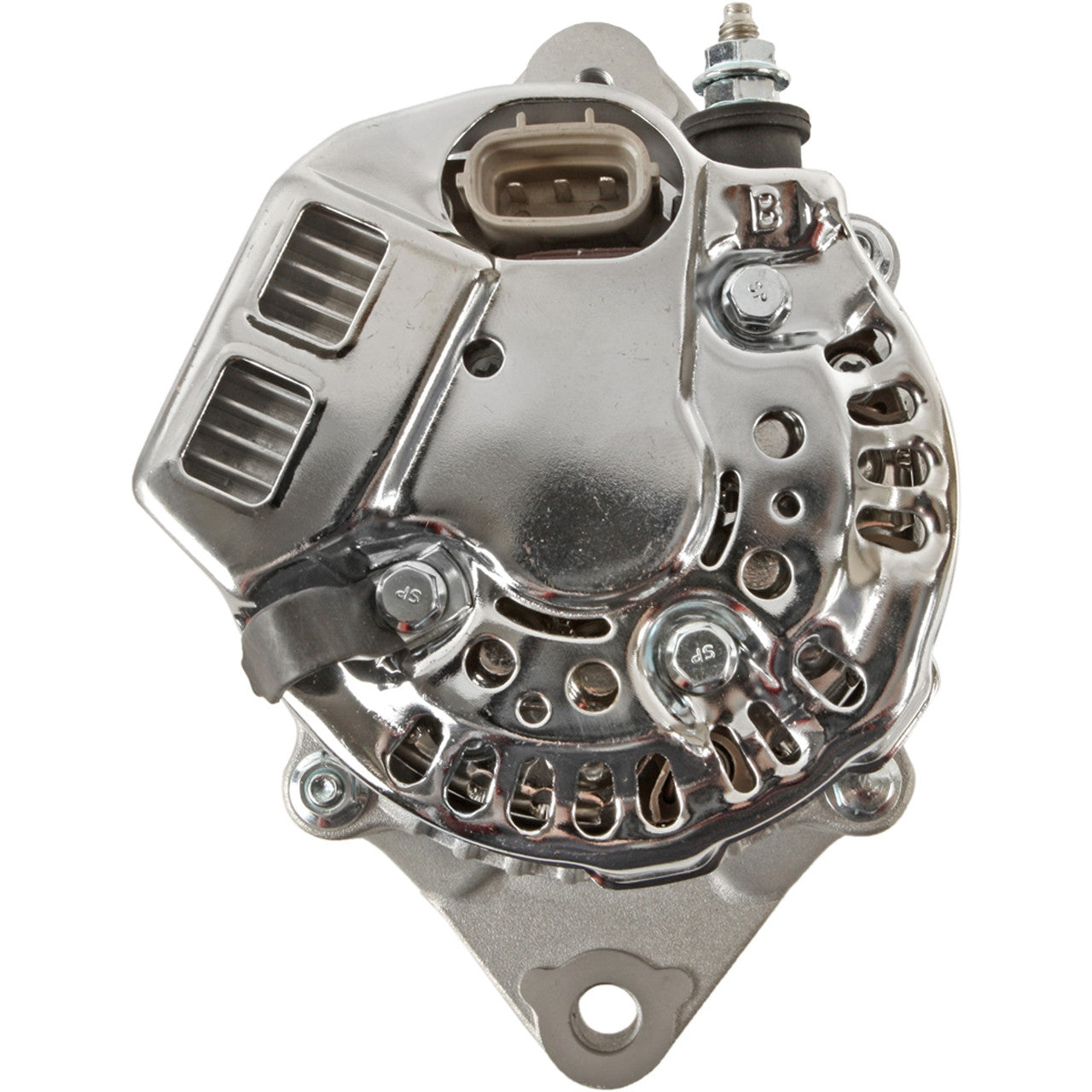

Alternator for Lift Truck Applications 12V - Replaces 5741435

Alternator for Lift Truck Applications 12V - Replaces 5741435

400-52196

£259.80 GBP
£311.76 GBP £259.80 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Free shipping over £150. Terms apply

Bobcat Alternator

Fits B300, BL-370 (55 Amp)

Keep your Bobcat running with this 55 Amp 12V replacement alternator. Designed as a direct-fit replacement for the loader backhoe listed below, it delivers reliable charging for standard and accessory electrical loads.

This unit features an internal fan (IF) and an internal regulator (IR), and is supplied with a V1 pulley already fitted.

DIRECT FIT: Replaces Arrowhead AND0550 — no modification required on the machines listed below.

Key Features

  • ✔High Capacity: 55 Amps of charging output.
  • ✔Direct Replacement: Replaces Arrowhead AND0550.

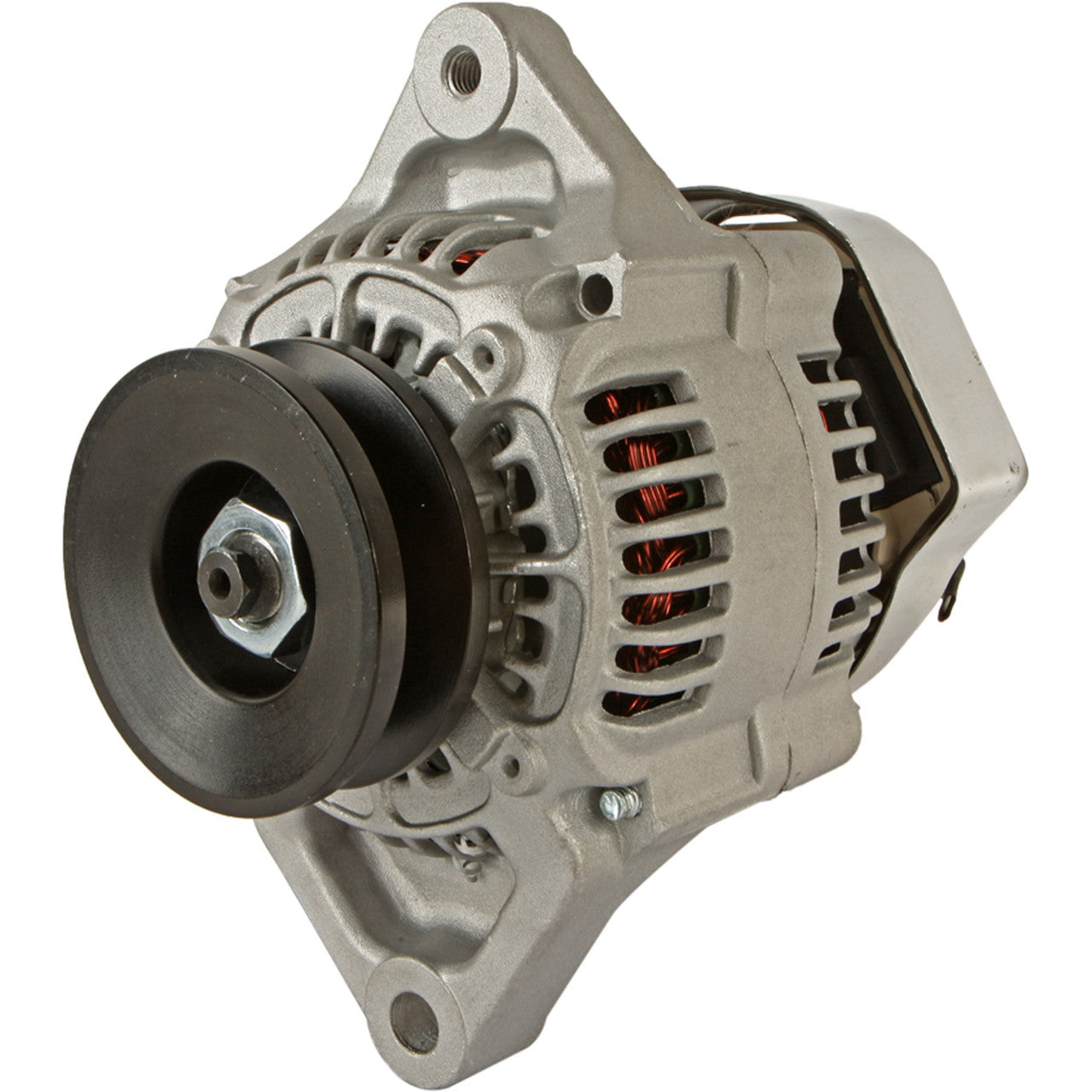

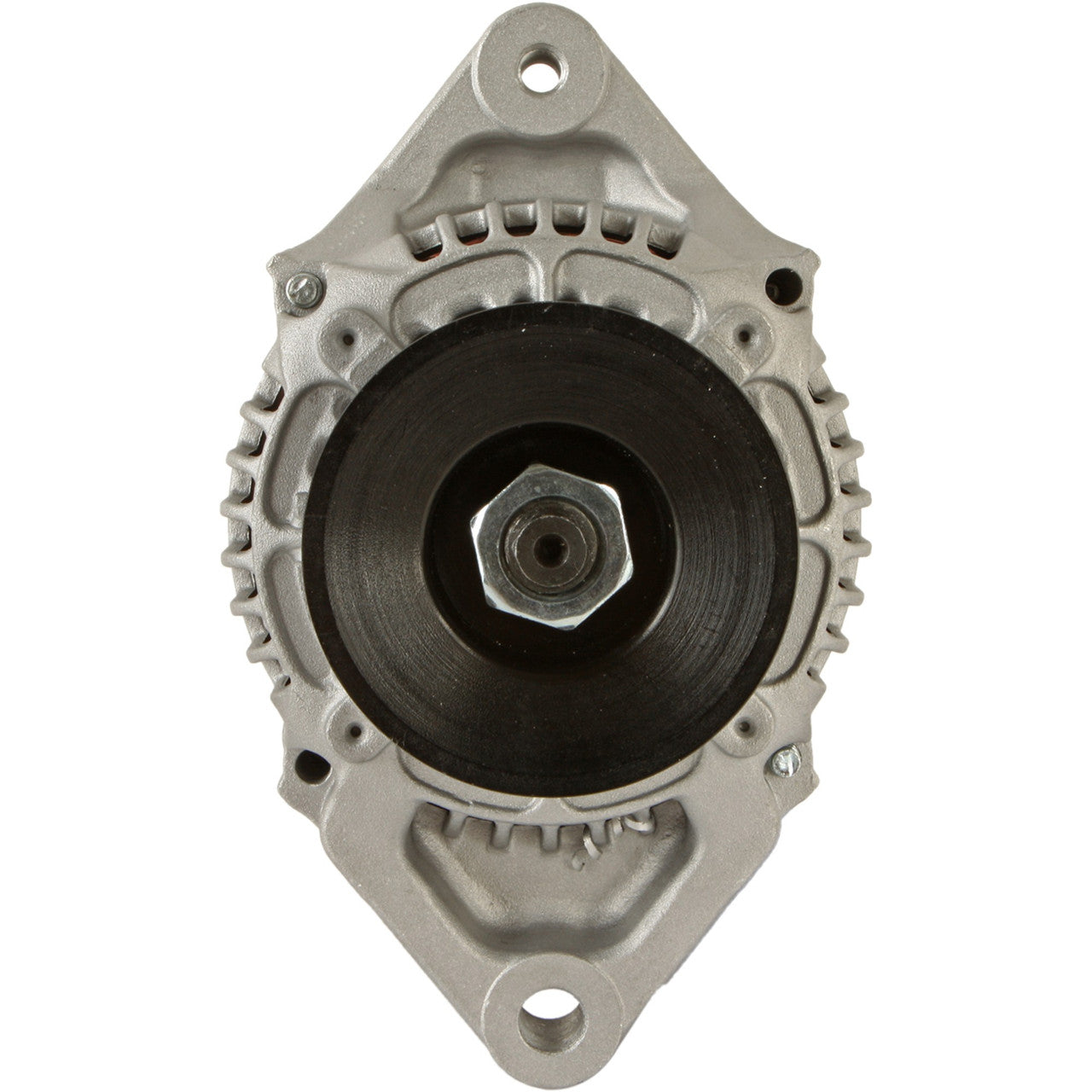

  • ✔Pulley Fitted: V1 pulley installed and ready to fit.
  • ✔Robust Design: IF fan. IR regulator.
  • ✔Quality Assured: New aftermarket unit, 12 month warranty.

Technical Specs

Voltage: 12 Volts
Amperage: 55 Amps
Rotation: CW (Clockwise)
Pulley: V1 (Single Groove)
Regulator: Internal (IR)
Fan Type: Internal (IF)
Clock: 12
SKU Reference: 400-52196

Vehicle Fitment Guide

Make Equipment Type Models Years
Bobcat Loader Backhoe B300 2002–2006
Ingersoll Rand Loader Backhoe BL-370 2002–2006

OEM Part Number Cross Reference

Arrowhead AND0550, ND101211-3410, ND9761219-341
Bobcat 6683304, 6988708
Bomag 05741435
Denso 101211-3410
Denso Reman 9761219-341
J&N Electrical Products 400-52196
Kubota 17490-64010, 17490-64011, 17490-64012, 17490-64014, 17490-64015
Lester 13633
WAI 1-2984-01ND

Frequently Asked Questions

Will this fit my Bobcat B300?

Yes — the B300 appears in the fitment guide above. Check your existing part number against the cross reference table to confirm.

Is this a 55 Amp alternator?

Yes, this is a 55 Amp 12V unit with an IR regulator.

Is the pulley included?

Yes, a V1 pulley is pre-installed.

Is this new or remanufactured?

This is a brand new aftermarket unit — not a remanufactured core.

Note: Please verify your machine's serial number or existing part number to ensure compatibility.
