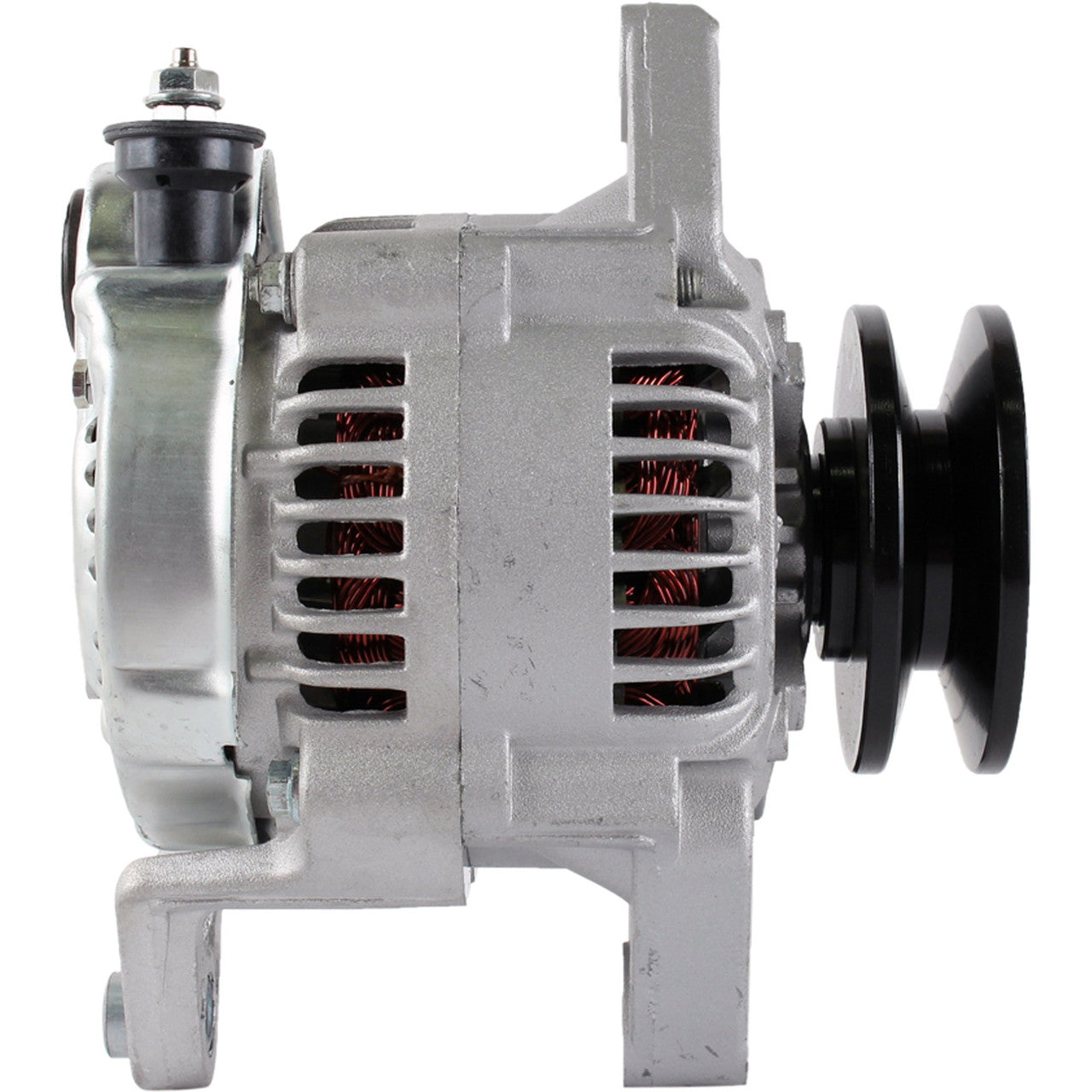

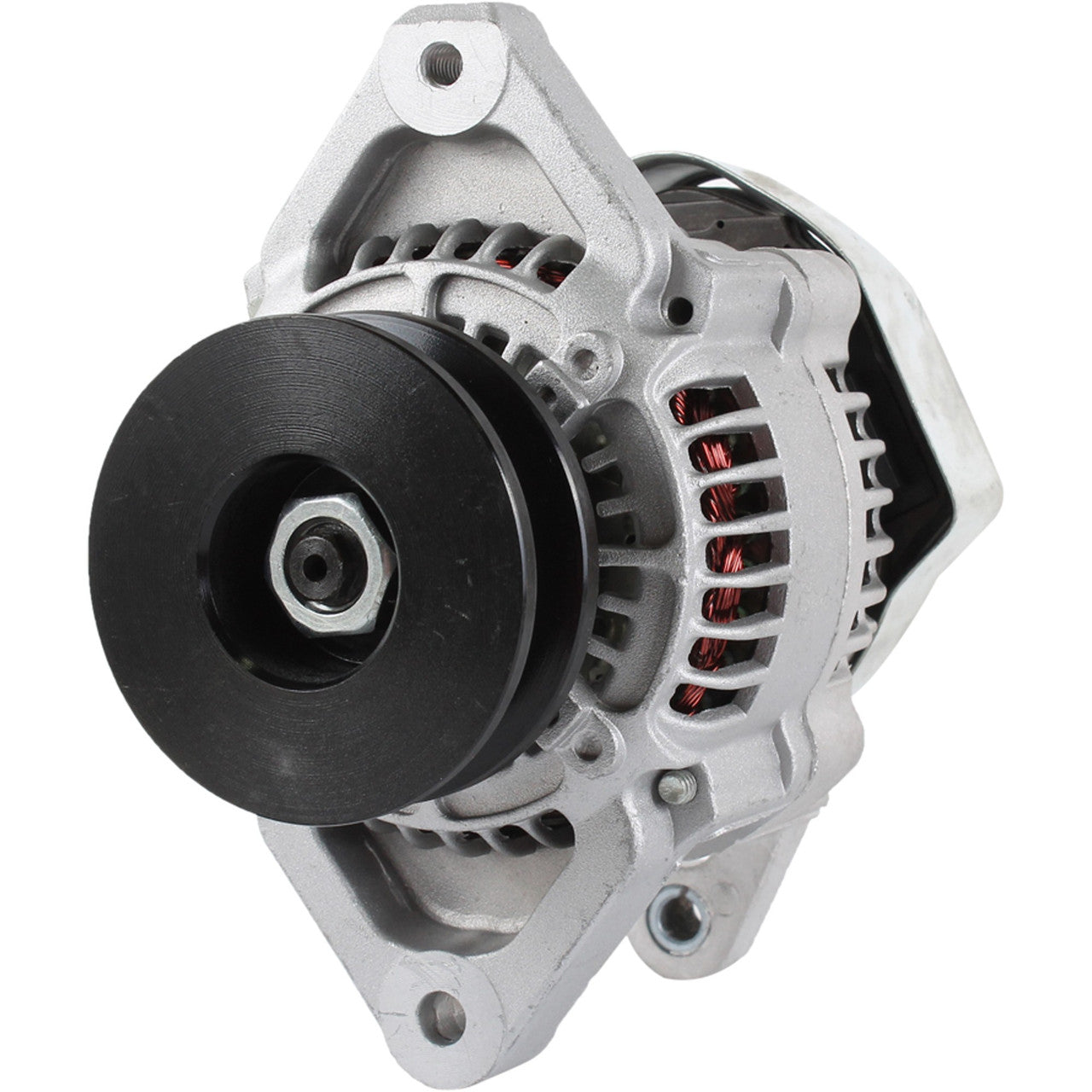

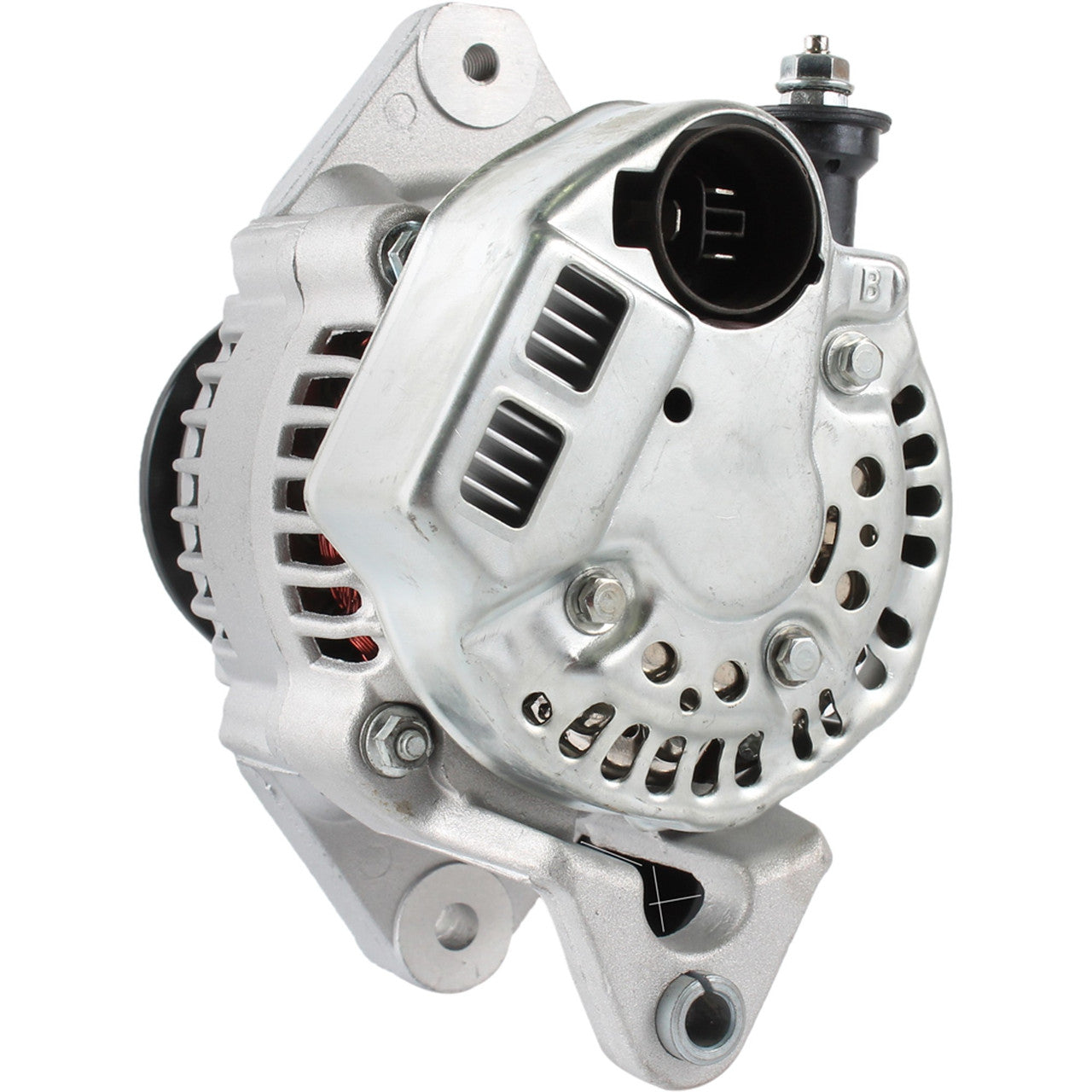

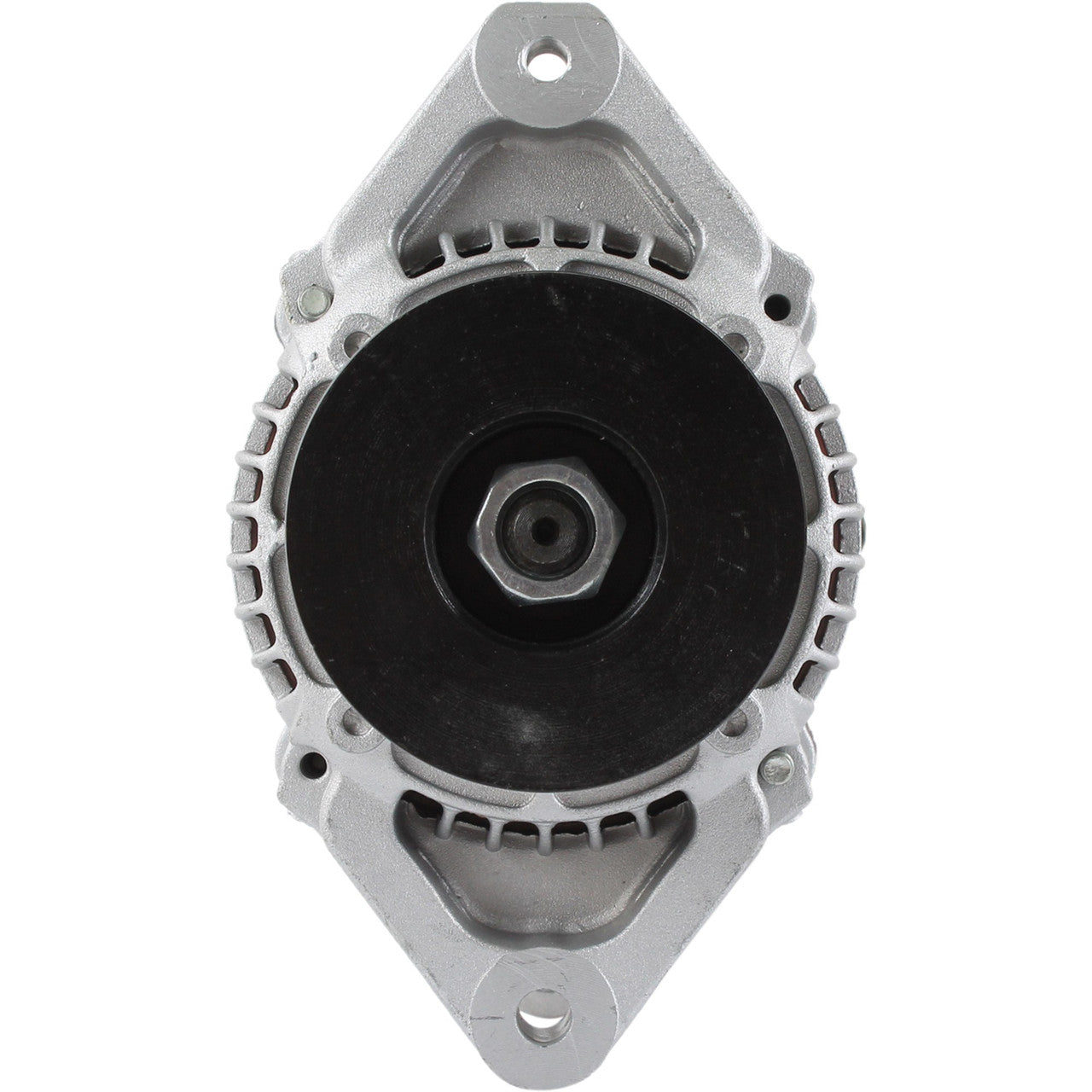

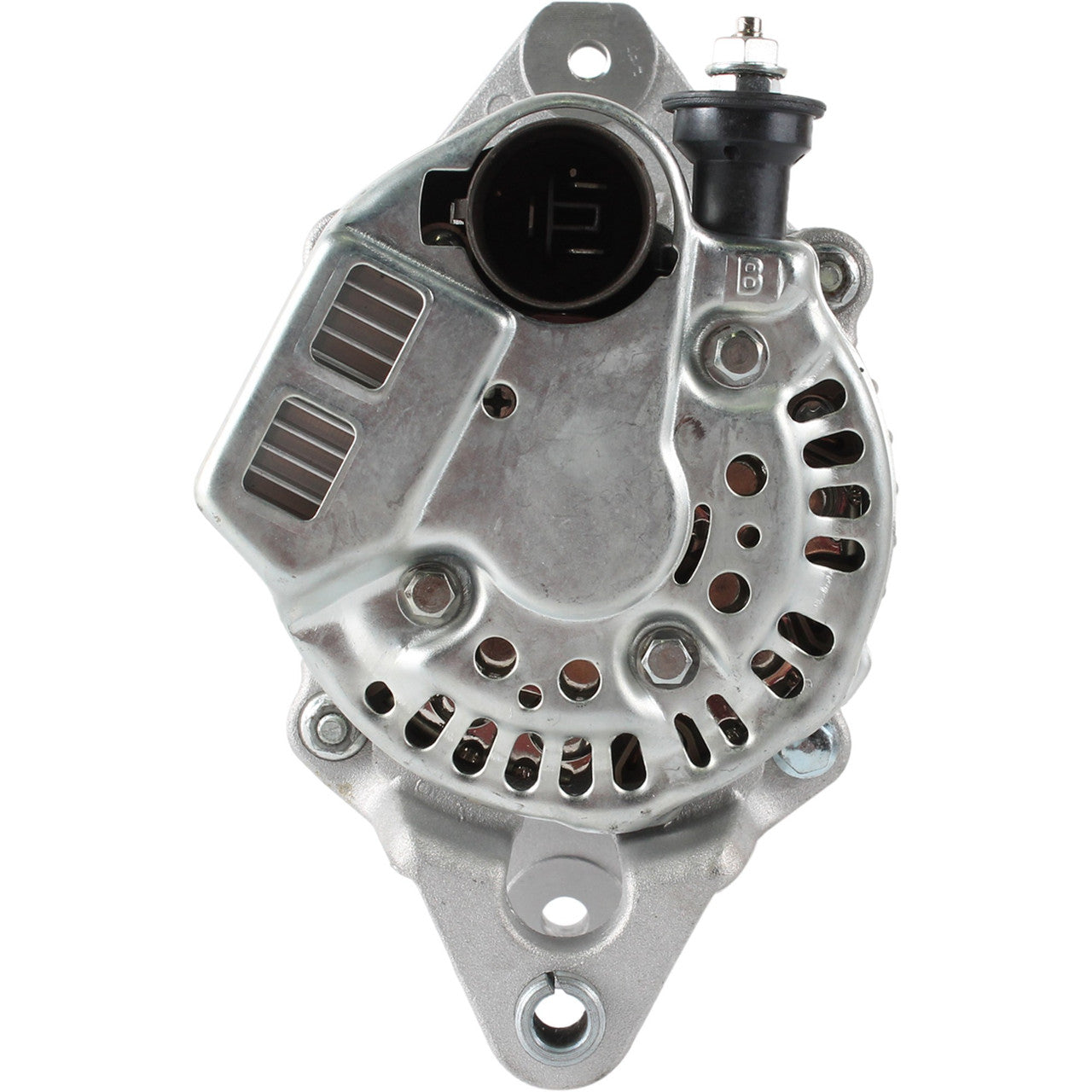

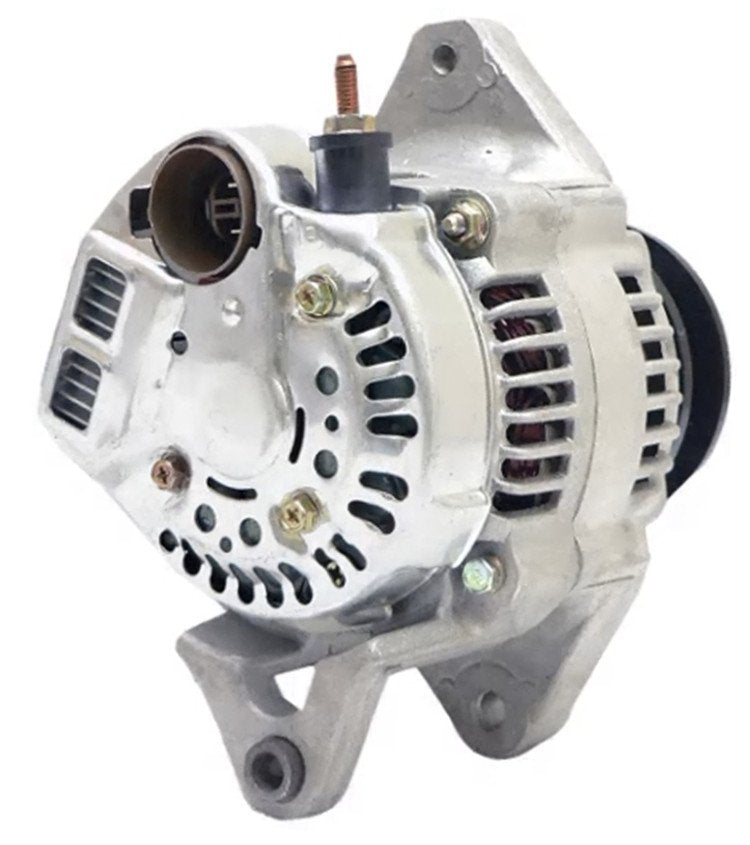

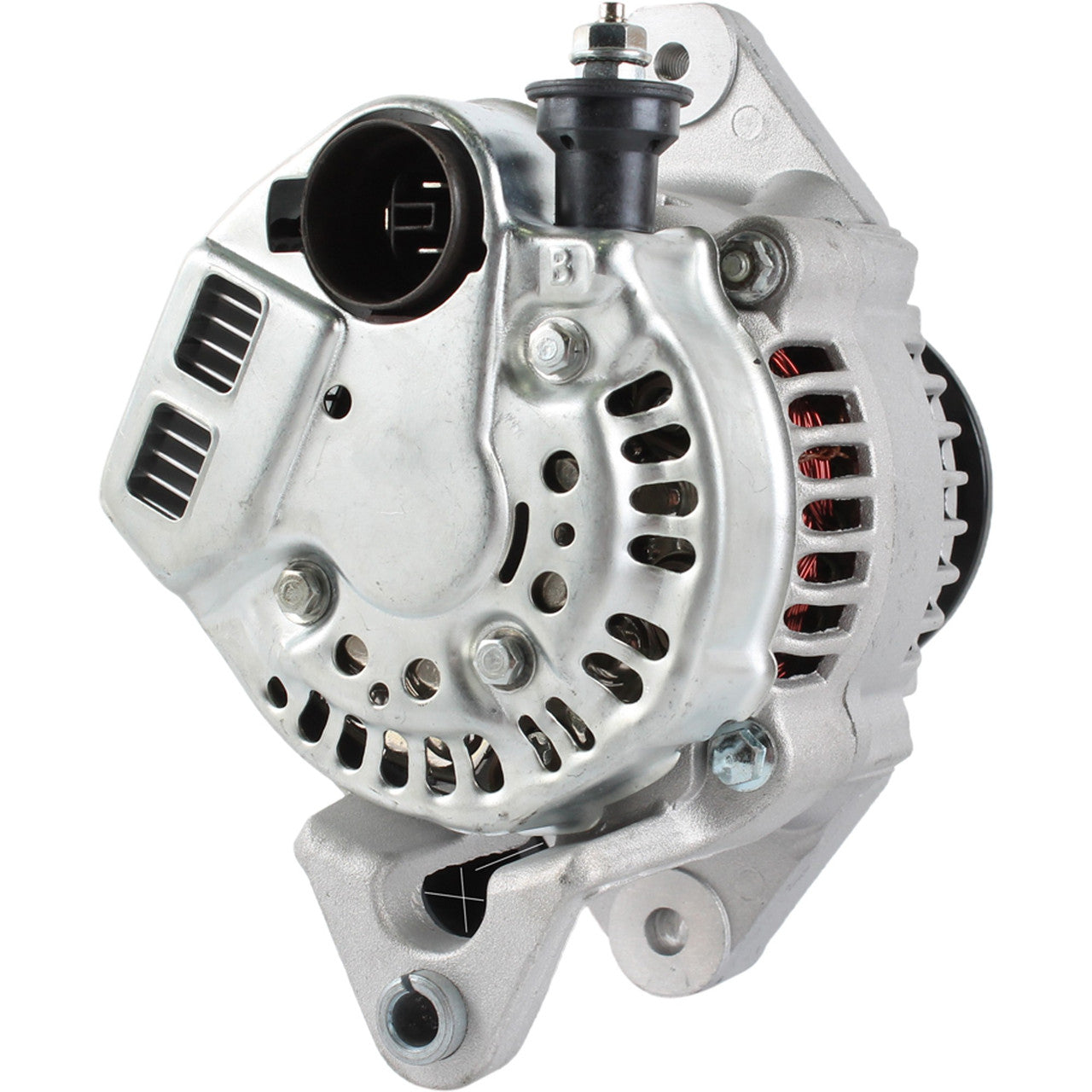

Alternator for Toyota 5FD Lift Trucks
Toyota 5FD Series Diesel Lift Trucks, 1989-1994 - 24V 20A, IR/IF
This alternator is a direct replacement for Toyota 5FD series diesel lift trucks running the 24-volt electrical system, covering the 1Z, 11Z and 12Z engined models built between 1989 and 1994. It is engineered to OEM specifications for direct fit and function, with an internally regulated, internally fanned (IR/IF) design that matches the original unit.
As a direct replacement it installs without modification, restoring reliable charging performance to your lift truck's electrical system so batteries, lighting and control circuits stay properly topped up during shift work. Every unit is quality checked before dispatch, and our technical team is on hand if you need help confirming compatibility before you order.
Key Features
- 24V, 20 Amp output
- Internally regulated / internally fanned (IR/IF) design
- Direct OEM fit and function - replaces Toyota 27060-78304
- Suitable for warehouse and yard lift truck fleets
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 24V |
| Amperage | 20A |
| Fan Type | Internal (IF) |
| Regulator | Internal (IR) |
| Interchange Reference | Lester 12212 / Arrowhead AND0244 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Toyota 5FD-20, 5FD-23, 5FD-25, 5FD-28 & 5FD-30 Lift Trucks (1Z engine) | 1989-1994 |
| Toyota 5FD-33, 5FD-35, 5FD-38, 5FD-40, 5FD-45 & 5FDE-35 Lift Trucks (11Z engine) | 1989-1994 |
| Toyota 5FD-50, 5FD-60 & 5FD-70 Lift Trucks (12Z engine) | 1990-1994 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 27060-78304, 27060-78304-71 | Toyota |
| 100211-6940, 100211-6941 | Denso |
| AND0244 | Arrowhead |
| LRA02500 | Lucas Electric |
| 12212 | Lester |
Frequently Asked Questions
Will this alternator fit my lift truck without modification?
Yes, this unit is built to OEM specifications for direct fitment on 24-volt IR/IF Toyota 5FD lift truck systems - no modification is required.
What's included?
You receive one complete alternator unit, ready to install.
How do I know my current alternator has failed?
Common signs include a dashboard warning light, dimming or flickering lights, a weak or dead battery despite recent charging, and slow engine cranking.
My 5FD model isn't listed - will this still fit?
Check the OEM cross reference table above against the number on your existing alternator. The same 24-volt unit is shared across many Toyota 5FD variants.
Do you offer fitment support if I'm not sure which unit I need?
Yes, our technical team can help confirm compatibility against your original part before you order - just get in touch.
