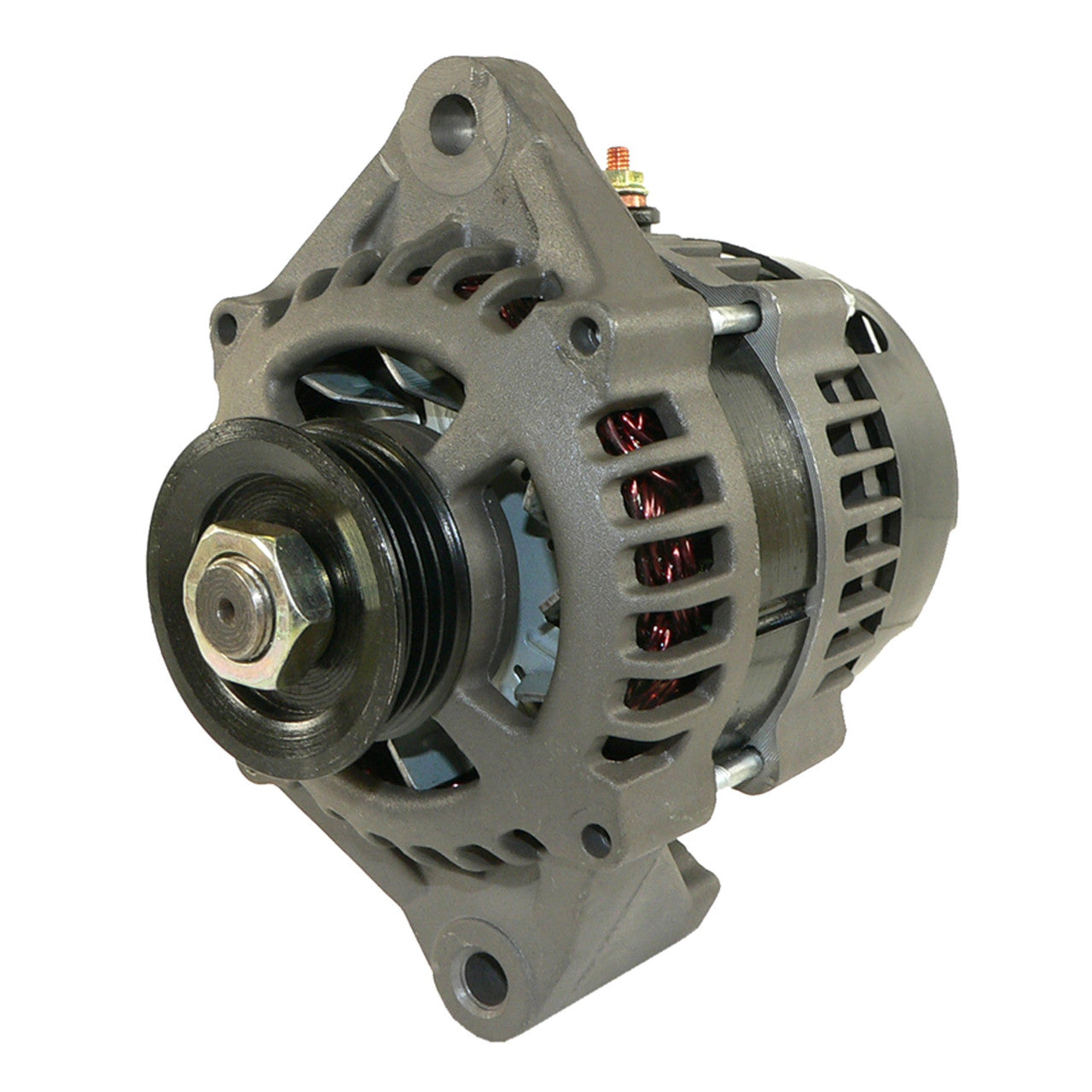

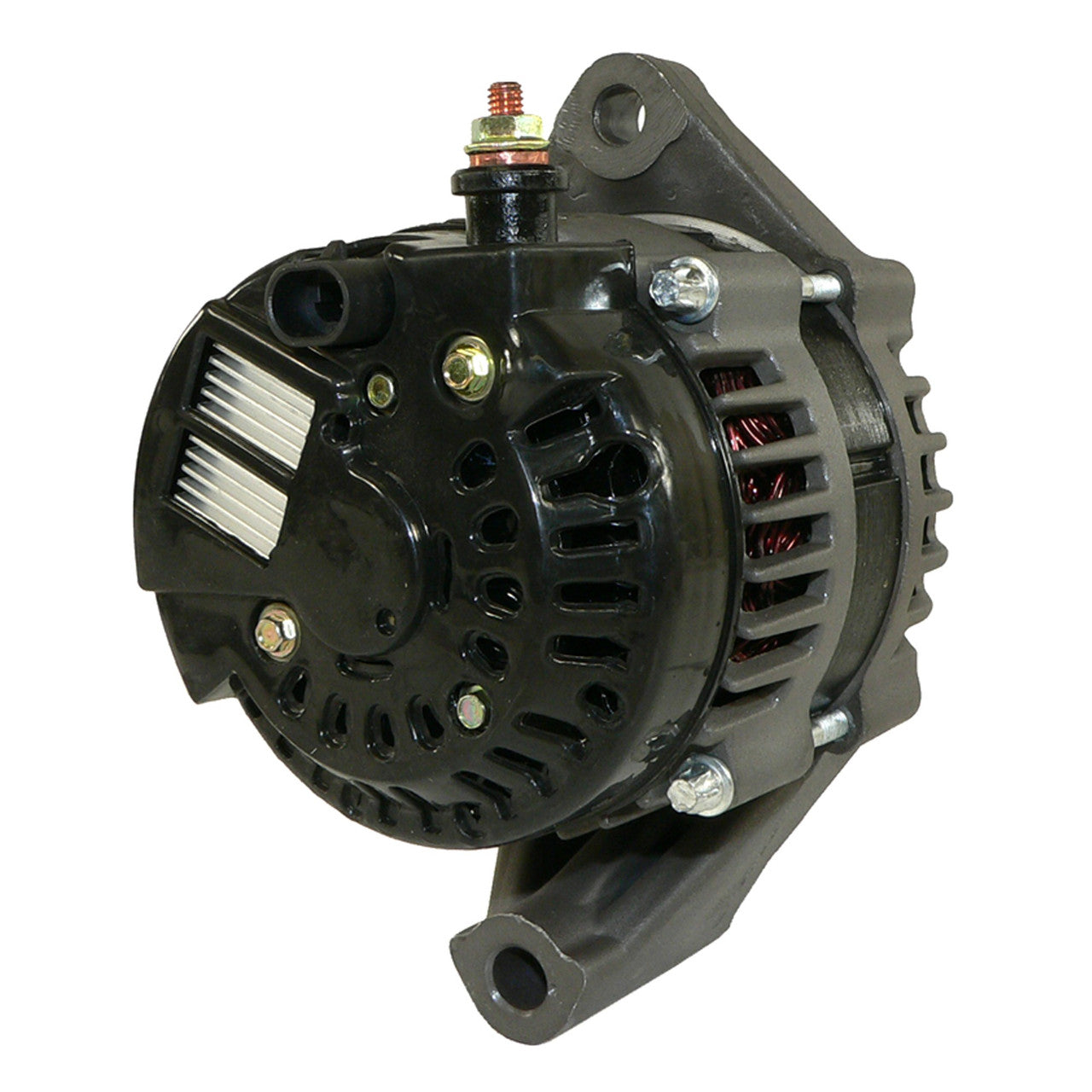

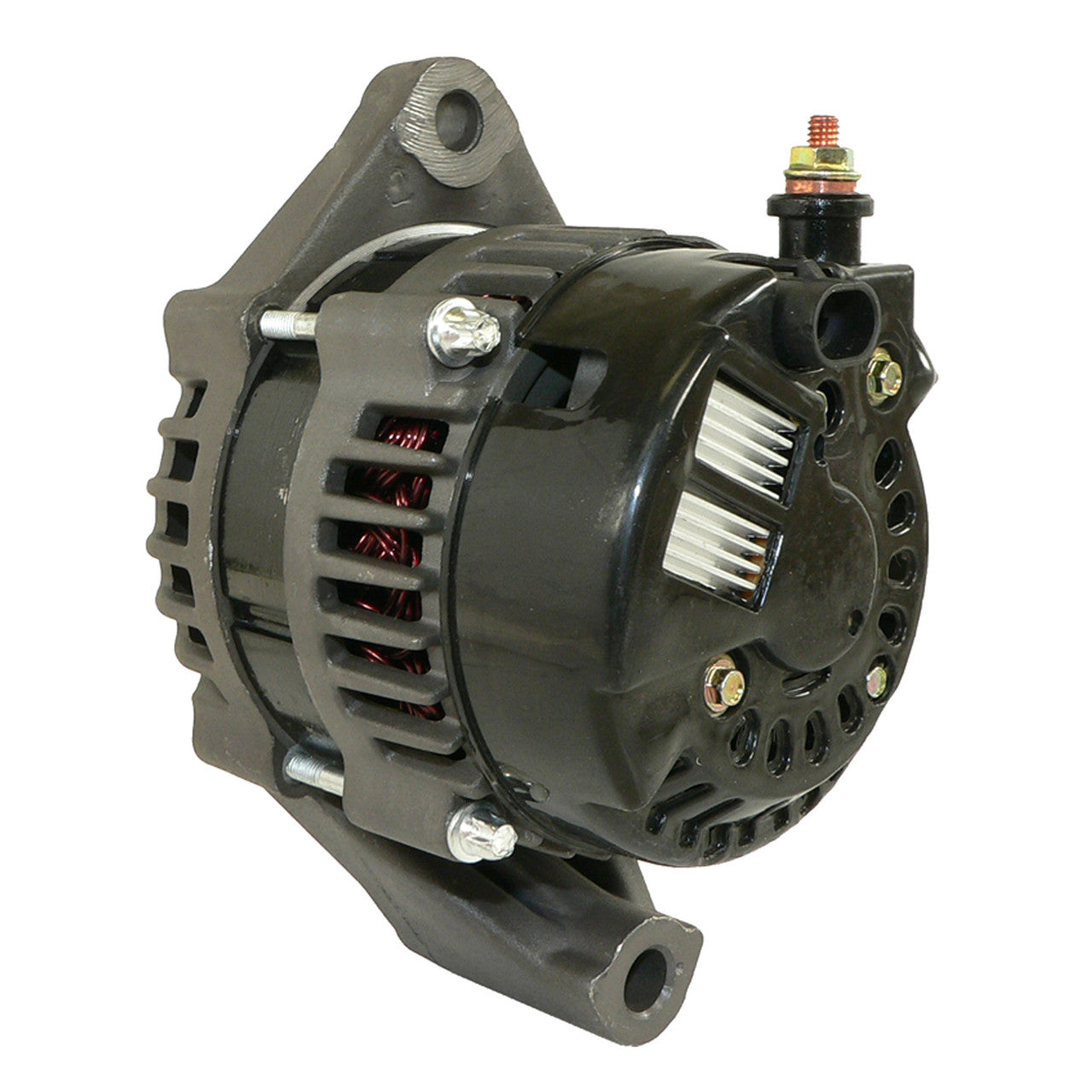

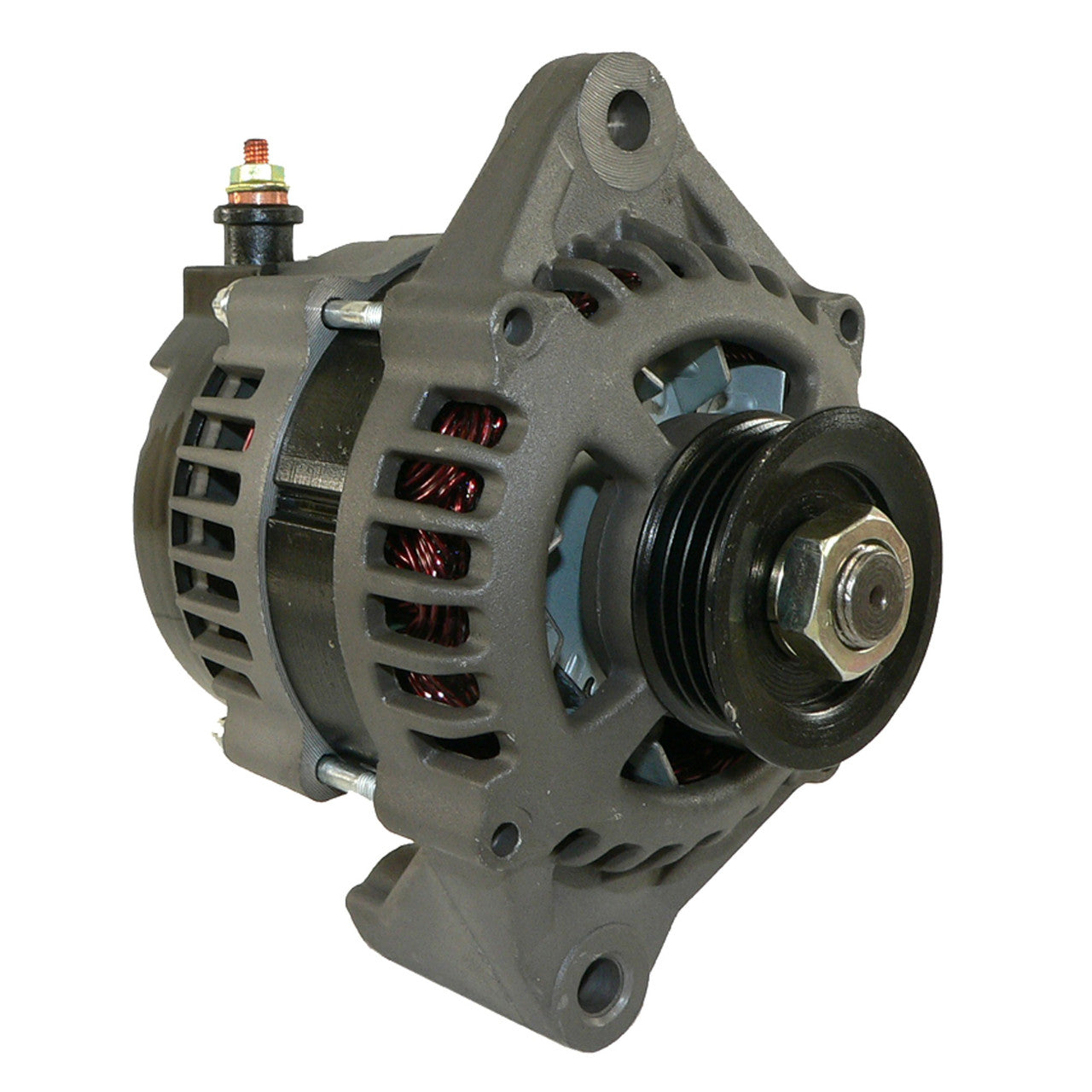

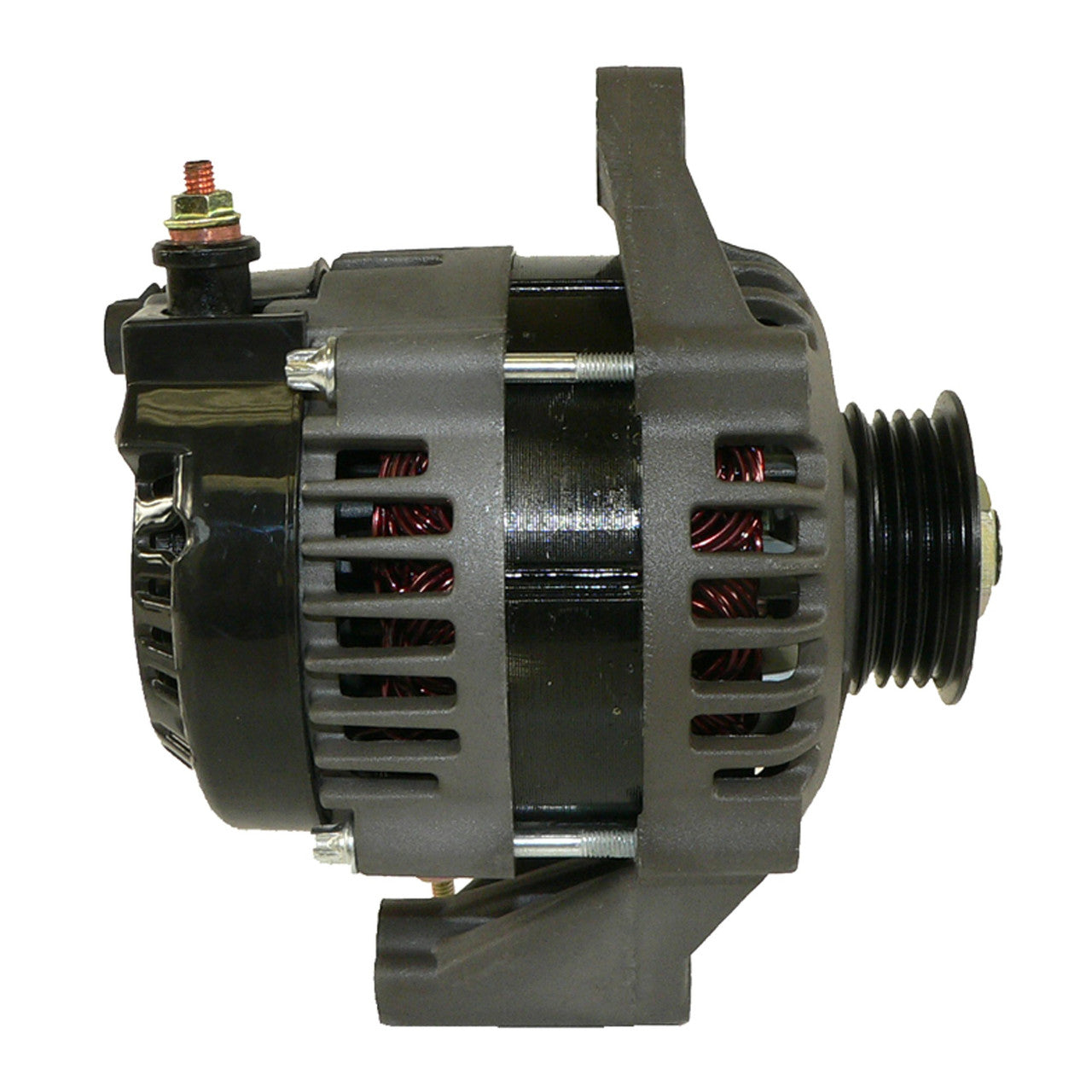

Alternator for Mercury Outboard 115-200 HP 1999-2014
Alternator for Mercury Outboard 115-200 HP 1999-2014
SKU:400-12306
Free shipping over £150. Terms apply
Couldn't load pickup availability
Alternator for Mercury Outboard Engines
115-200 HP · 1999-2014 · Delco 5SI Type
This aftermarket alternator is built on the compact Delco 5SI platform (smaller diameter than the 7SI) engineered for Mercury Marine 2.5L outboard powerheads, with a 4-groove pulley, B+ terminal at the 1 o'clock position and plug connector at 12 o'clock on the rear cover.
High-temperature epoxy and grease, heavy-duty rectifiers and a quality internal regulator give a direct-fit OEM replacement for the Mercury Marine 857006T, 875285T1, 881248T and 889955 alternators, supplied with final test results and a performance curve.
Key Features
- 50 Amp output, 12 Volt, internally regulated
- Delco 5SI type, compact diameter, 4-groove pulley
- B+ terminal at 1:00, plug at 12:00 (rear cover)
- Same regulator pin connection as the Delco 7SI family
- High-temperature epoxy & grease for marine engine bays
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 50A |
| Regulator | Internal (IR) |
| Pulley | 4-Groove |
| Alternator Family | Delco 5SI |
| Weight | 10.00 lbs |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Mercury 115CXL / 115L / 115XL Optimax | 1999-2014 |
| Mercury 135CXL / 135L / 135XL Optimax | 1999-2014 |
| Mercury 150 / 175 series | 1999-2014 |
| Mercury 200CXL / 200L / 200XL | 1999-2014 |
| MerCruiser 575SCI | 2000 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 857006T, 875285T1, 881248T, 889955, 889955A03 | Mercury Marine |
| 19020703, 19020706 | Delco |
| 20840 | Arco Marine |
| 8470 | Lester |
| 18-6454 | Sierra Marine |
| 1-2487-01DR | WAI |
Frequently Asked Questions
Will this alternator fit my outboard without modification?
Yes, it is a direct, bolt-on replacement using the same pulley, mounting and terminal layout as the original Mercury Marine alternator.
What is included?
One complete 50A, 12V outboard alternator, ready to fit.
How can I tell my existing alternator has failed?
Look out for a dashboard charge warning light, a battery that will not hold charge, or dimming/flickering electrical accessories while running.
How do I tell this apart from the larger Delco 7SI alternator?
This 5SI unit has a smaller body diameter than the 7SI, though it shares the same regulator pin connection layout.
