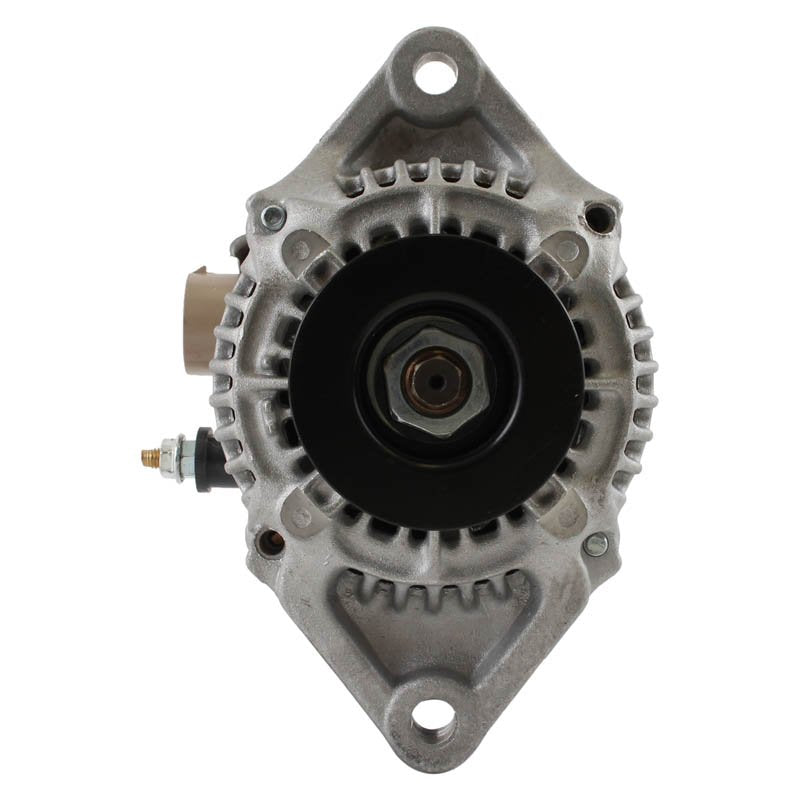

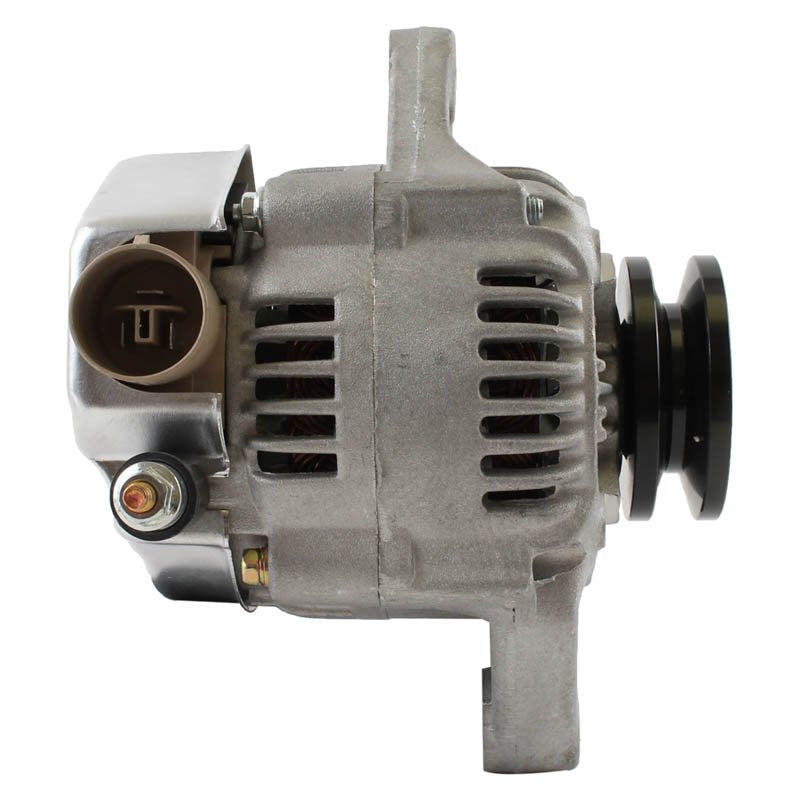

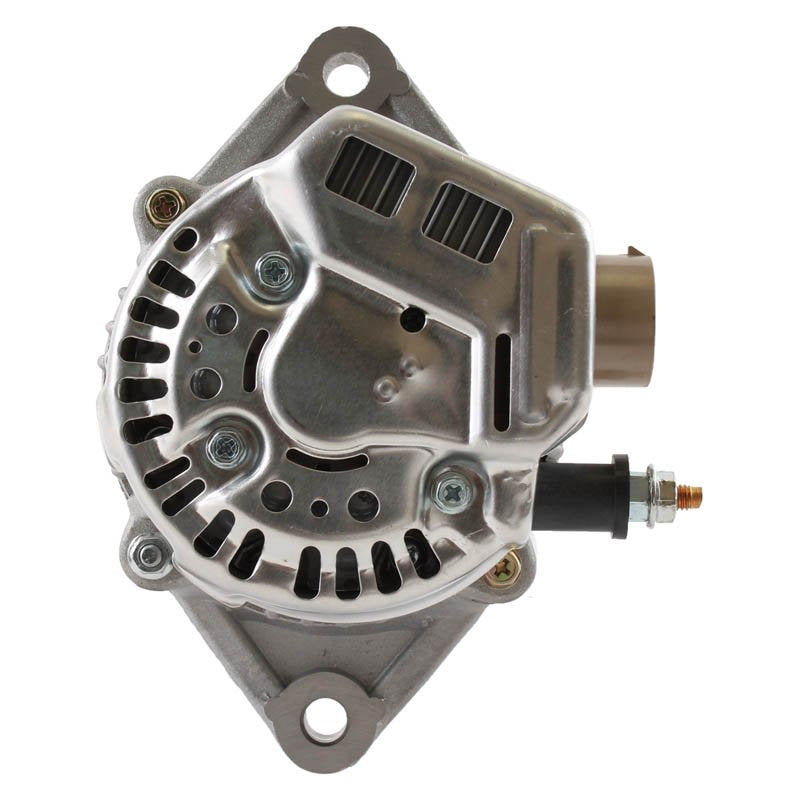

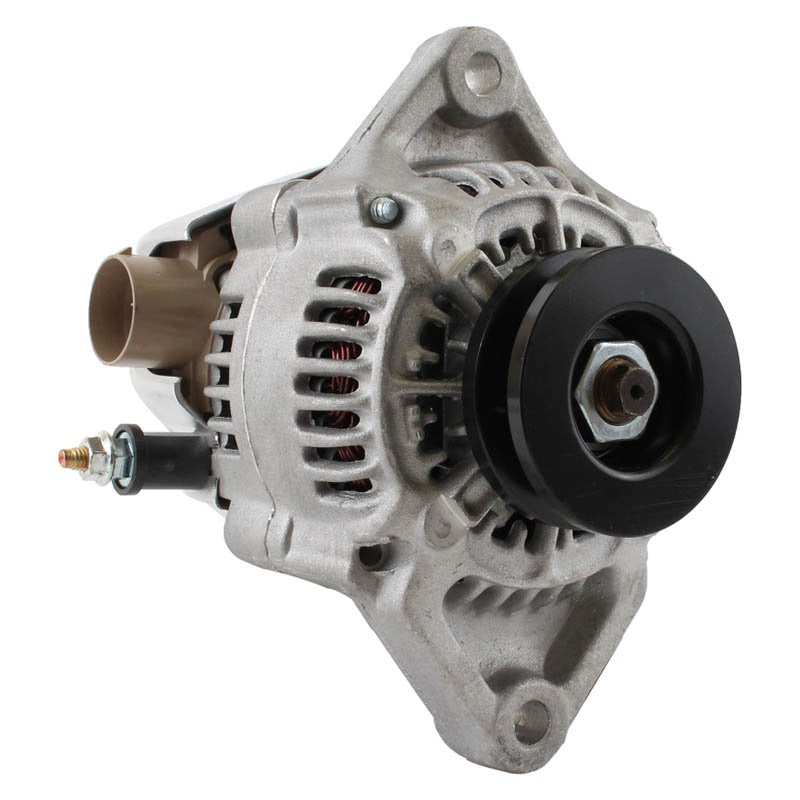

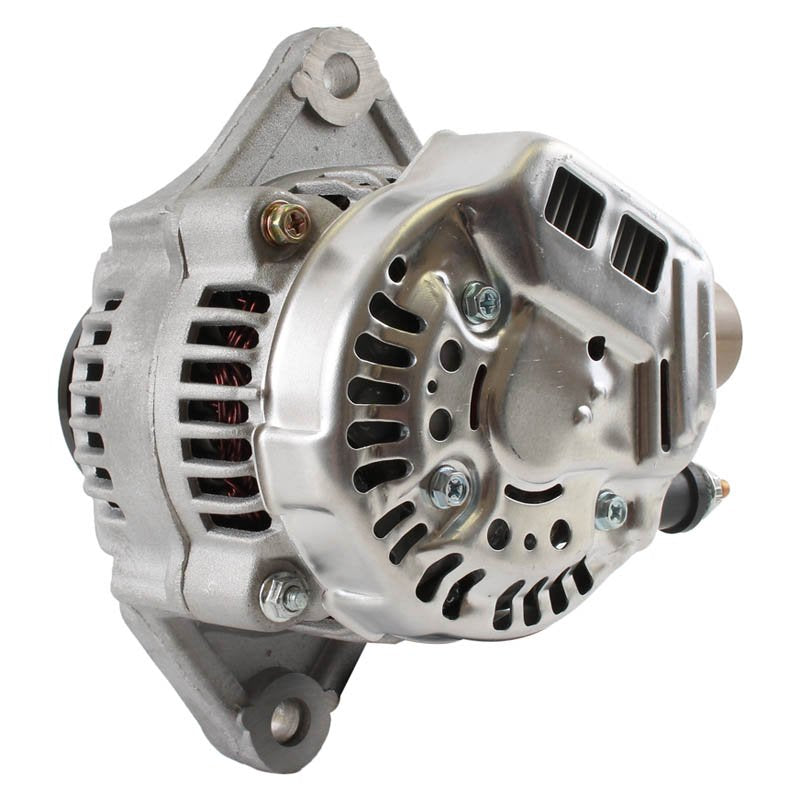

Alternator for Mercury & Mariner Outboard Engines
Fits Mercury 225, 250 and 300 ProMax Racing Outboards, 1994-2000 · 12V 50 Amp
This alternator is a direct replacement for the original 50-amp unit fitted to Mercury Marine and Mariner outboard engines built around the 3.0L / 185ci V6 powerhead. It is manufactured to OEM specifications for fit, form and function, so it installs in place of the original part without modification.
The unit is rated 12 volt, 50 amp with clockwise rotation, an internal regulator (IR) set at the 3 o'clock position and an internal fan (IF). It uses a single-groove solid pulley of 63mm outside diameter, a 100mm OD stator and an M6-1.0 B terminal on a negative-earth system, and pairs with rotor part number 021200-5651. Note that the mounting differs from some earlier Mercury alternators, so please confirm against your original unit before ordering.
Key Features
- 12-volt, 50-amp output
- Clockwise (CW) rotation
- Internal regulator (IR) at 3 o'clock, internal fan (IF)
- 1-groove solid pulley, 63mm OD
- 100mm OD stator, negative earth
- Pairs with rotor #021200-5651
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 50A |
| Rotation | CW (clockwise) |
| Pulley | 1-groove solid, 63mm OD |
| Regulator Type | IR (internal), 3 o'clock position |
| Fan Type | IF (internal) |
| Stator OD | 100mm |
| B Terminal | M6-1.0 |
| Polarity | Negative earth |
| Weight | 3.43 kg |
| Rotor Reference | 021200-5651 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Mercury Marine 225L, 225XL, 225XXL, 225CXL, 225CXXL (3.0L) | 1994-1999 |
| Mercury Marine 225XL EFI, 225XXL EFI, 225CXL EFI, 225CXXL EFI | 1995-2000 |
| Mercury Marine 225L EFI | 1996-2000 |
| Mercury Marine 225CXL Seapro | 1996-1998 |
| Mercury Marine 250XL EFI, 250XXL EFI, 250CXL EFI, 250CXXL EFI | 1995-2000 |
| Mercury Marine 300L, 300XL, 300CL, 300CXL ProMax Racing | 1998-2000 |
| Mariner Marine 225 Carb, 225 EFI, 225 Sea Pro, 250 EFI (GM 3.0L) | Not specified |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 821663, 821663-1, 821663A1, 821663-A1 | Mercury Marine |
| 101211-8580 | Denso |
| 12358N | WAI |
Frequently Asked Questions
Will this fit my Mercury Marine outboard without modification?
Provided your original alternator matches the mounting pattern described above (this unit's mounting differs from the earlier 495277 equivalent), this is a direct OEM-spec fit.
What's included?
The alternator unit only.
How can I tell my alternator has failed?
Signs include a charge warning light, a battery that will not hold charge, dimming lights, or unusual noise from the unit.
Does it suit the 300 ProMax Racing powerhead?
Yes — the 1998-2000 300L, 300XL, 300CL and 300CXL ProMax Racing outboards use this same 50-amp charging unit.
What rotor does this alternator use?
Rotor part number 021200-5651.
