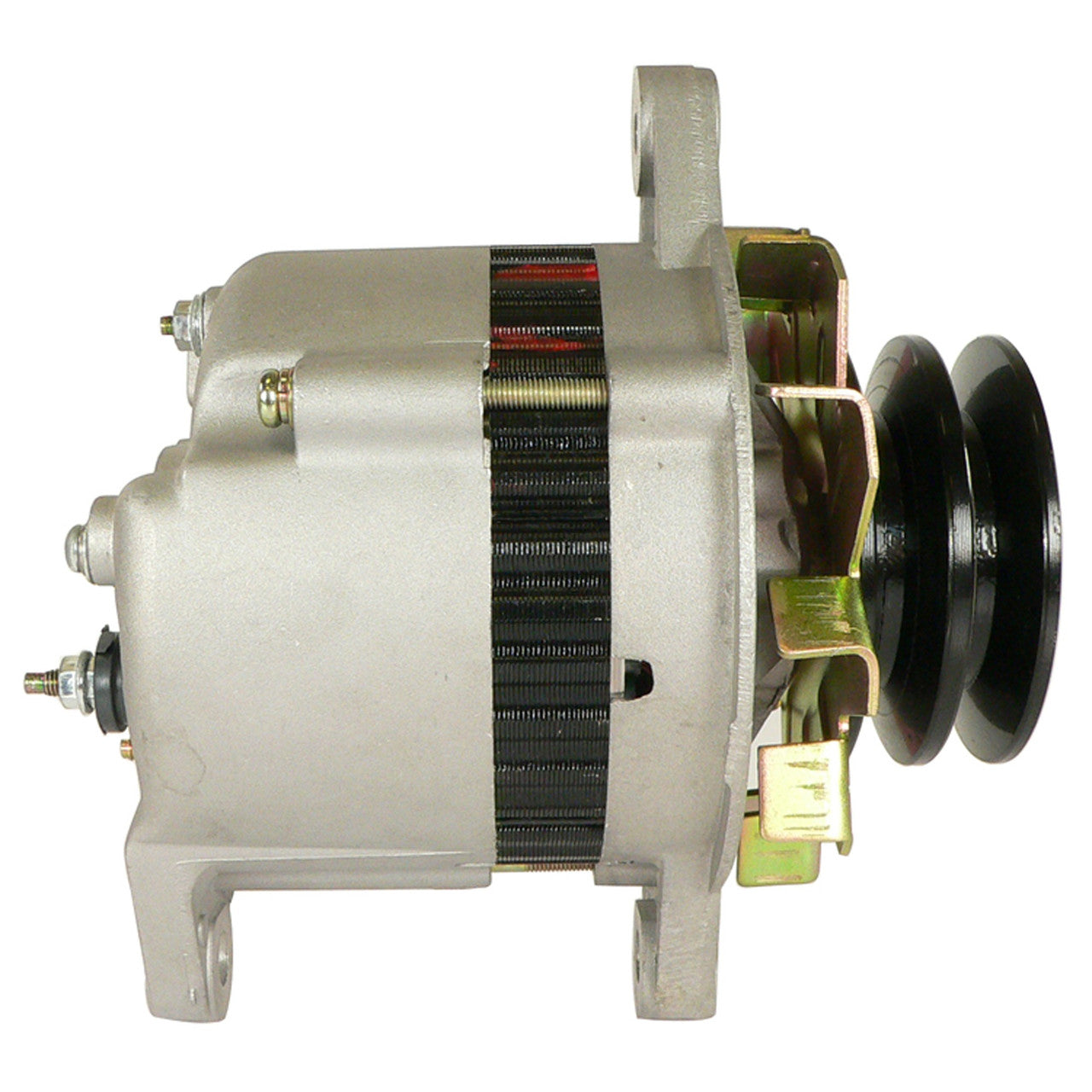

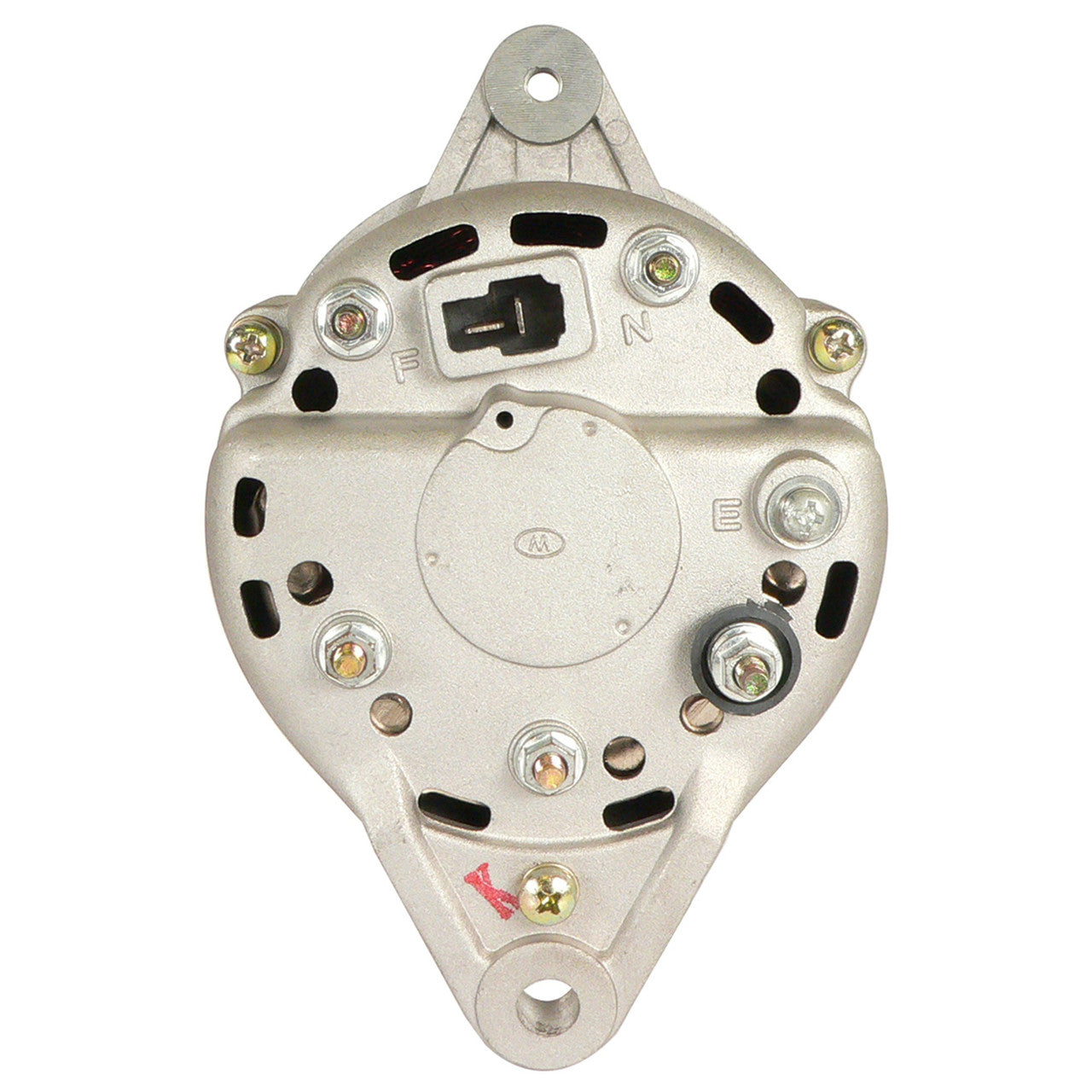

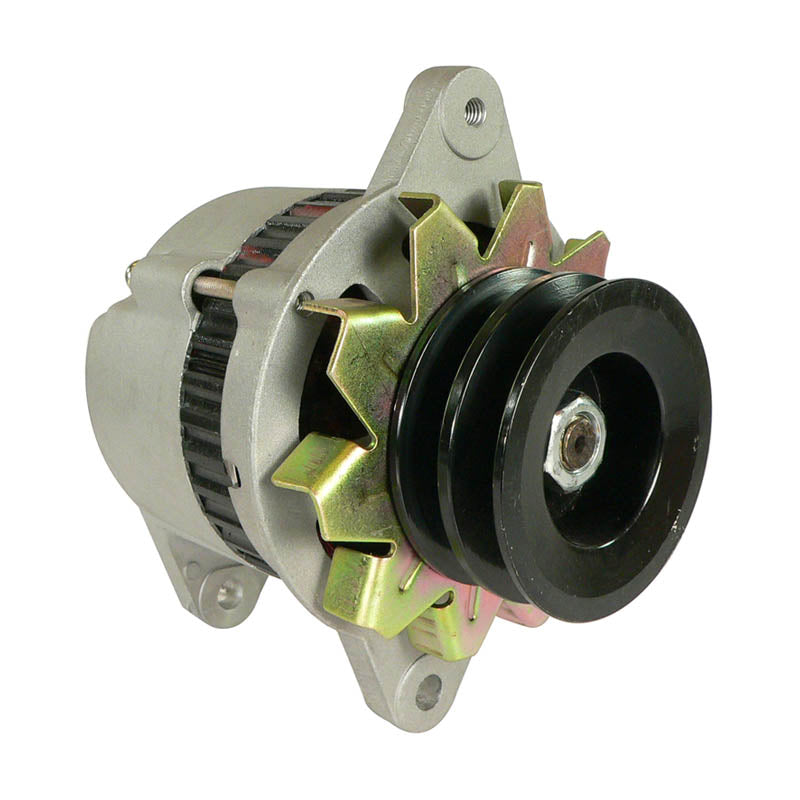

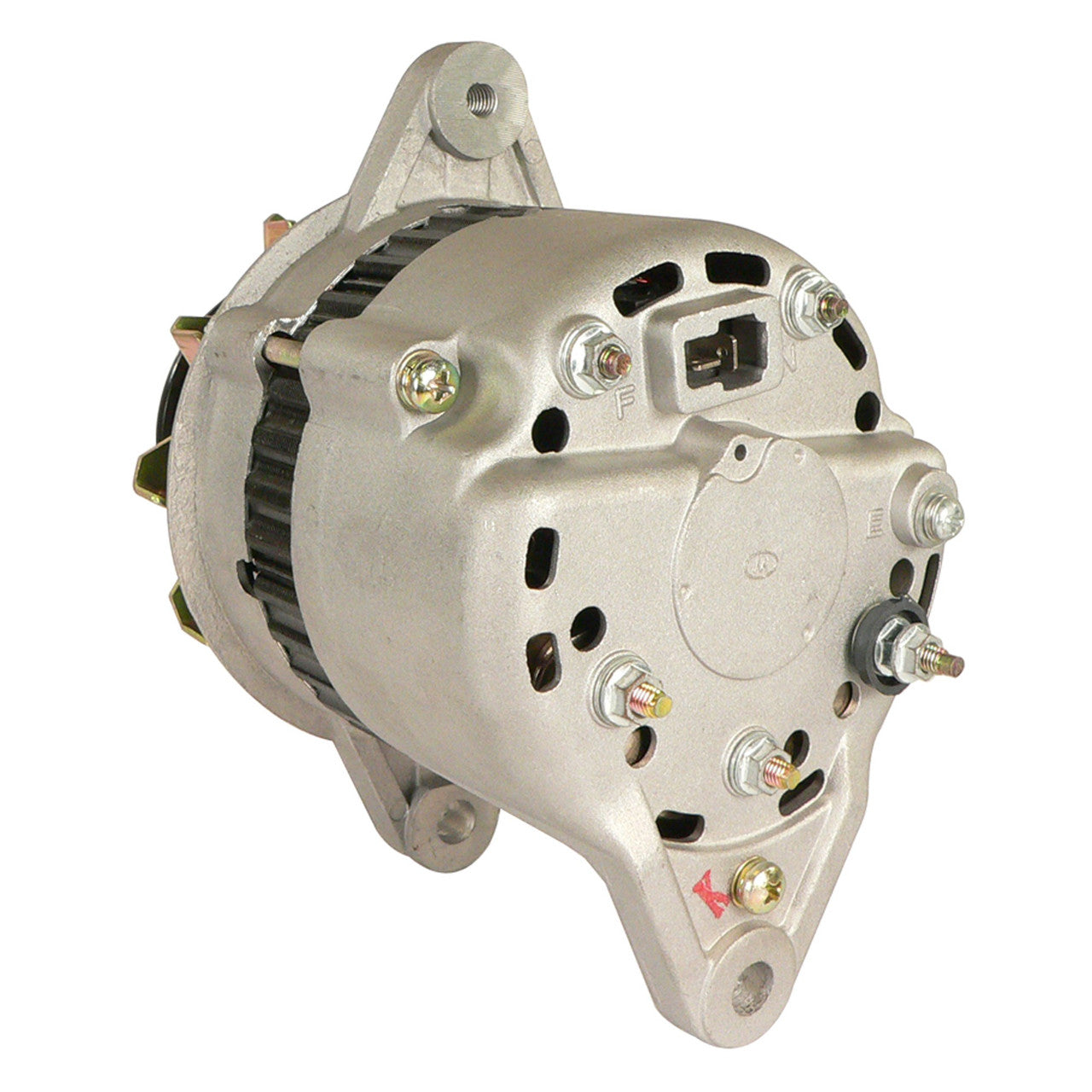

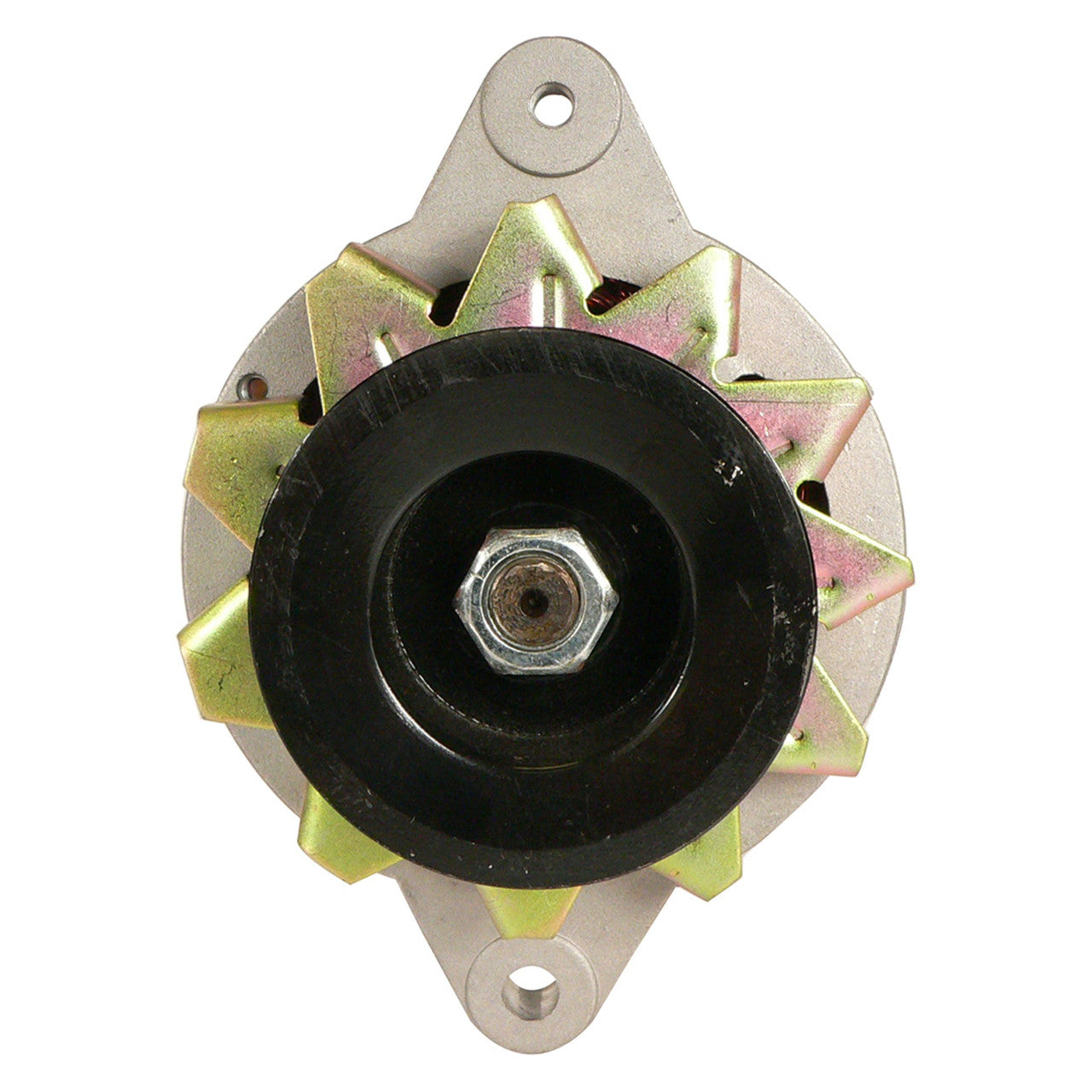

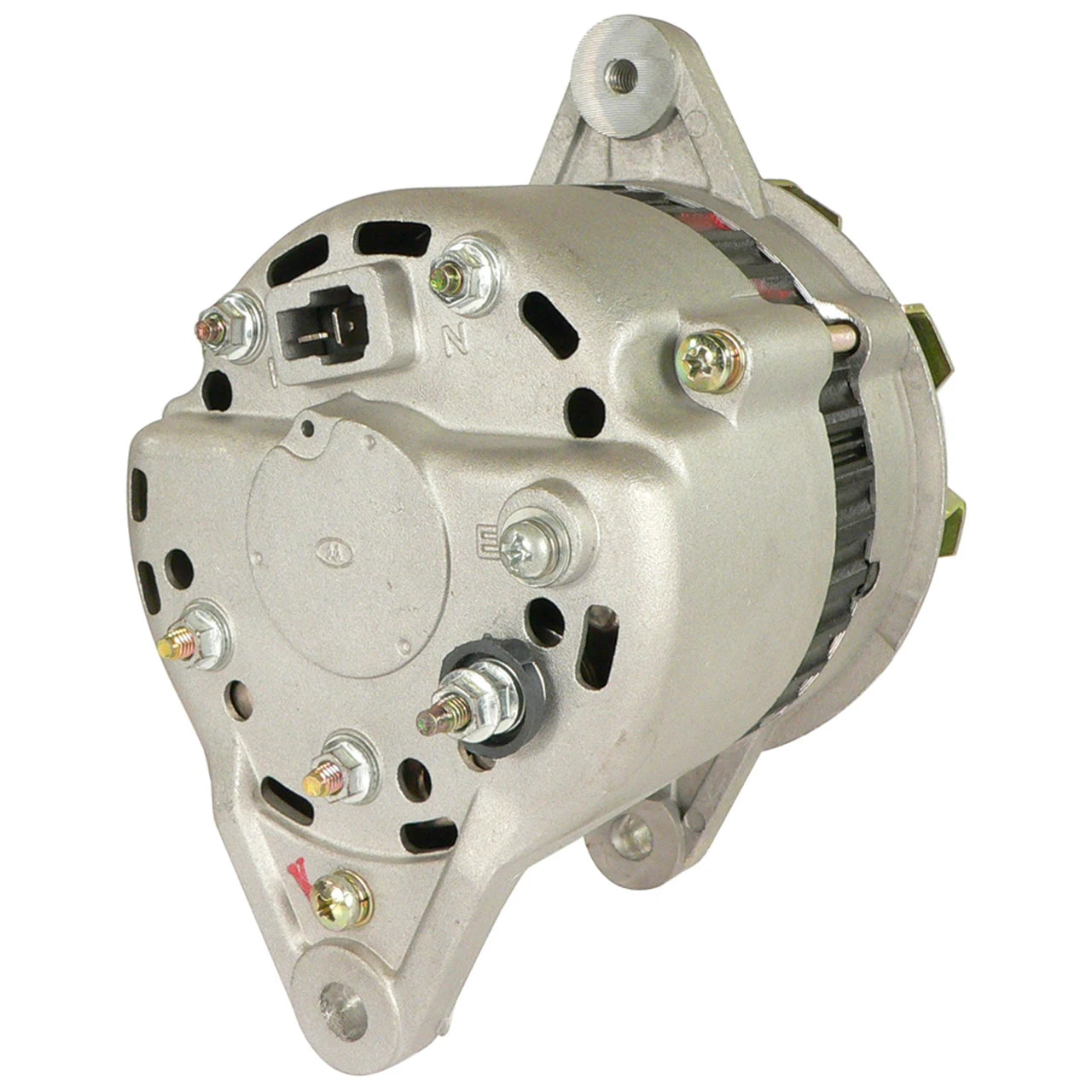

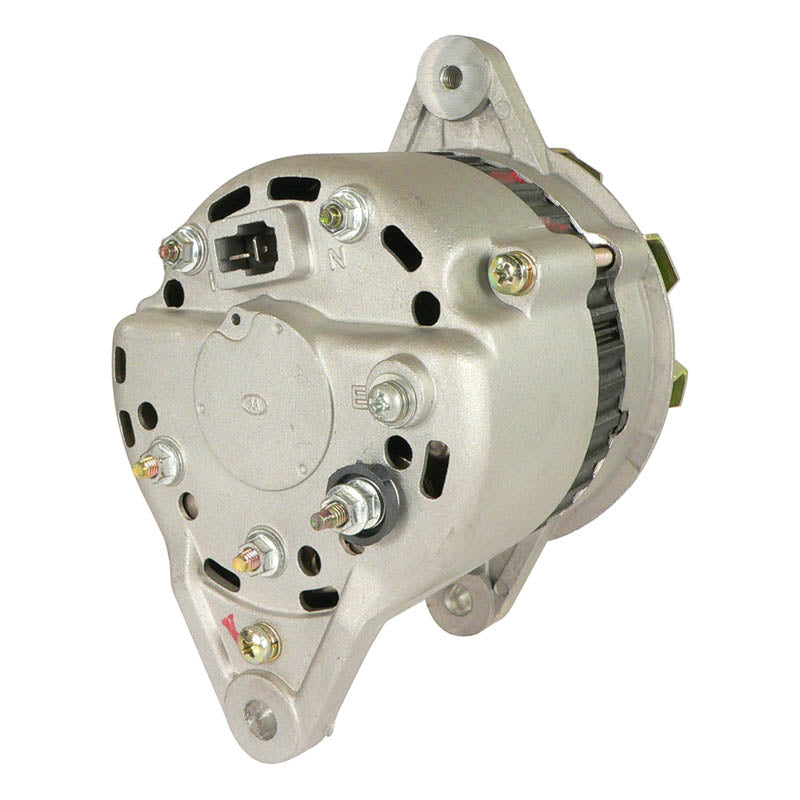

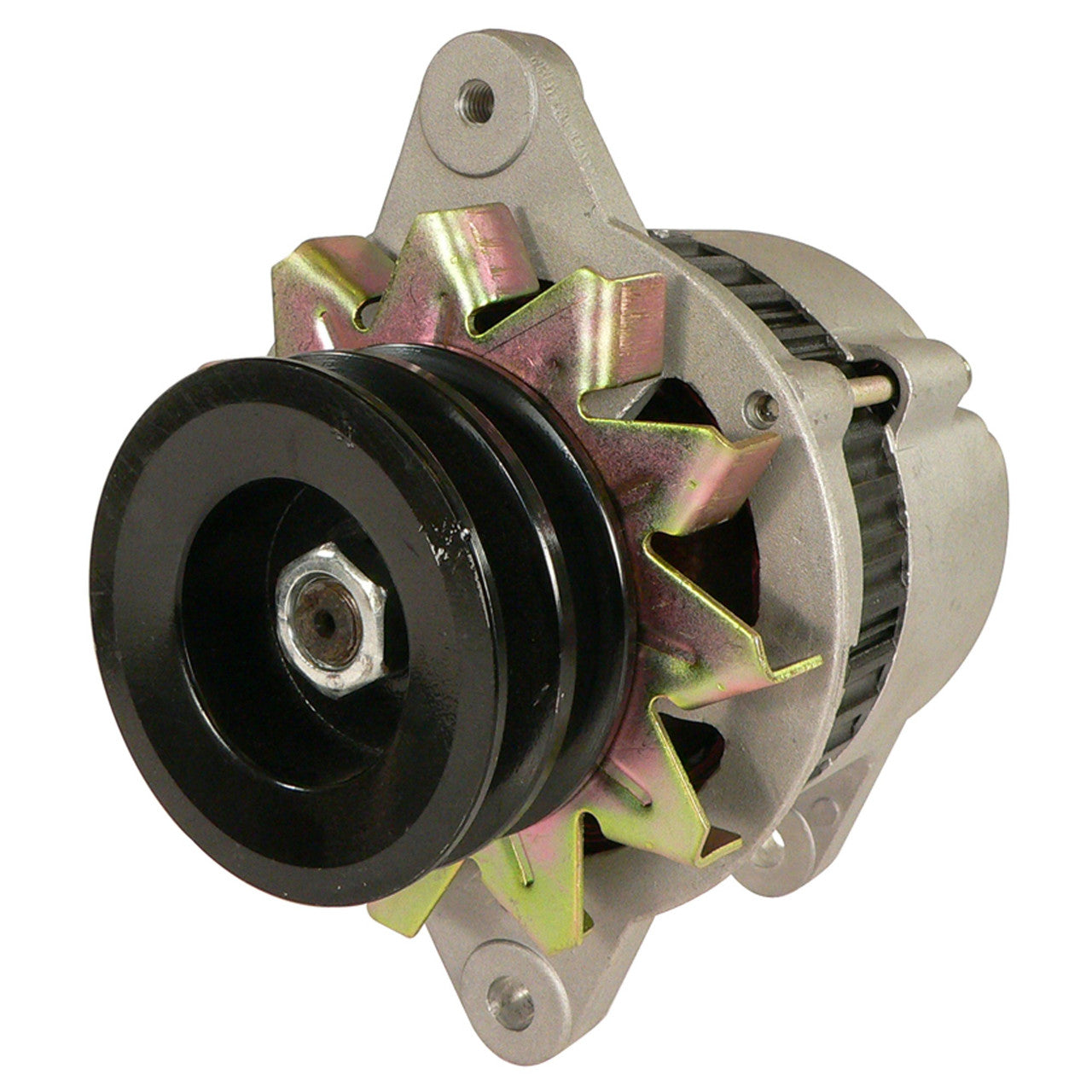

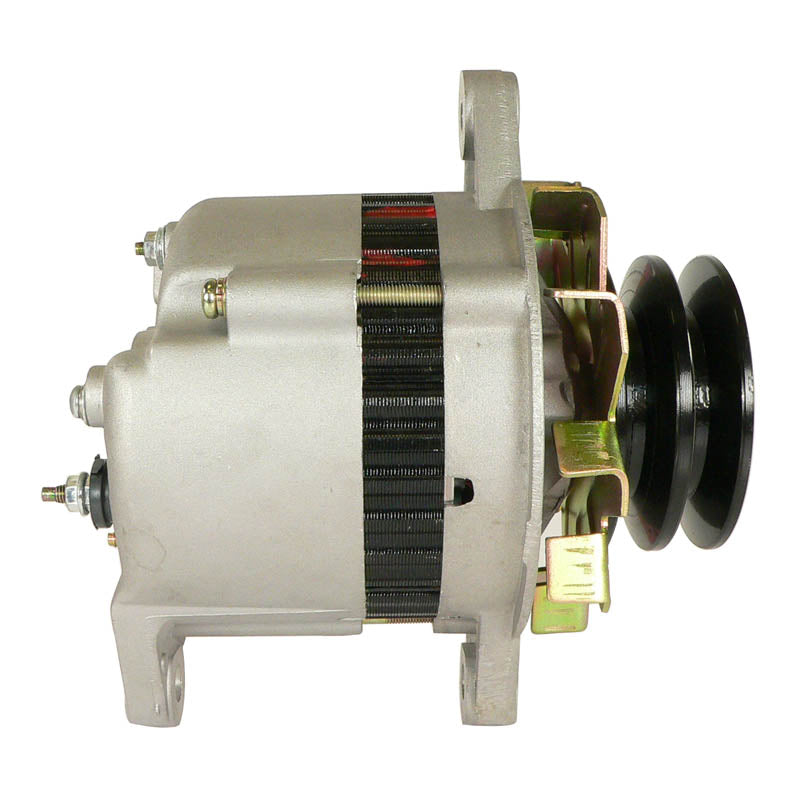

This alternator is built to OEM specifications as a direct fit and function replacement for the Hitachi LT215-37C unit fitted to Nissan-engined Hyster and Yale lift trucks, including SD33T, UF03, YE03 and YGF03 models. It is rated at 24 volts and 15 amps.
The unit rotates clockwise (CW), uses a two-groove (V2) pulley, and is externally regulated (ER) with an external fan (EF), matching the original factory configuration for a straight bolt-in fit. It replaces Nissan 23100-L6000 and 23100-L6001, Hyster 304996 and Yale 2200074-00 directly.
Key Features
- 24-volt, 15-amp output
- ER/EF design - externally regulated, externally cooled
- Clockwise (CW) rotation
- V2 (two-groove) pulley
- Direct fit for Nissan-engined Hyster & Yale lift trucks
- Replaces Hitachi LT215-37B / LT215-37C
- 12-month warranty as standard
Technical Specs
| Specification |
Detail |
| Voltage |
24V |
| Amperage |
15 Amp |
| Rotation |
CW (Clockwise) |
| Regulator |
ER (Externally Regulated) |
| Fan Type |
EF (External Fan) |
| Pulley Class |
V2 (Two Groove) |
| Unit Type |
Hitachi-type alternator |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Nissan Lift Trucks with SD33T Diesel Engine |
All years |
| Nissan UF03 Lift Trucks |
All years |
| Nissan YE03 Lift Trucks |
1981-onwards |
| Nissan YGF03 Lift Trucks |
1981-onwards |
| Hyster & Yale Lift Trucks with Nissan Engines |
All years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 23100-L6000, 23100-L6001 |
Nissan |
| LT215-37B, LT215-37C |
Hitachi |
| 304996 |
Hyster |
| 2200074-00 |
Yale |
| 90-25-1100 |
Wilson |
| 12116 |
Lester |
| 400-44058 |
Arrowhead / J&N |
Frequently Asked Questions
Will this alternator fit my Hyster or Yale lift truck without modification?
Yes, provided it is fitted with a Nissan SD33T, UF03, YE03 or YGF03 engine. This is a direct OEM-fit replacement built to the same 24V, 15A specification as the original unit.
What's included with this part?
You receive the alternator unit only. Mounting hardware and pulleys are not included unless already fitted to the original unit you are replacing.
How can I tell my old alternator has failed?
Common signs include a warning light staying on, dimming or flickering lights, a dead or slowly draining battery, or unusual whining noises from the unit.
How do I confirm this is the right alternator for my lift truck?
Check the OEM part number on your original unit against the cross-reference numbers listed above, or confirm your engine model is SD33T, UF03, YE03 or YGF03.
