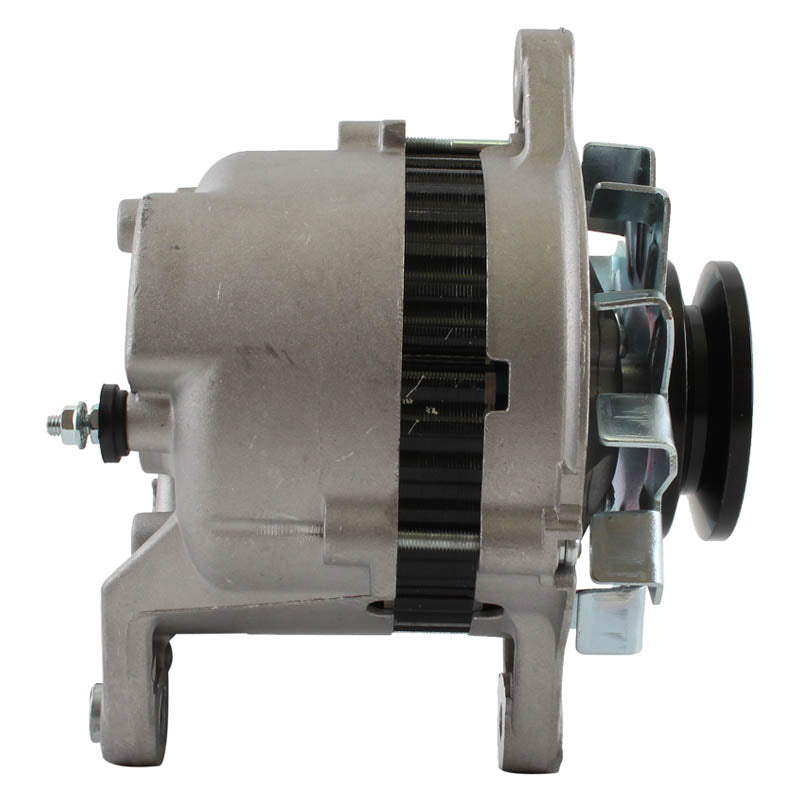

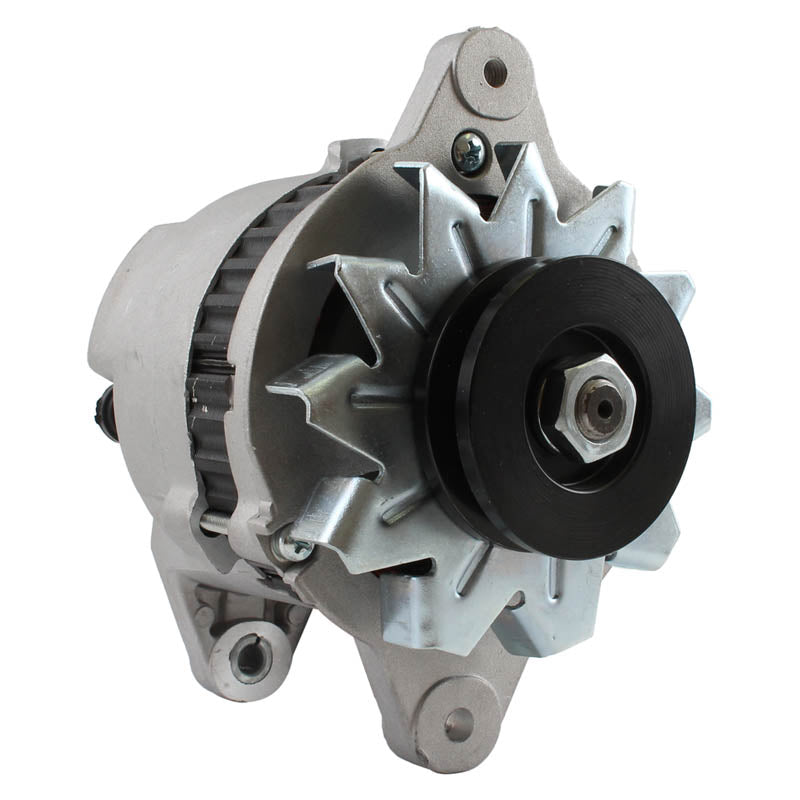

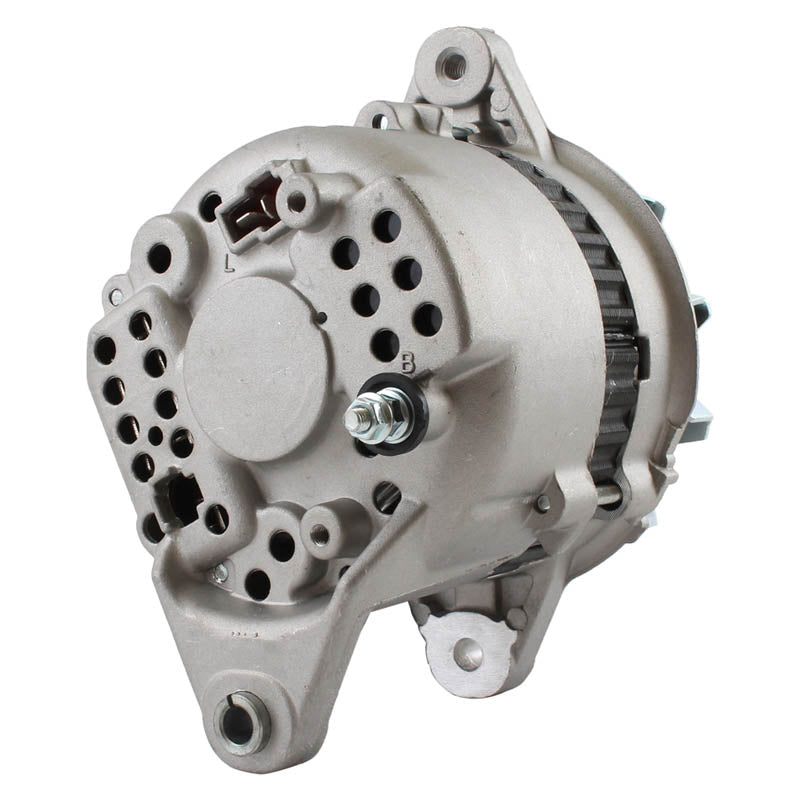

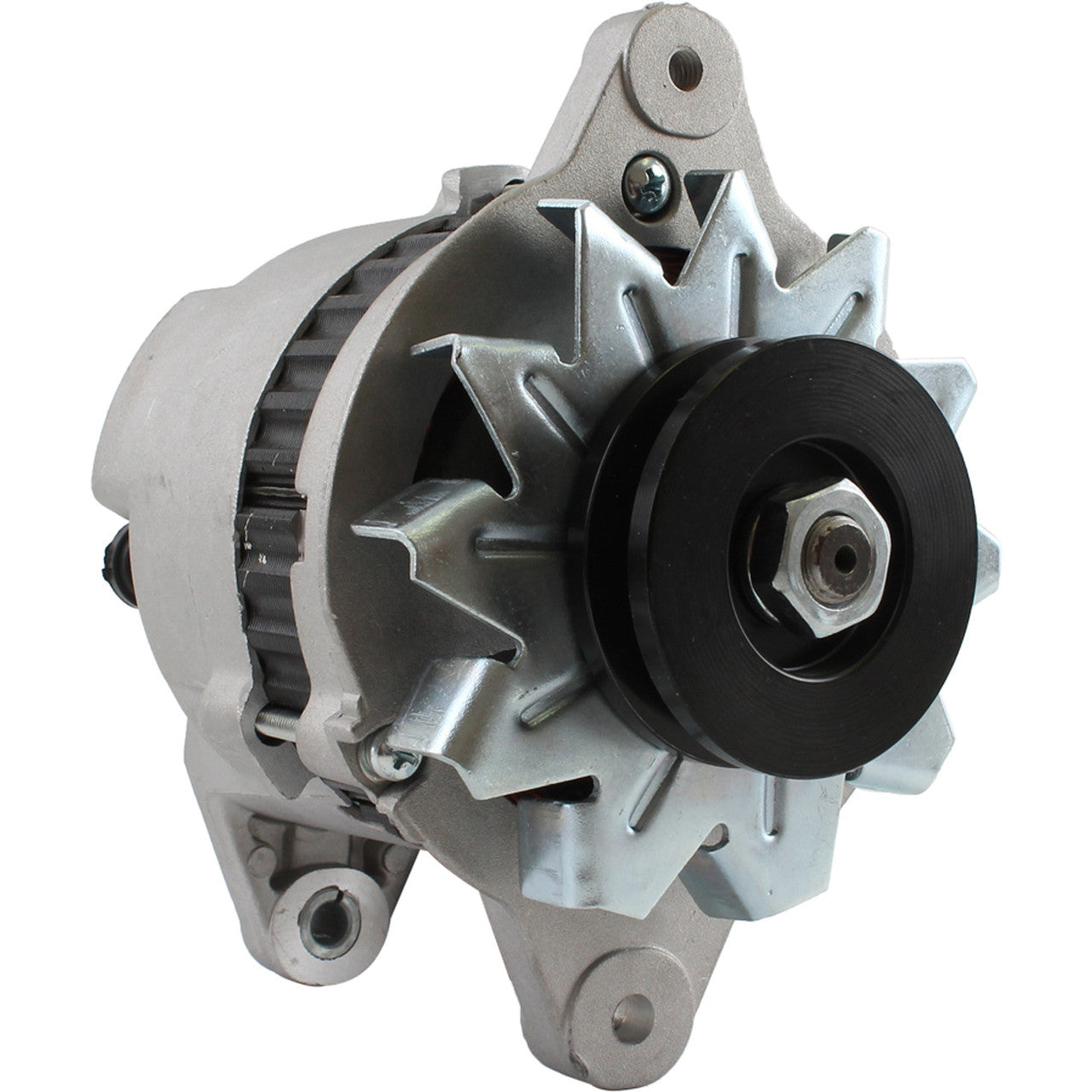

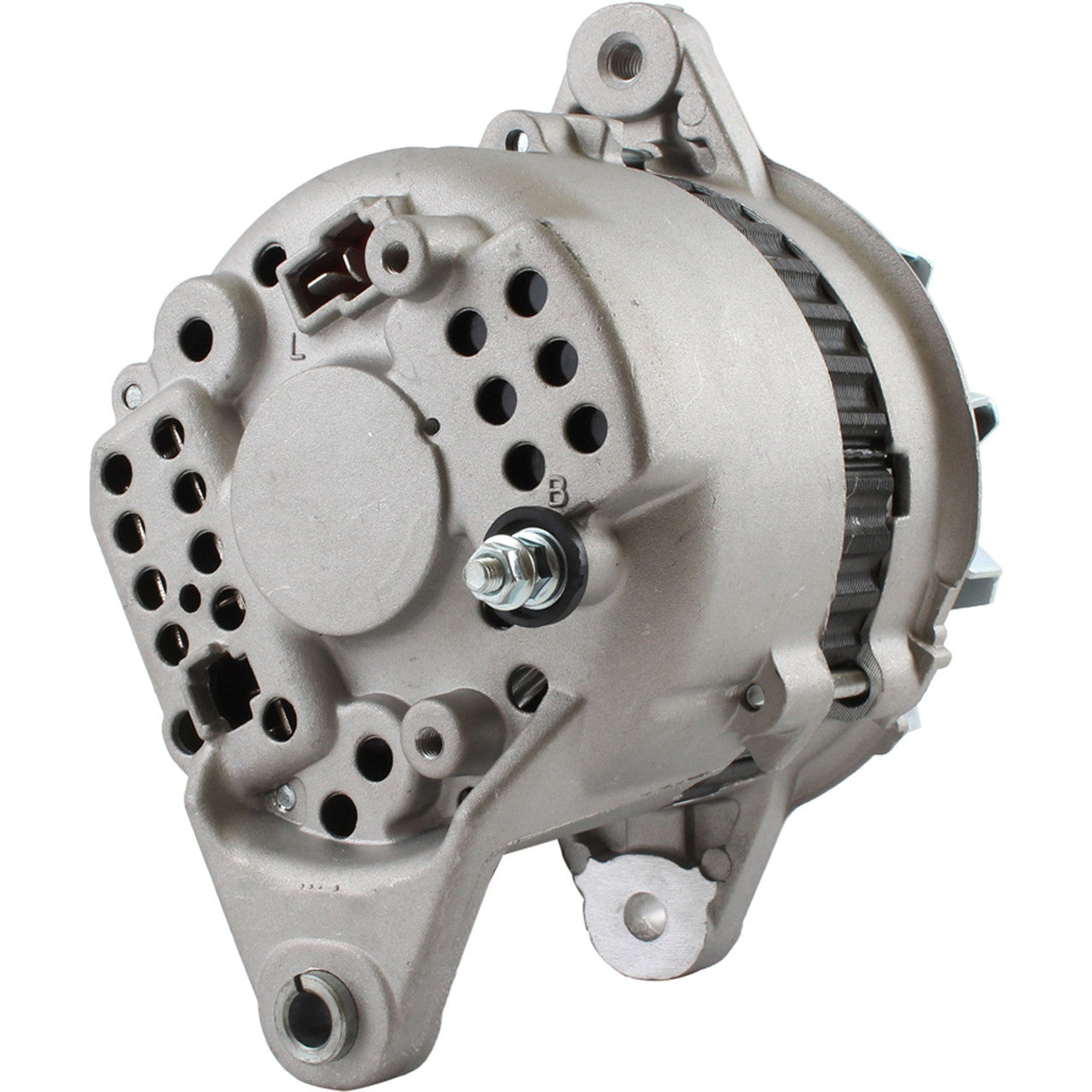

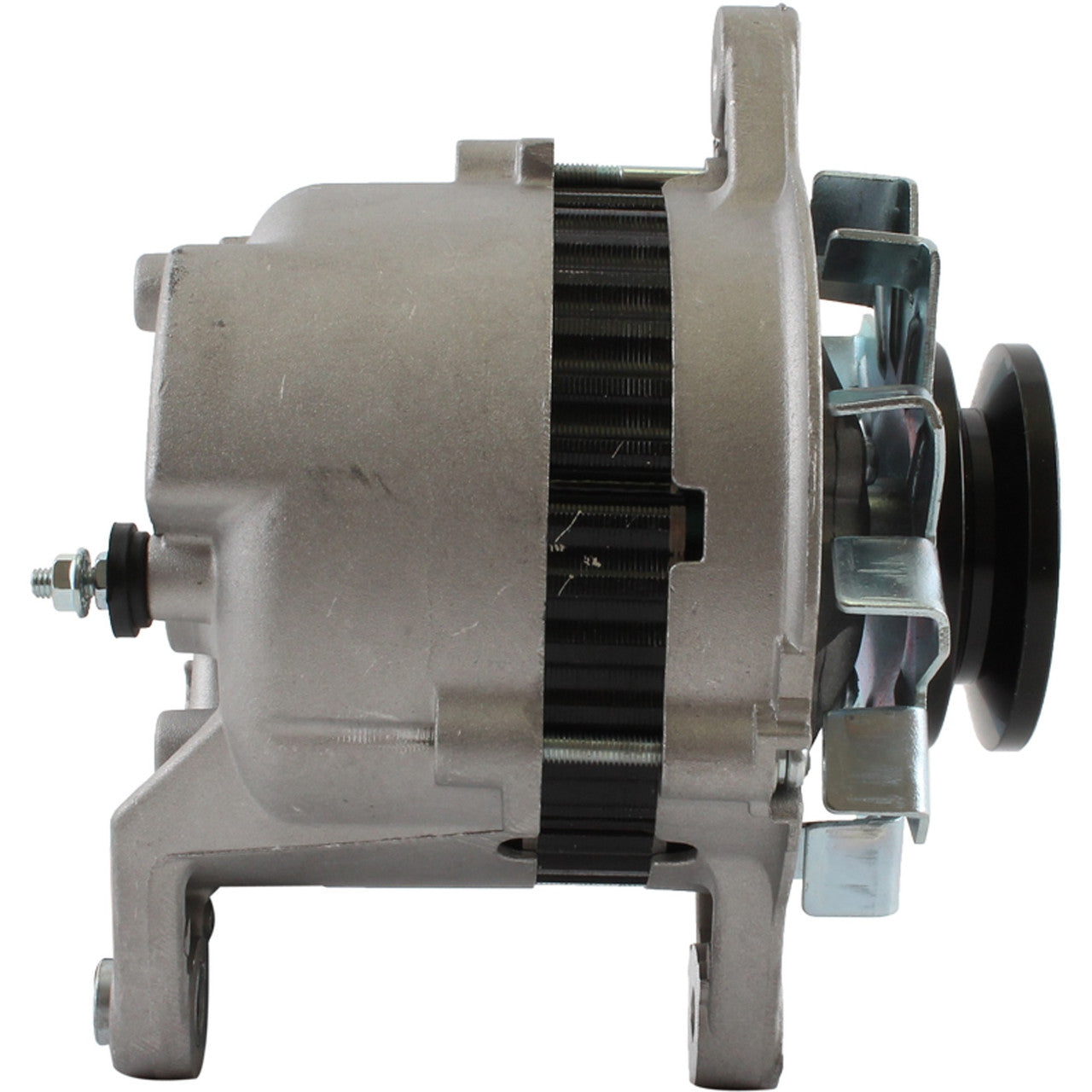

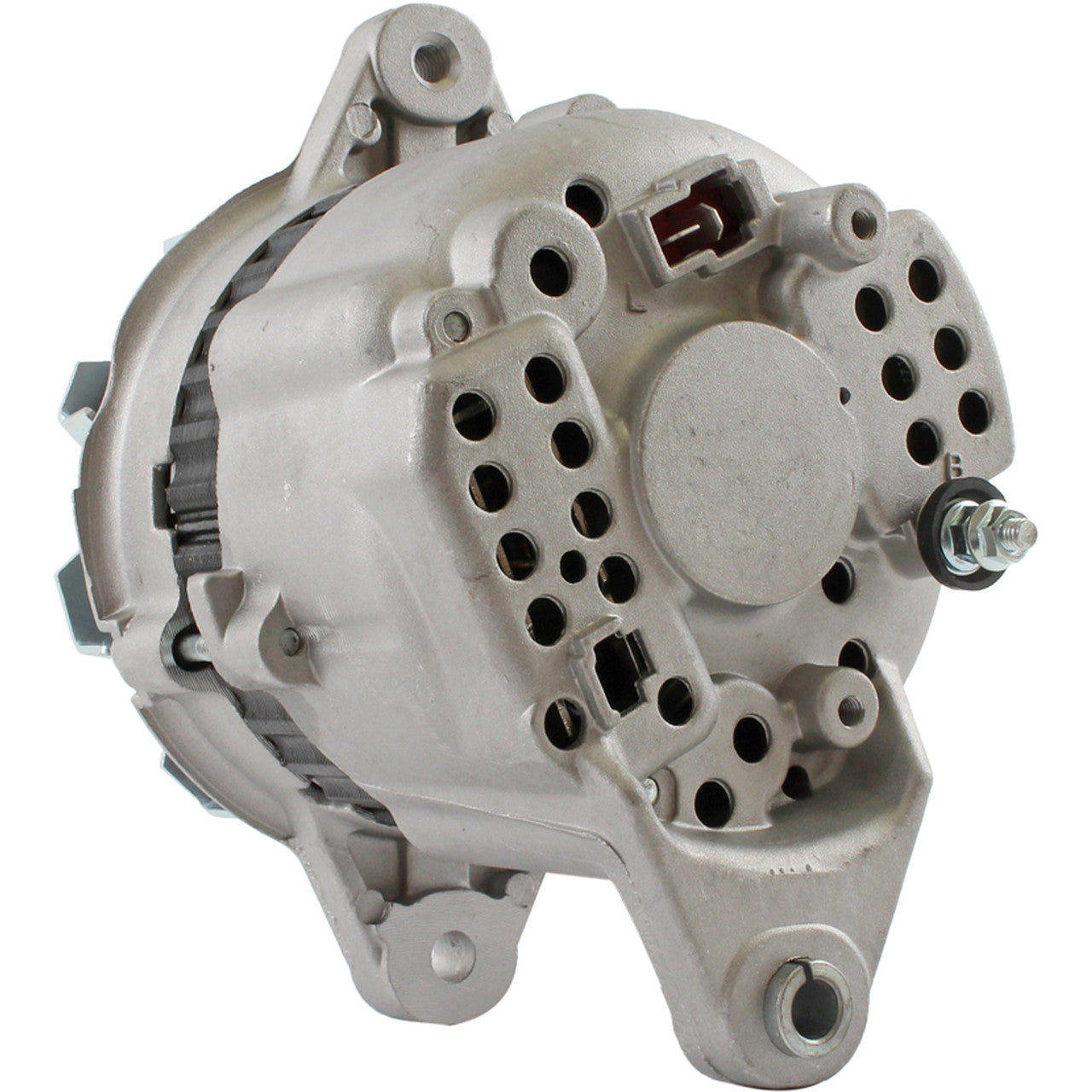

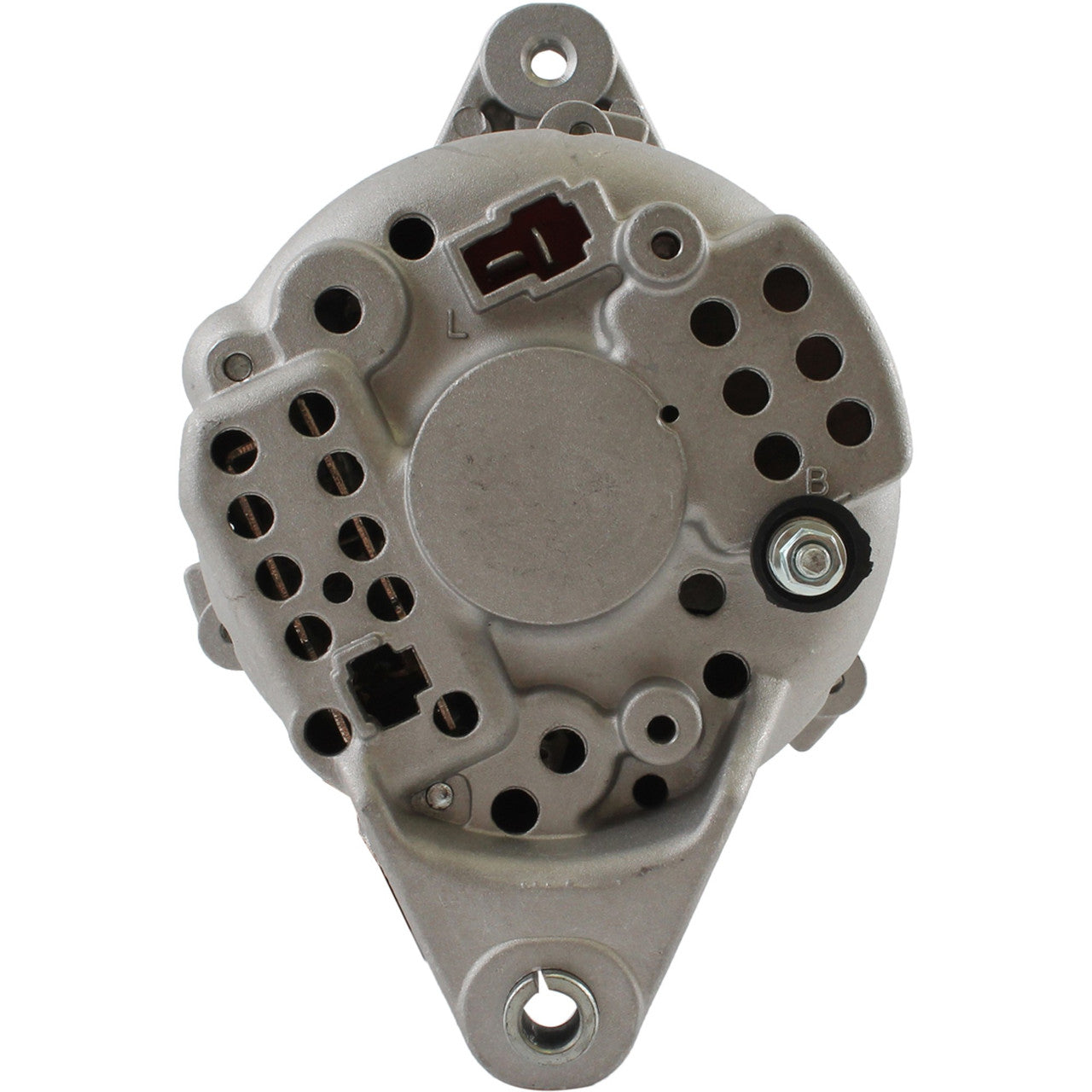

Alternator for Nissan & TCM Lift Trucks [LR135-126]
Heavy-Duty Industrial Replacement | 12V 35A
This 100% brand new aftermarket alternator is precision-engineered to provide reliable charging for Nissan and TCM industrial equipment. Designed specifically for lift truck applications with H20 and J15 engines, this unit ensures your material handling equipment maintains optimal electrical performance in demanding warehouse environments.
RELIABILITY: Manufactured with high-temperature epoxy and premium bearings to exceed OEM standards for industrial durability.
Key Features
✔ Direct fit for Nissan H20 & J15 Engines
✔ Corrosion-resistant housing
✔ Built-in Internal Regulator
✔ High-output performance at low RPM
Technical Specs
Voltage:
12V
Amperage:
35A
Rotation:
CW (Clockwise)

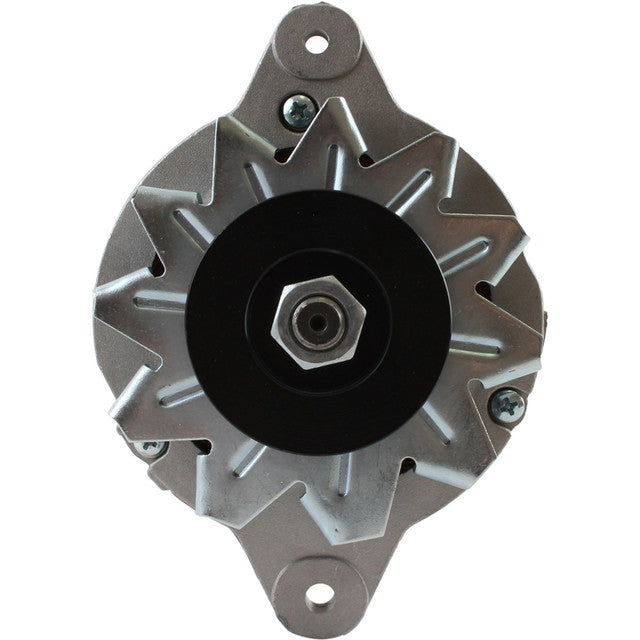

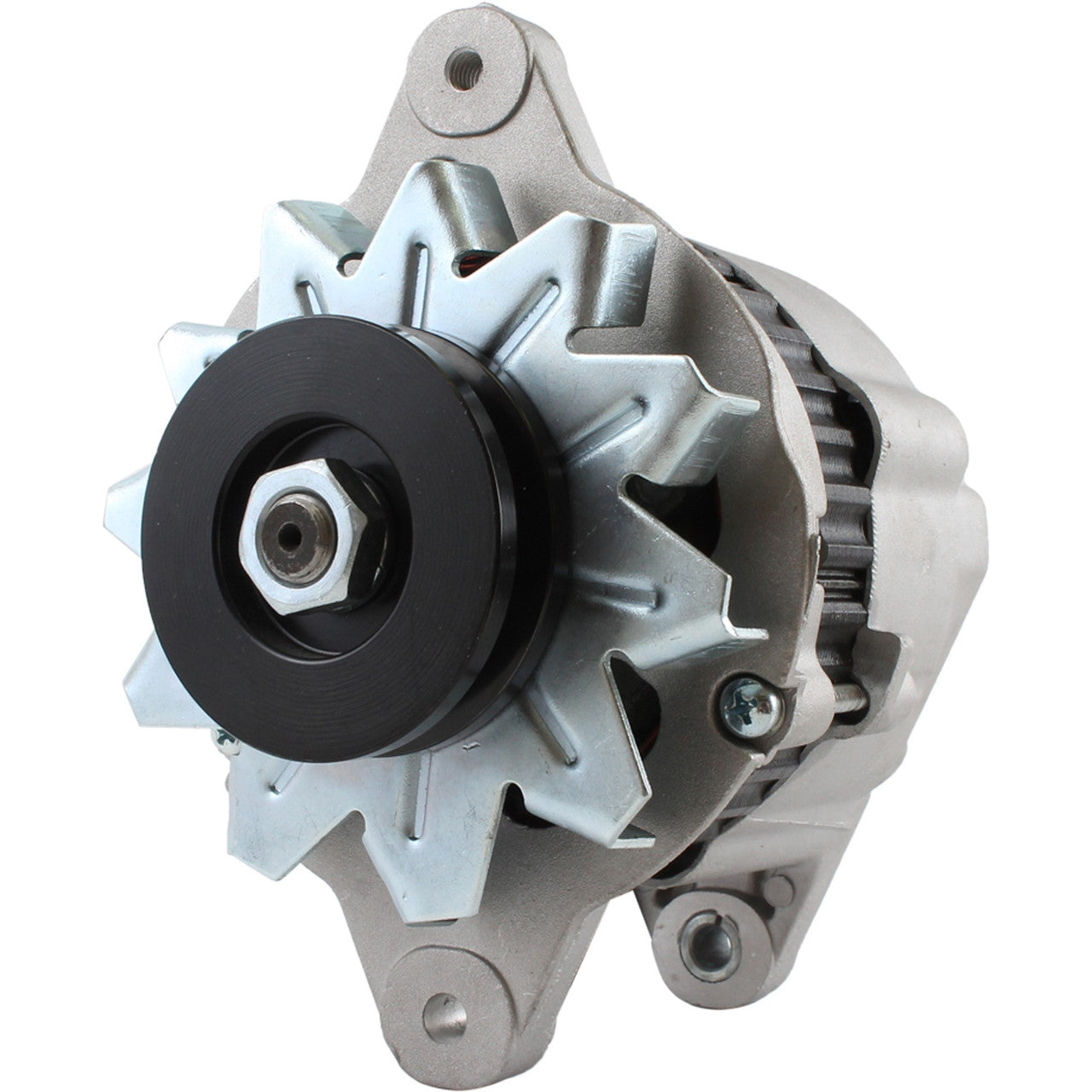

Pulley:
1-Groove V-Pulley
Regulator:
Internal (IR)
Fan:
External (EF)
Compatibility / Fitment Guide
Make
Model Series
Engine Type
Nissan Lift Truck
AEH, AH, BF, CPH, DF, EGH, HO2, KAH, JF05, WF
H20, J15
TCM Lift Truck
FG20, FG23, FG25, FG28, FG30 (N Series)
H20, J15
Yanmar Marine
Various 2GM / 3GM Series
Diesel
OEM Cross Reference
Hitachi:
LR135-126, LR135-126N, LR135-105
Nissan:
23100-01M00, 23100-01M02, 23100-01M10
TCM:
23100-01M00
Lester:
12174
Yanmar:
128270-77200, 128270-77201, 128270-77202
Questions & Answers
Is this a genuine original part?
This is a premium quality 4Drive aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for industrial performance.
How do I know if it is compatible?
We recommend checking your existing unit for the part number LR135-126 or 23100-01M00. This unit is commonly found on Nissan H20 and J15 engines.
Does it come with the pulley installed?
Yes, this alternator arrives ready to install with a pre-fitted 1-groove V-belt pulley already mounted.
Note: Please verify your original part number against the references above before purchasing. Domain: 4drive.co.uk
