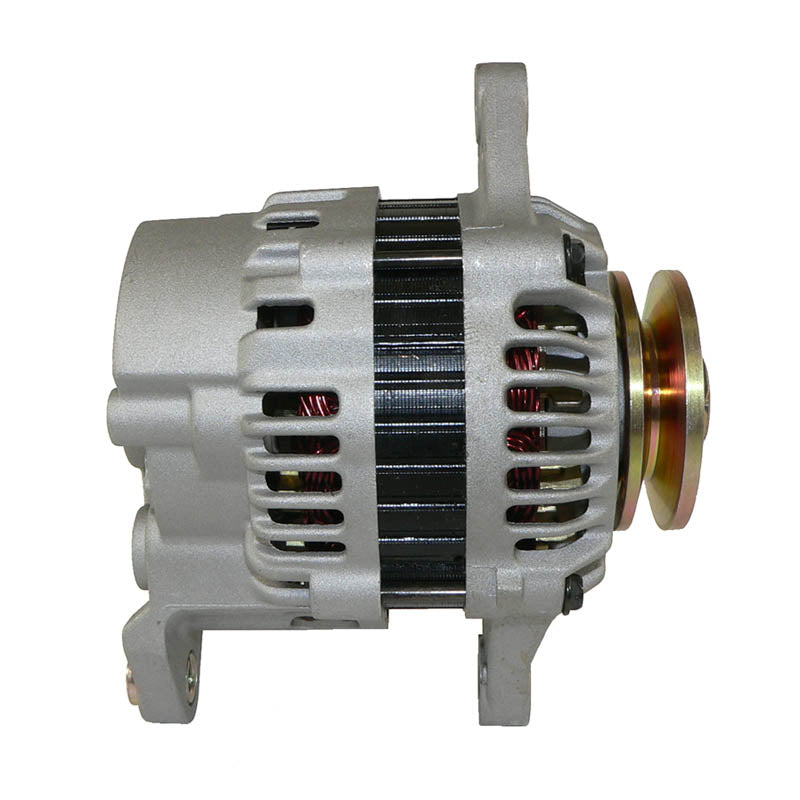

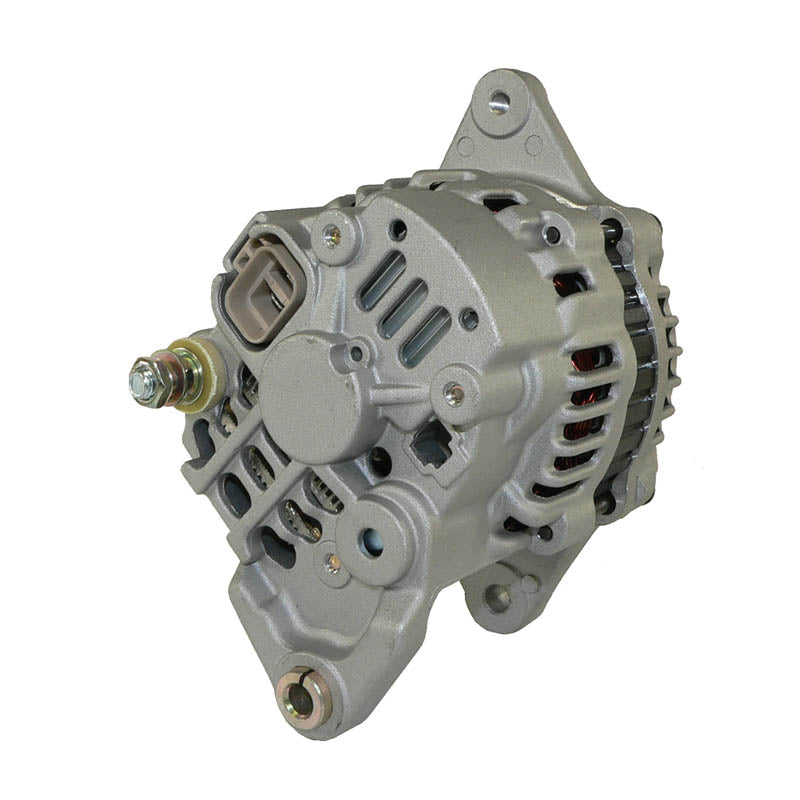

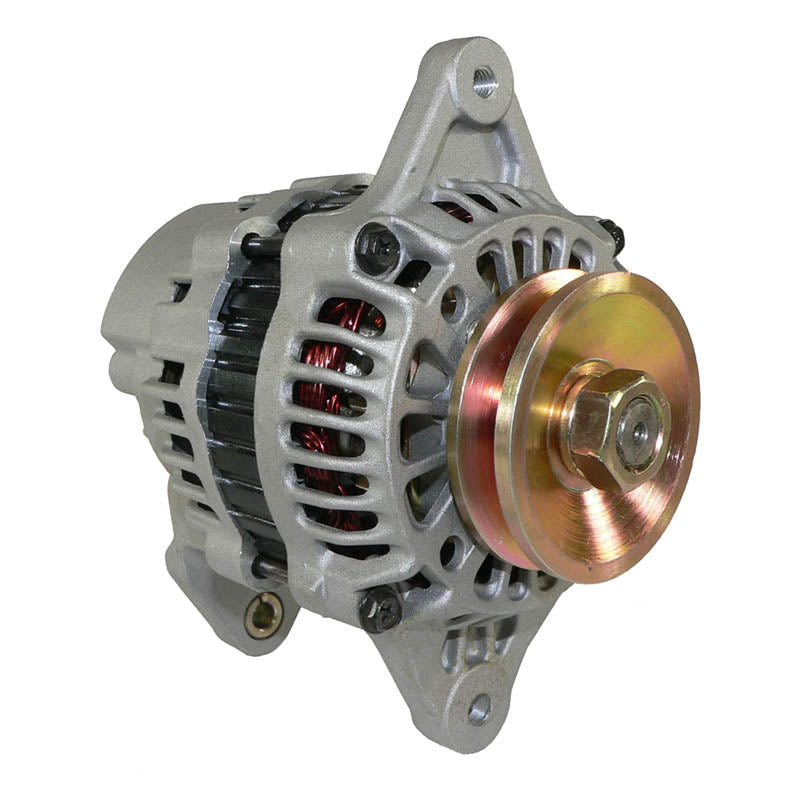

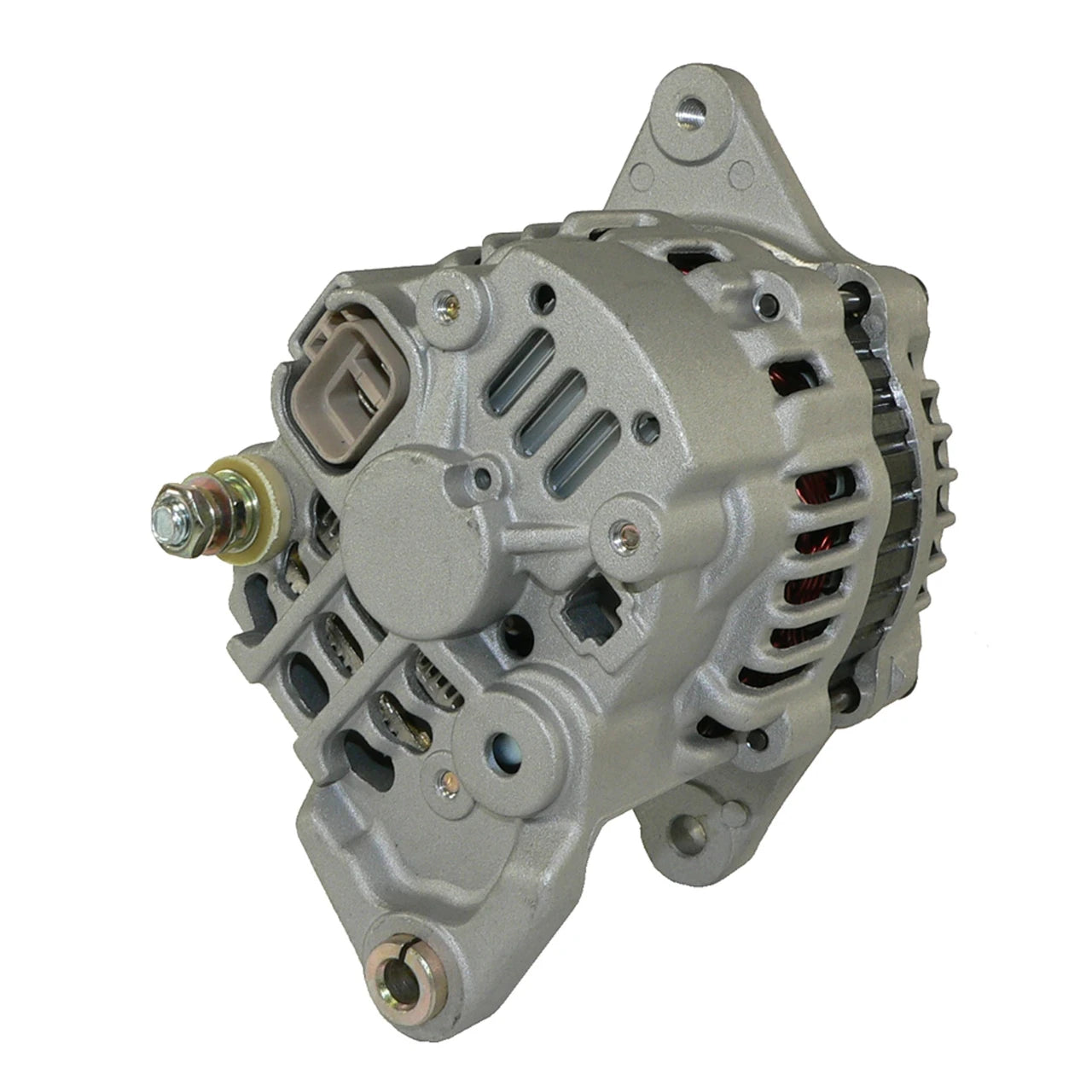

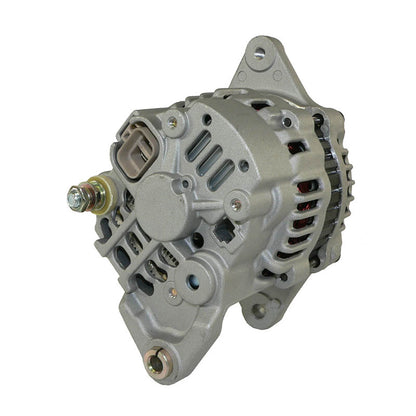

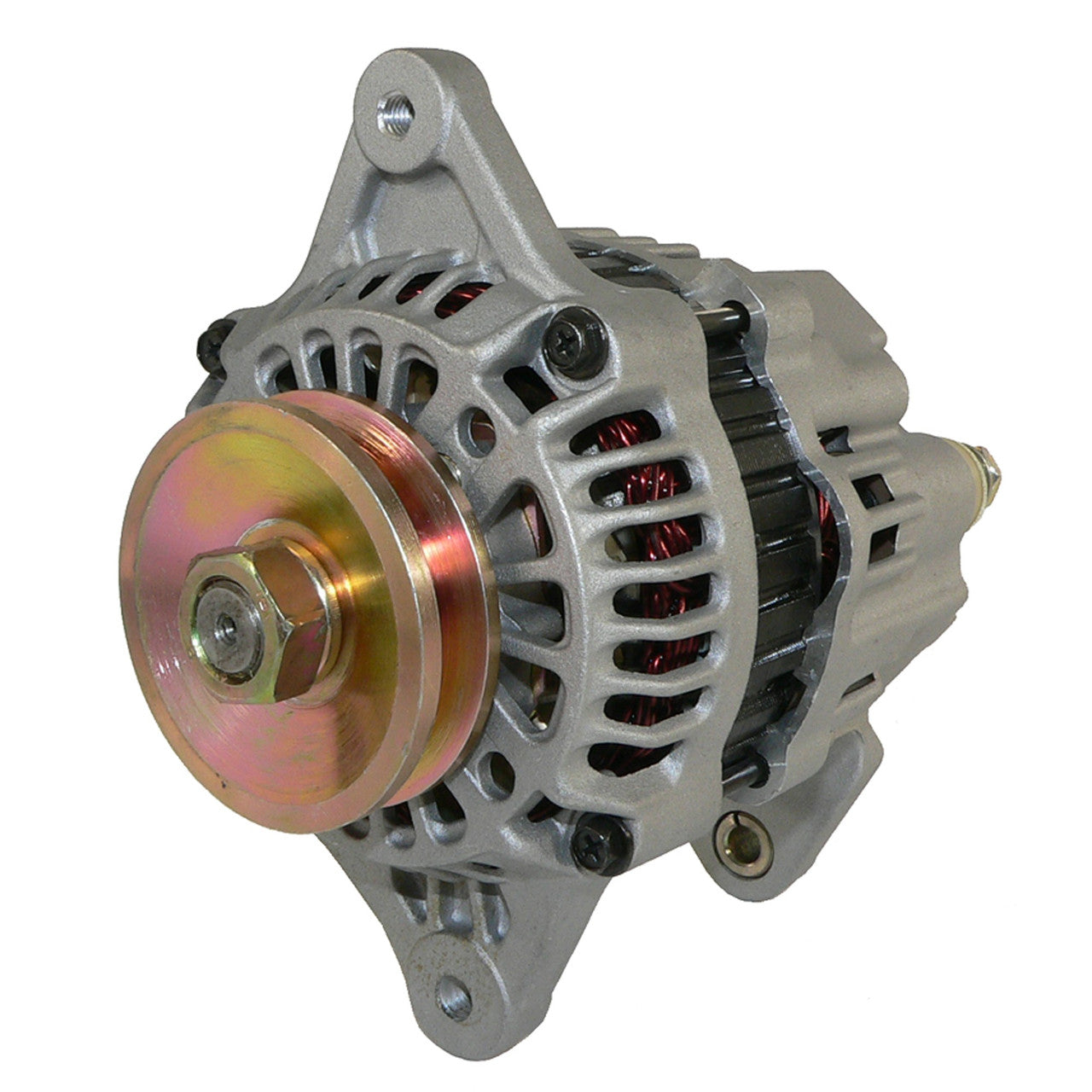

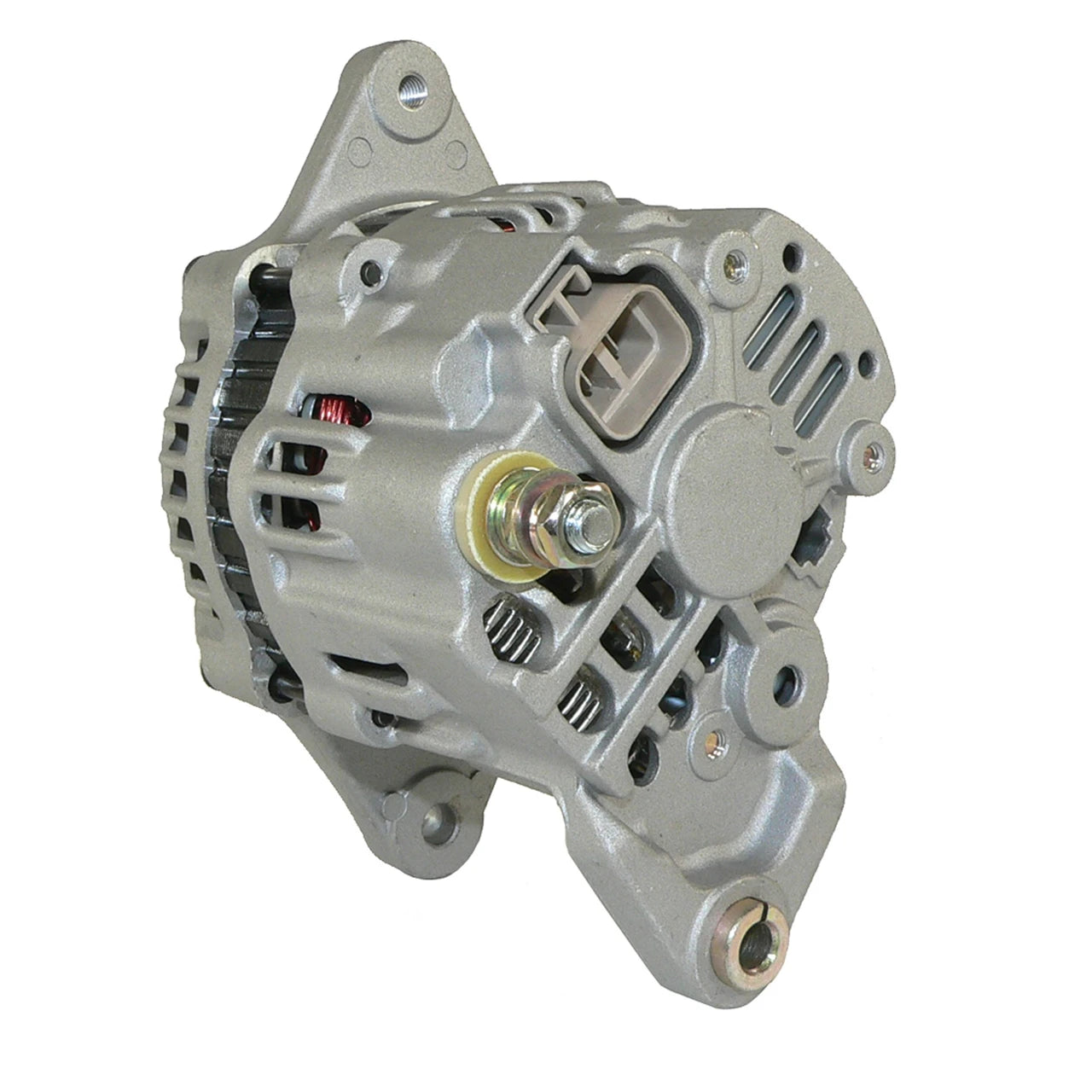

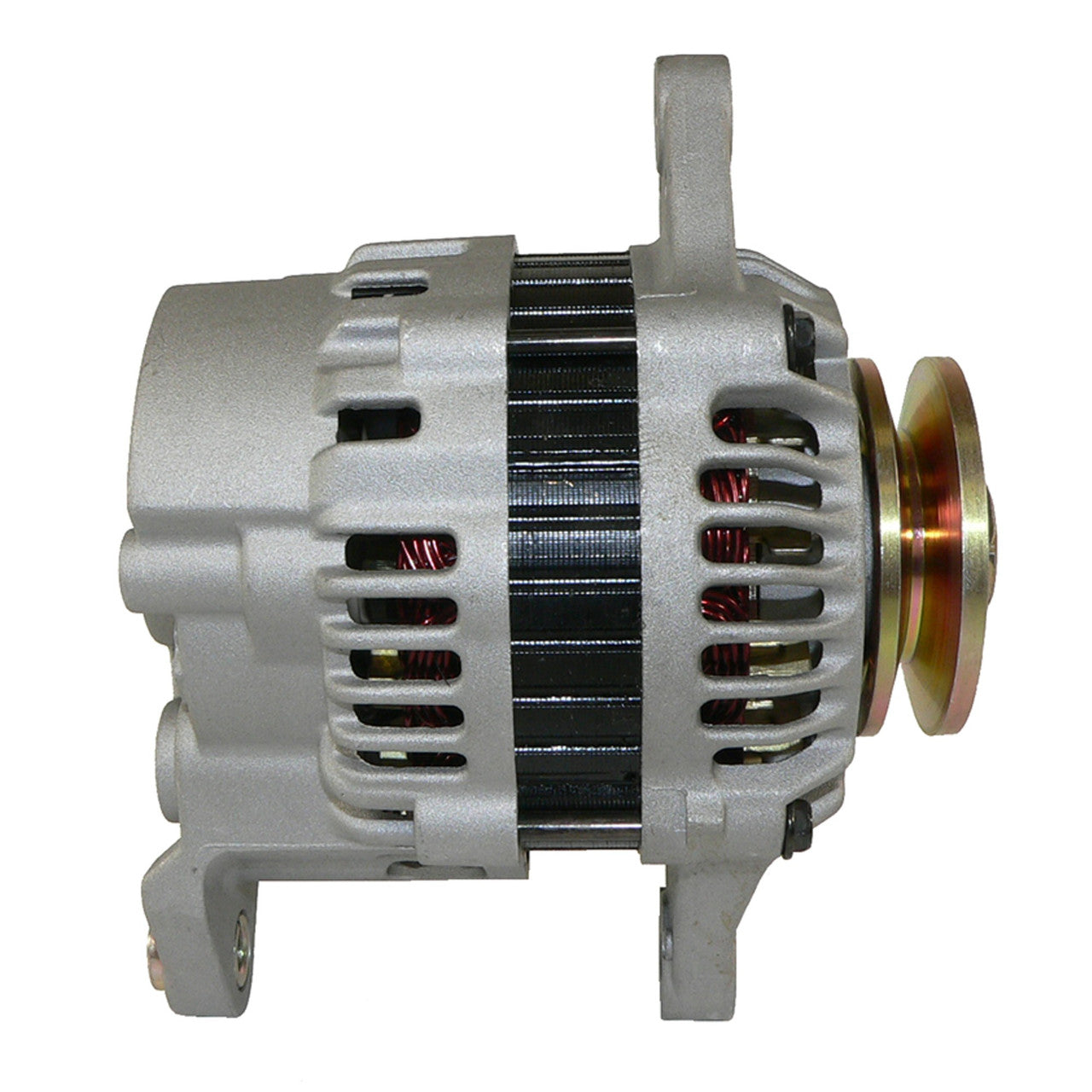

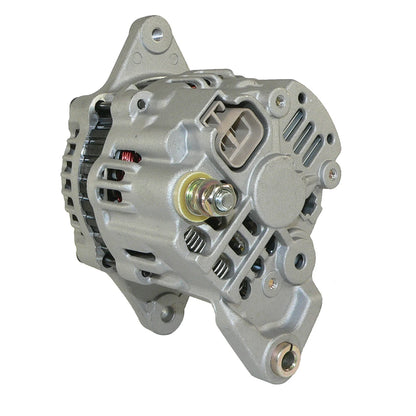

Alternator for Nissan, TCM & Yale Forklifts H25 Engine - 12V 35A
Mitsubishi-built unit · Replaces A7T03371A · Arrowhead AMT0061
This 12-volt, 35-amp alternator is a complete replacement unit built to the output and mounting specification of the original equipment fitted to Nissan, TCM and Yale forklift trucks, including H25-engined machines. It is manufactured by Mitsubishi, the original supplier for this application.
It is supplied complete with a single-groove V-belt pulley (69mm outside diameter) and an 8mm B+ terminal, matching the factory setup exactly. Each unit is tested for correct output and rotation before it is dispatched.
Key Features
- 12-volt, 35-amp output to factory specification
- Internal regulator, internal fan (IR/IF) configuration
- Single-groove (1-V) pulley, 69mm OD
- 8mm B+ terminal, matching the original unit
- Covers Nissan KAH, KAP, KCH02 and KH01 lift trucks
- Also fits TCM FG20N, FG23N, FHG20N and FHG25N
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 35A |
| Rotation | Clockwise (CW) |
| Regulator | Internal (IR) |
| Fan Type | Internal (IF) |
| Pulley Type | Single-groove V-belt (1-V), 69mm OD |
| B+ Terminal | 8mm |
| Manufacturer | Mitsubishi |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Nissan Forklift KAH, KAP | All years |
| Nissan Forklift KCH02 | 1994-onwards |
| Nissan Forklift KH01 | 1993-onwards |
| TCM FG20N, FG23N | 1992-onwards |
| TCM FHG20N, FHG25N | 1987-onwards |
| Yale Forklift | Not specified - confirm against OEM part number |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| A7T03371A, A7T03371AC | Mitsubishi |
| AMT0061 | Arrowhead |
Frequently Asked Questions
Will this alternator fit without modification?
Yes, it is a direct bolt-in replacement, matching the mounting, pulley and terminal configuration of the original unit.
How do I confirm this is the right unit for my truck?
Compare the number stamped on your existing alternator against the cross reference table above - Mitsubishi A7T03371A or Arrowhead AMT0061 both indicate this unit.
What's included?
You receive one complete alternator unit, ready to fit - no additional brackets or pulleys are required.
How do I know my old alternator has failed?
Common signs include a charge warning light staying on, a flat or slowly draining battery, or no output reading at the battery terminals with the engine running.
Does this alternator come with a warranty?
Yes, every unit is covered by our standard 12-month warranty.
