Alternator for Perkins, Caterpillar, Kioti & Land Rover 12V 85A Lucas A115
Alternator for Perkins, Caterpillar, Kioti & Land Rover 12V 85A Lucas A115
SKU:400-41006
Free shipping over £150. Terms apply
Couldn't load pickup availability

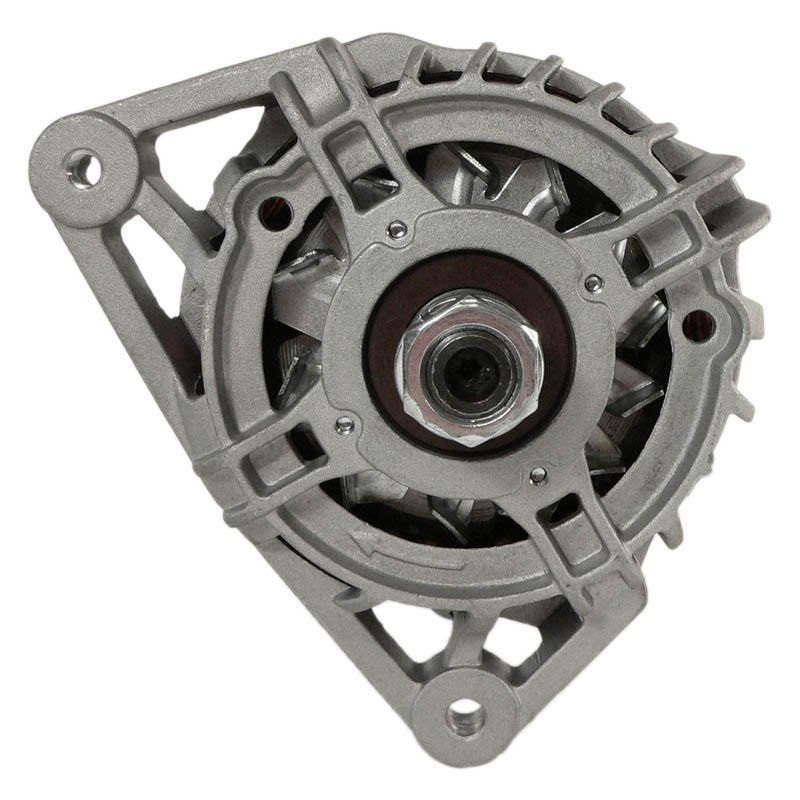

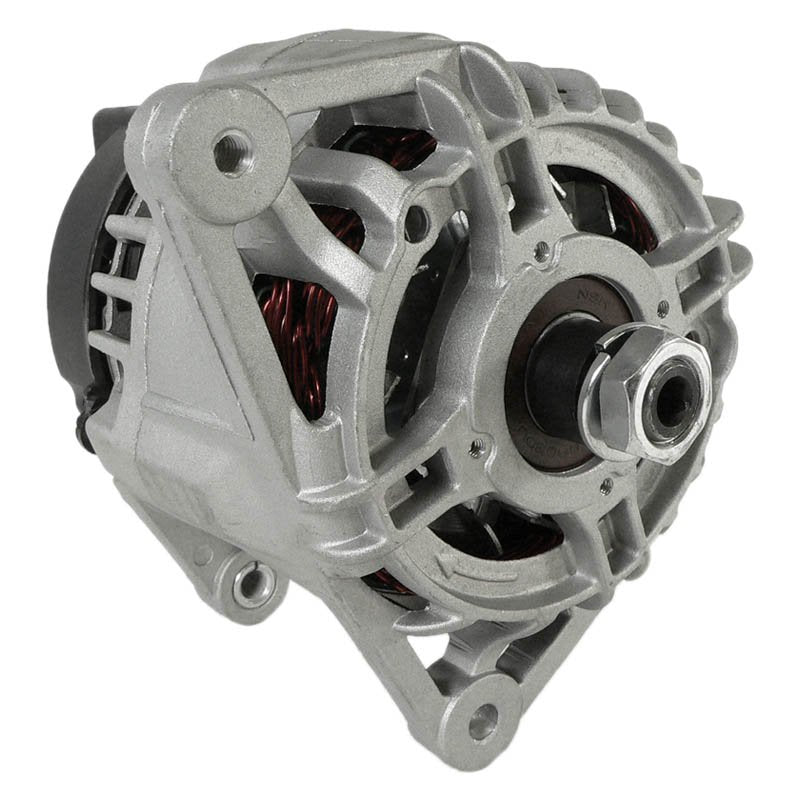

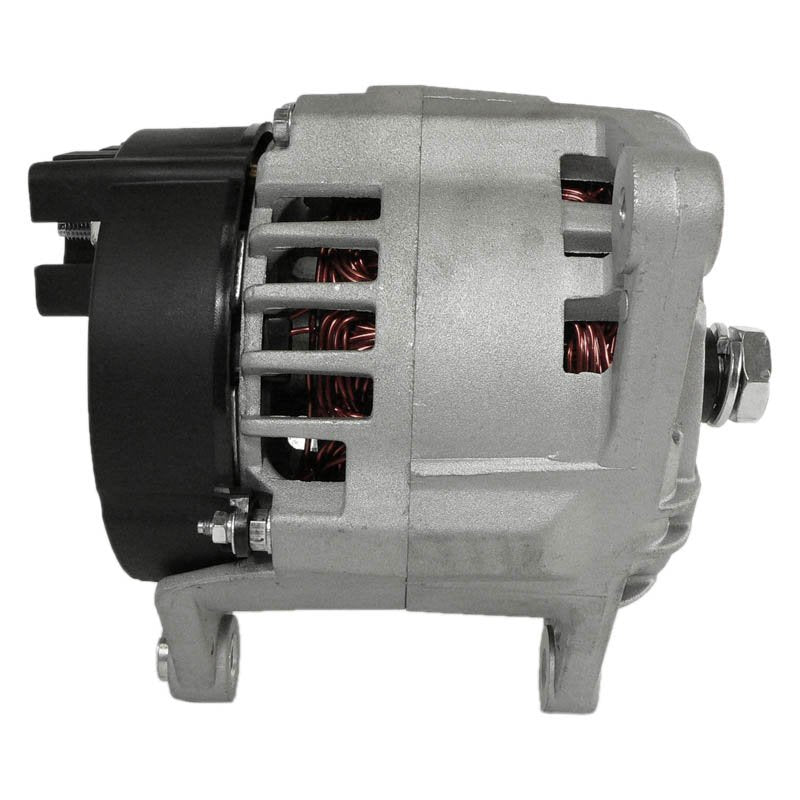

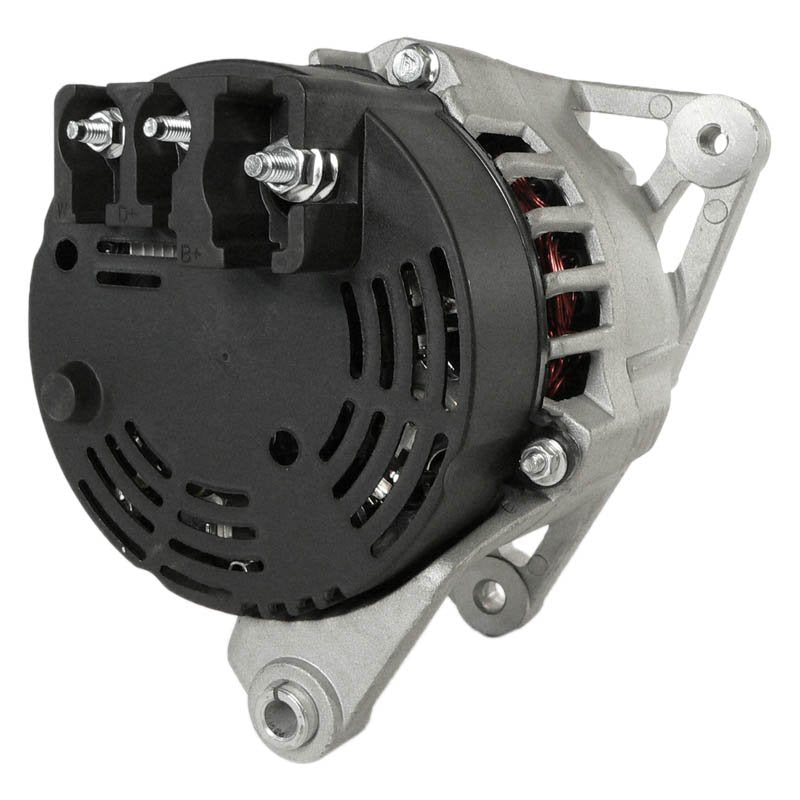

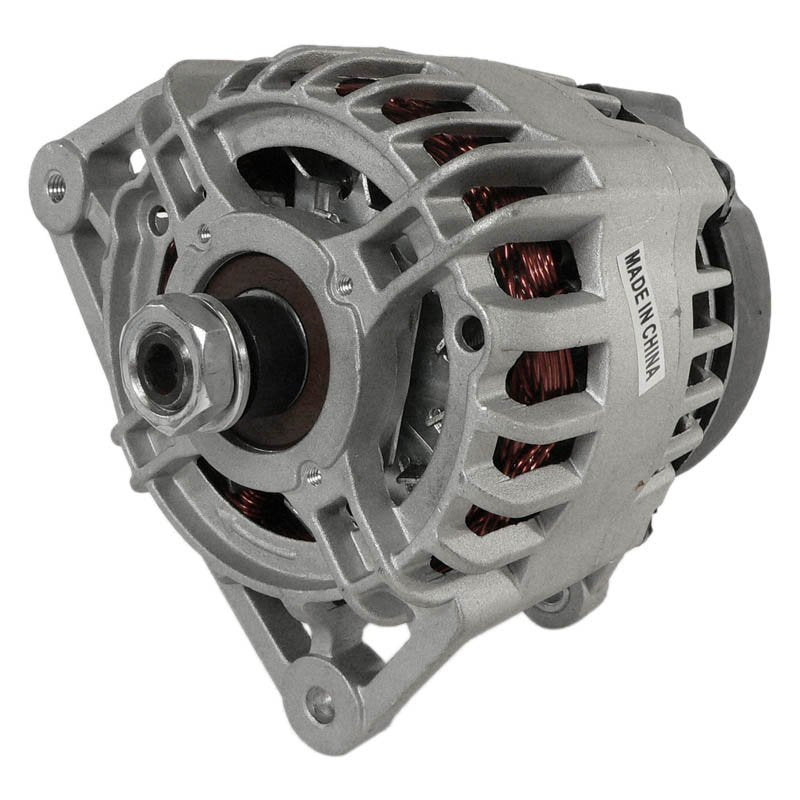

Alternator for Perkins, Caterpillar, Kioti & Land Rover
12-Volt 85 Amp IR/IF - Lucas A115 Family
This alternator is built to OEM specifications as a direct fit-and-function replacement for the Lucas A115 family unit fitted to Perkins diesel engines and the machines built around them - Caterpillar 216B to 242B skid steer loaders, Kioti DK and DX series tractors, JCB plant, and the 3.9 litre V8 Land Rover Defender and Range Rover. It bolts onto the original mounting points using the factory 2-groove pulley.
It is a 12-volt, 85-amp unit with an internal regulator (IR) and internal fan (IF), running on a 2-V pulley designed for a 13mm belt width. It is negative earth, with an M6 x 1.00 B+ output stud and M5 x 0.8 D+ and W terminals. Mounting is via one M8 x 1.25 threaded hole and two unthreaded holes, with a 14mm mounting ear thickness.
Key Features
- 12-volt, 85-amp output
- Lucas A115 family pattern alternator
- Internal regulator (IR), internal fan (IF)
- 2-V pulley, 13mm belt width
- B+ M6 x 1.00, D+ and W terminals M5 x 0.8
- Negative earth
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 85A |
| Rotation | Clockwise (CW) |
| Regulator | Internal (IR) |
| Fan Type | Internal (IF) |
| Pulley | 2-V, 13mm belt width |
| Terminals | B+ M6 x 1.00, D+ M5 x 0.8, W M5 x 0.8 |
| Mounting | M8 x 1.25 threaded hole plus two unthreaded holes, 14mm ear thickness |
| Polarity | Negative earth |
| Family | Lucas A115 |
| Manufacturer Reference | Lester 12550 / 12735 / 12736 / 12738 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Caterpillar 216B, 232B, 242B (3024 engine) and 226B (3024C engine) | Not specified - confirm against your OEM part number |
| Kioti DK65S, DK65SC (3-165 diesel) | Not specified - confirm against your OEM part number |
| Kioti DK75, DX7510, DX9010 (4-269 diesel) and DK90 | Not specified - confirm against your OEM part number |
| Land Rover Defender 110, 3.9L V8 | 1993 |
| Land Rover Defender 90, 3.9L V8 | 1994-1995 |
| Land Rover Range Rover, 3.9L V8 | 1993-1995 |
| JCB and JLG plant with Perkins engines | Not specified - confirm against your OEM part number |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 18504622, 185046500, 185046501, 185046522, 185046523, 2871A156, 2871A168, 2871A300, 2871A301, 2871A302, 2871A303, 2871A306, 2871A308, 3943494, 63377460, 63377462, A2871156, TPN758, TPN771 | Perkins |
| 225-3141, 225-3143, 247-9912, 298-5109, 301-5158, 305-3661, 339-7766, 349-1369, 569-3474 | Caterpillar |
| 333/G6477, 714/22500, 714/32200, 714/40152, 714/40153, 714/40154, 71440154 | JCB |
| 24344, 24479, 24480, 24481, 54022466, 54022468, 54022524, 54022606, LRA03282, LRA03302, LRB00291, LRB00435 | Lucas Electric |
| 63320319, 63321466, 63340009, 63377460, 63377461, 63377462, MAN7460, MAN7461, MAN7462 | Marelli |
| 102211-8160, 102211-8170, 102211-8180, 102211-8181 | Denso |
| 7029783 (JLG), 70001417 (JLG/Gradall) | JLG |
| DRA0028, DRA0029 | Delco |
| IA1204, MG560 | Mahle / Letrika (Iskra) / Arrowhead |
| 439955 | Valeo |
| 12550, 12735, 12736, 12738 | Lester |
Frequently Asked Questions
Will this alternator fit without modification?
Yes, it is a direct OEM-spec replacement matching the original mounting, pulley and output of the Lucas A115 unit it replaces.
What's included?
One new alternator unit, ready to fit.
How do I confirm this is the right unit for my machine?
Check the number stamped on your original alternator against the cross reference table above - common ones are Perkins 2871A300, TPN758, JCB 714/40152 and Lucas 24479 or 24481.
How do I know my old alternator has failed?
Signs include a battery that won't hold charge, a charge warning light, or dimming lights at idle.
What belt width does this unit take?
A 2-groove pulley designed for a 13mm belt width.
