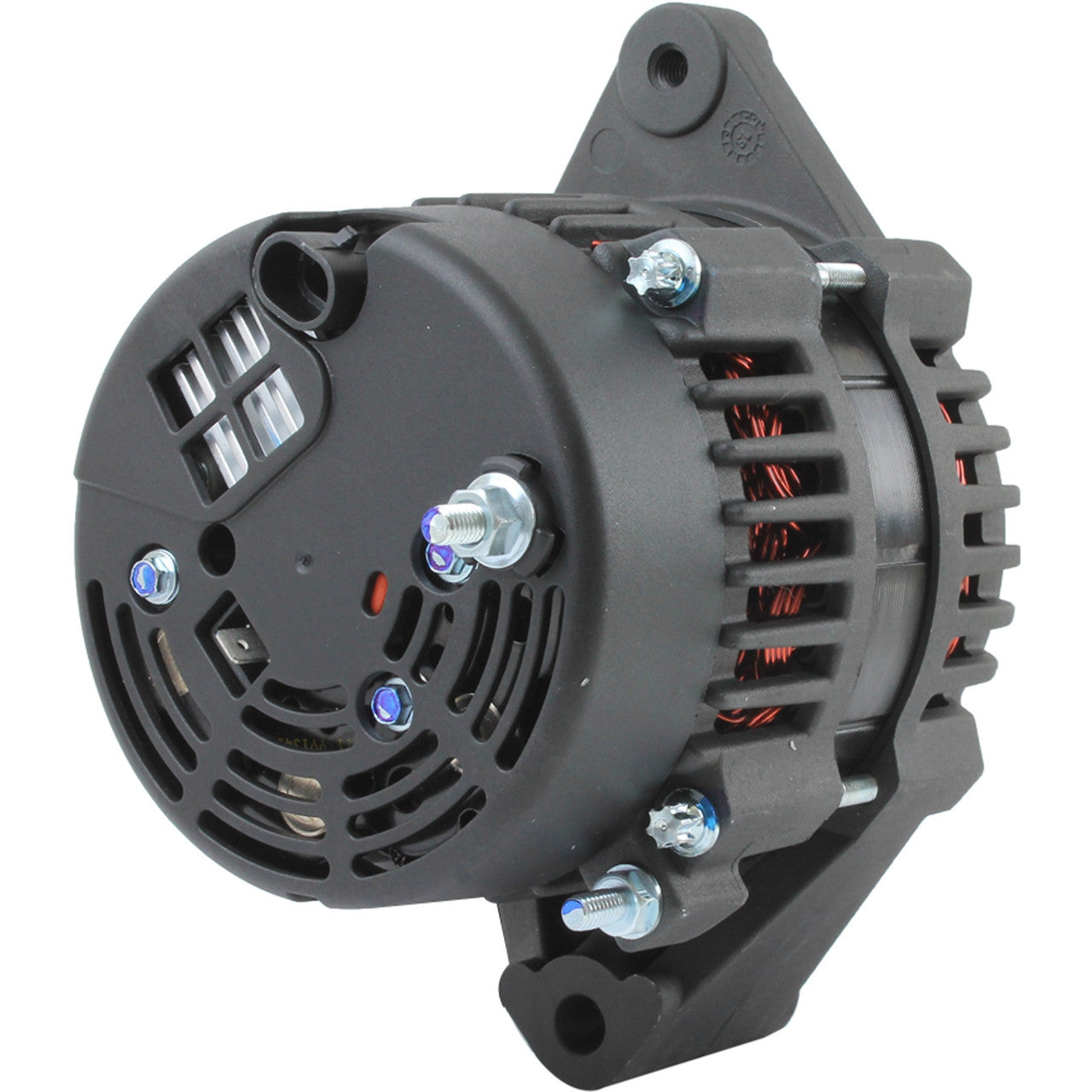

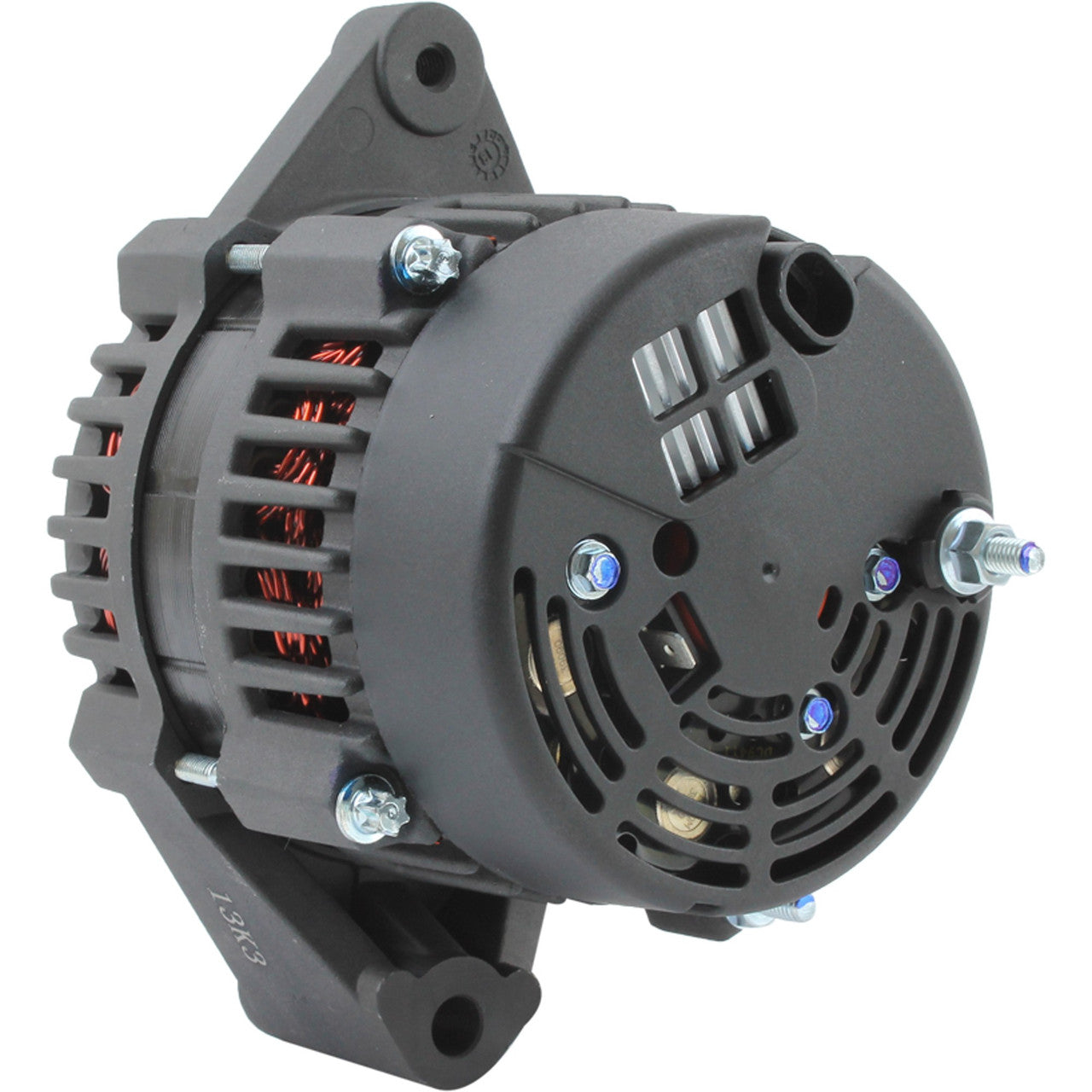

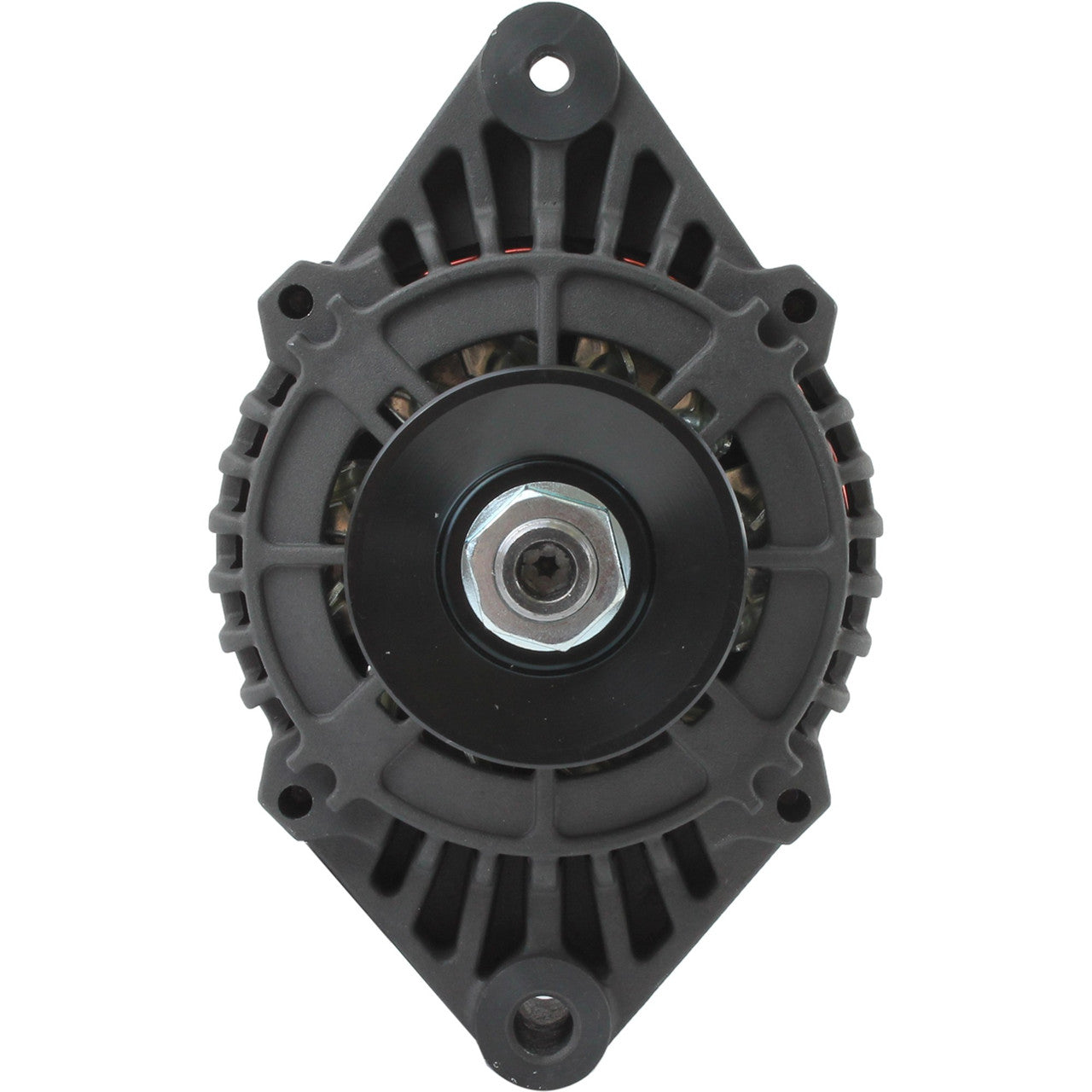

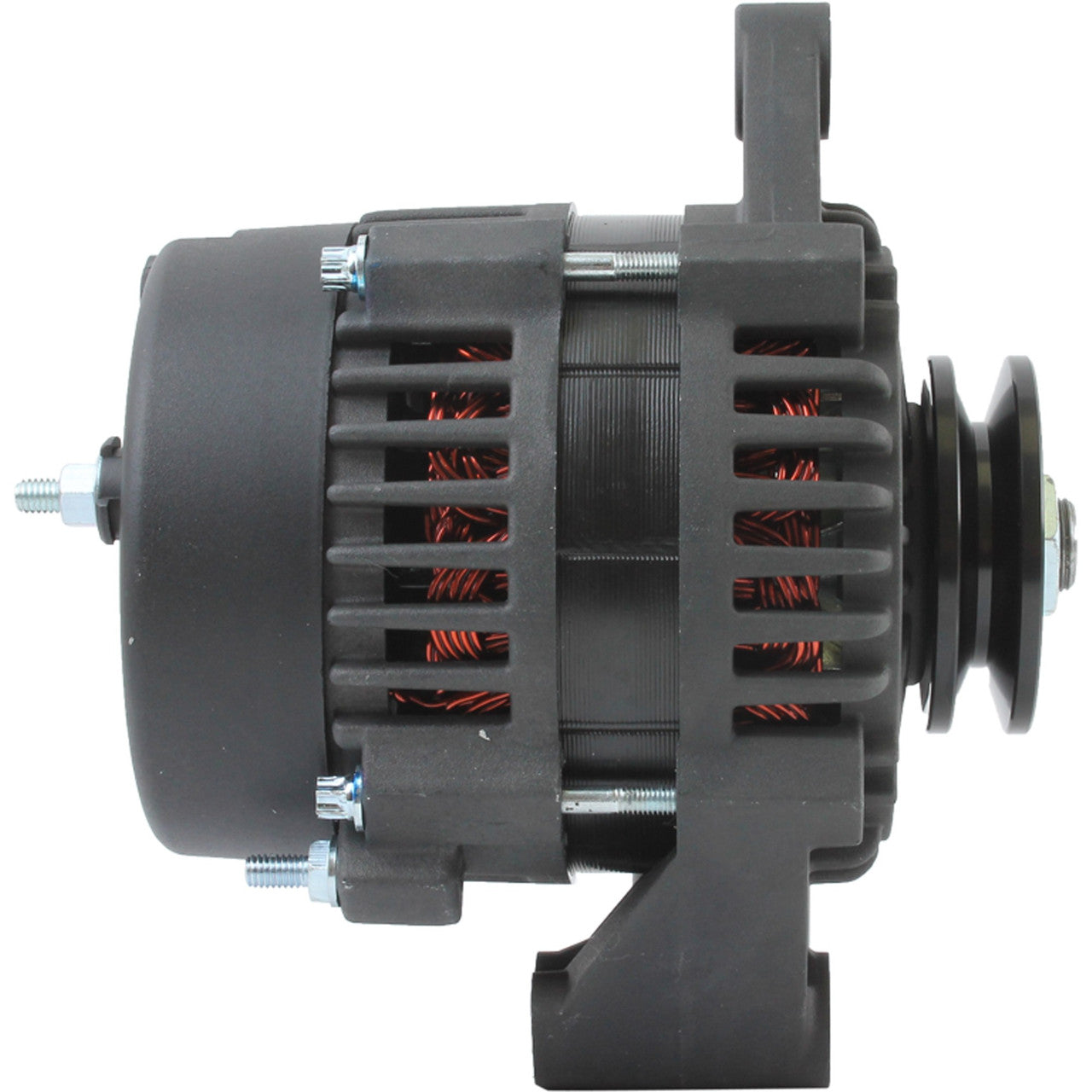

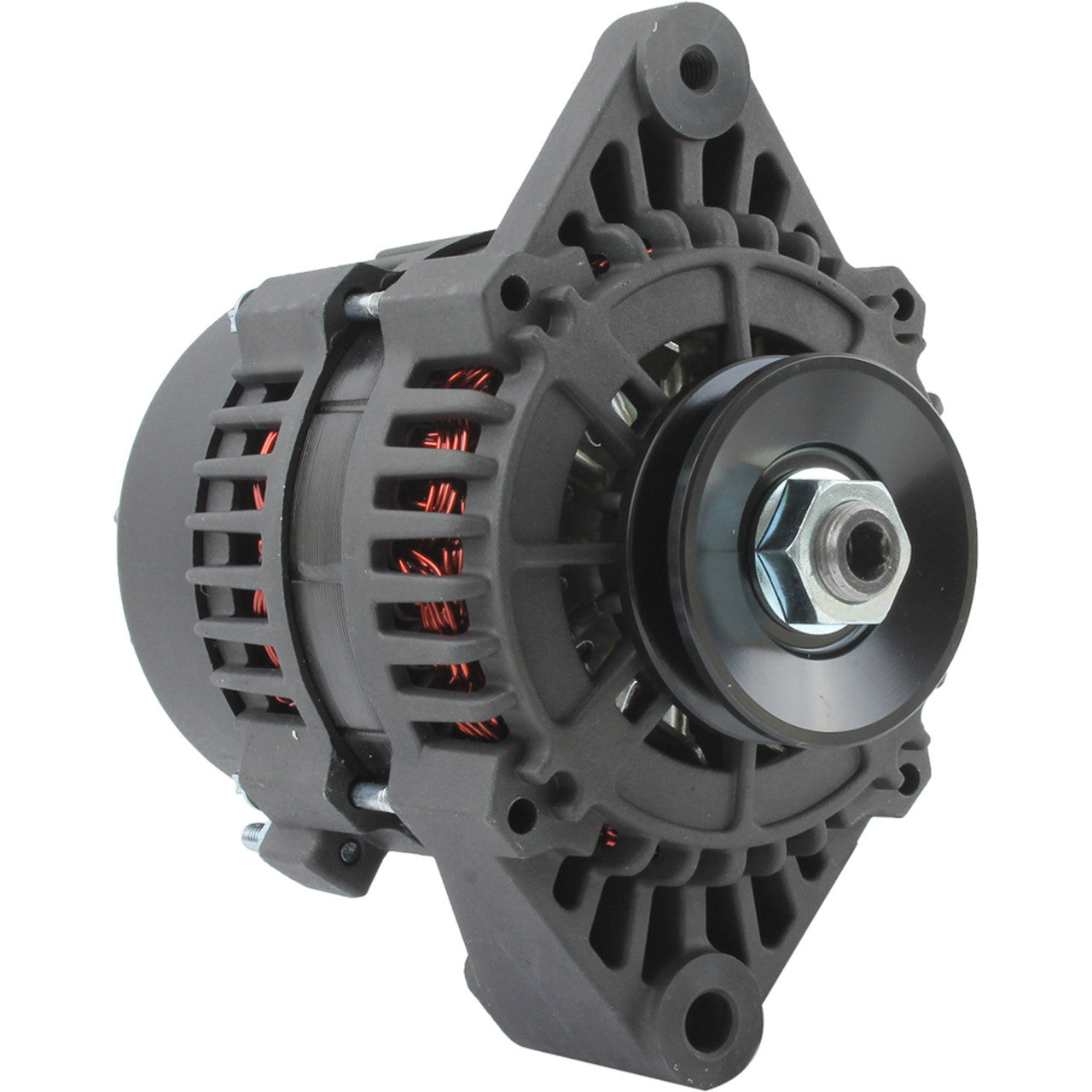

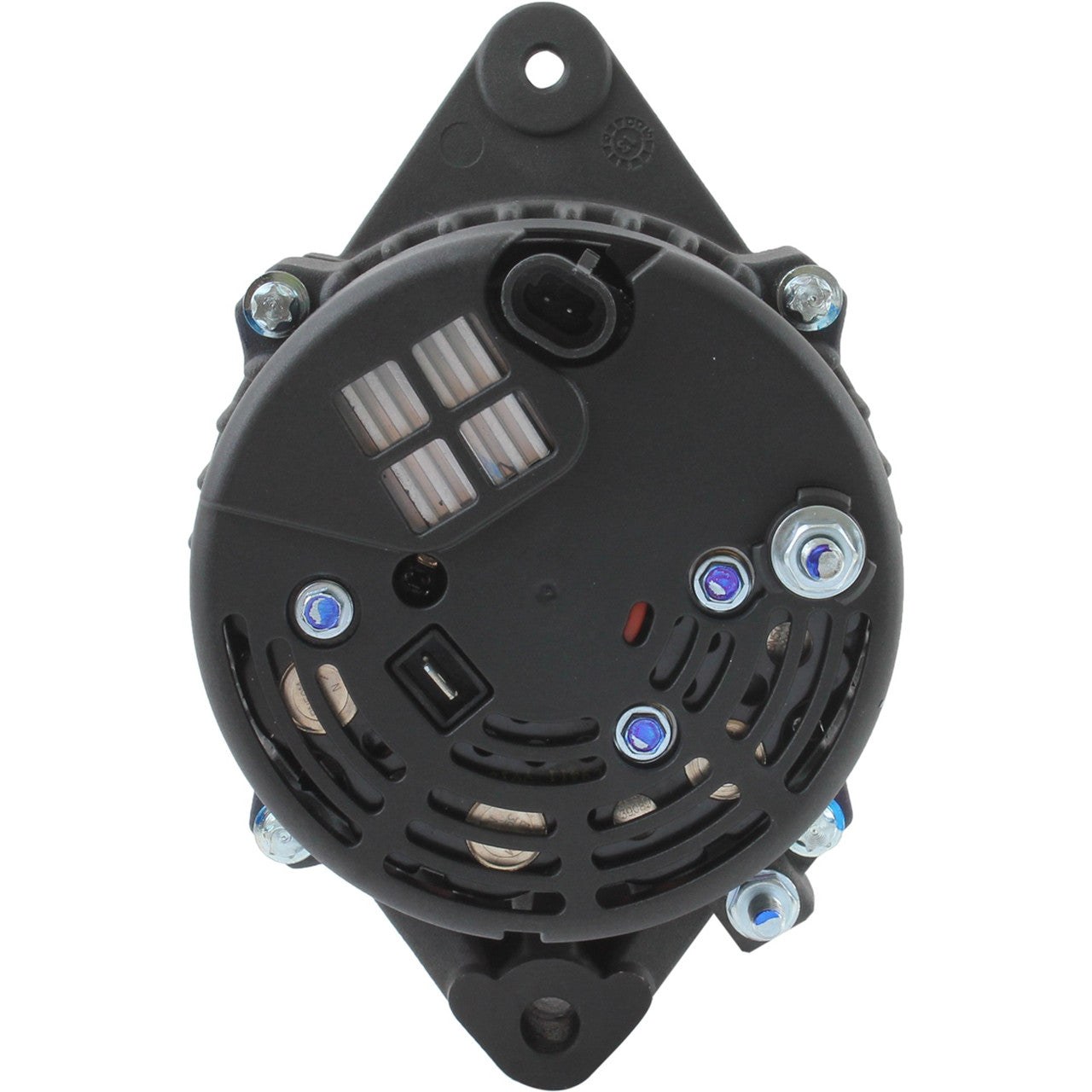

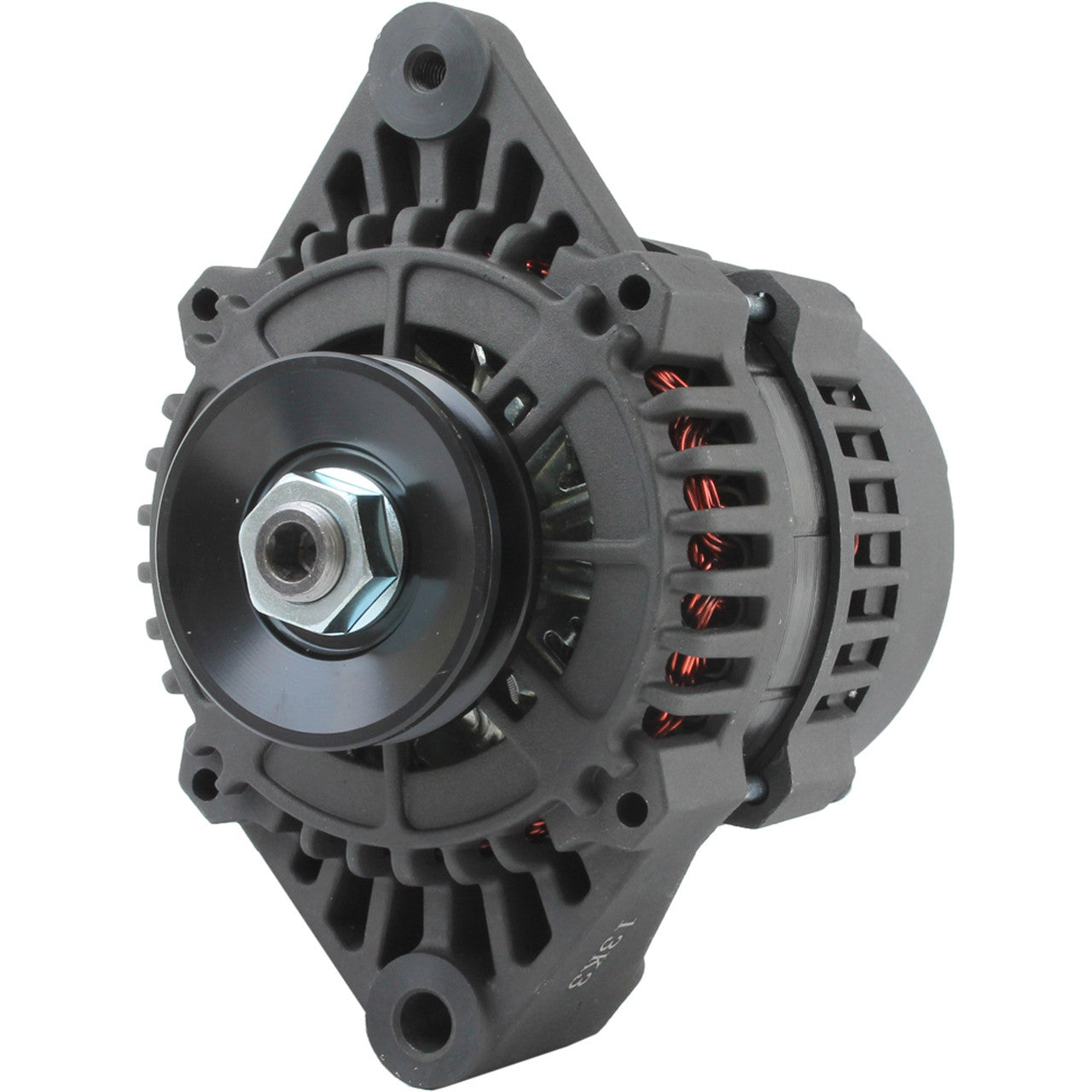

This aftermarket marine alternator is engineered for PleasureCraft, Crusader and Indmar sterndrive engines, with high-temperature epoxy and grease for engine bay heat, heavy-duty rectifiers and a quality internal regulator.
Fitted with a 1-groove pulley, it is a direct-fit OEM replacement for the PleasureCraft RA097007B and RA097007L alternators used on 5.0L and 5.7L V8 marine engines.
Key Features
- 70 Amp output, 12 Volt, clockwise rotation
- Internally regulated (IR), internal fan (IF)
- 1-groove pulley for PleasureCraft/Crusader/Indmar mounts
- High-temperature epoxy & grease for marine engine bays
- Heavy-duty rectifiers and OEM-equivalent output
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Amperage |
70A |
| Rotation |
Clockwise (CW) |
| Regulator |
Internal (IR) |
| Fan Type |
Internal (IF) |
| Pulley |
1-Groove (V-belt) |
| Weight |
11.00 lbs |
Vehicle Fitment Guide
| Make & Model |
Years |
| Crusader 305, 350, 496 (5.0L-8.1L V8) |
2001-2004 |
| Crusader Marine 5.0L / 5.7L (305/350 cu in) |
2002-2004 |
| PleasureCraft Stern Drive 305CI 5.0L / 350CI 5.7L |
2002-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| RA097007B, RA097007L |
PleasureCraft |
| 575010 |
Indmar |
| 19020608 |
Delco |
| ADR0298, D19020608 |
Arrowhead |
| 18-6288 |
Sierra Marine |
| 20113 |
API Marine |
| 20825 |
Arco Marine |
| 8466 |
Lester |
| 1-2484-01DR |
WAI |
Frequently Asked Questions
Will this alternator fit my Crusader or PleasureCraft engine without modification?
Yes, it is a direct, bolt-on replacement using the same pulley, mounting and terminal layout as the original PleasureCraft RA097007B/RA097007L alternator.
What is included?
One complete 70A, 12V marine alternator with 1-groove pulley, ready to fit.
How can I tell my existing alternator has failed?
Look out for a dashboard charge warning light, a battery that will not hold charge, or dimming/flickering electrical accessories while running.
Does this fit Indmar-powered boats too?
Yes, it cross-references directly to Indmar part number 575010 as fitted to Indmar-powered Crusader-based marine engines.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
