Alternator for Toyota 5FG & 5FGL Forklifts 1986-1988 - 12V 50A
Alternator for Toyota 5FG & 5FGL Forklifts 1986-1988 - 12V 50A
SKU:400-52245
Free shipping over £150. Terms apply
Couldn't load pickup availability

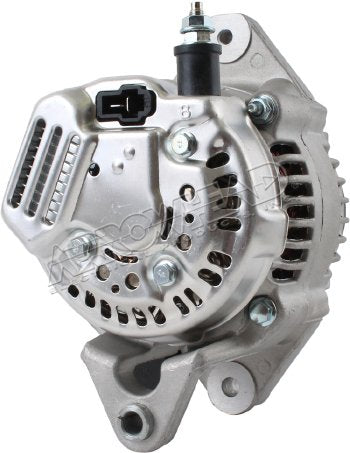

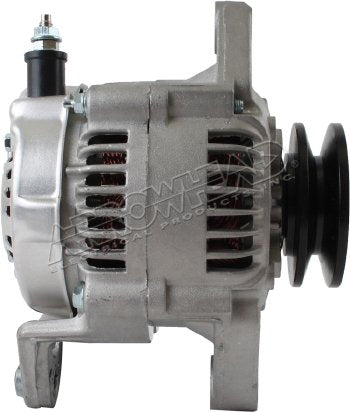

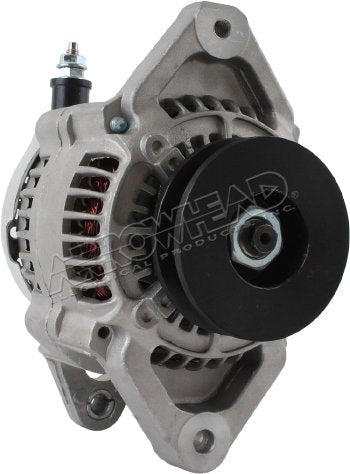

Alternator for Toyota 5FG & 5FGL Forklifts
Fits Toyota 5FG-20 to 5FG-28 and 5FGL-20 to 5FGL-25 Lift Trucks, 1986-1988
This alternator is a direct OEM-fit replacement for Toyota 5FG and 5FGL series forklift trucks built between 1986 and 1988, covering the 5FG-20, 5FG-23, 5FG-25 and 5FG-28 models along with the 5FGL-20, 5FGL-23 and 5FGL-25 variants. It is a 12 volt, 50 amp unit with clockwise rotation, built on a single V-belt pulley to match the original fitment.
The unit is internally regulated (IR) with an internal fan (IF), matching the original specification so it fits in place of the factory unit with no modification needed. Restoring reliable charging output on a working forklift is important for consistent starting and instrument operation across a shift, particularly on units that see frequent stop-start use.
Key Features
- 12V, 50 Amp output
- Clockwise rotation
- Single V-belt pulley
- Internally regulated with internal fan
- Direct OEM fit for Toyota 5FG/5FGL forklifts
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 50A |
| Rotation | Clockwise (CW) |
| Pulley | 1-groove V-belt |
| Regulator | Internally regulated (IR) |
| Fan Type | Internal (IF) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Toyota Lift Truck 5FG-20 | 1986-1988 |
| Toyota Lift Truck 5FG-23 | 1986-1988 |
| Toyota Lift Truck 5FG-25 | 1986-1988 |
| Toyota Lift Truck 5FG-28 | 1986-1988 |
| Toyota Lift Truck 5FGL-20 | 1986-1988 |
| Toyota Lift Truck 5FGL-23 | 1986-1988 |
| Toyota Lift Truck 5FGL-25 | 1986-1988 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 27070-23000 | Toyota |
| 27070-23000-71 | Toyota |
| 100211-4210 | Denso |
| 12186 | Lester |
| 111017 | Cross reference |
| 3049394 | Cross reference |
Frequently Asked Questions
Will this alternator fit my forklift without modification?
Yes, it is built to the original Toyota 5FG/5FGL specification and fits using the factory mounting points and pulley.
What is included?
One complete alternator unit, ready to fit.
How do I know my old alternator has failed?
Signs include a charging warning light, dimming lights, or the battery losing charge while the truck is running.
Does this fit other Toyota forklift series?
It is built specifically for the 5FG and 5FGL models listed above; if your model is not listed, please check the OEM cross reference numbers against your original unit before ordering.
