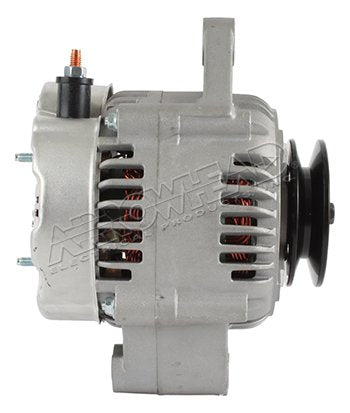

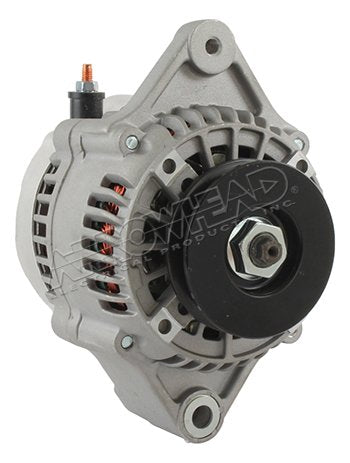

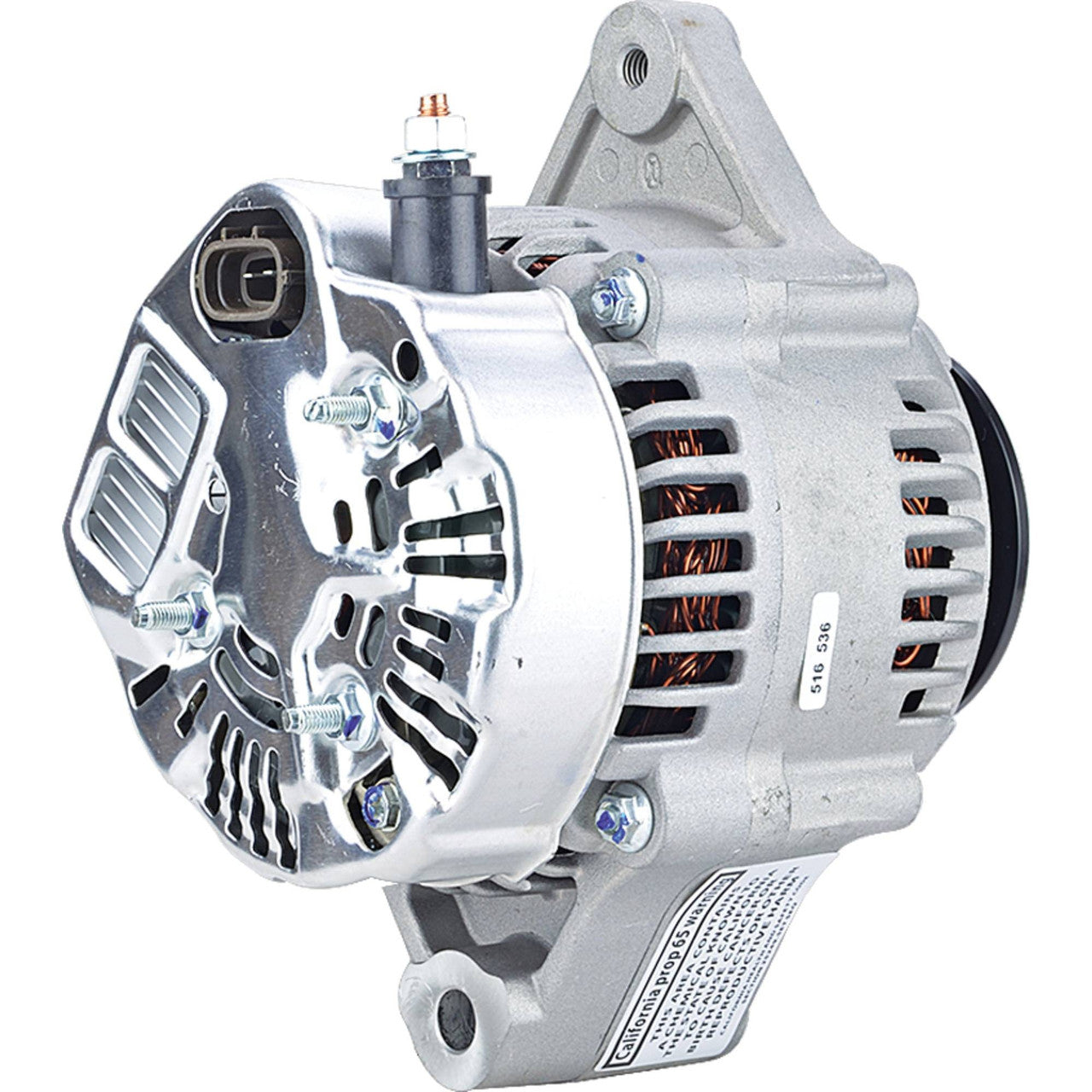

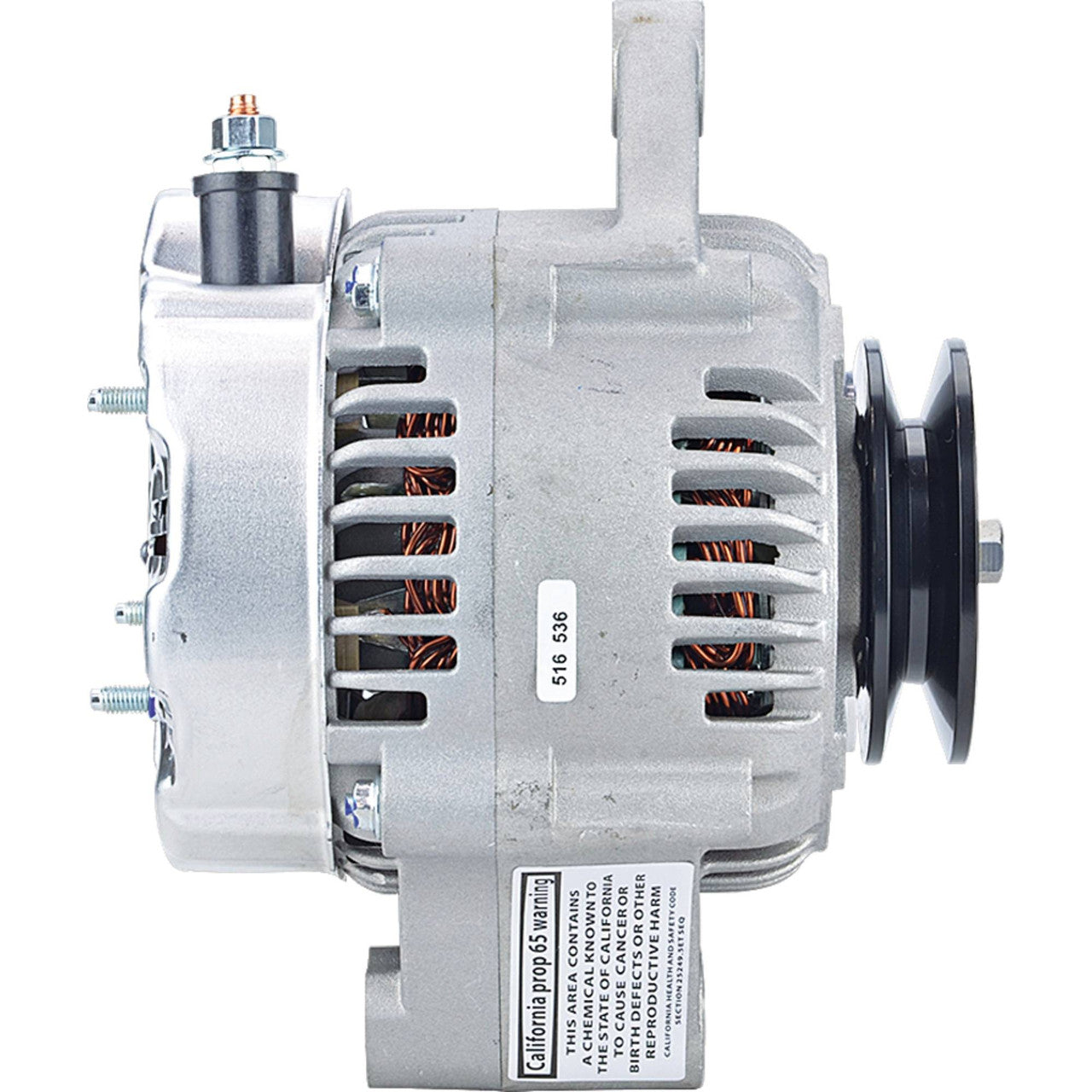

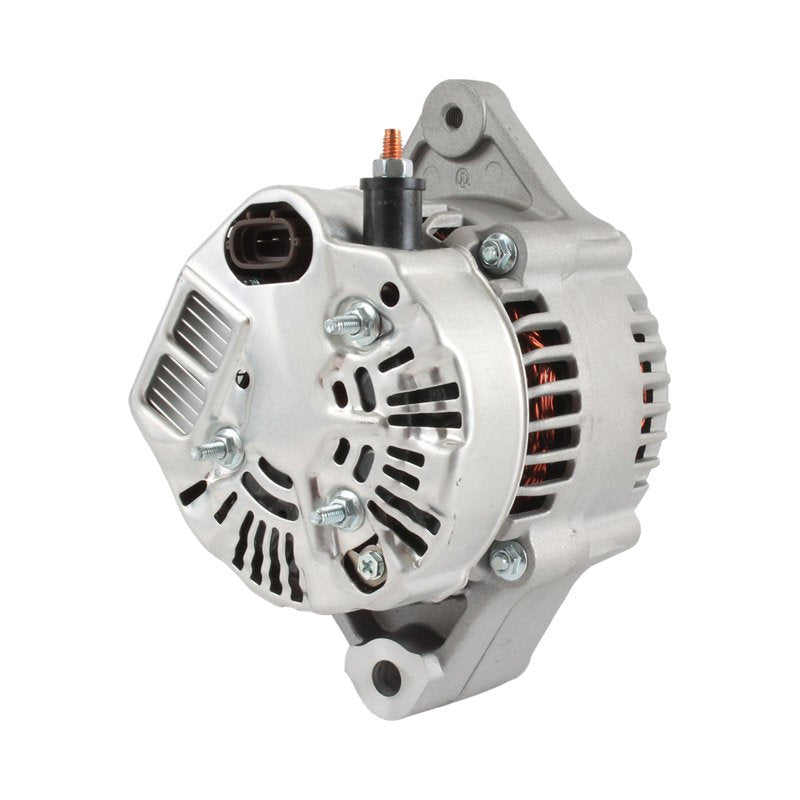

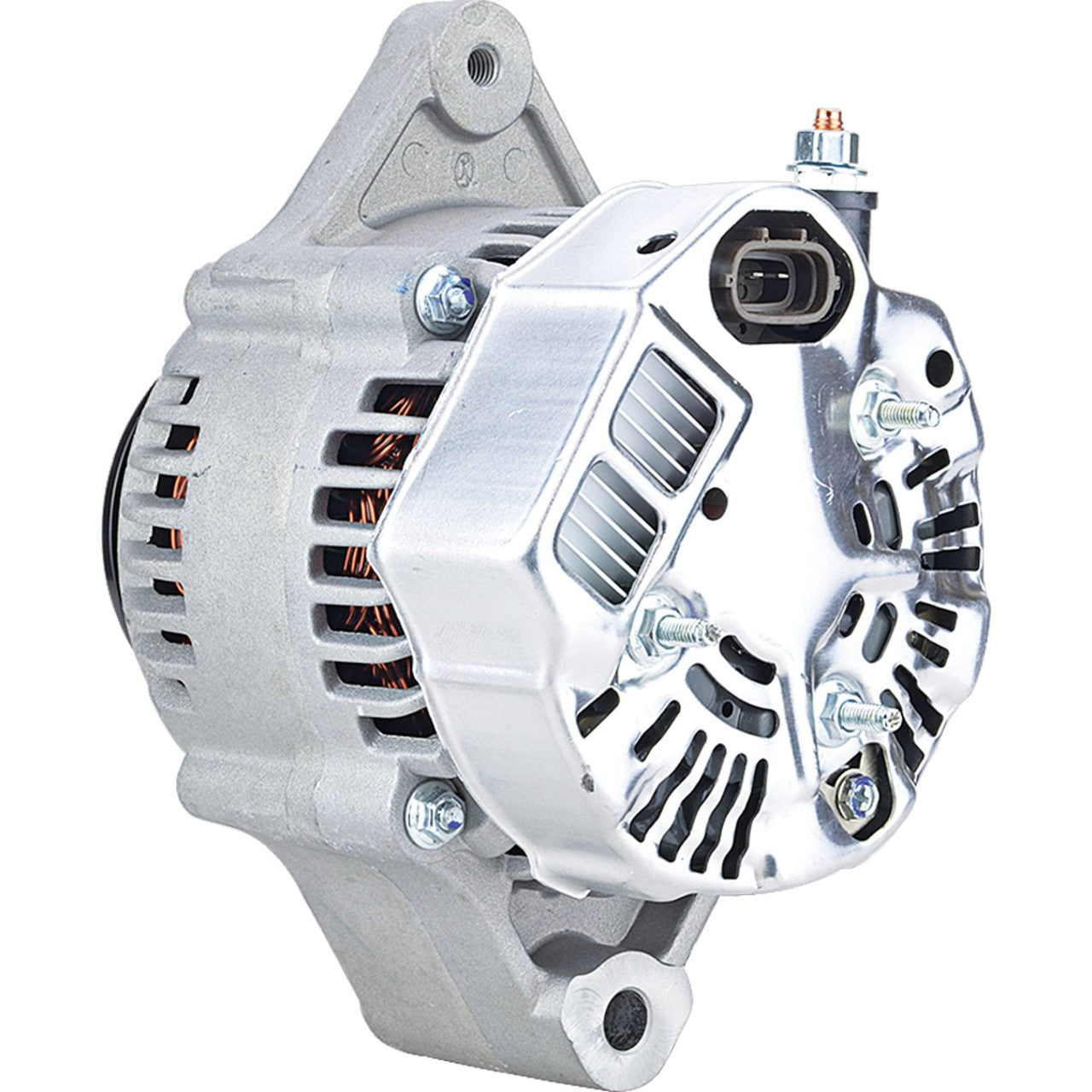

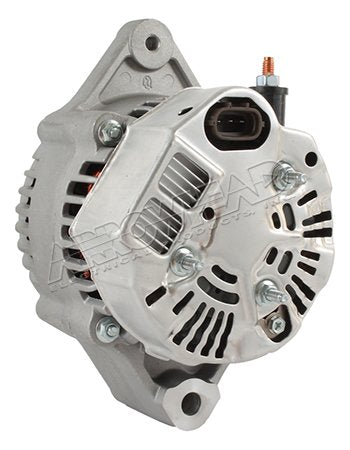

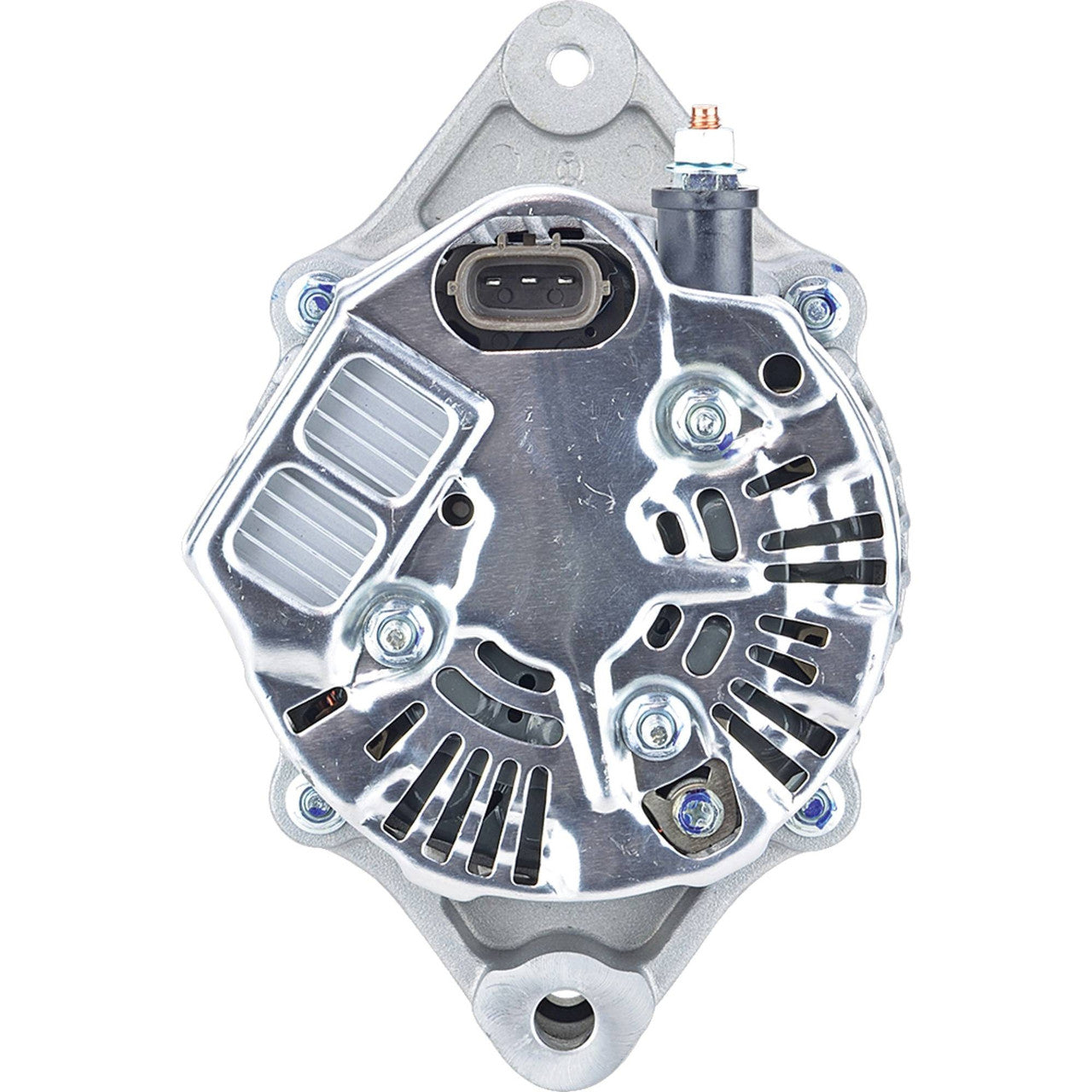

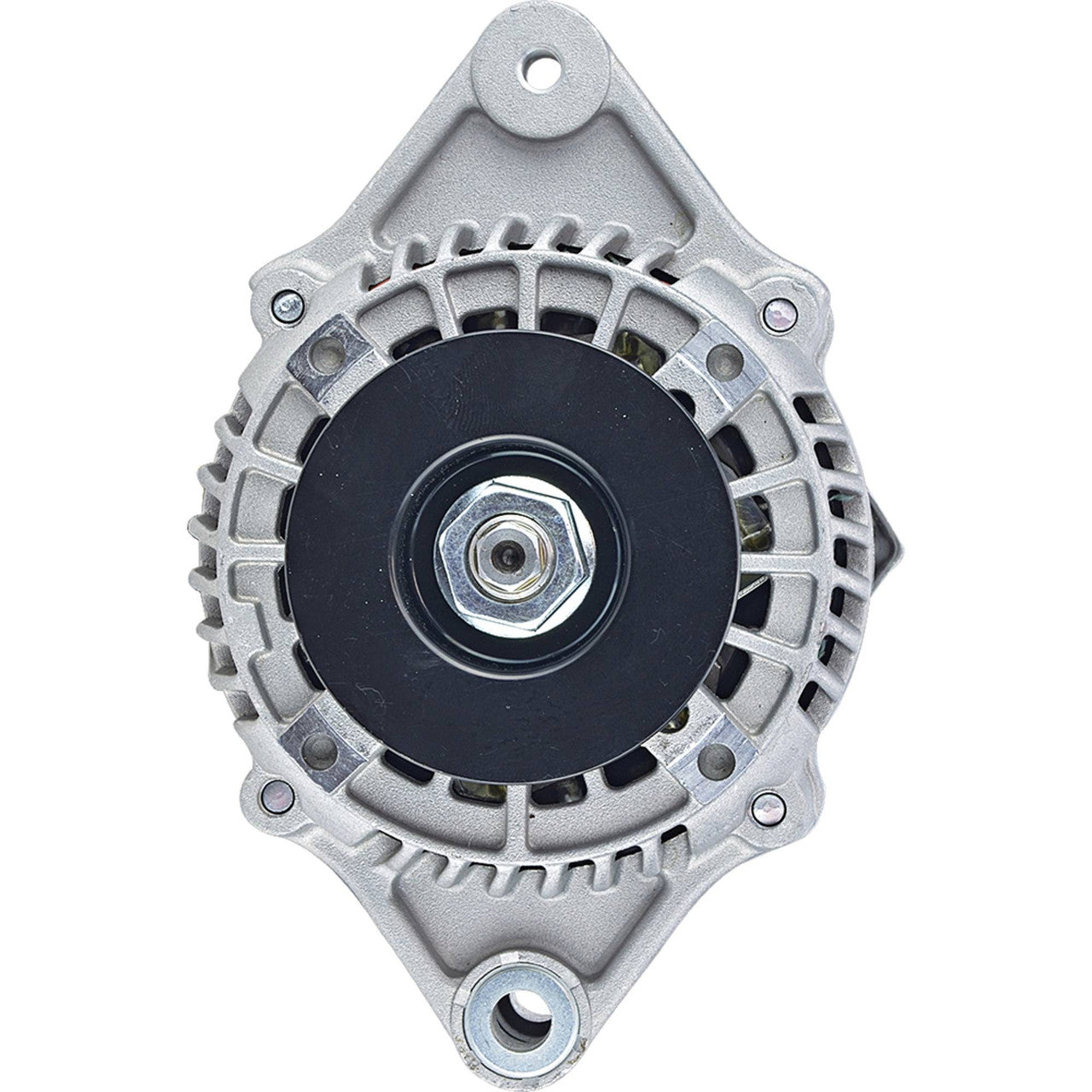

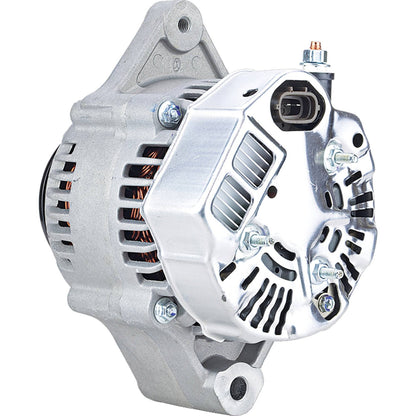

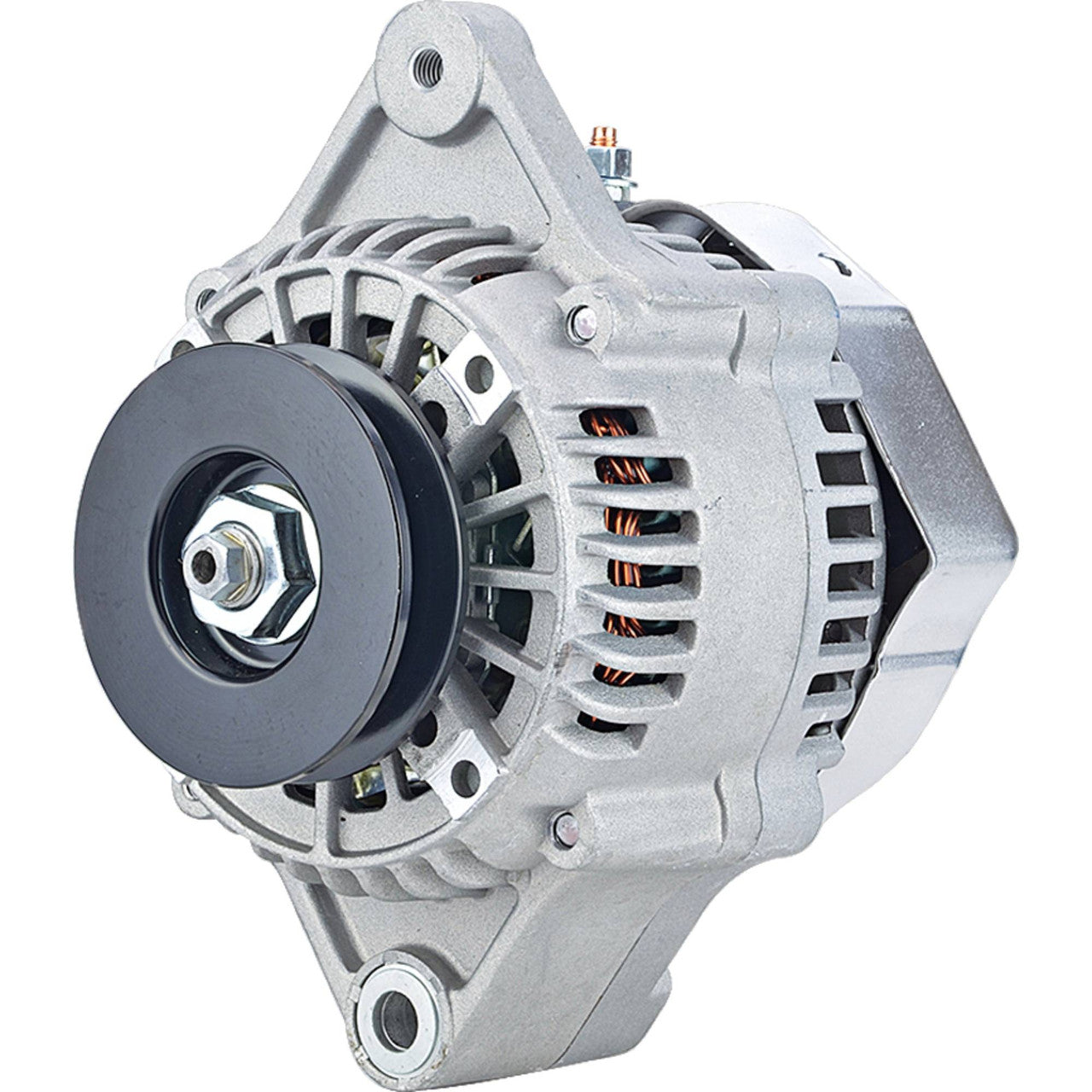

Alternator for Toyota 7FD Series Lift Trucks
Toyota 7FD10, 7FD14, 7FD15, 7FD18, 7FD20 & 7FD23 Lift Trucks - 1998 Onwards
This alternator is a direct replacement for Toyota 7FD-series lift trucks fitted with the 1DZ or 2Z engine, covering 7FD10, 7FD14, 7FD15, 7FD18, 7FD20 and 7FD23 models from 1998 onwards. It is built to OEM specifications for fit and function, so it installs as a like-for-like swap for the original unit.
Rated at 12 volts with a 60 amp output on a negative earth system, the unit uses the IR/IF (internal regulator, internal fan) configuration and a single-groove V pulley, matching the original fitment so no modification is required. It replaces Toyota 27060-74221, 27060-78700 and 27060-78700-71 and the Denso 102211-5190 and 102211-5850 units, and the 12 o'clock terminal clock position also matches the factory wiring layout.
Key Features
- 12-Volt, 60 Amp output
- IR/IF configuration (Internal Regulator / Internal Fan)
- Clockwise (CW) rotation, 12 o'clock terminal position
- Single-groove V pulley, 82mm OD
- Negative earth
- Direct fit for Toyota 7FD-series 1DZ & 2Z engines
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Rotation |
CW |
| Amperage |
60A |
| Terminal Clock Position |
12 |
| Pulley Class |
V, Single Groove, 82mm OD |
| Regulator Type |
IR |
| Fan Type |
IF |
| Polarity |
Negative earth |
| Weight |
4.55 kg |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Toyota 7FD10 (1DZ / 2Z engine) |
1998-on |
| Toyota 7FD14 (1DZ / 2Z engine) |
1998-on |
| Toyota 7FD15 (1DZ / 2Z engine) |
1998-on |
| Toyota 7FD18 (1DZ / 2Z engine) |
1998-on |
| Toyota 7FD20 (1DZ / 2Z engine) |
1998-on |
| Toyota 7FD23 (2Z engine) |
1998-on |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 27060-74221 |
Toyota |
| 27060-78700 |
Toyota |
| 27060-78700-71 |
Toyota |
| 102211-5190 |
Denso |
| 102211-5850 |
Denso |
| 210-7024 |
Cross reference |
Frequently Asked Questions
Will this alternator fit my Toyota forklift without modification?
Yes, this is a direct OEM-fit replacement built to the original specification, including mounting points, terminal position and pulley size, so no modification is required for installation.
What's included?
You will receive one complete alternator unit, ready to fit. Your existing pulley, belt and wiring connector are reused as normal.
How can I tell my old alternator has failed?
Common signs include a battery warning light on the dash, dimming or flickering lights, a battery that will not hold charge, or an unusual noise from the alternator pulley or bearing while the engine is running.
Which Toyota forklift engines does this fit?
This alternator fits Toyota 7FD-series lift trucks equipped with either the 1DZ or 2Z diesel engine, as listed model-by-model in the fitment table above. If in doubt, check your original unit against Toyota 27060-74221 or 27060-78700.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
