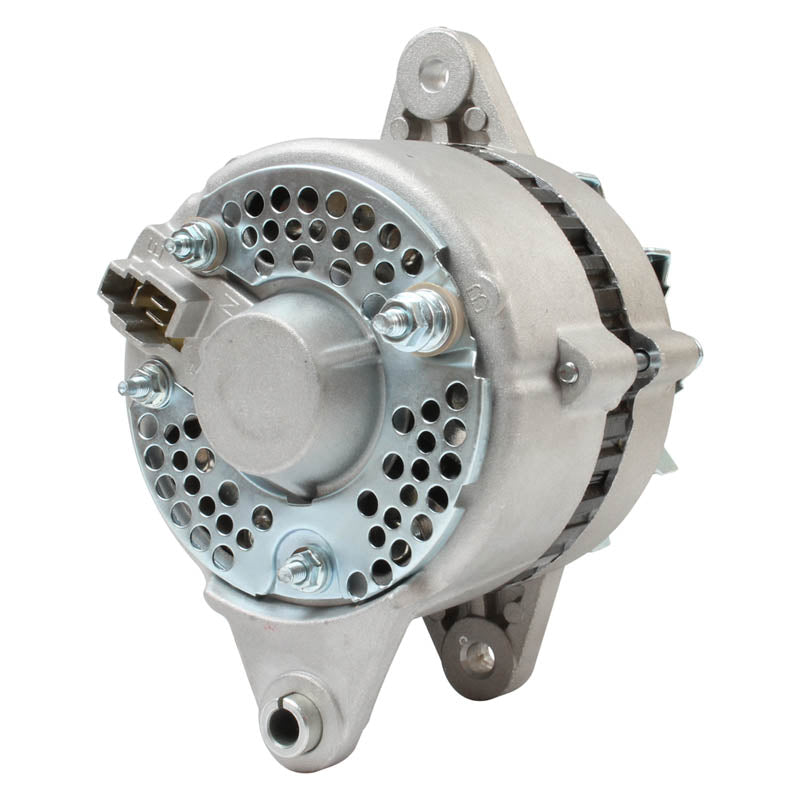

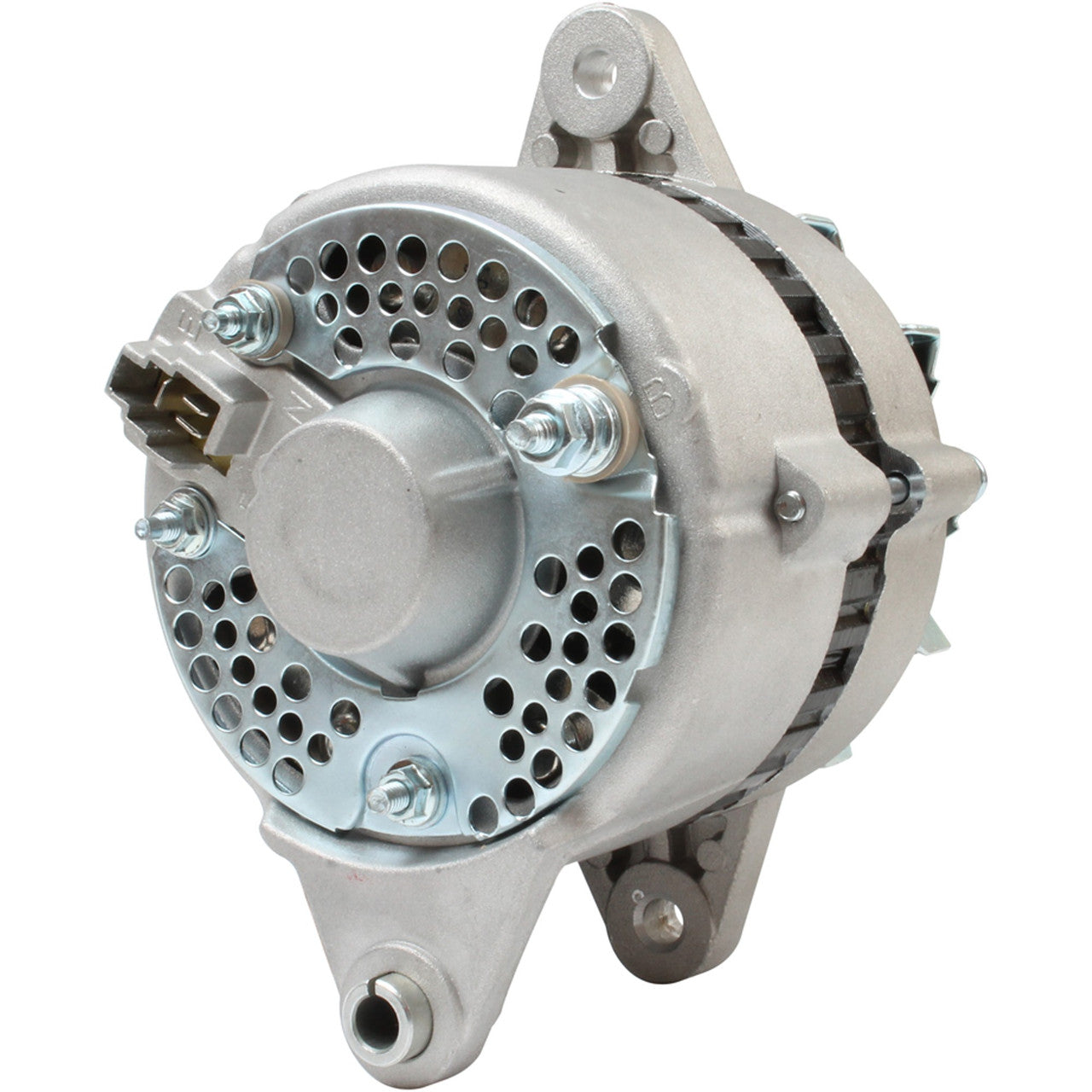

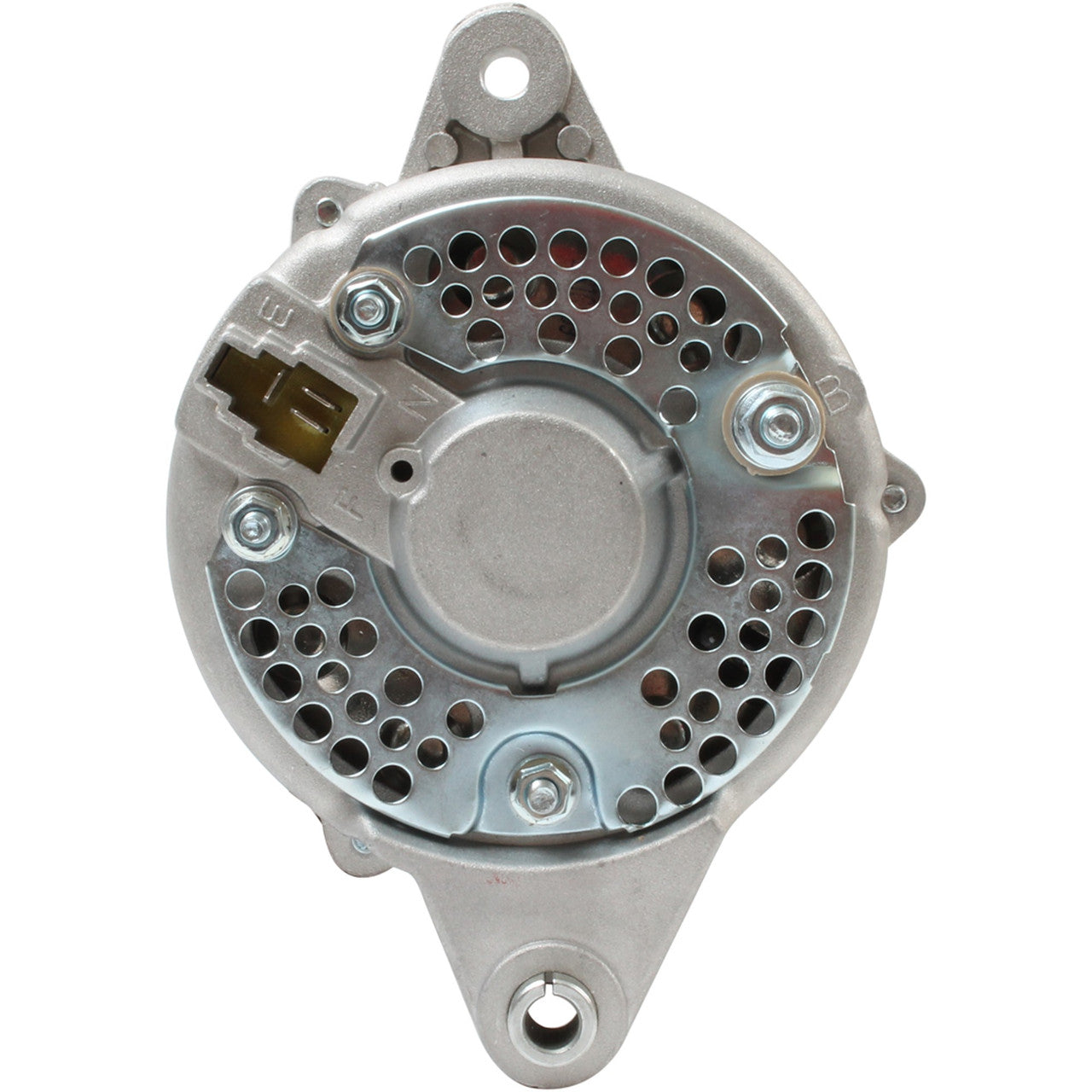

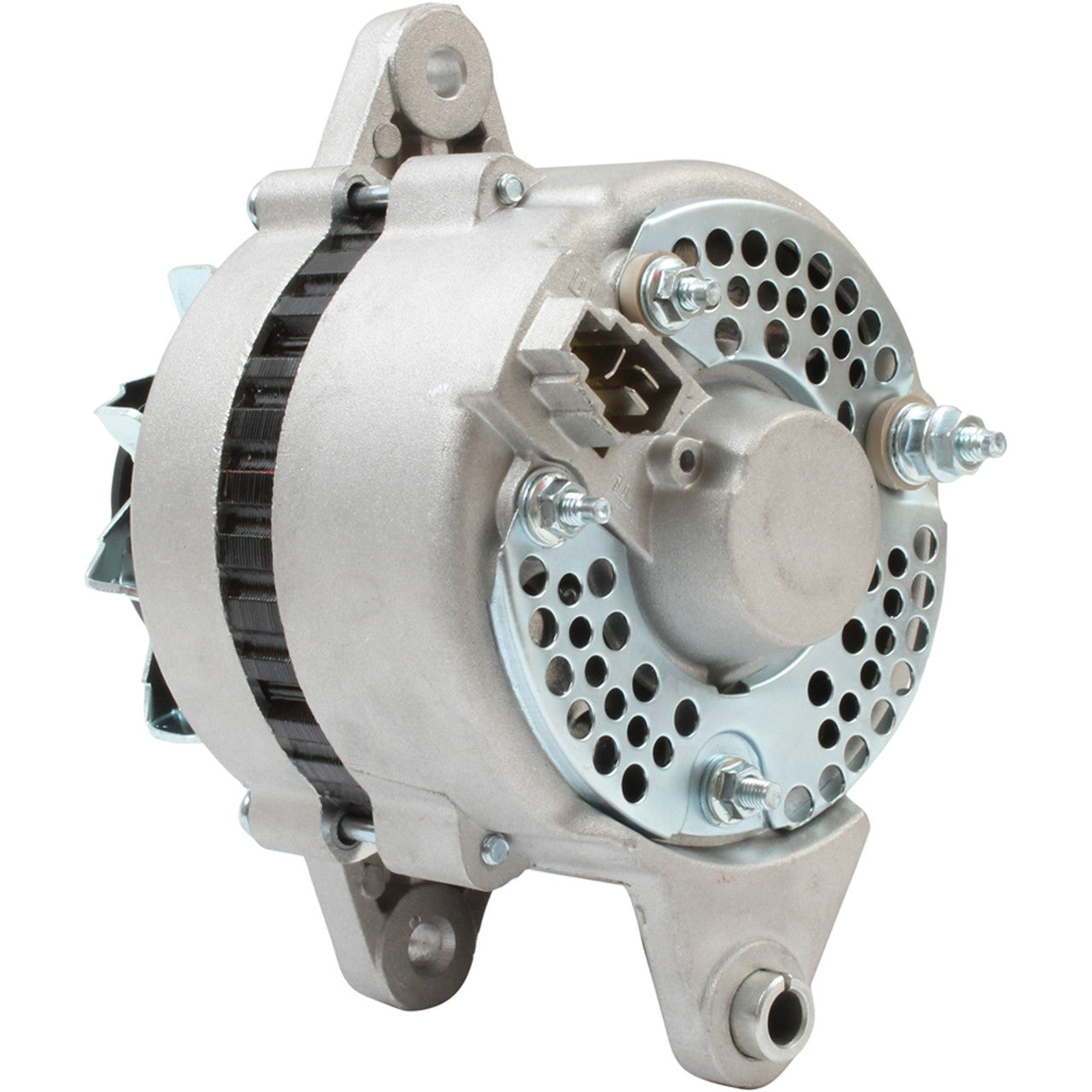

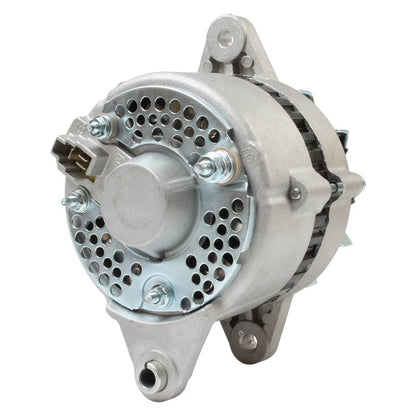

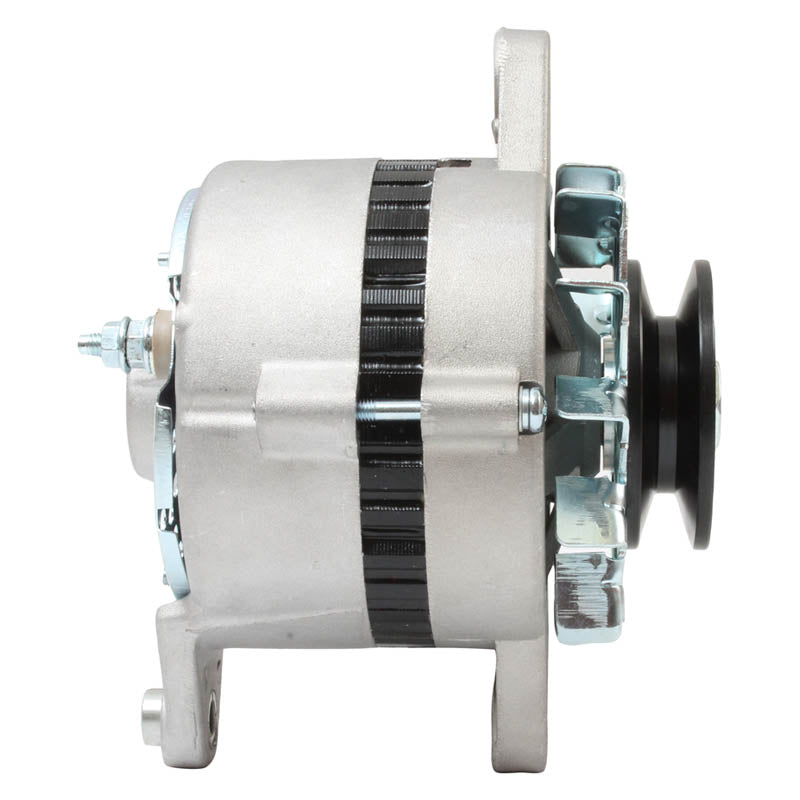

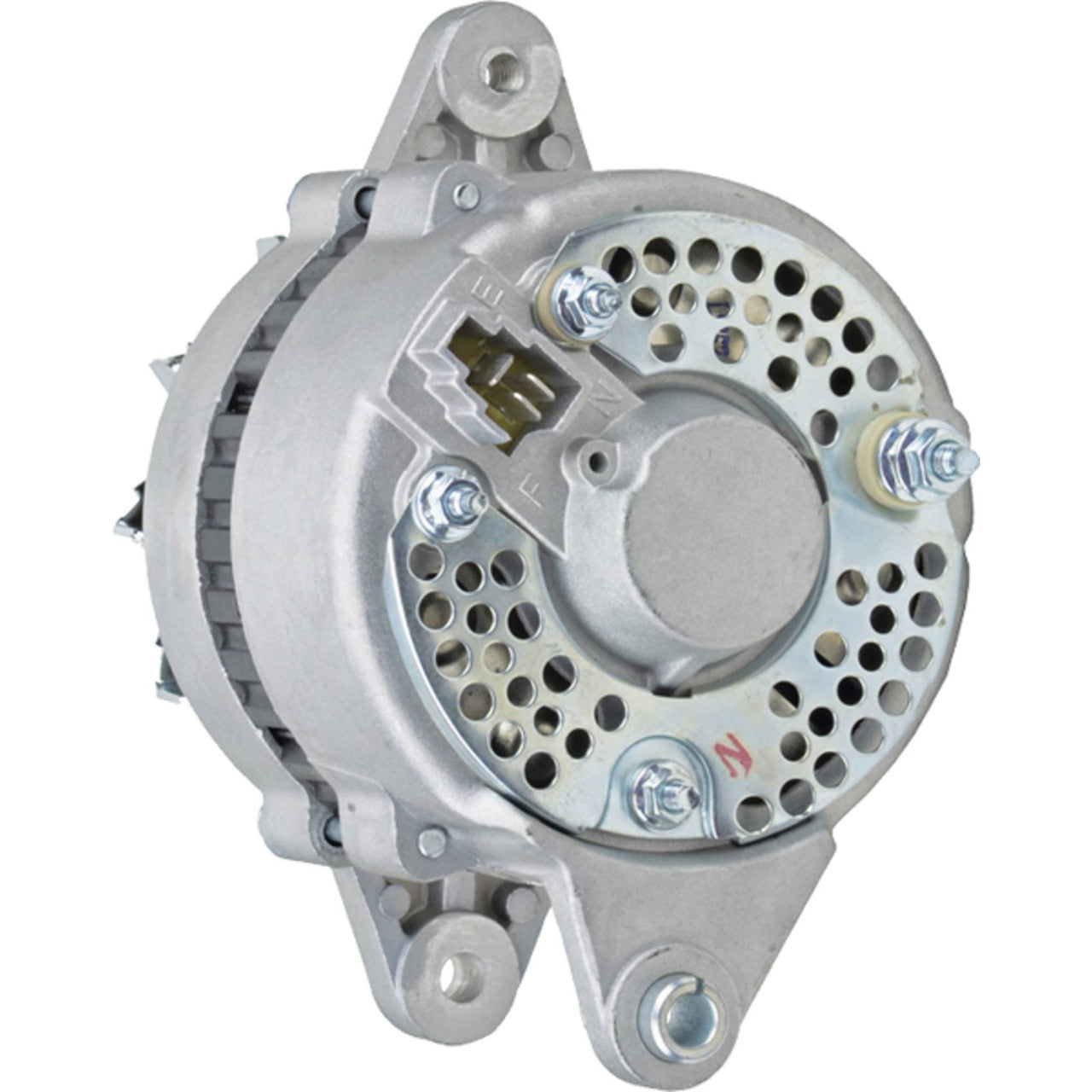

Alternator for Toyota, Daihatsu, Kubota, Suzuki & Honda - 12V 35A
Alternator for Toyota, Daihatsu, Kubota, Suzuki & Honda - 12V 35A
SKU:400-52034
Free shipping over £150. Terms apply
Couldn't load pickup availability
Alternator for Toyota, Daihatsu, Kubota, Suzuki & Honda
Classic Toyota, Toyota Lift Trucks, Kubota Tractors, Suzuki & Honda Civic - 12V 35A ER/EF
This alternator is a direct replacement for a broad family of Denso-equipped machines: classic Toyota cars and pickups, Toyota FG, FD and 4FG series lift trucks, Kubota B and M series tractors, Suzuki SJ410 and LJ81, the Honda Civic, and European-market Daihatsu vehicles. It is built to OEM specifications by Denso, giving the same fit, output and mounting as the original alternator it replaces, with no modification required for installation.

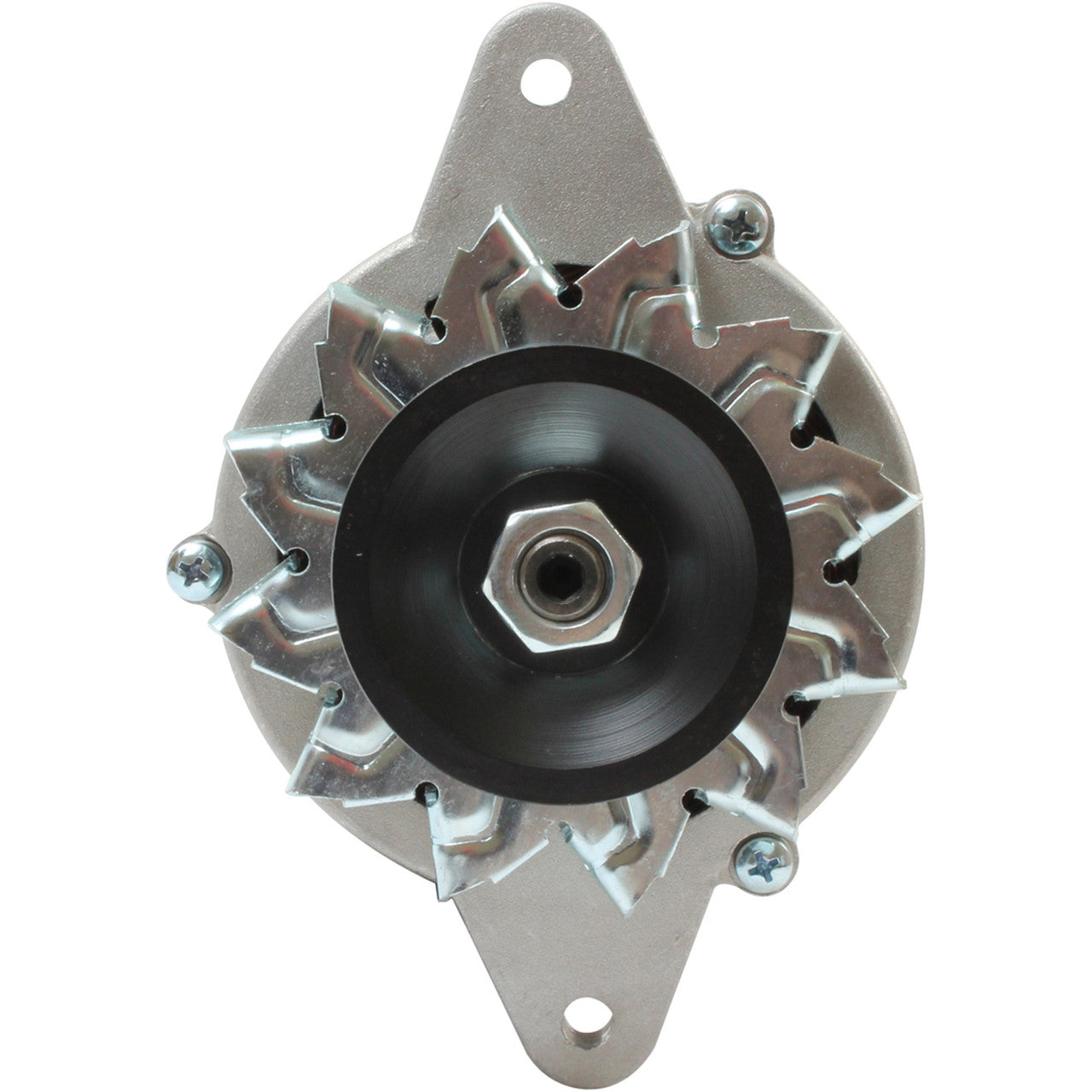

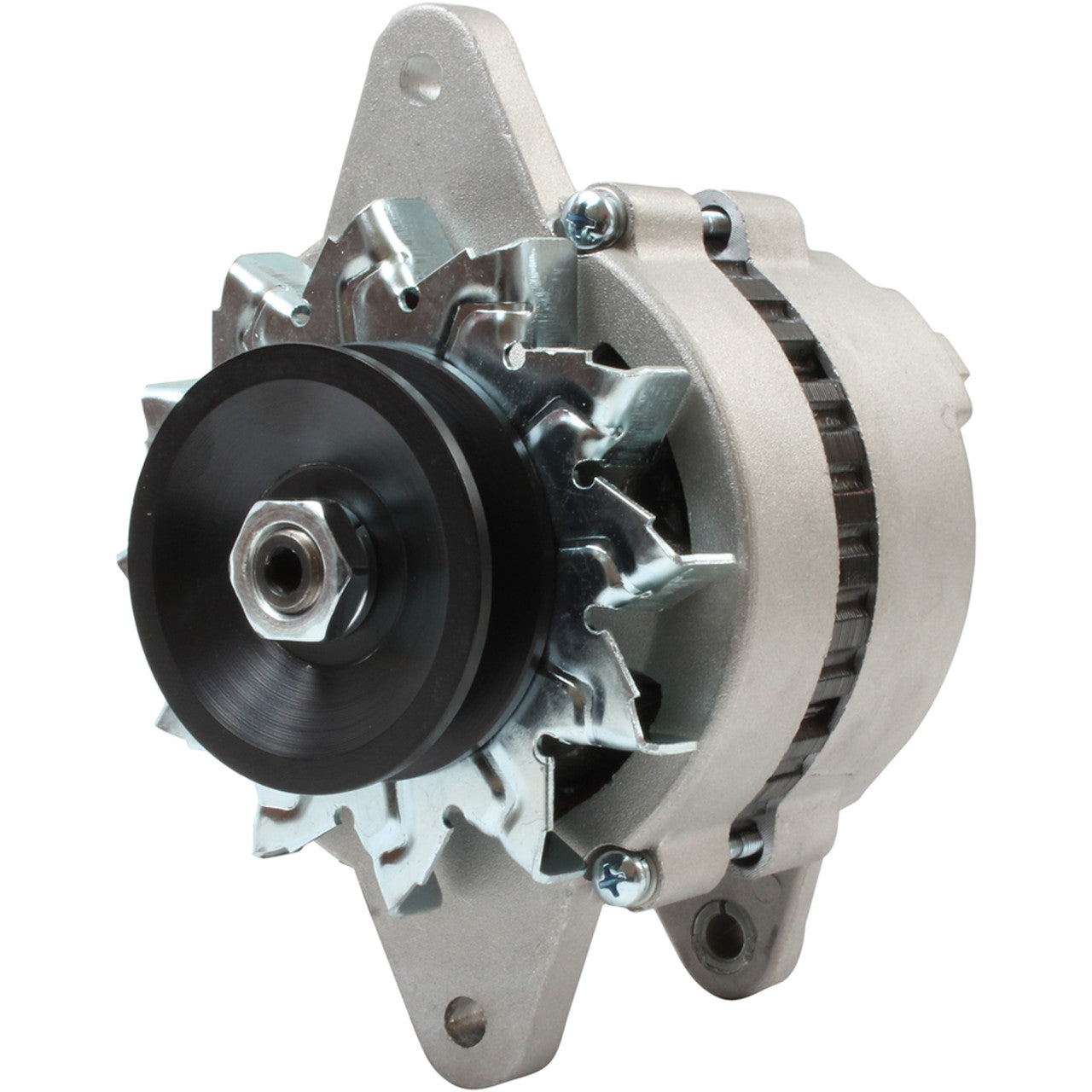

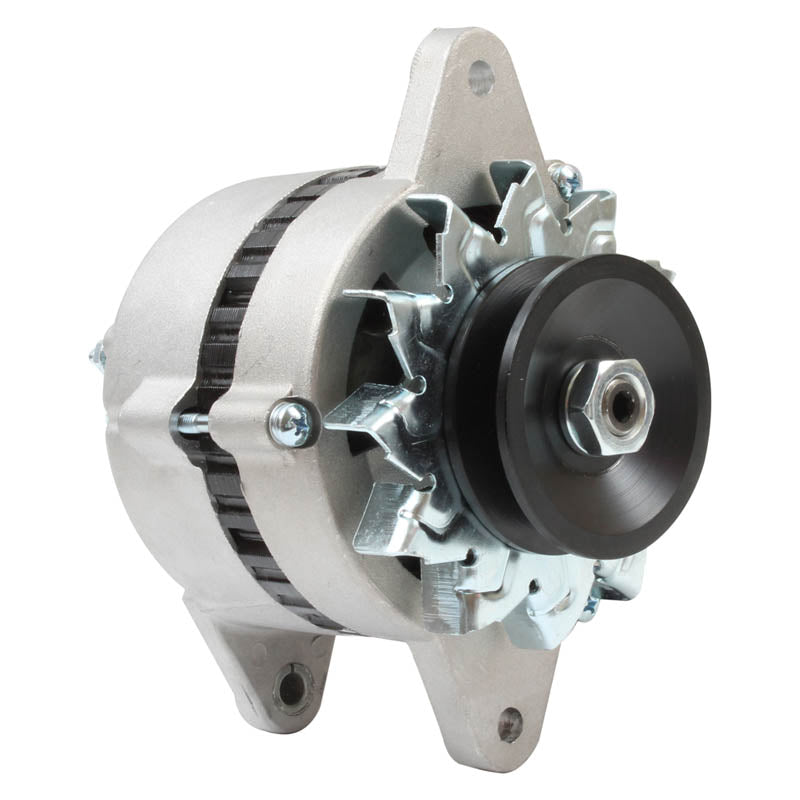

Rated at 12 volts with a 35 amp output, this external-fan, external-regulator (ER/EF) unit rotates clockwise (CW) and uses a single-groove V1 pulley measuring 70mm OD with a 15mm bore, matching the original factory specification.
Key Features
- 12V, 35 Amp output
- External regulator, external fan (ER/EF) design
- V1 pulley, 70mm OD, 15mm ID
- Manufactured by Denso
- Direct OEM fit and function replacement
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 35A |
| Rotation | Clockwise (CW) |
| Pulley Type | V1 - 70mm OD, 15mm ID |
| Fan Type | External (EF) |
| Regulator | External (ER) |
| Manufacturer | Denso |
| Interchange Reference | Lester 13126 / 14129 / 14146 · PIC 290-110 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Toyota Corolla (1.1L / 1.2L) | 1968-1974 |
| Toyota Corona (2.3L / 2.6L) | 1972-1974 |
| Toyota Crown (2.3L) | 1968-1971 |
| Toyota Land Cruiser (3.9L) | 1969-1974 |
| Toyota Pickup (1.9L 8RC / 2.0L 18RC) | 1969-1972 |
| Toyota FG-18, FG-23, FGL-18, FGL-20, FGL-23 & FGL-25 Lift Trucks (4P / 5R engine) | 1978-1986 |
| Toyota FGC-18 & FGC-23 Lift Trucks (4P / 5R engine) | 1980-1988 |
| Toyota FD-18, FDL-18 & FDL-23 Lift Trucks (V1502 engine) | 1980-1986 |
| Toyota 4FG-10 to 4FG-25 Lift Trucks (4P / 5R engine) | 1978-1986 |
| Toyota 4FGL-10 to 4FGL-23 Lift Trucks (4P engine) | 1978-1986 |
| Toyota 4FGC-20 & 4FGC-25 Lift Trucks (4P / 5R engine) | 1980-1988 |
| Suzuki SJ410 (993cc 1.0L) | 1980-1982 |
| Suzuki LJ81 (993cc 1.0L) | 1981 |
| Honda Civic (1.5L) | 1976-1979 |
| Kubota B5100, B6000, B6100, B7100 & B7200 Series Tractors | 1978-1995 |
| Kubota M4000, M4030, M4050, M4500, M4950, M5030, M5500, M6030 & M6950 Series Tractors | 1981-1998 |
| Kubota R400 Loader (V1902 diesel) | 1986 |
| Daihatsu (Europe) | 1974-1981 |
OEM Part Number Cross Reference
Aftermarket replacement. Selected OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 27020-12011, 27020-12012 | Toyota |
| 27020-87102, 27020-87212, 27020-87701, 27020-87705 | Daihatsu |
| 021000-0810, 021000-1080, 021000-1240 | Denso |
| 3000967 | Hyster |
| 2200072-43 | Yale |
| 110137 | Cargo |
| AND0195 | Arrowhead |
| 1-1556-01ND | WAI |
| 13126, 14129, 14146 | Lester |
Frequently Asked Questions
Will this alternator fit without any modification?
Yes. This is a direct OEM fit and function replacement using the same mounting, pulley and electrical connections as your original unit, so no modification is needed.
What is included?
You receive one new alternator, ready to install using your existing bracket, belt and wiring loom.
How can I tell my old alternator has failed?
Common signs include a battery warning light, dim or flickering lights, a battery that won't hold charge, or a whining or growling noise from the alternator itself.
Does the cooling fan direction matter?
Yes - please check the cooling fan direction on your original unit against this replacement before ordering, as this is noted as an important compatibility point for this application.
