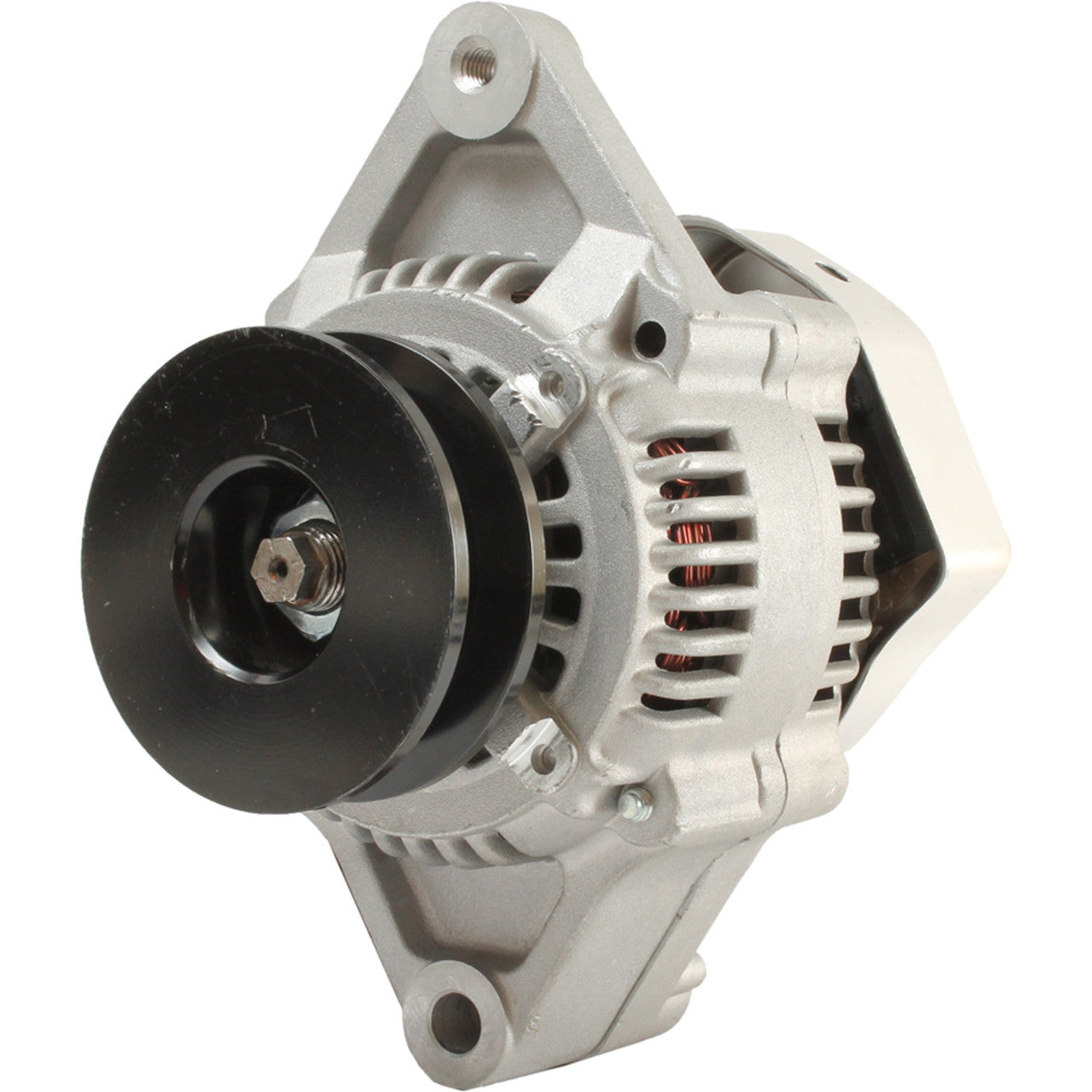

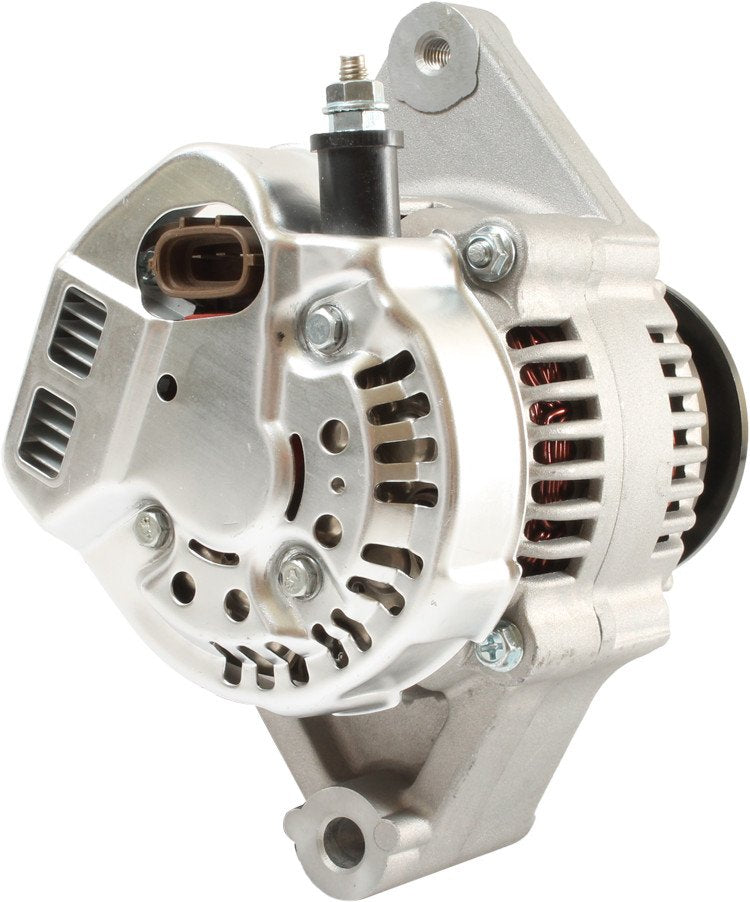

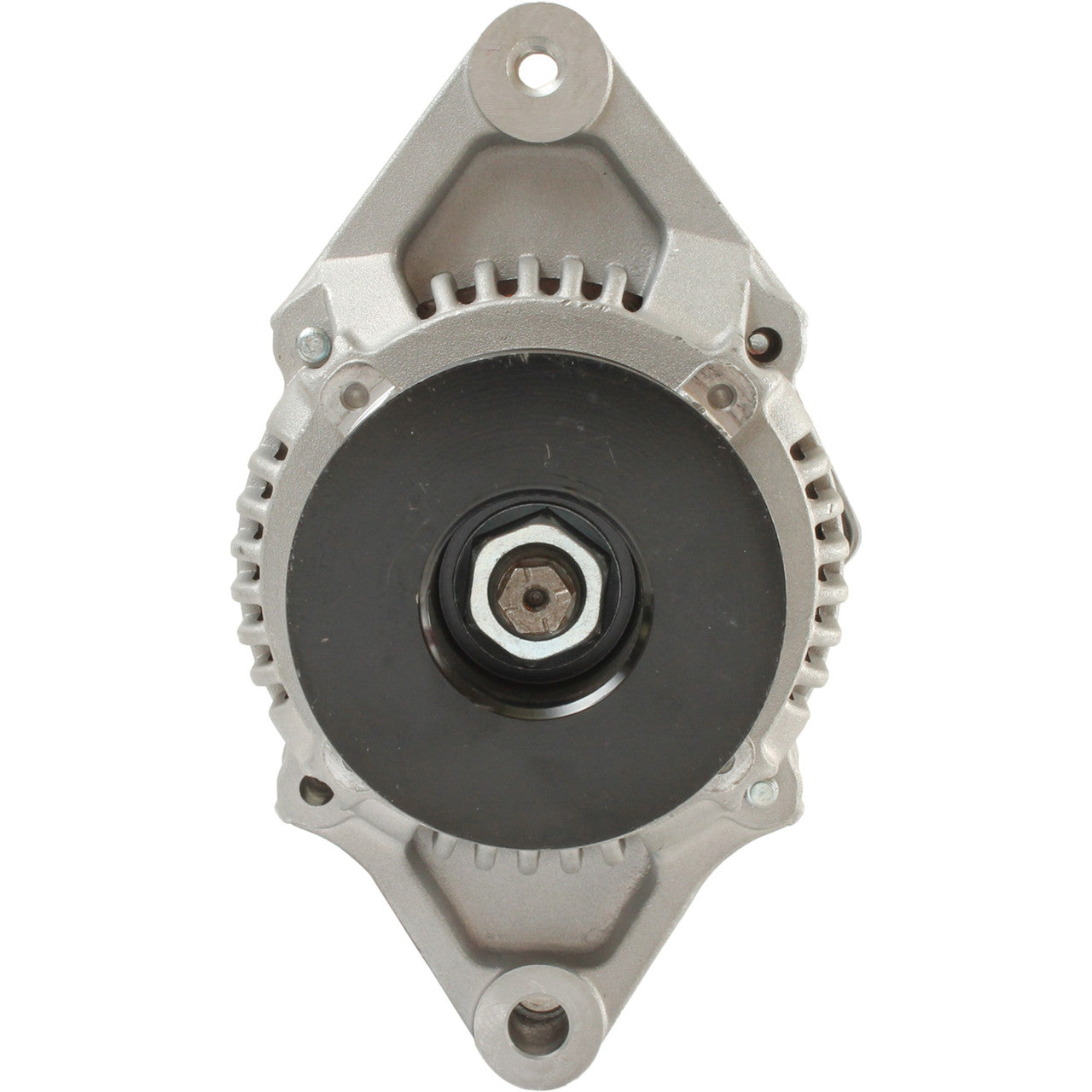

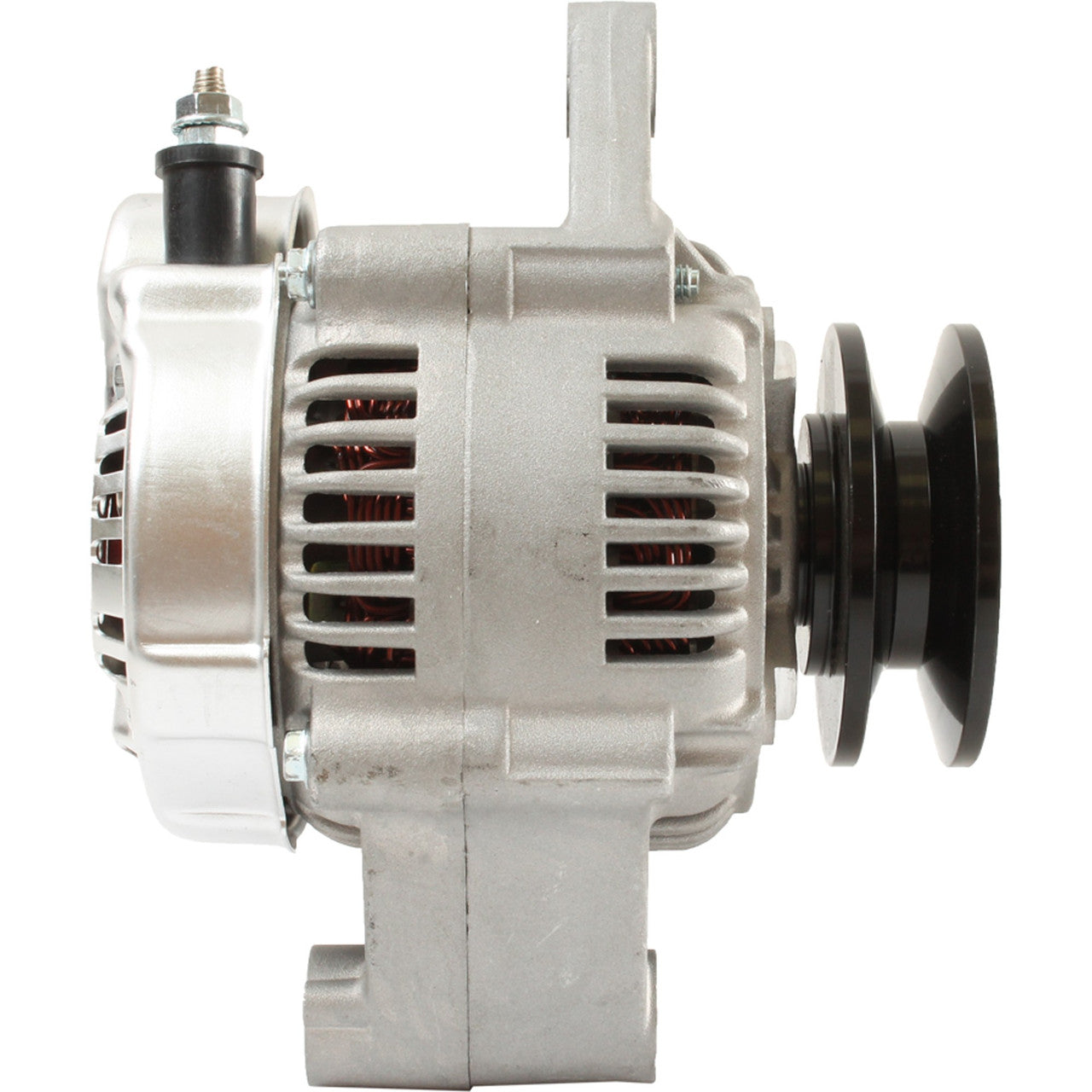

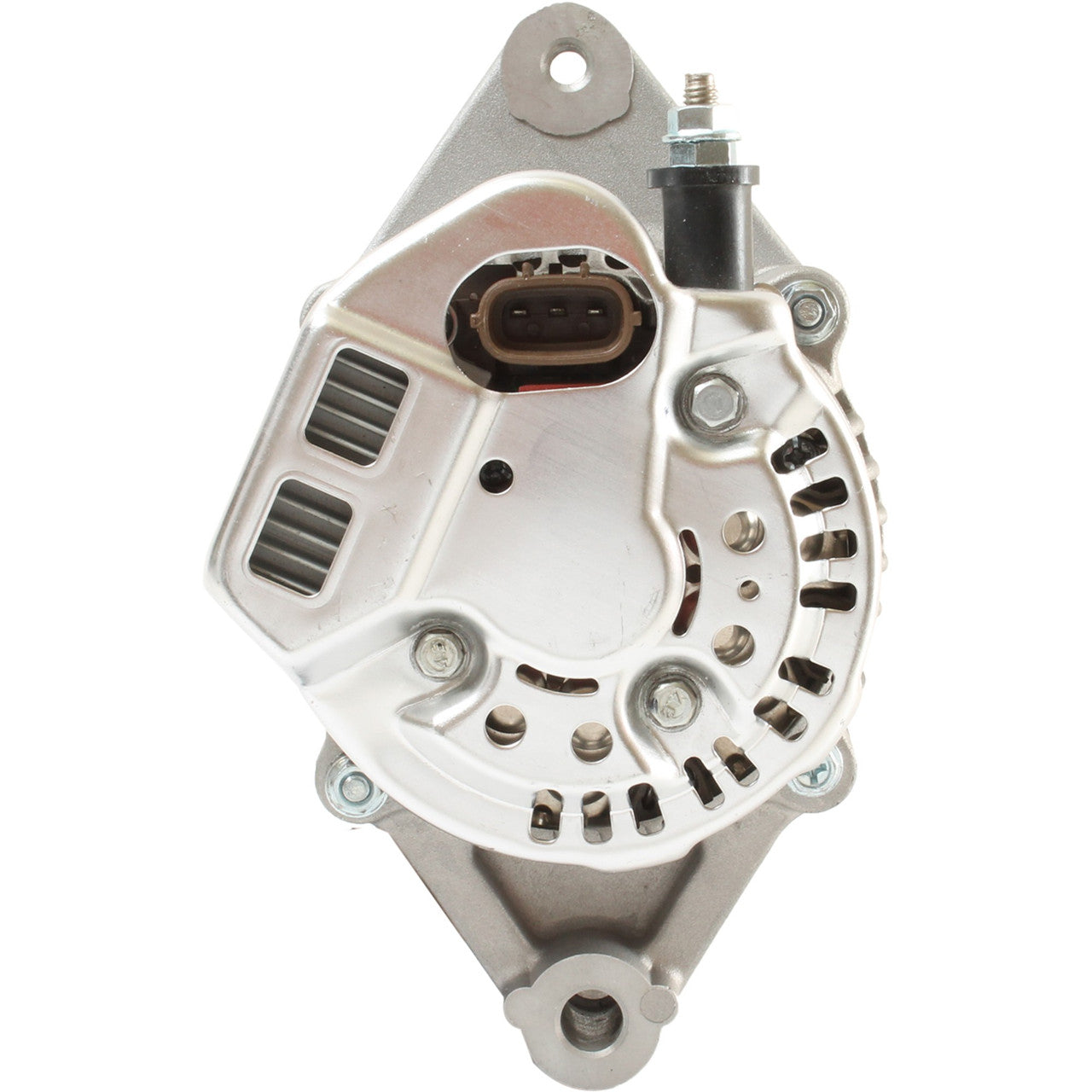

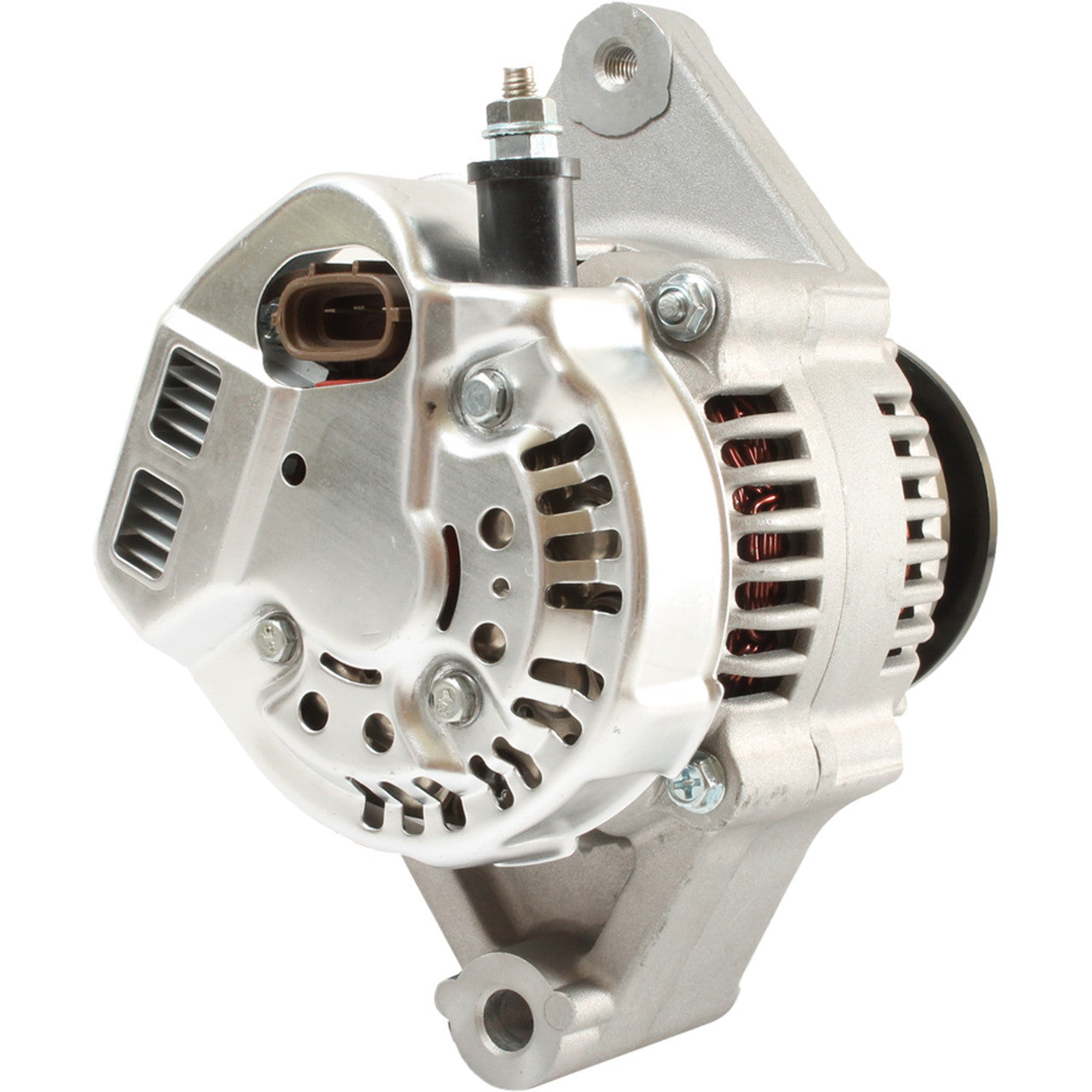

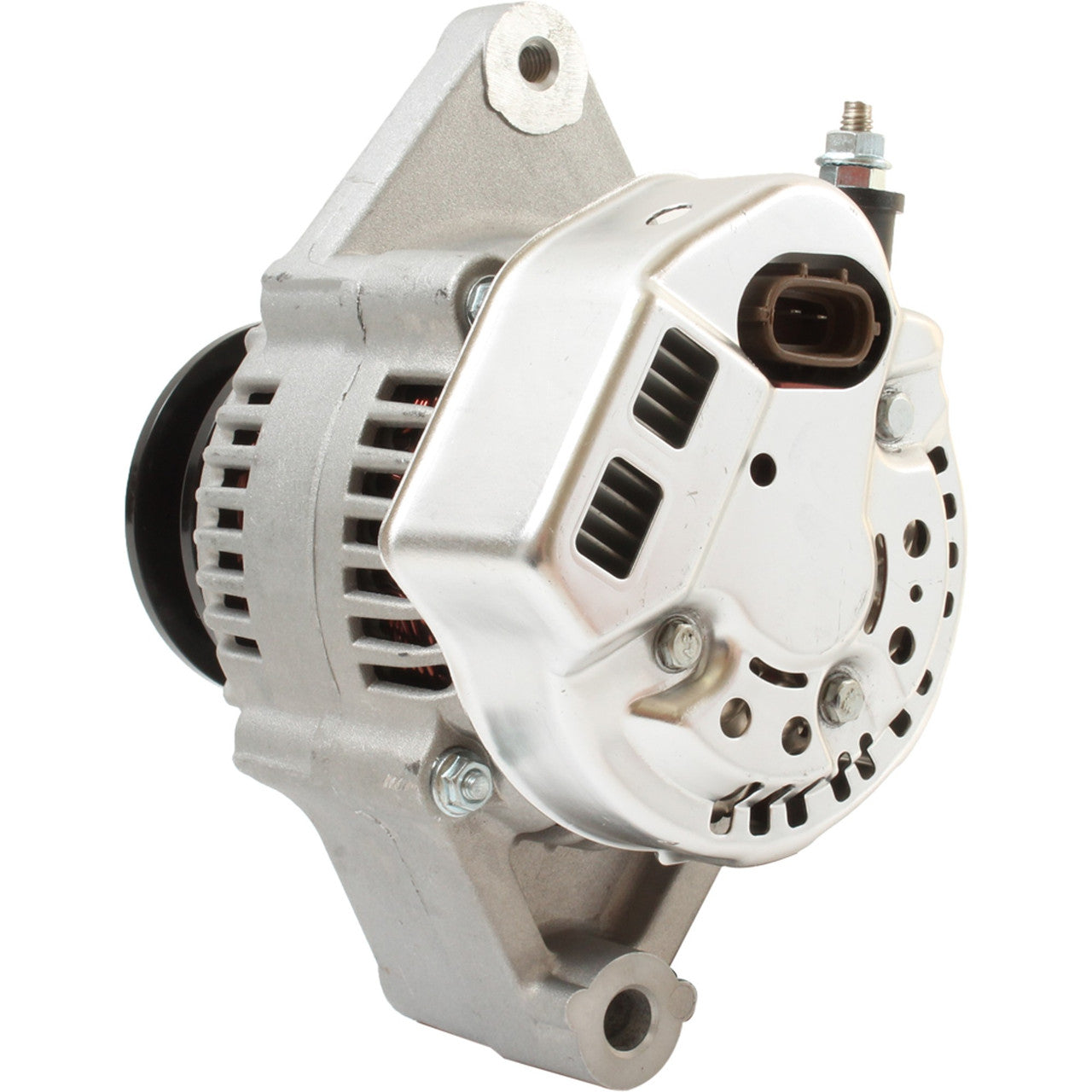

This alternator is a direct replacement for the original unit fitted to Toyota forklift trucks, superseding Toyota part number 27060-78202-71 and Denso 101211-3730. It is built to OEM specifications for fit, form and function, allowing straightforward installation in place of the original part.
The unit is rated 12-volt, 50-amp with clockwise rotation, an internal regulator (IR) and internal fan (IF). It uses a single-groove (V1) pulley measuring 76mm OD with a 15mm ID, designed to run on a 5/8 inch belt, and is fitted with an oval S-IG-L plug and a low L-terminal output. Matching the original pulley diameter and belt width helps keep the drive alignment and belt tension correct after installation.
Key Features
- 12-volt, 50-amp output
- Clockwise (CW) rotation
- Internal regulator (IR) with low L-terminal output
- Internal fan (IF), single-groove V1 pulley, 76mm OD x 15mm ID
- 5/8 inch belt width, oval S-IG-L plug
- Direct OEM fit for Toyota forklift trucks
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Amperage |
50A |
| Rotation |
CW (clockwise) |
| Pulley Type |
V1 (single groove), 76mm OD / 15mm ID |
| Belt Width |
5/8 inch |
| Plug Type |
Oval S-IG-L |
| Fan Type |
IF (internal) |
| Regulator Type |
IR (internal, low L-terminal output) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Toyota Forklift Trucks fitted with alternator 27060-78202-71 |
Not specified |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 27060-78202-71 |
Toyota |
| 101211-3730, 101211-3731 |
Denso |
| AND0564, ND101211-3731 |
Arrowhead |
| 290-470 |
Jannco |
| 400-52134 |
J&N Electrical Products |
Frequently Asked Questions
Will this fit my Toyota forklift without modification?
Yes, it is built to OEM specifications and fits the standard mounting points used on Toyota forklift trucks fitted with this alternator.
What's included?
The alternator unit only.
How can I tell my alternator has failed?
Signs include a dash warning light, a weak or failing battery, dim lighting, or unusual noise from the unit.
How do I confirm this is the right unit?
Check the number on your original alternator - it should read Toyota 27060-78202-71 or Denso 101211-3730 / 101211-3731.
What size pulley and belt does this alternator use?
A single-groove (V1) pulley measuring 76mm OD with a 15mm ID, designed to run on a 5/8 inch belt, matching the original equipment fitment.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
