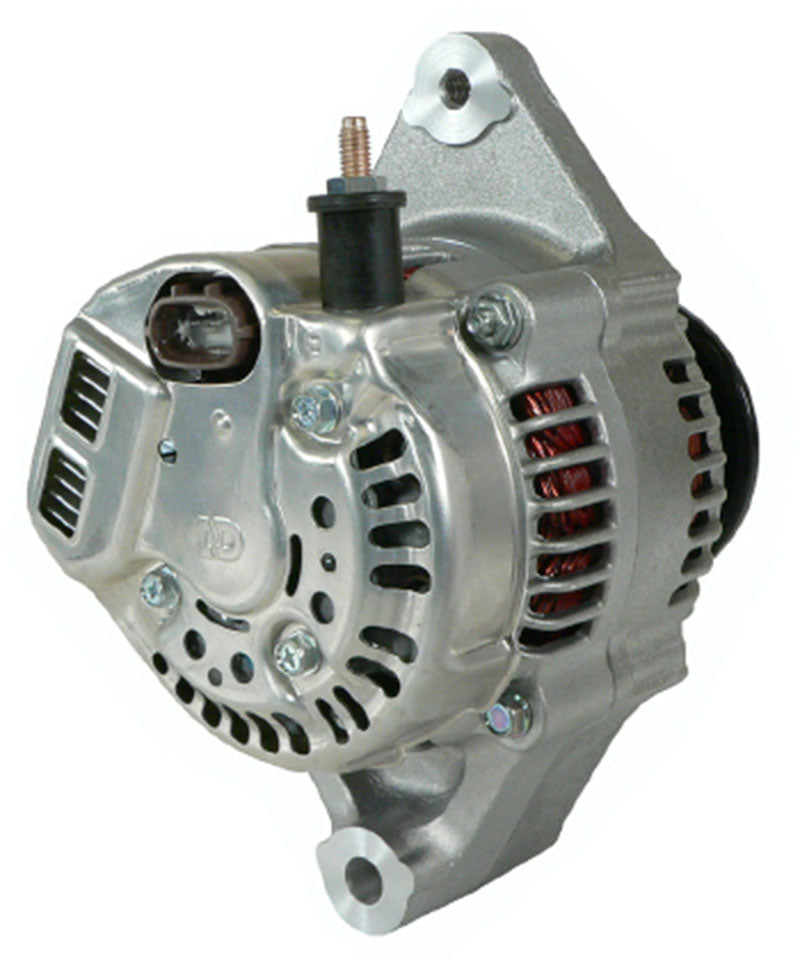

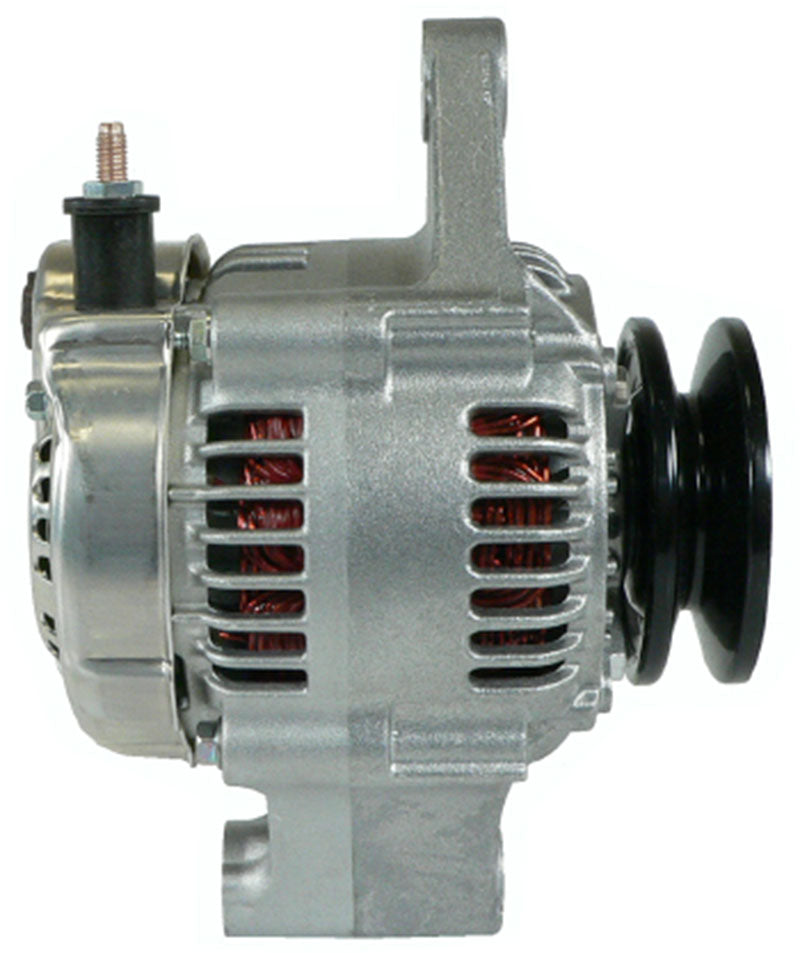

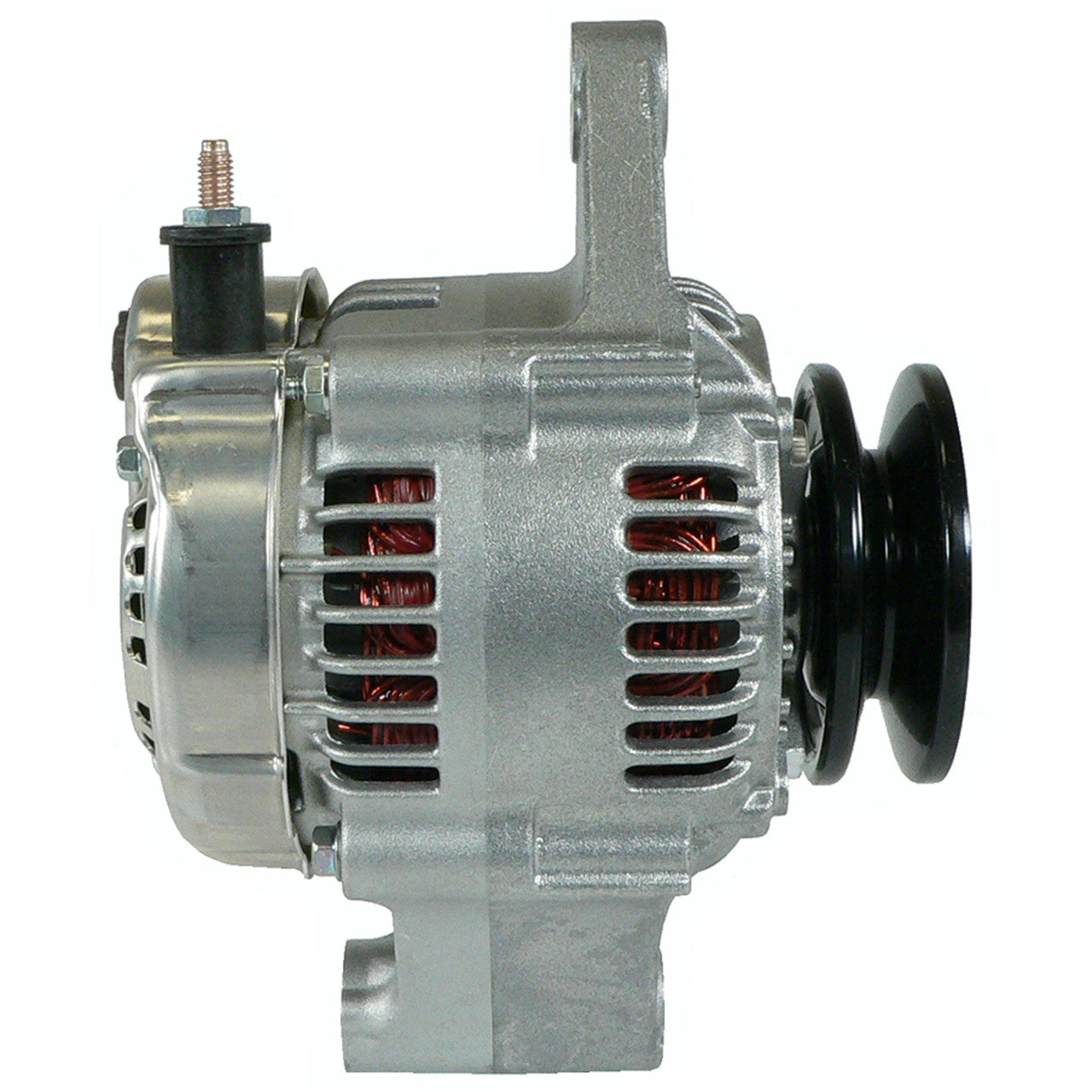

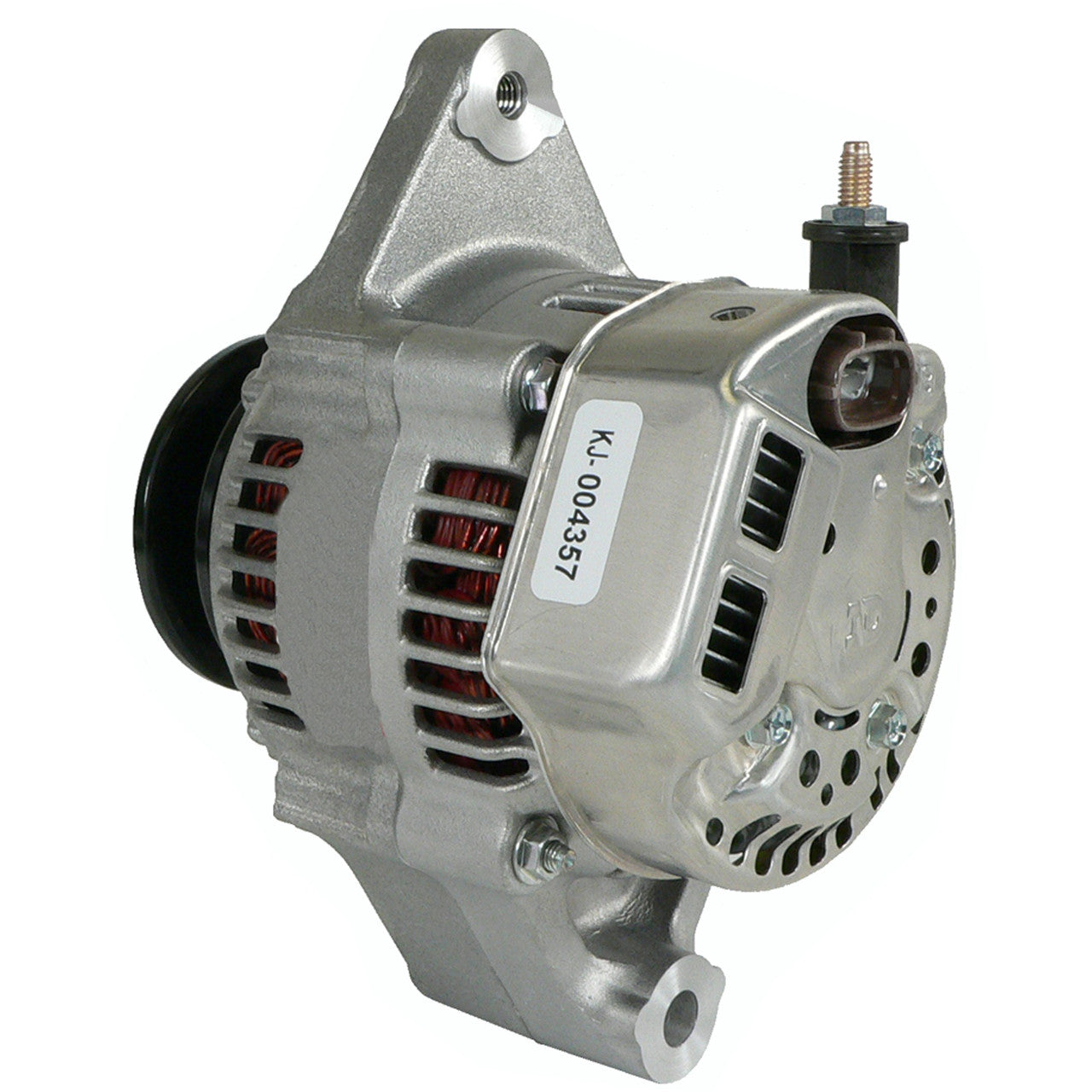

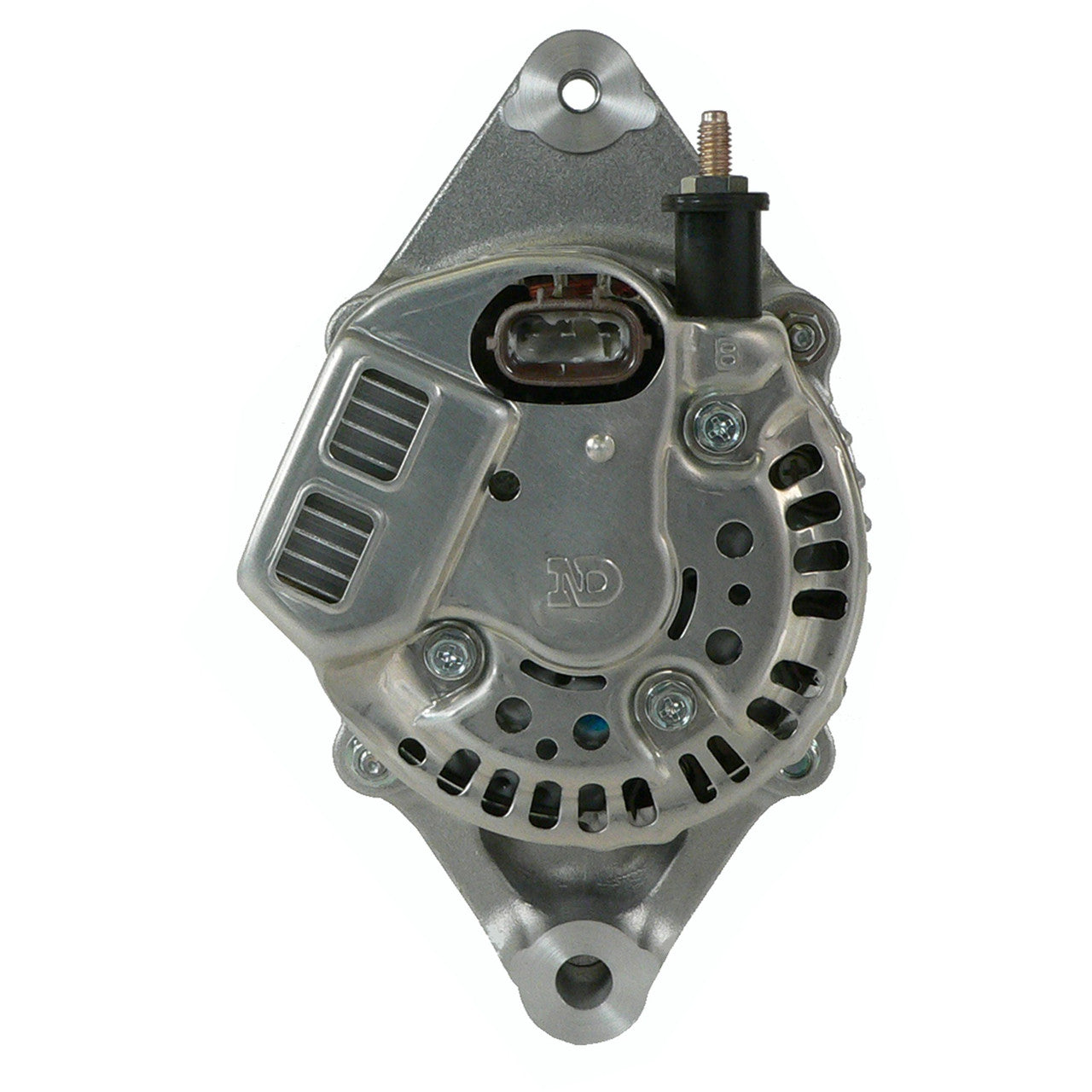

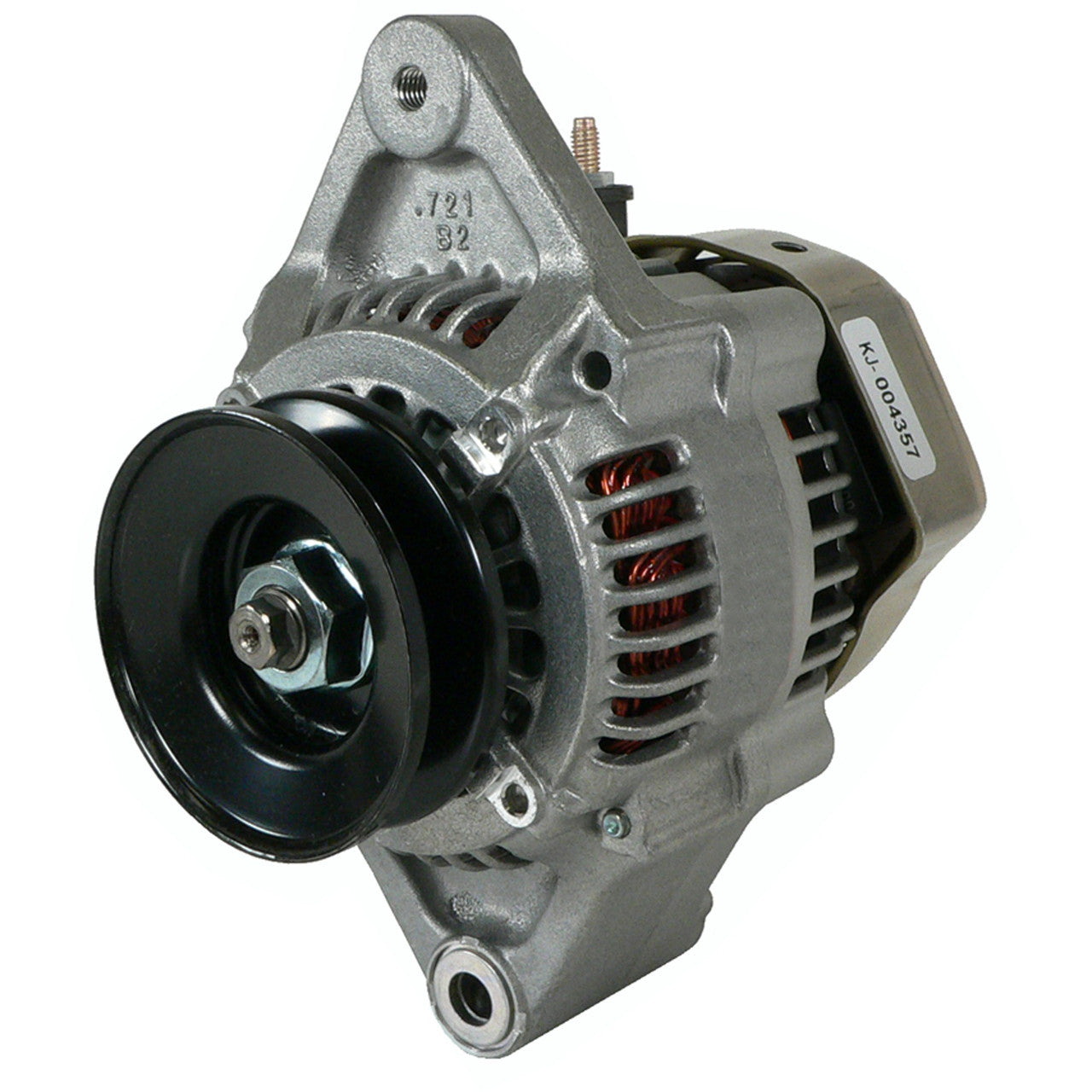

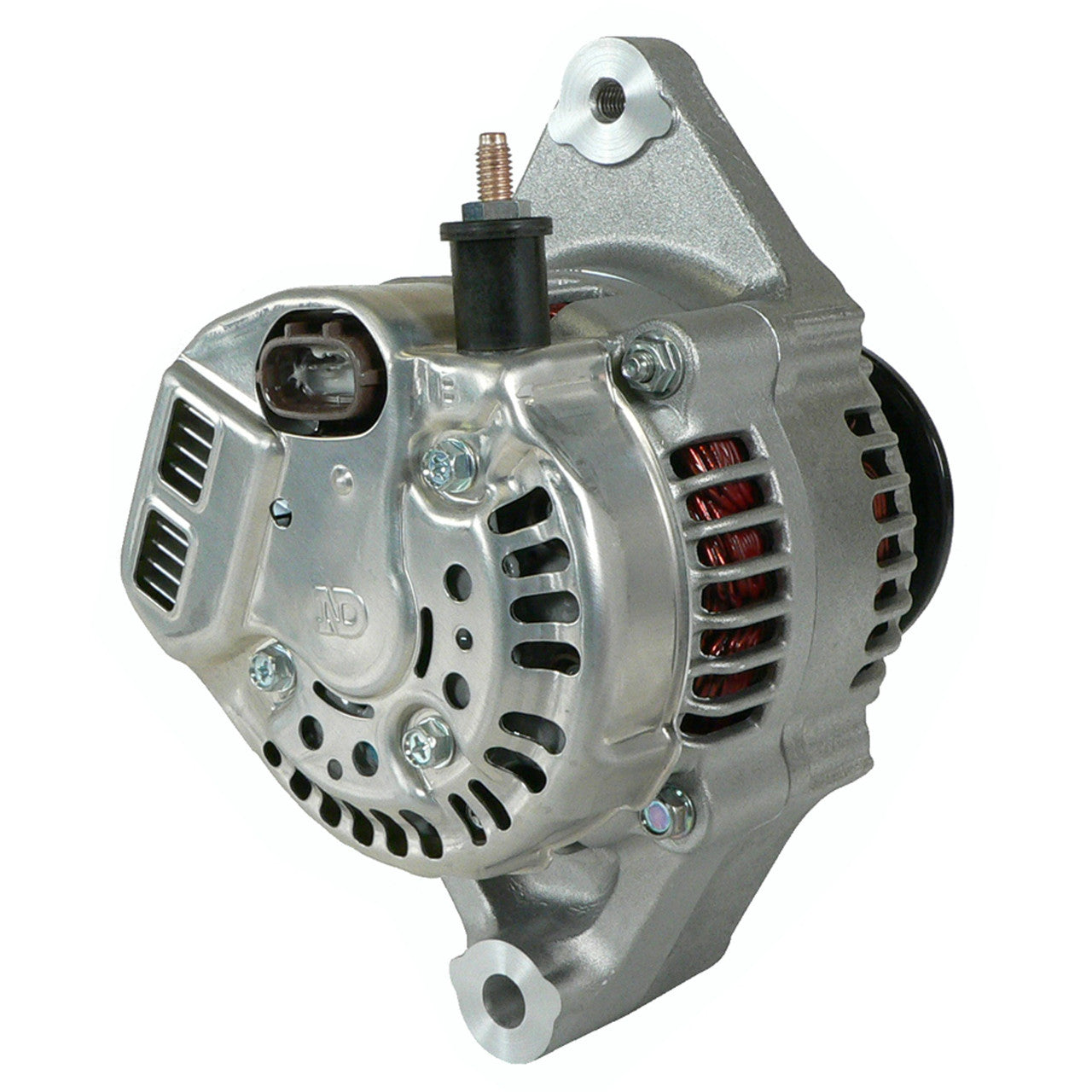

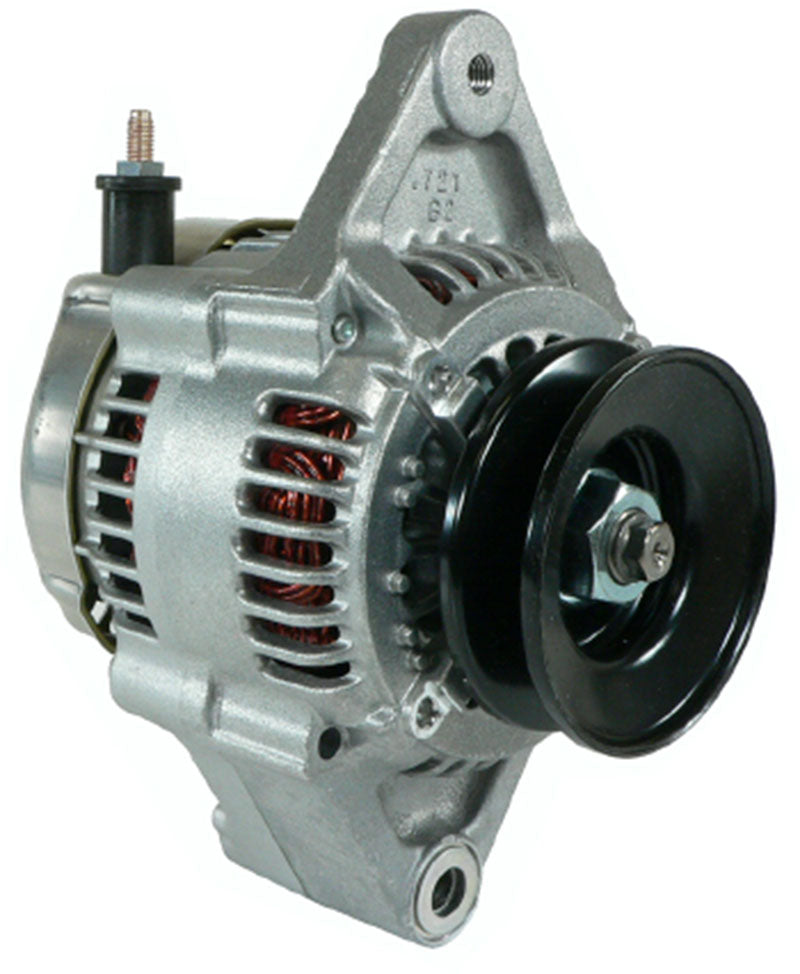

Alternator for Toyota Forklift 7FGU15-7FGU35 Lift Trucks 1993-2001 - 12V 50A
Alternator for Toyota Forklift 7FGU15-7FGU35 Lift Trucks 1993-2001 - 12V 50A
SKU:400-52087
Free shipping over £150. Terms apply
Couldn't load pickup availability
Alternator for Toyota 7FGU Series Forklifts 1993-2001
12-Volt, 50 Amp, IR/IF, Clockwise, Single V Pulley, 12 O'Clock
This 12-volt, 50 amp alternator is built for Toyota 7FGU series lift trucks built between 1993 and 2001 with the 4Y and 5K petrol engines, covering the 7FGU15 through to the 7FGU35. It replaces Toyota 27060-78156-71 and the Denso 101211-8580 unit.
The unit uses an internal regulator and internal fan with a single-groove V pulley, clockwise rotation and a 12 o'clock clock position, matching the original equipment layout so it drops straight in. Every unit is quality checked before dispatch, and our technical team is on hand if you need help confirming fitment.
Key Features
- 12-volt, 50 amp output to OEM specification
- Internal regulator and internal fan (IR/IF) design
- Single-groove V pulley, clockwise rotation, 12 o'clock clock position
- Direct replacement for Toyota 27060-78156-71 and Denso 101211-8580
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | 400-52087 |
| Unit Type | Alternator |
| Voltage | 12 V |
| Output | 50 A |
| Regulator / Fan | IR / IF |
| Rotation | Clockwise (CW) |
| Pulley | Single-groove V (V1) |
| Clock Position | 12 |
| Lester Number | 12357 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Toyota 7FGU15 Forklift (4Y / 5K engine) | 1993-2001 |
| Toyota 7FGU18 Forklift (4Y / 5K engine) | 1993-2001 |
| Toyota 7FGU20 Forklift (4Y / 5K engine) | 1993-2001 |
| Toyota 7FGU25 Forklift (4Y / 5K engine) | 1993-2001 |
| Toyota 7FGU30 Forklift (4Y / 5K engine) | 1993-2001 |
| Toyota 7FGU32 Forklift (4Y / 5K engine) | 1993-2001 |
| Toyota 7FGU35 Forklift (4Y / 5K engine) | 1993-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 27060-78156-71 | Toyota |
| 101211-8580 | Denso |
| AND0438, ND210-7022 | Arrowhead |
| 12357N, 1-2823-01ND | WAI |
| 12357 | Lester |
Frequently Asked Questions
Will this alternator fit my Toyota lift truck without modification?
Yes, on the 7FGU models listed above it is a direct, bolt-in replacement built to OEM specification - no modification is required.
How do I check this is the right part?
Compare the number on your original unit against the cross reference table - Toyota 27060-78156-71 or Denso 101211-8580.
What output does this unit give?
12 volts at 50 amps, with an internal regulator and internal fan, clockwise rotation and a single-groove V pulley.
How do I know my current alternator has failed?
Common signs include a dashboard warning light, dimming or flickering lights, a weak or dead battery despite recent charging, and slow engine cranking.
Can I confirm fitment before ordering?
Yes, our technical team can help confirm compatibility against your original part - just get in touch before you order.
