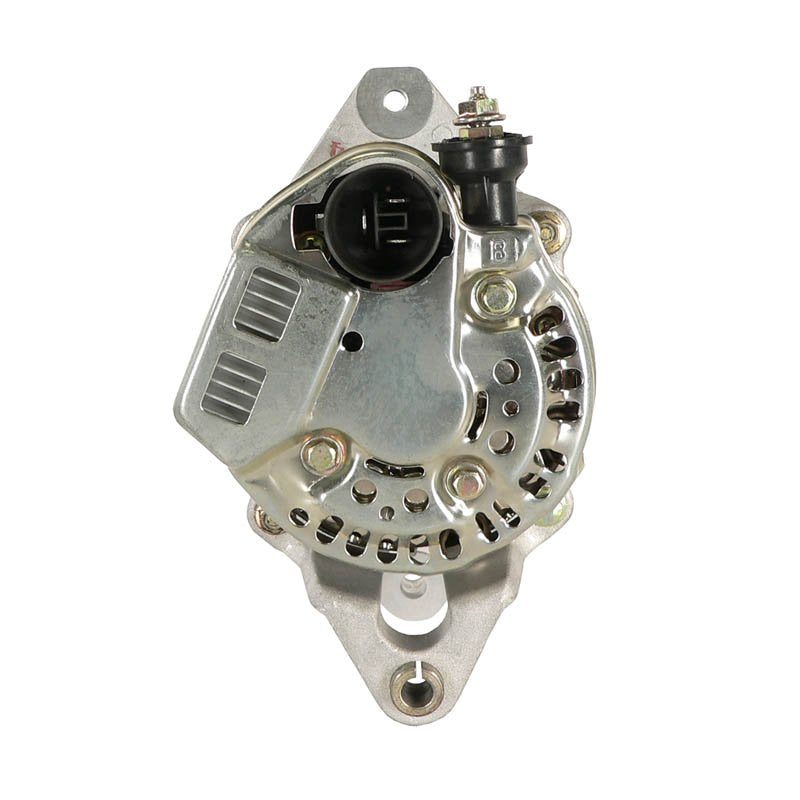

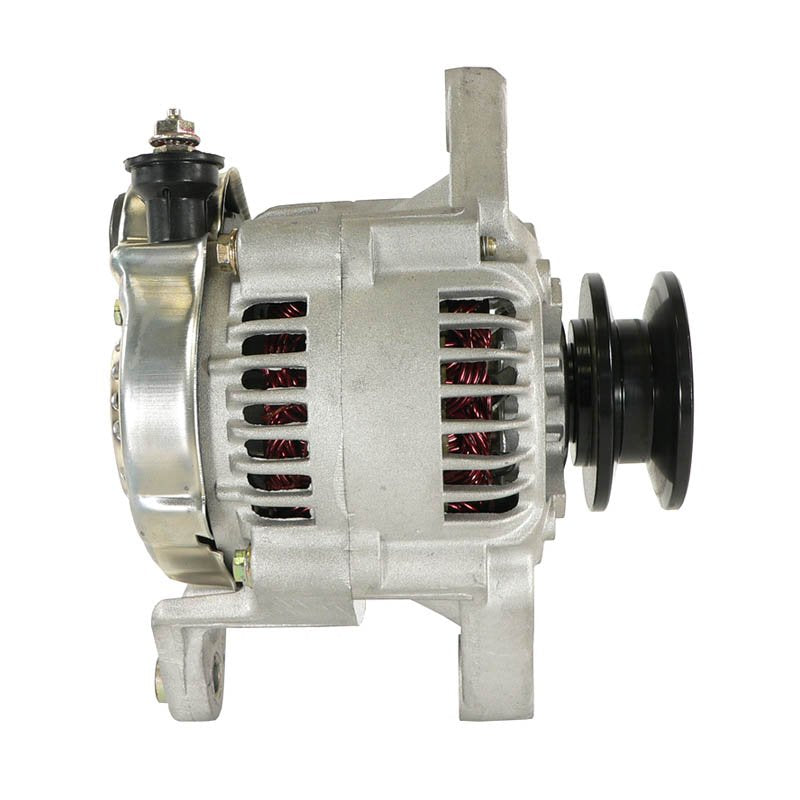

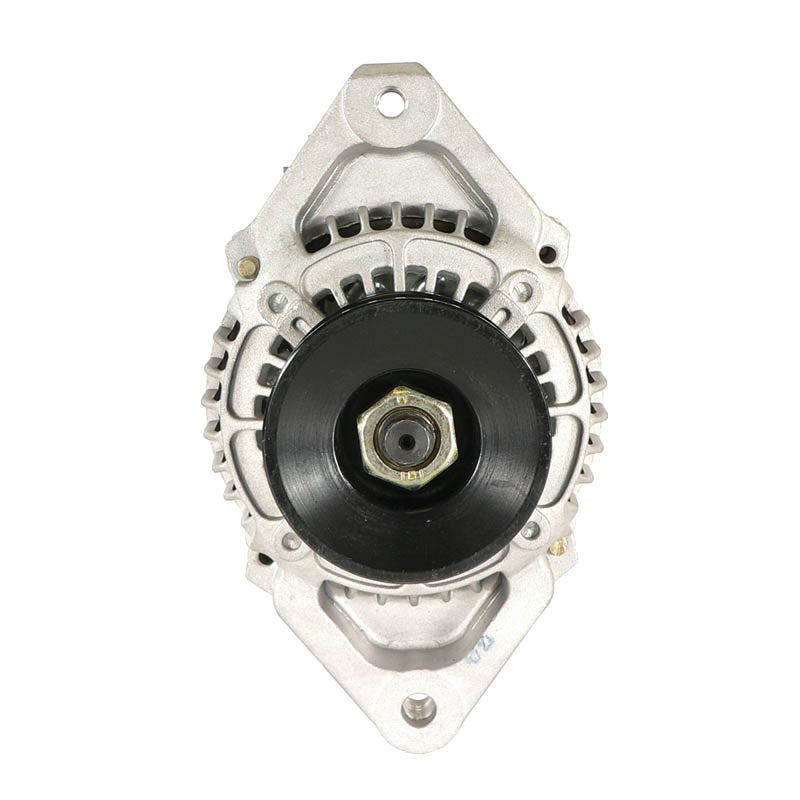

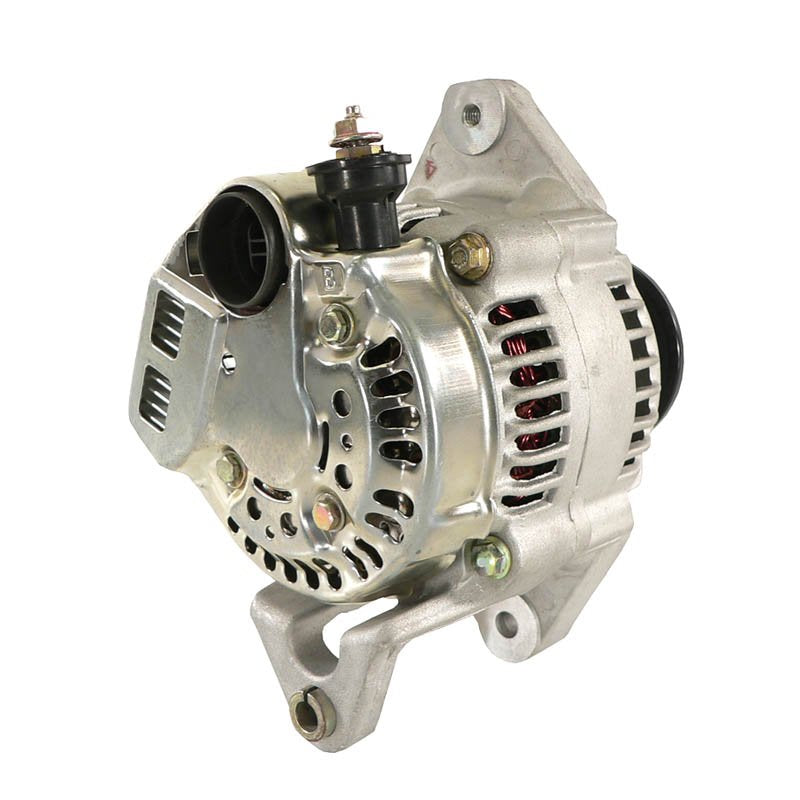

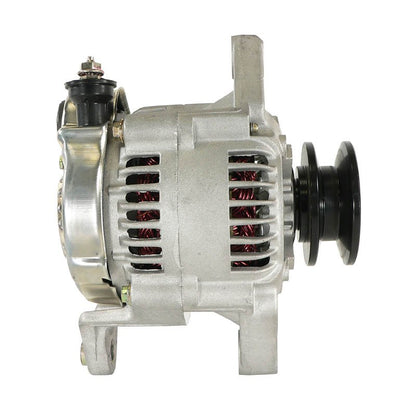

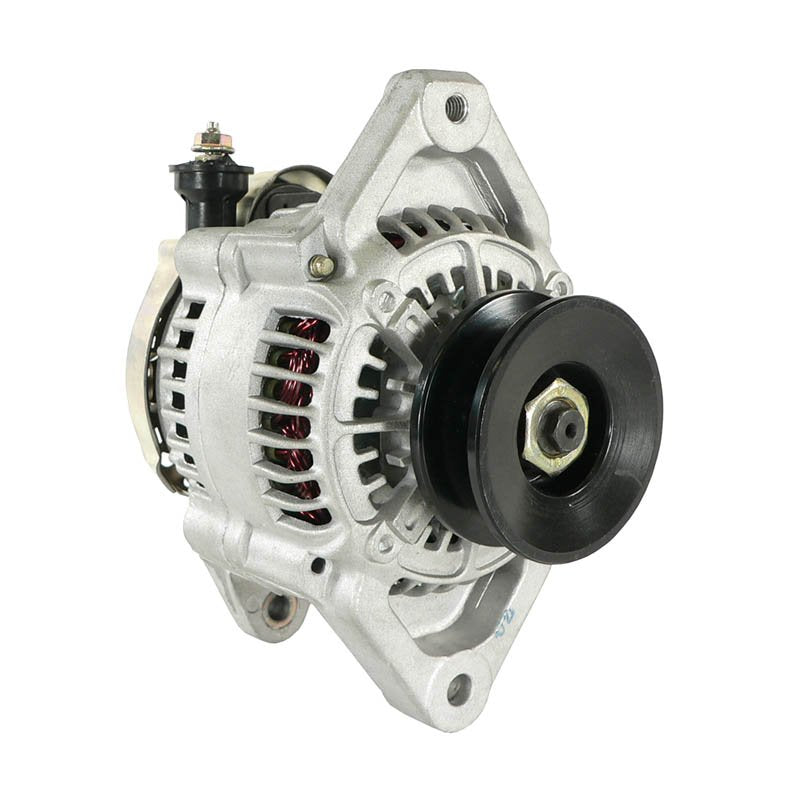

Alternator for Toyota Lift Trucks
Toyota 5FD, 5FG & 6FD Lift Trucks, 1989 Onwards - 12V, IR/IF
This alternator is a direct replacement for Toyota 5FD, 5FG and 6FD series lift trucks fitted with an IR/IF unit of this specification. It is built to OEM specifications, giving the same fit, output and mounting as the original alternator it replaces, with no modification required for installation.
This internal-regulator, internal-fan (IR/IF) unit uses a single-groove V1 pulley measuring 76mm OD with a 15mm bore and a 5/8 inch belt width, matching the original equipment regulator (#126000-7040) and 9mm mounting holes.
Key Features
- 12V, 40 Amp output (per manufacturer specification)
- Internal regulator, internal fan (IR/IF) design
- V1 pulley, 76mm OD, 15mm ID, 5/8" belt width
- 9mm mounting holes
- Direct OEM fit for Toyota 5FD, 5FG and 6FD lift trucks
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 40A |
| Pulley Class | V1 - 76mm OD, 15mm ID |
| Fan Type | Internal (IF) |
| Regulator | Internal (IR), OE ref #126000-7040 |
| Belt Width | 5/8 inch |
| Mounting Holes | 9mm |
| Interchange Reference | Lester 12184 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Toyota 5FD-10, 5FD-14, 5FD-15, 5FD-18, 5FD-20, 5FD-23, 5FD-25 (1DZ engine) | 1989-1994 |
| Toyota 5FD-20, 5FD-23, 5FD-25, 5FD-28, 5FD-30 (1Z engine) | 1989-1994 |
| Toyota 5FD-33, 5FD-35, 5FD-38, 5FD-40, 5FD-45, 5FDE-35 (11Z engine) | 1989-1994 |
| Toyota 5FG-33, 5FG-35, 5FG-38, 5FG-40, 5FG-45 (3F engine) | 1989-1994 |
| Toyota 5FG-50, 5FG-60, 5FGE-35 (3F engine) | 1990-1994 |
| Toyota 6FD-10, 6FD-14, 6FD-15, 6FD-18, 6FD-20, 6FD-23, 6FD-25 (1DZ engine) | 1994 onwards |
| Toyota 6FD-20, 6FD-23, 6FD-25, 6FD-28, 6FD-30 (2DZ engine) | 1994 onwards |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 27060-76305, 27060-78305, 27060-78305-71 | Toyota |
| 100211-6930, 100211-6931, 210-7001 | Denso |
| 067004672 | Clark Equipment |
| AND0170 | Arrowhead |
| LRA01934 | Lucas Electric |
| 12184 | Lester |
Frequently Asked Questions
Will this alternator fit without any modification?
Yes. This is a direct OEM fit and function replacement using the same mounting, pulley and electrical connections as your original unit, so no modification is needed.
What is included?
You receive one new alternator, ready to install using your existing bracket, belt and wiring loom.
How can I tell my old alternator has failed?
Common signs include a battery warning light, dim or flickering lights, a battery that won't hold charge, or a whining or growling noise from the alternator itself.
Is the mounting the same as my original alternator?
Yes, this unit uses 9mm mounting holes and a V1 pulley with a 5/8 inch belt width, matching the original equipment layout for these lift trucks.
