Alternator for Carrier Transicold Eagle Plus, Ford & New Holland Engines - 12V 51A
Alternator for Carrier Transicold Eagle Plus, Ford & New Holland Engines - 12V 51A
SKU:400-16165
Free shipping over £150. Terms apply
Couldn't load pickup availability

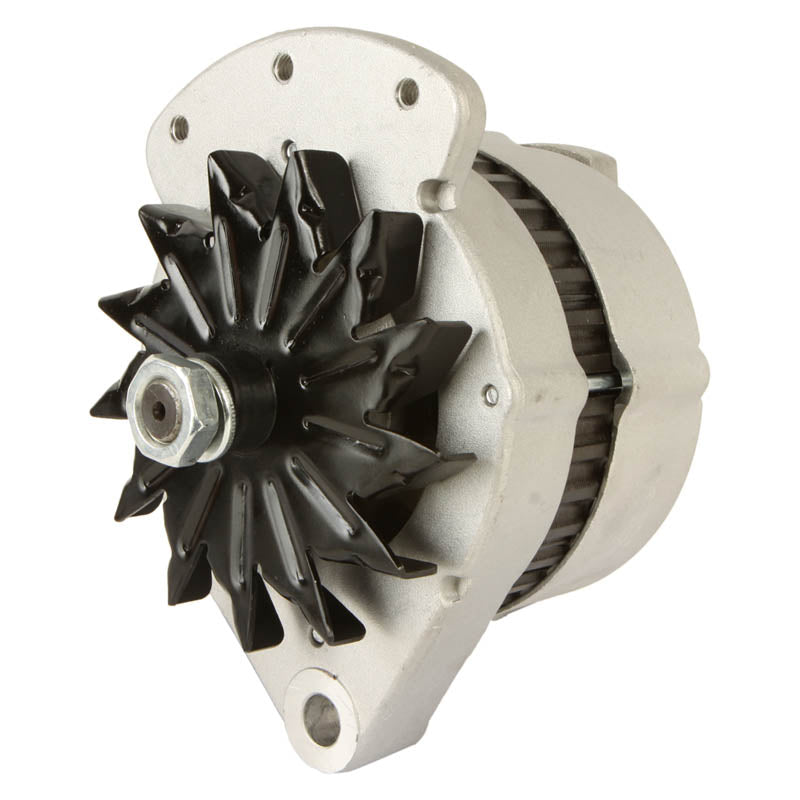

Alternator for Carrier Transicold Eagle Plus, Ford & New Holland Engines - 12V 51A
12-volt 51 amp replacement alternator for Carrier Transicold refrigeration units
This alternator is built for Carrier Transicold refrigeration units, including the Eagle Plus, running on Ford and New Holland engine platforms, and is supplied as a direct replacement for the original equipment unit. It is a 12-volt, clockwise-rotation alternator rated at 51 amps, fitted with an internal regulator (IR) and a field diode type charging circuit.
It is manufactured to OEM specifications for fit, output and mounting, so it bolts straight into the original bracket and pulley arrangement without modification. The unit replaces the Motorola 8AR2070K design and interchanges with Prestolite 110-274 and Lester 8615, and uses a spool-mount body with a clockwise-rotation drive.
Key Features
- 12-volt charging output
- 51 amp rated alternator
- Clockwise (CW) rotation
- Internal regulator (IR), 105-152 field diode type
- Spool mount body, six-diode rectifier
- Direct OEM fit for Carrier Transicold, Ford & New Holland engine applications
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 51A |
| Rotation | Clockwise (CW) |
| Regulator | Internal Regulator (IR), 105-152 field diode type |
| Rectifier | Six-diode silicon rectifier |
| Mounting | Spool mount |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Carrier Transicold Eagle Plus refrigeration units | Not specified by supplier |
| New Holland Engine Applications | Not specified by supplier |
| Ford Engine Applications | Not specified by supplier |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 8AR2070K | Motorola |
| 110-274 | Prestolite |
| 8615 | Lester |
| 400-16165, LNP-110-683 | Arrowhead / J&N |
Frequently Asked Questions
Will this fit my unit without modification?
Yes, this alternator is manufactured to OEM specifications for direct bolt-in fitment - no modification is required on a matching engine application.
How do I confirm this is the right alternator?
Check the number stamped on your original unit against the cross reference table above - Motorola 8AR2070K, Prestolite 110-274 and Lester 8615 all point to this alternator.
What is included?
One new 12-volt, 51 amp alternator, ready to fit.
How do I know my old alternator has failed?
Common signs are a dashboard charge warning light, dimming or flickering lights, a weak or dead battery despite the engine running, or a whining/growling noise from the unit.
What type of regulator does this unit use?
An internal regulator (IR) of the 105-152 field diode type, matching the original specification.
