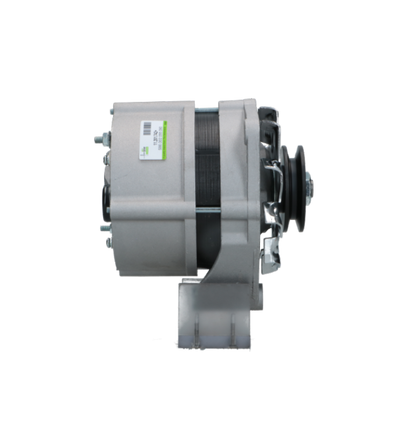

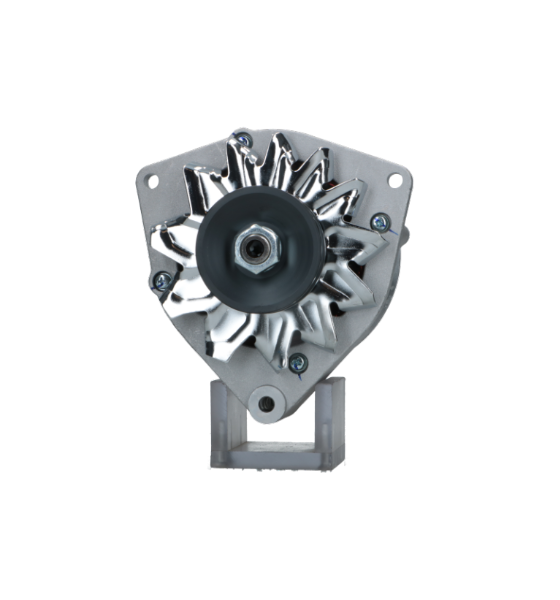

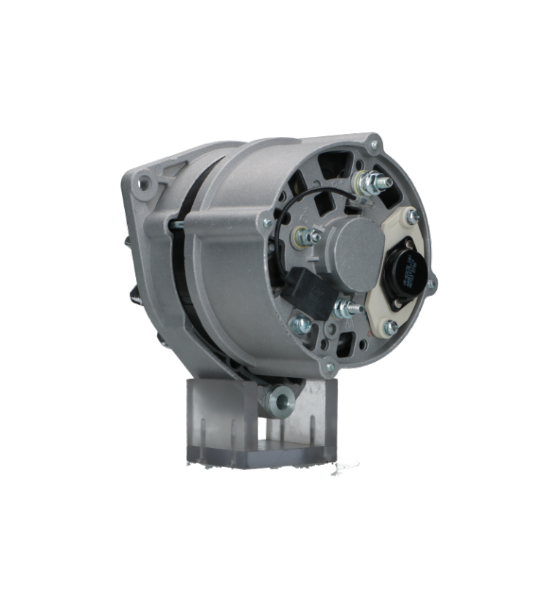

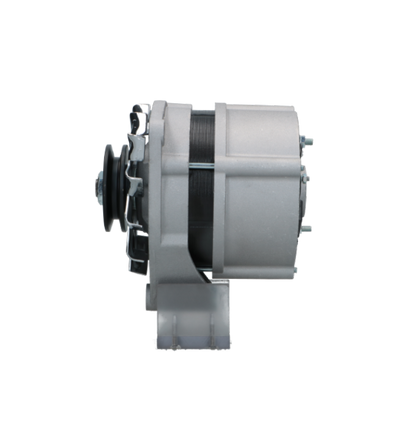

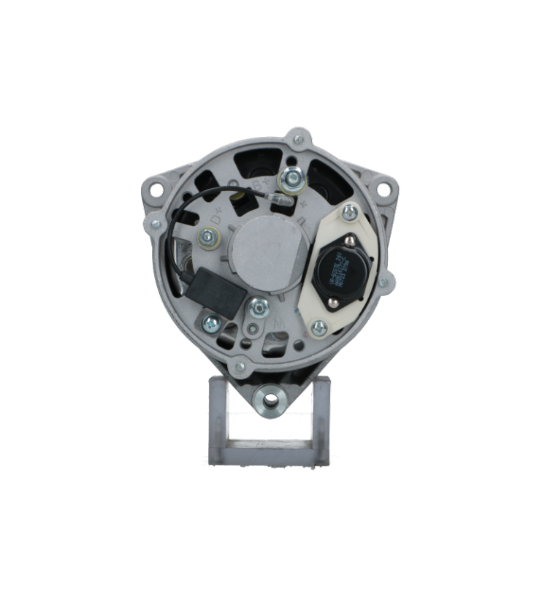

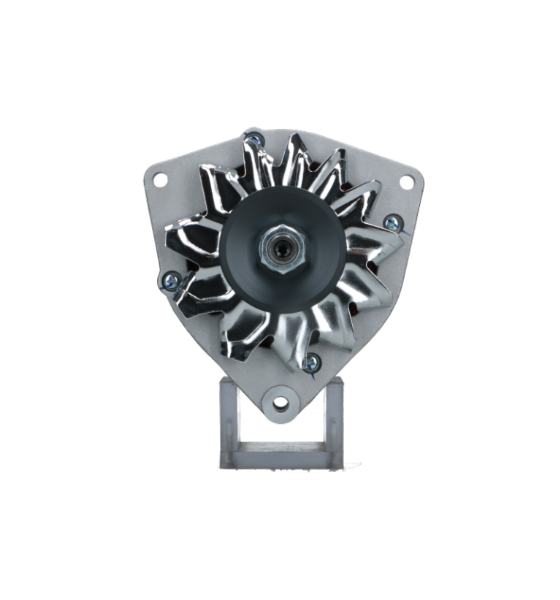

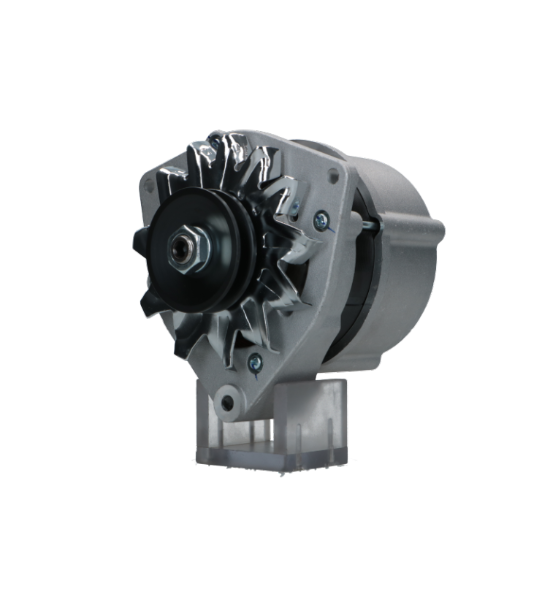

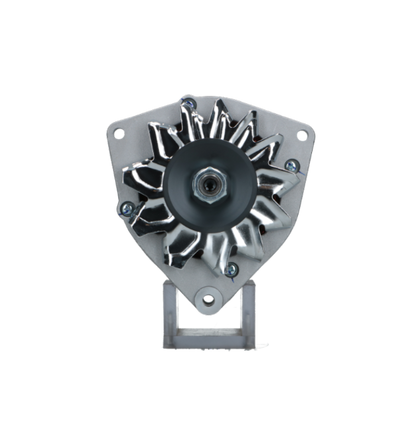

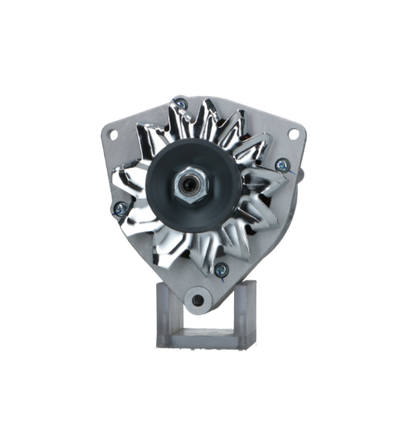

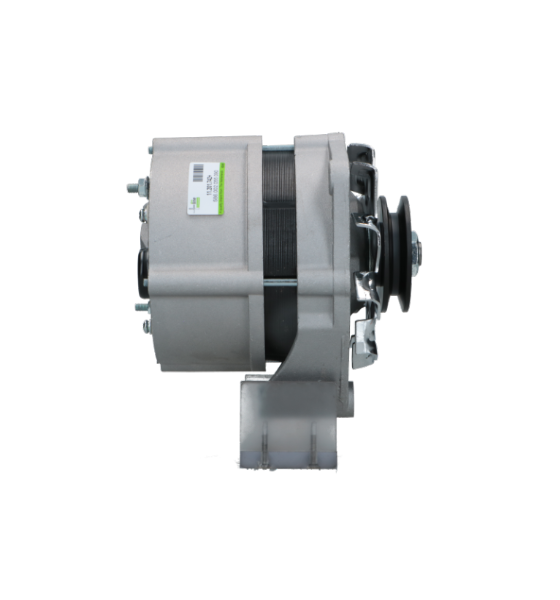

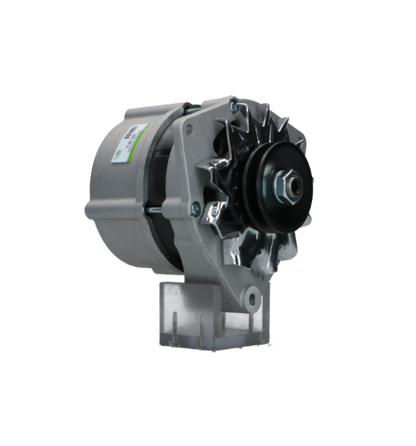

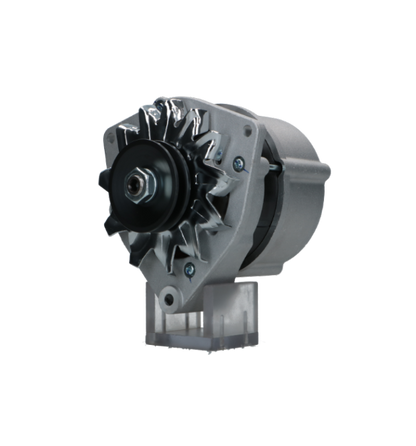

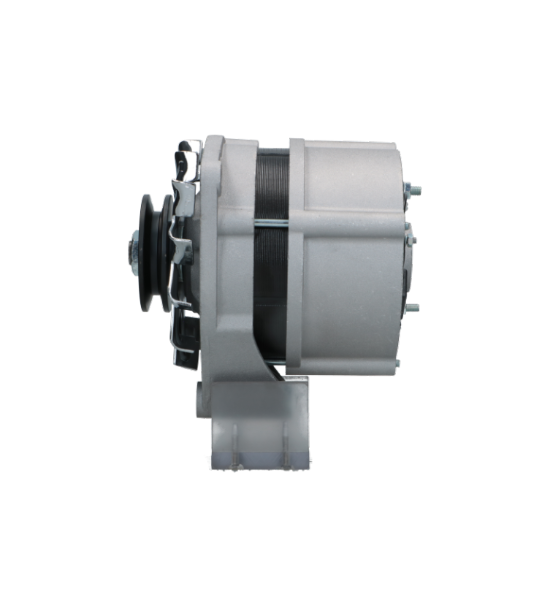

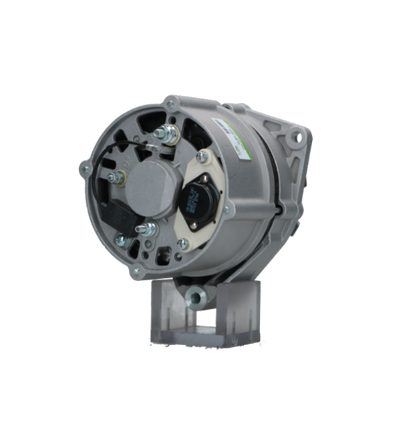

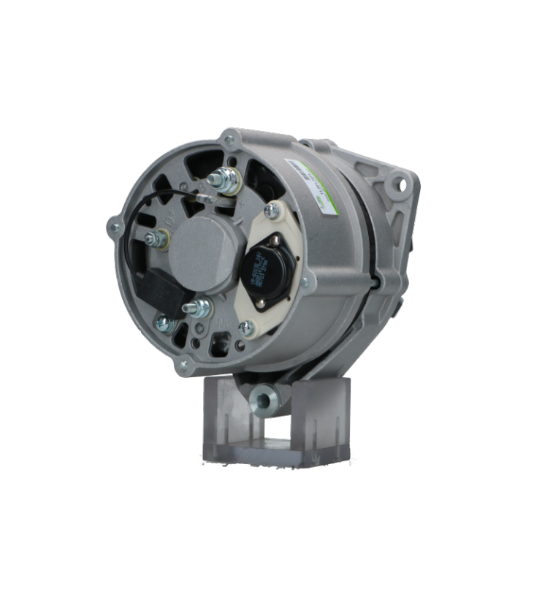

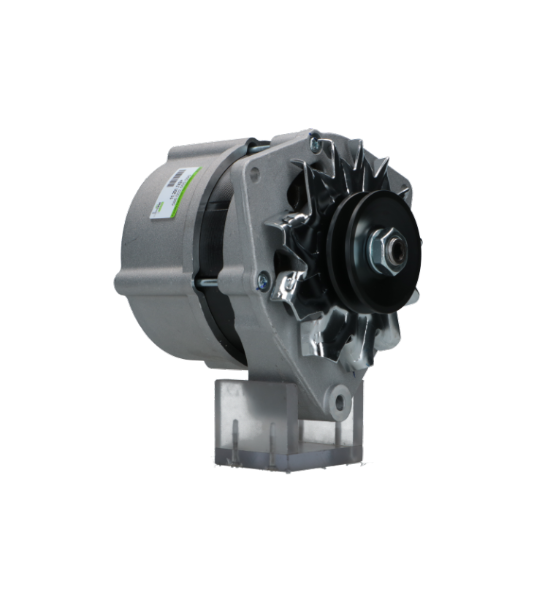

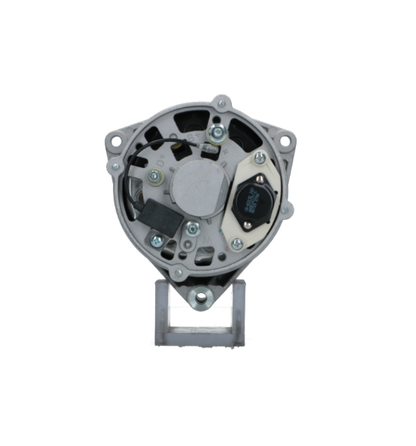

This high-performance 24V 55A alternator is a precision-engineered replacement for the PSH 586.002.055.090. Designed for heavy-duty industrial machinery and marine environments, it provides reliable power delivery to your battery and electrical systems under demanding conditions.
RELIABILITY: Built to meet or exceed OEM specifications, featuring high-quality internal components for extended service life in agricultural and marine applications.
Key Features
✔ Direct fit for 24V electrical systems
✔ 55 Amp high-output performance
✔ Triple-bore mounting for secure installation
✔ Corrosion-resistant finish for marine use
Technical Specs
Voltage
24V
Amperage
55A
Pulley Diameter
73.0 mm
Grooves
1 (Single V-Belt)
Mounting Points
3 Bores
Mounting Angle
60°
Terminal
B+ (M6)
Compatibility / Fitment Guide
Make / System
Model / Application
Engine Notes
Vetus Marine
BF4M / BF6M series
Various Marine Diesel
Case
800, 3944, 3945, 3960
D246, D268, D179 Engines
Ahlmann
Engine 5.7
F6L912 Deutz Engine
Deutz
Industrial Applications
912 / 1011 / 1012 Series
OEM Cross Reference
Mahle
MG245, 72735244
Letrika / Iskra
11.201.742, AAK1381, IA0742
AS-PL
A9209
WAI / Wilson
11677N, 90-23-6531N
PSH
586.002.055.090, 586002055090
Questions & Answers
Is this a genuine original part?
This is a premium quality +Line aftermarket replacement part, manufactured by BV PSH to meet or exceed original equipment (OE) standards for industrial and marine applications.
How do I know if it is compatible?
We recommend checking your current alternator for the 586.002.055.090 or Mahle MG245 numbers. If your unit is 24V with a 73mm pulley and 3-bore mounting, this is the correct replacement.
Can this be used in a marine environment?
Yes, this unit is widely used in Vetus Marine engines and is built to withstand the rigorous demands of marine charging systems.
Note: 4Drive recommends professional installation for all electrical components. Please verify your original part number against the references above before purchasing.
