Alternator for Volvo Penta Marine 3.0L-8.1L Engines 2000-2007 12V 75A
Alternator for Volvo Penta Marine 3.0L-8.1L Engines 2000-2007 12V 75A
SKU:400-40057
Free shipping over £150. Terms apply
Couldn't load pickup availability

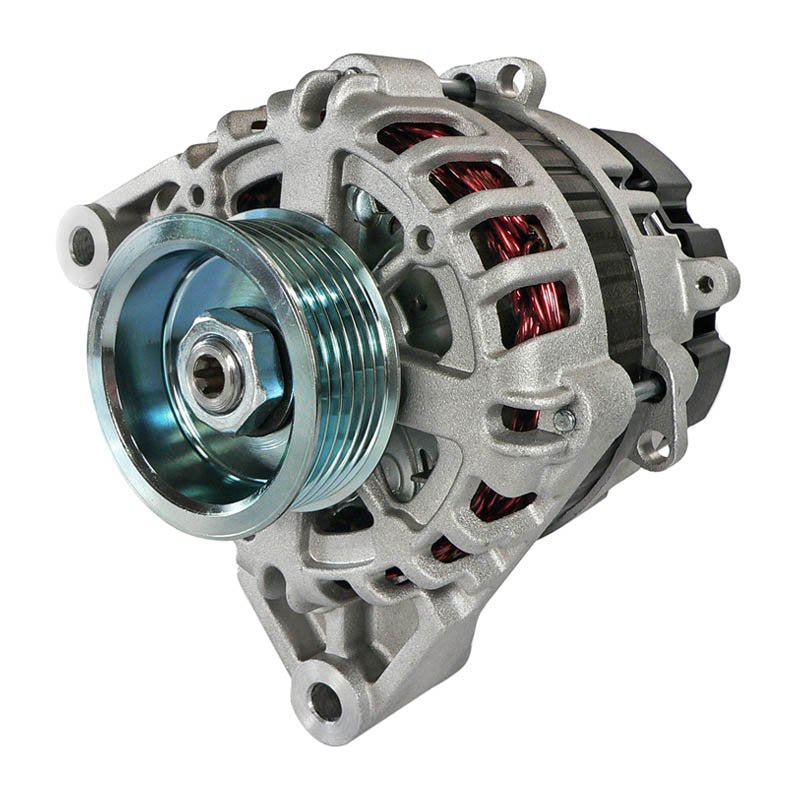

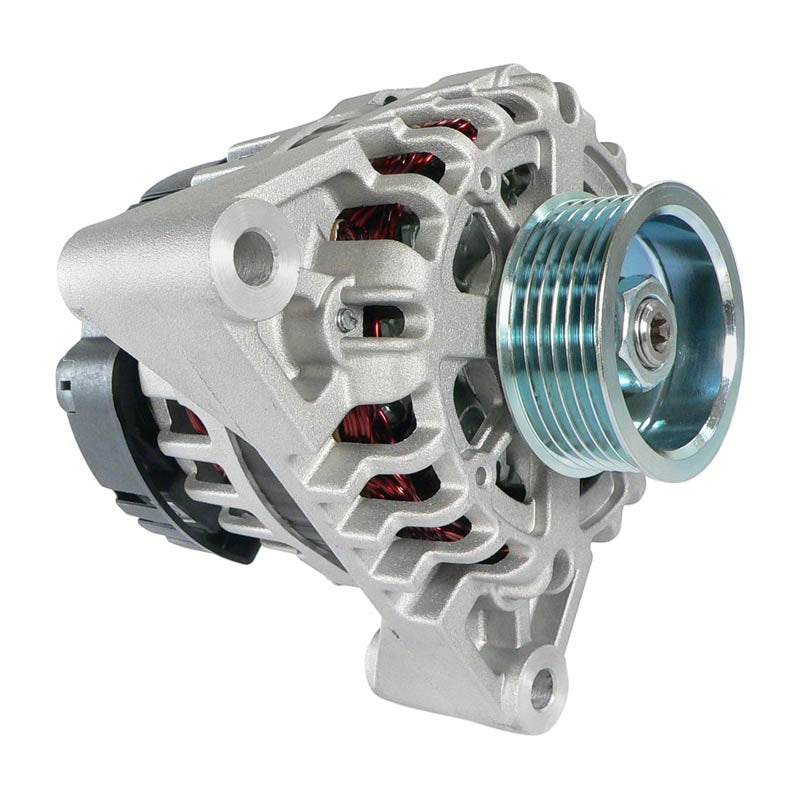

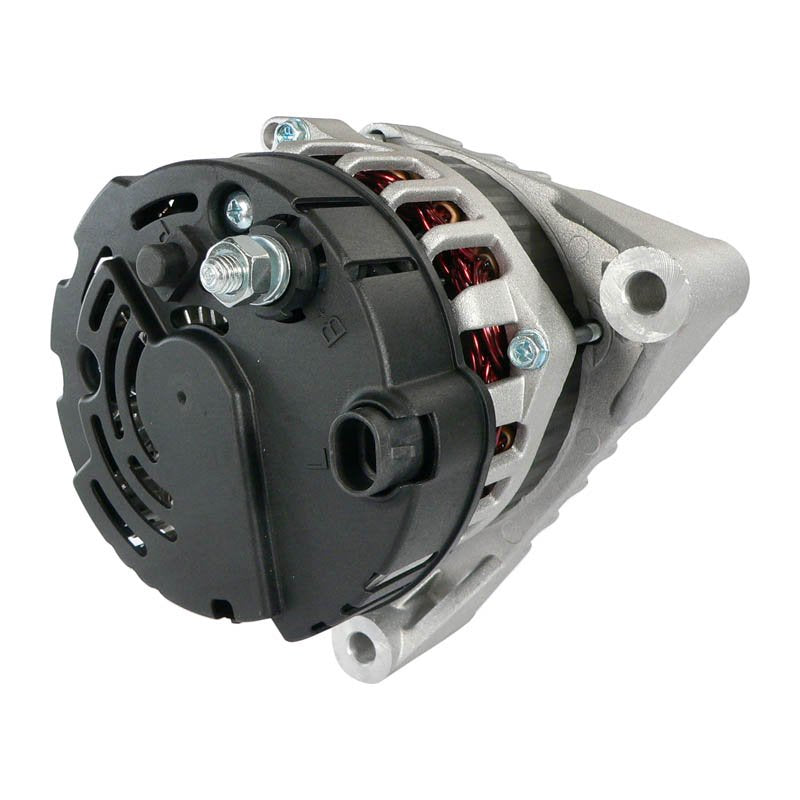

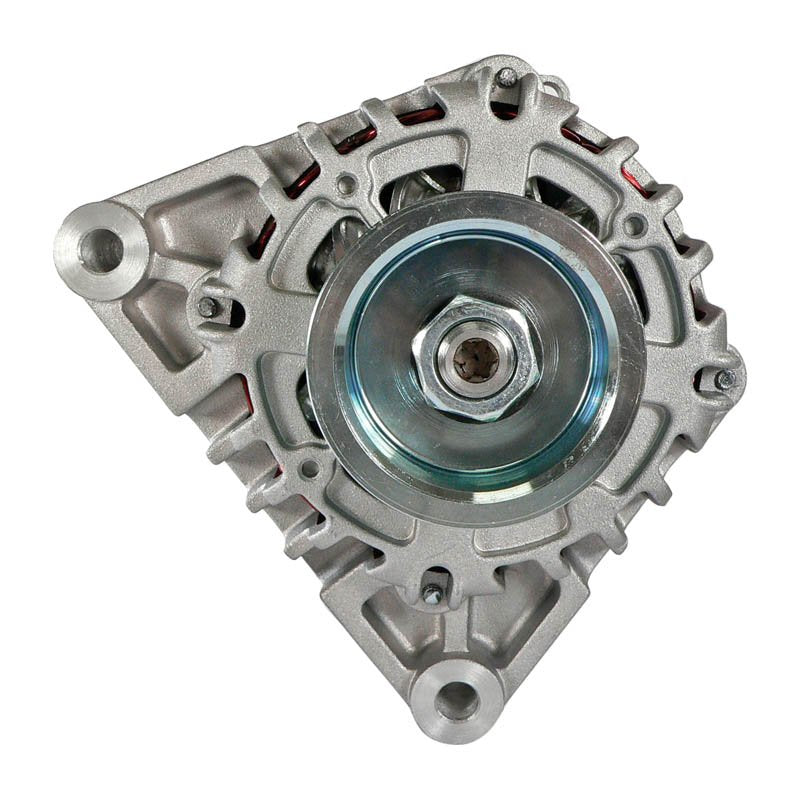

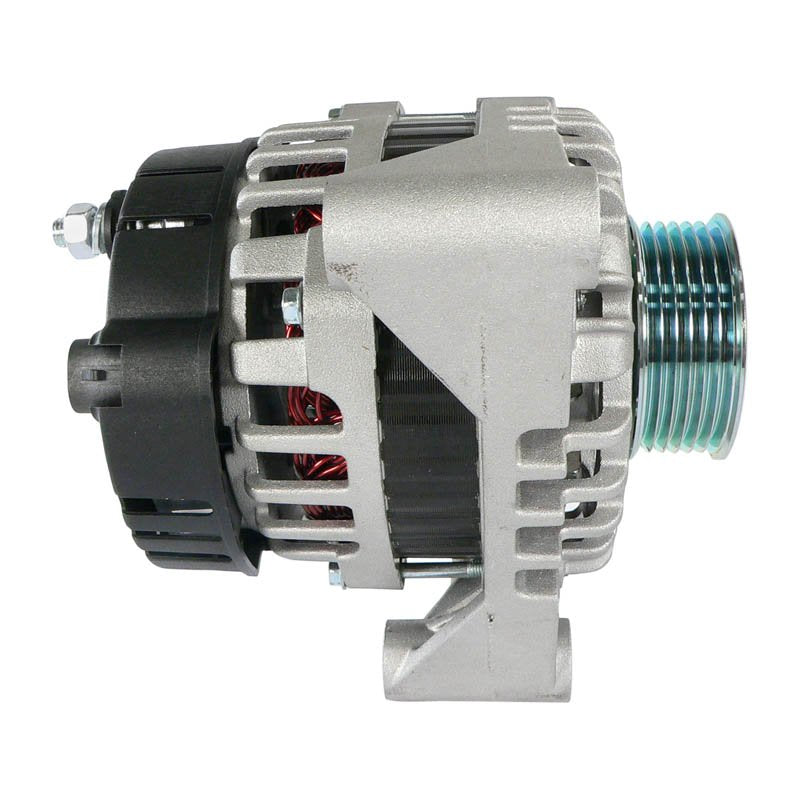

Alternator for Volvo Penta Marine 3.0L-8.1L Engines 2000-2007
12-Volt 75 Amp - Volvo Penta 3.0GLM to 8.1 OSi and IPS500G
This alternator is built to OEM specifications as a direct fit-and-function replacement for Volvo Penta marine petrol engines from 2000 to 2007, covering the 3.0GLM and 3.0GLP four-cylinder units through to the 4.3, 5.0, 5.7 and 8.1 litre V-engines and the IPS500G. It mounts onto the original brackets using the factory 6-groove pulley.
It is a 12-volt, 75-amp unit with an internal regulator (IR) at the 3 o'clock clock position and an internal fan (IF), fitted with a 6-groove pulley and the factory L-D (light-dummy) plug, with the P-terminal spade covered by a plastic cap as standard. It is negative earth and uses unthreaded mounting holes with a 50.9mm ear thickness. Fitting follows the same steps as removing and refitting the original unit, using a standard socket set - no special tools or wiring changes are needed.
Key Features
- 12-volt, 75-amp output
- 6-groove pulley, 60mm OD
- Internal regulator (IR), internal fan (IF)
- L-D (light-dummy) plug wiring
- Negative earth, unthreaded mounting holes
- Direct OEM fit across the Volvo Penta 3.0L-8.1L petrol range
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 75A |
| Pulley Type | S6, 6-groove, 60mm OD |
| Plug Type | L-D (Light-Dummy) |
| Fan Type | Internal (IF) |
| Regulator | Internal (IR), 3 o'clock clock position |
| Mounting | Unthreaded holes, 50.9mm ear thickness |
| Polarity | Negative earth |
| Manufacturer Reference | Lester 12673 / Arrowhead AVA0120 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Volvo Penta 3.0GLM, 3.0GLP | 2000-2007 |
| Volvo Penta 4.3GXi | 2000-2007 |
| Volvo Penta 5.0GL | 2000-2007 |
| Volvo Penta 5.7Gi, 5.7GiL, 5.7GXi, 5.7GXiL, 5.7OSi, 5.7OSXi | 2000-2007 |
| Volvo Penta 8.1Gi, 8.1GiL, 8.1GXi, 8.1GXiL, 8.1OSi | 2000-2007 |
| Volvo Penta IPS500G | 2000-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3862613 | Volvo Penta |
| 2655301, 425302, 600114, A0002655301 | Valeo |
| LRA03018 | Lucas Electric |
| AVA0120 | Arrowhead |
| 4-6847 | EMP |
| 12673 | Lester |
Frequently Asked Questions
Will this alternator fit without modification?
Yes, it replicates the original mounting, pulley size and plug configuration, so it fits without modification.
What's included?
One new alternator unit with the 6-groove pulley fitted, ready to install.
How do I confirm this is the right unit for my engine?
Check the Volvo Penta number 3862613 or the Valeo numbers 2655301, 425302, 600114 and A0002655301 against the tag on your original alternator, or match the Lester 12673 reference.
How do I know my old alternator has failed?
Warning signs include a battery that won't hold charge, a lit charge warning light, or dimming lights at idle.
Is the P-terminal covered?
Yes, the P-terminal spade is covered with a plastic cap as it is on the original unit.
