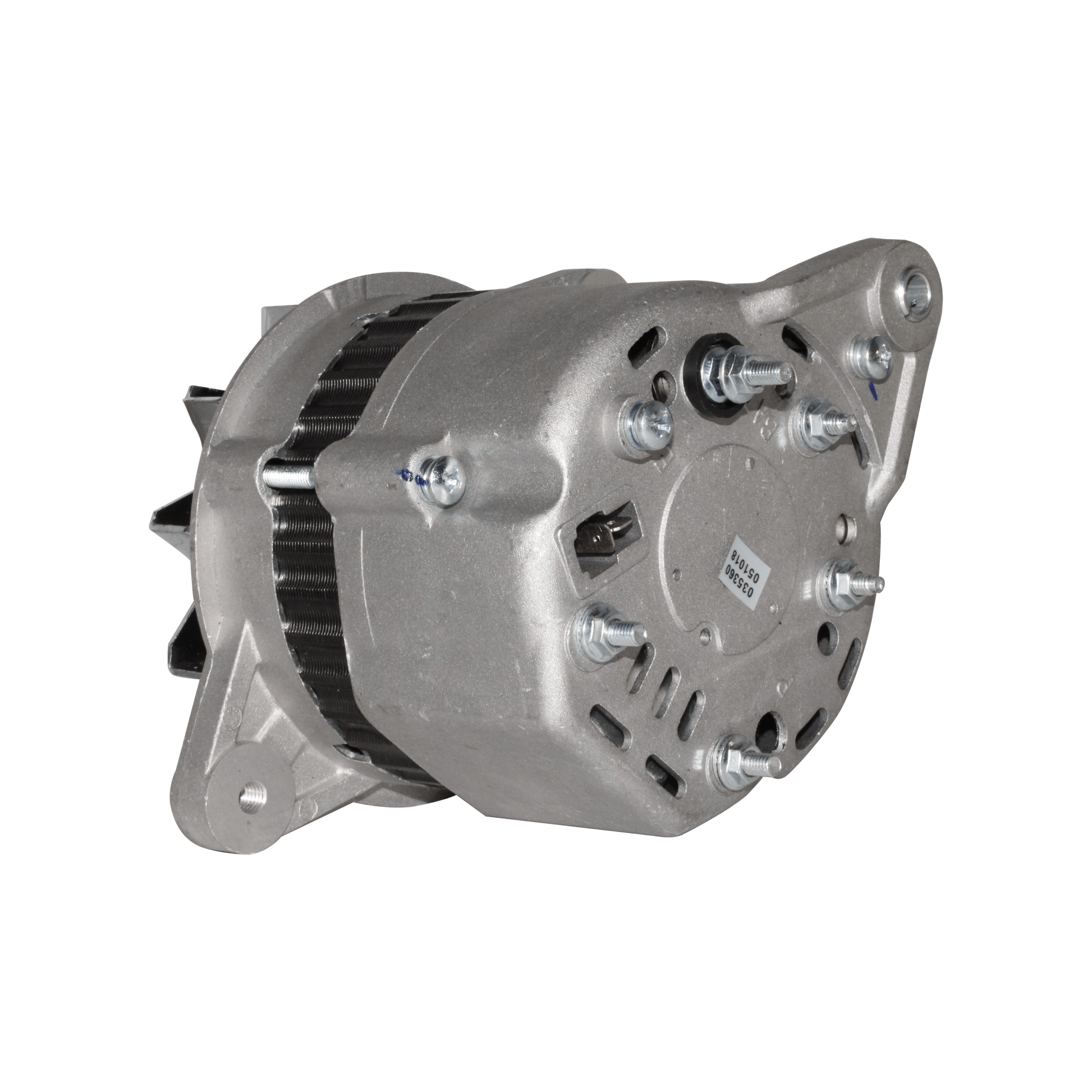

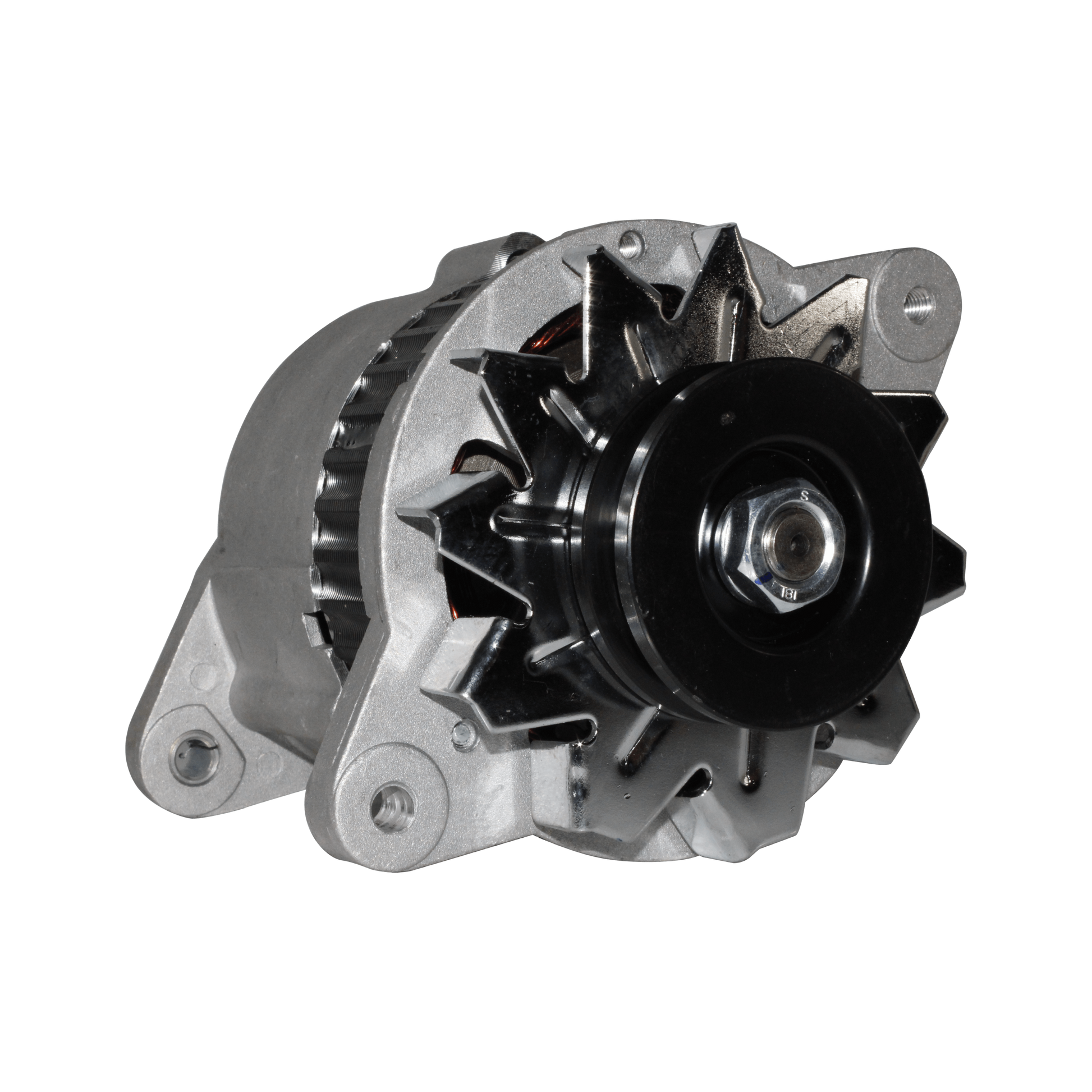

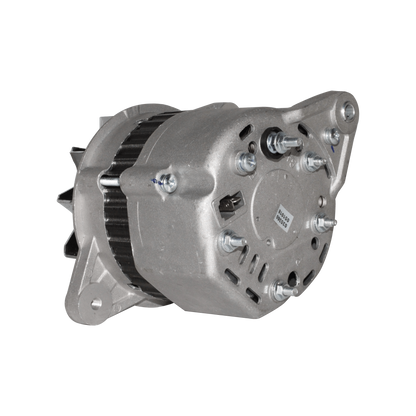

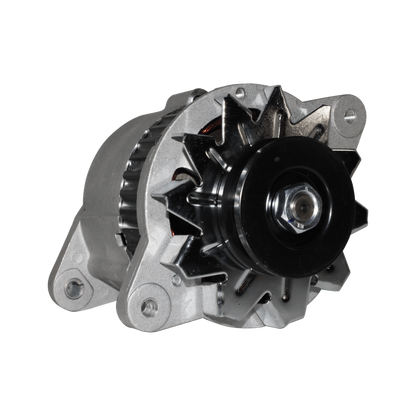

Alternator for Yanmar Marine & Industrial Diesel Engines
1GM, 2GM, 3GM, 3HM, 3JH, 4JH series - 12V 35A IR/EF
This alternator is built to OEM specifications as a direct fit-and-function replacement for the Hitachi LR135-105 unit fitted to Yanmar marine and industrial diesel engines, covering the 1GM, 2GM, 3GM, 3HM, 3JH and 4JH families from the late 1970s through to the early 2000s. It bolts onto the original mounting points with no modification required.
It is a 12-volt, 35-amp unit with an internal regulator (IR) and external fan (EF), turning clockwise on a single-groove (V1) pulley, exactly as the factory unit. It replaces Yanmar 128270-77200 and is the equivalent of Sierra Marine 18-6284 and Arco Marine 84135.
Key Features
- 12-volt, 35-amp output
- Internal regulator (IR), external fan (EF)
- Clockwise (CW) rotation, V1 single-groove pulley
- Covers Yanmar 1GM to 4JH3 marine and industrial engines
- Replaces Yanmar 128270-77200 and Hitachi LR135-105
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 35A |
| Rotation | Clockwise (CW) |
| Regulator | Internal (IR) |
| Fan Type | External (EF) |
| Pulley | V1 (single groove) |
| Unit Type | Hitachi-type alternator |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yanmar 2QM15 | 1977-1980 |
| Yanmar 1GM, 1GM10 | 1980-1984 |
| Yanmar 2GM, 2GMF | 1980-1984 |
| Yanmar 3GM, 3HM, 3HMF | 1980-1984 |
| Yanmar 3JH2, 3JH3 series | 1991-2003 |
| Yanmar 4JH, 4JH2L-HTNE, 4JH3, 4JH3ZA series | 1982-2003 |
| Yanmar 4GM, 4TD, 4TM, KM2A | All years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 128270-77200 | Yanmar |
| LR135-105 | Hitachi |
| LRA01191 | Lucas Electrical |
| 18-6284 | Sierra Marine |
| 84135 | Arco Marine |
| 12109 | Lester |
| AHI0060, 400-44041 | Arrowhead / J&N |
Frequently Asked Questions
Will this alternator fit without modification?
Yes, it is a direct OEM-spec replacement matching the original mounting, pulley and output of the Yanmar unit.
Is it suitable for marine use?
It is the standard replacement for the alternator supplied on Yanmar GM, HM, JH and JH2 marine diesels, and cross references to Sierra Marine 18-6284 and Arco Marine 84135.
What's included?
One new alternator unit, ready to fit.
How do I know my old alternator has failed?
Signs include a battery that won't hold charge, a charge warning light, or dimming lights at idle.
