Stator and Regulator Rectifier Kit for Aprilia RSV and Tuono 1000 R
Aprilia RSV 1000 R and Tuono 1000 R 2004-2009 - Part RMS900-106902
This is a complete charging system solution kit for the 2004-2009 Aprilia RSV 1000 R and Tuono 1000 R, built to address the charging faults these models are known for. Rather than replacing one failed component and leaving the other to cook, the kit pairs a redesigned stator that retains less heat with a CNC machined aluminium MOSFET voltage regulator, so both halves of the circuit are renewed at the same time. Both parts are direct replacements for the original units and install plug-and-play, using the standard mounting points and connectors.
The stator generates the AC current and the regulator rectifier converts it to the DC current the battery and electrics run on, while shedding the surplus as heat. On these Aprilias a regulator that is struggling to dump that heat will steadily cook the stator winding, and a failing stator will in turn overload the regulator, which is why replacing only one of the two so often ends in a repeat failure. The aluminium bodied MOSFET regulator in this kit runs cooler and handles up to 50 A or 500 W, and the harness with the matching connector, the stator cover gasket and the three mounting bolts are all supplied so the job can be finished in one go.
Key Features

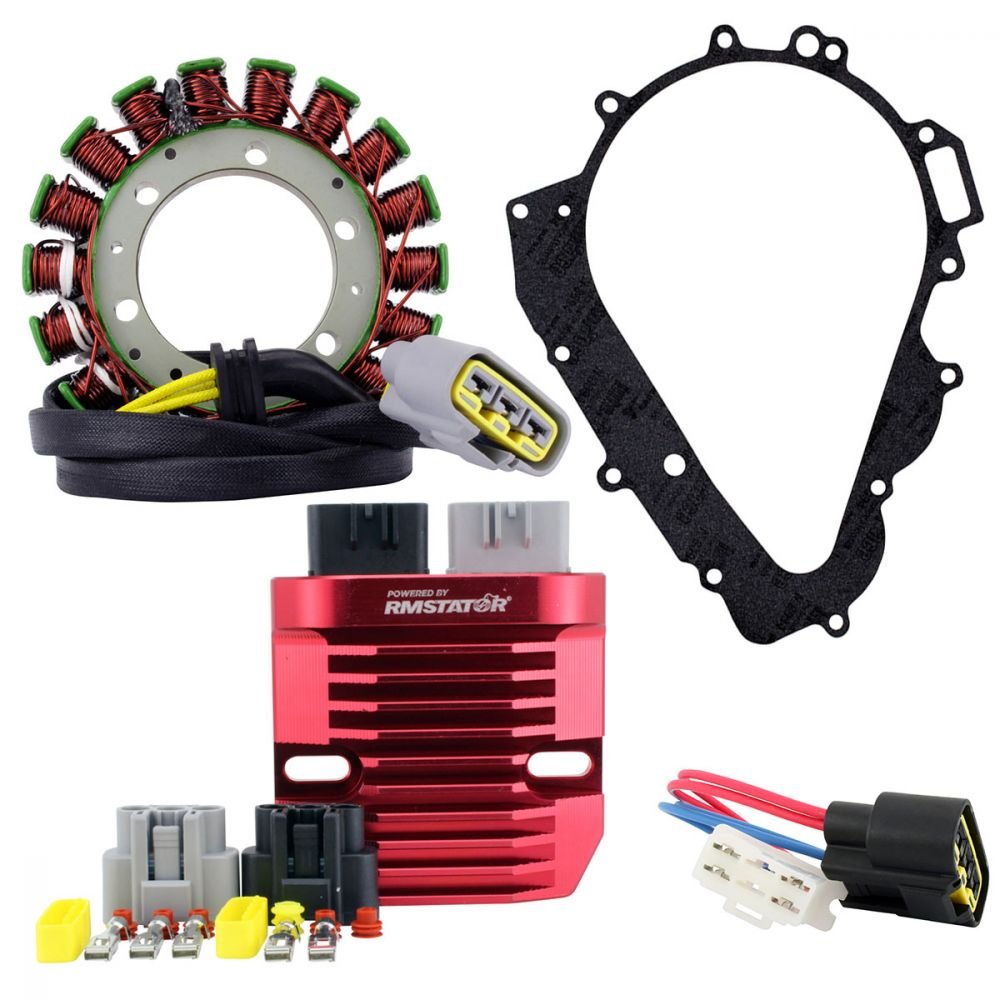

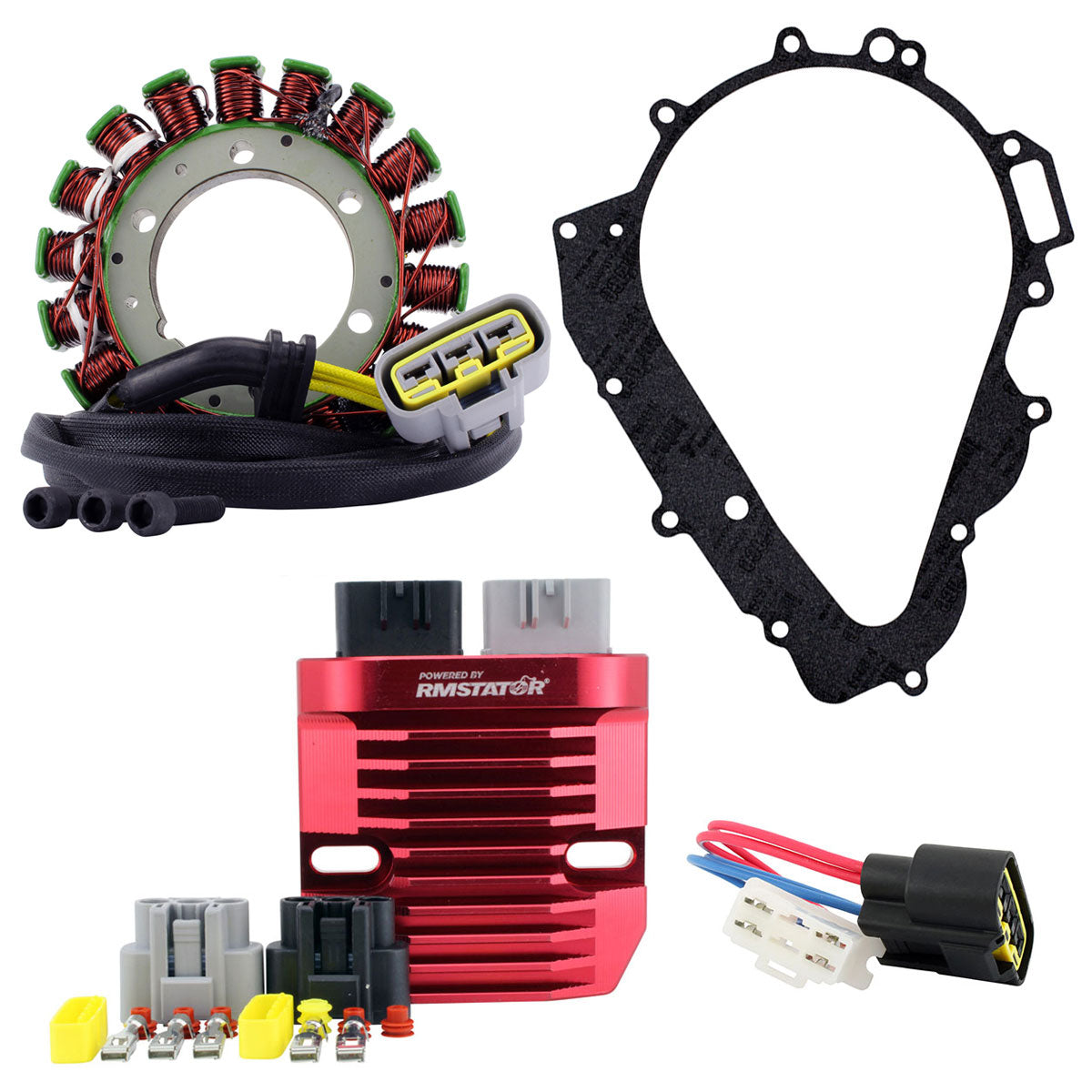

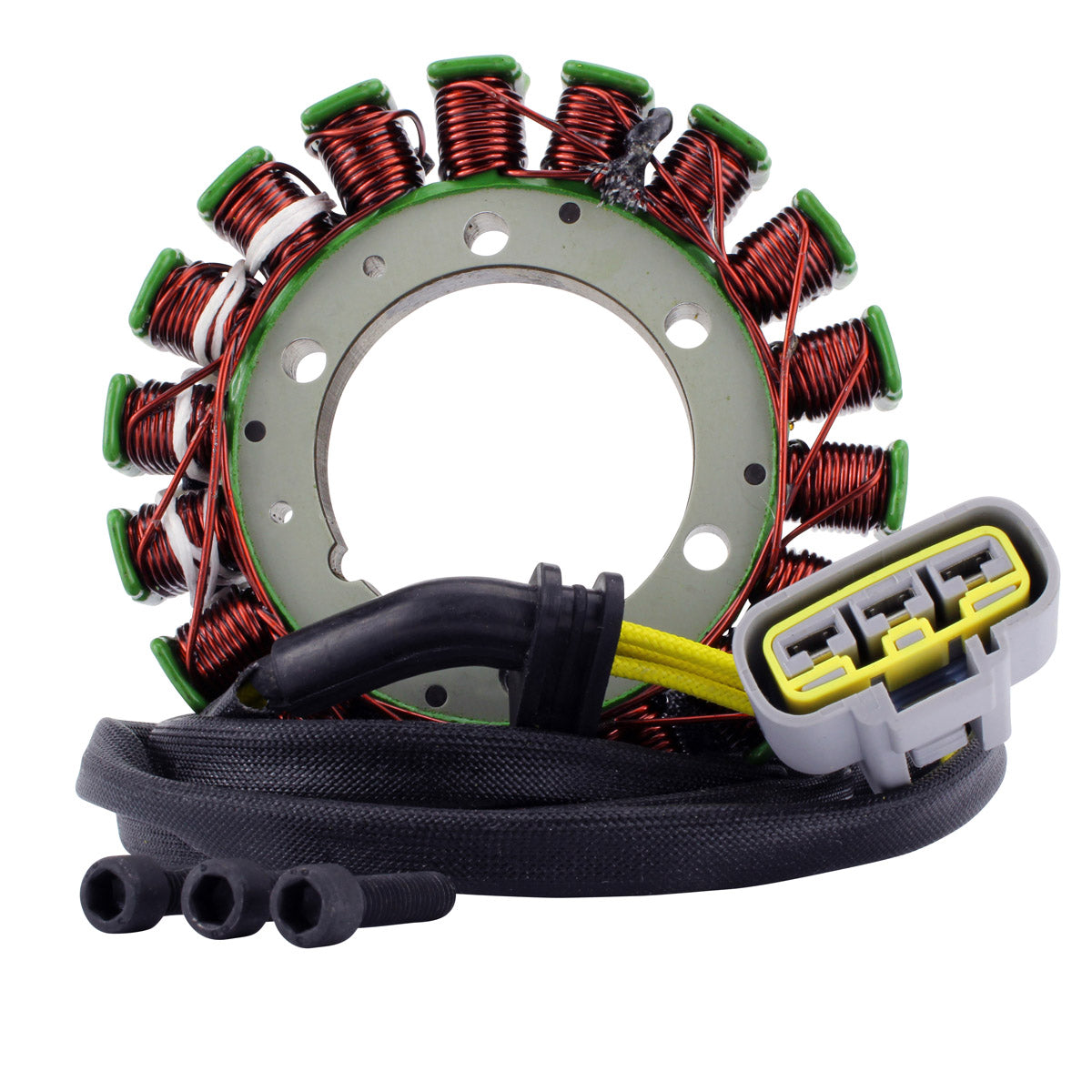

- Complete kit: aftermarket stator plus Aluminum Series MOSFET regulator rectifier
- Direct replacement for the original units, plug-and-play installation

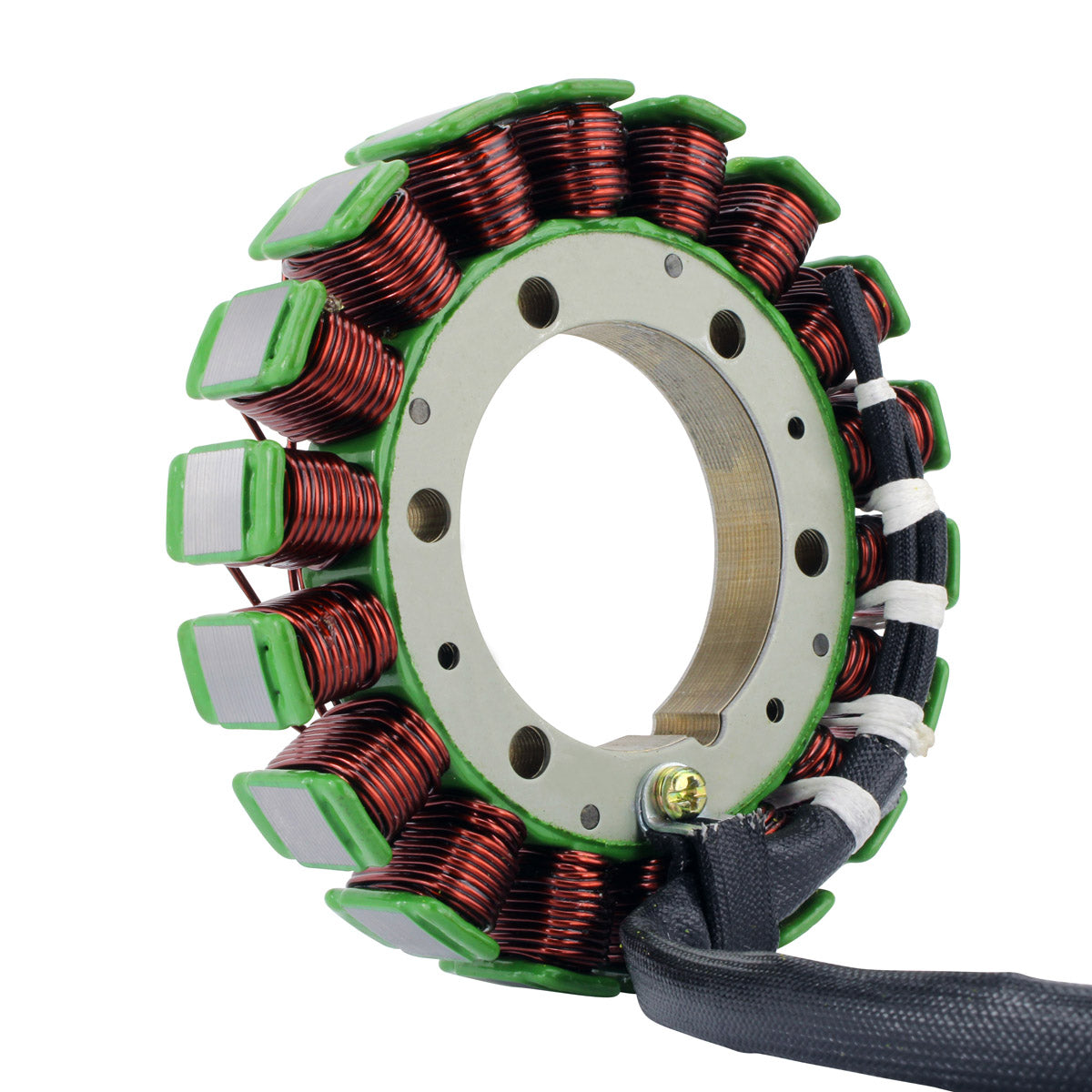

- Redesigned stator with reduced heat retention

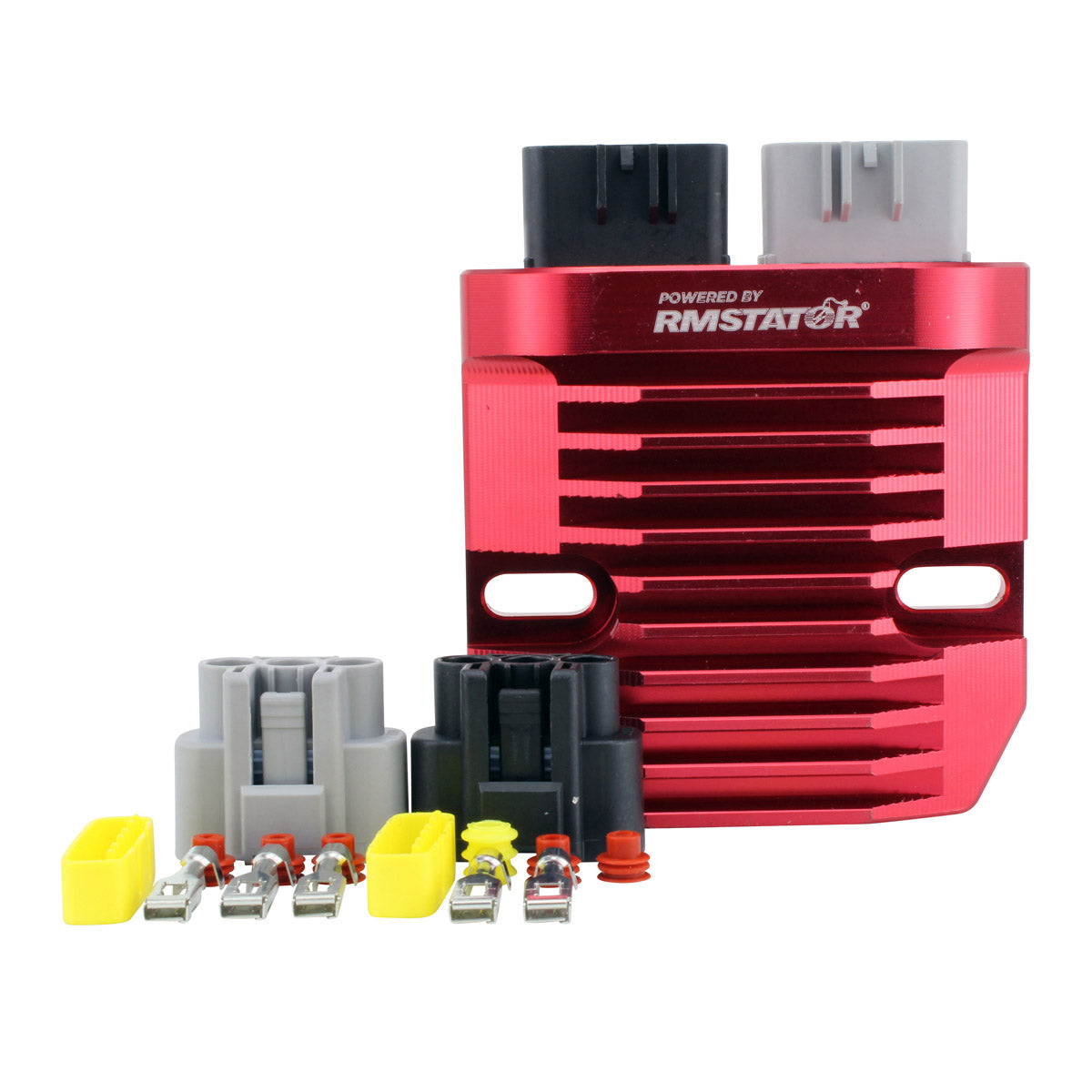

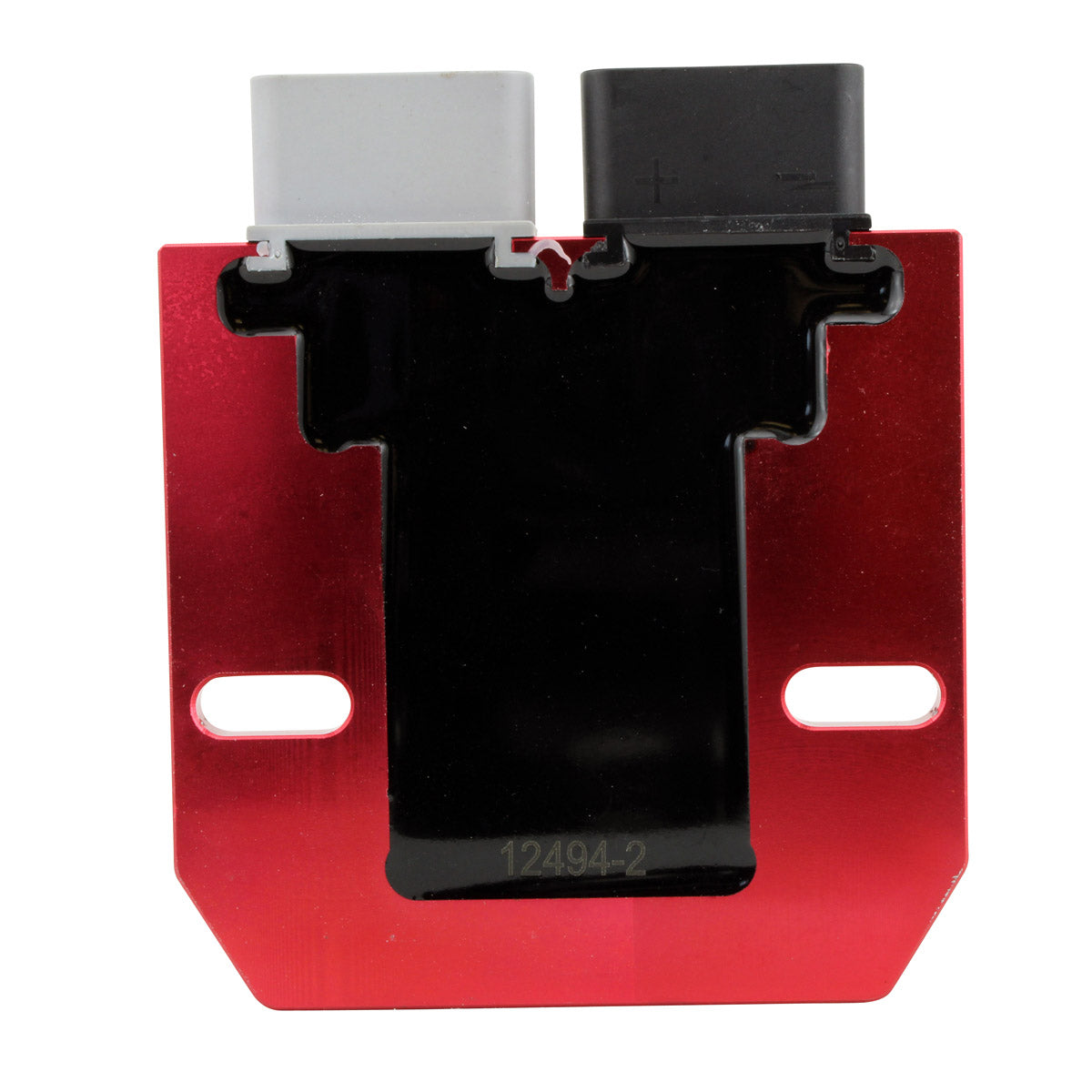

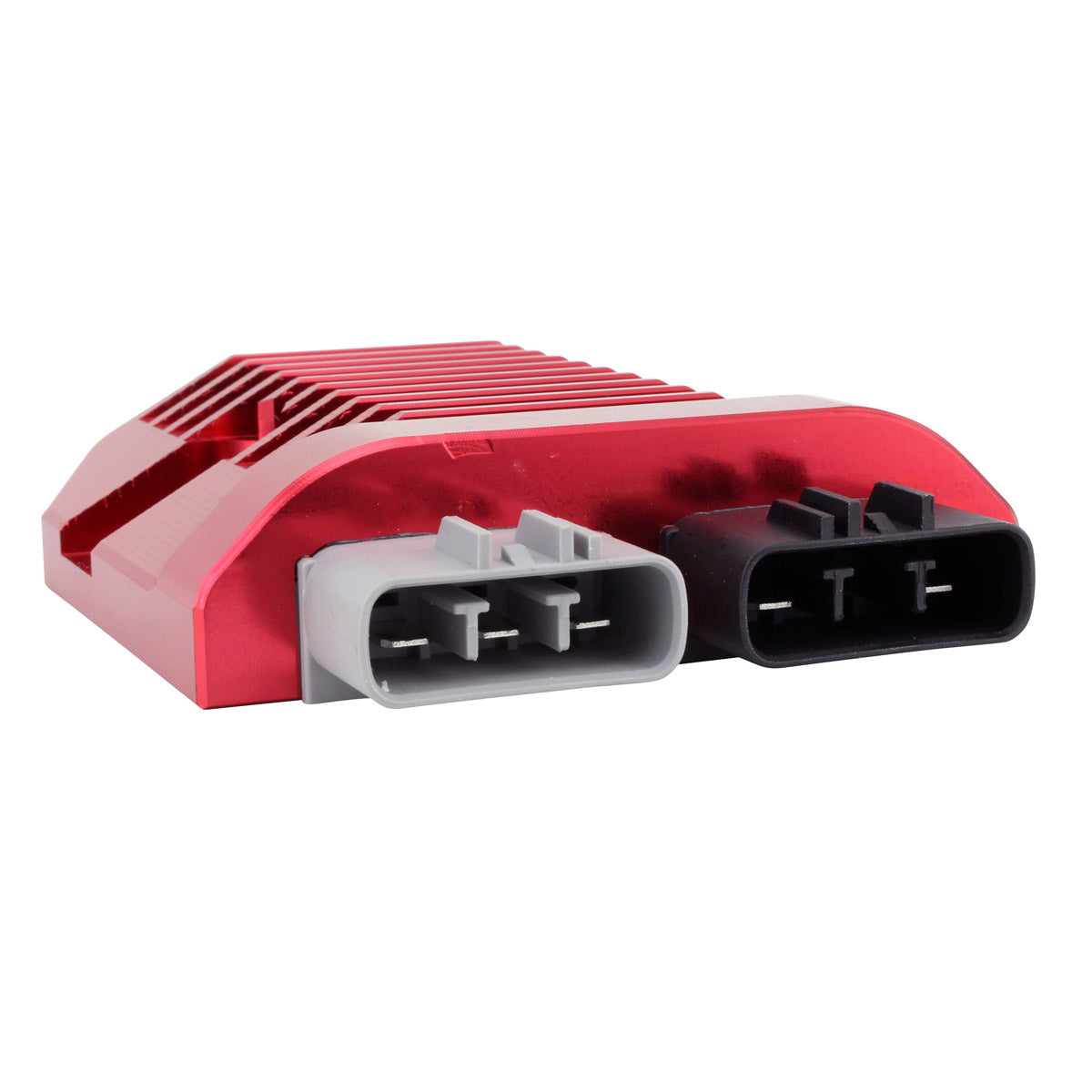

- CNC machined aluminium regulator body for better heat dissipation

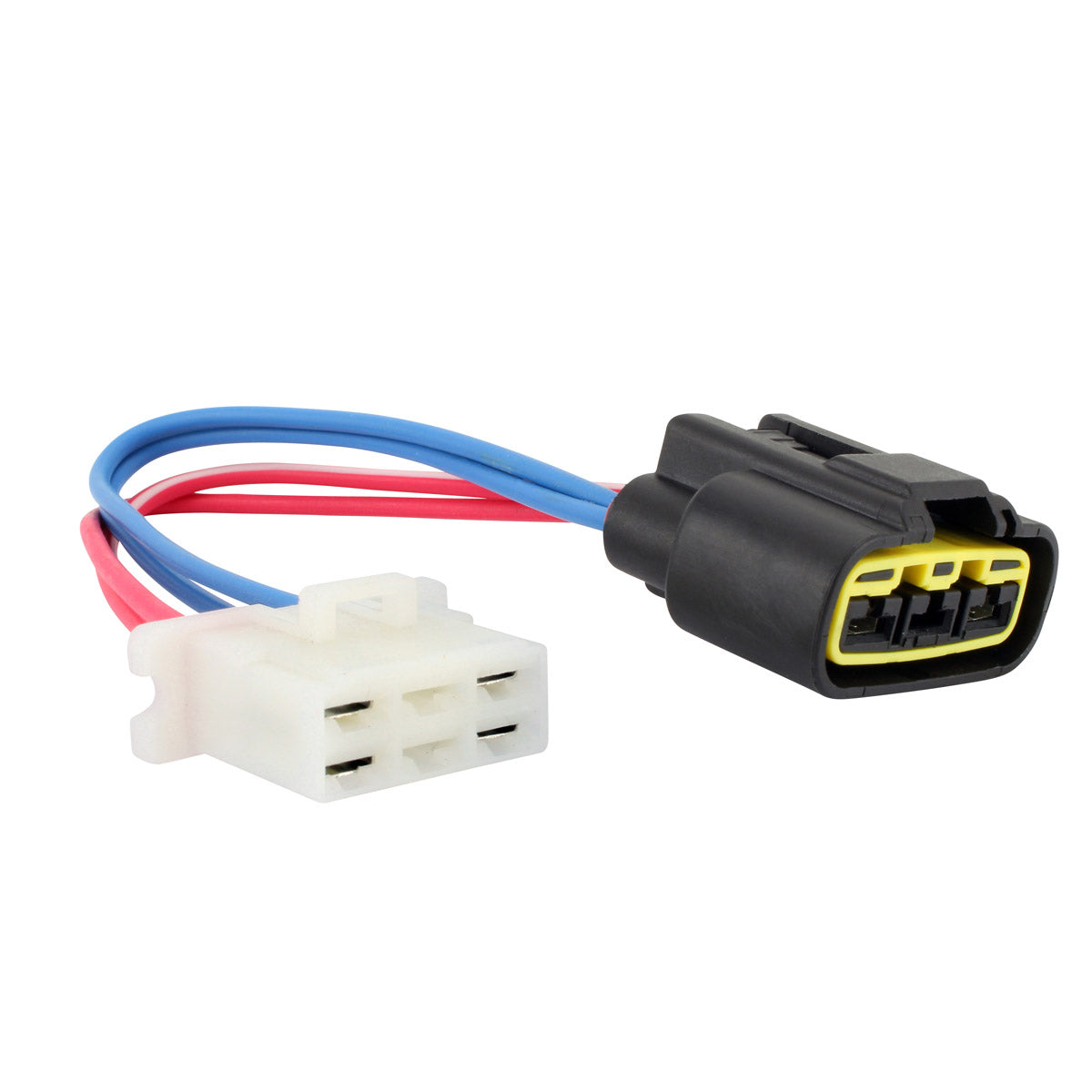

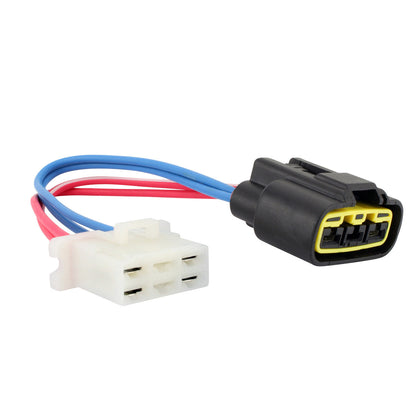

- Harness with the opposite connector included

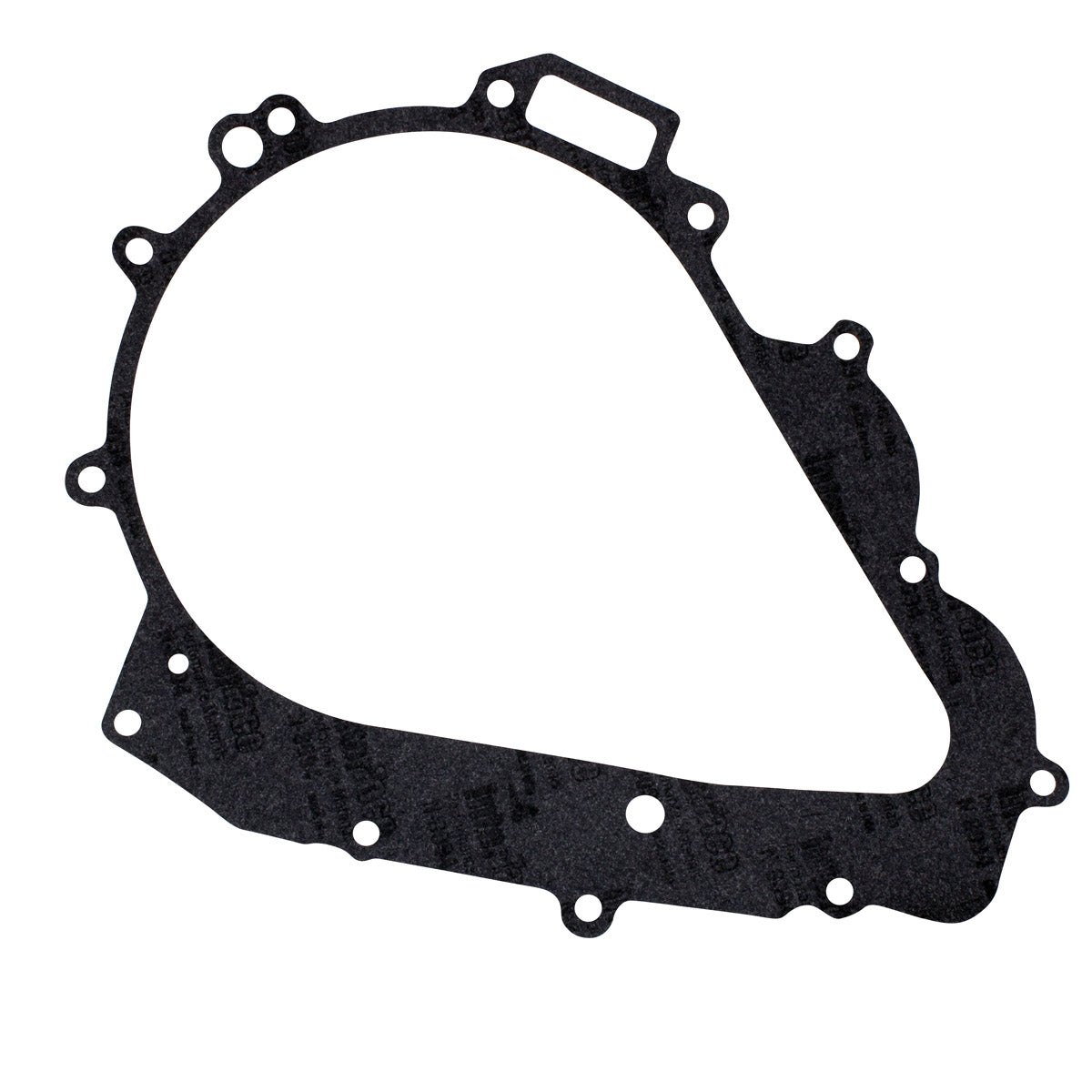

- Stator cover gasket included
- Three M6-1.00 x 30 Allen socket head bolts included

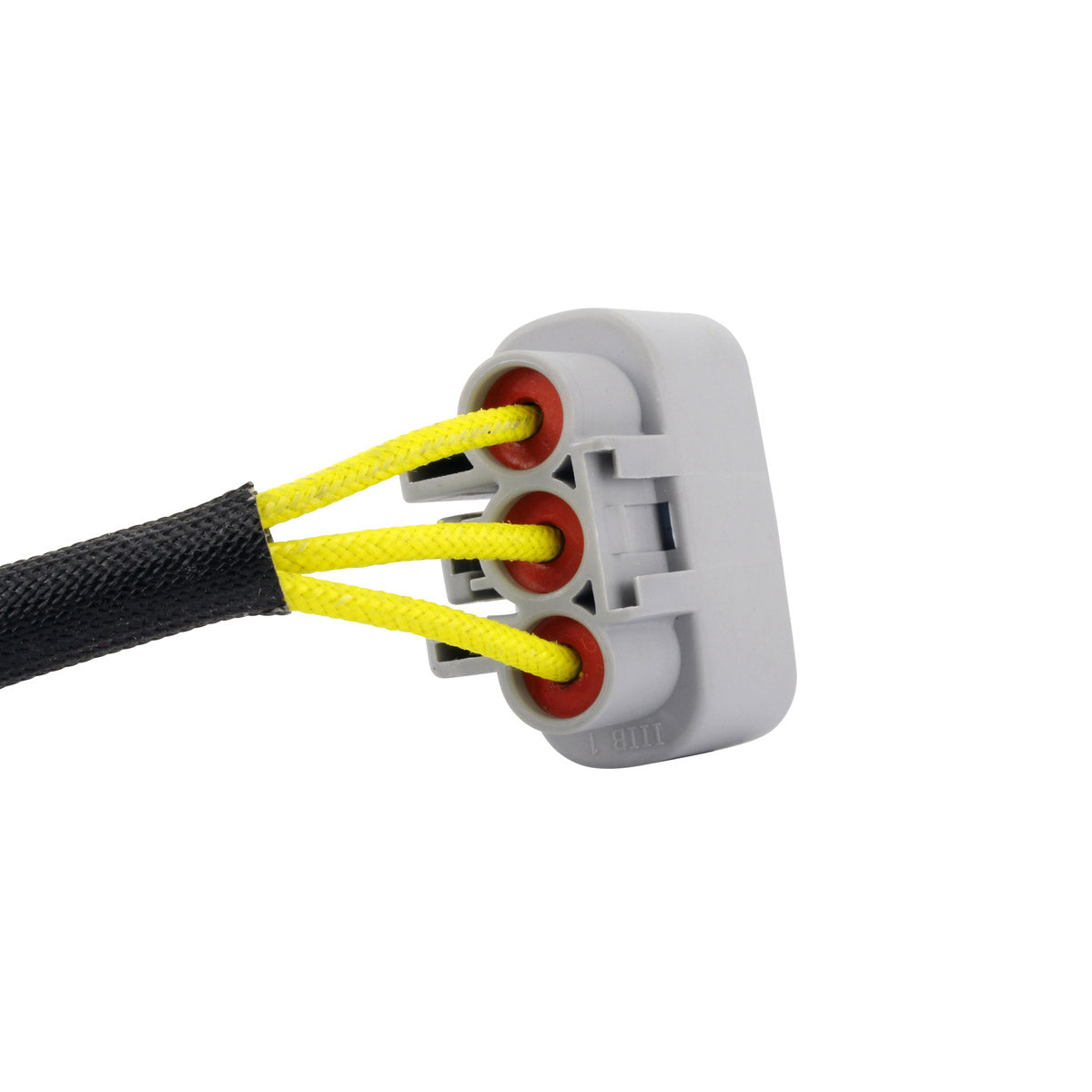

- Eighteen pole stator winding, three wires, single three pin plug
Technical Specs

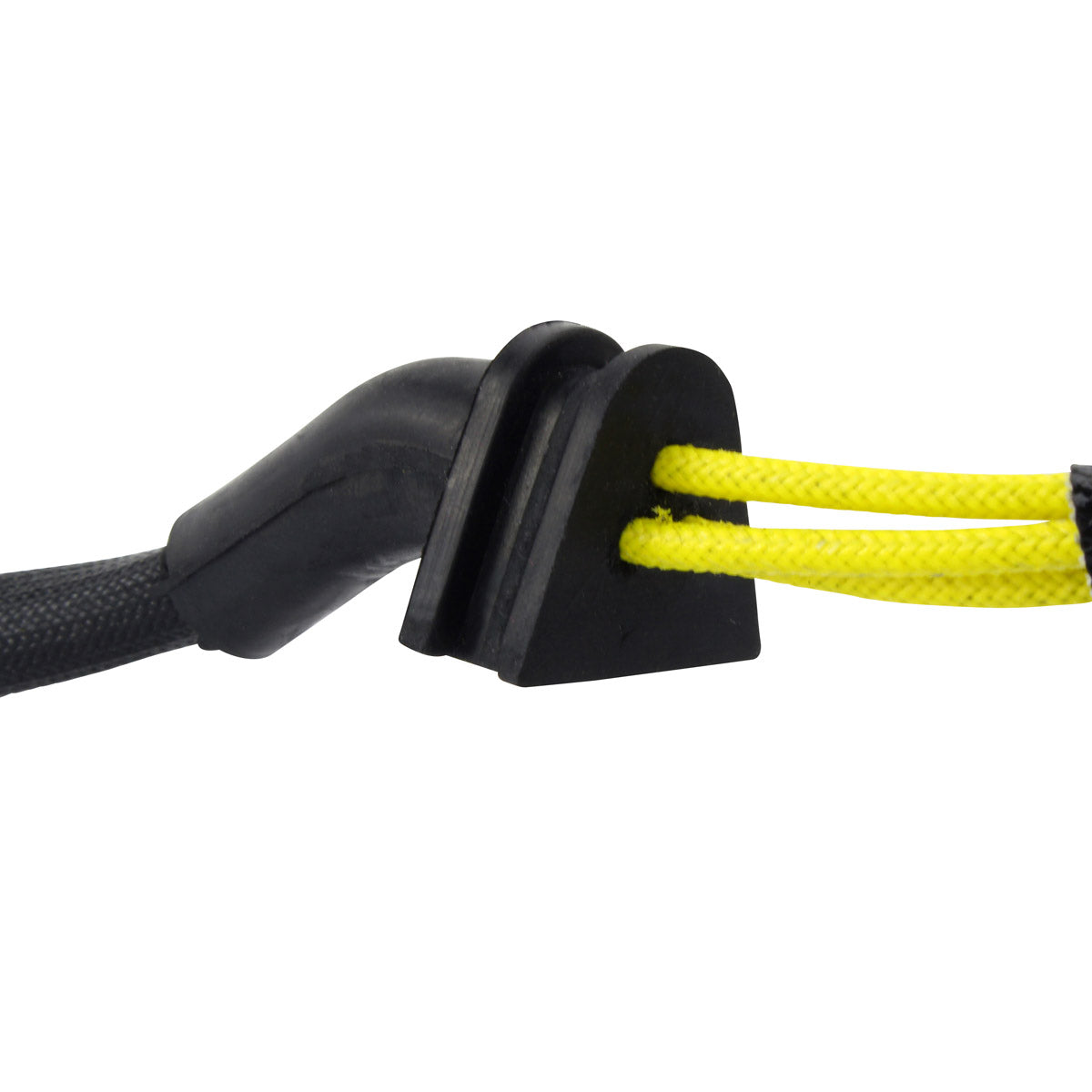

| Specification | Detail |
|---|---|
| Stator interior diameter | 54 mm |
| Stator exterior diameter | 115 mm |
| Stator thickness | 14 mm |
| Stator number of poles | 18 |
| Stator number of wires | 3 |
| Stator number of plugs | 1 |
| Stator number of pins | 3 |
| Length of wires, stator to grommet | 160 mm |
| Length of wires, grommet to plug | 1180 mm |
| Alternator resistance, Yellow to Yellow | 0.8 ohms, plus or minus 20 per cent |
| Pick-up resistance, Green to Blue | 500 ohms, plus or minus 20 per cent |
| Regulator width | 103 mm |
| Regulator length | 103 mm |
| Regulator height | 28 mm |
| Regulator fixation hole distance, centre to centre | 80 mm |
| Regulator number of plugs | 2 |
| Regulator number of pins | 5 |
| Minimum charging voltage | 14.5 V, plus or minus 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Under 15 V |
| Operating temperature | -20 to 85 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Aprilia RSV 1000 R | 2004-2009 |
| Aprilia Tuono 1000 R | 2004-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| AP0685330 | Aprilia |
| AP0650341 (gasket) | Aprilia |
Frequently Asked Questions
Does this kit need any modification to fit?
No. Both the stator and the regulator are direct replacements for the original units and install plug-and-play, using the standard mounting points and connectors. The regulator mounts on 80 mm centres and the harness with the matching connector is supplied in the box.
What is included in the box?

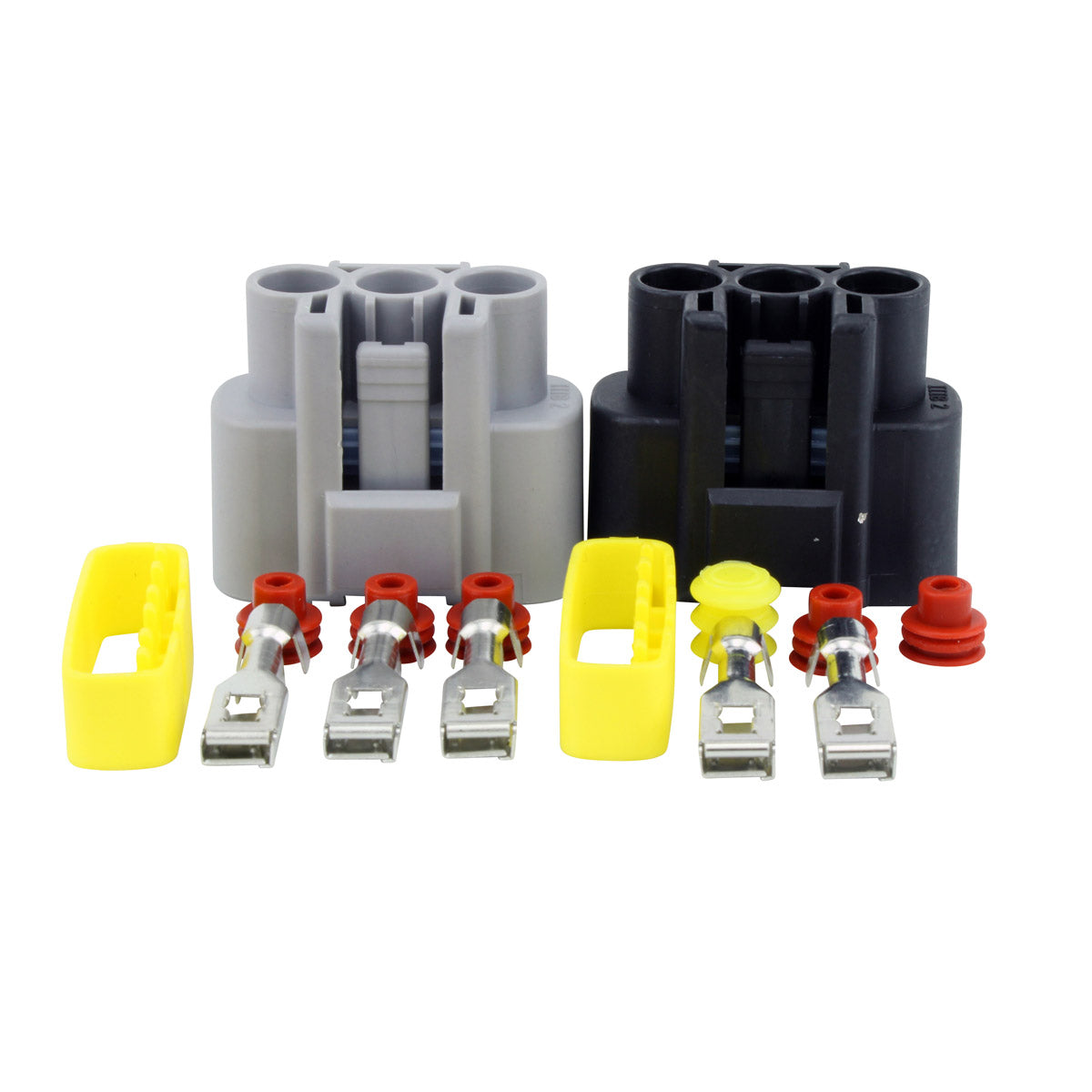

The aftermarket stator, the red machined aluminium MOSFET regulator, a harness with the opposite connector, the stator cover gasket, and three M6-1.00 x 30 Allen socket head bolts.
How do I know the charging system has failed?
A battery that will not hold charge, dim or flickering lights and a bike that dies on a longer ride are the usual signs. With a multimeter, the stator winding should read about 0.8 ohms yellow to yellow and the pick-up about 500 ohms green to blue, both within 20 per cent, and a healthy system should show at least 14.5 V at the battery with the engine running. Readings outside those figures, or a burnt smell and discoloured connectors, point to a failed stator, regulator, or both.
Why replace the stator and the regulator together?
Because on these models the two failures are linked. A regulator that cannot shed its heat will slowly cook the stator winding, and a stator that has partly broken down will overload the regulator, so fitting one new part alongside an ageing one frequently ends in a second failure. This kit renews both halves of the circuit at once, with a stator designed to retain less heat and an aluminium bodied MOSFET regulator that runs cooler than the original.
