Stator for Aprilia RSV 1000 Mille, Tuono and SL 1000 Falco
RSV 1000, RSV Mille R, Tuono and SL 1000 Falco 1998-2005 - RMSTATOR part RM01446 - replaces OEM AP0295830

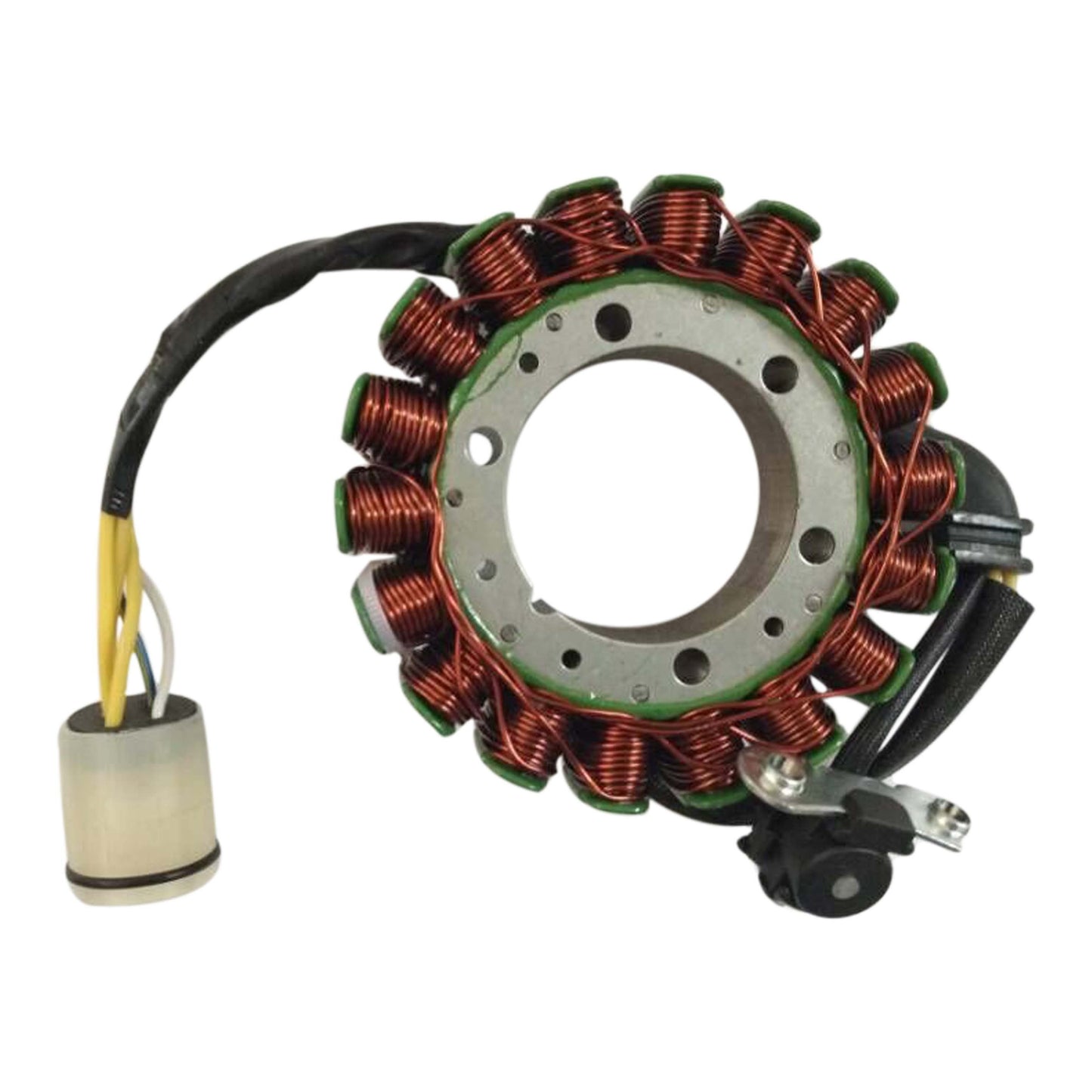

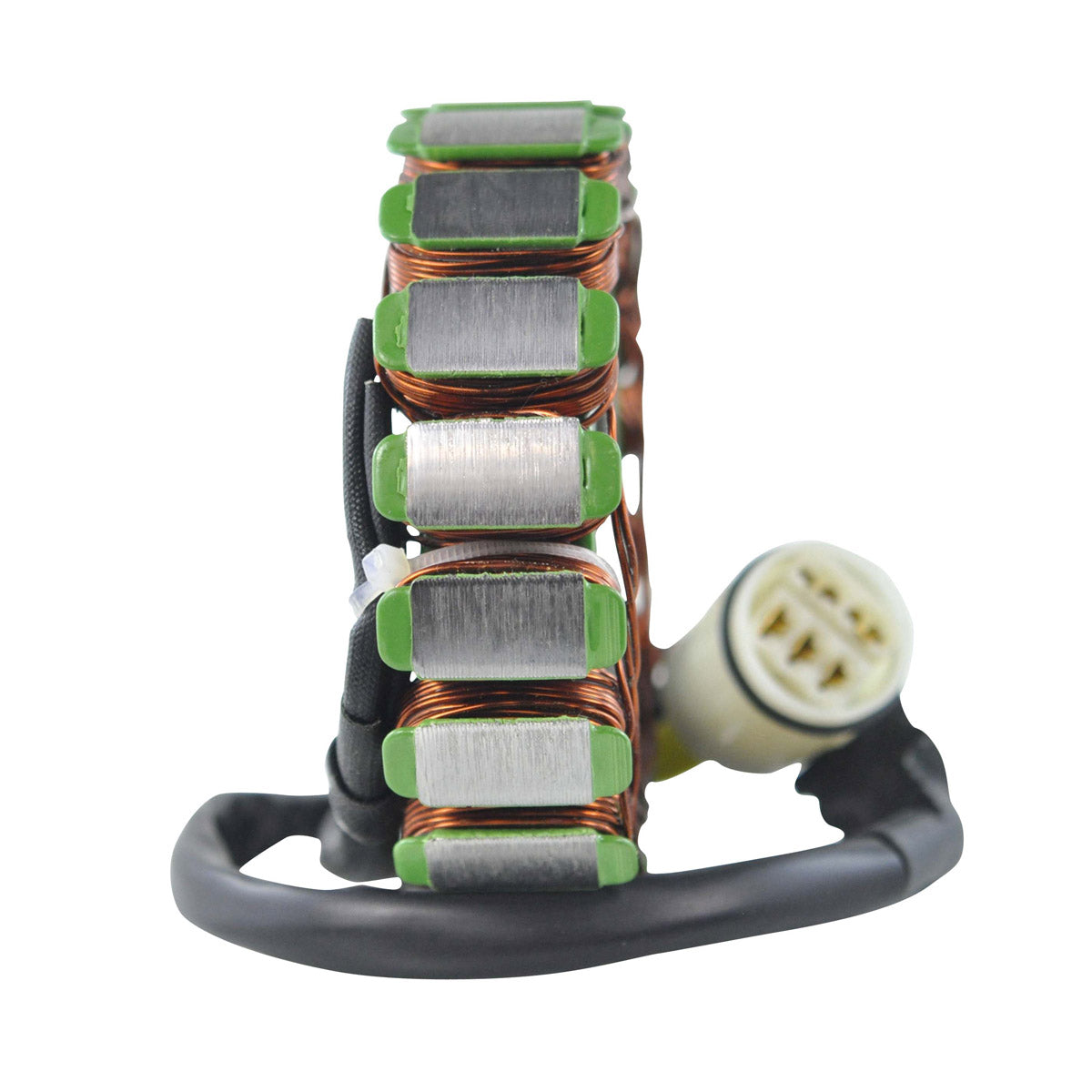

This is a brand new aftermarket stator built as a direct replacement for the original unit fitted to the Aprilia RSV 1000 family. It is plug-and-play and a direct fit, so it goes back into the original position on the original mounting points and connects to the original harness with no cutting, no splicing and no modification to the engine cases. The pick up pulsar coil is included on the assembly, along with the connector and the rubber grommet.
The unit is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius, so it holds a stable charging output when the engine and the cases are hot. All products shipped are tested. All item pictures are accurate - if in doubt, do not hesitate to compare our item to your original part. This part is supplied under RMSTATOR part number RM01446 and replaces OEM part number AP0295830.
Key Features
- Brand new aftermarket stator - direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

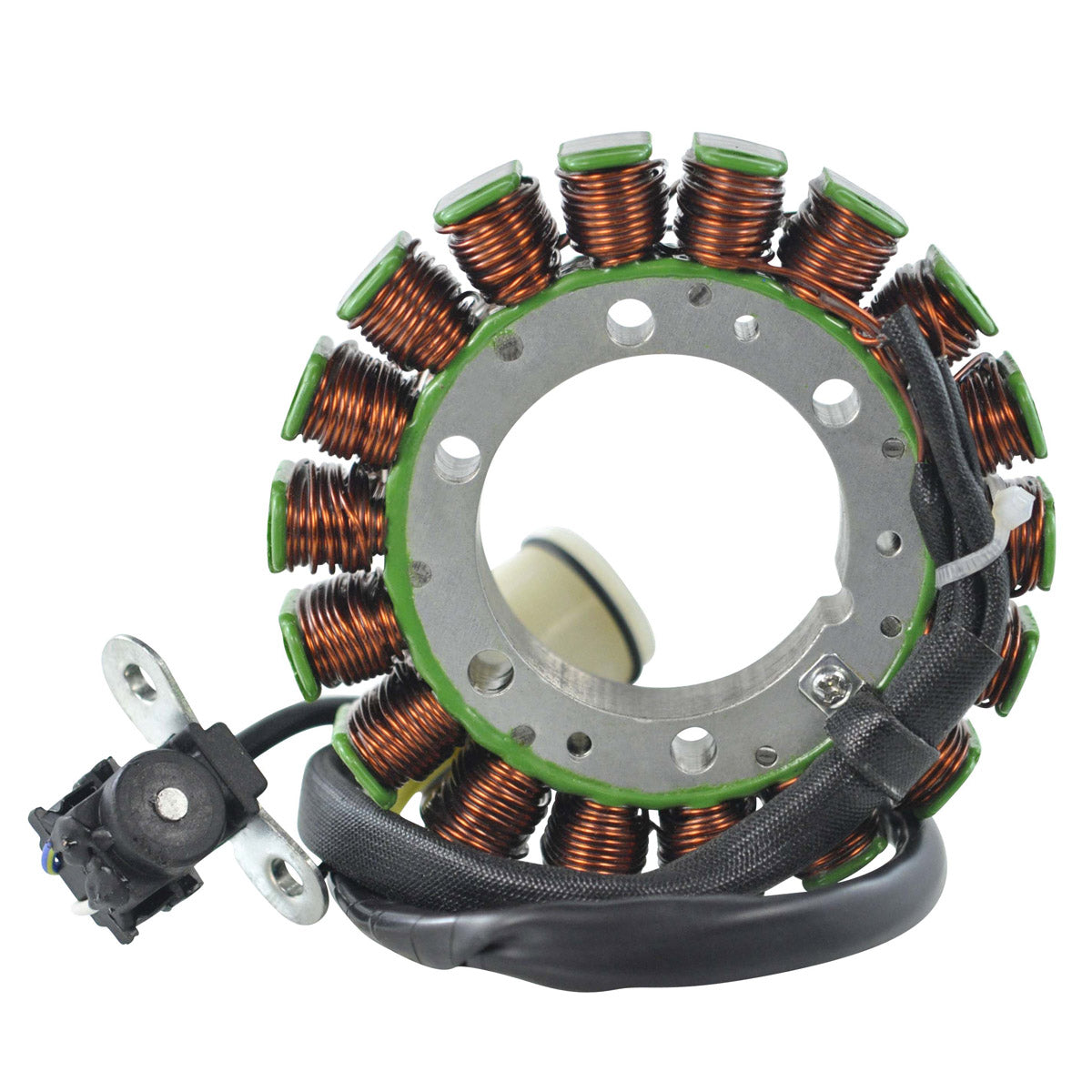

- Pick up pulsar coil included

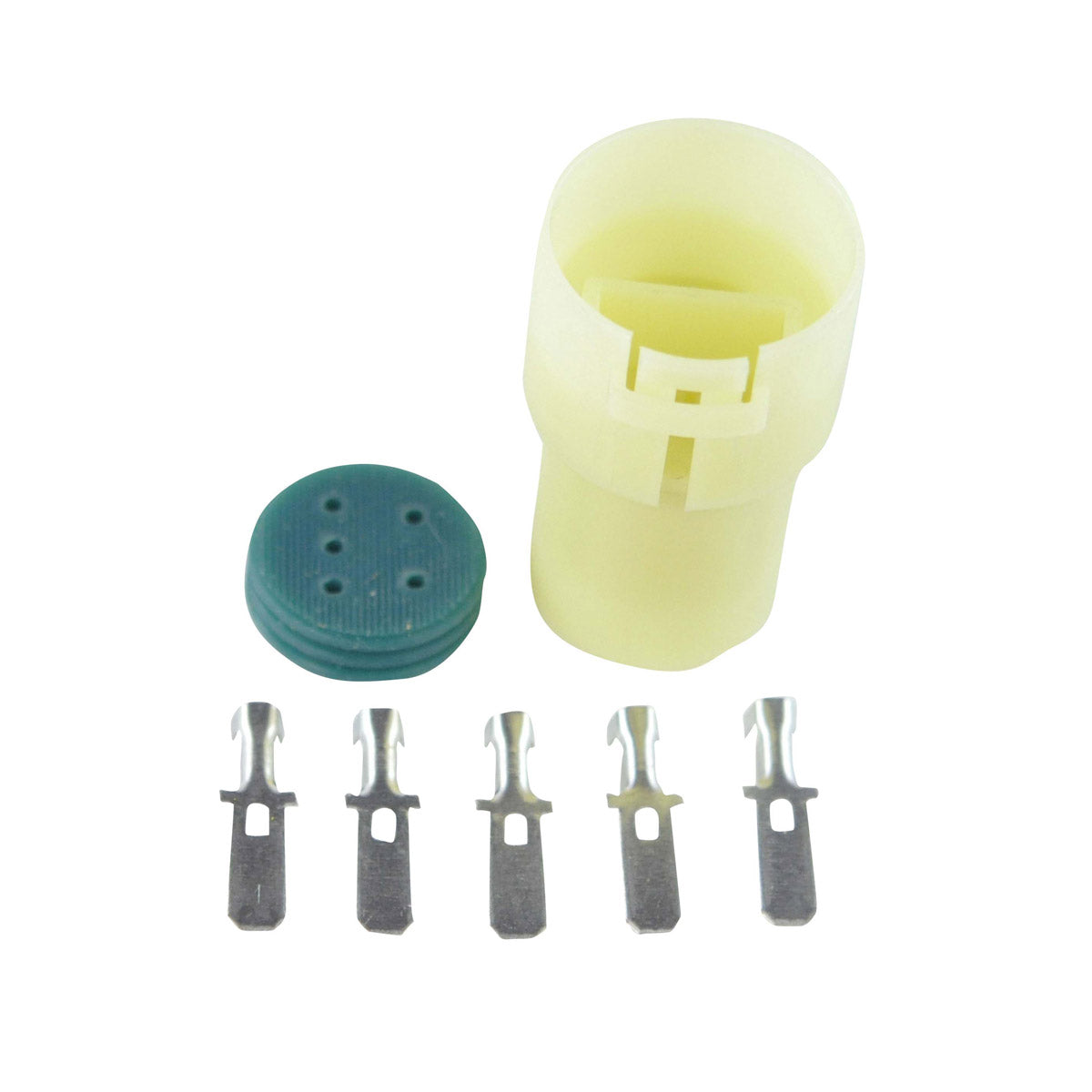

- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Thickness | 24 mm |
| Length of wires, stator to grommet | 125 mm |
| Length of wires, grommet to plug | 250 mm |
| Length of pickup coil wire to grommet | 50 mm |
| Number of wires | 5 |
| Number of plugs | 1 |
| Number of pins | 5 |
| Alternator resistance, between each yellow | 0.4 ohms +/-20% |
| Pickup resistance, white to blue/white | 240 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| RMSTATOR part number | RM01446 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Aprilia RSV 1000 | 1998-2005 |
| Aprilia RSV Mille R | 1998-2005 |
| Aprilia Tuono | 1998-2005 |
| Aprilia SL 1000 Falco | 1998-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| AP0295830 | Aprilia |
| RM01446 | RMSTATOR |
Frequently Asked Questions
Does this stator need any modification to fit?

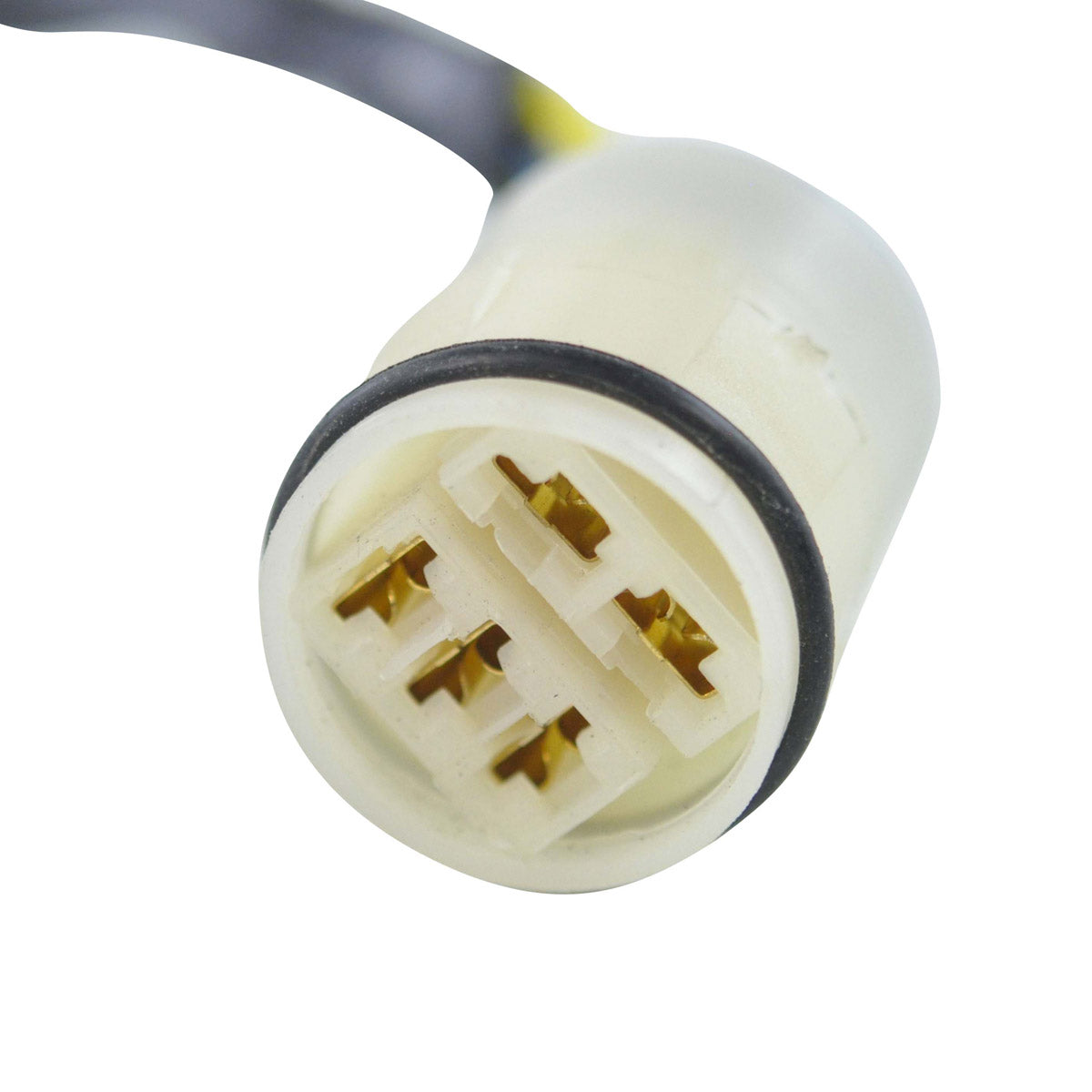

No. It is a direct replacement for the original unit and is plug-and-play, so it uses the original mounting points and the original single 5-pin plug. No cutting or splicing is required.
What is included?

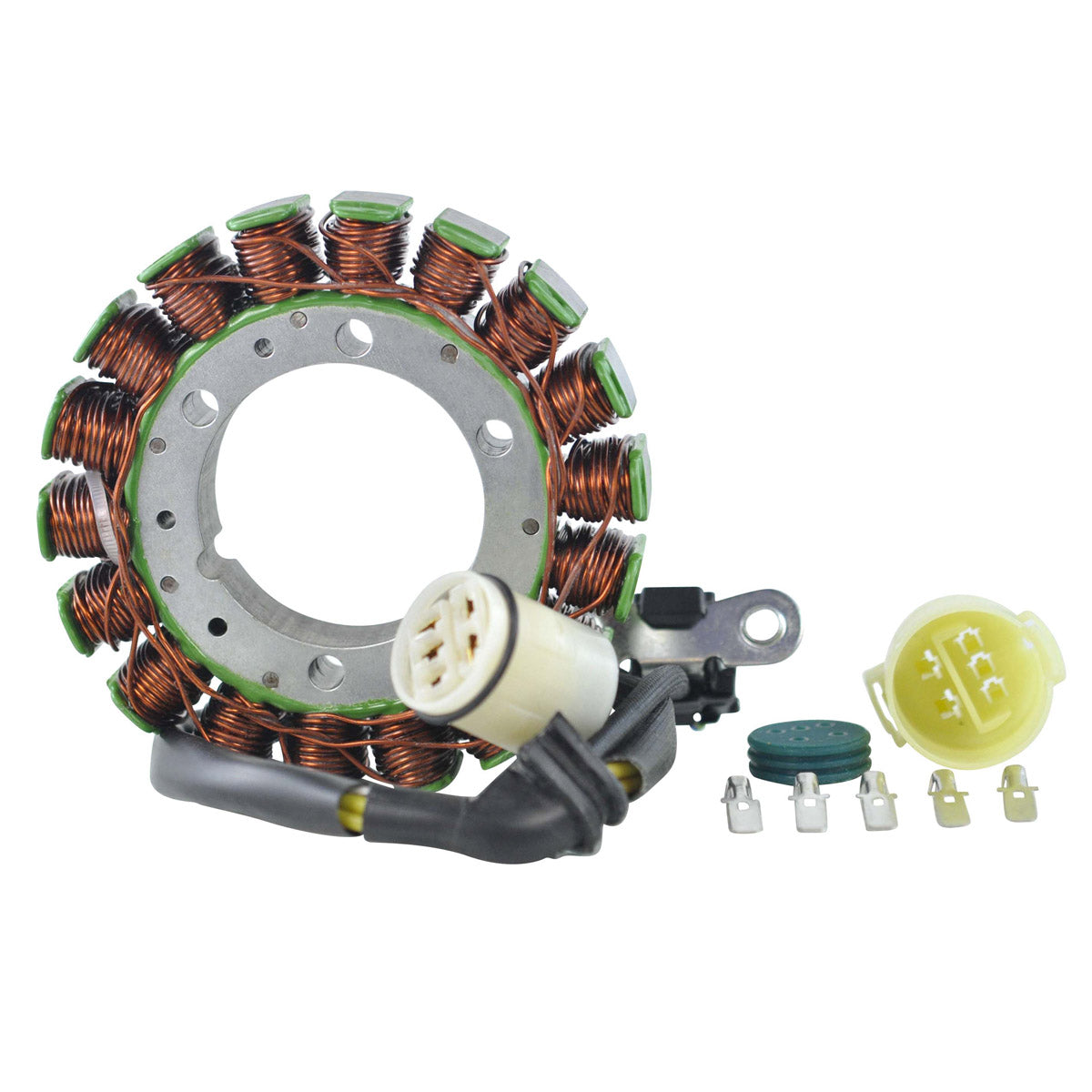

The stator with the pick up pulsar coil already fitted, the connector and the rubber grommet. All products shipped are tested.
How do I tell whether my old stator has failed?
Check the windings with a multimeter against the figures in the Technical Specs table. The alternator windings should read 0.4 ohms +/-20% between each yellow wire and the pickup should read 240 ohms +/-20% from white to blue/white. A reading far outside those values, or continuity from a winding to the stator core, points to a failed unit.
How do I confirm this is the right part for my bike?
Compare the OEM number on your original unit against AP0295830, and check the dimensions - 54 mm interior diameter, 115 mm exterior diameter and 24 mm thick, with 5 wires into a single 5-pin plug. The item pictures are accurate, so you can also compare the item directly against your original part.
