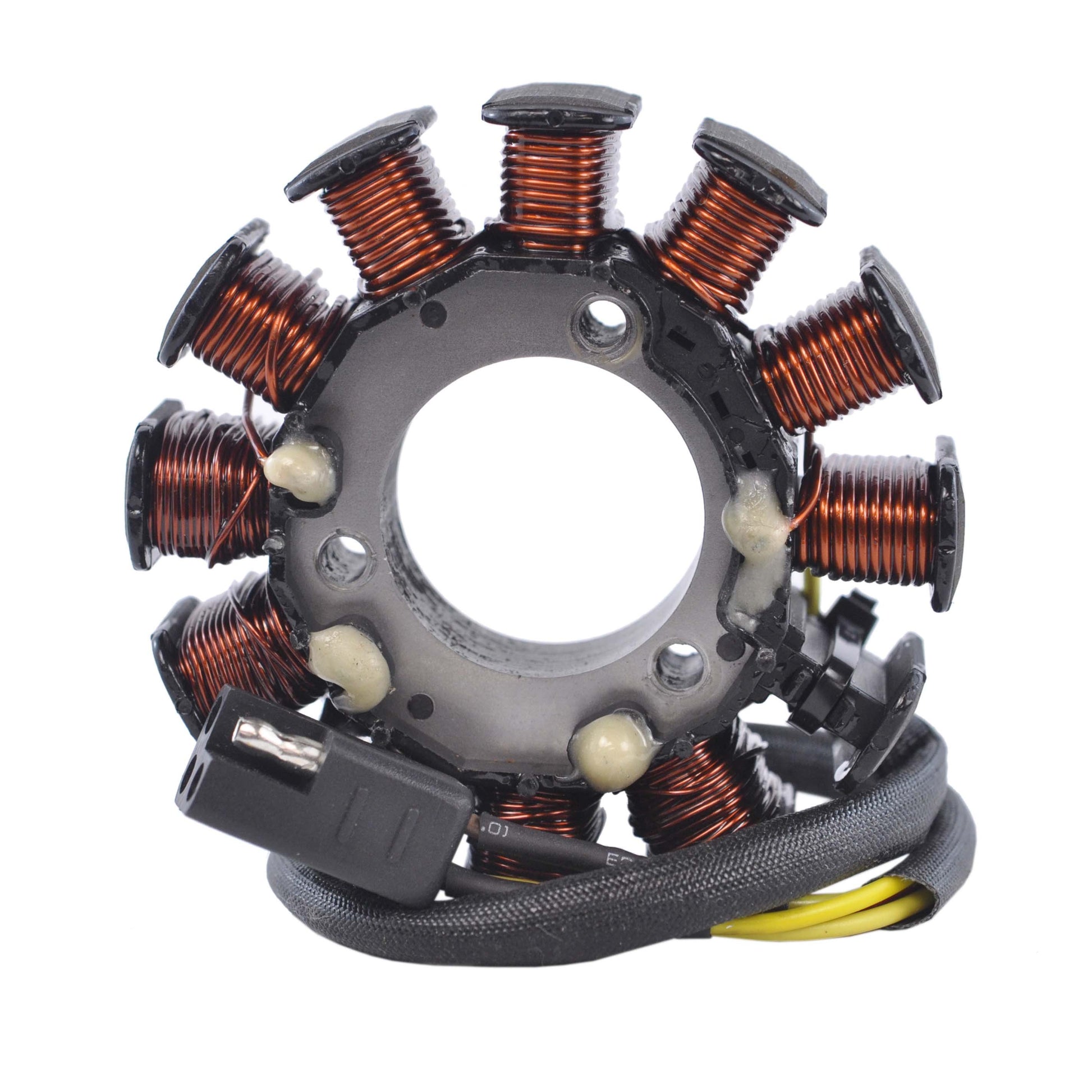

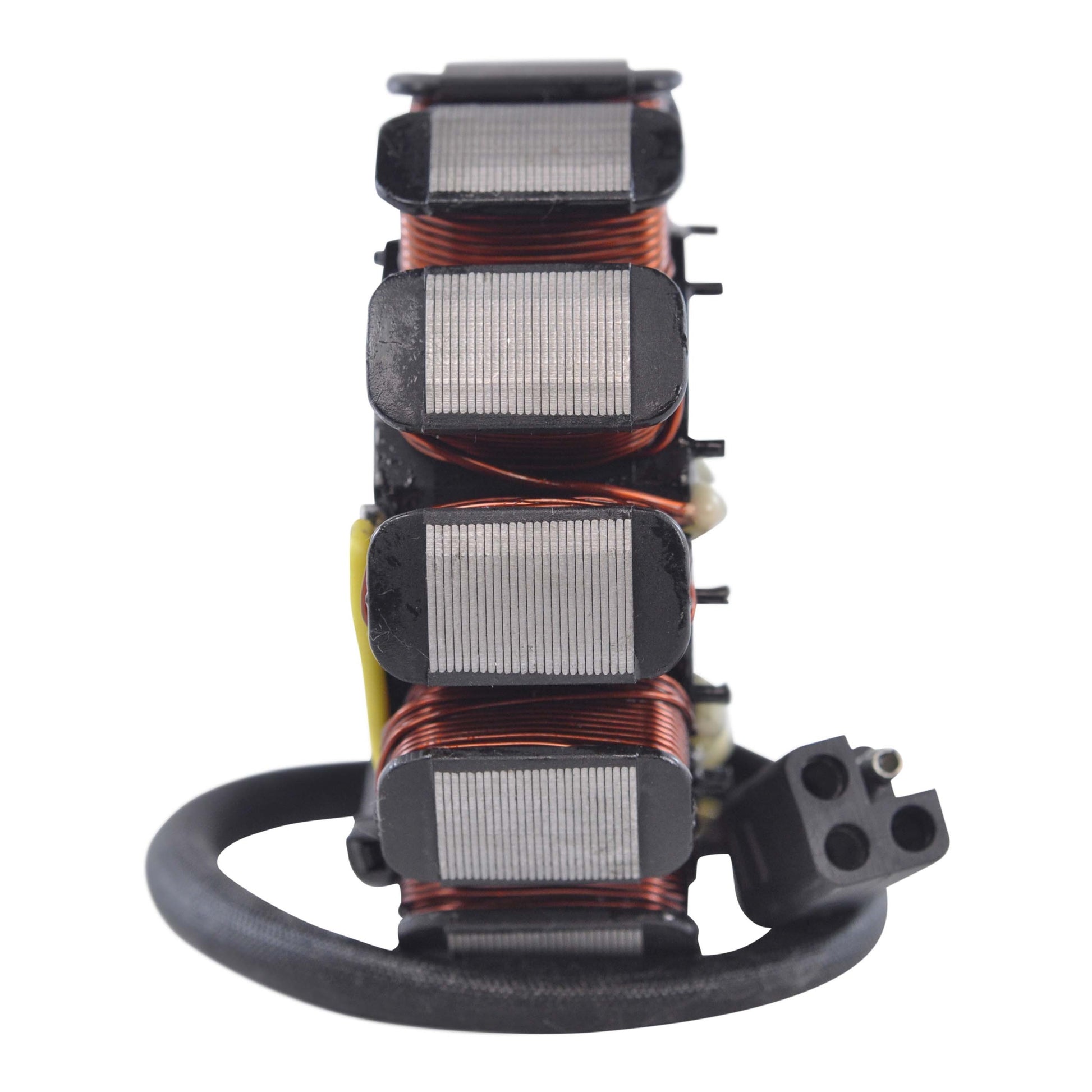

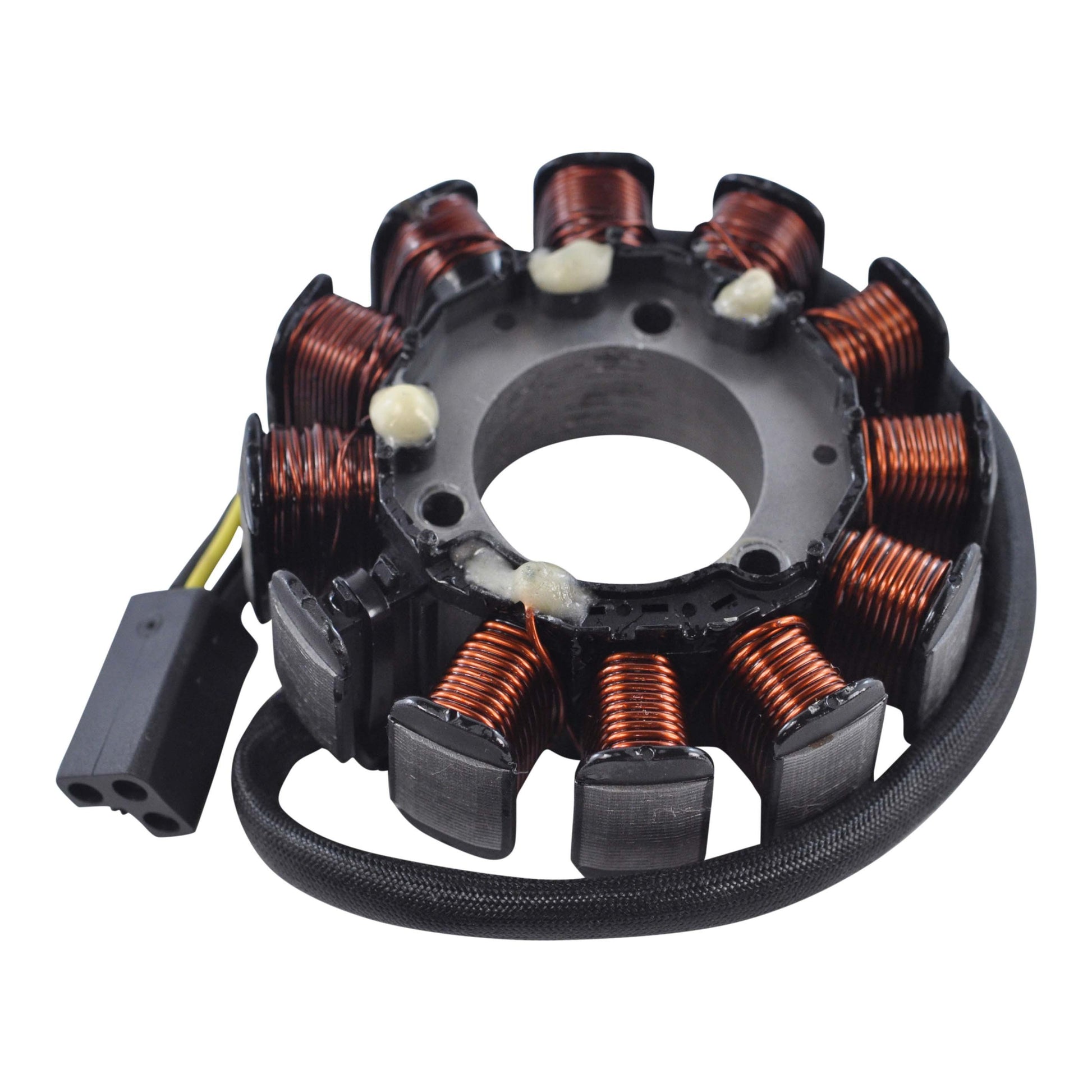

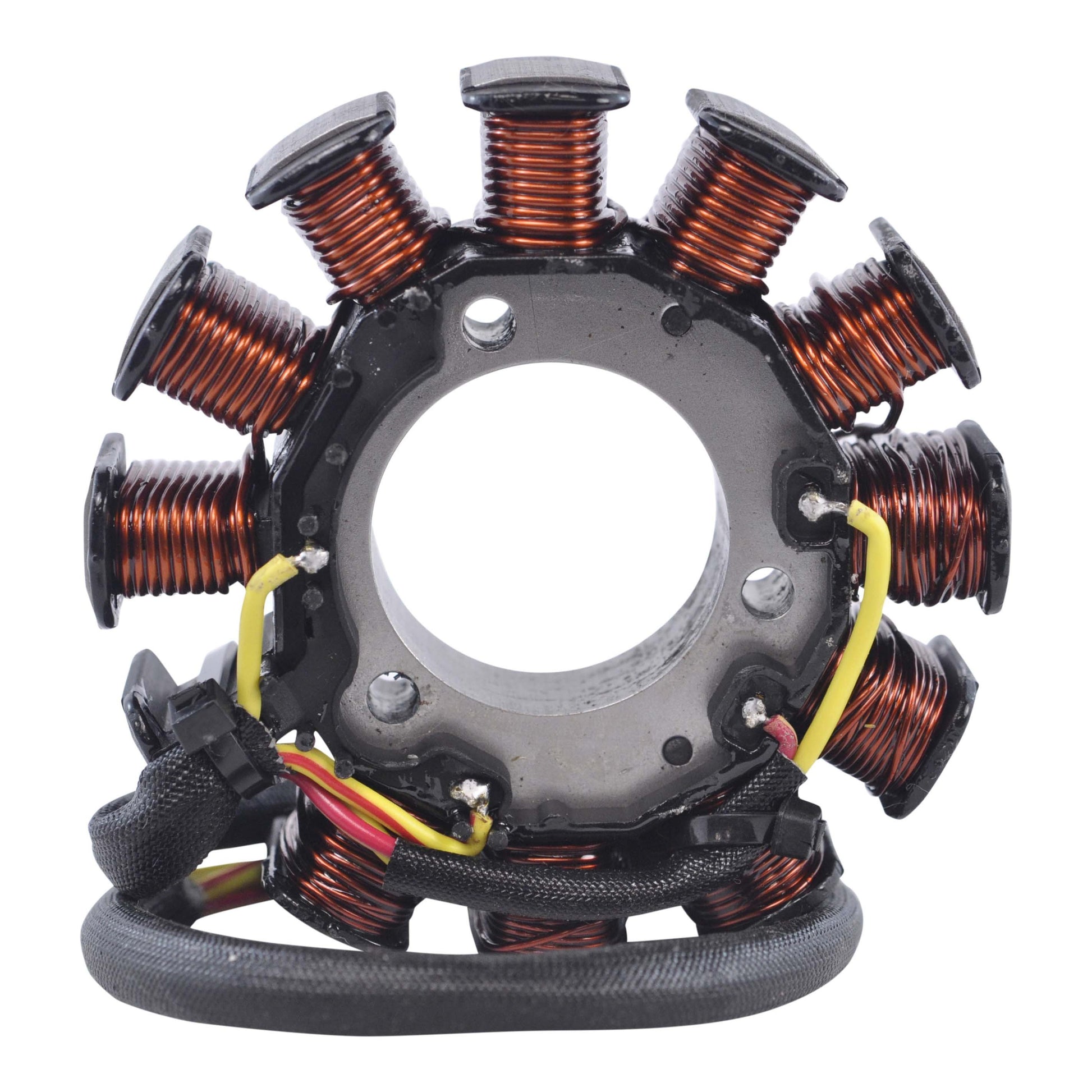

Generator Stator for Arctic Cat Firecat and Sabercat Snowmobiles
440 Sno Pro, F5 Firecat 500, F6 Sabercat 600, Sno Pro F7 Firecat 700 and ZR 6000, 2004-2016

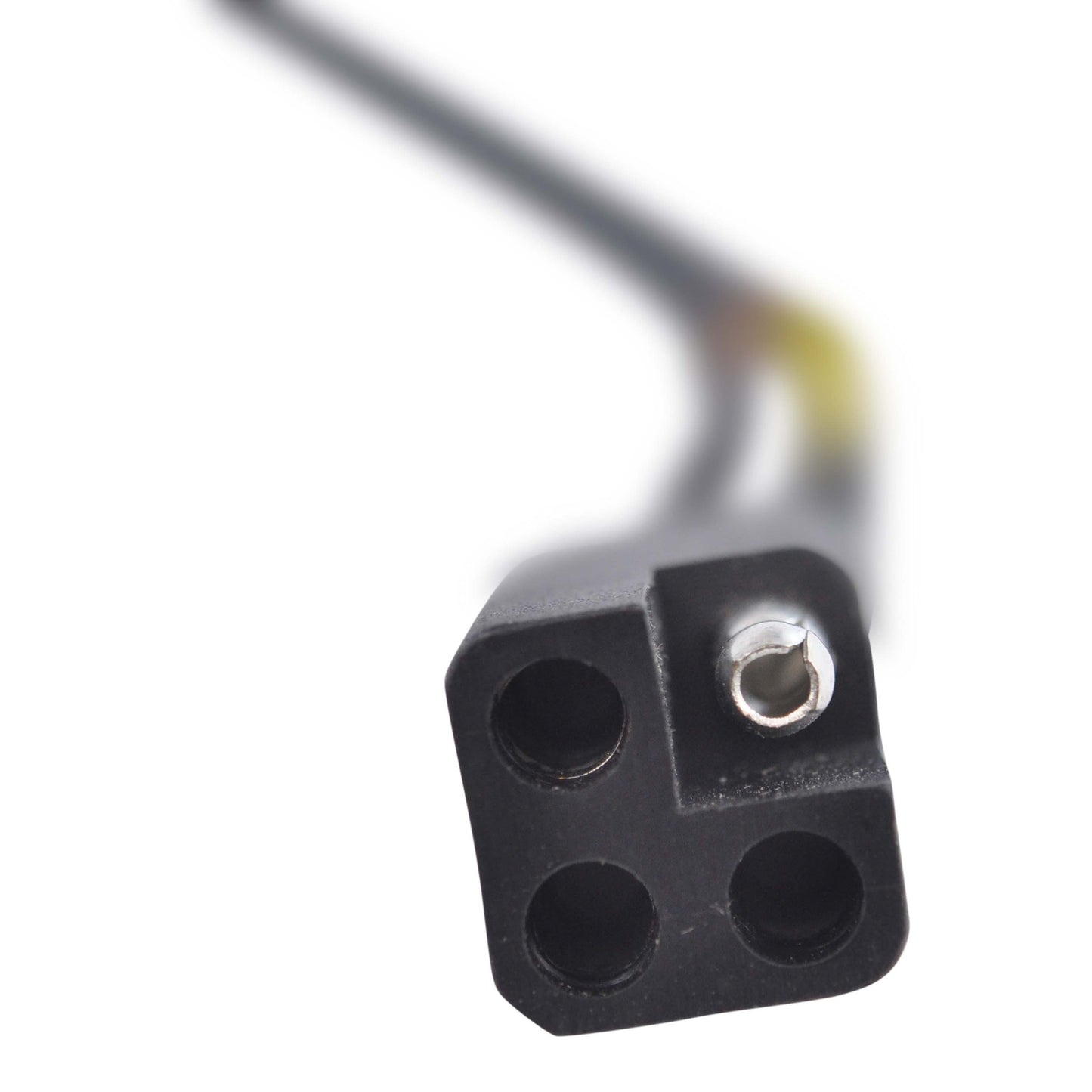

A brand new generator stator for Arctic Cat Firecat, Sabercat, Sno Pro and ZR 6000 snowmobiles. It replaces the original unit directly, mounting in the factory position and connecting through the standard four-pin plug, so the charging and ignition source circuits are restored without altering the loom.
Highest grade lamination materials carry the highest grade copper windings, which are rated to resist 200 degrees Celsius - important on a machine where the stator sits close to the engine and sees repeated heat cycles. The connector is supplied fitted and every unit is tested before it leaves the warehouse. Part number RM01337.
Key Features
- Brand new generator stator, not a rewound core
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01337 |
| Interior diameter | 38 mm |
| Exterior diameter | 100 mm |
| Thickness | 20 mm |
| Length of wires stator to plug | 325 mm |
| Number of wires | 4 |
| Number of plugs | 1 |
| Number of pins | 4 |
| Alternator resistance | Yellow/Red to Black = 0.4 ohms +/-20% |
| Source coil resistance | Yellow to Brown = 1.0 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat 440 Sno Pro | 2004-2016 |
| Arctic Cat F5 Firecat 500 | 2004-2016 |
| Arctic Cat F6 Sabercat 600 | 2004-2016 |
| Arctic Cat Sno Pro F7 Firecat 700 | 2004-2016 |
| Arctic Cat ZR 6000 | 2004-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3006-734 | Arctic Cat |
| 3006-705 | Arctic Cat |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct fit for the listed Arctic Cat models and uses the original four-pin connector and mounting points, so no rewiring or drilling is required.
What is included?
The generator stator with its 325 mm lead and the mating connector already fitted. Mounting screws and gaskets are not supplied.
How do I tell whether my old stator has failed?
With the plug disconnected, check Yellow/Red to Black - it should read about 0.4 ohms - and Yellow to Brown, which should read about 1.0 ohms, each within plus or minus 20 percent. An open circuit, a short between a winding and the stator laminations, or a reading well outside those figures means the stator has failed.
This part covers both a four-wire alternator and a source coil - what does the source coil do?
The Yellow to Brown winding is the ignition source coil, which feeds the CDI. If your machine charges normally but will not produce a spark, that winding is the one to test first.
