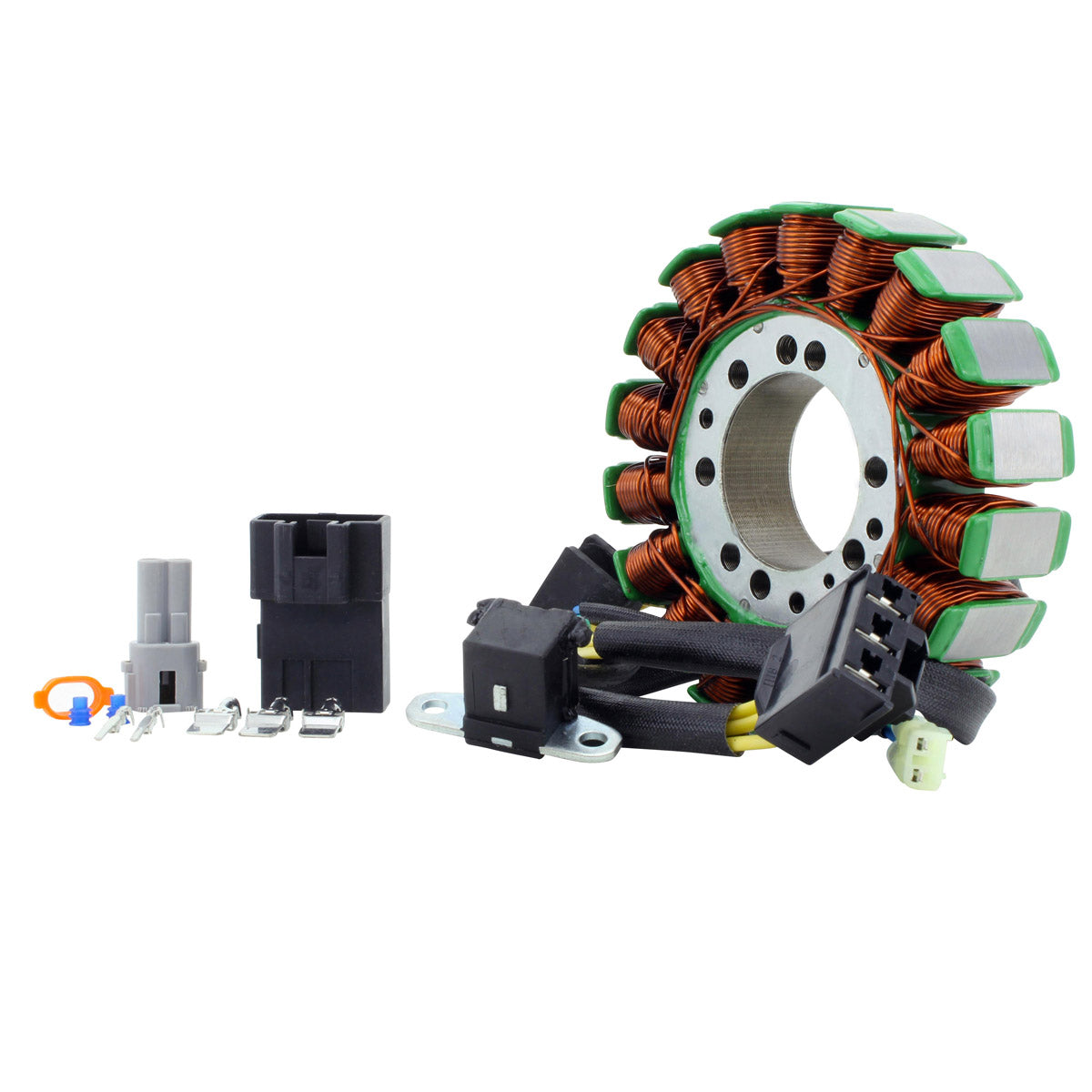

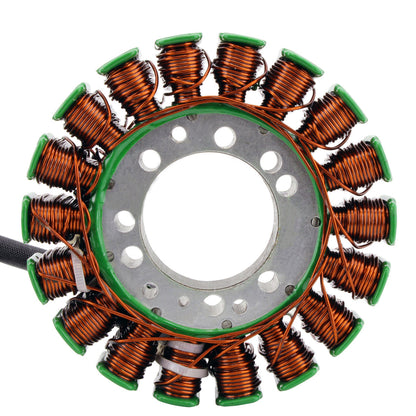

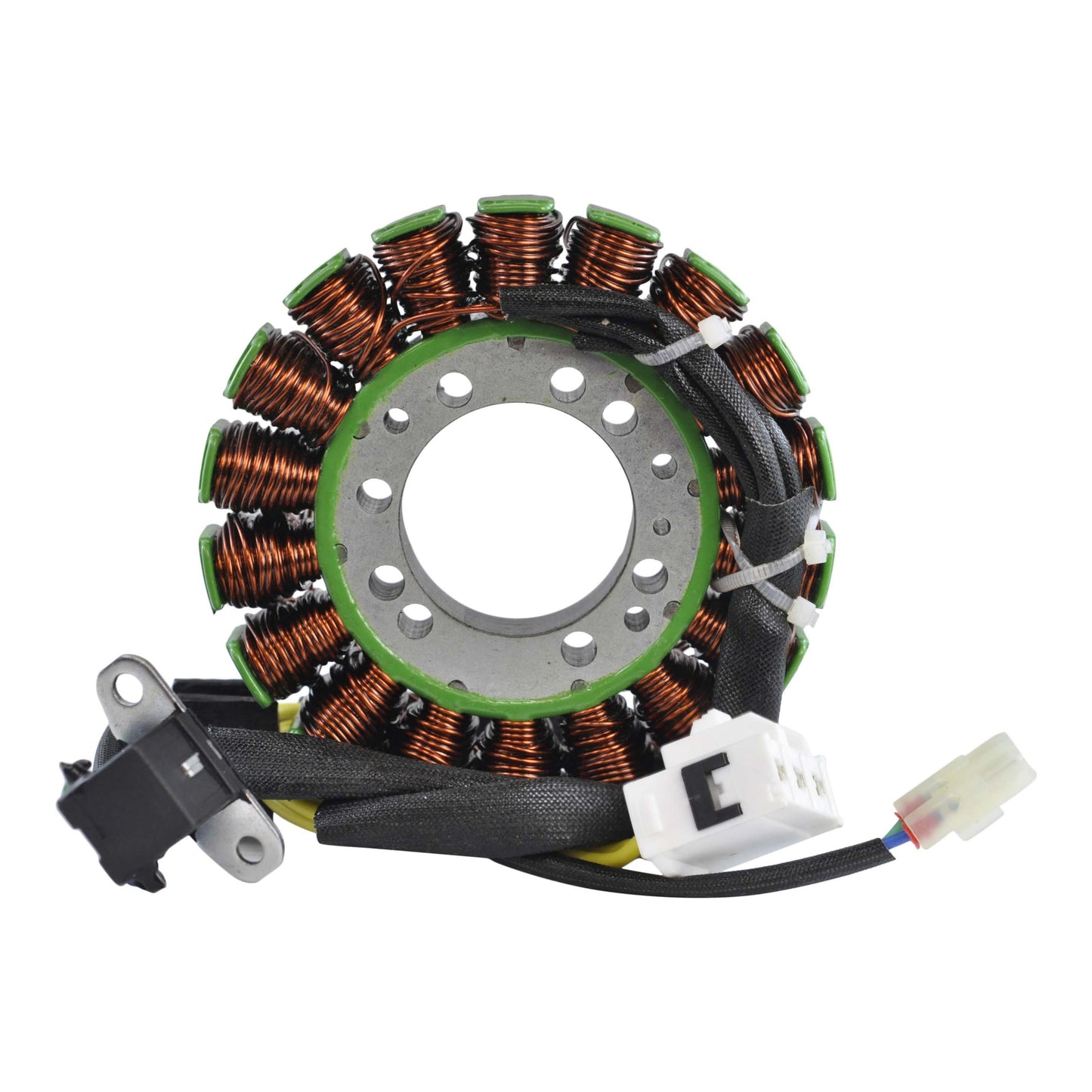

A brand new direct OEM replacement aftermarket stator for the Arctic Cat 1100 series platform, covering the Z1, TZ1, XF, Bearcat 1100, F 1100 and M 1100 built between 2007 and 2017. It is supplied as a plug-and-play unit that drops straight into the position of the original stator, so there is no splicing, no rewiring and no modification to the engine or the loom.
The stator is wound with the highest grade copper, resistant to 200 degrees Celsius, on the highest grade lamination material. That combination is what keeps charging output stable once the engine case is hot and the sled has been working hard. The unit arrives with its connectorized harness, rubber grommet and pick-up coil already fitted, and the opposite connector for the main harness side is supplied in the box. Every stator is tested before it is shipped.
Key Features
- Direct OEM replacement - plug-and-play, direct fit, easy installation
- No modification to the wiring loom or engine required

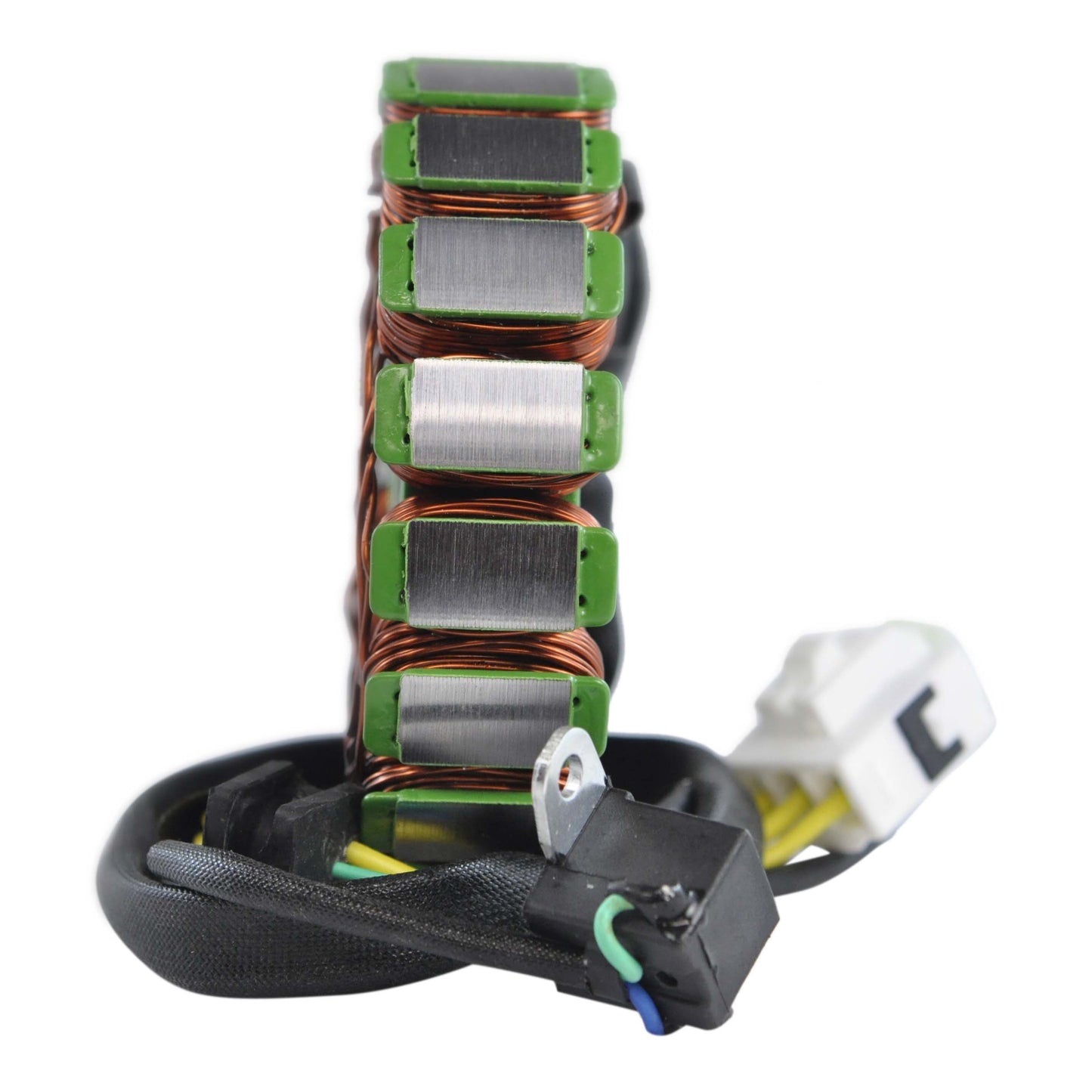

- Highest grade lamination materials

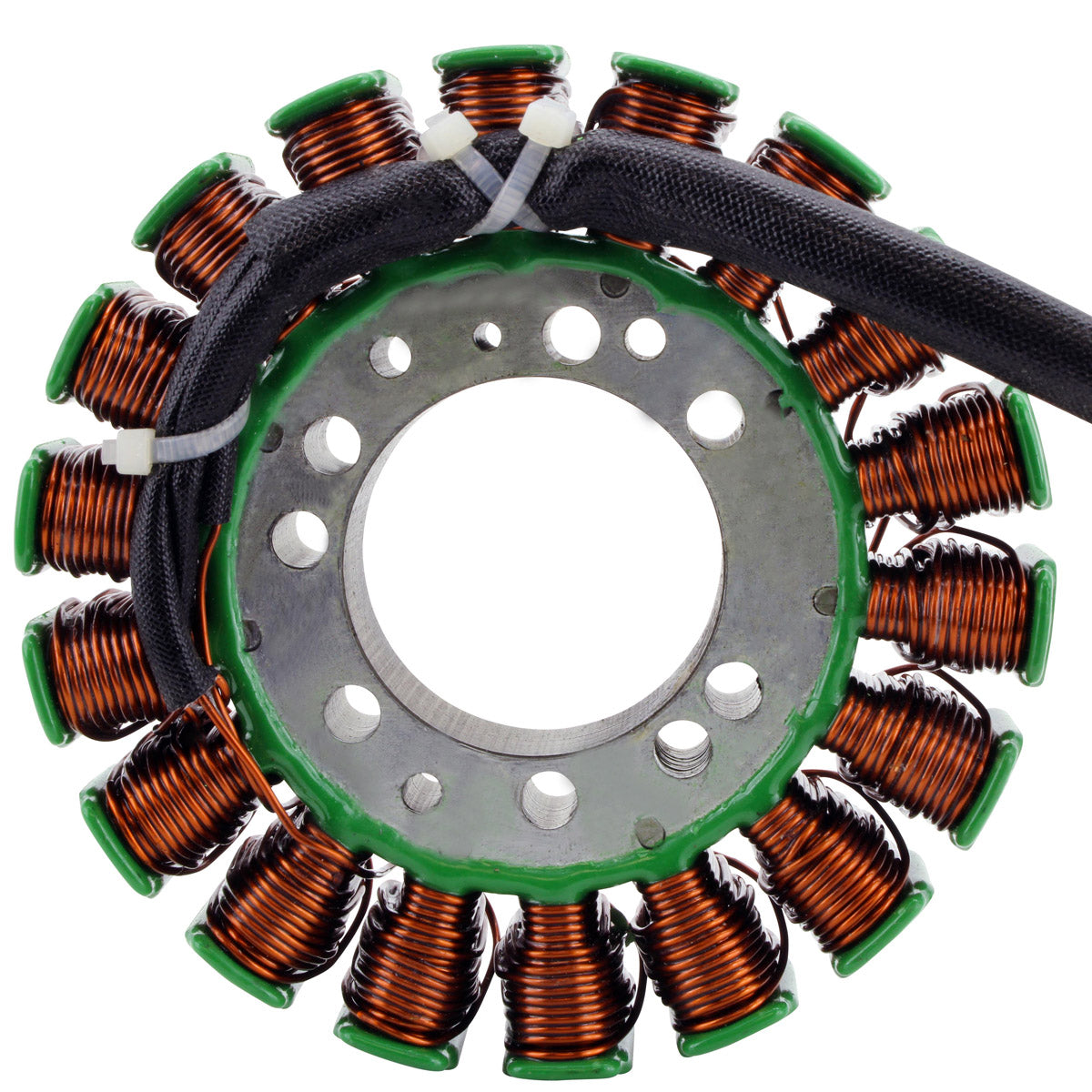

- Highest grade copper windings, resistant to 200 degrees Celsius

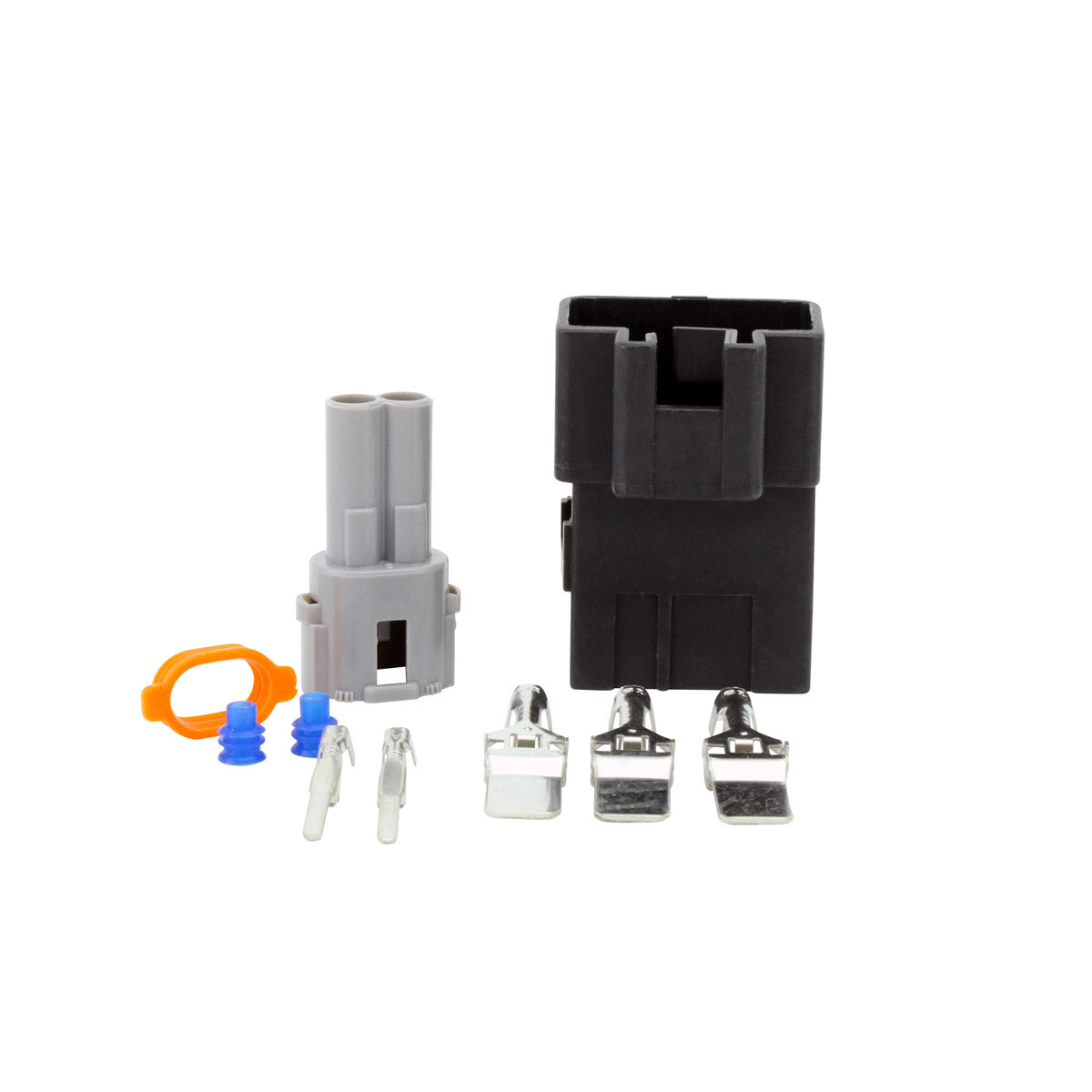

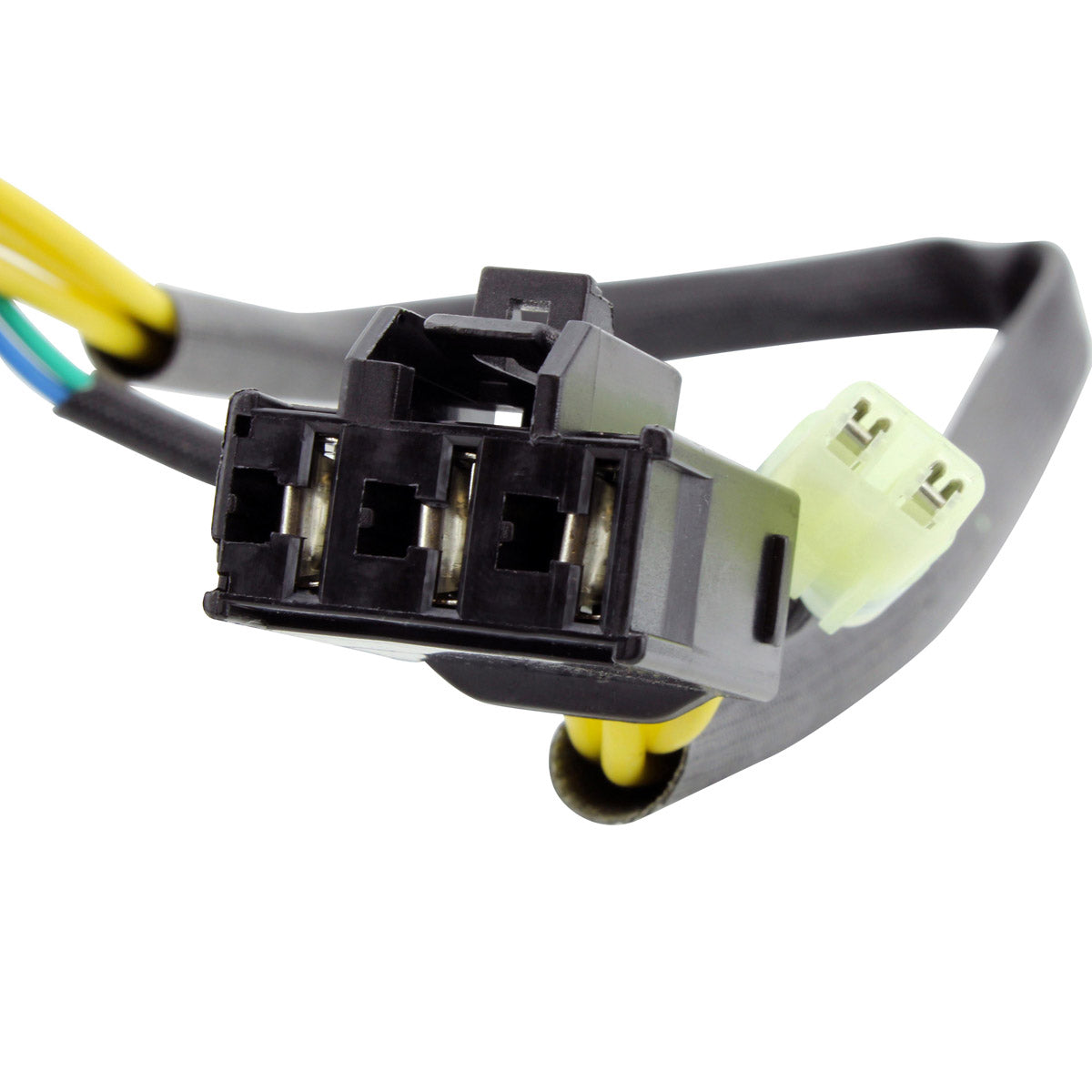

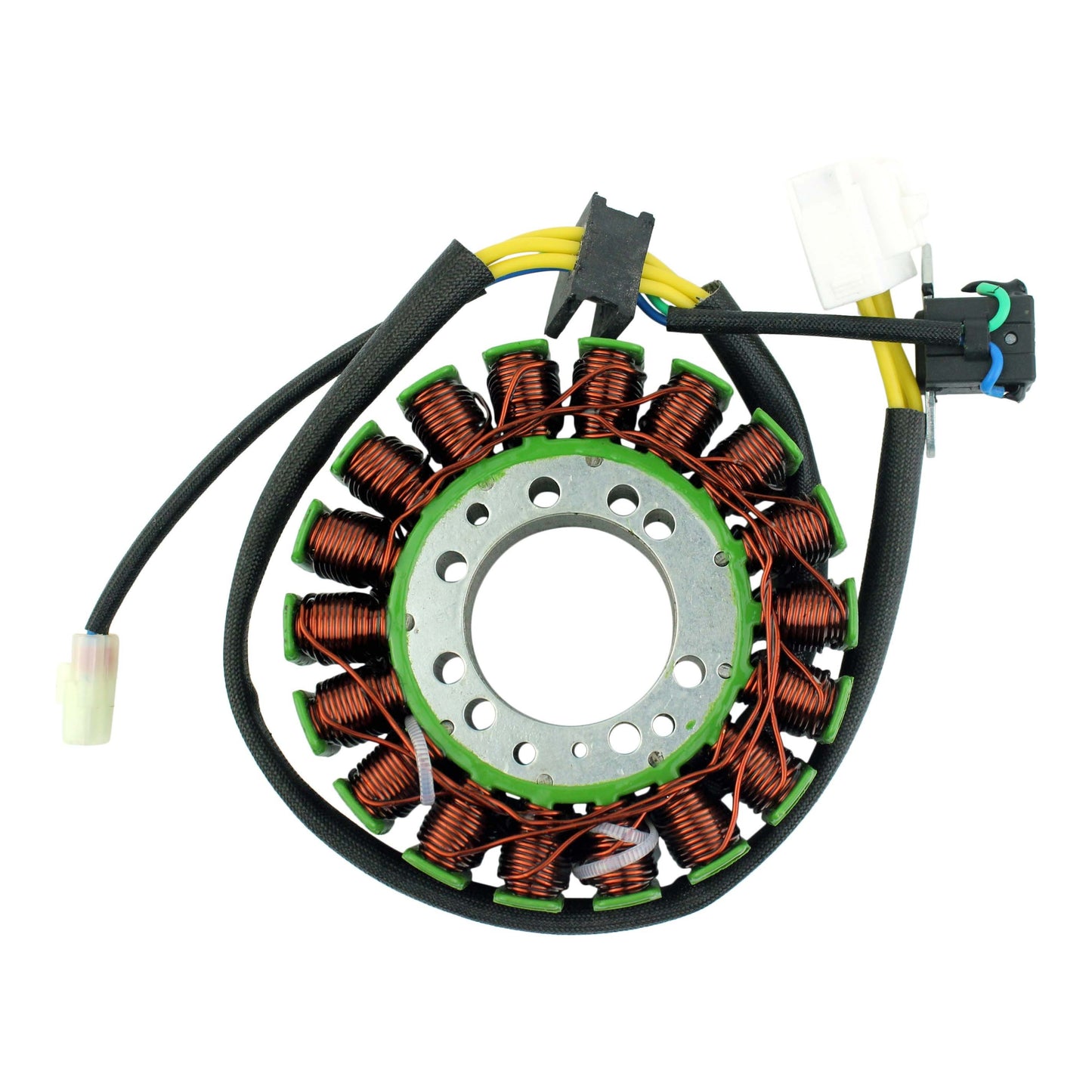

- Connectorized harness, rubber grommet and pick-up coil included

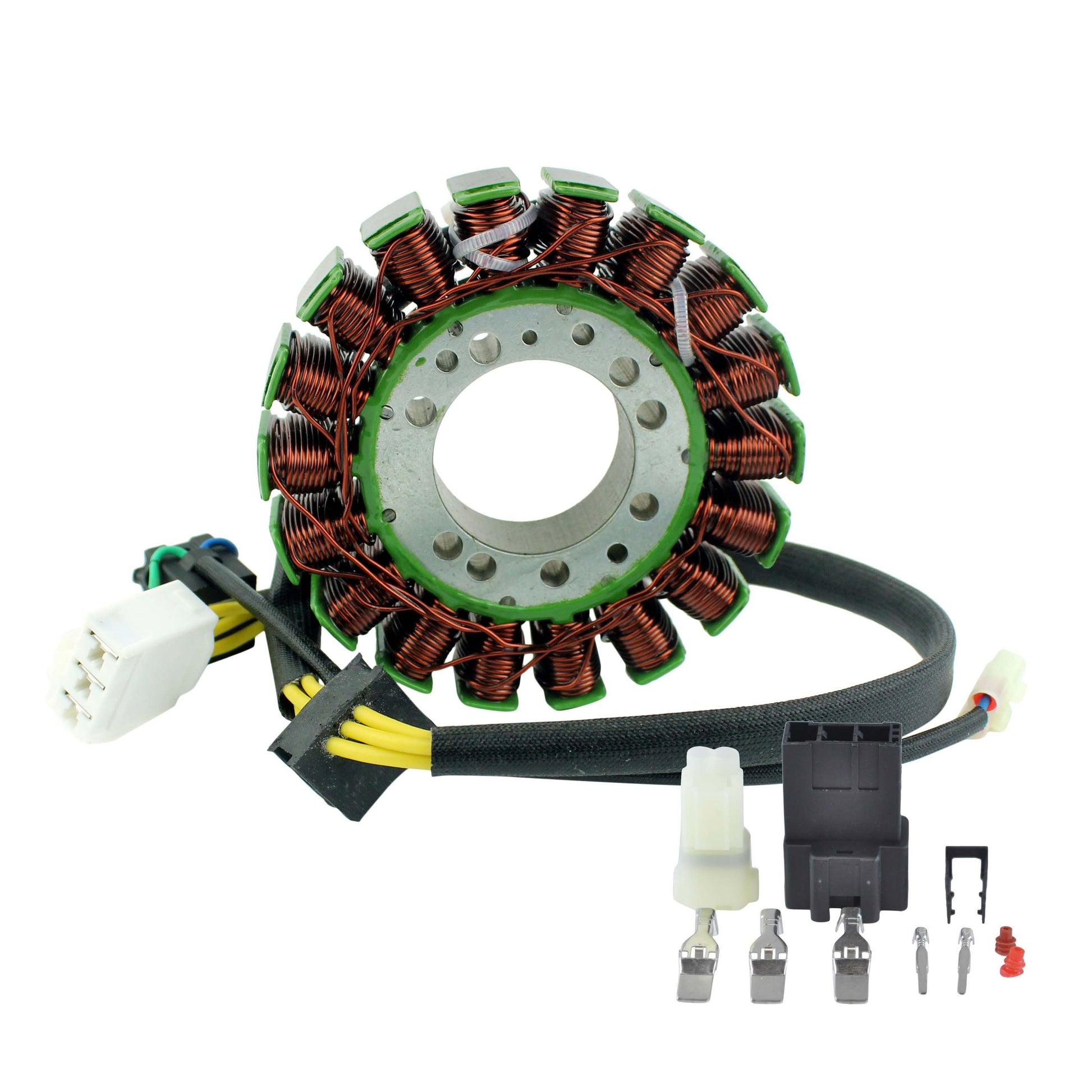

- Opposite connector for the main harness side supplied
- Tested before shipment
Technical Specs
| Specification |
Detail |
| Alternator resistance (Yellow to Yellow) |
0.4 ohms +/- 20% |
| Pick-up 1 resistance (Blue to Green) |
215 ohms +/- 20% |
| Number of wires |
5 |

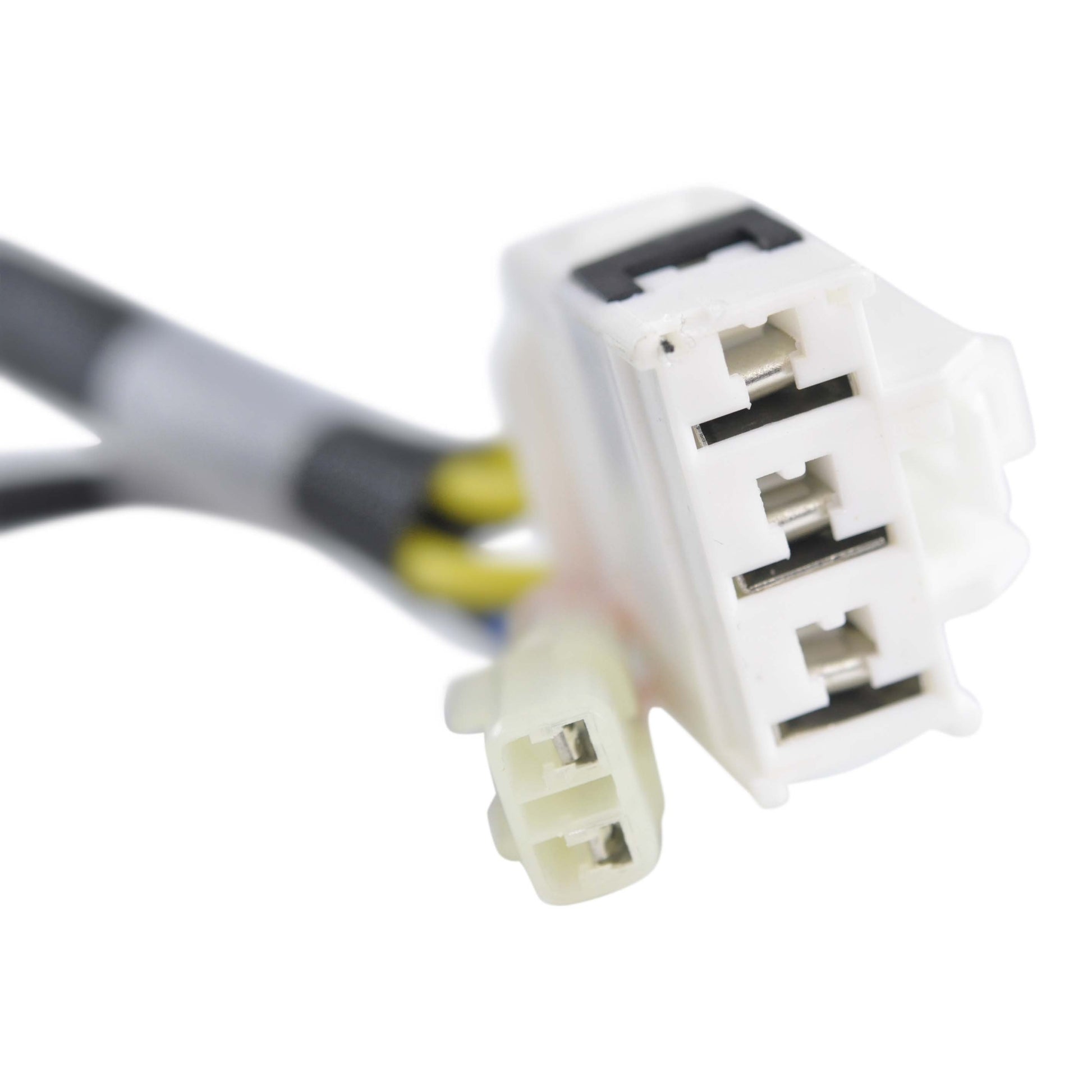

| Number of plugs |
2 |
| Number of terminals |
5 |
| Harness length, stator to grommet |
80 mm |
| Harness length, grommet to plug |
400 mm |

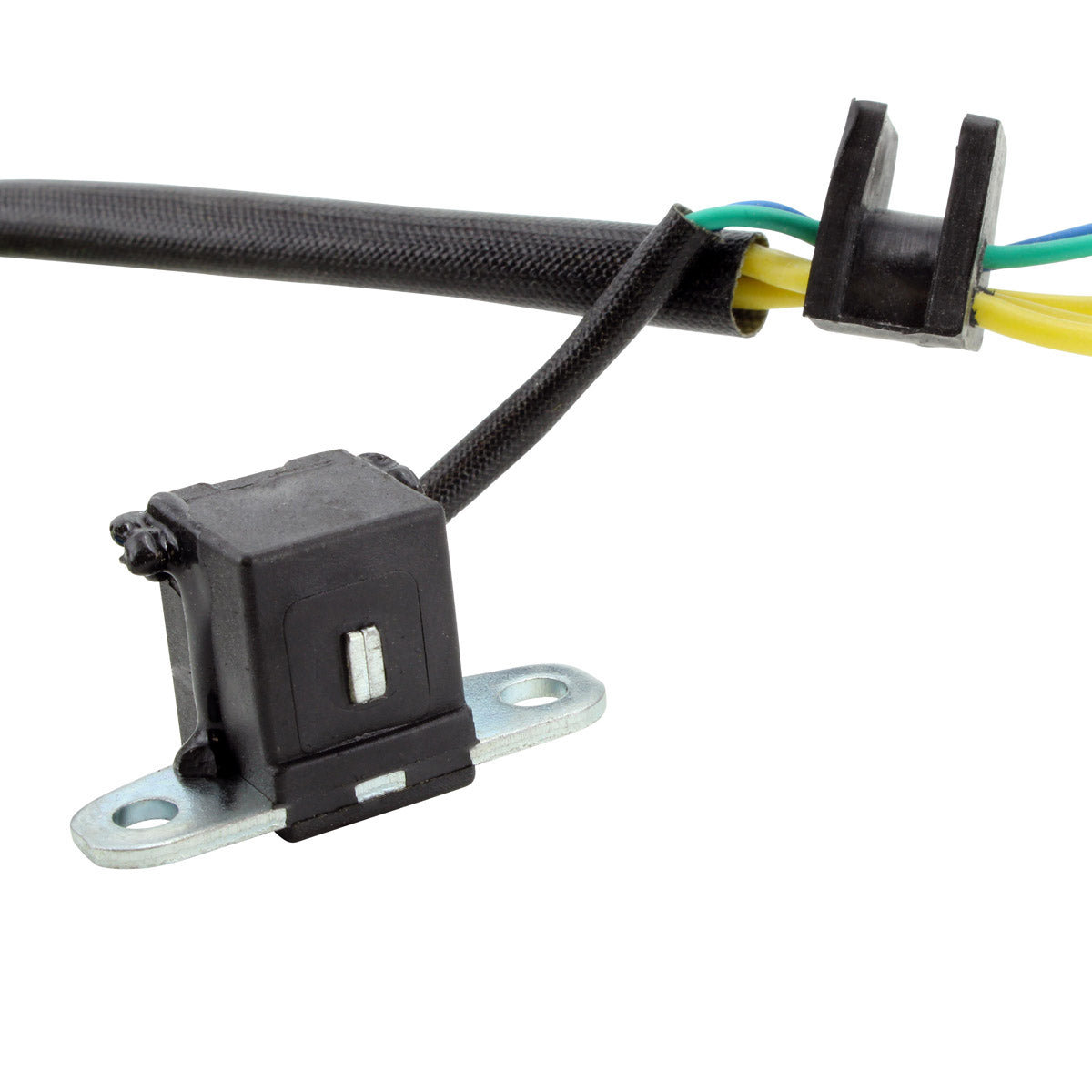

| Pick-up coil wire length, coil to grommet |
35 mm |

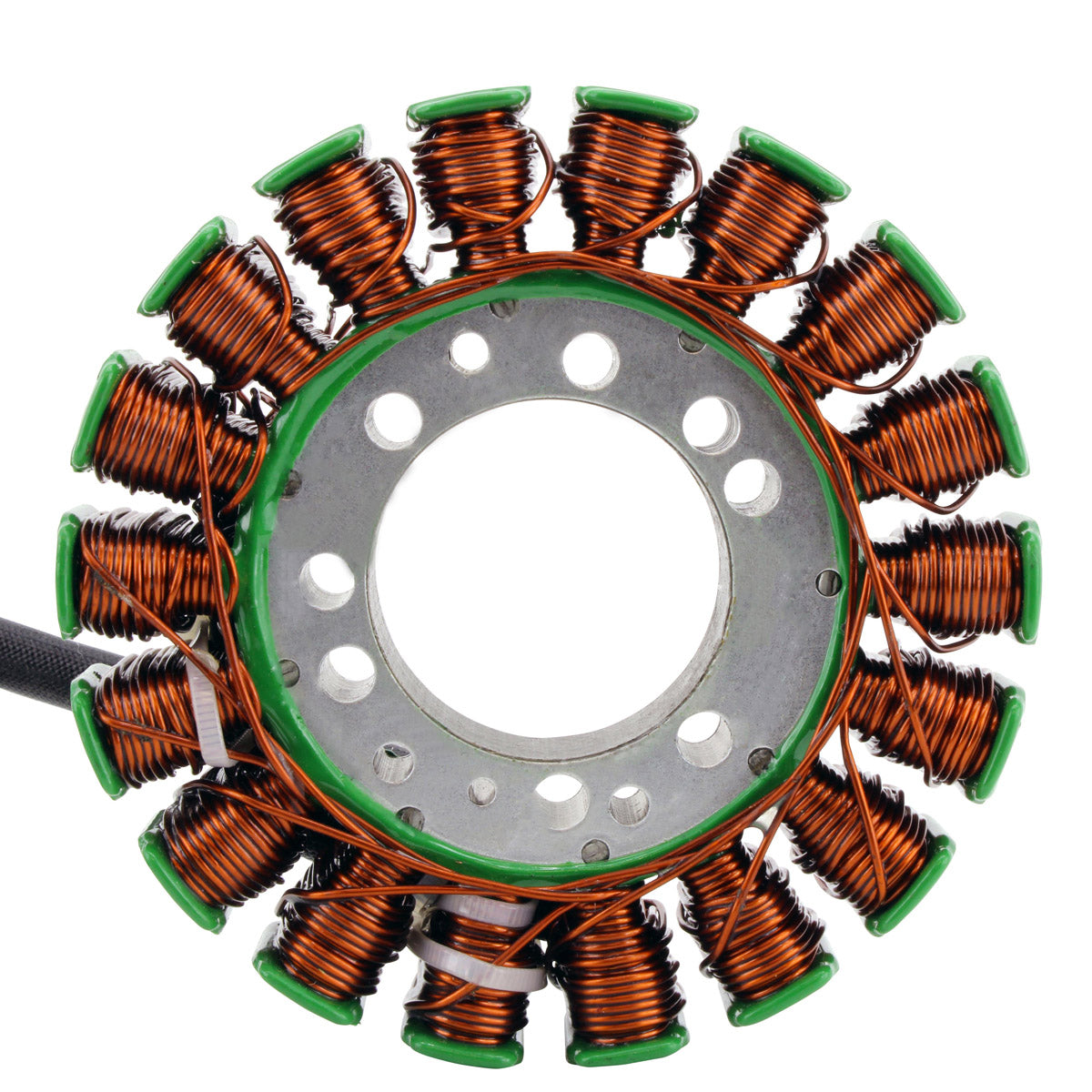

| Inside diameter |
40 mm |
| Outside diameter |
113 mm |
| Thickness |
20 mm |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat Z1 |
2007-2017 |
| Arctic Cat TZ1 |
2007-2017 |
| Arctic Cat XF |
2007-2017 |
| Arctic Cat Bearcat 1100 |
2007-2017 |
| Arctic Cat F 1100 |
2007-2017 |
| Arctic Cat M 1100 |
2007-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3007-231 |
Arctic Cat |
Frequently Asked Questions
Will this fit without modifying my sled?
Yes. This is a direct fit, plug-and-play replacement for the original unit on the listed models. The harness is connectorized and the mounting pattern matches the OEM stator, so no drilling, splicing or loom modification is needed.
What is included in the box?

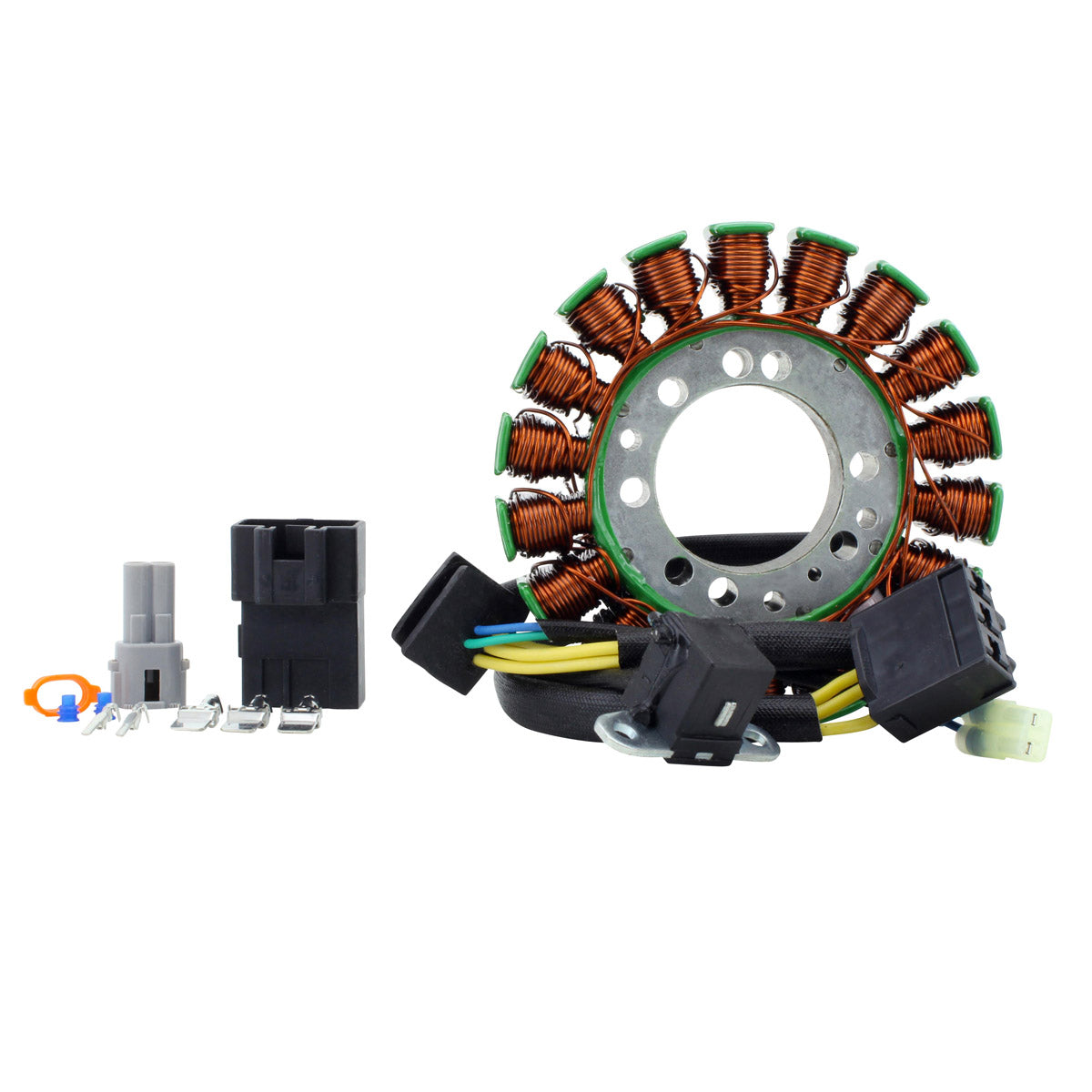

The stator with its connectorized harness, the rubber grommet, the pick-up coil, and the opposite connector for the main harness side.
How do I know my old stator has failed?
Typical signs are a battery that will not stay charged, dim or flickering lights that get worse with engine speed, and hard or no starting. Test the old unit with a multimeter and compare the readings against the resistance figures in the specification table above - 0.4 ohms yellow to yellow on the alternator windings and 215 ohms blue to green on the pick-up, both within 20%. A reading that is open circuit, shorted, or well outside those bands points to a failed stator.
Does it come with the pick-up coil, or do I reuse my old one?
The pick-up coil is supplied already fitted to the assembly, so you do not need to transfer the coil from your old stator. The pick-up wire runs 35 mm from the coil to the grommet.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
