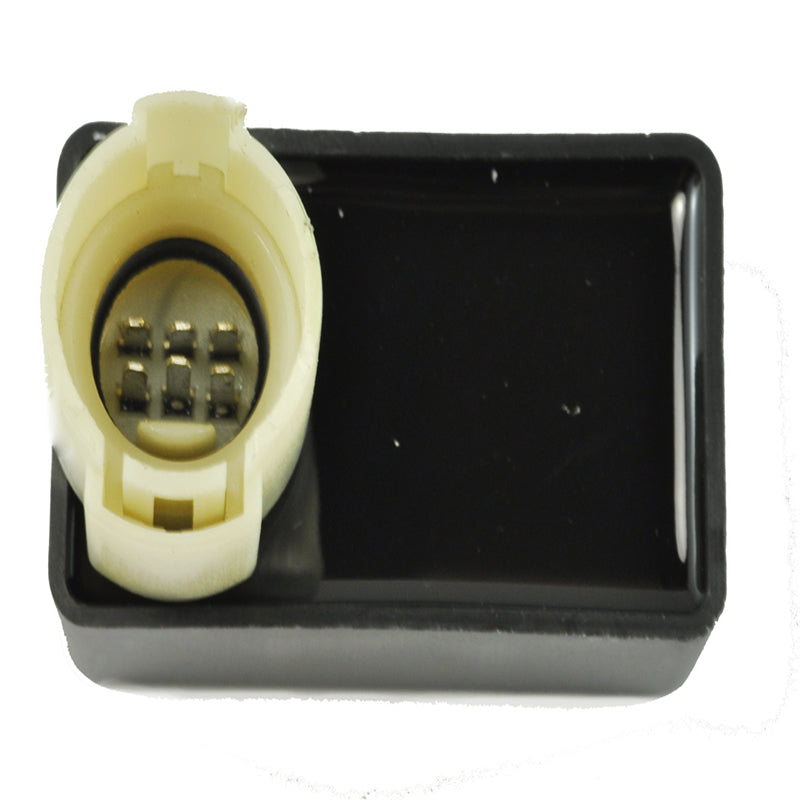

CDI Box for Honda ATC 110 & ATC 200 1983-1985
Fits Honda ATC 110, ATC 200M, ATC 200S & ATC 200X, 1983-1985
This CDI module is a direct replacement for the ignition module fitted to the Honda ATC 110 and ATC 200 range (200M, 200S and 200X). It is built to OEM specification for a direct plug-in fit, controlling ignition timing exactly as the original unit did.
The module uses a single 6-pin plug connector matching the factory wiring harness, so it fits the original mounting position without any modification.
Key Features
- Direct OEM fit and function replacement
- Single 6-pin plug connector
- Compact 63 x 44 x 22mm housing
- Direct plug-in, no wiring modification required
Technical Specs
| Specification | Detail |
|---|---|
| Number of Plugs | 1 |
| Number of Pins | 6 |
| Width | 44mm |
| Length | 63mm |
| Height | 22mm |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda ATC 110 | 1984-1985 |
| Honda ATC 200M | 1984-1985 |
| Honda ATC 200S | 1984-1985 |
| Honda ATC 200X | 1983-1985 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 30400-965-010 | Honda |
| 30401-KE4-651 | Honda |
| 30410-964-003 | Honda |
| 30410-964-671 | Honda |
| 30410-965-003 | Honda |
| 30410-965-013 | Honda |
| 30410-968-003 | Honda |
Frequently Asked Questions
Will this fit without modification?
Yes, this CDI module is a direct plug-in replacement for the listed Honda ATC models - no cutting or splicing is required.
What's included?
One CDI module, ready to fit in place of the original.
How do I know my CDI box has failed?
A no-spark or no-start condition, once other ignition components have been ruled out, is the most reliable indicator. Swapping in a known-good CDI from the same year/make/model is the definitive test.
Is this CDI covered by warranty?
CDI units are excluded from warranty and are non-refundable once fitted, due to the nature of the technology - please confirm your OEM part number and model/year before ordering.
