CDI Box for Polaris Sportsman 300 & Hawkeye 300 2007-2011
CDI Box for Polaris Sportsman 300 & Hawkeye 300 2007-2011
SKU:RM02176
Free shipping over £150. Terms apply
Couldn't load pickup availability
CDI Box for Polaris Sportsman 300 & Hawkeye 300 2007-2011
Fits Polaris Sportsman 300 and Hawkeye 300, 2007-2011

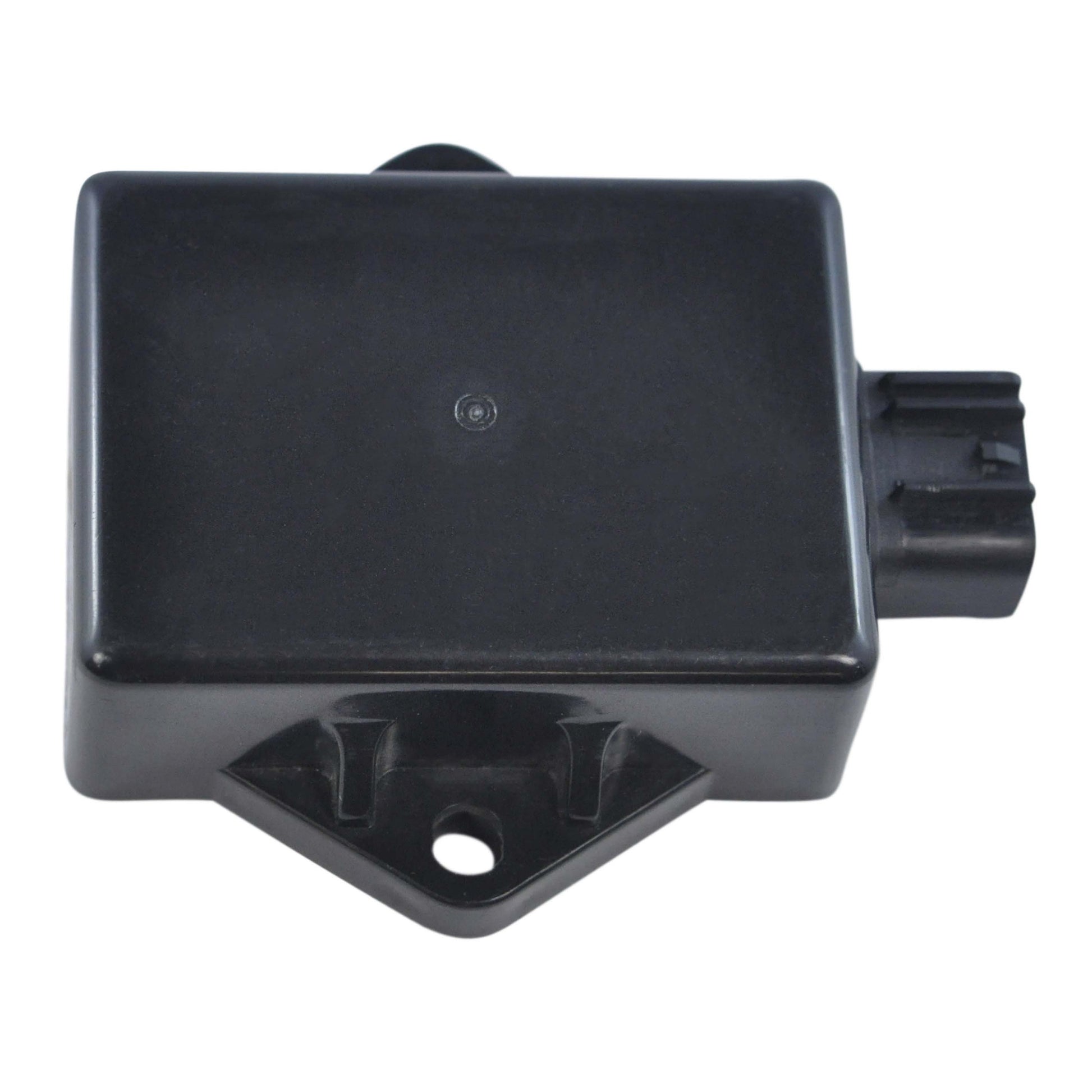

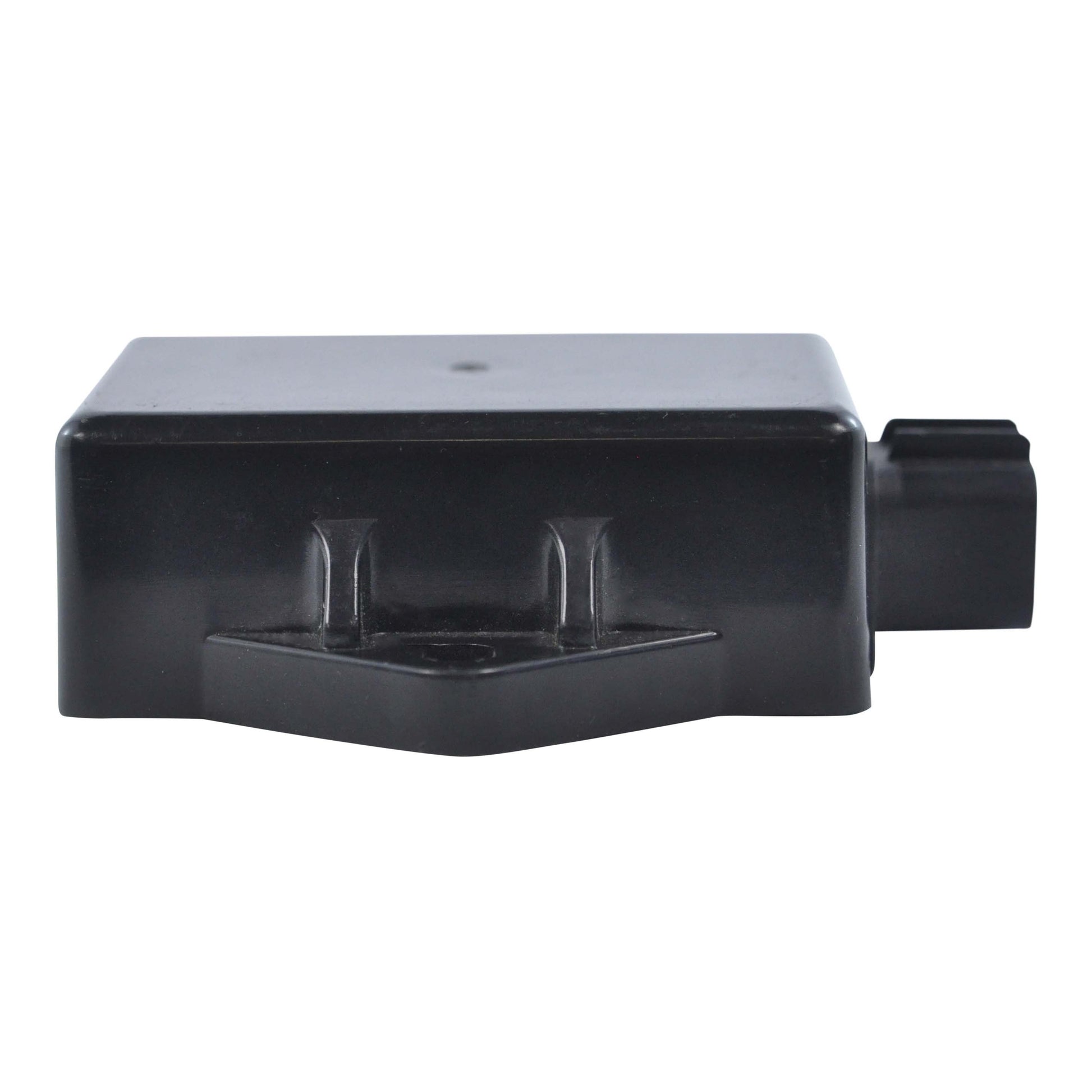

This is a direct-fit replacement CDI (Capacitor Discharge Ignition) box built to OEM specifications for the Polaris Sportsman 300 and Hawkeye 300. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original ignition module.

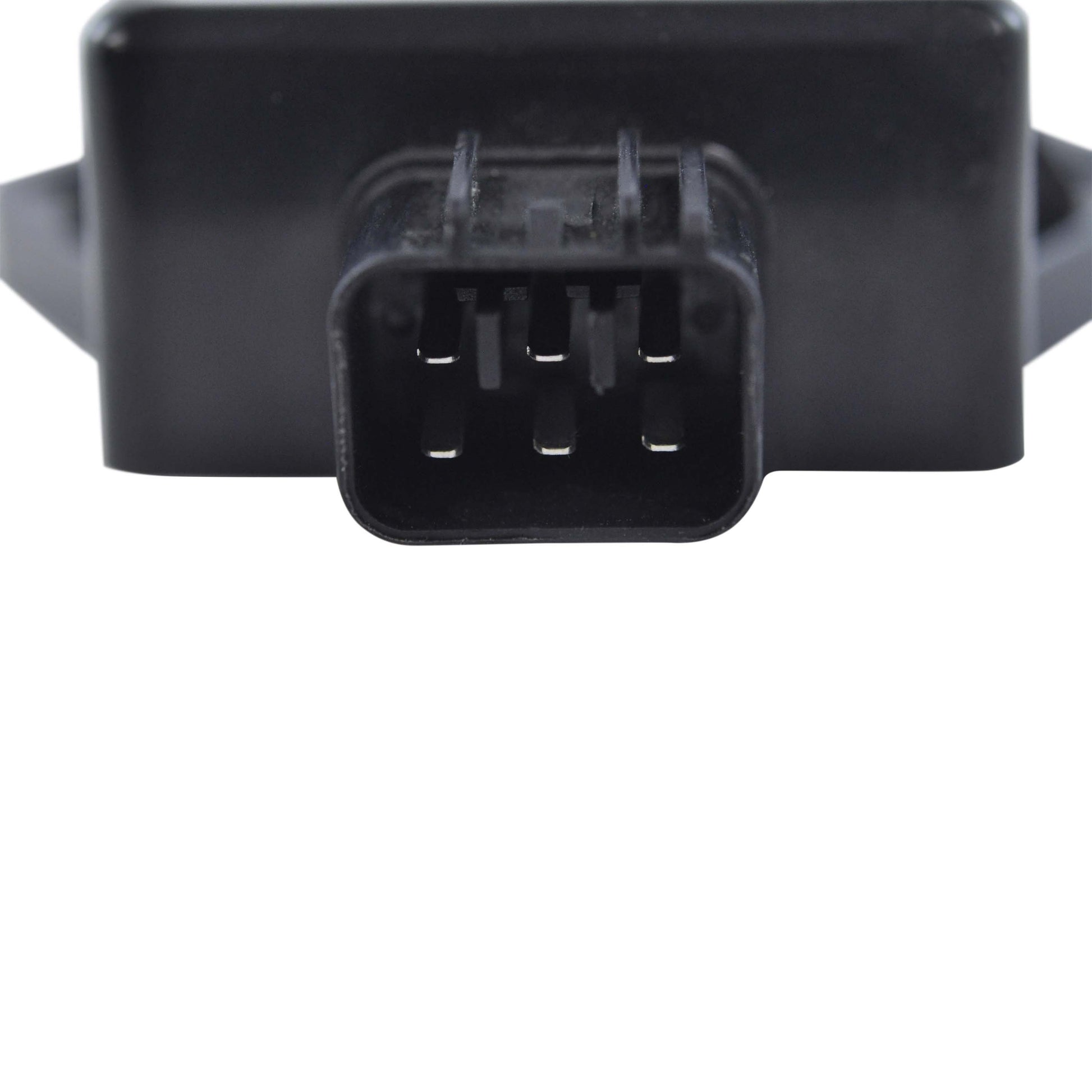

The unit uses a single wiring plug on a 6-pin connector, housed in a compact 27mm x 75mm x 55mm case with fixing holes 70mm apart, matching the specification of the CDI box originally fitted to these models. As with all Capacitor Discharge Ignition units, this CDI is a sealed electronic component and is non-refundable once fitted or tested; please confirm the OEM part number against your original unit before ordering.
Key Features
- Direct OEM fit and function - no modification required
- Single plug, 6-pin connector
- Compact 27mm x 75mm x 55mm housing
- Fixing holes 70mm centre to centre
- Direct replacement for OEM 3089978
Technical Specs
| Specification | Detail |
|---|---|
| Height | 27mm |
| Length | 75mm |
| Width | 55mm |
| Fixing Hole Centres | 70mm |
| Number of Plugs | 1 |
| Number of Pins | 6 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Polaris Hawkeye 300 | 2007-2008, 2010-2011 |
| Polaris Sportsman 300 | 2008-2010 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3089978 | Polaris |
Frequently Asked Questions
Will this CDI box fit without any modification?
Yes, this is a direct plug-in replacement for the Polaris Sportsman 300 and Hawkeye 300 across the model years listed above, and requires no modification to install.
What is included in the box?
One complete CDI ignition module, ready to fit in place of the original.
How do I know my old CDI has failed?
Common signs include no spark, an engine that turns over but will not start, intermittent misfiring, or a sudden loss of power while running. The most reliable test is swapping in a known-good unit from the same year/make/model.
Is this CDI covered by warranty if it fails?
No. Due to the sealed electronic nature of CDI units, they cannot be tested for a fault before fitting and are excluded from warranty and non-refundable once fitted or tested, as noted above.
