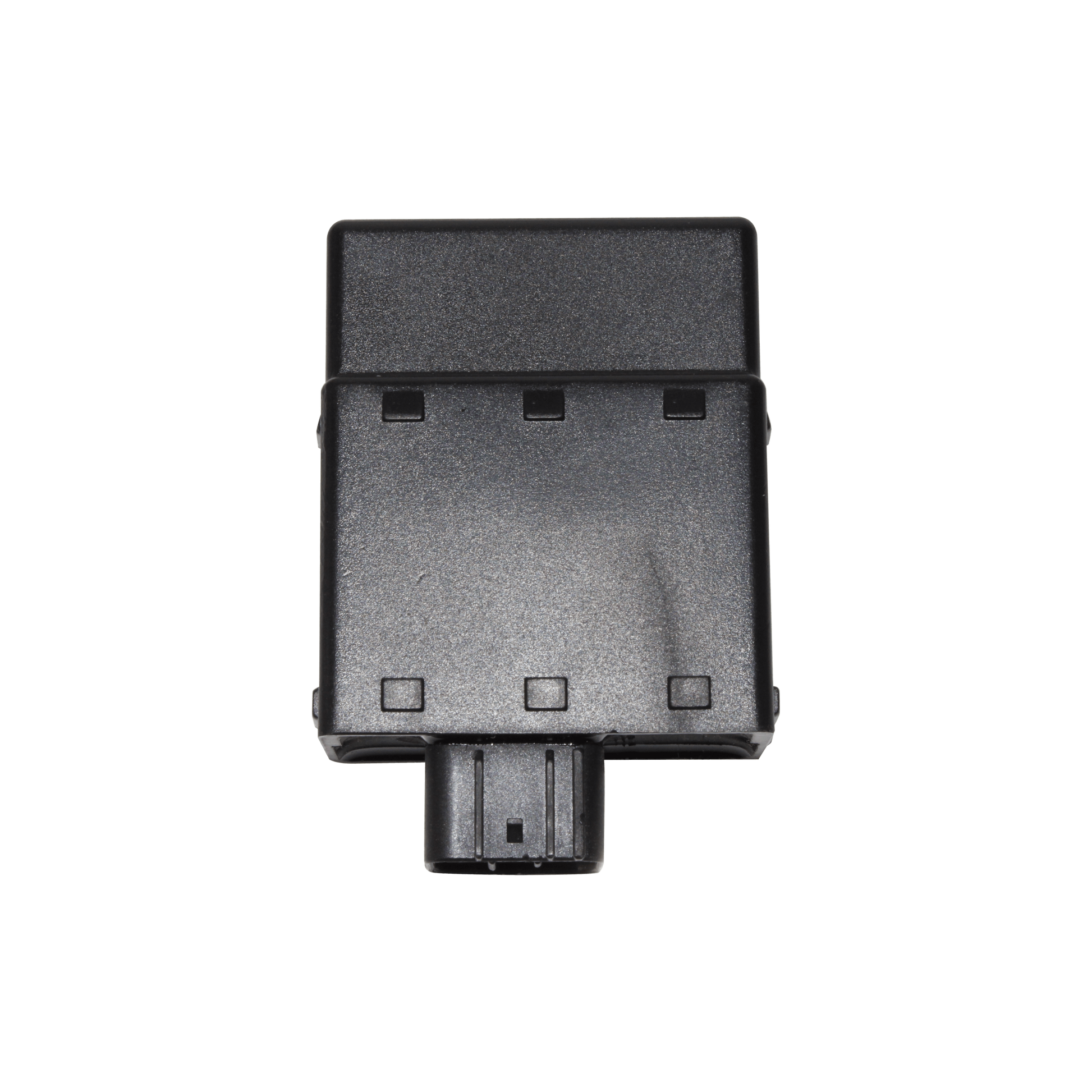

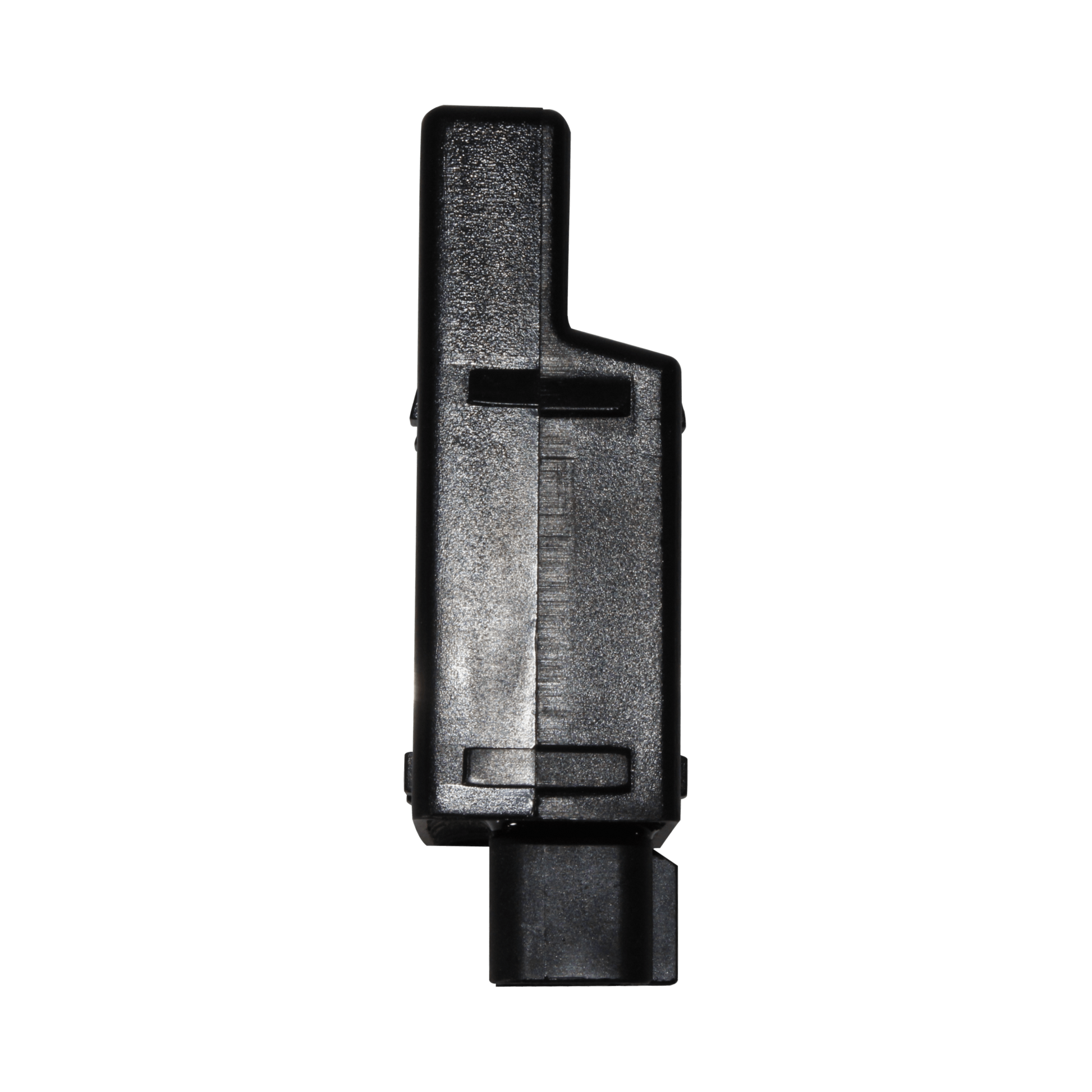

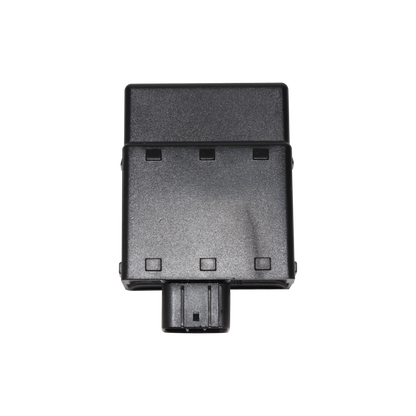

CDI Box for Suzuki LTZ 50 Quadsport Z50 2006-2019
Fits Suzuki LTZ 50 Quadsport Z50 (2006-2010 and 2014-2019)
This CDI ignition module is a direct replacement for the Suzuki LTZ 50 Quadsport Z50, built to OEM specifications for a precise fit and function with your original wiring harness.
It uses a single-plug, 8-pin connector configuration matching the original unit. As with all CDI boxes, the most reliable way to confirm a fault is to swap in a known-good unit from the same year, make and model before replacing.
Key Features
- Direct OEM fit and finish for the LTZ 50 Quadsport Z50

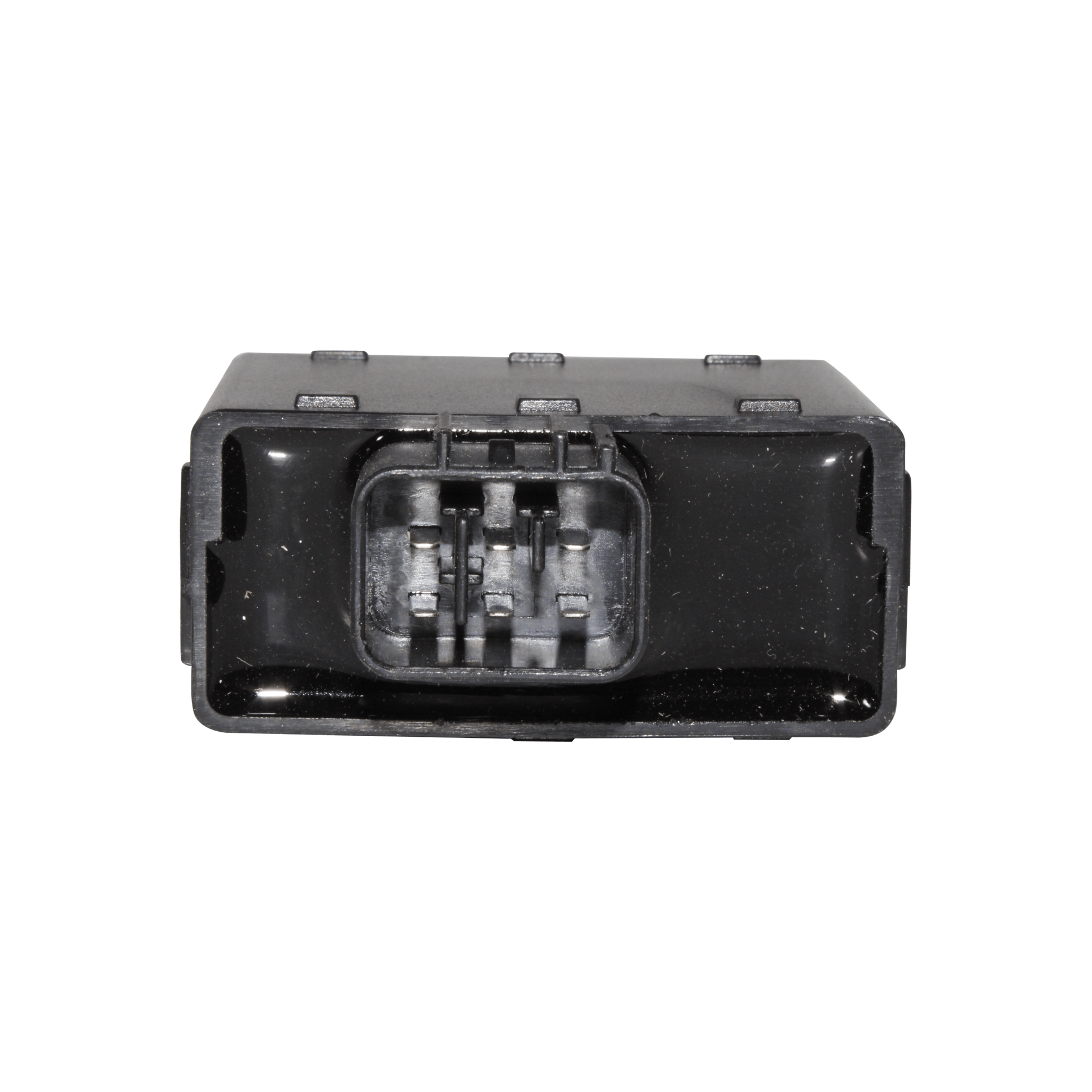

- Single-plug, 8-pin connector configuration matching the original unit
- Capacitor Discharge Ignition (CDI) module
- 12-month warranty as standard (CDI units are non-refundable once fitted)
Technical Specs
| Specification | Detail |
|---|---|
| Height | 25 mm |
| Length | 60 mm |
| Width | 70 mm |
| Number of Plugs | 1 |
| Number of Pins | 8 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki LTZ 50 Quadsport Z50 | 2006-2010 |
| Suzuki LTZ 50 Quadsport Z50 | 2014-2019 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32900-43G00 | Suzuki |
| 32900-43G10 | Suzuki |
Frequently Asked Questions
Will this fit my quad without modification?
Yes, this CDI box is built to OEM specifications for the LTZ 50 Quadsport Z50 and plugs straight into the original harness, no modification needed.
What is included in the box?
You receive one CDI ignition module, ready to connect to your existing wiring harness.
How can I tell my old CDI box has failed?
Typical symptoms include no spark, intermittent misfiring, or a no-start condition once other ignition components (spark plug, coil, kill switch) have been ruled out.
Does this cover both the earlier and later Z50 models?
Yes, this part covers the 2006-2010 and 2014-2019 production runs of the LTZ 50 Quadsport Z50 - check OEM numbers 32900-43G00 and 32900-43G10 against your original unit if unsure.
