CDI Box for Yamaha YFM 250 Bear Tracker 2001-2004 - Replaces 4XE-85540-00-00
CDI Box for Yamaha YFM 250 Bear Tracker 2001-2004 - Replaces 4XE-85540-00-00
SKU:RM02160
Free shipping over £150. Terms apply
Couldn't load pickup availability
CDI Box for Yamaha YFM 250 Bear Tracker 2001-2004 - Replaces 4XE-85540-00-00
Fits Yamaha YFM 250 Bear Tracker, 2001-2004

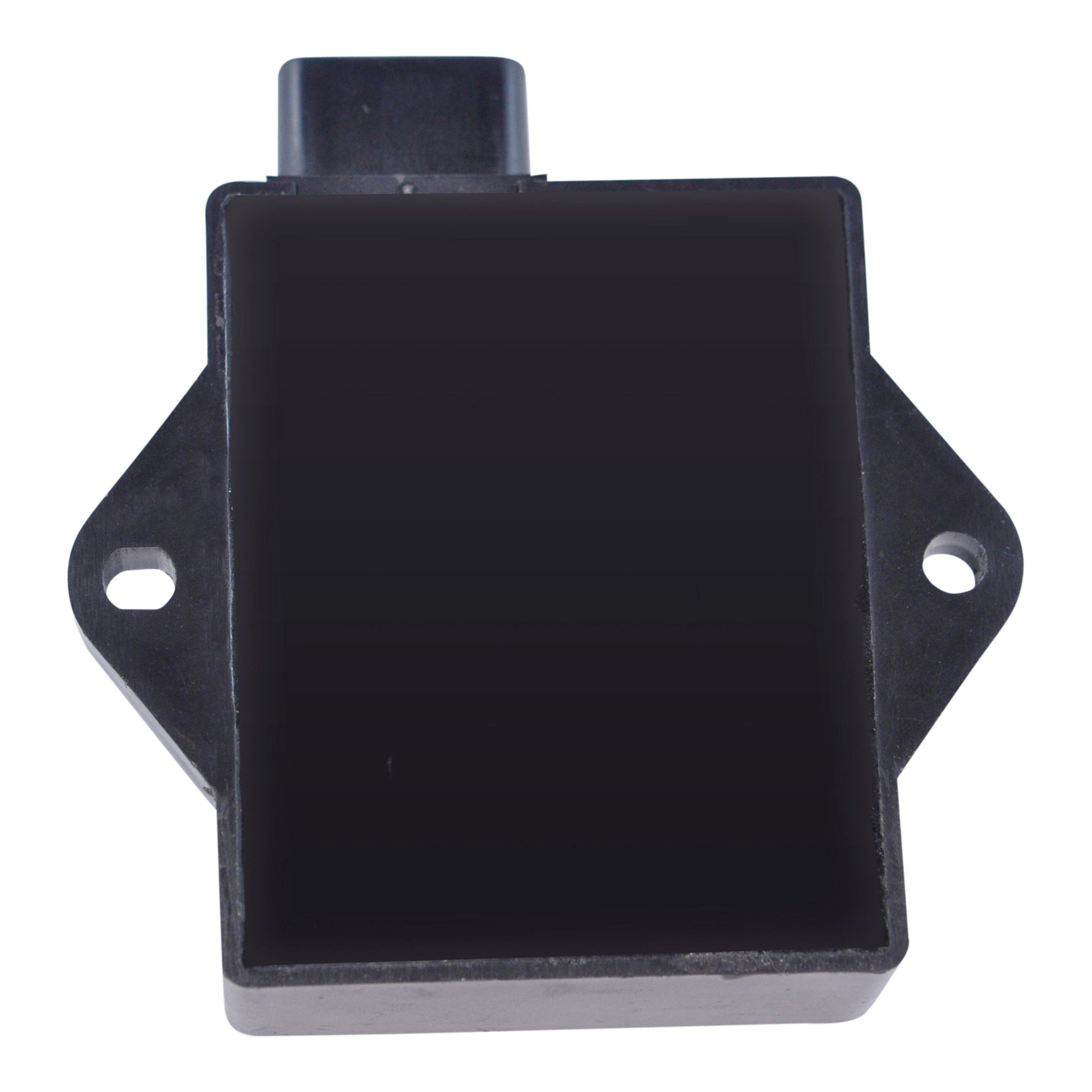

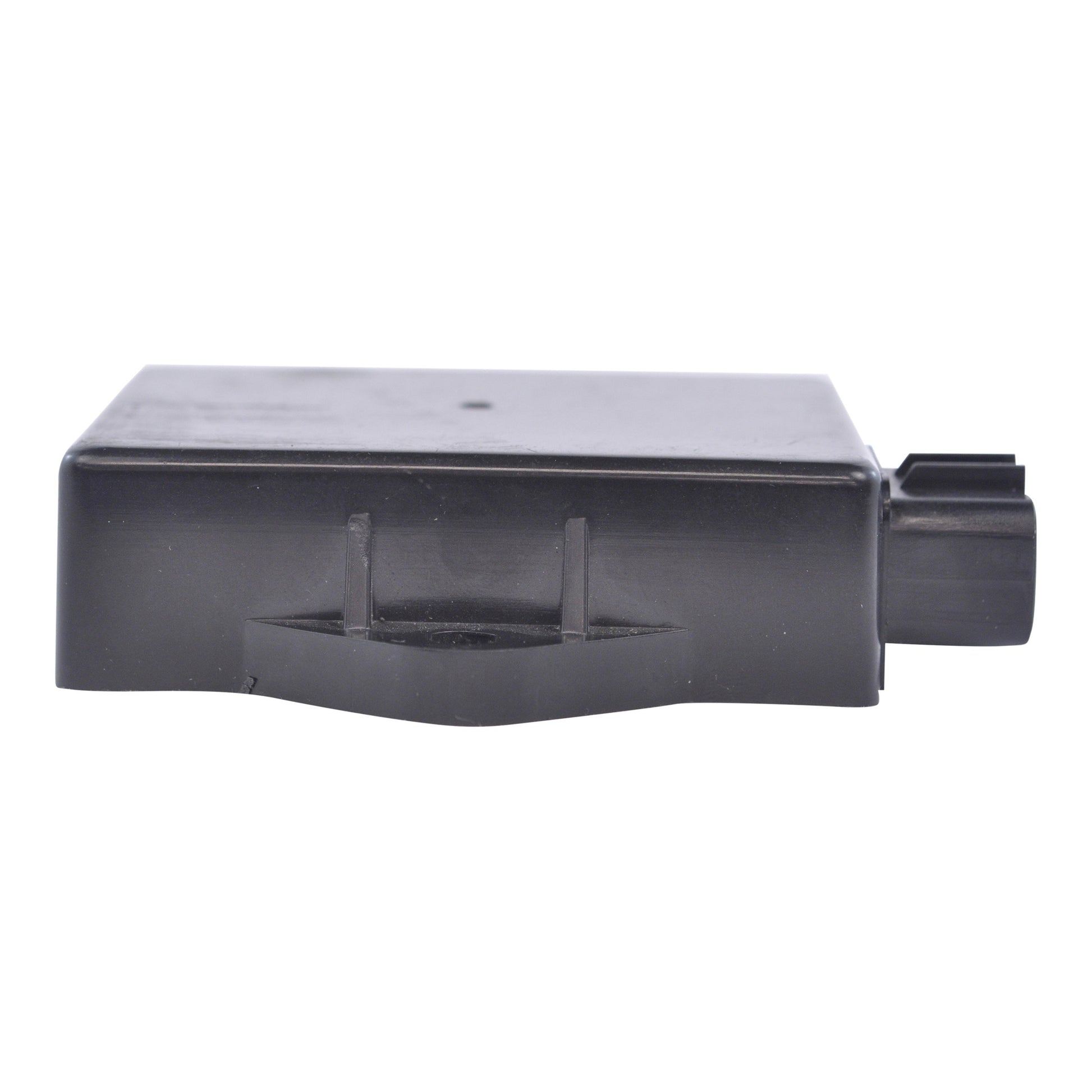

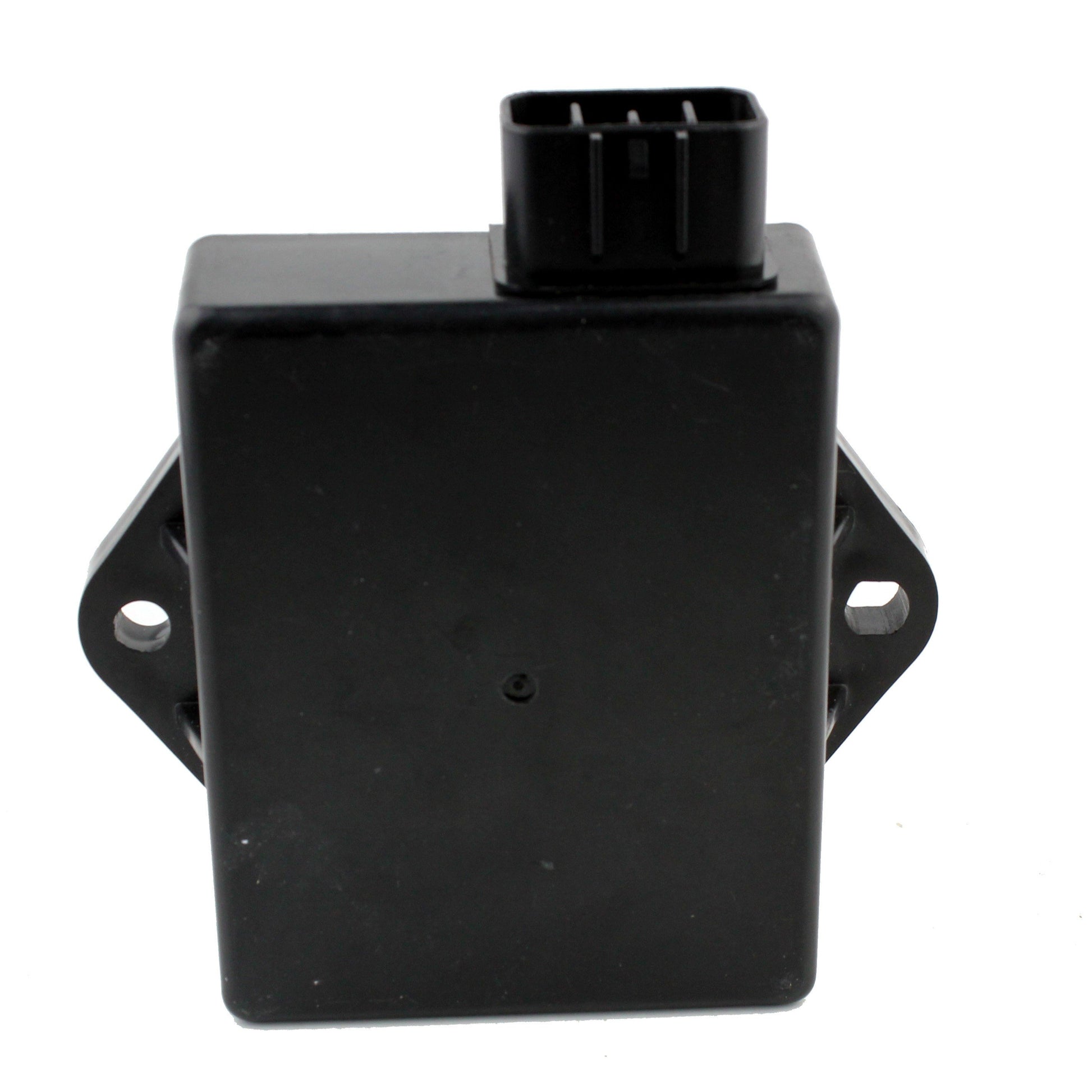

This is a direct-fit replacement CDI (Capacitor Discharge Ignition) box built to OEM specifications for the Yamaha YFM 250 Bear Tracker, 2001-2004. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original ignition module.

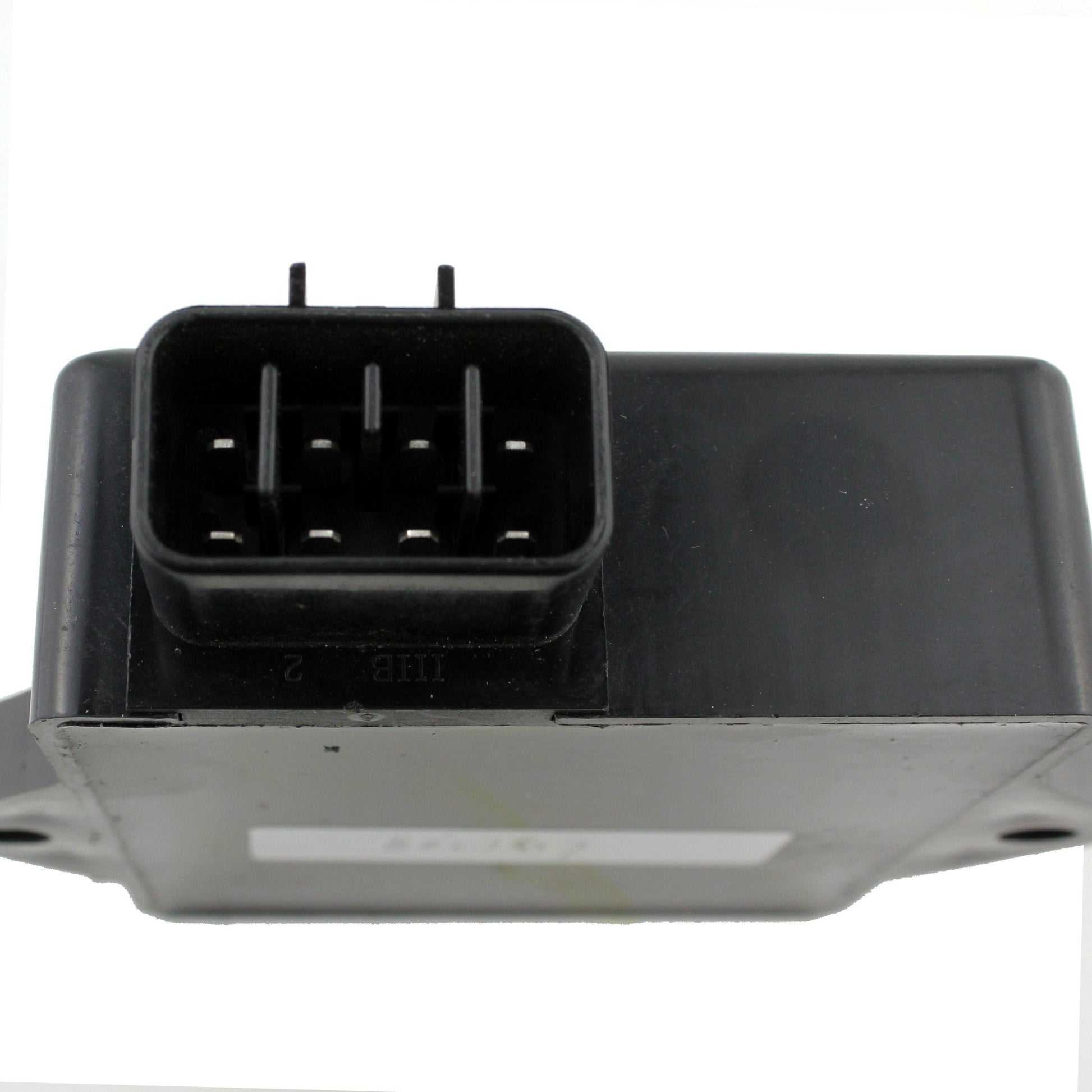

The unit uses a single wiring plug on an 8-pin connector, measures 86.5mm x 96mm x 26.5mm with fixing holes 71mm apart, matching the specification of the CDI box originally fitted to this model. As with all Capacitor Discharge Ignition units, this CDI is a sealed electronic component and is non-refundable once fitted or tested; please confirm the OEM part number against your original unit before ordering.
Key Features
- Direct OEM fit and function - no modification required
- Single plug, 8-pin connector
- 86.5mm x 96mm x 26.5mm housing
- Fixing holes 71mm centre to centre
- Direct replacement for OEM 4XE-85540-00-00
Technical Specs
| Specification | Detail |
|---|---|
| Number of Plugs | 1 |
| Number of Pins | 8 |
| Width | 86.5mm |
| Length | 96mm |
| Height | 26.5mm |
| Fixing Hole Centres | 71mm |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFM 250 Bear Tracker | 2001-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4XE-85540-00-00 | Yamaha |
Frequently Asked Questions
Will this CDI box fit without any modification?
Yes, this is a direct plug-in replacement for the Yamaha YFM 250 Bear Tracker, 2001-2004, and requires no modification to install.
What is included in the box?
One complete CDI ignition module, ready to fit in place of the original.
How do I know my old CDI has failed?
Common signs include no spark, an engine that turns over but will not start, intermittent misfiring, or a sudden loss of power while running. The most reliable test is swapping in a known-good unit from the same year/make/model.
Is this CDI covered by warranty if it fails?
No. Due to the sealed electronic nature of CDI units, they cannot be tested for a fault before fitting and are excluded from warranty and non-refundable once fitted or tested, as noted above.
