CDI Box for Yamaha YFM 660 Grizzly & YXR Rhino
Fits Yamaha YFM 660 Grizzly, YXR 450 Rhino & YXR 660 Rhino

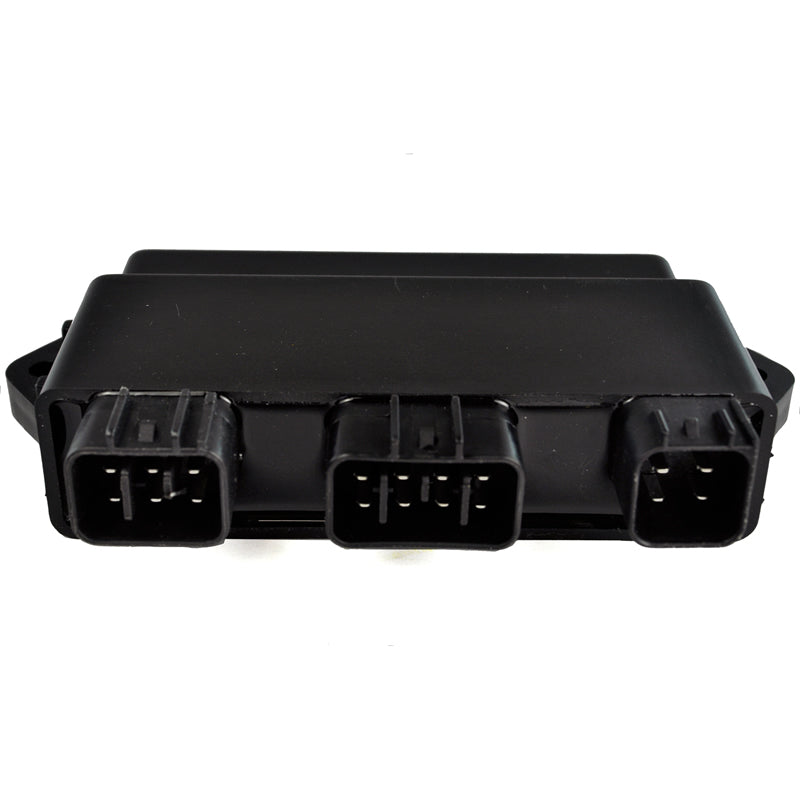

This CDI (Capacitor Discharge Ignition) module is built to OEM specifications as a direct plug-in replacement for the ignition system on Yamaha YFM 660 Grizzly and YXR Rhino models. It restores reliable spark timing and starting performance without any modification to the original wiring loom.
The unit uses a 3-plug, 18-pin connector layout matching the factory harness, and measures 110mm long by 92mm wide with a 27mm case height, bolting straight into the original mounting location using the 120mm centre-to-centre fixing holes.
Key Features
- Direct OEM fit and finish, no wiring modifications required
- 3-plug, 18-pin connector layout matching the original harness
- Compact 110 x 92 x 27mm case with 120mm fixing hole spacing
- Covers Yamaha YFM 660 Grizzly and YXR 450/660 Rhino ignition systems
- Please note: CDI units are excluded from warranty and are non-refundable once fitted
Technical Specs
| Specification | Detail |
|---|---|
| Height | 27mm |
| Length | 110mm |
| Width | 92mm |
| Fixing Holes (centre to centre) | 120mm |
| Plugs | 3 |
| Pins | 18 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFM 660 Grizzly | 2002-2008 |
| Yamaha YXR 450 Rhino | 2006-2009 |
| Yamaha YXR 660 Rhino | 2004-2007 |
| Motobishi 500 | 2005-2011 |
| Motobishi 700 | 2005-2011 |
| Powermax 500 | 2005-2011 |
| Powermax 700 | 2005-2011 |
| Nordik Motors 500 | 2005-2011 |
| Nordik Motors 700 | 2005-2011 |
| Rough Rider 500 | 2005-2011 |
| Rough Rider 700 | 2005-2009, 2011-2012 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5KM-85540-00-00 | Yamaha |
| 5KM-85540-10-00 | Yamaha |
| 5UG-85540-00-00 | Yamaha |
| 5UG-85540-10-00 | Yamaha |
| 2P5-85540-00-00 | Yamaha |
| MOTOBISHI02047 | Motobishi |
| NORDIK MOTOR02047 | Nordik Motors |
| PM02047-R00 | Powermax |
| ROUGH RIDER02047 | Rough Rider |
Frequently Asked Questions
Will this CDI fit without any modifications?
Yes, it is a direct plug-in replacement using the original connector layout, so no cutting or splicing of the wiring loom is required.
What is included?
One CDI module, ready to fit in place of the original unit.
How can I tell my CDI has failed?
Common symptoms include no spark, intermittent misfiring, stalling, or a complete failure to start even though the battery and starter are working normally.
Is this CDI covered by warranty?
Due to the sealed electronic nature of CDI units they are excluded from our standard warranty and are non-refundable once fitted. Please confirm the OEM number against your original unit before ordering.
