6V CDI Box for Can-Am Qualifier 1982 - Replaces 1217280022
6V CDI Box for Can-Am Qualifier 1982 - Replaces 1217280022
SKU:RM02205
Free shipping over £150. Terms apply
Couldn't load pickup availability

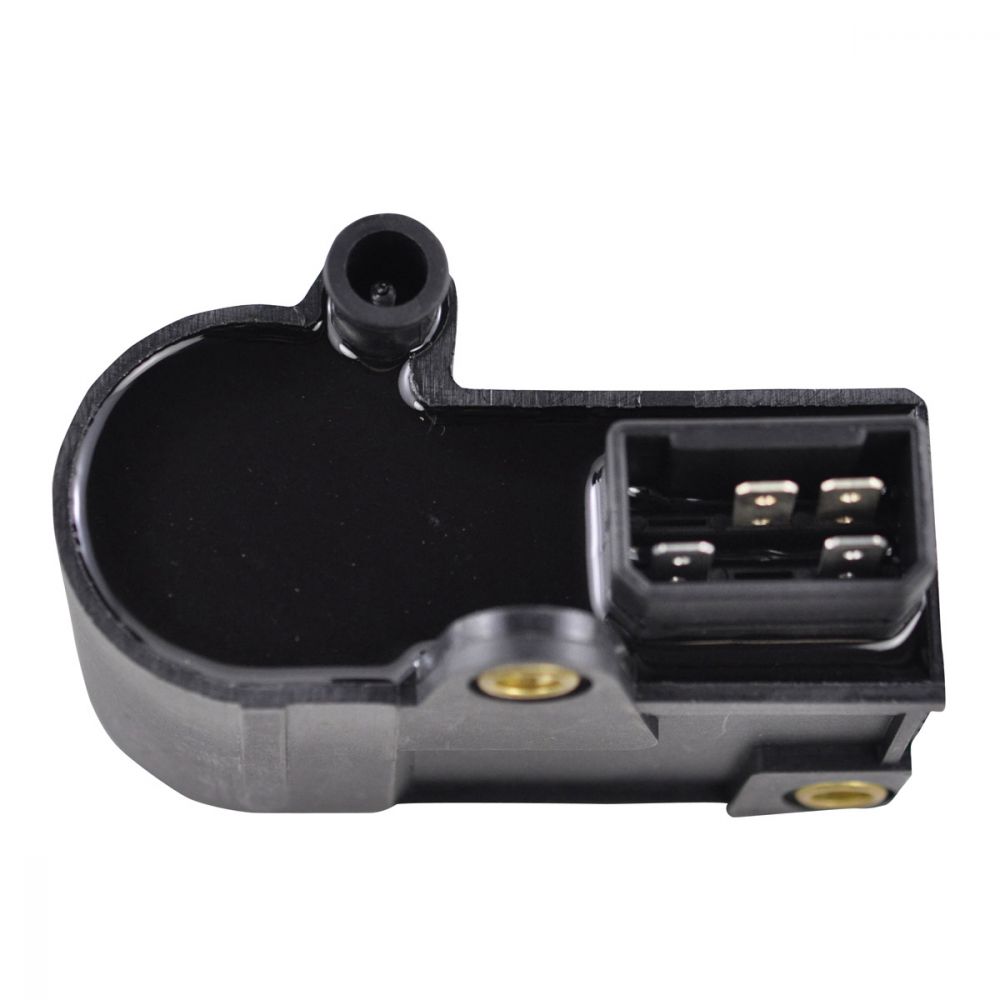

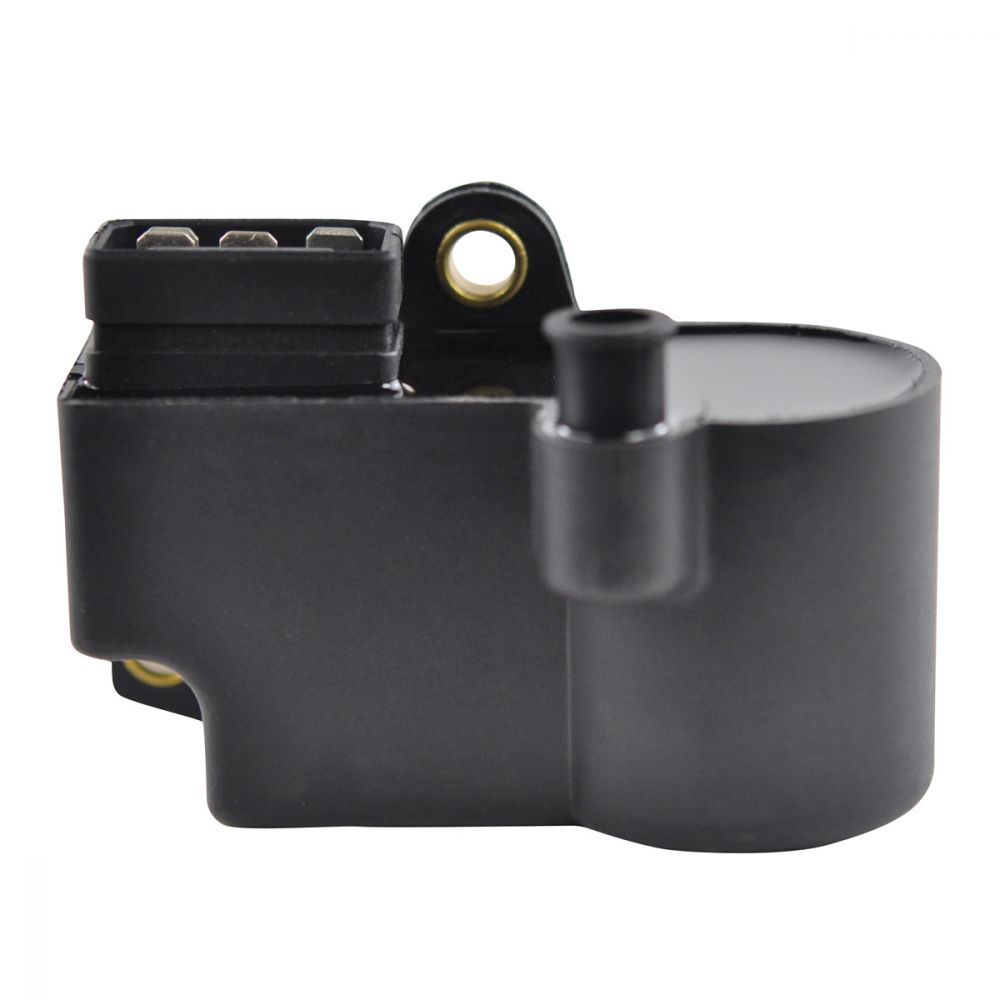

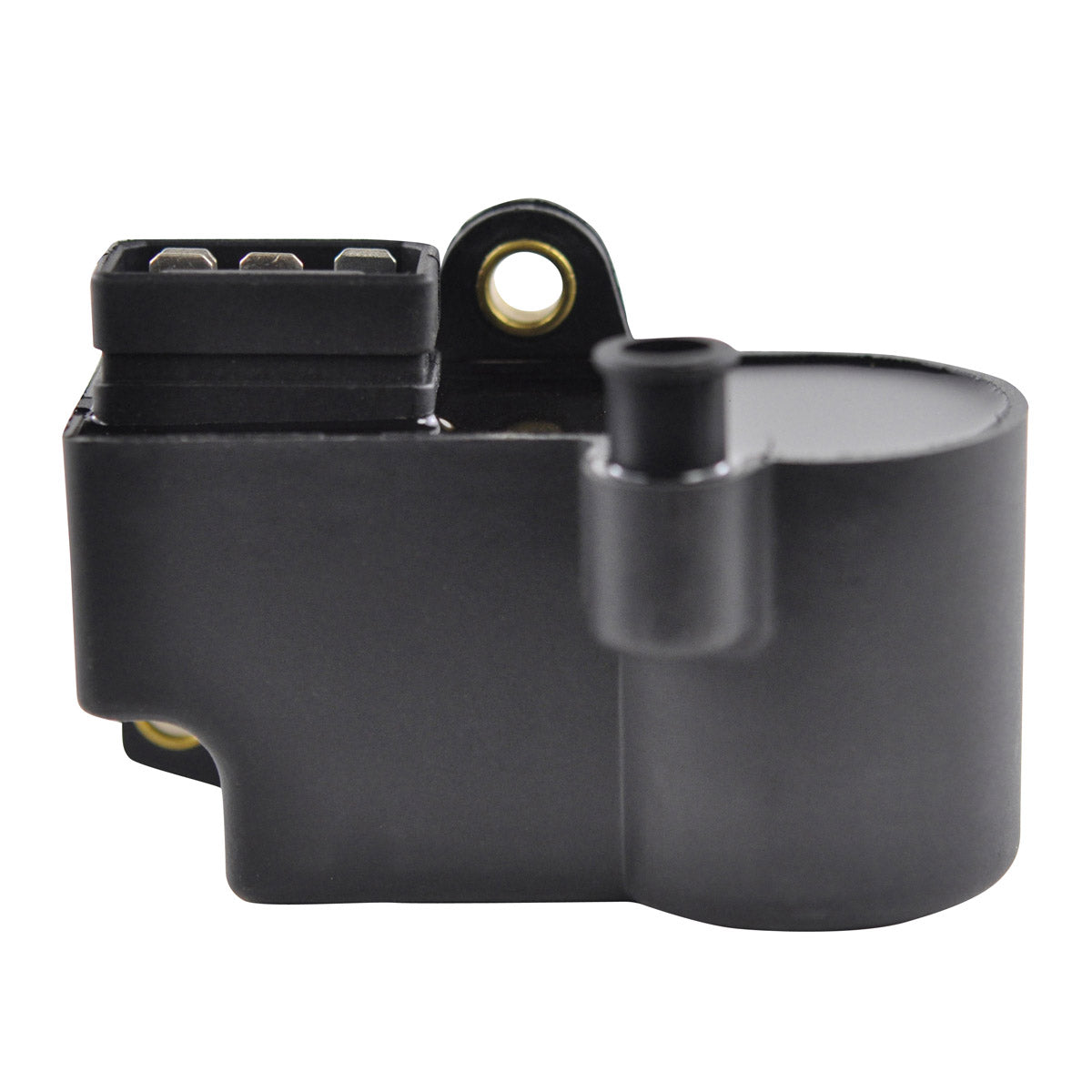

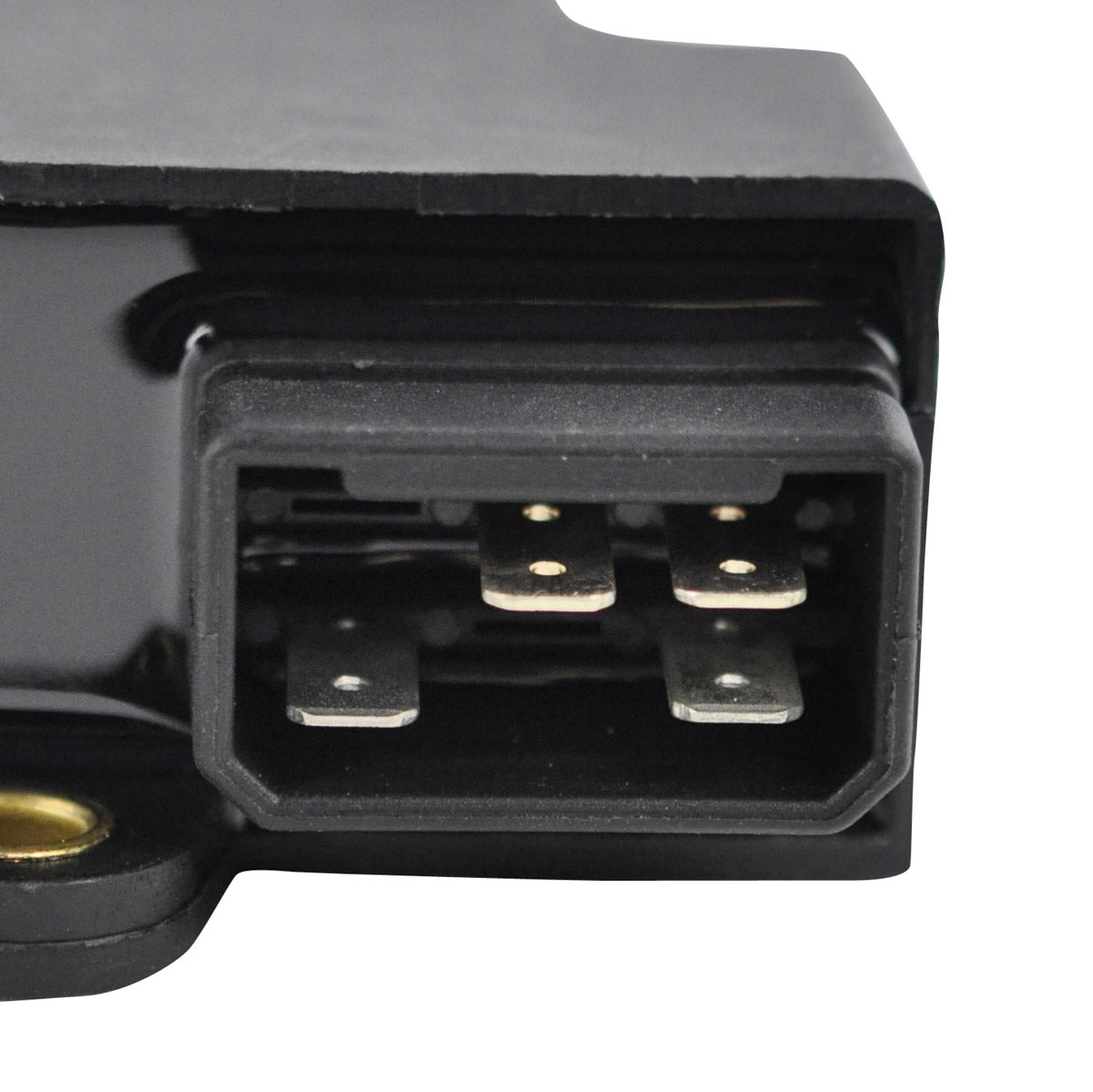

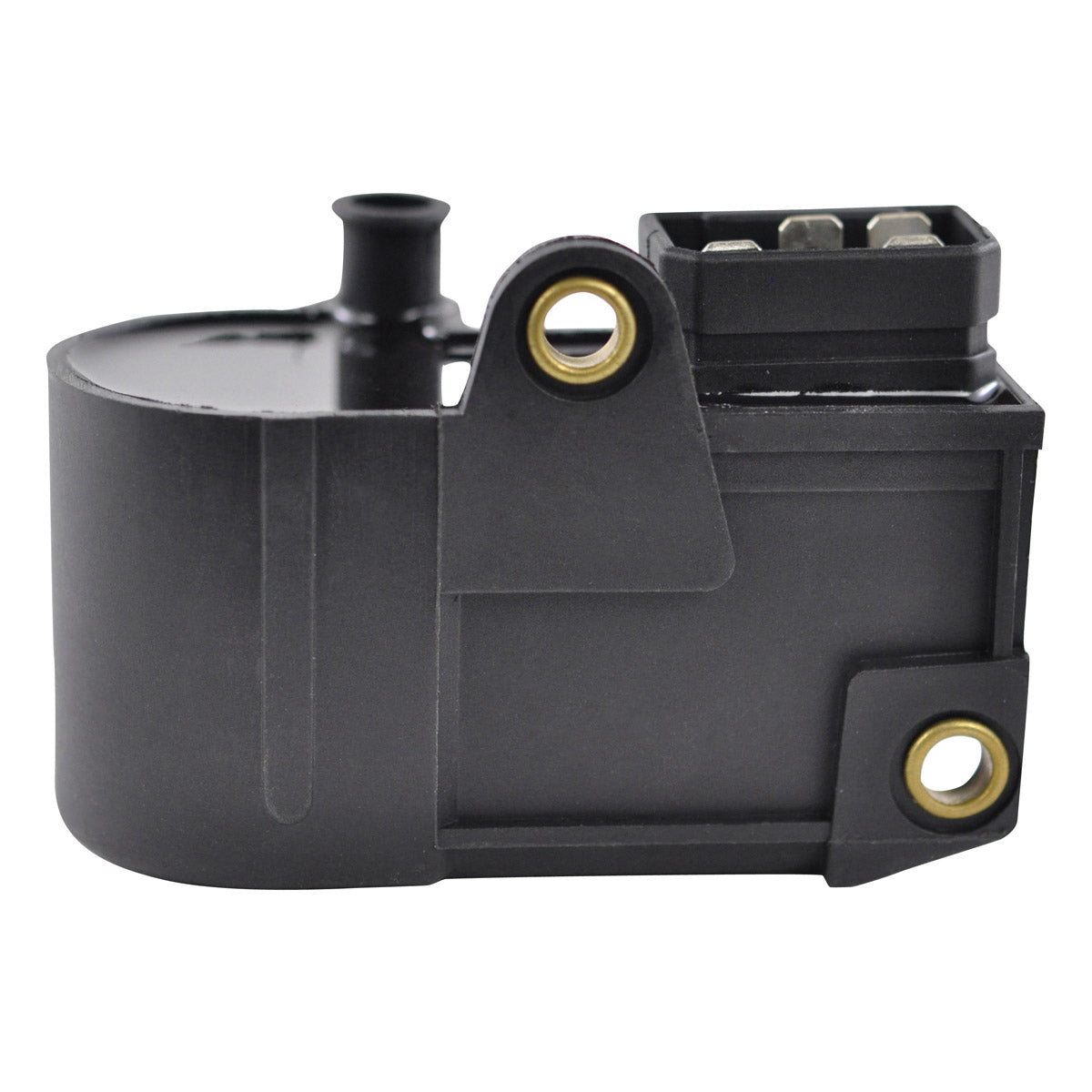

Tested PeakRPM 6V CDI Box
Can-Am Qualifier with Bosch ignition - 1982 - Part No. RM02205
This is an aftermarket PeakRPM 6V CDI box for the 1982 Can-Am Qualifier running the Bosch ignition system. It is built to a plug and play OEM design, so it drops straight onto the original mounting and connects to the existing four-pin plug on the machine's loom. The unit is assembled from OEM-grade electronic components and printed circuit boards, and it is designed to deliver optimal output right through the rev range rather than tailing off at the top end.
A tube of dielectric connector grease is supplied with the box. On a machine of this age the connector itself is often as much of a problem as the electronics, and greasing the pins on reassembly keeps moisture and corrosion out of the joint. Worth knowing before you order: the manufacturer states that around 90 per cent of ignition faults on these machines are actually caused by a faulty stator, not by the CDI. Test the stator and the pickup coil before replacing the CDI box, so you fit the part that is genuinely at fault. This unit cross-references to OEM number 1217280022.
Key Features
- Aftermarket PeakRPM 6V CDI box
- Plug and play OEM design
- Optimal output for your ride
- OEM-grade electronic components and printed circuit boards
- Dielectric connector grease included
- Tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 6V |
| Number of plugs | 1 |
| Number of pins | 4 |
| Ignition system | Bosch |
| Part number | RM02205 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Can-Am Qualifier (Bosch ignition) | 1982 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1217280022 | Bosch / Can-Am |
Frequently Asked Questions
Does it need any modification to fit?
No. It follows the OEM design and uses the same single four-pin plug, so it is a plug and play fit to the original loom on the 1982 Qualifier with Bosch ignition. No cutting or rewiring is required.
What is included in the box?
The PeakRPM 6V CDI box and a supply of dielectric connector grease for the plug.
How do I know the CDI box is the part that has failed?
Do not assume it is. The manufacturer states that around 90 per cent of ignition problems on these machines come from a faulty stator. Test the stator and pickup coil resistances against the workshop figures first, check the connector for corrosion, and only replace the CDI once those have been ruled out.
Why does the grease matter on a 1982 machine?
Forty-year-old ignition connectors collect moisture and oxide on the pins, which raises resistance and produces exactly the intermittent misfires people blame on the CDI. Packing the four-pin plug with the supplied dielectric grease on reassembly keeps water out and helps the new box give a clean, consistent connection.
