CDI Box for Kawasaki KLF 300 Bayou B & C EU Models 1995-2006 - Replaces 21119-1447
CDI Box for Kawasaki KLF 300 Bayou B & C EU Models 1995-2006 - Replaces 21119-1447
SKU:RM02063
Free shipping over £150. Terms apply
Couldn't load pickup availability

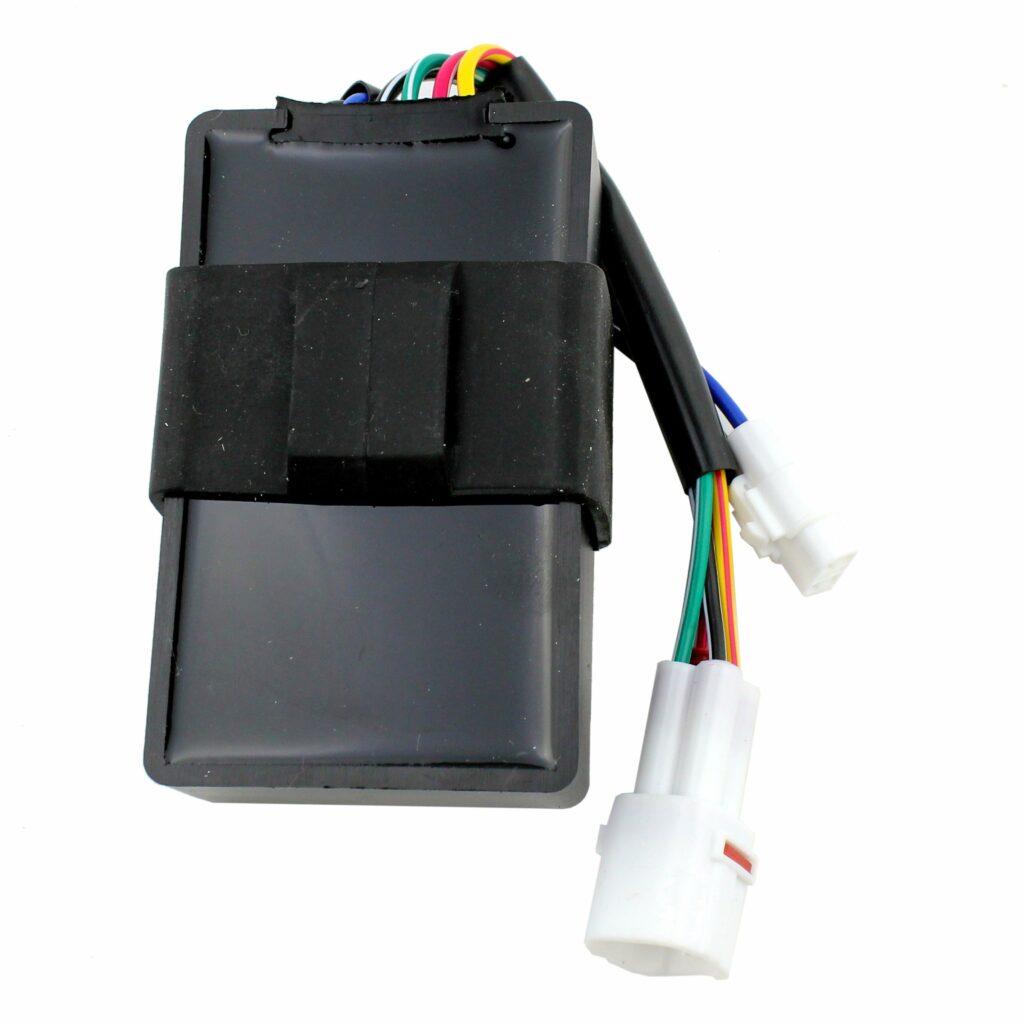

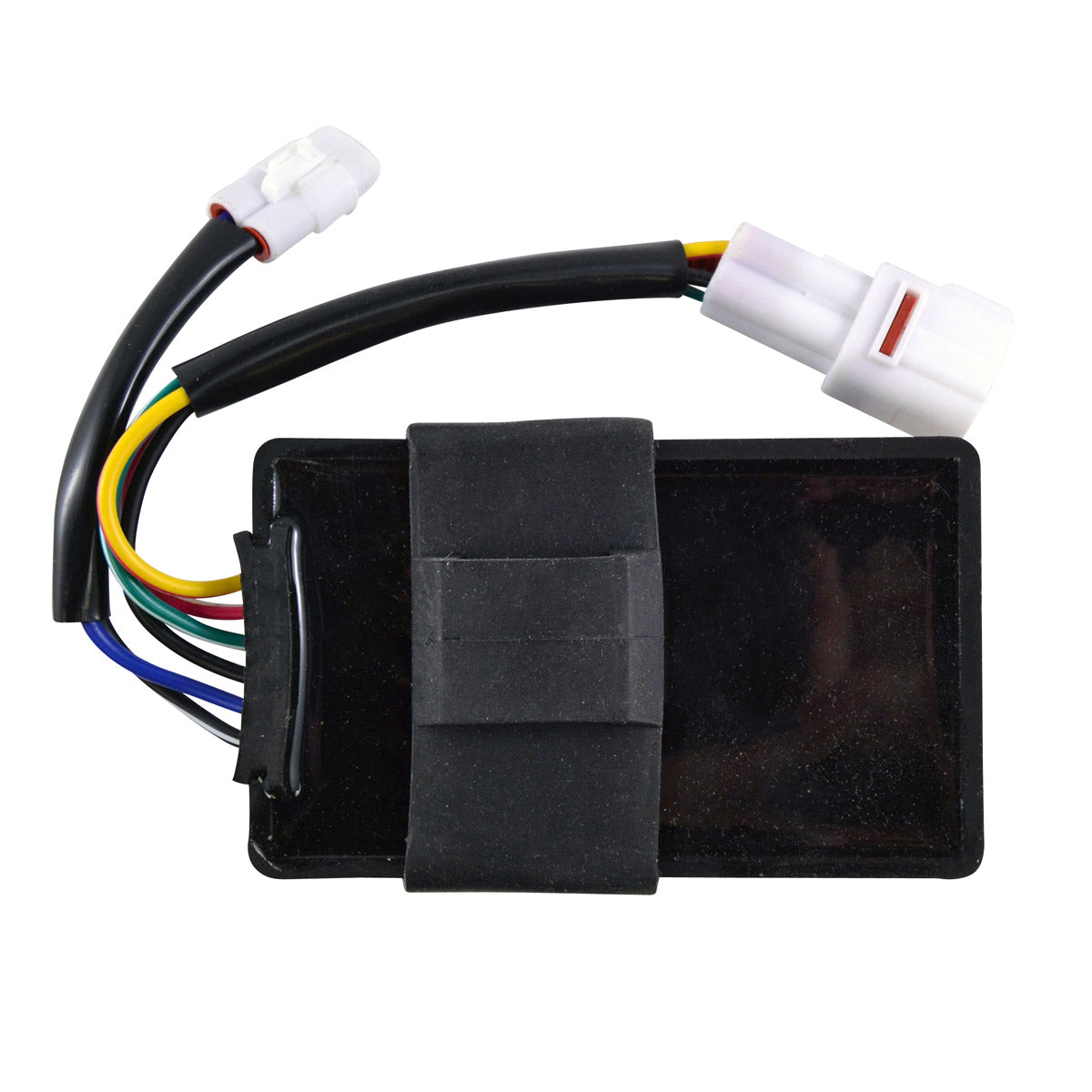

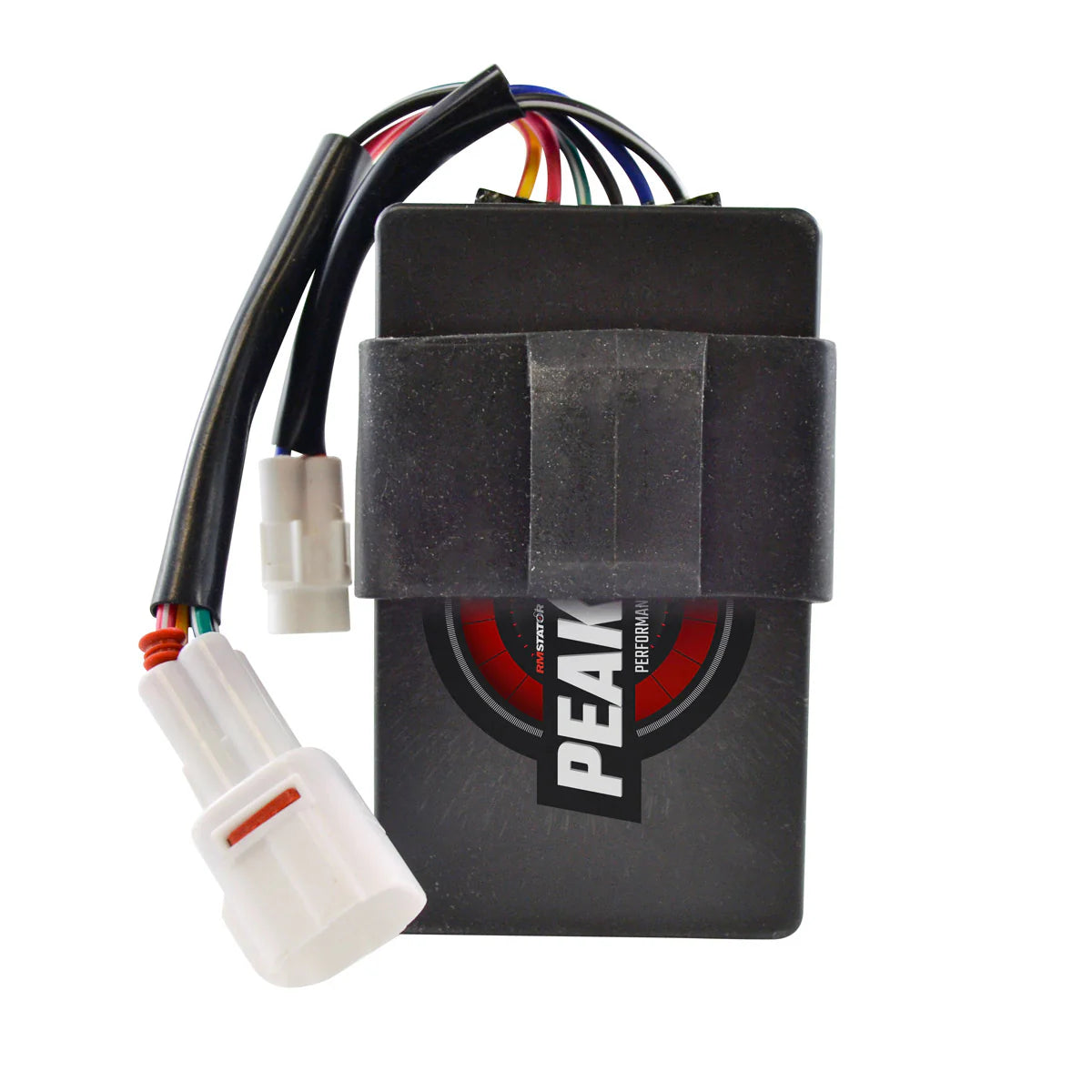

PeakRPM CDI Box for Kawasaki KLF 300 Bayou B and C
Fits Kawasaki KLF 300 Bayou B and C European models, 1995-2006 - replaces 21119-1447
This is a brand new aftermarket PeakRPM CDI box for the European specification Kawasaki KLF 300 Bayou B and Bayou C, covering model years 1995 to 2006. It is a direct plug-in replacement built to the original connector pattern, two plugs carrying six pins between them, so it goes straight onto the standard loom. Dielectric connector grease is supplied in the box.
The CDI box is what charges and discharges into the ignition coil and controls the advance curve the engine runs on. A failing unit usually shows itself as no spark at all, a spark that disappears once the engine has warmed through, an artificial rev ceiling, or running faults that come and go with heat and vibration. This PeakRPM unit uses OEM-grade electronic components and printed circuit boards so it holds up to the heat and the pounding an ATV gives it. Worth knowing before you buy: RMSTATOR state that around 90 percent of ignition problems are actually caused by a faulty stator, so it is well worth testing the stator and the pickup before replacing the electronic box. Note also that the European Bayou B and C use part number 21119-1447, which is not the same CDI as the North American Bayou.
Key Features
- Brand new aftermarket PeakRPM CDI box
- Direct plug-in replacement, plug and play OEM design

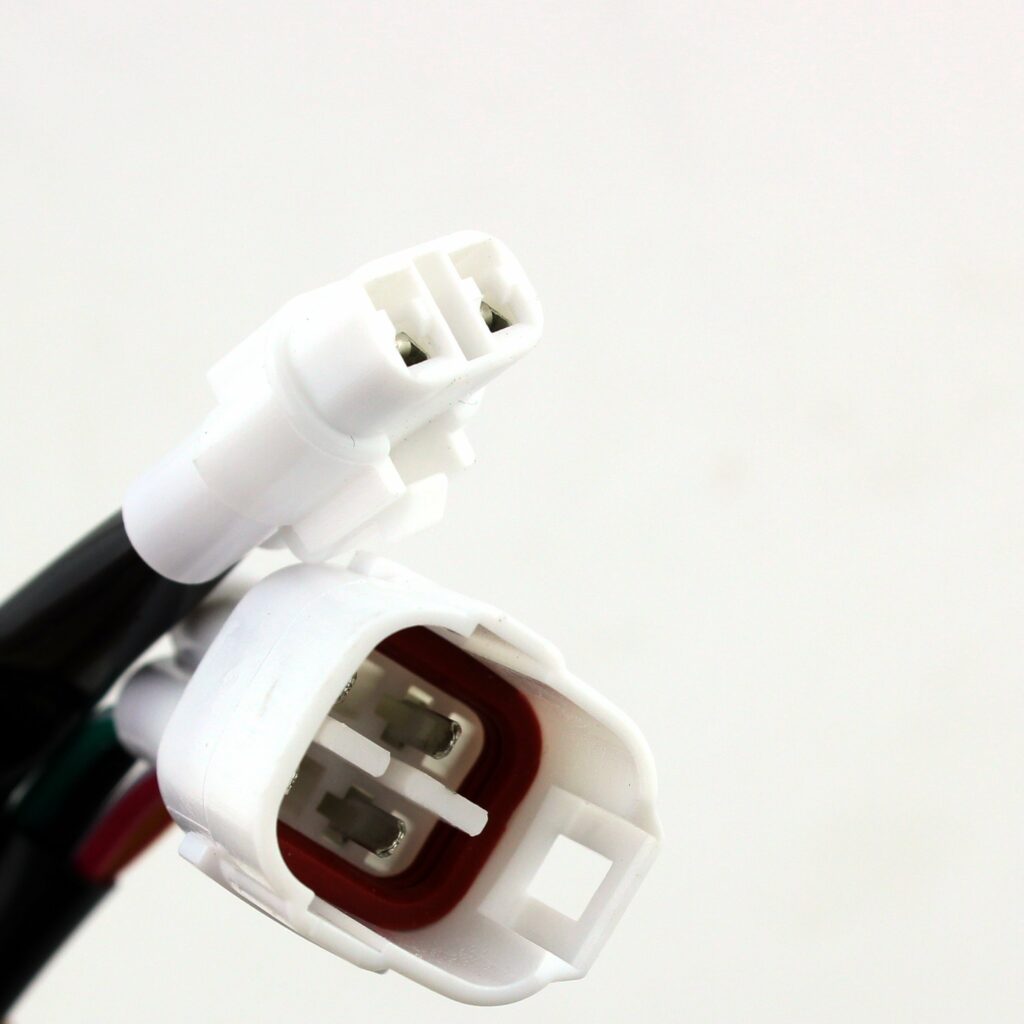

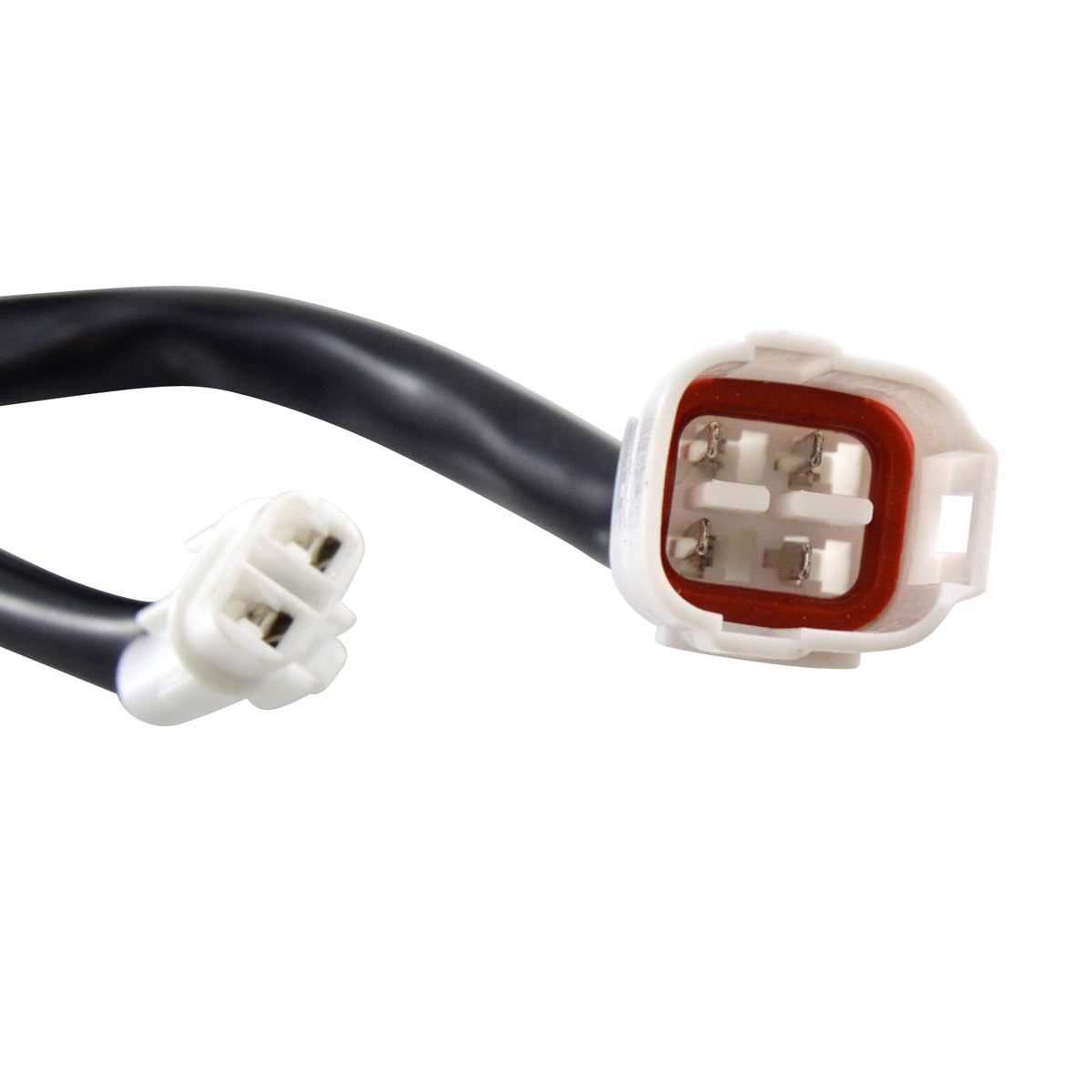

- Two plugs and six pins, matching the original connectors
- Dielectric connector grease included
- OEM-grade electronic components and printed circuit boards
- Built specifically for the European specification Bayou B and C
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM02063 |
| Length | 91 mm |
| Height | 54 mm |

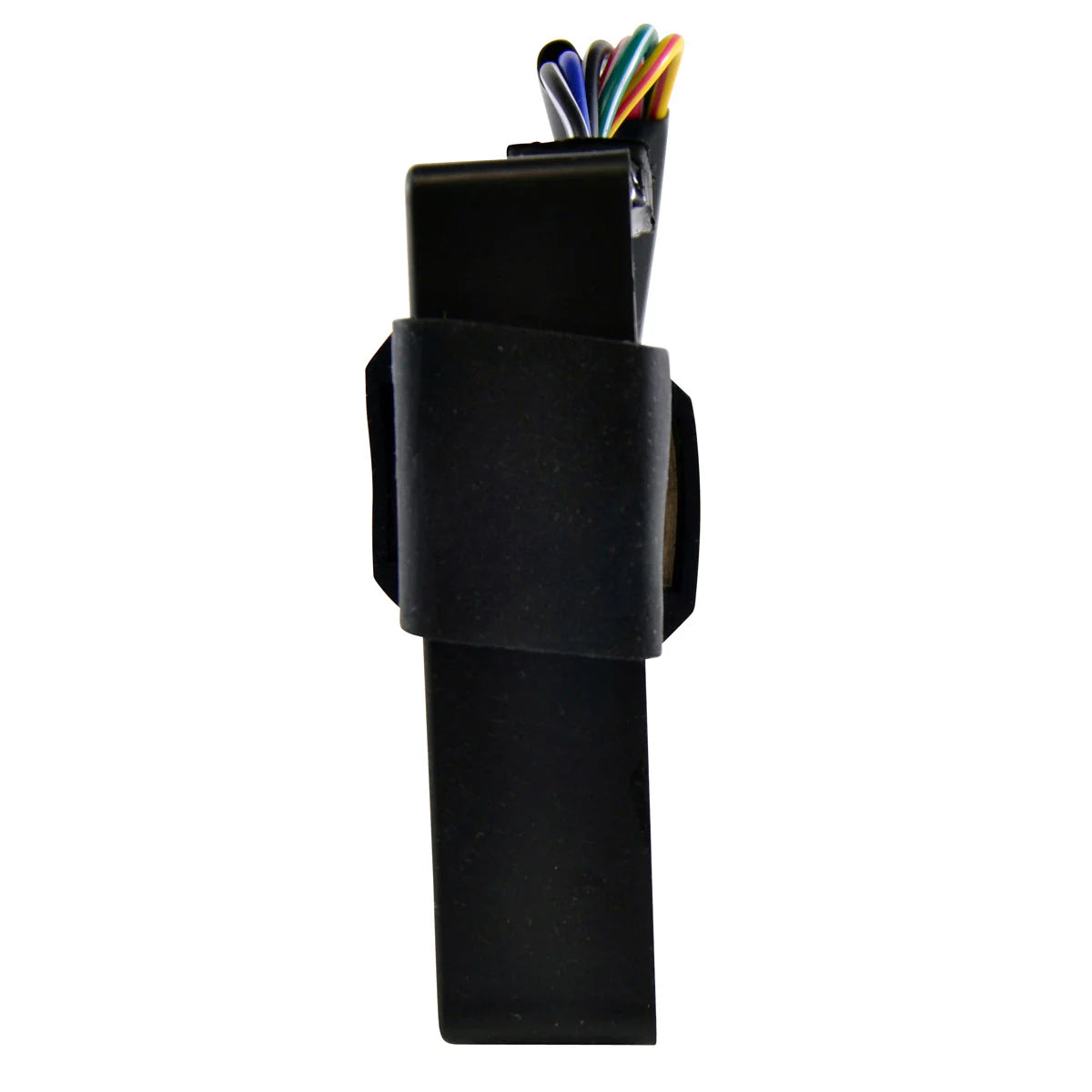

| Thickness | 23 mm |
| Number of Plugs | 2 |
| Number of Pins | 6 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki KLF 300 Bayou B, European models | 1995-2006 |
| Kawasaki KLF 300 Bayou C, European models | 1995-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21119-1447 | Kawasaki |
Frequently Asked Questions
Does it fit without modification?
Yes. This is a direct plug-in replacement with the OEM connector layout of two plugs and six pins, so it mates with the standard European Bayou loom. No cutting, soldering or re-pinning is required.
What is included?
The CDI box itself, together with dielectric connector grease. Work the grease into the connector faces as you plug it in - it seals out moisture and slows the corrosion that causes intermittent ignition faults on machines used off road.
How can I tell my old CDI box has failed?
Look for a complete loss of spark, spark that cuts out once the engine reaches operating temperature, an engine that will not rev past a certain point, or intermittent misfiring. Test the stator first, though: RMSTATOR report that about 90 percent of ignition issues trace back to a faulty stator rather than the CDI.
Is this the same as the CDI for a US market Bayou?
No. This unit covers the European specification KLF 300 Bayou B and C and carries OEM reference 21119-1447. Check the number moulded or printed on the box you are removing before ordering, because the North American Bayou uses different CDI part numbers.
