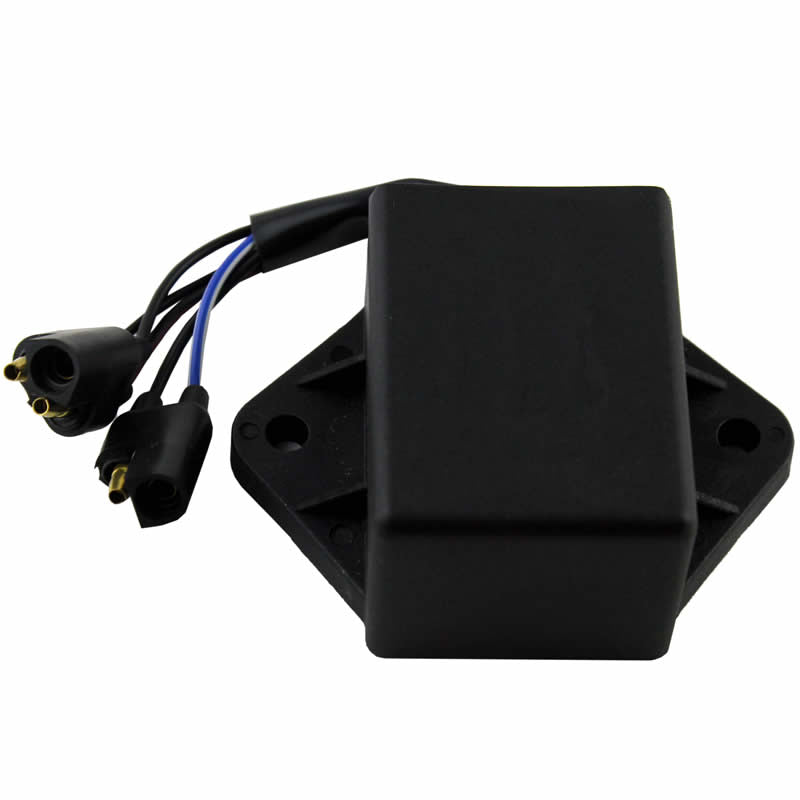

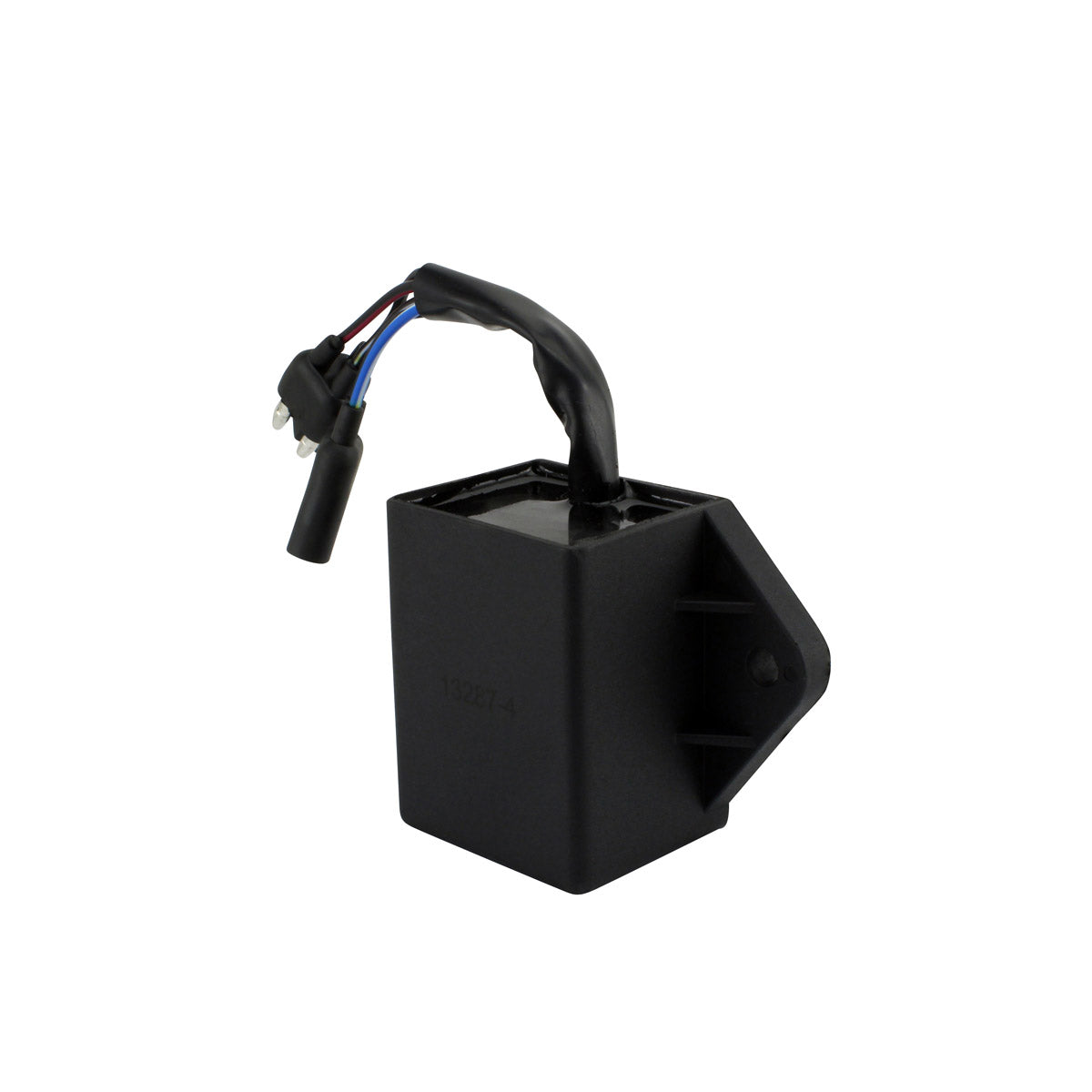

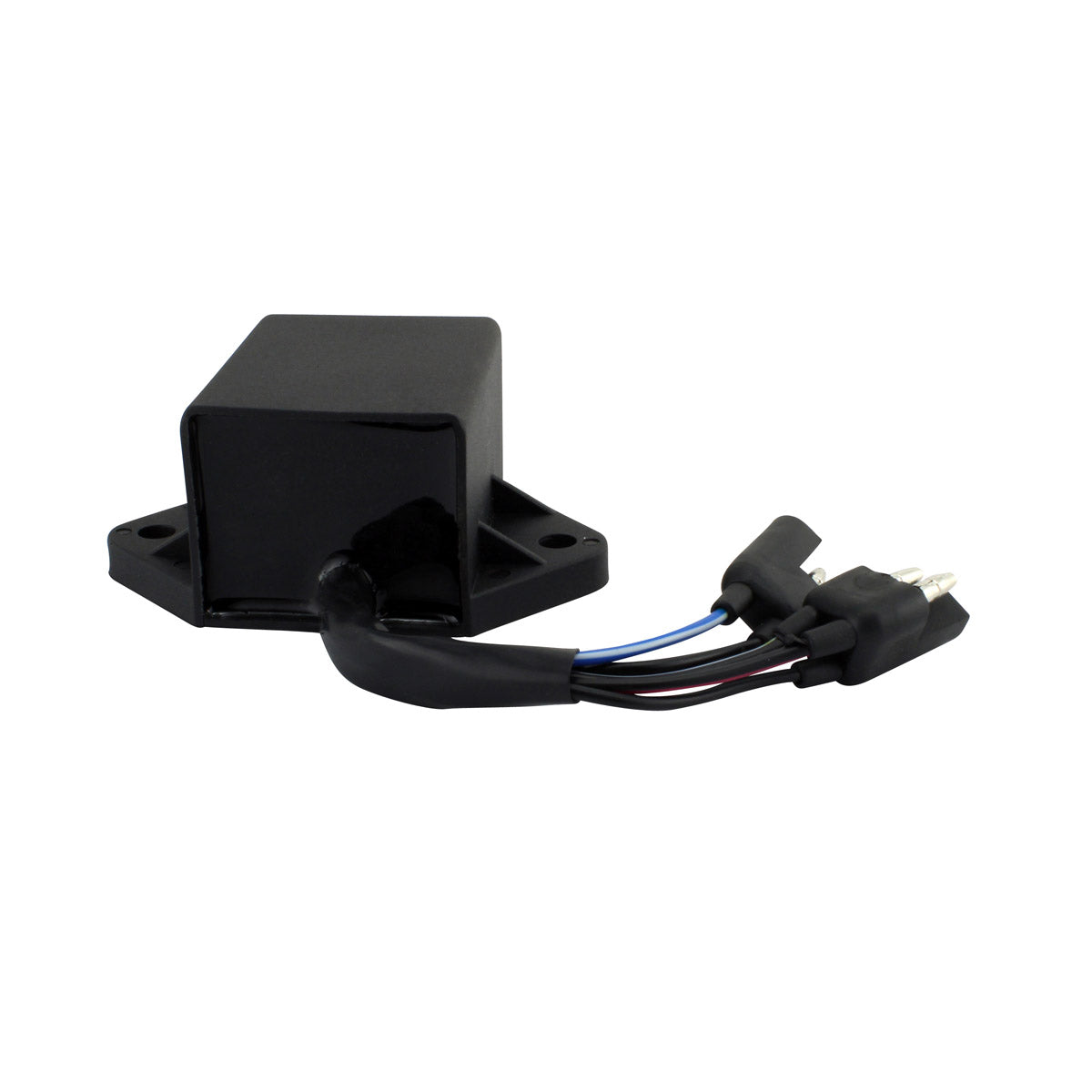

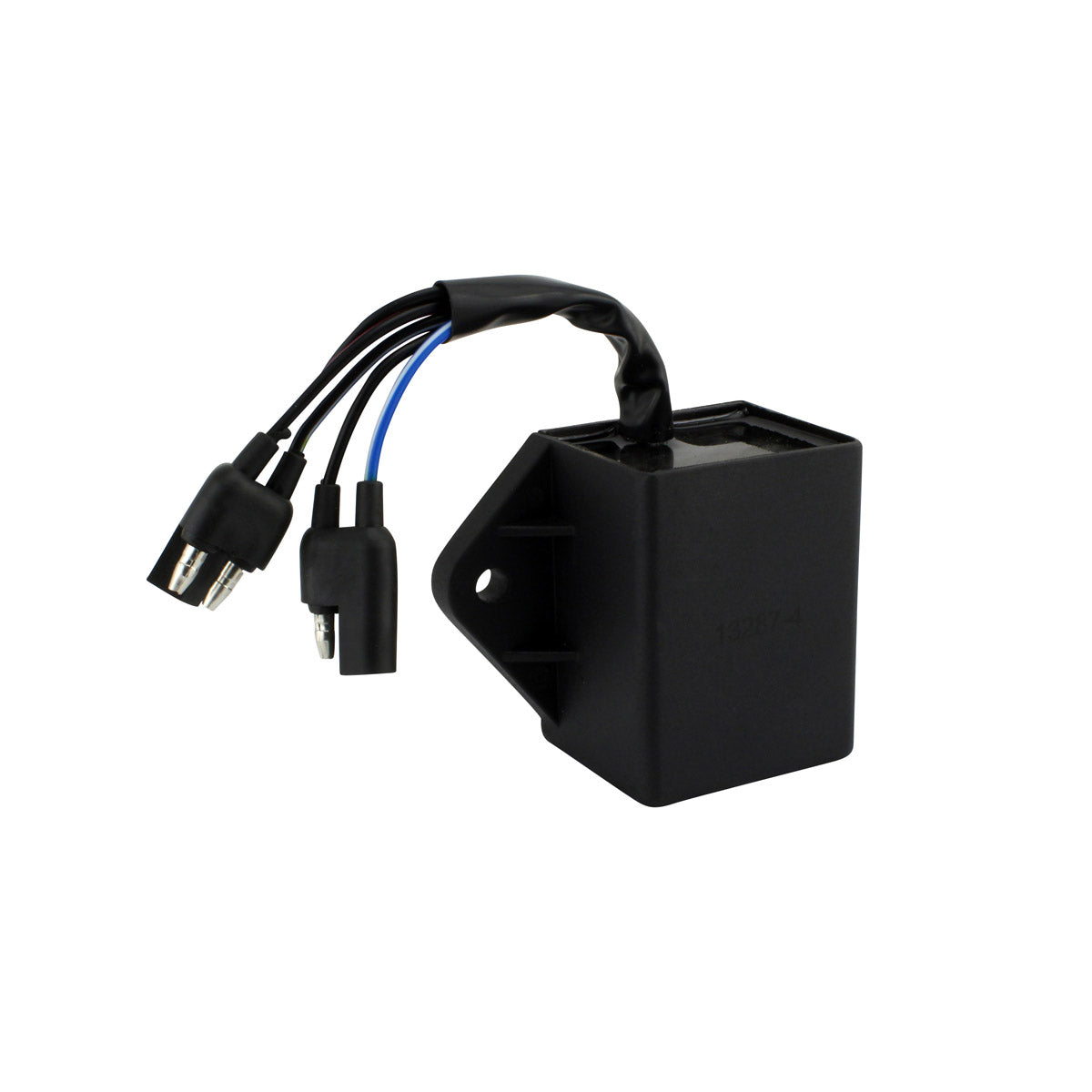

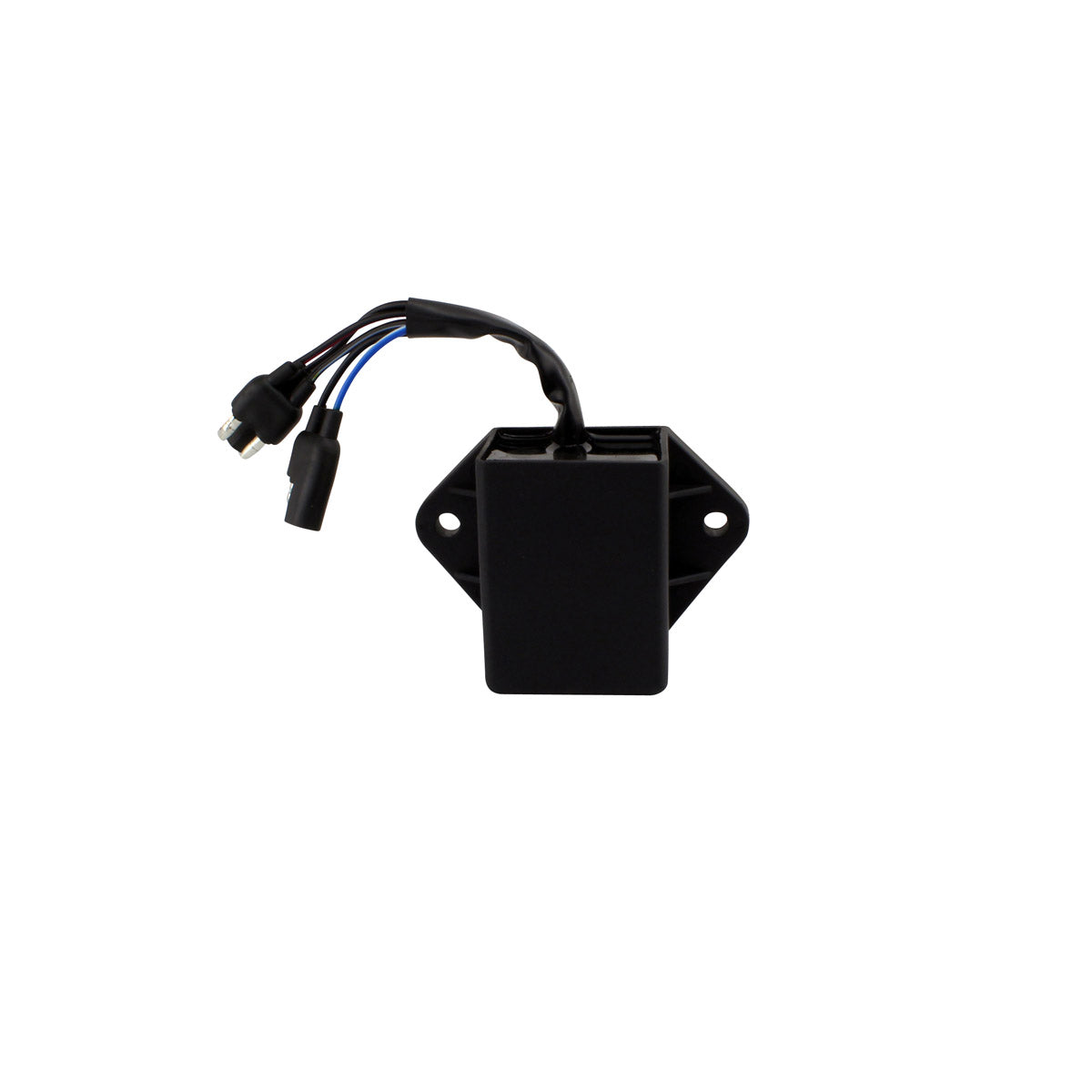

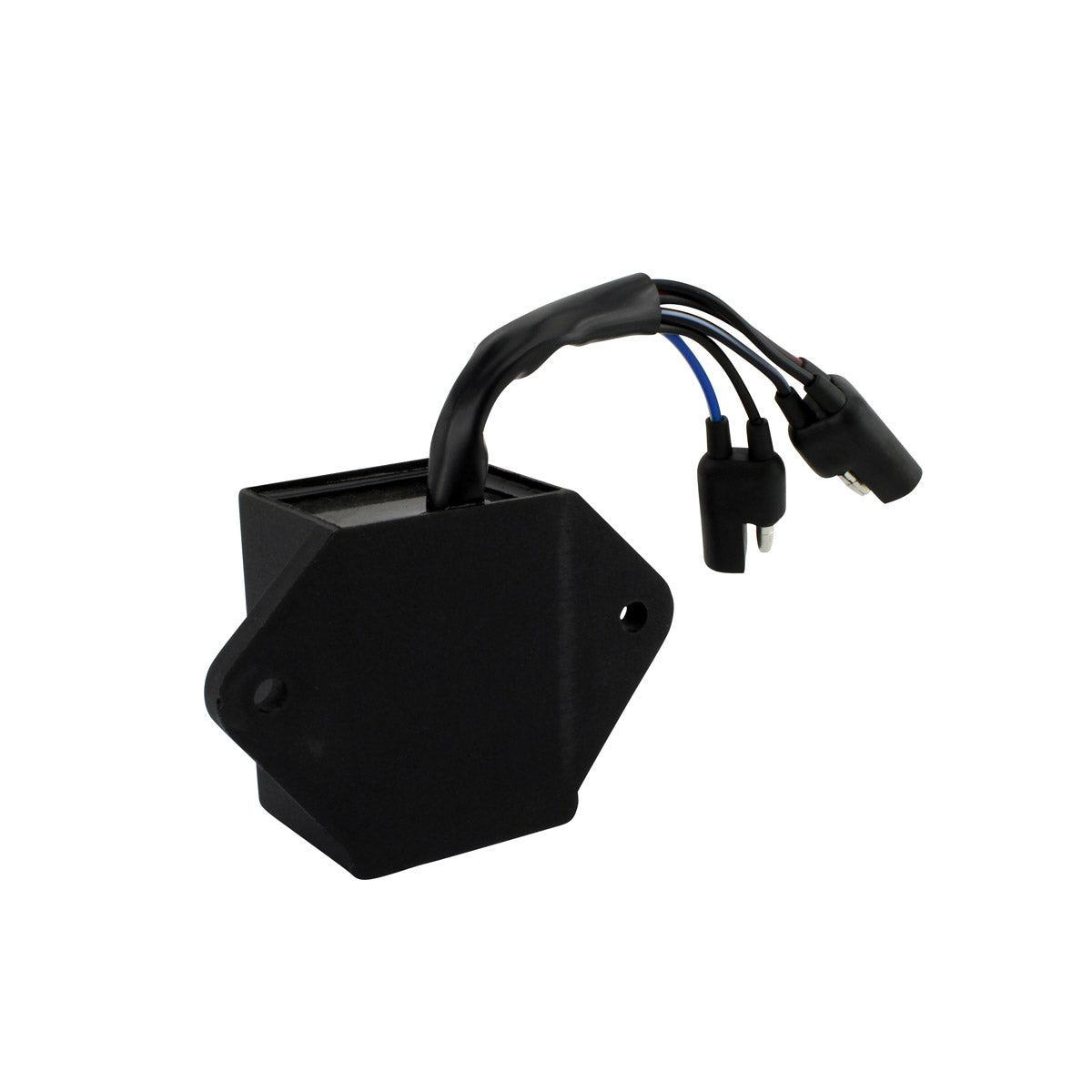

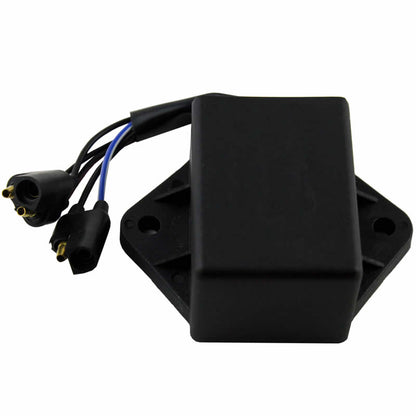

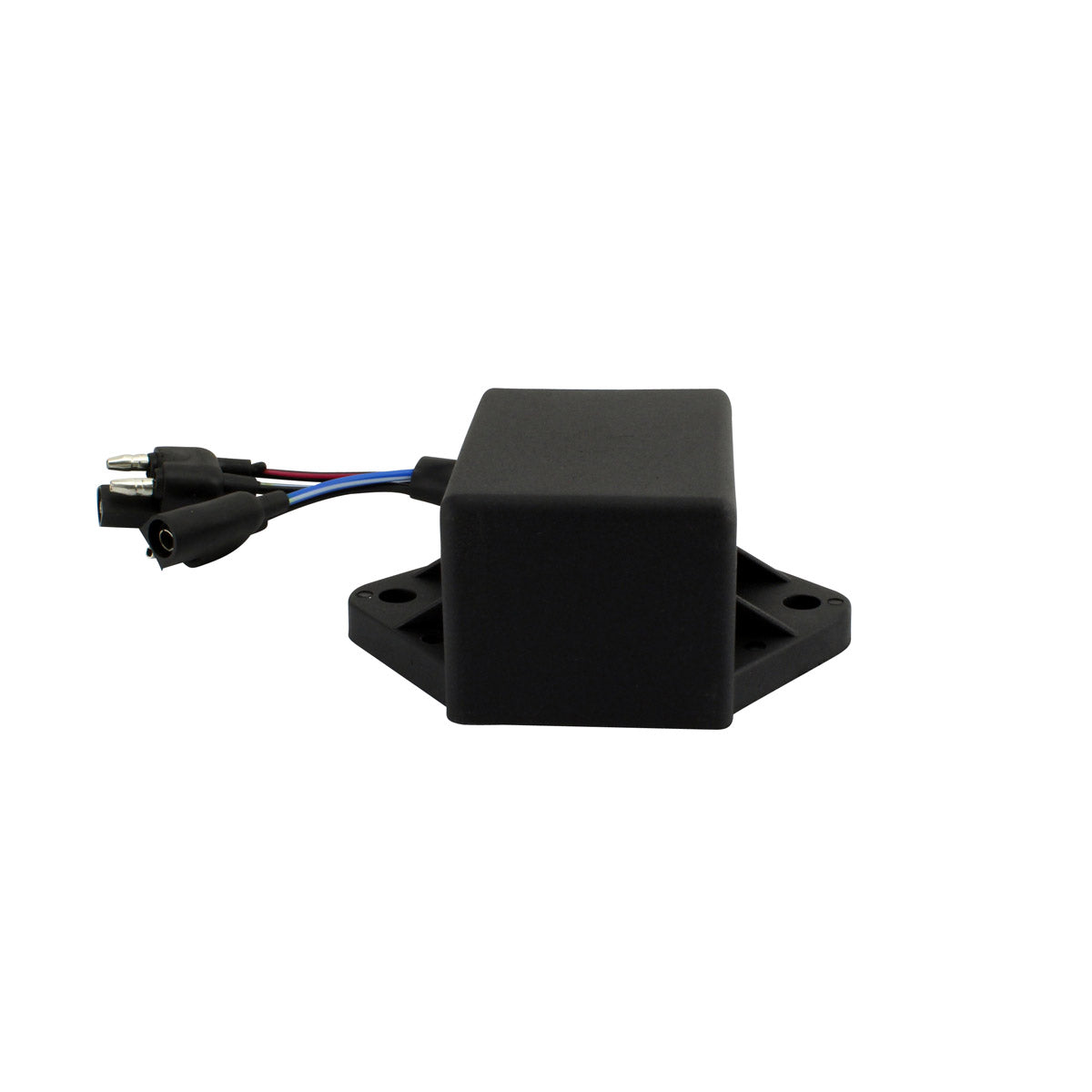

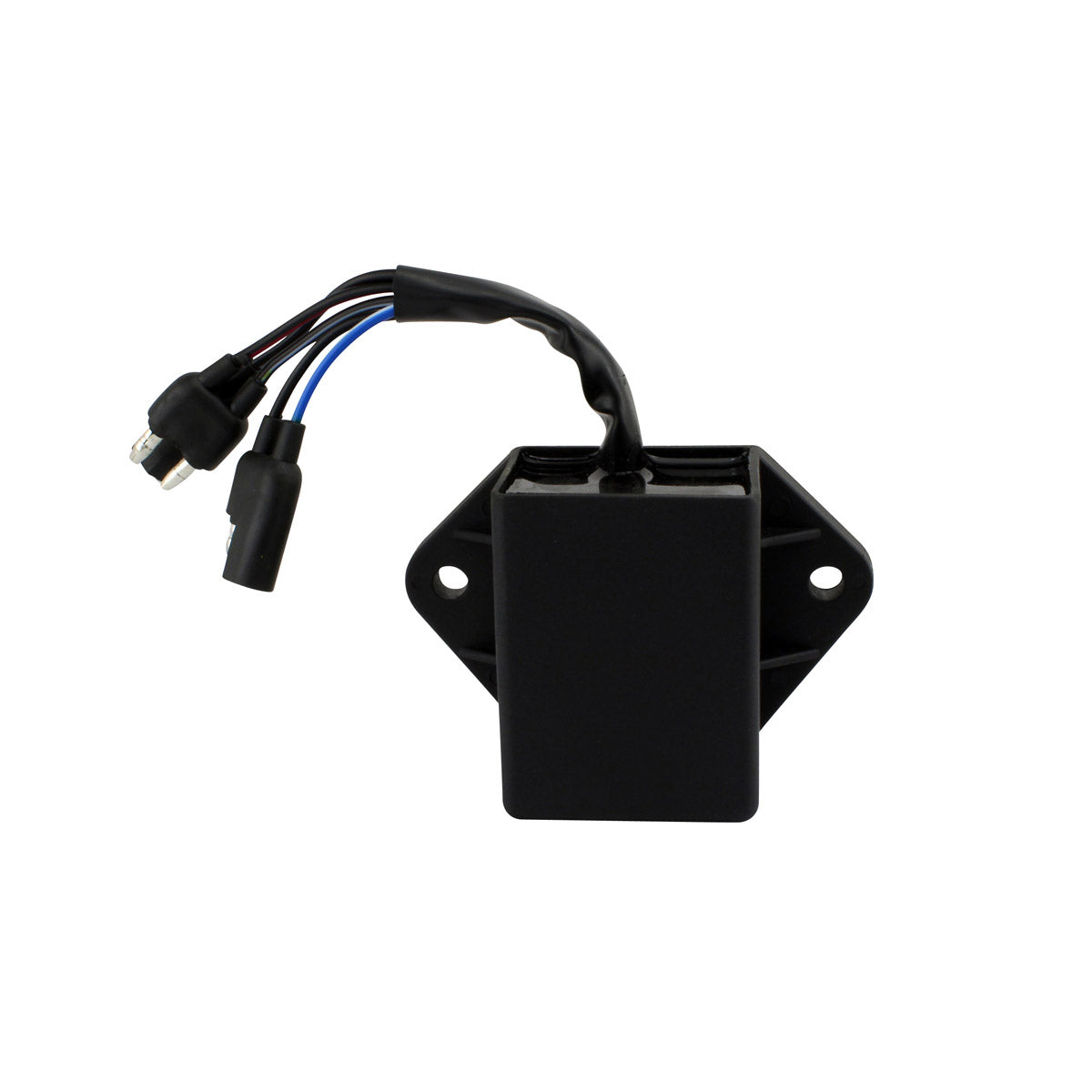

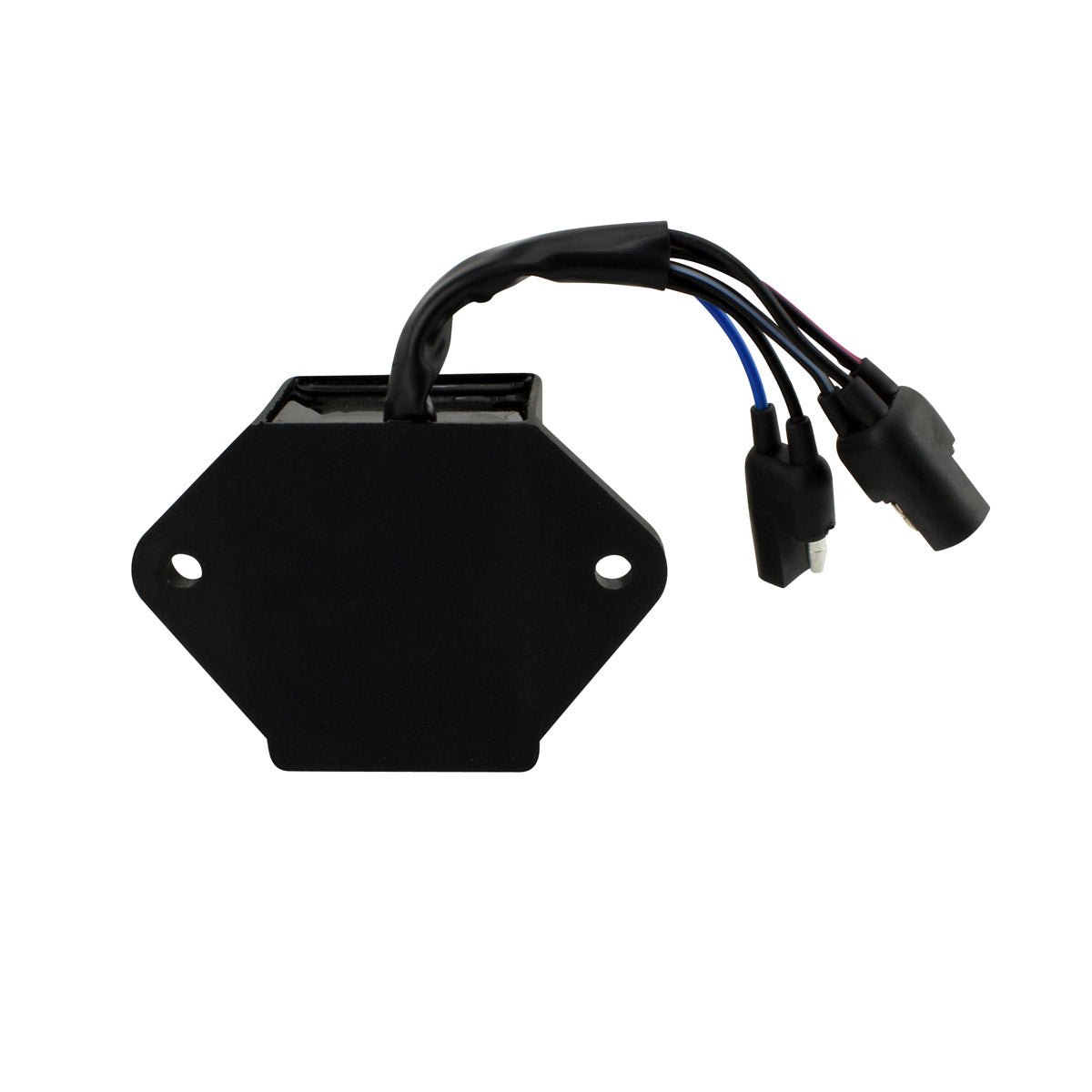

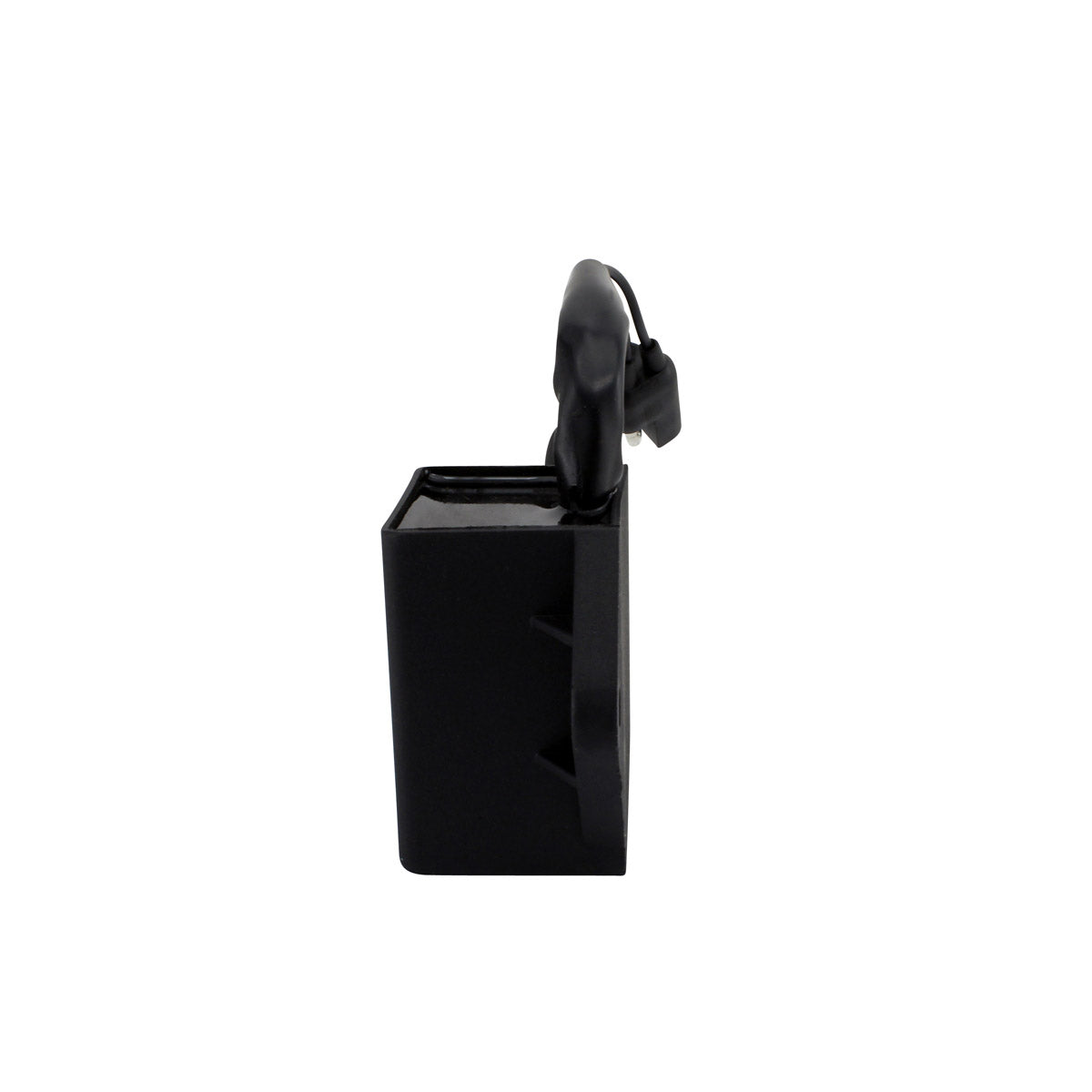

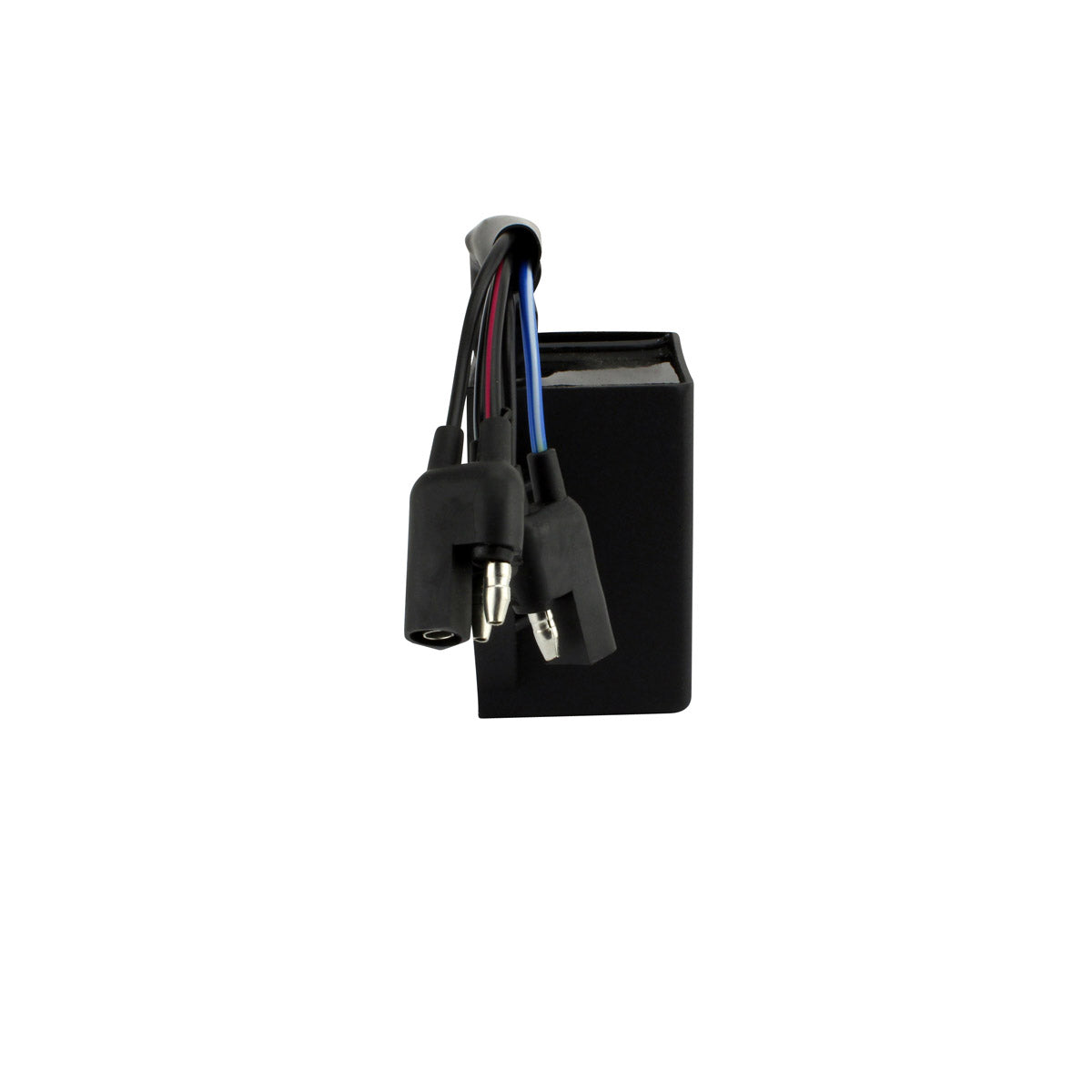

The CDI box is the ignition brain of the machine. It stores the charge coming from the stator, then dumps it into the ignition coil at exactly the right crank angle, so a CDI that is drifting or breaking down shows up as a machine that will not start, cuts out when it warms up, misfires on one cylinder or refuses to rev past a certain point. This is a brand new aftermarket PeakRPM CDI box from RMSTATOR, part reference RM02017.
RMSTATOR describe it as providing the optimal output for your ride, with fast and easy installation thanks to a plug and play OEM design, and dielectric connector grease included in the box. OEM-grade electronic components and printed circuit boards are used throughout for long-term reliability and performance. The unit is a tested item, built to the original two-plug, five-pin pattern so it drops straight onto the existing loom.
Key Features
- Brand new aftermarket PeakRPM CDI box, tested
- Plug and play OEM design for fast and easy installation
- OEM-grade electronic components and printed circuit boards
- Optimal ignition output for the machine it is fitted to

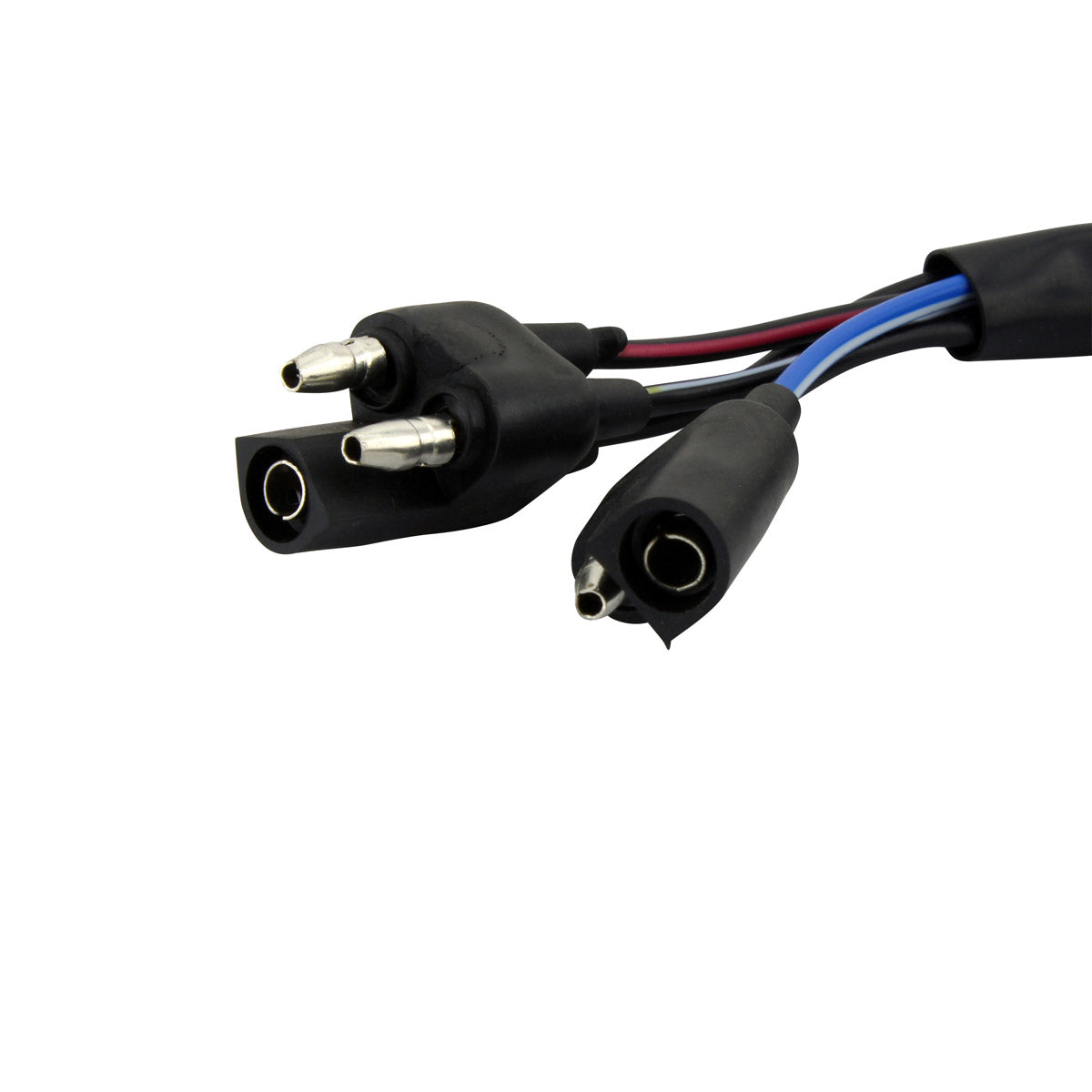

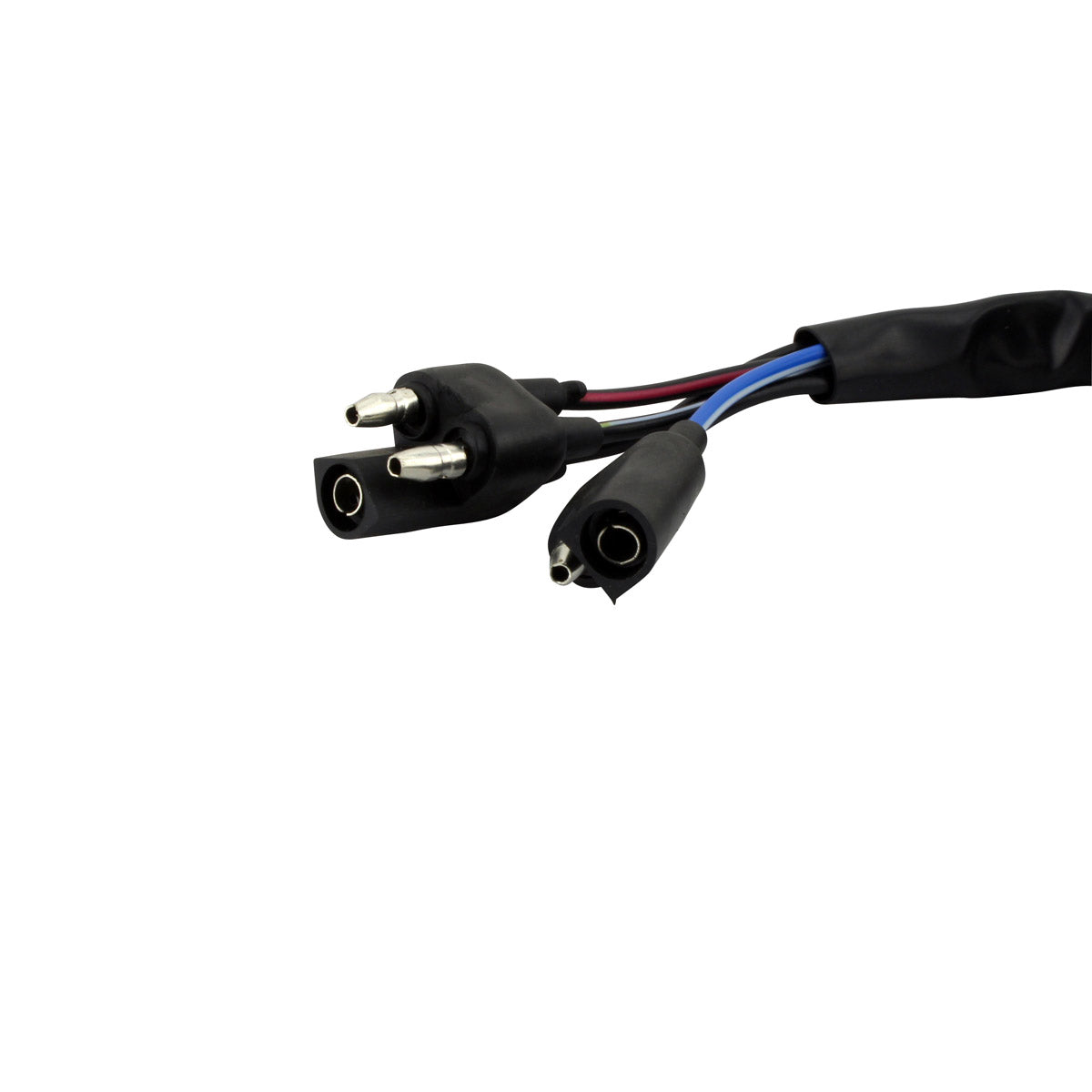

- Two plugs and five pins, matching the original connector pattern
- Dielectric connector grease included
- Part number RM02017
Technical Specs
| Specification |
Detail |
| Part number |
RM02017 |
| Height |
57 mm |
| Length |
85 mm |
| Width |
27 mm |
| Fixing holes, centre to centre |
75 mm |
| Wire length |
140 mm |
| Number of plugs |
2 |
| Number of pins |
5 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Ski-Doo Safari 377 |
1987-1993 |
| Ski-Doo Safari 503 |
1987-1993 |
| Ski-Doo Formula MX 467 |
1987-1993 |
| Sea-Doo 580 SP |
1987-1993 |
| Sea-Doo 580 GT |
1987-1993 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 290866599 |
Ski-Doo / Sea-Doo |
| 410911700 |
Ski-Doo / Sea-Doo |
| 410913300 |
Ski-Doo / Sea-Doo |
| 410913400 |
Ski-Doo / Sea-Doo |
| 410913700 |
Ski-Doo / Sea-Doo |
| 420866595 |
Ski-Doo / Sea-Doo |
Frequently Asked Questions
Will this fit without modification?
Yes. RMSTATOR build this box to a plug and play OEM design, with the same two plugs and five pins as the original, so it connects to the existing loom without cutting, splicing or adapters. The 75 mm fixing hole spacing matches the standard mounting. Check the number moulded or printed on your old box against the cross reference table before ordering.
What is included?
One brand new PeakRPM CDI box and a sachet of dielectric connector grease for the plugs. Mounting hardware from your original installation is re-used.
How do I know my old CDI box has failed?
A failing CDI typically gives no spark at all, or spark that disappears once the engine and the box get hot and comes back after the machine has cooled. Other signs are a cylinder that drops out under load, a rev ceiling that the engine will not pull through, and erratic running that does not respond to fuel or carburettor work. Confirm the stator and ignition coil test correctly first, since a weak stator output looks very similar from the seat.
Why use the dielectric grease that comes with it?
The grease is packed with the box because the connectors on these machines live in a wet, salted, vibrating environment. Packing the plugs keeps water and corrosion out of the pins, which is one of the more common causes of an intermittent ignition fault that gets blamed on the CDI itself.
