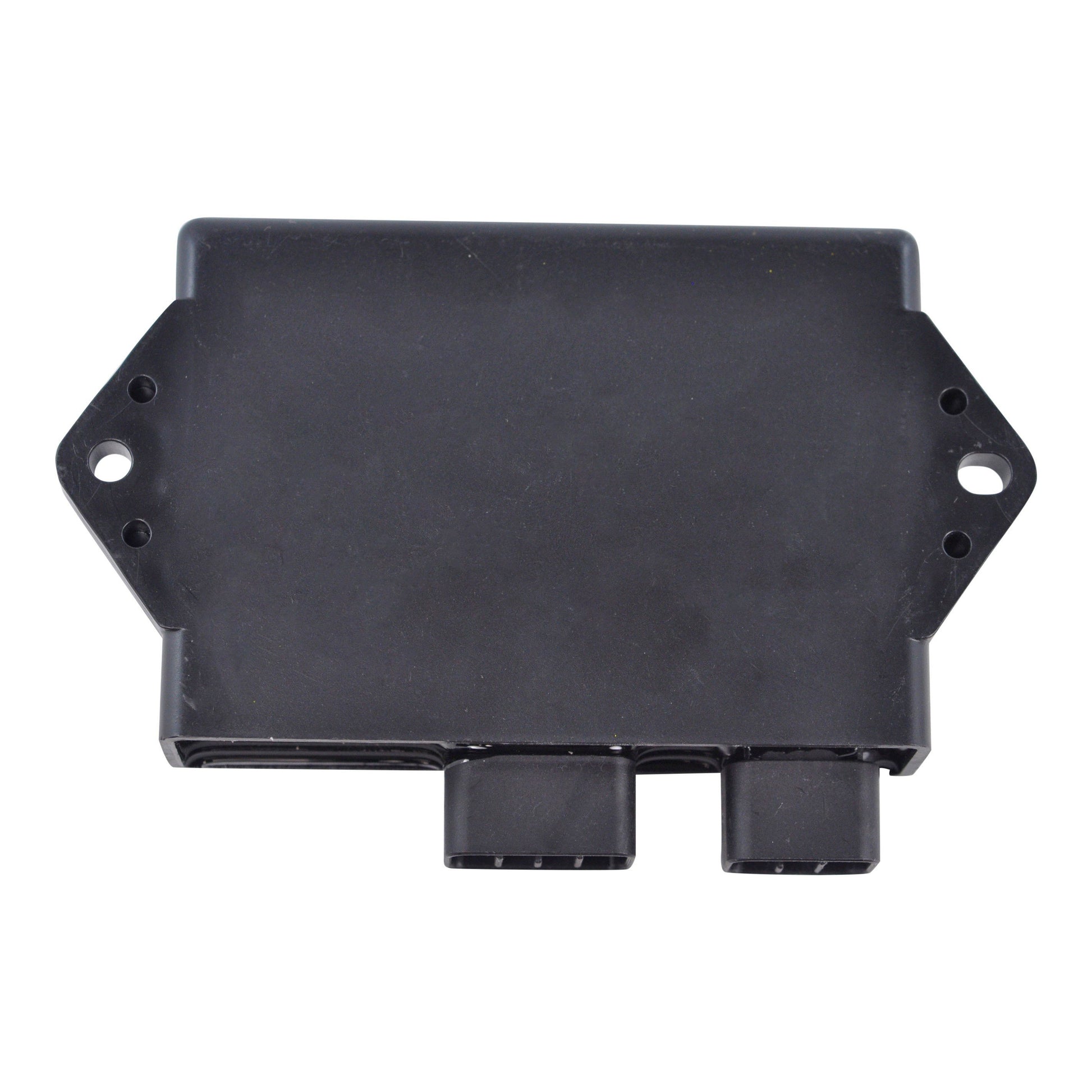

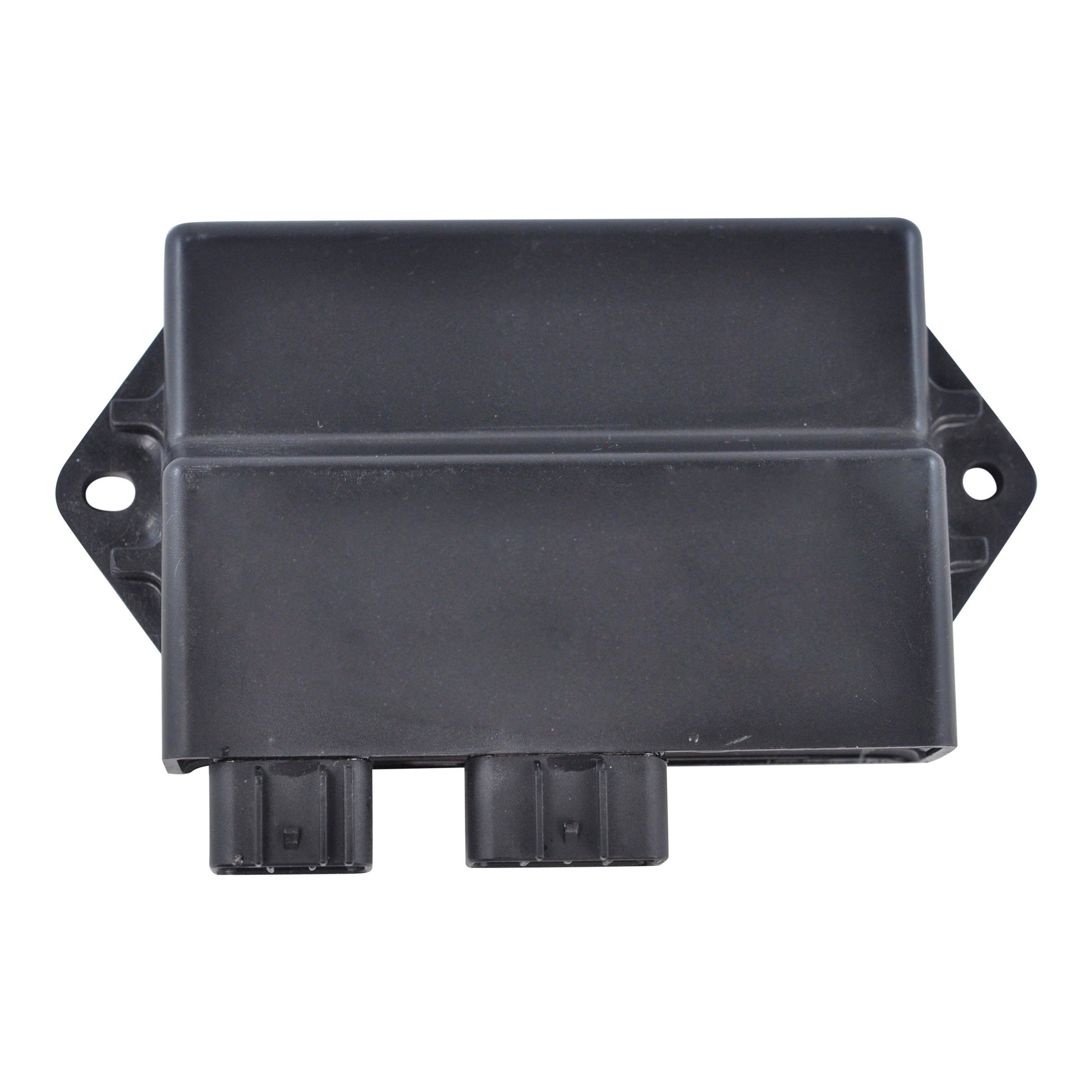

CDI Ignition Module for Yamaha YFM400 Kodiak 2000-2001
CDI Ignition Module for Yamaha YFM400 Kodiak 2000-2001
SKU:RM02145
Free shipping over £150. Terms apply
Couldn't load pickup availability
CDI Box for Yamaha YFM400 Kodiak 2000-2001
Fits Yamaha YFM400 Kodiak 2000-2001
This CDI (Capacitor Discharge Ignition) module is built to OEM specifications as a direct plug-in replacement for the ignition system on the Yamaha YFM400 Kodiak. It restores reliable spark timing for consistent starting and running.
The unit is fitted with a 2-plug, 10-pin connector layout matching the factory harness, and measures 110mm long by 78mm wide with a 27mm case height, using the original 126mm centre-to-centre fixing holes so it bolts straight in without any drilling or bracket modification.
Key Features
- Direct OEM fit and finish, no wiring modifications required

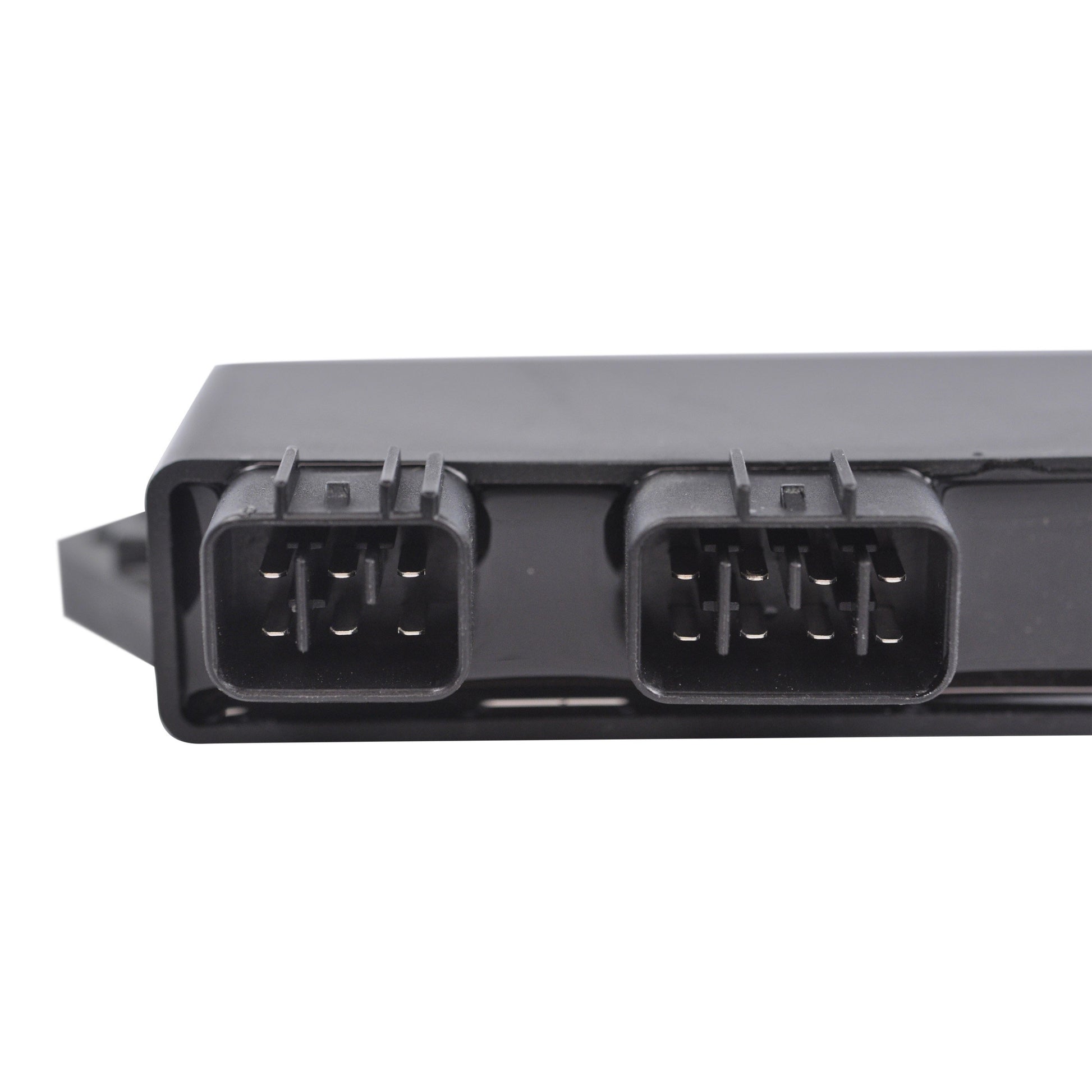

- 2-plug, 10-pin connector layout matching the original harness
- 110 x 78 x 27mm case with 126mm fixing hole spacing
- Covers Yamaha YFM400 Kodiak 2000-2001
- Please note: CDI units are excluded from warranty and are non-refundable once fitted
Technical Specs
| Specification | Detail |
|---|---|
| Height | 27mm |
| Length | 110mm |
| Width | 78mm |
| Fixing Holes (centre to centre) | 126mm |
| Plugs | 2 |
| Pins | 10 |
| Part Type | CDI Ignition Module |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFM400 Kodiak | 2000-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5GH-85540-10-00 | Yamaha |
Frequently Asked Questions
Will this CDI fit without any modifications?
Yes, it is a direct plug-in replacement using the original connector layout, so no cutting or splicing of the wiring loom is required.
What is included?
One CDI module, ready to fit in place of the original unit.
How can I tell my CDI has failed?
Common symptoms include no spark, intermittent misfiring, stalling, or a complete failure to start even though the battery and starter are working normally.
Is this CDI covered by warranty?
Due to the sealed electronic nature of CDI units they are excluded from our standard warranty and are non-refundable once fitted. Please confirm the OEM number against your original unit before ordering.
Do I need to reprogram or reset anything after fitting?
No, the unit is a like-for-like electronic replacement - once connected it works immediately with no reprogramming, resetting, or additional adjustment needed.
