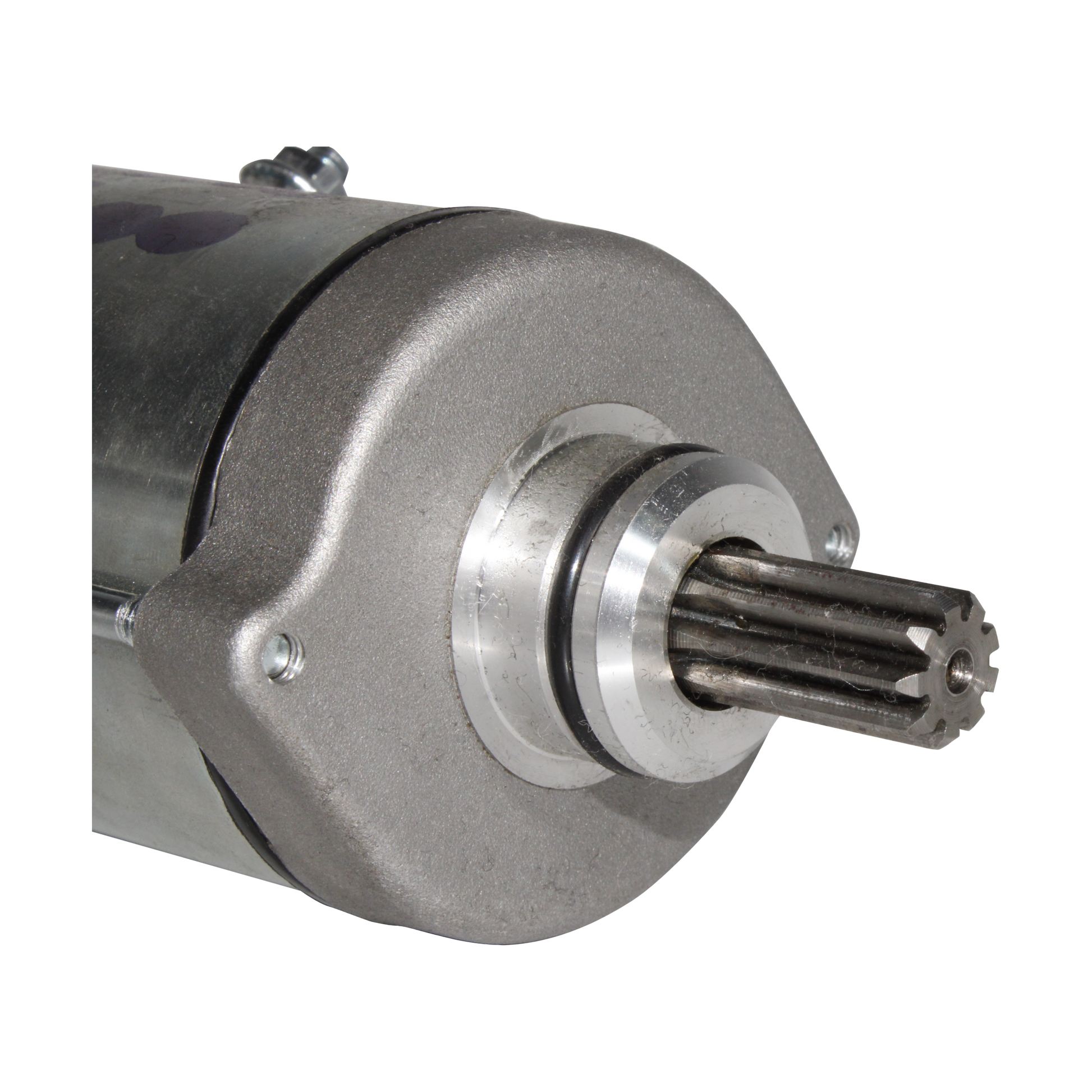

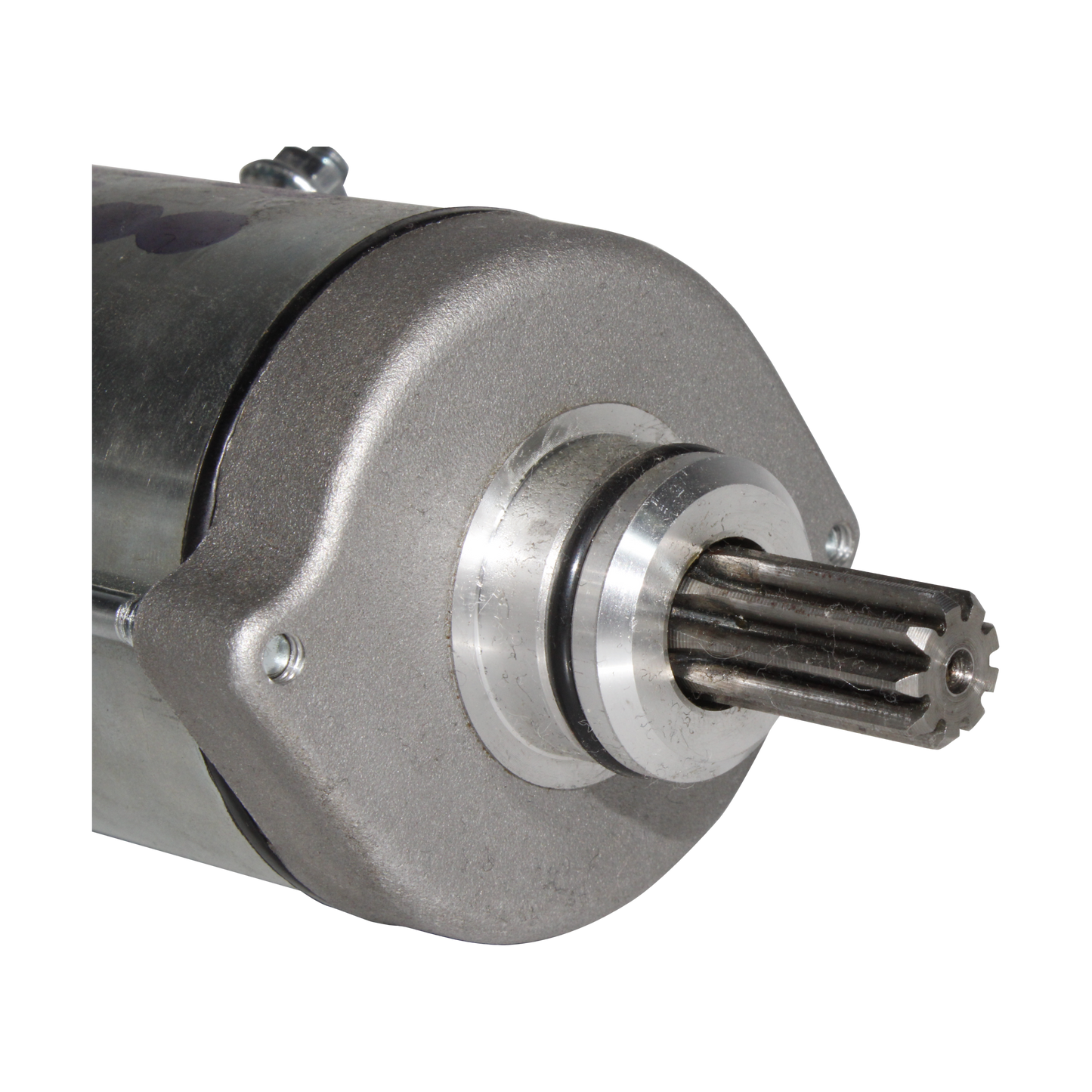

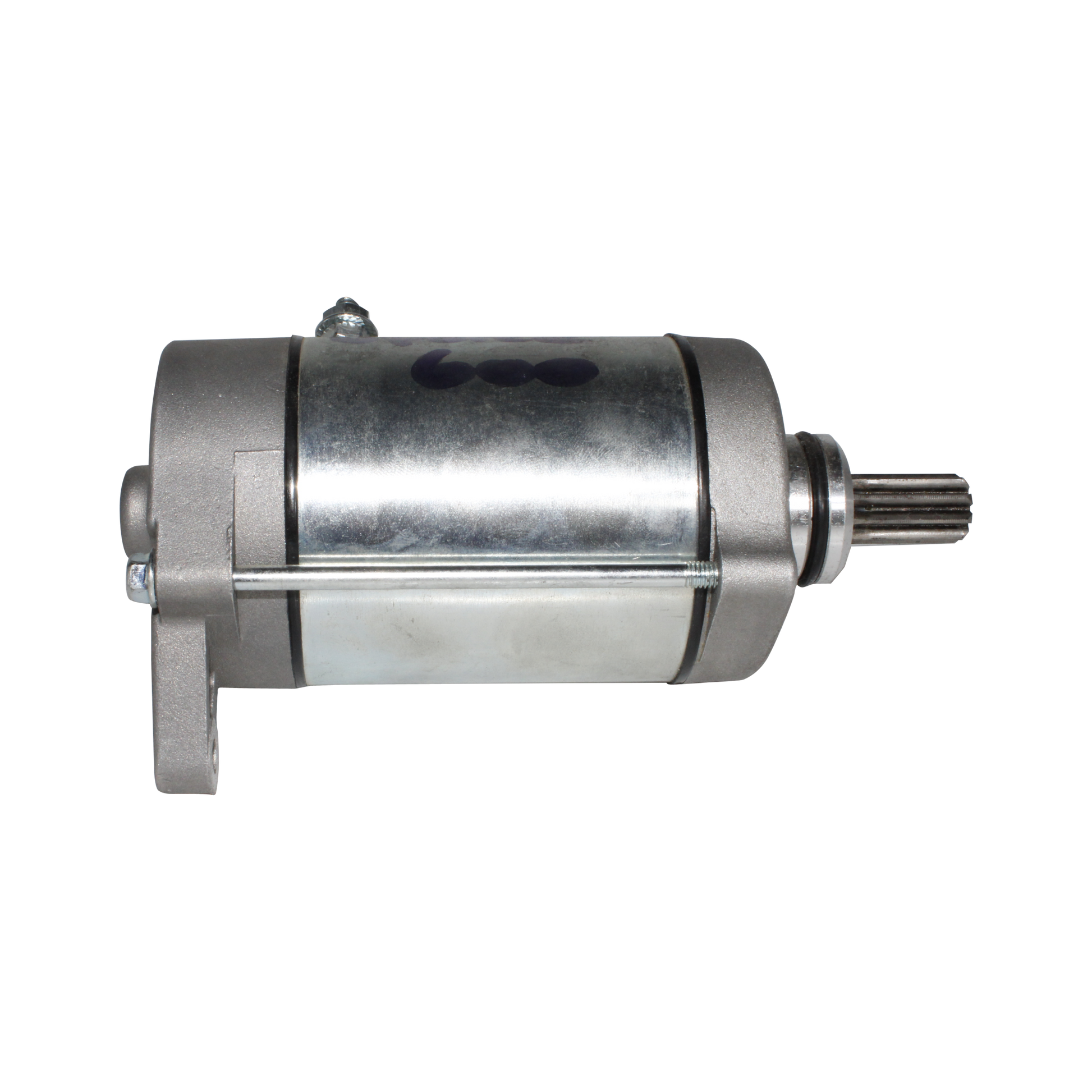

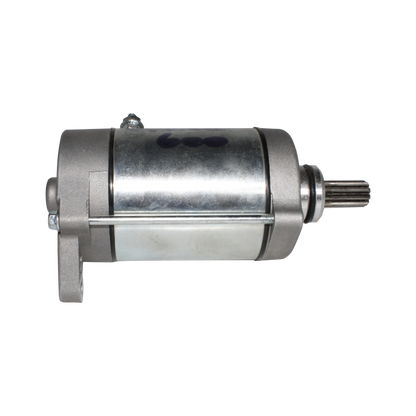

CF Moto 12V Starter Motor
Premium Replacement for CForce, UForce & ZForce Series
This heavy-duty 12V starter motor is a precision-engineered replacement part for CF Moto utility and sport vehicles. Manufactured to meet or exceed original equipment (OE) standards, it ensures consistent, high-torque cranking power even in demanding off-road conditions. Whether you are maintaining a farm-ready UForce or a trail-blazing ZForce, this motor provides the reliability needed for a fast start every time.
Key Features
- ✔ Direct OEM-fit replacement
- ✔ 9-Tooth drive pinion for smooth engagement
- ✔ High-torque PMDD starter type
- ✔ Weather-sealed casing for durability

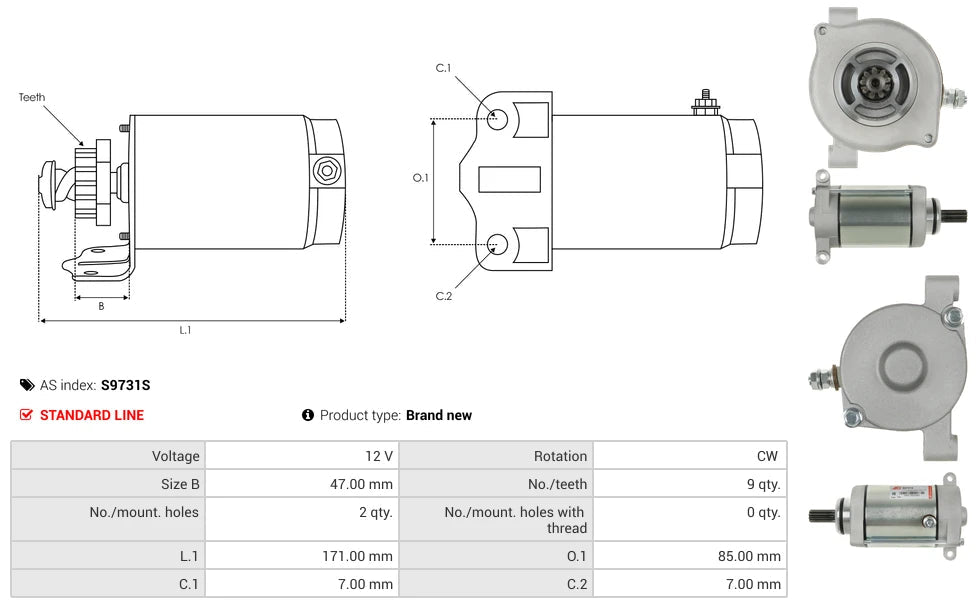

Technical Specs
| Voltage: | 12V |
| Teeth Count: | 9 |
| Rotation: | Clockwise (CW) |
| Power Rating: | 0.65 kW |

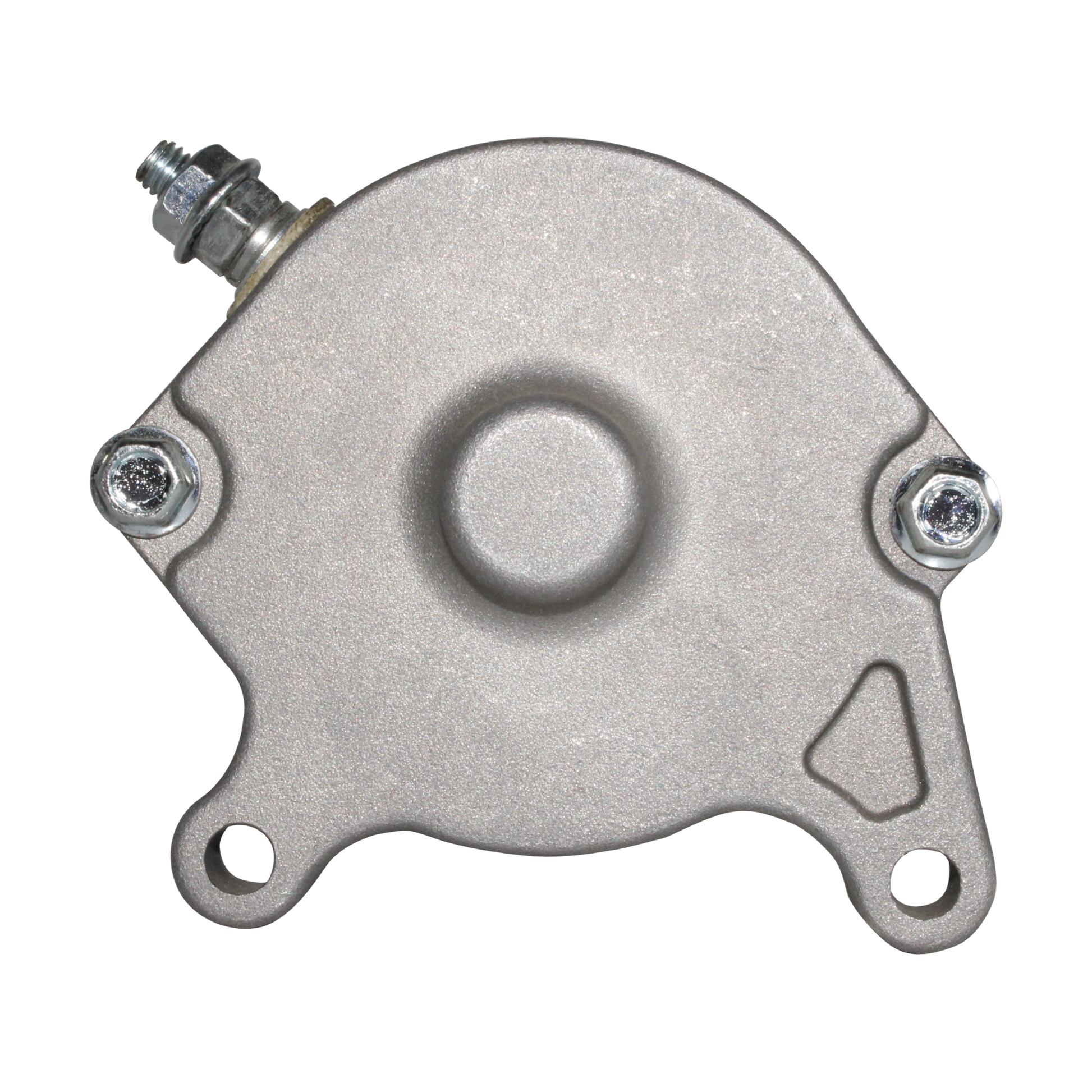

| Mounting: | 2-Bolt (Unthreaded) |
Compatibility / Fitment Guide
| Series | Model Application | Engine / Notes |
|---|---|---|
| CForce | 400, 450, 500, 520, 600, 800, 1000 | All Model Years |
| UForce | 500, 600, 800, 1000, 1000 XL | Utility UTV Models |
| ZForce | 500, 800 Trail, 800 EX, 950, 1000 | Sport SSV Models |
| Classic ATVs | CF500, CF188, Rancher X5, X6 | Standard 500cc/600cc Engines |
OEM Cross Reference
| CF Moto OEM | 0180-091100-0010, 0188-091100, 188-091100, 0GR0-091100 |
| Lester Number | 19584, 19584N |
| Arrowhead | 410-58051 |
Questions & Answers
Is this a genuine original part?
This is a premium quality 4Drive aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these (specifically the 0180-091100 series), it is a guaranteed fit.
Does this starter motor include the pinion gear?
Yes, this unit comes fully assembled with the 9-tooth drive pinion gear installed and ready for immediate bolt-on installation.
Note: 4Drive recommends that all electrical components be installed by a qualified technician. Always verify your original part number at 4drive.co.uk before purchasing.
