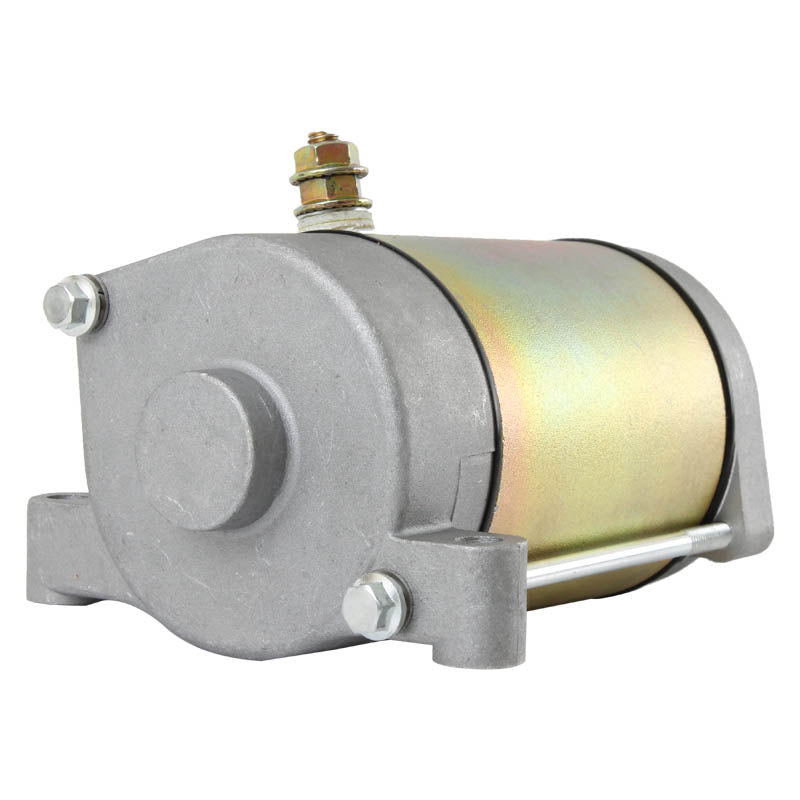

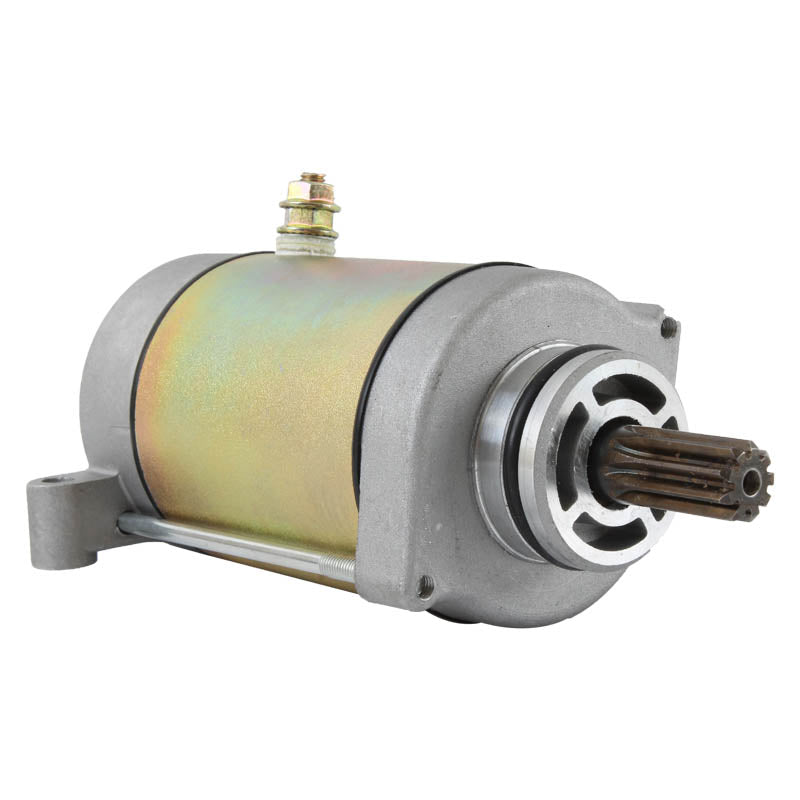

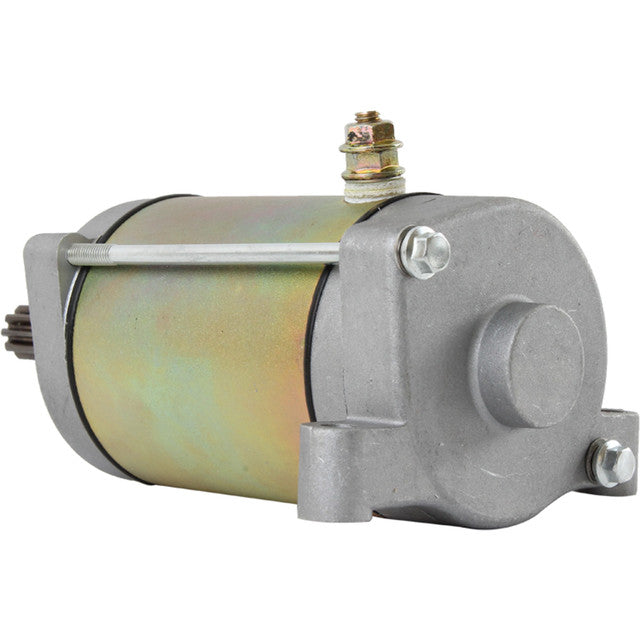

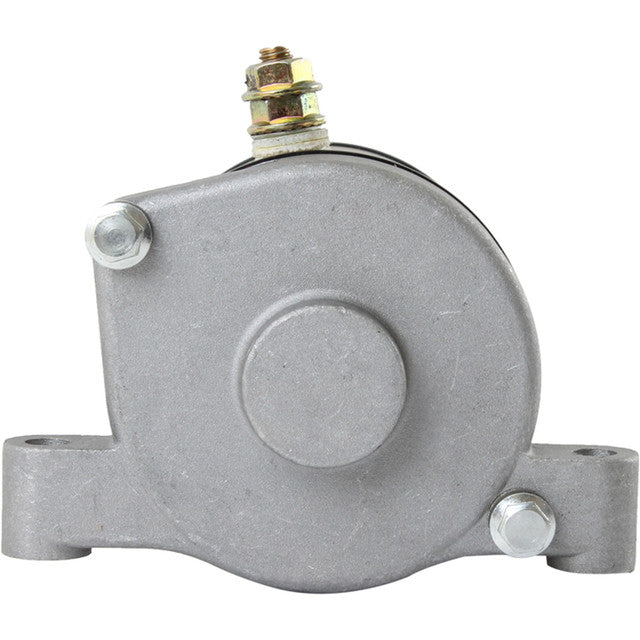

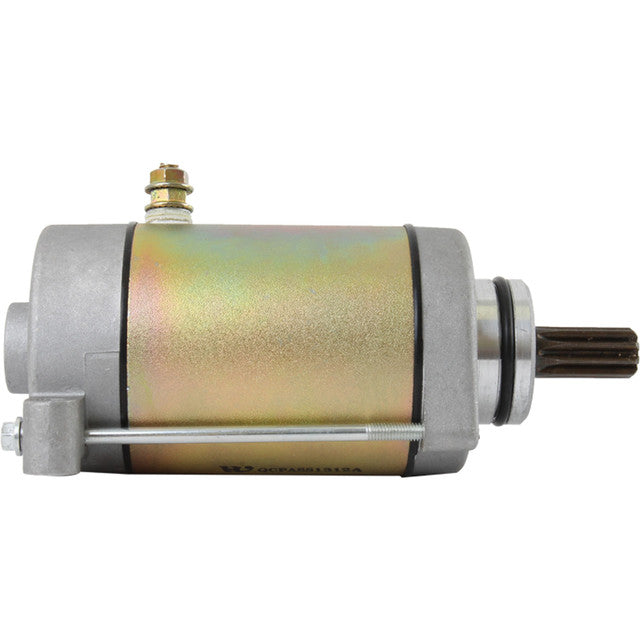

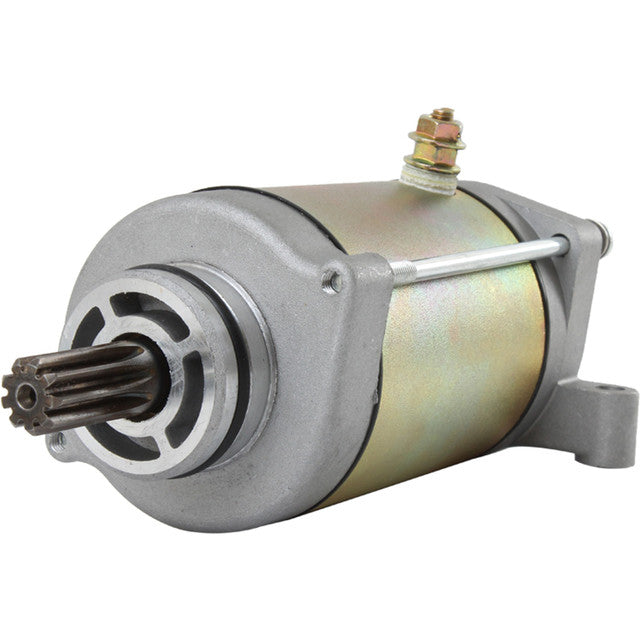

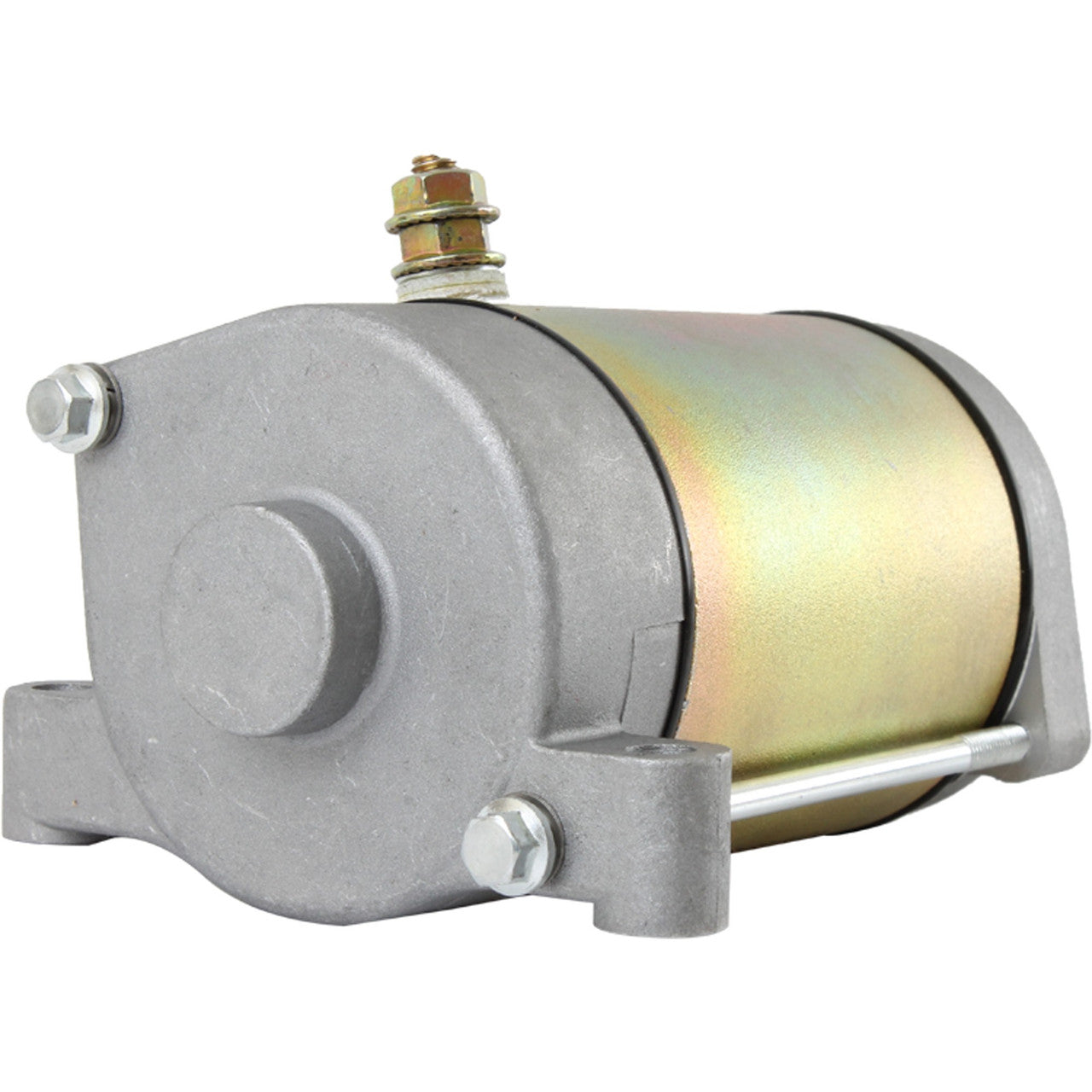

Restore your vehicle's cranking power with the 4Drive premium aftermarket starter motor. Specifically engineered for the most common Chinese-built 50cc to 125cc 4-stroke horizontal engines, this unit provides high-torque performance for fast, reliable engine starts. Whether you are repairing a TaoTao quad, a Sunl dirt bike, or a Kazuma buggy, this starter offers a direct-fit solution designed to handle the rigours of off-road use.
RELIABILITY: Manufactured with high-quality magnets and field coils to deliver maximum torque and sealed housings to protect internal components from debris.
Key Features
✔ Direct fit replacement for top-mount engines

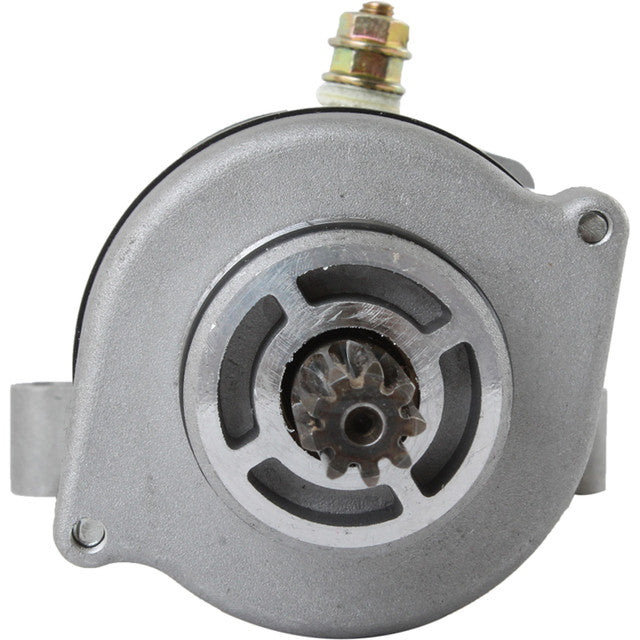

✔ Precision 12-tooth drive gear
✔ Weather-sealed housing against moisture
✔ High-grade copper wiring for maximum conductivity

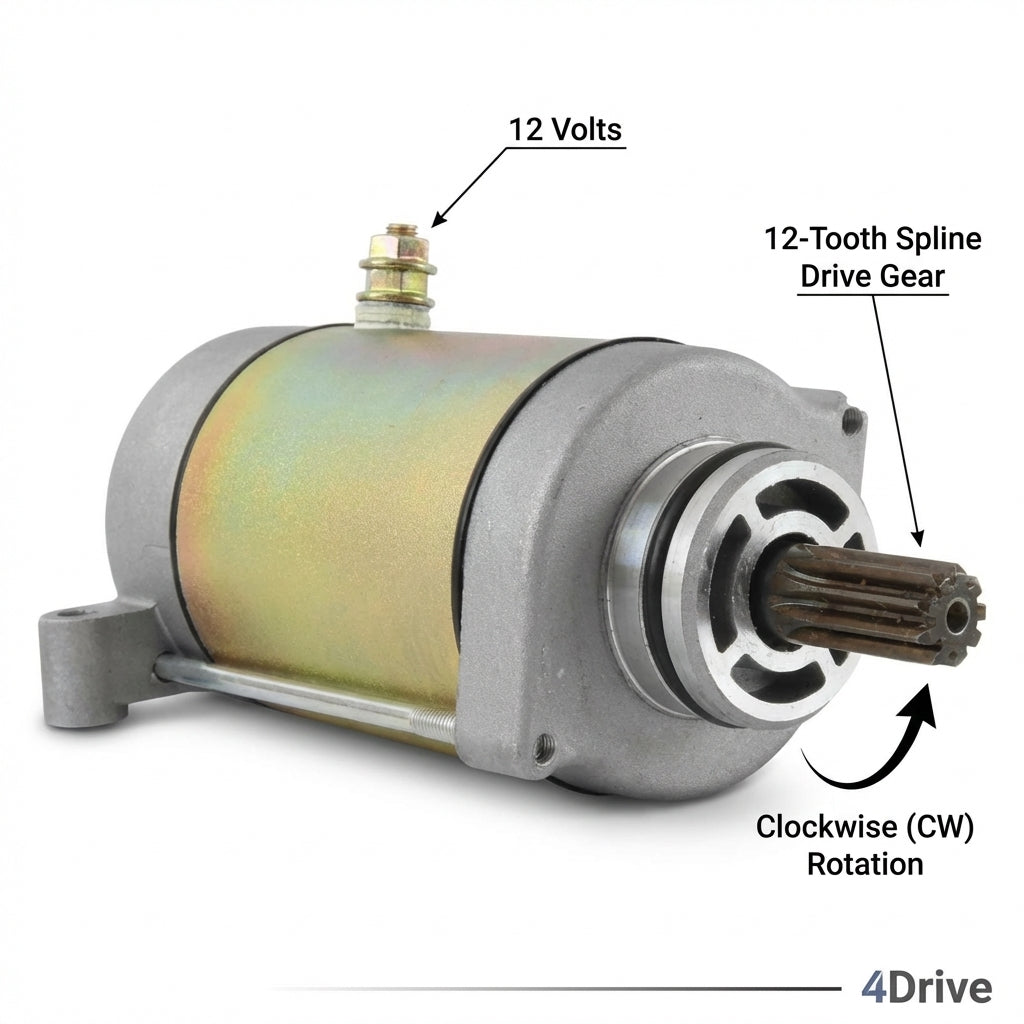

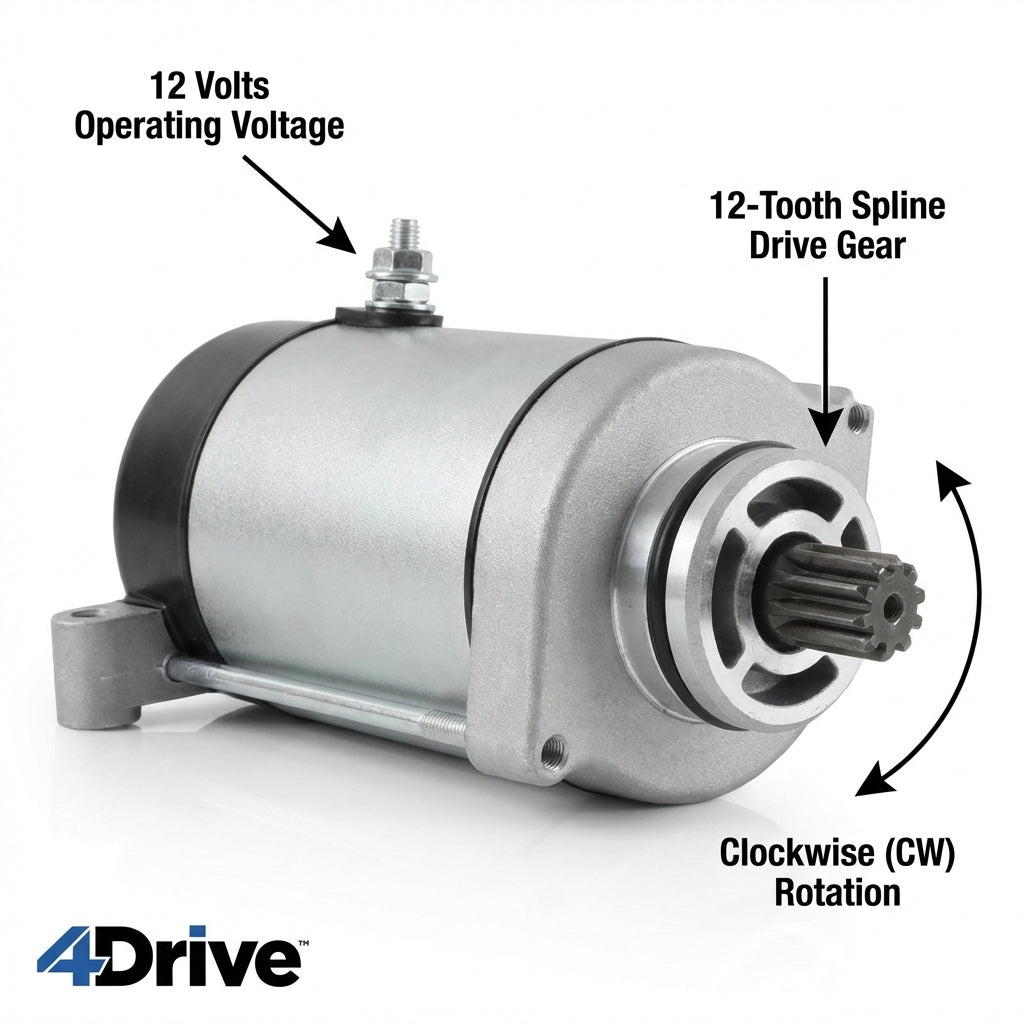

Technical Specs
Voltage
12V
Rotation
CW (Clockwise)
Teeth
12
Mounting
3-Bolt (Top Mount)
Overall Length
Approx. 148mm
Compatibility / Fitment Guide
Make/System
Model/Application
Notes
TaoTao / Coolster
110cc & 125cc Quads
Fits most horizontal engines
Sunl / Kazuma
50cc - 110cc ATVs
Direct bolt-on
Redcat / Buyang
90cc - 125cc Models
Verify 3-bolt configuration
Honda Clone
E22 Engine Series
Standard for kids quads
OEM Cross Reference
Part Number
410-58117 (4Drive)
Lester
19588
Arrowhead
410-58117
WAI
19588N
J & N
410-58117
Questions & Answers
Is this a genuine original part?
This is a premium quality 4Drive aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the tooth count and the mounting pattern. This unit features a 12-tooth drive gear and a 3-bolt top mount pattern. If your original motor matches these specs, this is the correct replacement.
Does this fit the Kazuma Meerkat 50cc?
No, this specific version does not fit the Kazuma Meerkat 50cc or 90cc (Wombat). Those models typically require a "short case" variant with a different bolt pattern.
Note: Please verify your original part number or engine configuration against the references above before purchasing. Domain: 4drive.co.uk
